Page 201 of 288

FORD ESCAPE 2006 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse
Panel Description
33 15A* Air bag module, Passenger Air bag
Deactivation (PAD) indicator
lamp, Occupant Classification
Sensor (OCS)
34 5A*

Page 202 of 288

FORD ESCAPE 2006 1.G Owners Manual The high-current fuses are coded as follows.
Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps,

Page 203 of 288

FORD ESCAPE 2006 1.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box
Description
18 40A** Blower motor
19 40A** Accessory delay relay - Subwoofer
and 4WD, Low beam
20 60A** ABS
21 40A** Horn, CHMSL, Cluster, Powe

Page 204 of 288

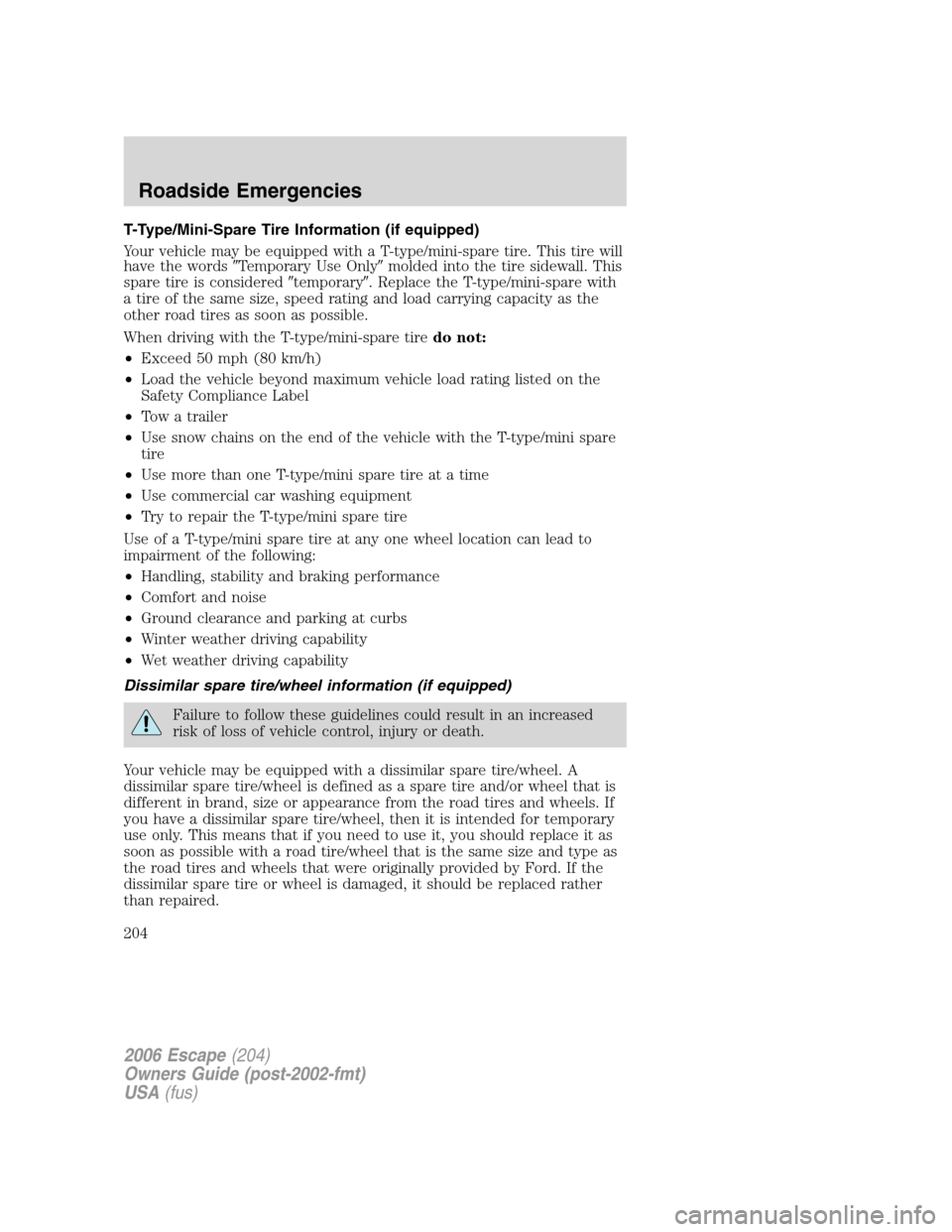

FORD ESCAPE 2006 1.G Owners Manual T-Type/Mini-Spare Tire Information (if equipped)
Your vehicle may be equipped with a T-type/mini-spare tire. This tire will
have the wordsTemporary Use Onlymolded into the tire sidewall. This
spare

Page 205 of 288

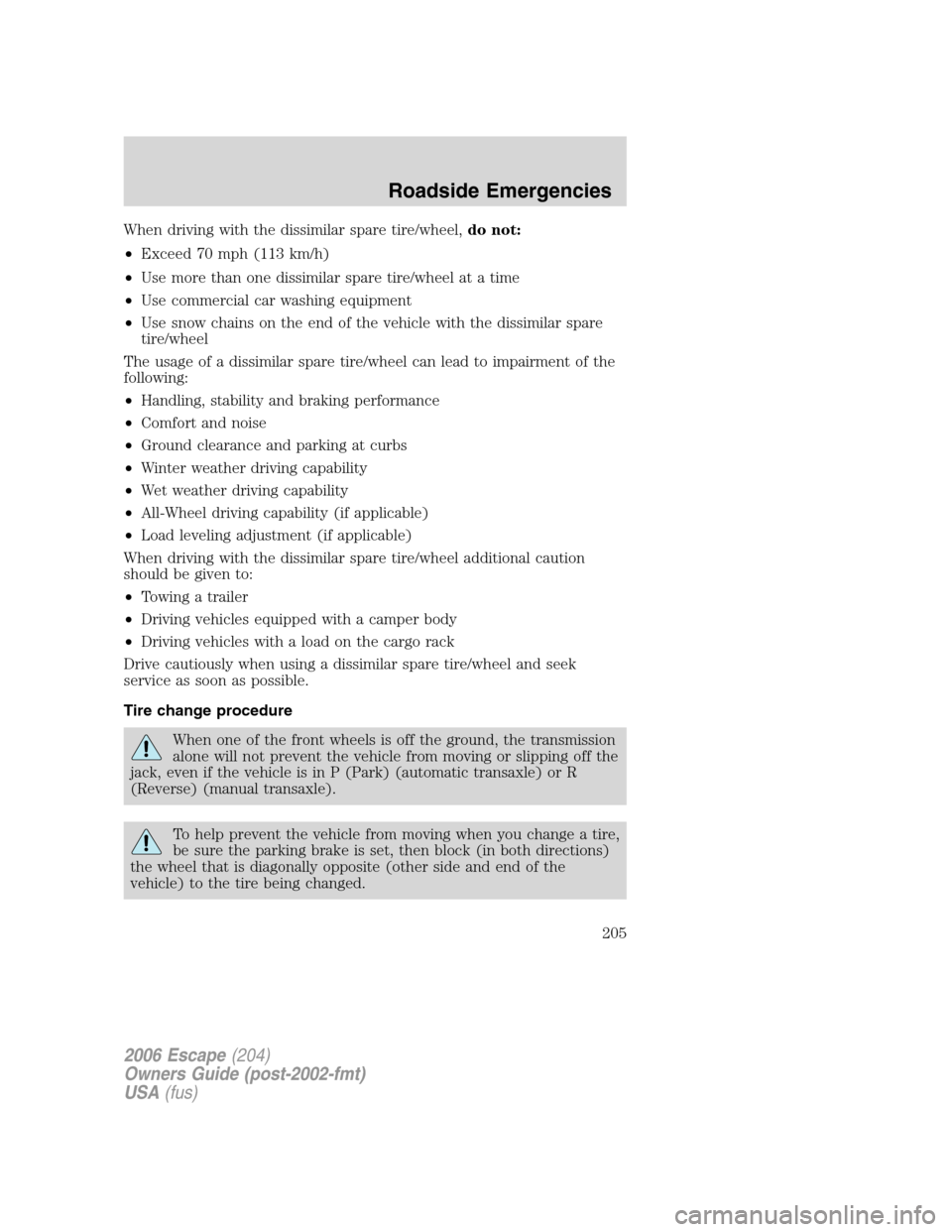

FORD ESCAPE 2006 1.G Owners Manual When driving with the dissimilar spare tire/wheel,do not:
•Exceed 70 mph (113 km/h)
•Use more than one dissimilar spare tire/wheel at a time
•Use commercial car washing equipment
•Use snow cha

Page 206 of 288

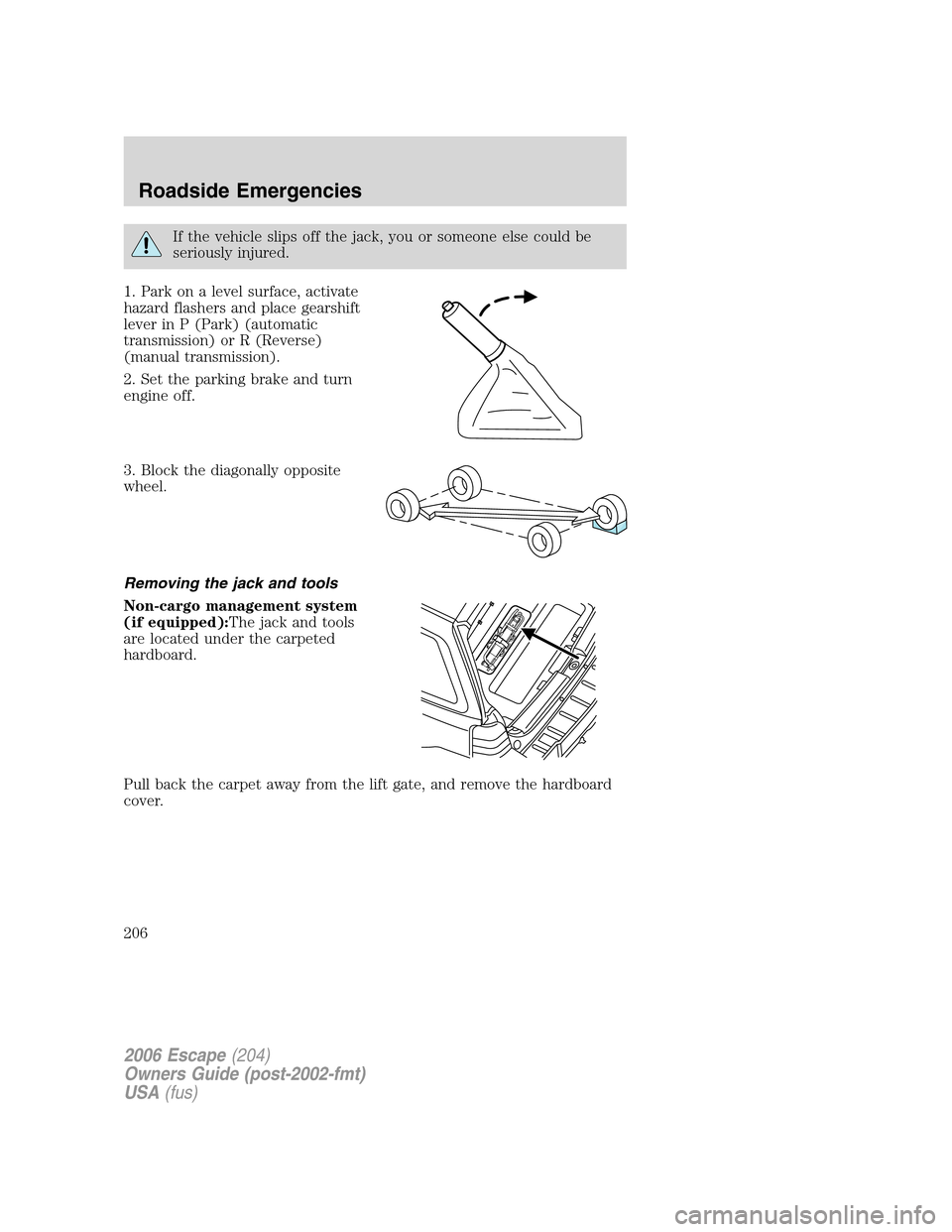

FORD ESCAPE 2006 1.G Owners Manual If the vehicle slips off the jack, you or someone else could be
seriously injured.
1. Park on a level surface, activate
hazard flashers and place gearshift
lever in P (Park) (automatic
transmission) o

Page 207 of 288

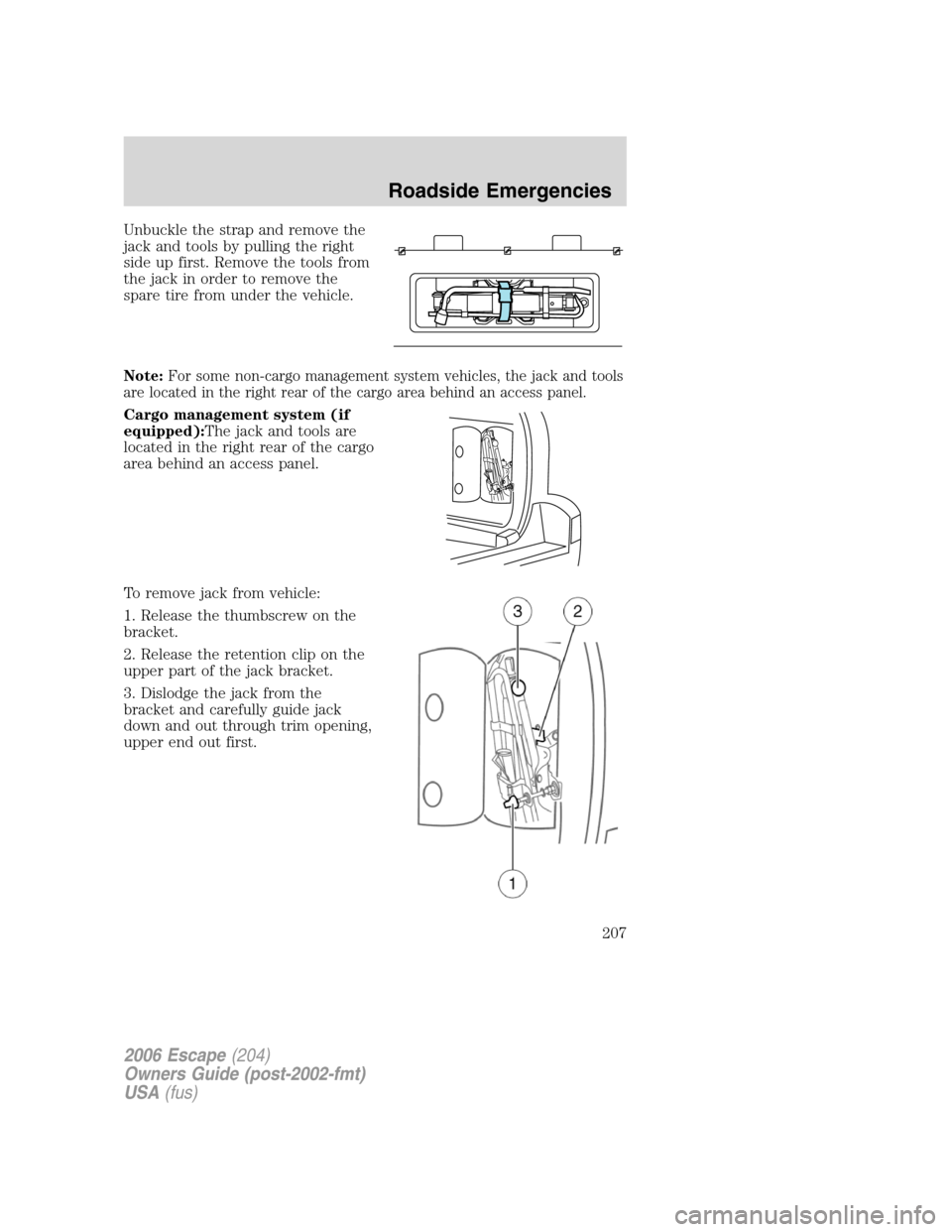

FORD ESCAPE 2006 1.G Owners Manual Unbuckle the strap and remove the
jack and tools by pulling the right
side up first. Remove the tools from
the jack in order to remove the
spare tire from under the vehicle.
Note:For some non-cargo ma

Page 208 of 288

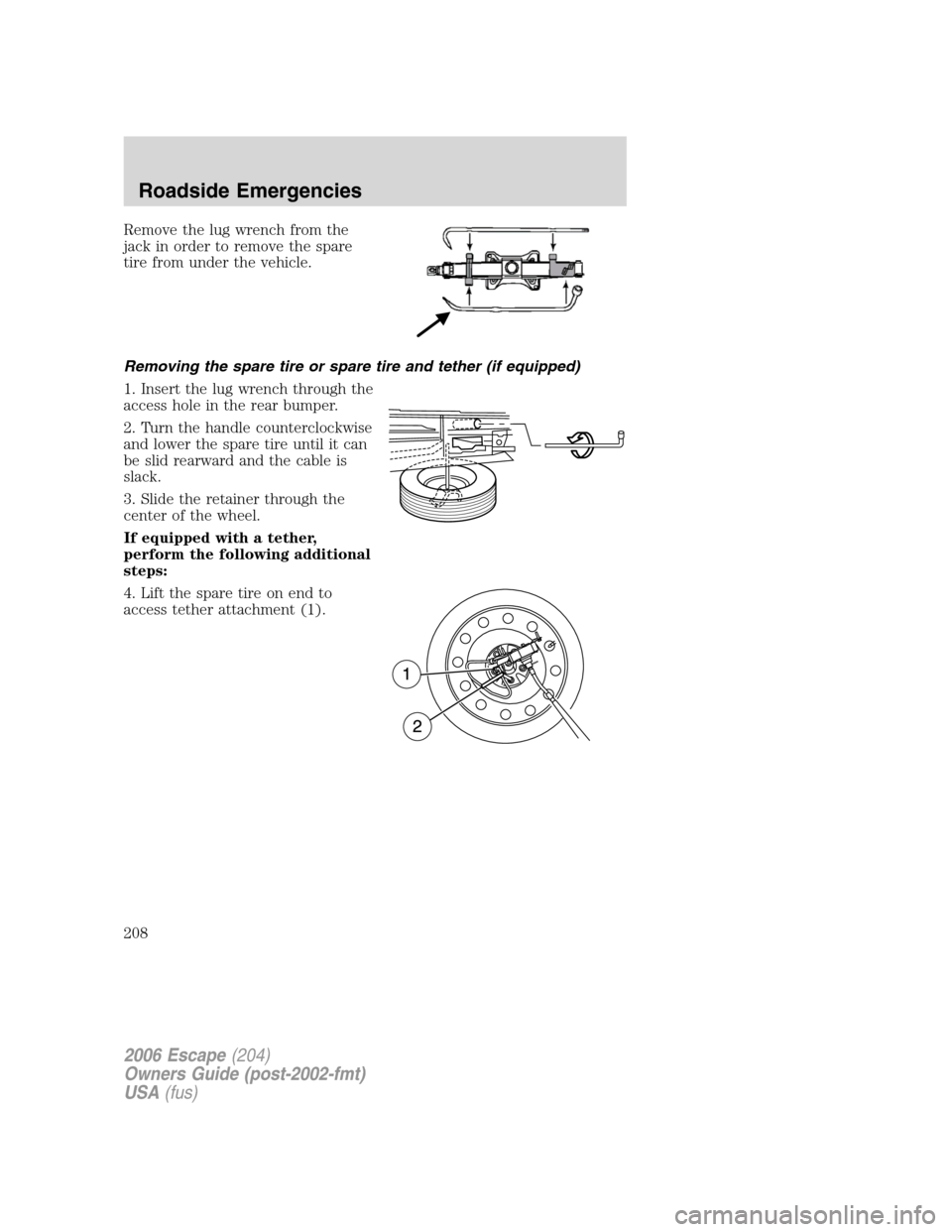

FORD ESCAPE 2006 1.G Owners Manual Remove the lug wrench from the
jack in order to remove the spare
tire from under the vehicle.
Removing the spare tire or spare tire and tether (if equipped)
1. Insert the lug wrench through the
access

Page 209 of 288

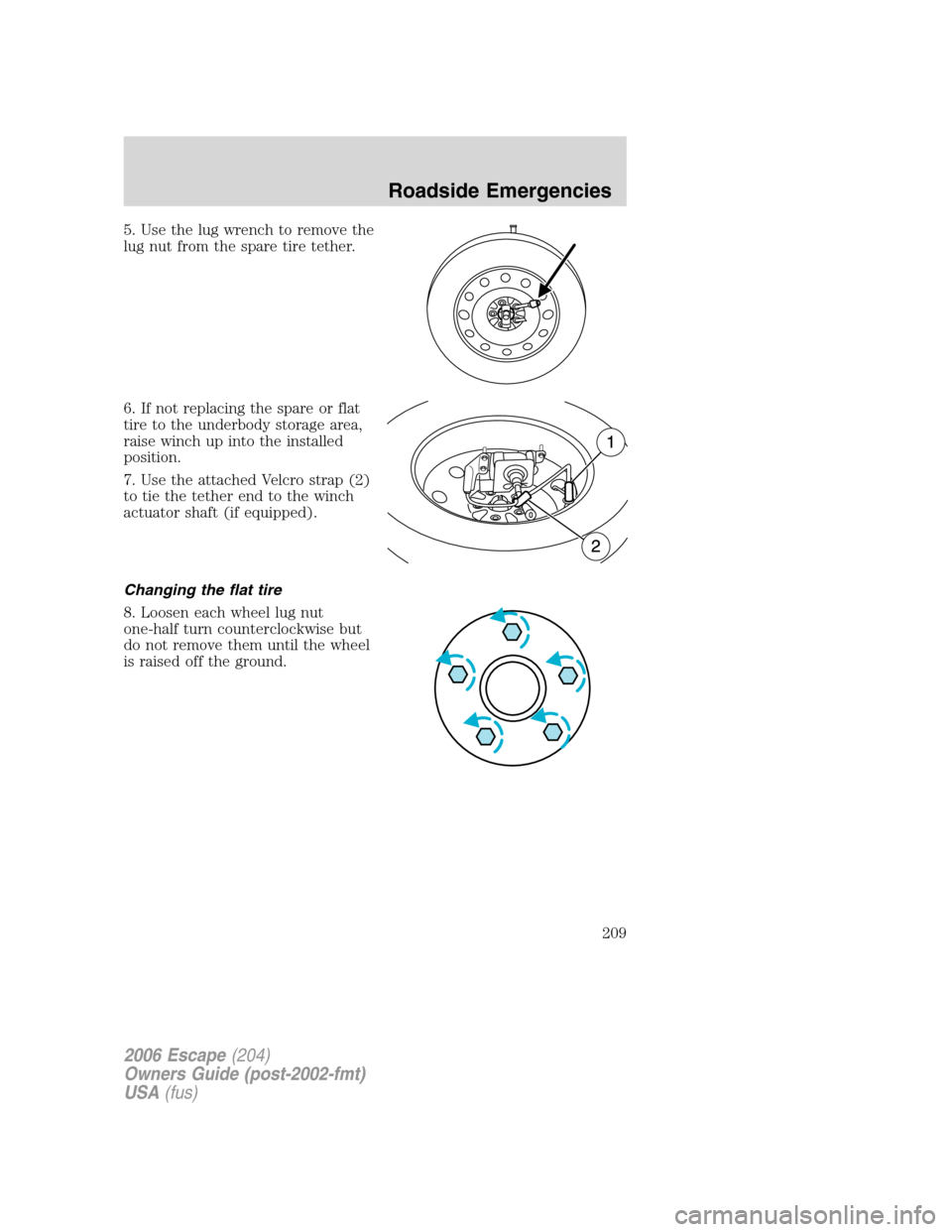

FORD ESCAPE 2006 1.G Owners Manual 5. Use the lug wrench to remove the
lug nut from the spare tire tether.
6. If not replacing the spare or flat
tire to the underbody storage area,
raise winch up into the installed
position.
7. Use the

Page 210 of 288

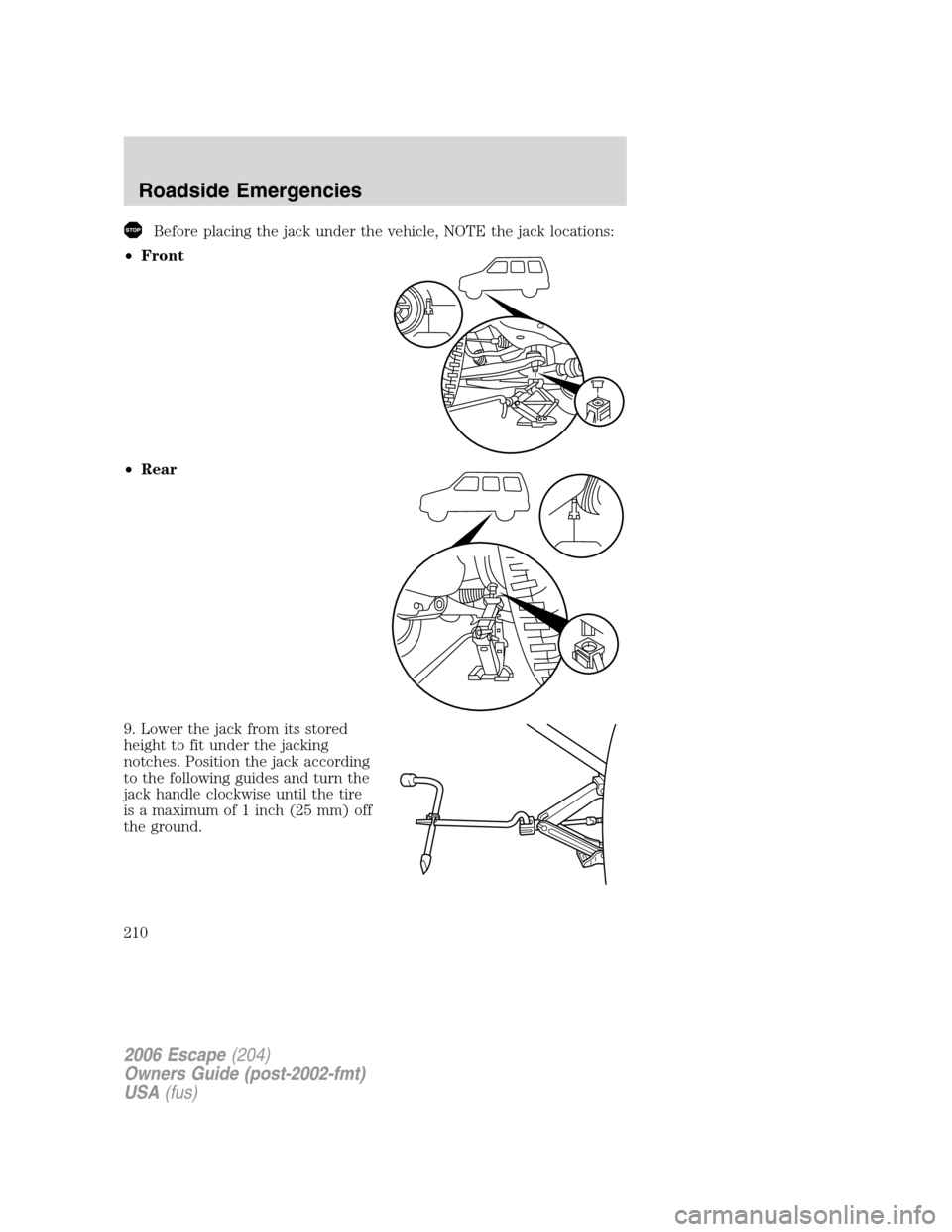

FORD ESCAPE 2006 1.G Owners Manual Before placing the jack under the vehicle, NOTE the jack locations:
•Front
•Rear
9. Lower the jack from its stored
height to fit under the jacking
notches. Position the jack according
to the follo
