FORD ESCAPE 2006 1.G Owner's Guide

For information regarding SIRIUS Satellite Radio, please call toll-free
888-539-SIRIUS (888-539-7474) or visit the SIRIUS website at
www.siriusradio.com
24.CD slot:Insert a CD with the label side up.
Premium Satellite Compatible AM/FM Stereo/Cassette/Single
CD/MP3 (if equipped)
1.CD slot:Insert a CD with the
label side up.
CD units are designed to play
commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.
Irregular shaped CDs, CDs with a scratch protection film
attached, and CDs with homemade paper (adhesive) labels should
not be inserted into the CD player. The label may peel and cause
the CD to become jammed. It is recommended that homemade
CDs be identified with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage CDs. Please contact
your authorized dealer for further information.
REW FFSCAN
BASS TREBTEXT
SELBALTAPE
1-2 EJCD
FADEAUX
MENU
SHUFFLEEJ
MUTE
SEEK
TUNE
12 3456
DOLBY B NR
DISC
REPEAT FOLDER FOLDER
BAND
CAT
VOL-PUSH ON
17
12
3
4
5
6
7
1416151312108911
23
18
19
20
21
22
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
31

2.CD Eject:Press to eject a CD.
The radio will resume playing.
3.Mute:Press to MUTE playing
media; press again to return to the
playing media.
4.Tape Eject:Press to eject the
cassette. The radio will resume
playing.
5.Tape 1–2/CD:Press to begin
tape play. If a cassette is already
playing, press to change playing
sides.
CD:If a CD is loaded in the radio,
pressing CD will cause the CD to
begin playing.
6.AUX:Press to toggle between the
current playing media and DVD (if
equipped).
7.MENU:Press to access the
following functions:
Clock:Press MENU until SELECT HOUR or SELECT MINUTE is
displayed. Press
SELto decrease/ increase hours or minutes.
Compression:In CD mode, press to bring soft and loud passages
together for a more consistent listening level. Press MENU until
COMPRESS is displayed. Use SEL to toggle on/off.
Speed sensitive volume:Radio volume changes automatically and
slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3. Level 0 turns the feature off and level 7 is
the maximum setting. Press MENU until SPEED VOL X appears in the
display. Then press SEL to increase/decrease the volume setting. The
level will appear in the display.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
32

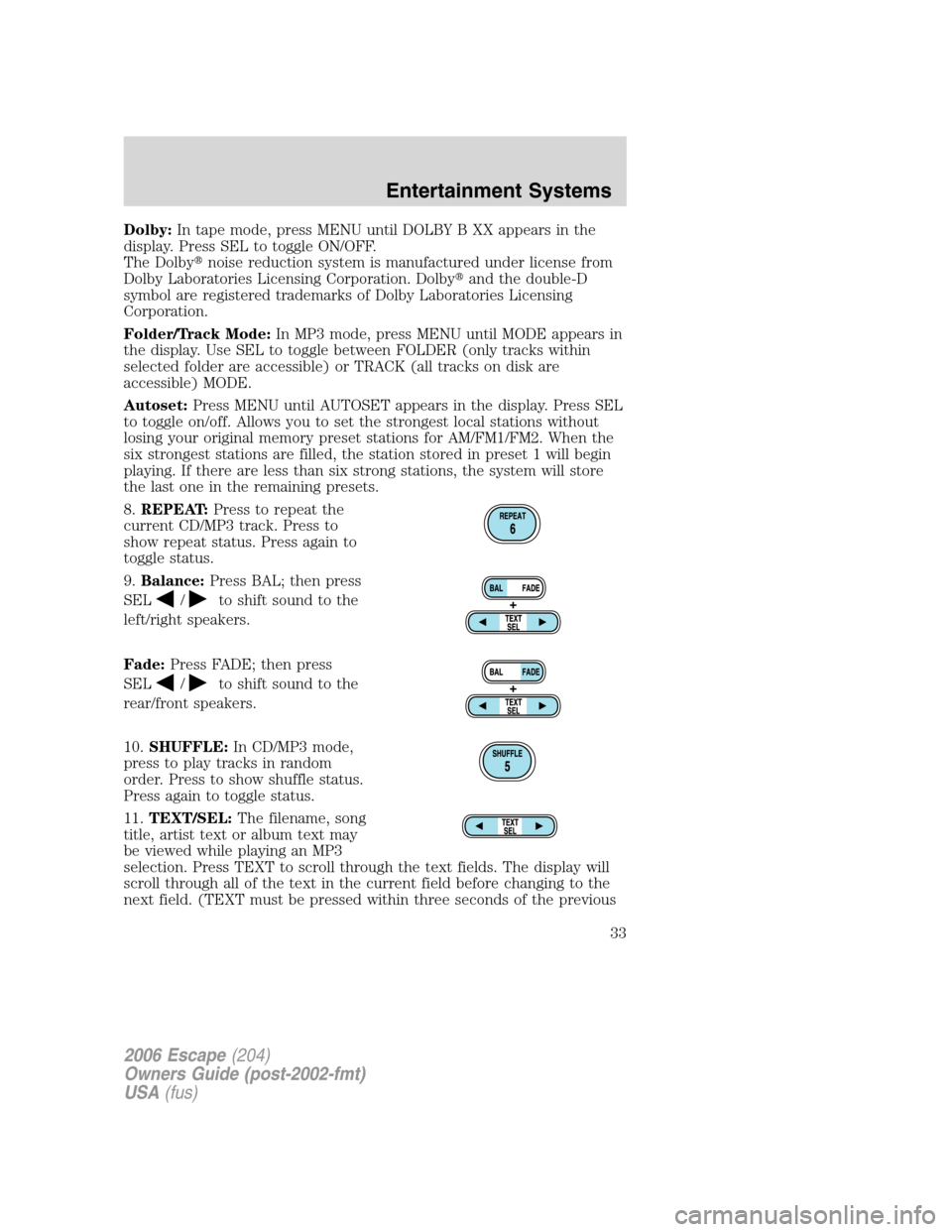

Dolby:In tape mode, press MENU until DOLBY B XX appears in the
display. Press SEL to toggle ON/OFF.
The Dolbynoise reduction system is manufactured under license from
Dolby Laboratories Licensing Corporation. Dolbyand the double-D
symbol are registered trademarks of Dolby Laboratories Licensing
Corporation.
Folder/Track Mode:In MP3 mode, press MENU until MODE appears in
the display. Use SEL to toggle between FOLDER (only tracks within
selected folder are accessible) or TRACK (all tracks on disk are
accessible) MODE.
Autoset:Press MENU until AUTOSET appears in the display. Press SEL
to toggle on/off. Allows you to set the strongest local stations without
losing your original memory preset stations for AM/FM1/FM2. When the
six strongest stations are filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the system will store
the last one in the remaining presets.
8.REPEAT:Press to repeat the
current CD/MP3 track. Press to
show repeat status. Press again to
toggle status.
9.Balance:Press BAL; then press
SEL
/to shift sound to the
left/right speakers.
Fade:Press FADE; then press
SEL
/to shift sound to the
rear/front speakers.
10.SHUFFLE:In CD/MP3 mode,
press to play tracks in random
order. Press to show shuffle status.
Press again to toggle status.
11.TEXT/SEL:The filename, song
title, artist text or album text may
be viewed while playing an MP3
selection. Press TEXT to scroll through the text fields. The display will
scroll through all of the text in the current field before changing to the
next field. (TEXT must be pressed within three seconds of the previous
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
33

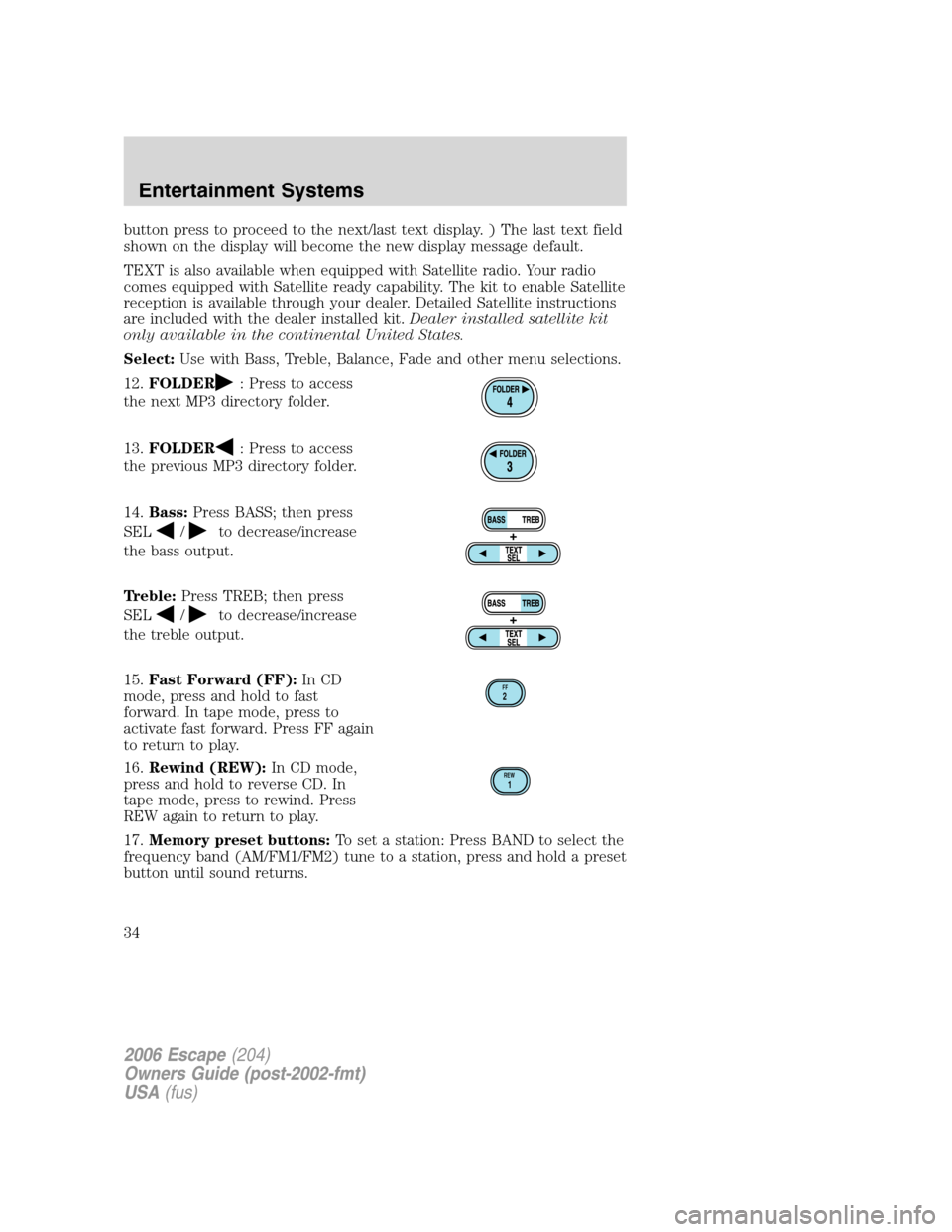

button press to proceed to the next/last text display. ) The last text field
shown on the display will become the new display message default.
TEXT is also available when equipped with Satellite radio. Your radio
comes equipped with Satellite ready capability. The kit to enable Satellite
reception is available through your dealer. Detailed Satellite instructions
are included with the dealer installed kit.Dealer installed satellite kit
only available in the continental United States.
Select:Use with Bass, Treble, Balance, Fade and other menu selections.
12.FOLDER
: Press to access
the next MP3 directory folder.
13.FOLDER
: Press to access
the previous MP3 directory folder.
14.Bass:Press BASS; then press
SEL
/to decrease/increase
the bass output.
Treble:Press TREB; then press
SEL
/to decrease/increase
the treble output.
15.Fast Forward (FF):In CD
mode, press and hold to fast
forward. In tape mode, press to
activate fast forward. Press FF again
to return to play.
16.Rewind (REW):In CD mode,
press and hold to reverse CD. In
tape mode, press to rewind. Press
REW again to return to play.
17.Memory preset buttons:To set a station: Press BAND to select the
frequency band (AM/FM1/FM2) tune to a station, press and hold a preset
button until sound returns.
FF2
REW1
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
34

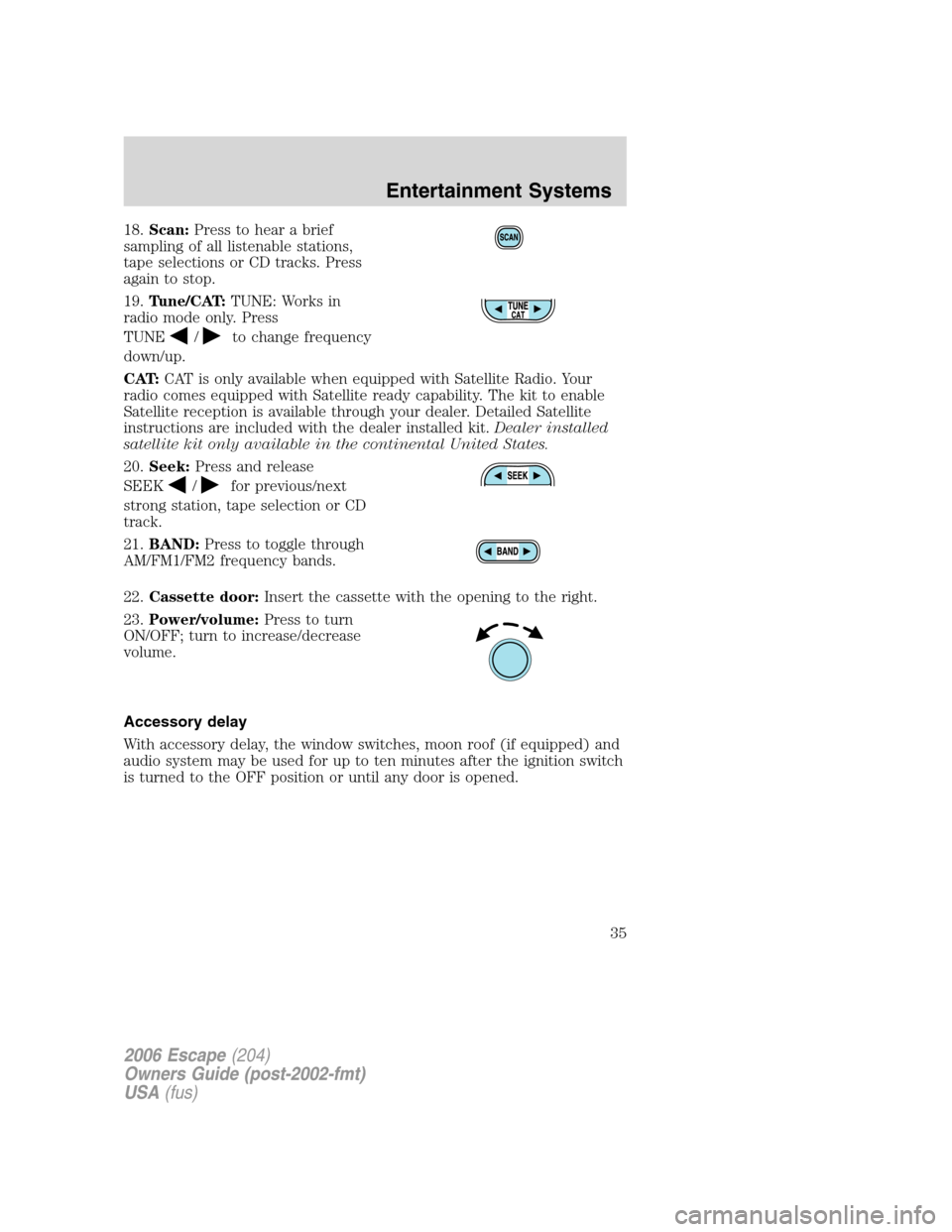

18.Scan:Press to hear a brief
sampling of all listenable stations,
tape selections or CD tracks. Press
again to stop.
19.Tune/CAT:TUNE: Works in
radio mode only. Press
TUNE
/to change frequency
down/up.
CAT:CAT is only available when equipped with Satellite Radio. Your
radio comes equipped with Satellite ready capability. The kit to enable
Satellite reception is available through your dealer. Detailed Satellite
instructions are included with the dealer installed kit.Dealer installed
satellite kit only available in the continental United States.
20.Seek:Press and release
SEEK
/for previous/next
strong station, tape selection or CD
track.
21.BAND:Press to toggle through
AM/FM1/FM2 frequency bands.
22.Cassette door:Insert the cassette with the opening to the right.
23.Power/volume:Press to turn
ON/OFF; turn to increase/decrease
volume.
Accessory delay
With accessory delay, the window switches, moon roof (if equipped) and
audio system may be used for up to ten minutes after the ignition switch
is turned to the OFF position or until any door is opened.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
35

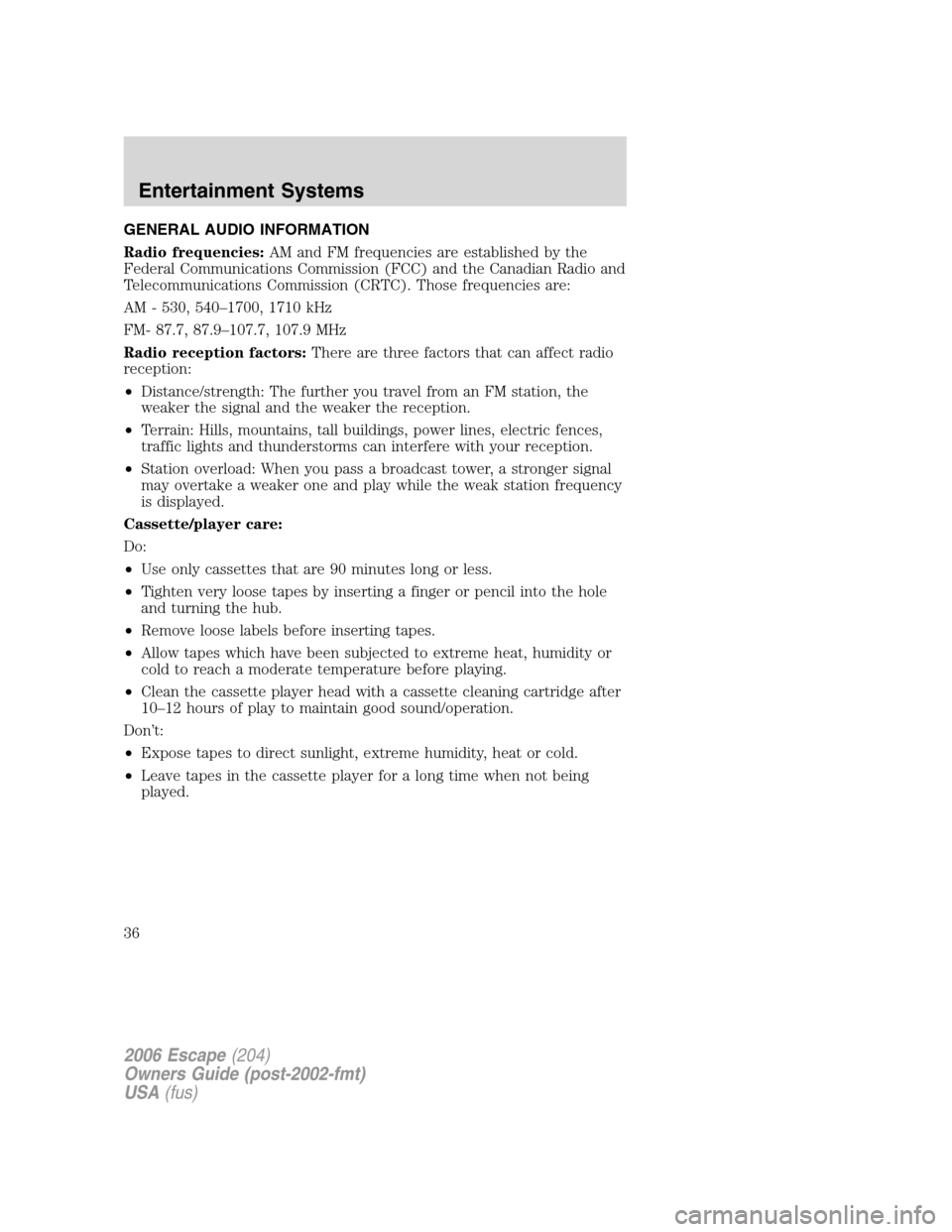

GENERAL AUDIO INFORMATION
Radio frequencies:AM and FM frequencies are established by the
Federal Communications Commission (FCC) and the Canadian Radio and
Telecommunications Commission (CRTC). Those frequencies are:
AM - 530, 540–1700, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
Radio reception factors:There are three factors that can affect radio
reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
Cassette/player care:
Do:
•Use only cassettes that are 90 minutes long or less.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
•Remove loose labels before inserting tapes.
•Allow tapes which have been subjected to extreme heat, humidity or
cold to reach a moderate temperature before playing.
•Clean the cassette player head with a cassette cleaning cartridge after
10–12 hours of play to maintain good sound/operation.
Don’t:
•Expose tapes to direct sunlight, extreme humidity, heat or cold.
•Leave tapes in the cassette player for a long time when not being
played.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
36

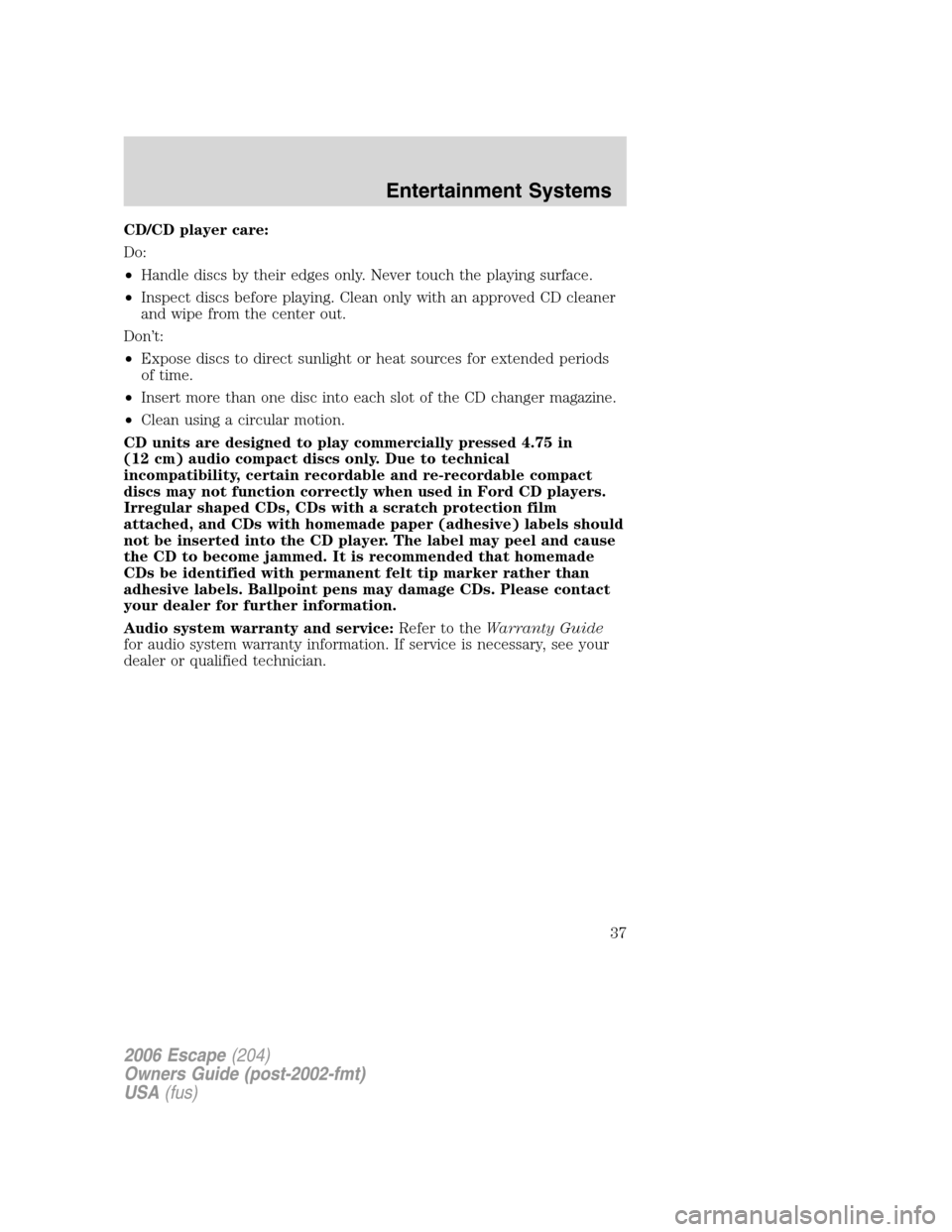

CD/CD player care:
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
CD units are designed to play commercially pressed 4.75 in
(12 cm) audio compact discs only. Due to technical
incompatibility, certain recordable and re-recordable compact
discs may not function correctly when used in Ford CD players.
Irregular shaped CDs, CDs with a scratch protection film
attached, and CDs with homemade paper (adhesive) labels should
not be inserted into the CD player. The label may peel and cause
the CD to become jammed. It is recommended that homemade
CDs be identified with permanent felt tip marker rather than
adhesive labels. Ballpoint pens may damage CDs. Please contact
your dealer for further information.
Audio system warranty and service:Refer to theWarranty Guide
for audio system warranty information. If service is necessary, see your
dealer or qualified technician.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Entertainment Systems
37

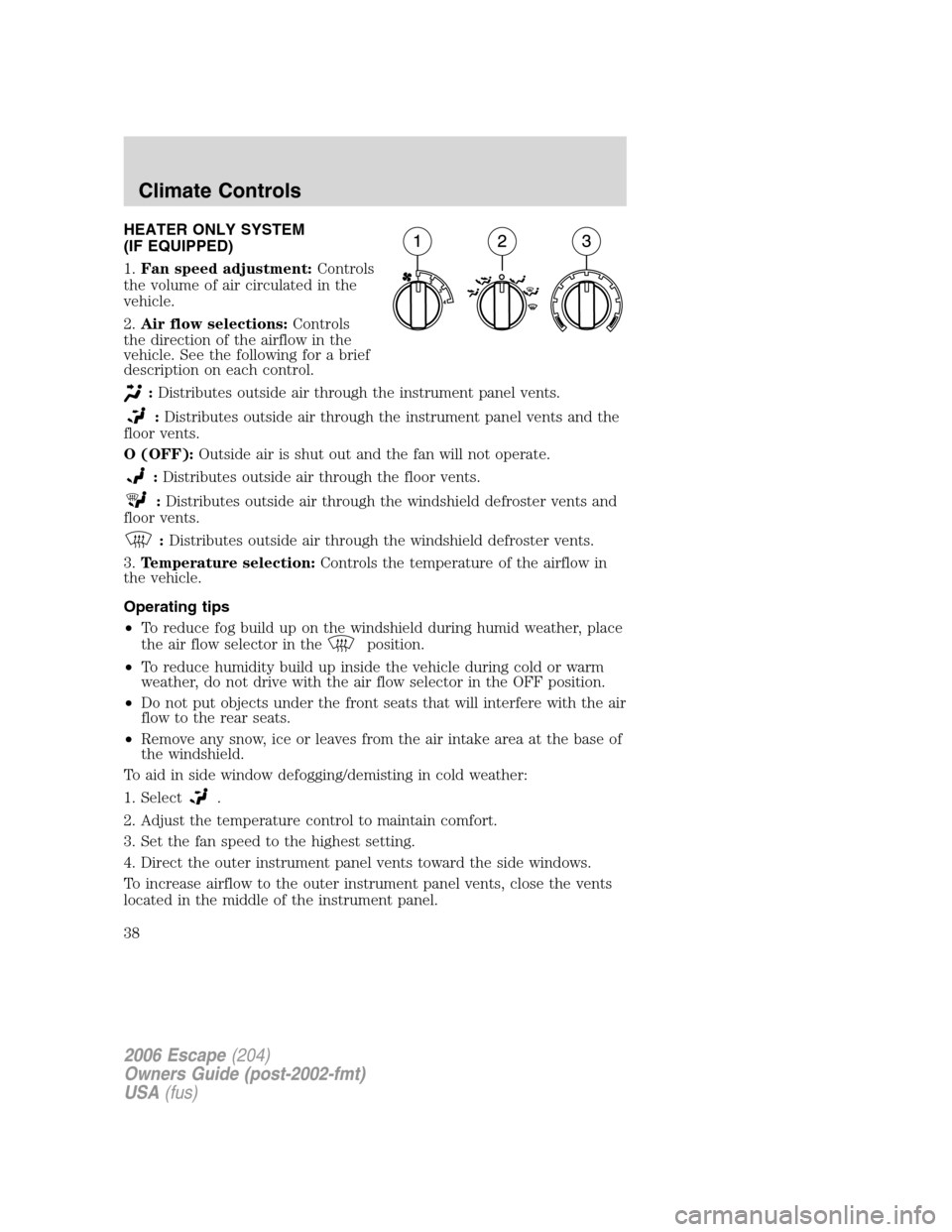

HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Air flow selections:Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
:Distributes outside air through the instrument panel vents.
:Distributes outside air through the instrument panel vents and the
floor vents.
O (OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
3.Temperature selection:Controls the temperature of the airflow in
the vehicle.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the OFF position.
•Do not put objects under the front seats that will interfere with the air
flow to the rear seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to the highest setting.
4. Direct the outer instrument panel vents toward the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
38

Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.

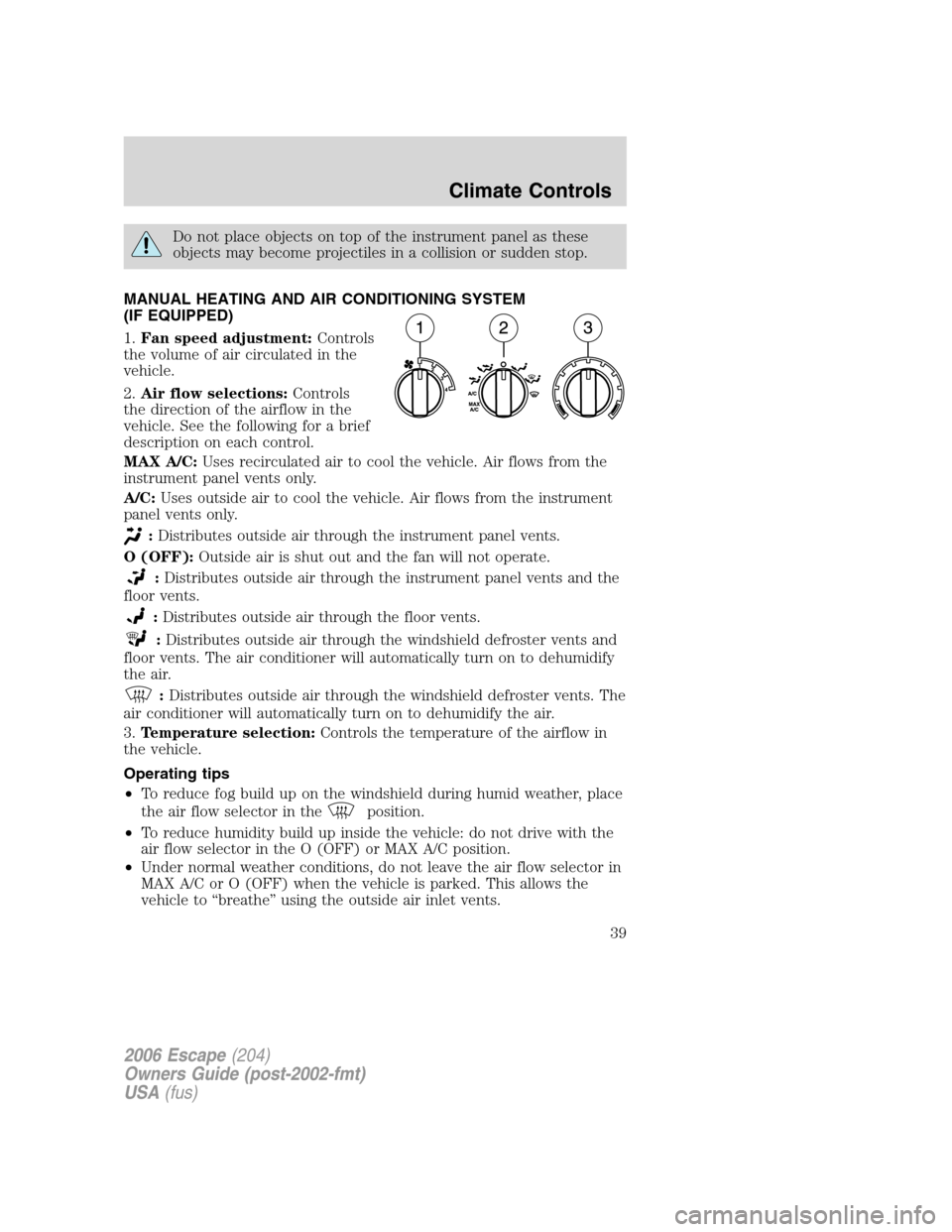

MANUAL HEATING AND AIR CONDITIONING SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Air flow selections:Controls
the direction of the airflow in the
vehicle. See the following for a brief
description on each control.
MAX A/C:Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only.
A/C:Uses outside air to cool the vehicle. Air flows from the instrument
panel vents only.
:Distributes outside air through the instrument panel vents.
O (OFF):Outside air is shut out and the fan will not operate.
:Distributes outside air through the instrument panel vents and the
floor vents.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents. The air conditioner will automatically turn on to dehumidify
the air.
:Distributes outside air through the windshield defroster vents. The
air conditioner will automatically turn on to dehumidify the air.
3.Temperature selection:Controls the temperature of the airflow in
the vehicle.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the O (OFF) or MAX A/C position.
•Under normal weather conditions, do not leave the air flow selector in
MAX A/C or O (OFF) when the vehicle is parked. This allows the
vehicle to “breathe” using the outside air inlet vents.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
39

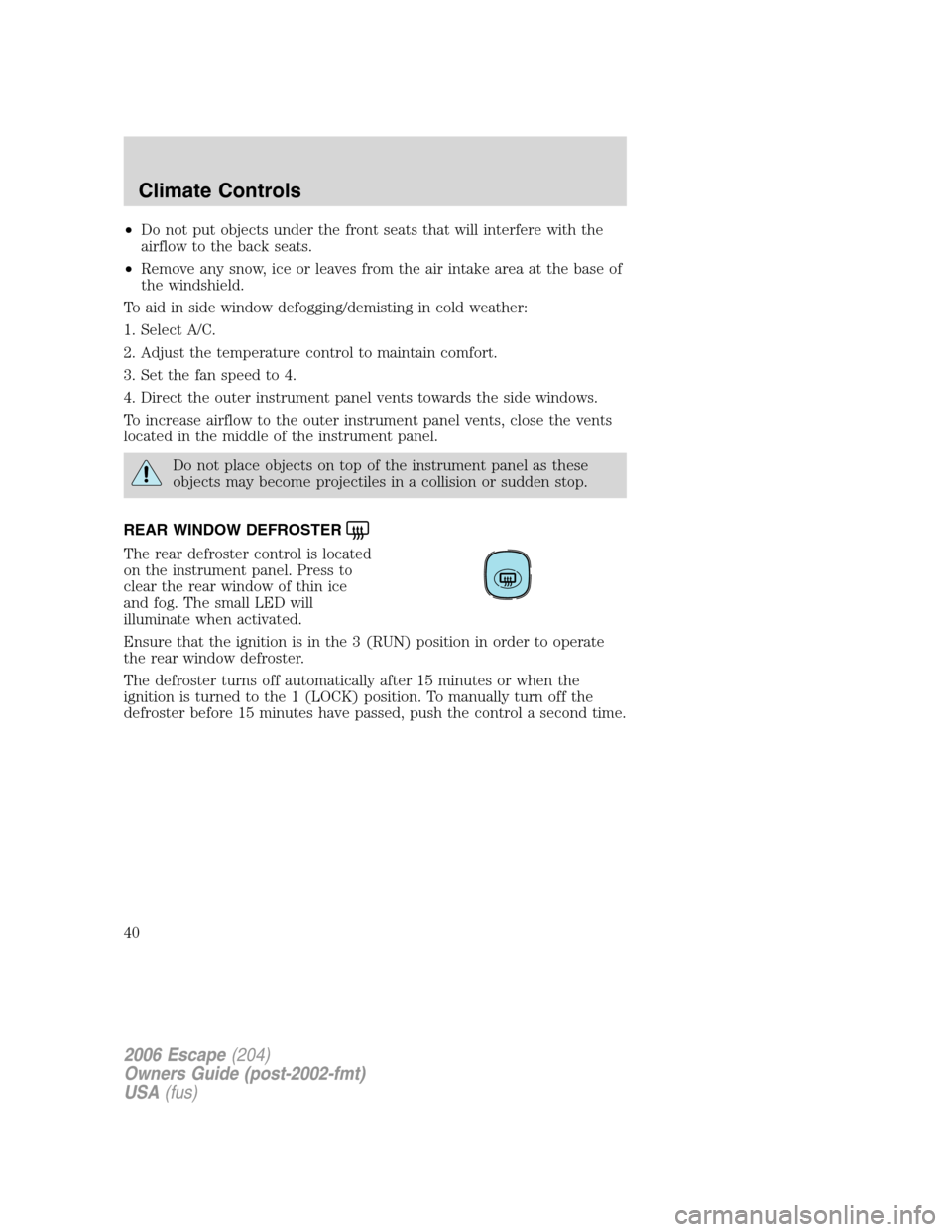

•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select A/C.
2. Adjust the temperature control to maintain comfort.
3. Set the fan speed to 4.
4. Direct the outer instrument panel vents towards the side windows.
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
REAR WINDOW DEFROSTER
The rear defroster control is located
on the instrument panel. Press to
clear the rear window of thin ice
and fog. The small LED will
illuminate when activated.
Ensure that the ignition is in the 3 (RUN) position in order to operate
the rear window defroster.
The defroster turns off automatically after 15 minutes or when the
ignition is turned to the 1 (LOCK) position. To manually turn off the
defroster before 15 minutes have passed, push the control a second time.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
40
