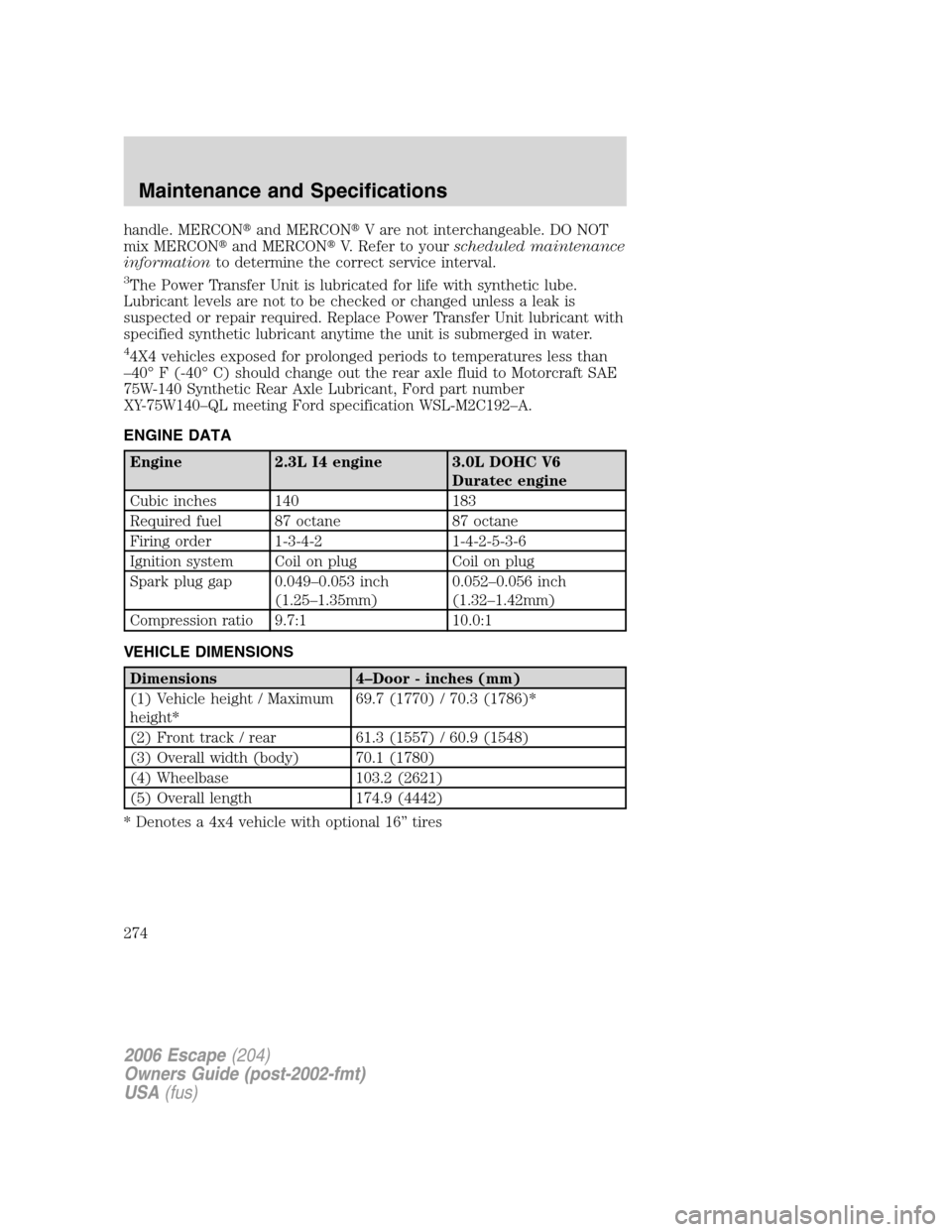

handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourscheduled maintenance
informationto determine the correct service interval.
3The Power Transfer Unit is lubricated for life with synthetic lube.
Lubricant levels are not to be checked or changed unless a leak is
suspected or repair required. Replace Power Transfer Unit lubricant with
specified synthetic lubricant anytime the unit is submerged in water.
44X4 vehicles exposed for prolonged periods to temperatures less than
–40° F (-40° C) should change out the rear axle fluid to Motorcraft SAE
75W-140 Synthetic Rear Axle Lubricant, Ford part number
XY-75W140–QL meeting Ford specification WSL-M2C192–A.
ENGINE DATA
Engine 2.3L I4 engine 3.0L DOHC V6
Duratec engine
Cubic inches 140 183
Required fuel 87 octane 87 octane
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35mm)0.052–0.056 inch
(1.32–1.42mm)
Compression ratio 9.7:1 10.0:1
VEHICLE DIMENSIONS
Dimensions 4–Door - inches (mm)
(1) Vehicle height / Maximum
height*69.7 (1770) / 70.3 (1786)*
(2) Front track / rear 61.3 (1557) / 60.9 (1548)
(3) Overall width (body) 70.1 (1780)
(4) Wheelbase 103.2 (2621)
(5) Overall length 174.9 (4442)
* Denotes a 4x4 vehicle with optional 16” tires
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
274

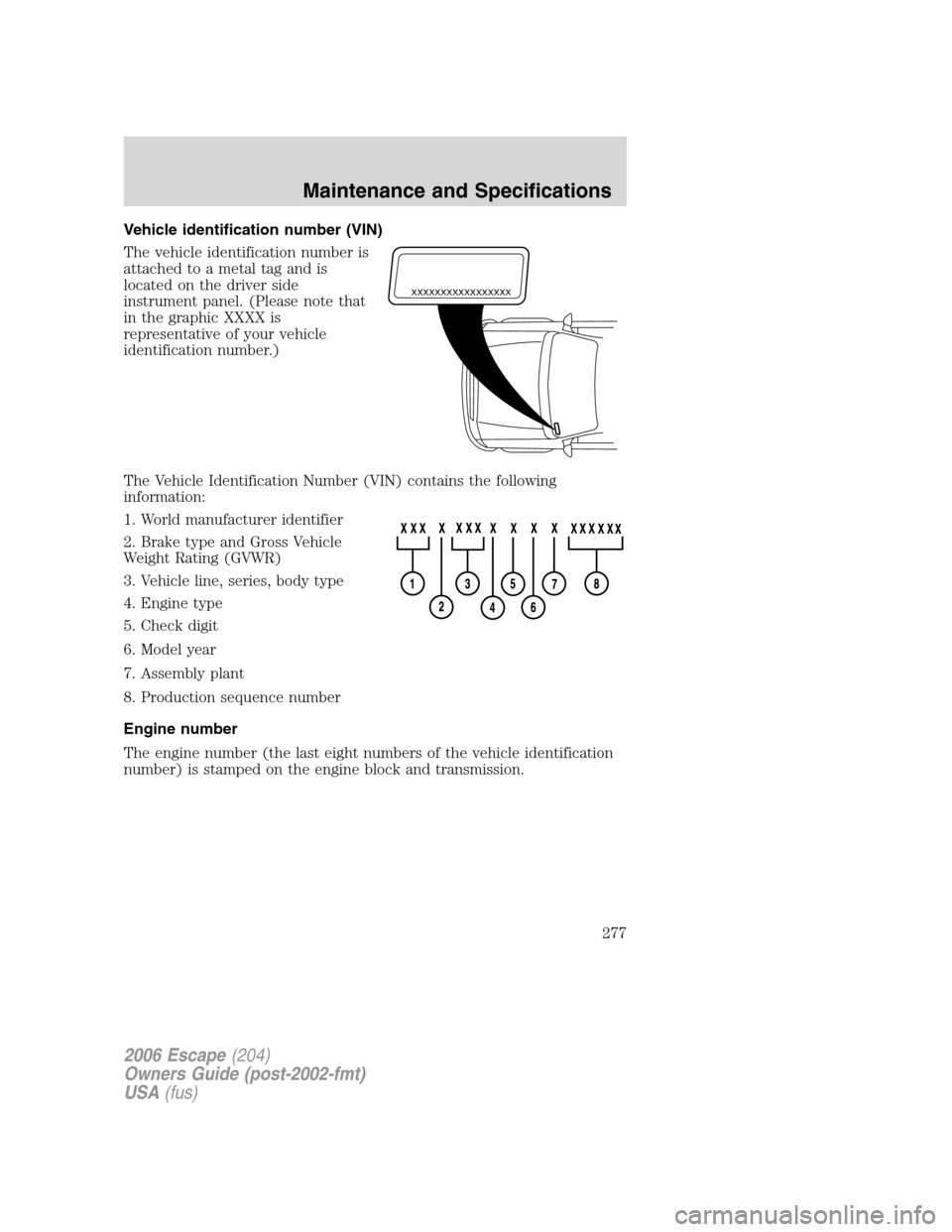

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake type and Gross Vehicle
Weight Rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block and transmission.
XXXXXXXXXXXXXXXXX
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
277

A
Accessory delay ..........................58
Air cleaner filter ...............267, 269
Airbag supplemental restraint
system ........................114, 121, 124
and child safety seats ............116
description ..............114, 121, 124
disposal ....................................127
driver airbag ............116, 122, 125
indicator light .........120, 123, 126
operation .................116, 122, 125
passenger airbag .....116, 122, 125
side airbag ...............................121
All Wheel Drive (AWD),
driving off road .........................186
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................248
Anti-lock brake system
(see Brakes) ..............................173
Anti-theft system ........................90
arming the system ....................90
disarming a triggered system ..91
Audio system
(see Radio) ......................19, 27, 31
Automatic transaxle
fluid, adding ............................265
fluid, checking ........................265
Automatic transmission ............176
driving an automatic
overdrive .................................178
fluid, refill capacities ..............270
fluid, specification ..................274
Auxiliary power point .................55
Axle
lubricant specifications ..272, 274
refill capacities ........................270B
Battery .......................................246
acid, treating emergencies .....246
jumping a disabled battery ....214
maintenance-free ....................246
replacement, specifications ...269
servicing ..................................246
BeltMinder .................................109
Brakes ................................172–173
anti-lock ...................................173
anti-lock brake system (ABS)
warning light ...........................173
fluid, checking and adding ....265
fluid, refill capacities ..............270
fluid, specifications .........272, 274
lubricant specifications ..272, 274
parking ....................................174
shift interlock ..........................176
Bulbs ............................................47
C
Calculating load ........................163
Capacities for refilling fluids ....270
Cargo area shade ........................70
Cargo cover .................................71
Cassette tape player ...................19
Cell phone use ..............................8
Child safety restraints ..............128
child safety belts ....................128
Child safety seats ......................130
attaching with tether straps ..134
in front seat ............................132
in rear seat ..............................132
Cleaning your vehicle
engine compartment ..............232
instrument panel ....................234
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
282

interior .....................................235
interior trim ............................234
plastic parts ............................233
washing ....................................231
waxing .....................................231
wheels ......................................232
wiper blades ............................234
Climate control (see Air
conditioning or Heating) ......38–39
Clock ............................................32
Clock adjust
6-CD in dash .......................20, 25
AM/FM/CD .................................29
AM/FM/Tape/CD .......................32
Single CD ..................................29
Clutch
fluid ..........................................265
operation while driving ..........181
recommended shift speeds ....182
Console ........................................56
overhead ....................................54
Controls
power seat .................................94
Coolant
checking and adding ..............248
refill capacities ................251, 270
specifications ..................272, 274
Cruise control
(see Speed control) ....................59
Customer Assistance ................194
Ford Extended Service
Plan ..........................................228
Getting assistance outside
the U.S. and Canada ..............229
Getting roadside assistance ...194
Getting the service you
need .........................................222
Ordering additional owner’s
literature .................................230The Dispute Settlement
Board .......................................225
Utilizing the
Mediation/Arbitration
Program ...................................228
D
Daytime running lamps
(see Lamps) ................................43
Defrost
rear window ..............................40
Dipstick
automatic transmission
fluid ..........................................265
engine oil .................................242
Doors
lubricant specifications ..........272
Driving under special
conditions ..................180, 188, 191
sand .........................................189
snow and ice ...........................192
through water .................190, 193
E
Electronic message center .........62
Emergencies, roadside
jump-starting ..........................214
Emission control system ..........262
Engine ........................................274
cleaning ...................................232
coolant .....................................248
fail-safe cooling .......................252
idle speed control ...................246
lubrication specifications ......272,
274
refill capacities ........................270
service points ..................239–240
starting after a collision .........196
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
283

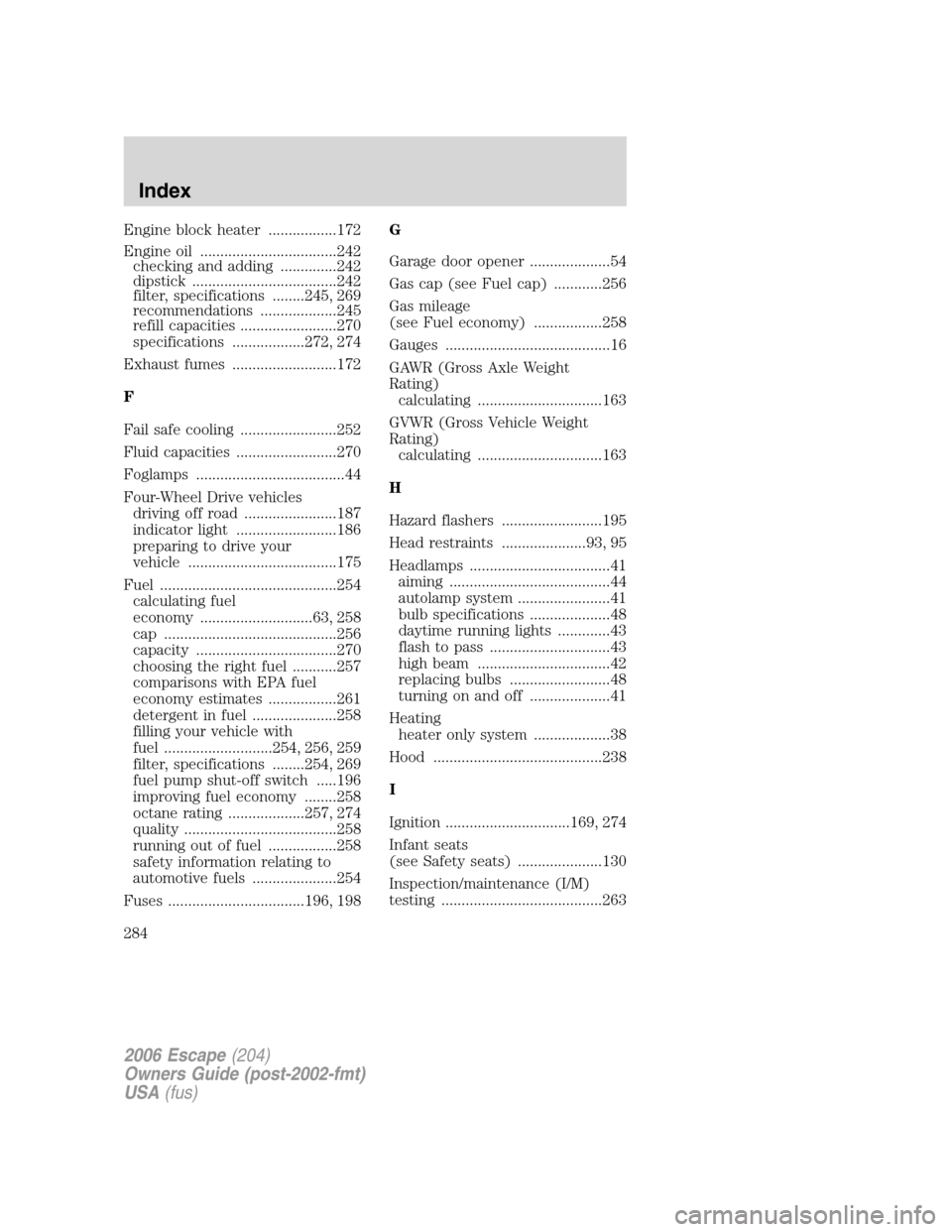

Engine block heater .................172
Engine oil ..................................242
checking and adding ..............242
dipstick ....................................242
filter, specifications ........245, 269
recommendations ...................245
refill capacities ........................270
specifications ..................272, 274
Exhaust fumes ..........................172
F
Fail safe cooling ........................252
Fluid capacities .........................270
Foglamps .....................................44
Four-Wheel Drive vehicles
driving off road .......................187
indicator light .........................186
preparing to drive your
vehicle .....................................175
Fuel ............................................254
calculating fuel
economy ............................63, 258
cap ...........................................256
capacity ...................................270
choosing the right fuel ...........257
comparisons with EPA fuel
economy estimates .................261
detergent in fuel .....................258
filling your vehicle with
fuel ...........................254, 256, 259
filter, specifications ........254, 269
fuel pump shut-off switch .....196
improving fuel economy ........258
octane rating ...................257, 274
quality ......................................258
running out of fuel .................258
safety information relating to
automotive fuels .....................254
Fuses ..................................196, 198G
Garage door opener ....................54
Gas cap (see Fuel cap) ............256
Gas mileage
(see Fuel economy) .................258
Gauges .........................................16
GAWR (Gross Axle Weight
Rating)
calculating ...............................163
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................163
H
Hazard flashers .........................195
Head restraints .....................93, 95
Headlamps ...................................41
aiming ........................................44
autolamp system .......................41
bulb specifications ....................48
daytime running lights .............43
flash to pass ..............................43
high beam .................................42
replacing bulbs .........................48
turning on and off ....................41
Heating
heater only system ...................38
Hood ..........................................238
I
Ignition ...............................169, 274
Infant seats
(see Safety seats) .....................130
Inspection/maintenance (I/M)
testing ........................................263
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
284

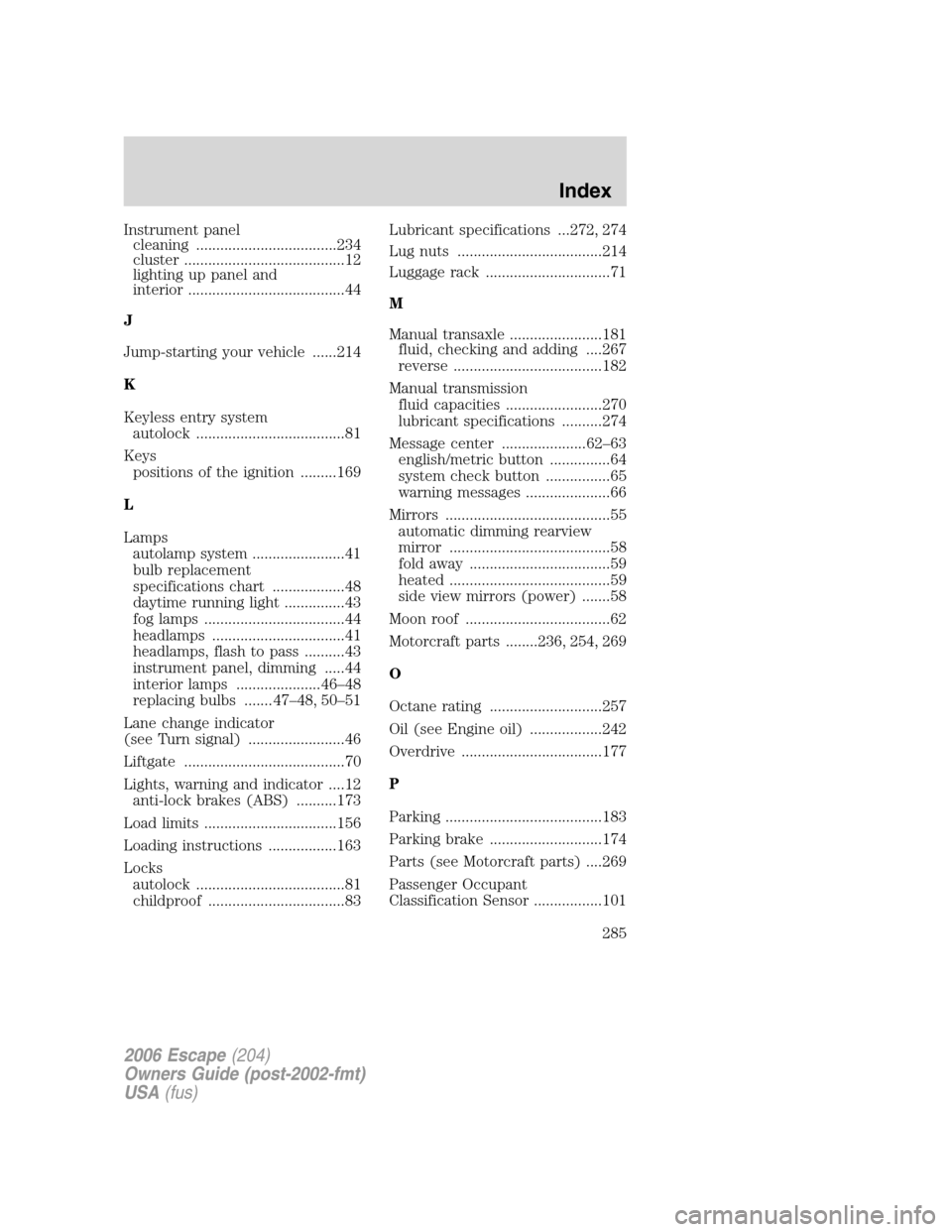

Instrument panel
cleaning ...................................234
cluster ........................................12
lighting up panel and
interior .......................................44
J
Jump-starting your vehicle ......214
K
Keyless entry system
autolock .....................................81
Keys
positions of the ignition .........169
L
Lamps
autolamp system .......................41
bulb replacement
specifications chart ..................48
daytime running light ...............43
fog lamps ...................................44
headlamps .................................41
headlamps, flash to pass ..........43
instrument panel, dimming .....44
interior lamps .....................46–48
replacing bulbs ....... 47–48, 50–51
Lane change indicator
(see Turn signal) ........................46
Liftgate ........................................70
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........173
Load limits .................................156
Loading instructions .................163
Locks
autolock .....................................81
childproof ..................................83Lubricant specifications ...272, 274
Lug nuts ....................................214
Luggage rack ...............................71
M
Manual transaxle .......................181
fluid, checking and adding ....267
reverse .....................................182
Manual transmission
fluid capacities ........................270
lubricant specifications ..........274
Message center .....................62–63
english/metric button ...............64
system check button ................65
warning messages .....................66
Mirrors .........................................55
automatic dimming rearview
mirror ........................................58
fold away ...................................59
heated ........................................59
side view mirrors (power) .......58
Moon roof ....................................62
Motorcraft parts ........236, 254, 269
O
Octane rating ............................257
Oil (see Engine oil) ..................242
Overdrive ...................................177
P
Parking .......................................183
Parking brake ............................174
Parts (see Motorcraft parts) ....269
Passenger Occupant
Classification Sensor .................101
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
285
