fuel filter FORD ESCAPE 2006 1.G Owners Manual

Maintenance and Specifications 237
Engine compartment 239
Engine oil 242
Battery 246
Engine Coolant 248
Fuel information 254
Air filter(s) 269
Part numbers 269
Refill capacities 270
Lubricant specifications 272
Accessories 279
Index 282
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2005 Ford Motor Company
Table of Contents
3
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check fuel capLow tire pressure
warning
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11

Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX or FULL mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until it is seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine’s warranty use Motorcraft SAE 5W-20 or an
equivalent 5W-20 oil meeting Ford specification WSS-M2C930-A.SAE
5W-20 oil provides optimum fuel economy and durability
performance meeting all requirements for your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
245

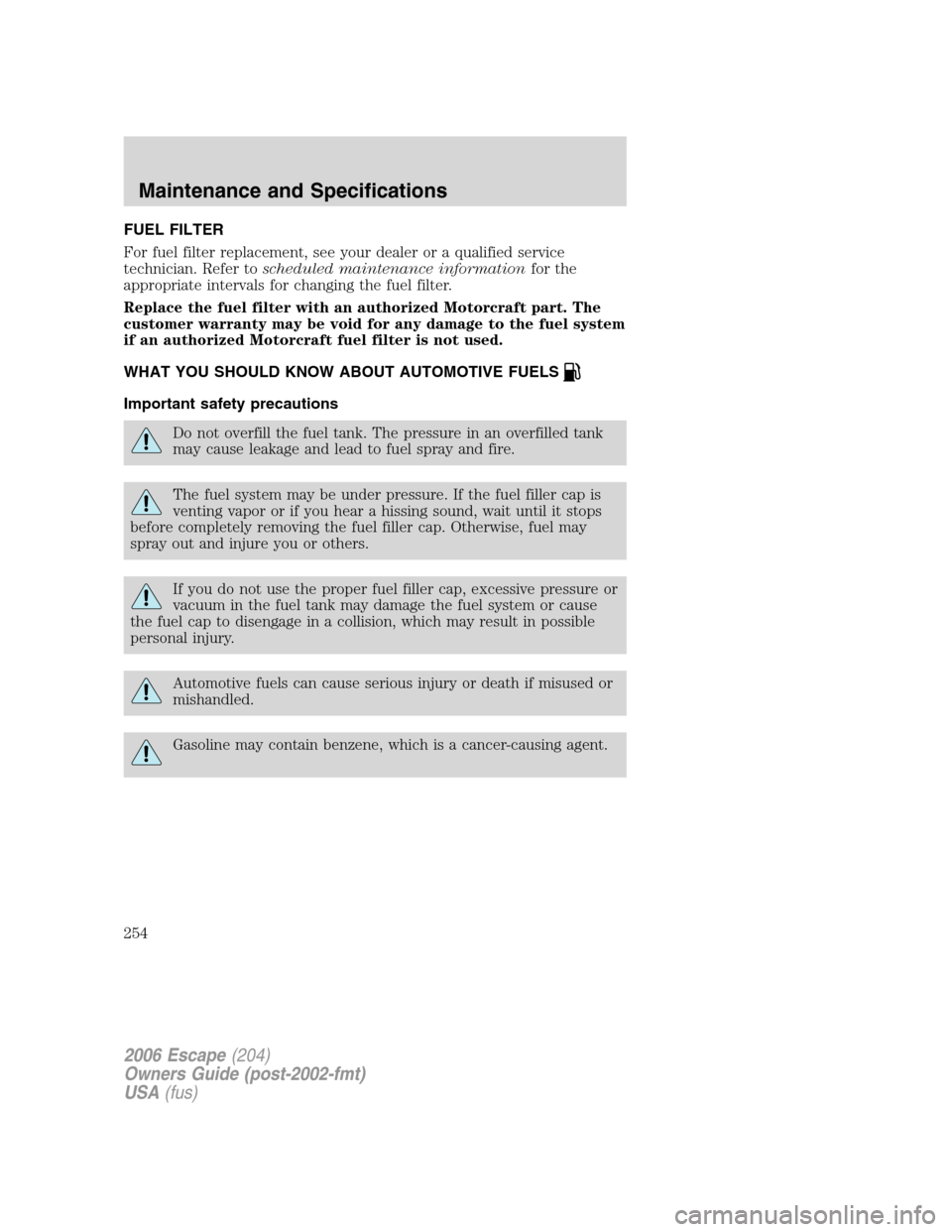

FUEL FILTER
For fuel filter replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.
Automotive fuels can cause serious injury or death if misused or
mishandled.
Gasoline may contain benzene, which is a cancer-causing agent.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
254

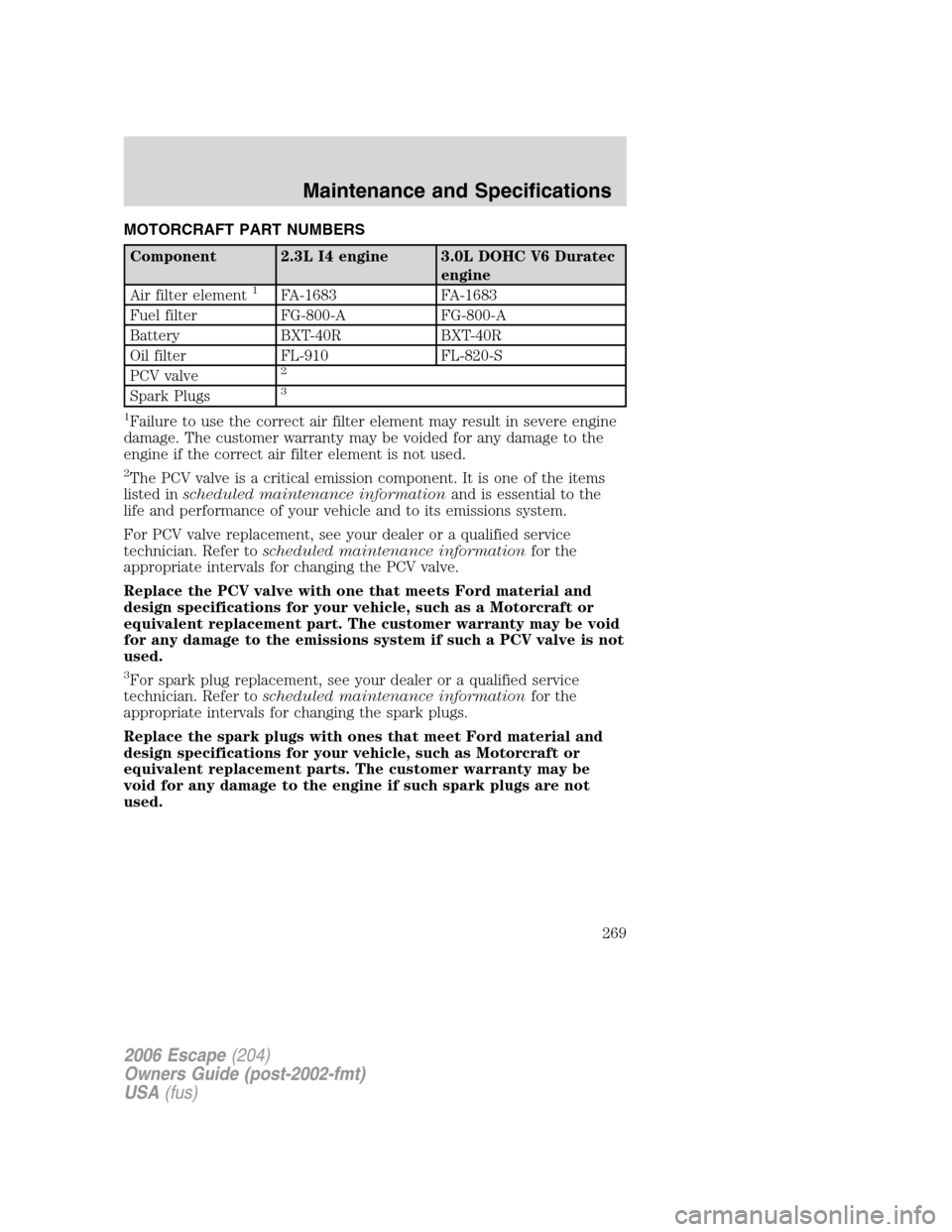

MOTORCRAFT PART NUMBERS
Component 2.3L I4 engine 3.0L DOHC V6 Duratec
engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-800-A FG-800-A
Battery BXT-40R BXT-40R
Oil filter FL-910 FL-820-S
PCV valve
2
Spark Plugs3
1
Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be voided for any damage to the
engine if the correct air filter element is not used.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your dealer or a qualified service
technician. Refer toscheduled maintenance informationfor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
269

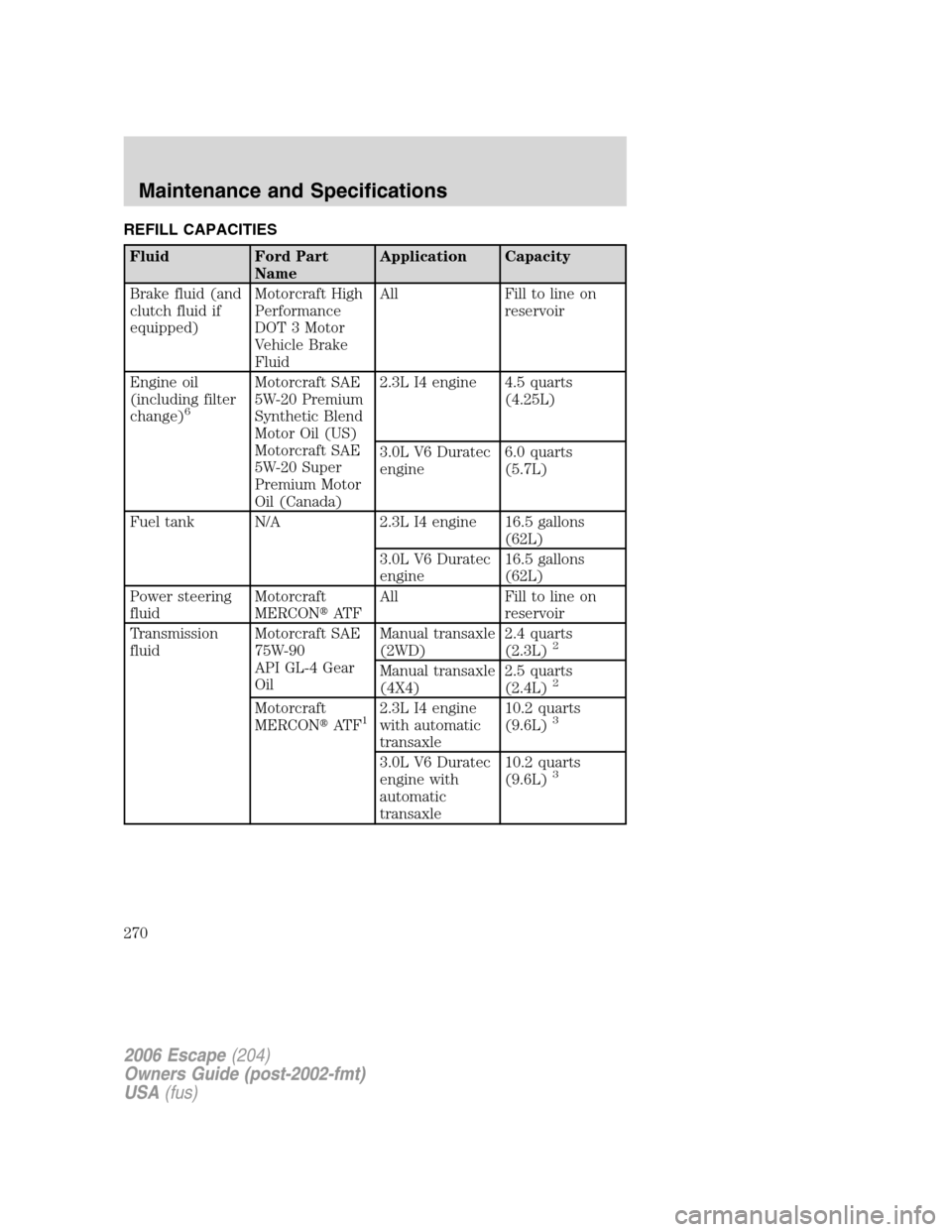

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid (and
clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(including filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)2.3L I4 engine 4.5 quarts
(4.25L)
3.0L V6 Duratec
engine6.0 quarts
(5.7L)
Fuel tank N/A 2.3L I4 engine 16.5 gallons
(62L)
3.0L V6 Duratec
engine16.5 gallons
(62L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
reservoir
Transmission
fluidMotorcraft SAE
75W-90
API GL-4 Gear
OilManual transaxle
(2WD)2.4 quarts
(2.3L)
2
Manual transaxle
(4X4)2.5 quarts
(2.4L)2
Motorcraft
MERCONAT F12.3L I4 engine
with automatic
transaxle10.2 quarts
(9.6L)3
3.0L V6 Duratec
engine with
automatic
transaxle10.2 quarts
(9.6L)3
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
270

Engine block heater .................172
Engine oil ..................................242
checking and adding ..............242
dipstick ....................................242
filter, specifications ........245, 269
recommendations ...................245
refill capacities ........................270
specifications ..................272, 274
Exhaust fumes ..........................172
F
Fail safe cooling ........................252
Fluid capacities .........................270
Foglamps .....................................44
Four-Wheel Drive vehicles
driving off road .......................187
indicator light .........................186
preparing to drive your
vehicle .....................................175
Fuel ............................................254
calculating fuel
economy ............................63, 258
cap ...........................................256
capacity ...................................270
choosing the right fuel ...........257
comparisons with EPA fuel
economy estimates .................261
detergent in fuel .....................258
filling your vehicle with
fuel ...........................254, 256, 259
filter, specifications ........254, 269
fuel pump shut-off switch .....196
improving fuel economy ........258
octane rating ...................257, 274
quality ......................................258
running out of fuel .................258
safety information relating to
automotive fuels .....................254
Fuses ..................................196, 198G
Garage door opener ....................54
Gas cap (see Fuel cap) ............256
Gas mileage
(see Fuel economy) .................258
Gauges .........................................16
GAWR (Gross Axle Weight
Rating)
calculating ...............................163
GVWR (Gross Vehicle Weight
Rating)
calculating ...............................163
H
Hazard flashers .........................195
Head restraints .....................93, 95
Headlamps ...................................41
aiming ........................................44
autolamp system .......................41
bulb specifications ....................48
daytime running lights .............43
flash to pass ..............................43
high beam .................................42
replacing bulbs .........................48
turning on and off ....................41
Heating
heater only system ...................38
Hood ..........................................238
I
Ignition ...............................169, 274
Infant seats
(see Safety seats) .....................130
Inspection/maintenance (I/M)
testing ........................................263
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
284
