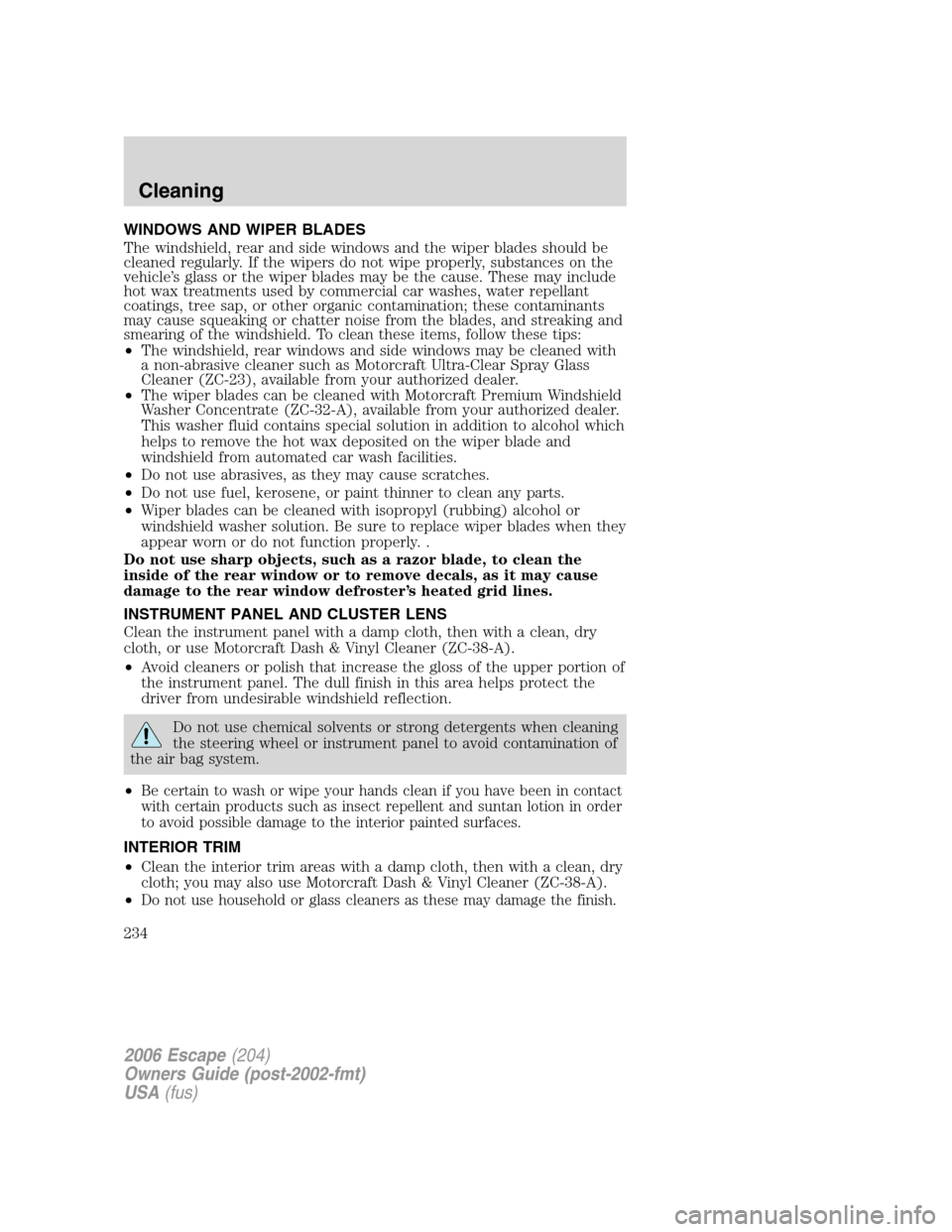

WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellant
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
• The wiper blades can be cleaned with Motorcraft Premium Windshield
Washer Concentrate (ZC-32-A), available from your authorized dealer.
This washer fluid contains special solution in addition to alcohol which
helps to remove the hot wax deposited on the wiper blade and
windshield from automated car wash facilities.
• Do not use abrasives, as they may cause scratches.
• Do not use fuel, kerosene, or paint thinner to clean any parts.
• Wiper blades can be cleaned with isopropyl (rubbing) alcohol or
windshield washer solution. Be sure to replace wiper blades when they
appear worn or do not function properly. .
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL AND CLUSTER LENS
Clean the instrument panel with a damp cloth, then with a clean, dry
cloth, or use Motorcraft Dash & Vinyl Cleaner (ZC-38-A).
• Avoid cleaners or polish that increase the gloss of the upper portion of
the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
Do not use chemical solvents or strong detergents when cleaning
the steering wheel or instrument panel to avoid contamination of
the air bag system.
•
Be certain to wash or wipe your hands clean if you have been in contact
with certain products such as insect repellent and suntan lotion in order
to avoid possible damage to the interior painted surfaces.
INTERIOR TRIM
• Clean the interior trim areas with a damp cloth, then with a clean, dry
cloth; you may also use Motorcraft Dash & Vinyl Cleaner (ZC-38-A).
•
Do not use household or glass cleaners as these may damage the finish.
2006 Escape (204)
Owners Guide (post-2002-fmt)
USA (fus)
Cleaning
234

CHANGING THE WIPER BLADES
1. Pull the wiper blade and arm
away from the glass. Turn the blade
at a right angle to the arm. Push the
lock tab (A) to release the blade
from the arm loop and pull the
blade down toward the windshield
to remove it from the arm.
2. Attach the new blade to the arm
loop and pull it into place until a
click is heard.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can sometimes be improved by cleaning the wiper
blades, refer toWindows and wiper bladesin theCleaningchapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
ENGINE OIL
Checking the engine oil
Refer toscheduled maintenance informationfor the appropriate
intervals for checking the engine oil.
1. Make sure the vehicle is on level ground.
2. Turn the engine off and wait a few minutes for the oil to drain into the
oil pan.
3. Set the parking brake and ensure the gearshift is securely latched in P
(Park) (automatic transmissions) or 1 (First) (manual transmissions).
4. Open the hood. Protect yourself from engine heat.
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
242

checking the pressure ............144
inspecting and inflating .........144
label .........................................151
replacing ..................................146
rotating ....................................154
safety practices .......................153
sidewall information ...............147
snow tires and chains ............155
spare tire .................................204
terminology .............................143
tire grades ...............................142
treadwear ........................142, 152
Towing .......................................163
recreational towing .................168
trailer towing ..........................163
wrecker ....................................220
Transaxle
fluid, checking and adding
(manual) .................................267
manual operation ....................181
Transmission
automatic operation ...............176
brake-shift interlock (BSI) ....176
fluid, checking and adding
(automatic) .............................265
fluid, refill capacities ..............270
lubricant specifications ..272, 274Turn signal ..................................46
V
Vehicle dimensions ...................274
Vehicle Identification Number
(VIN) ..........................................277
Vehicle loading ..........................156
Ventilating your vehicle ...........172
W
Warning lights (see Lights) .......12
Washer fluid ..............................241
Water, Driving through .............193
Windows
power .........................................57
rear wiper/washer .....................53
Windshield washer fluid and
wipers
checking and adding fluid .....241
liftgate reservoir .....................241
operation ...................................52
replacing wiper blades ...........242
Wrecker towing .........................220
2006 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
287
