alarm FORD ESCAPE 2007 2.G Owners Manual

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11

7. Turn the ignition from the 3 (RUN) position to the 1 (LOCK) position.
The horn will chirp one time to confirm the programming mode has been
exited.
Repeat the procedure to turn the feature on or off.
Door key unlocking/locking
Two step door unlocking
1. Turn the key in the door cylinder to unlock the driver’s door.Note:
The interior lamps will illuminate if the control on the overhead lamp is
in the DOOR position and the perimeter alarm system (if equipped) will
deactivate. For more information, refer toIlluminated entrylater in this
chapter.
2. Turn the key in the door cylinder again within three seconds to unlock
the passenger doors, the liftgate and liftgate glass.
One step door unlocking
If the one step door unlocking feature is activated, turn the key in the
door cylinder once to unlock all of the doors , the liftgate and liftgate
glass.Note:The interior lamps will illuminate (refer to theIlluminated
entryfeature later in this section), if the control on the overhead lamp is
in the DOOR position. For information on switching from two step to one
step door unlocking, refer toSwitching from two step to one step door
unlockinglater in this chapter.
Locking the doors
Turn the key in the door cylinder to lock all the doors. The park/turn
lamps will flash once and the perimeter alarm (if equipped) will start the
arming process. For more information concerning the perimeter alarm,
refer toPerimeter alarm system (if equipped)later in this chapter.
If any of the doors, the liftgate or the hood are not properly closed the
park/turn lamps will not flash.
Autolock (if equipped)
The autolock feature automatically locks all vehicle doors when:
•all doors are closed,
•the ignition is in the 3 (RUN) position,
•the brake pedal has been released and
•the vehicle has been set in motion.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
76

The remote entry system allows you
to lock or unlock all vehicle doors
without a key. The remote locking
and unlocking features will operate
independent of the ignition position;
however, the panic feature will only
operate when the ignition is in the
1 (LOCK) or 2 (ACCESSORY)
position.
If there are problems with the
remote entry system, make sure to
takeALL remote entry transmitterswith you to the authorized dealer
in order to aid in troubleshooting the problem.
Two step door unlocking
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
2. Press
and release again within three seconds to unlock the
passenger doors, the liftgate and liftgate glass.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the 1 (OFF/LOCK) position.
One step door unlocking
If the one step door unlocking feature is activated, press
and release
once to unlock all of the doors, the liftgate and liftgate glass.Note:The
interior lamps will illuminate (refer to theIlluminated entryfeature
later in this section), if the control on the overhead lamp is in the DOOR
position and the perimeter alarm system (if equipped) will deactivate.
Switching from two step to one step door unlocking
Unlocking can be switched between two step and one step door
unlocking by pressing and holding both
andbuttons
simultaneously on the remote entry transmitter for approximately
4 seconds. The parklamps will flash twice to indicate that the vehicle has
switched to one step unlocking. Repeat the procedure to switch back to
two step unlocking.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
79

Locking the doors
1. Pressand release to lock all the doors. Assuming all vehicle doors
and the liftgate are properly closed, the park/turn lamps will flash once
and the perimeter alarm (if equipped) will start the arming process. For
more information concerning the perimeter alarm, refer toPerimeter
alarm system (if equipped)later in this chapter.
2. Press
and release again within three seconds to confirm that all the
doors and liftgate are closed and locked.Note:The doors will lock again
and the horn will chirp once.
If any of the doors or the hood are not properly closed, the horn will
chirp twice and park/turn lamps will not flash when the
control is
pressed.
Sounding a panic alarm
Press
to activate the alarm. To deactivate the feature, press the
control again, turn the ignition to the 3 (RUN) or 4 (START) position, or
wait for the alarm to time out in approximately 3 minutes.
Note:The panic alarm will only operate when the ignition is in the
1 (LOCK) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
80

9. Remove the newly programmedcoded keyfrom the ignition.
If the key has been successfully programmed it will start the vehicle’s
engine and the theft indicator light will illuminate for three seconds and
then go out.
If the key was not successfully programmed, it will not start your
vehicle’s engine and the theft indicator light will flash on and off; you
may need to repeat Steps 1 through 5. If failure repeats, bring your
vehicle to your authorized dealer to have the new key(s) programmed.
To program additional new unprogrammed key(s), wait twenty seconds
and then repeat this procedure from Step 1.
PERIMETER ALARM SYSTEM (IF EQUIPPED)
The perimeter anti-theft system will warn you in the event of an
unauthorized entry to your vehicle.
If there is any potential perimeter anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the authorized
dealer to aid in troubleshooting.
Arming the system
When armed, this system will respond if unauthorized entry is
attempted. When unauthorized entry occurs, the system will flash the
park/turn lamps and will sound the horn.
The system is ready to arm whenever the key is removed from the
ignition. Any of the following actions will prearm the alarm system:
•Press the
control on the remote entry transmitter.
•Lock the doors with the key in the key cylinder.
•Open the driver’s door and press the power door lock control to lock
all the doors, and then close the door.
Note:The doors, liftgate and hood will arm individually, and if any of
them are open, they must be closed in order to be armed.
When you lock the vehicle using any of the methods above:
•the park/turn lamps will flash once to indicate the hood, each door
and the liftgate are closed.
•the park/turn lamps willnotflash if the hood, any door or the liftgate
are open. Once all doors, hood and liftgate are closed, the park/turn
lamps will flash to confirm the alarm will be set.
When the vehicle is locked, the alarm is set after a 20–second arming
period.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
87

When you press thecontrol on the remote entry transmitter twice
within three seconds, the horn will chirp once to confirm the doors,
liftgate and hood are closed and locked, and the alarm is set.
Disarming the system
You can disarm the system by any of the following actions:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
Triggering the anti-theft system
The armed system will be triggered if any door, liftgate or the hood is
opened without using the key or the remote entry transmitter.
To deactivate the triggered alarm state:
•Unlock the doors by pressing the
control on your remote entry
transmitter.
•Unlock the doors with a key. Turn the key full travel (toward the front
of the vehicle) to ensure the alarm disarms.
•Press
on the remote entry transmitter to disable the alarm; the
alarm will be disabled, but the vehicle will remain in an armed state.
•Turning the key in the ignition to the 3 (RUN) or 4 (START) position.
Note:The key must be a valid, programmed, coded key.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
88

If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.

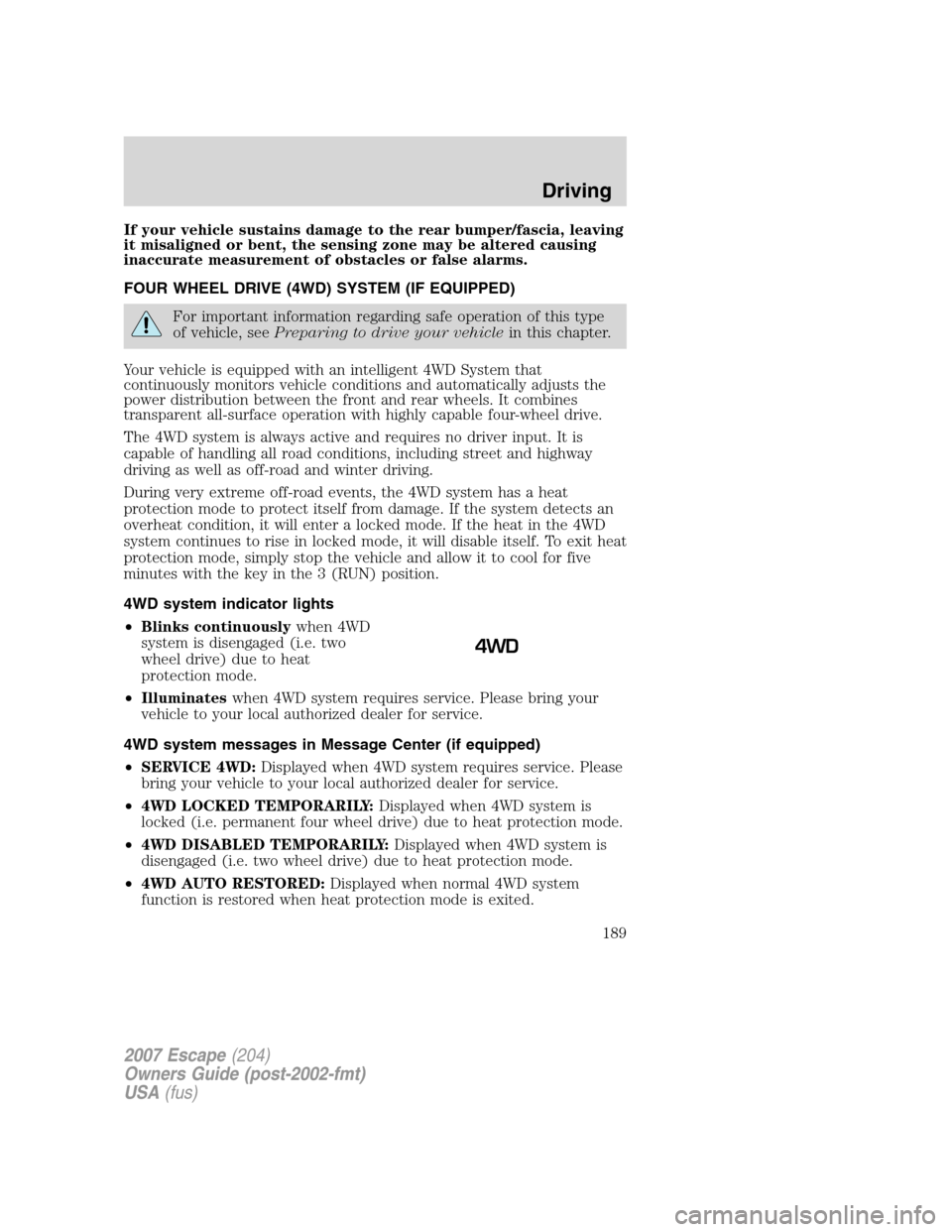

FOUR WHEEL DRIVE (4WD) SYSTEM (IF EQUIPPED)
For important information regarding safe operation of this type
of vehicle, seePreparing to drive your vehiclein this chapter.
Your vehicle is equipped with an intelligent 4WD System that
continuously monitors vehicle conditions and automatically adjusts the
power distribution between the front and rear wheels. It combines
transparent all-surface operation with highly capable four-wheel drive.
The 4WD system is always active and requires no driver input. It is
capable of handling all road conditions, including street and highway
driving as well as off-road and winter driving.
During very extreme off-road events, the 4WD system has a heat
protection mode to protect itself from damage. If the system detects an
overheat condition, it will enter a locked mode. If the heat in the 4WD
system continues to rise in locked mode, it will disable itself. To exit heat
protection mode, simply stop the vehicle and allow it to cool for five
minutes with the key in the 3 (RUN) position.
4WD system indicator lights
•Blinks continuouslywhen 4WD
system is disengaged (i.e. two
wheel drive) due to heat
protection mode.
•Illuminateswhen 4WD system requires service. Please bring your
vehicle to your local authorized dealer for service.
4WD system messages in Message Center (if equipped)
•SERVICE 4WD:Displayed when 4WD system requires service. Please
bring your vehicle to your local authorized dealer for service.
•4WD LOCKED TEMPORARILY:Displayed when 4WD system is
locked (i.e. permanent four wheel drive) due to heat protection mode.
•4WD DISABLED TEMPORARILY:Displayed when 4WD system is
disengaged (i.e. two wheel drive) due to heat protection mode.
•4WD AUTO RESTORED:Displayed when normal 4WD system
function is restored when heat protection mode is exited.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
189

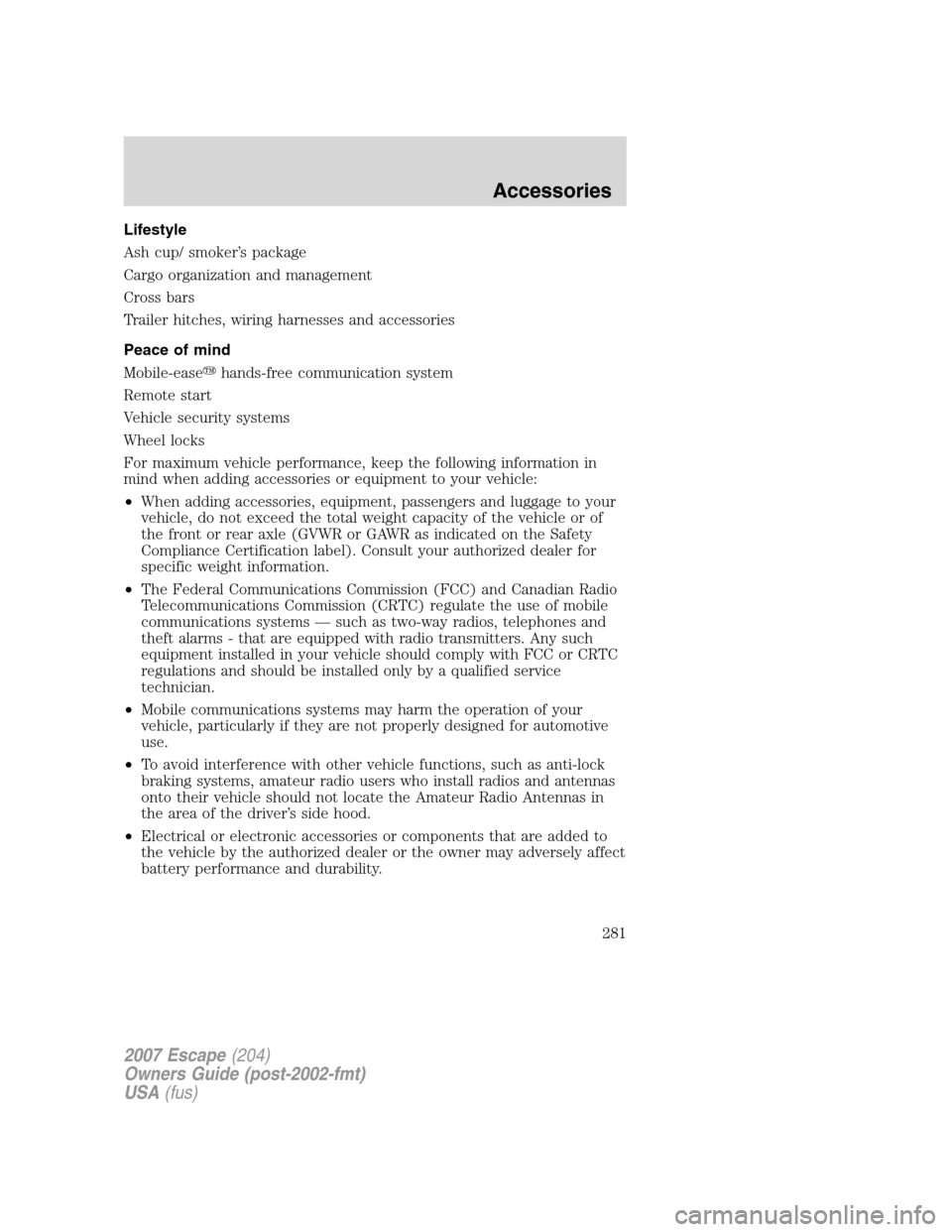

Lifestyle
Ash cup/ smoker’s package
Cargo organization and management
Cross bars
Trailer hitches, wiring harnesses and accessories
Peace of mind
Mobile-easehands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Accessories
281

fluid, specifications .................274
Power Windows ...........................57
Preparing to drive your
vehicle ........................................178
R
Radio ................................19, 28, 32
Rear window defroster ...............41
Relays ........................................199
Remote entry system .................78
illuminated entry ................82–83
locking/unlocking doors .....79–80
panic alarm ...............................80
replacing the batteries .............80
Reverse sensing system ...........187
Roadside assistance ..................197
Roof rack .....................................72
S
Safety Belt Maintenance ..........106
Safety belts (see
Safety restraints) ........97, 101–105
Safety Canopy ...................122, 124
Safety defects, reporting ..........232
Safety restraints ..........97, 101–105
BeltMinder
............................107
extension assembly ................106
for adults .........................102–104
for children .............................127
Occupant Classification
Sensor ........................................99
safety belt maintenance .........106
warning light and
chime ...............................106–107
Safety seats for children ..........131Safety Compliance
Certification Label ....................278
Seat belts (see
Safety restraints) ........................97
Seats ............................................89
child safety seats ....................131
heated ........................................92
SecuriLock passive anti-theft
system ..........................................84
Servicing your vehicle ..............240
Setting the clock
AM/FM/In-dash 6 CD ..........22, 26
AM/FM/Tape/CD .......................34
Snowplowing .................................8
Spark plugs,
specifications .....................273, 277
Special notice
ambulance conversions ..............8
utility-type vehicles ....................8
Specification chart,
lubricants ...................................274
Speed control ..............................59
Starting your vehicle ........172–174
jump starting ..........................218
Steering wheel
tilting .........................................54
T
Temperature control
(see Climate control) .................39
Tilt steering wheel ......................54
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....156
Warning Displays ......................12
Tires ...................................141–142
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
286
