fuel filter FORD ESCAPE 2007 2.G Owners Manual

Maintenance and Specifications 240
Engine compartment 242
Engine oil 245
Battery 249
Engine Coolant 251
Fuel information 257
Air filter(s) 271
Part numbers 273
Maintenance product specifications and capacities 274
Engine data 277
Accessories 280
Index 282
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2006 Ford Motor Company
Table of Contents
3
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Symbol
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Emission SystemEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
11

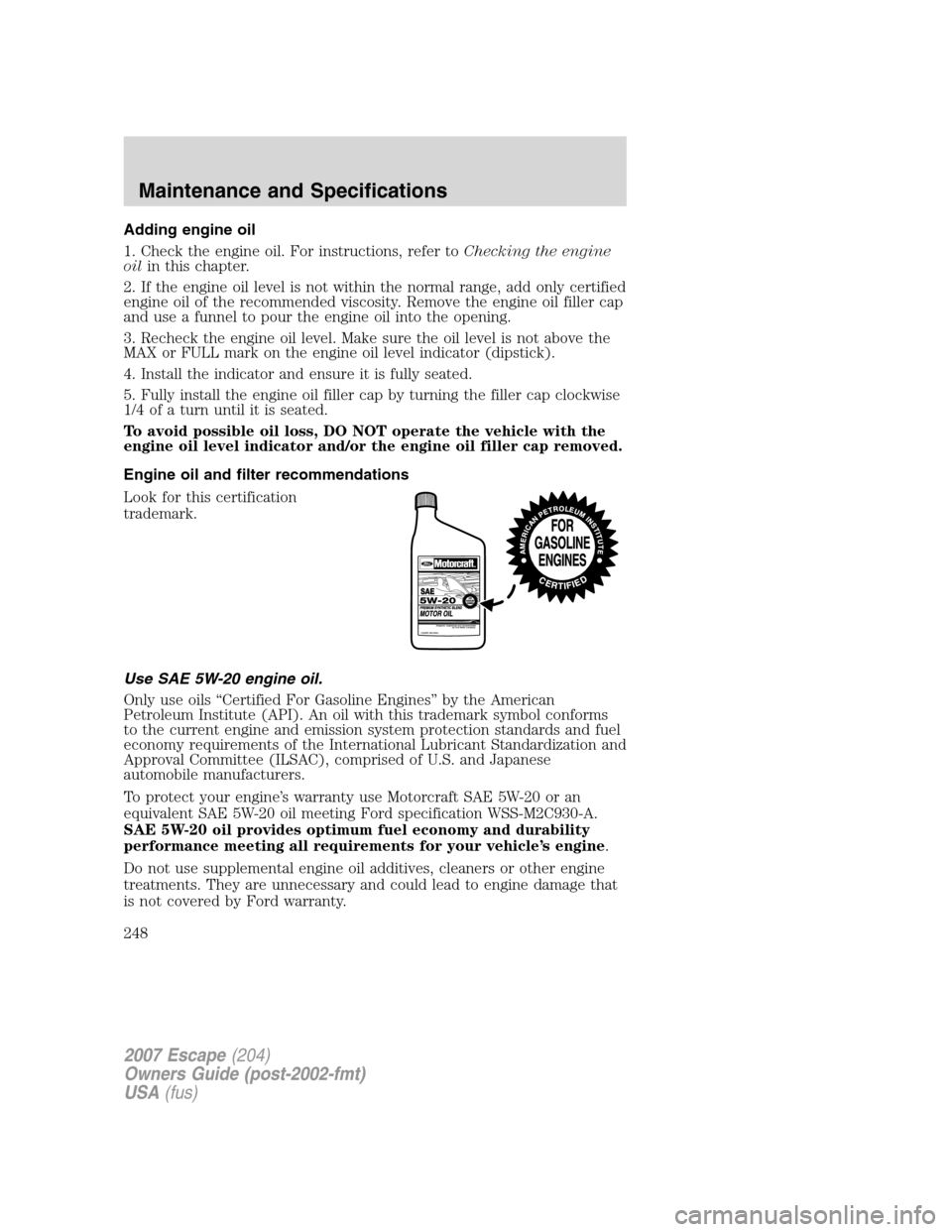

Adding engine oil
1. Check the engine oil. For instructions, refer toChecking the engine
oilin this chapter.
2. If the engine oil level is not within the normal range, add only certified
engine oil of the recommended viscosity. Remove the engine oil filler cap
and use a funnel to pour the engine oil into the opening.
3. Recheck the engine oil level. Make sure the oil level is not above the
MAX or FULL mark on the engine oil level indicator (dipstick).
4. Install the indicator and ensure it is fully seated.
5. Fully install the engine oil filler cap by turning the filler cap clockwise
1/4 of a turn until it is seated.
To avoid possible oil loss, DO NOT operate the vehicle with the
engine oil level indicator and/or the engine oil filler cap removed.
Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil.
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine’s warranty use Motorcraft SAE 5W-20 or an
equivalent SAE 5W-20 oil meeting Ford specification WSS-M2C930-A.
SAE 5W-20 oil provides optimum fuel economy and durability
performance meeting all requirements for your vehicle’s engine.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
248

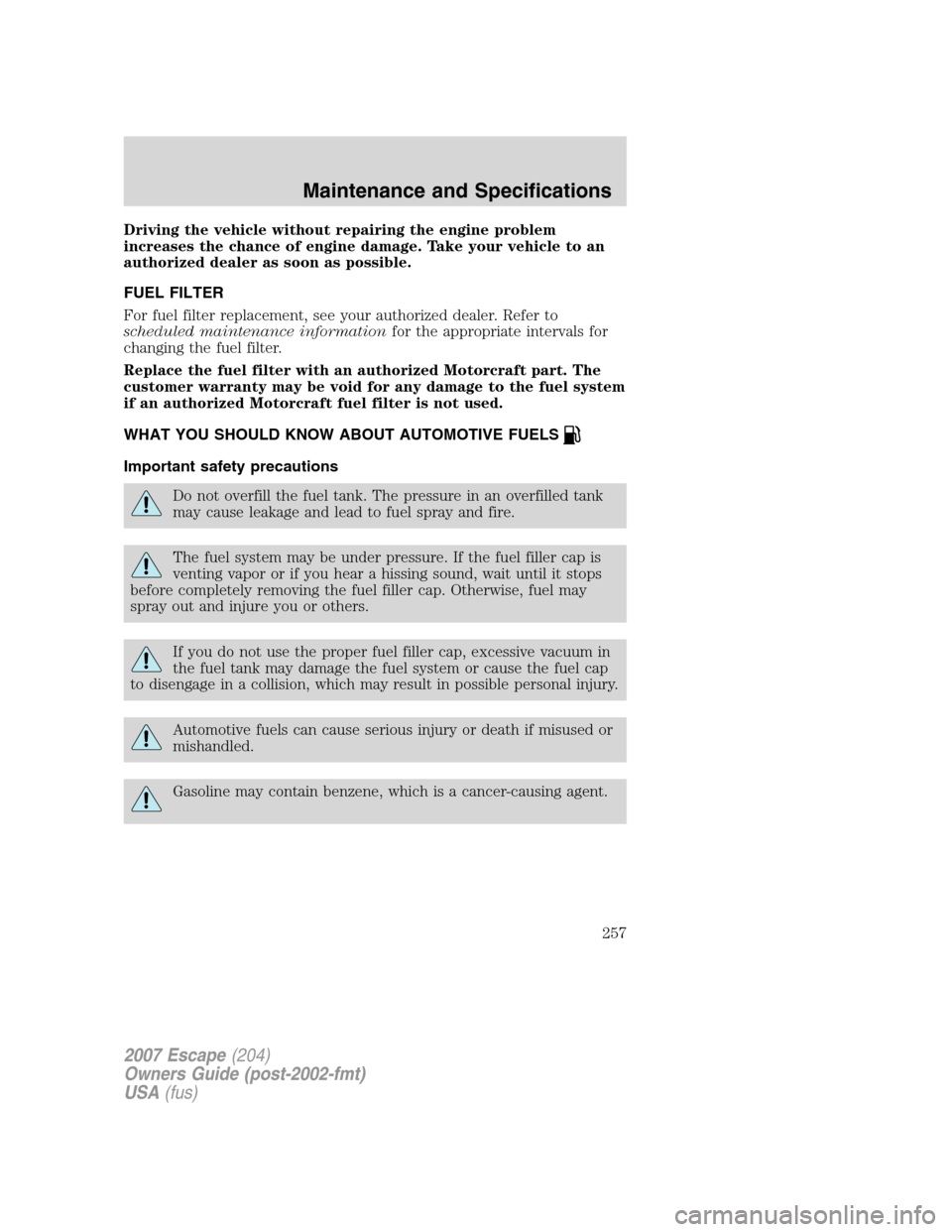

Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive vacuum in
the fuel tank may damage the fuel system or cause the fuel cap
to disengage in a collision, which may result in possible personal injury.
Automotive fuels can cause serious injury or death if misused or
mishandled.
Gasoline may contain benzene, which is a cancer-causing agent.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
257

MOTORCRAFT PART NUMBERS
Component 2.3L I4 engine 3.0L DOHC V6 Duratec
engine
Air filter element
1FA-1683 FA-1683
Fuel filter FG-800-A FG-800-A
Battery BXT-40R BXT-40R
Oil filter FL-910 FL-820-S
PCV valve
2
Spark Plugs3
1
Failure to use the correct air filter element may result in severe engine
damage. The customer warranty may be void for any damage to the
engine if the correct air filter element is not used.
2The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
273

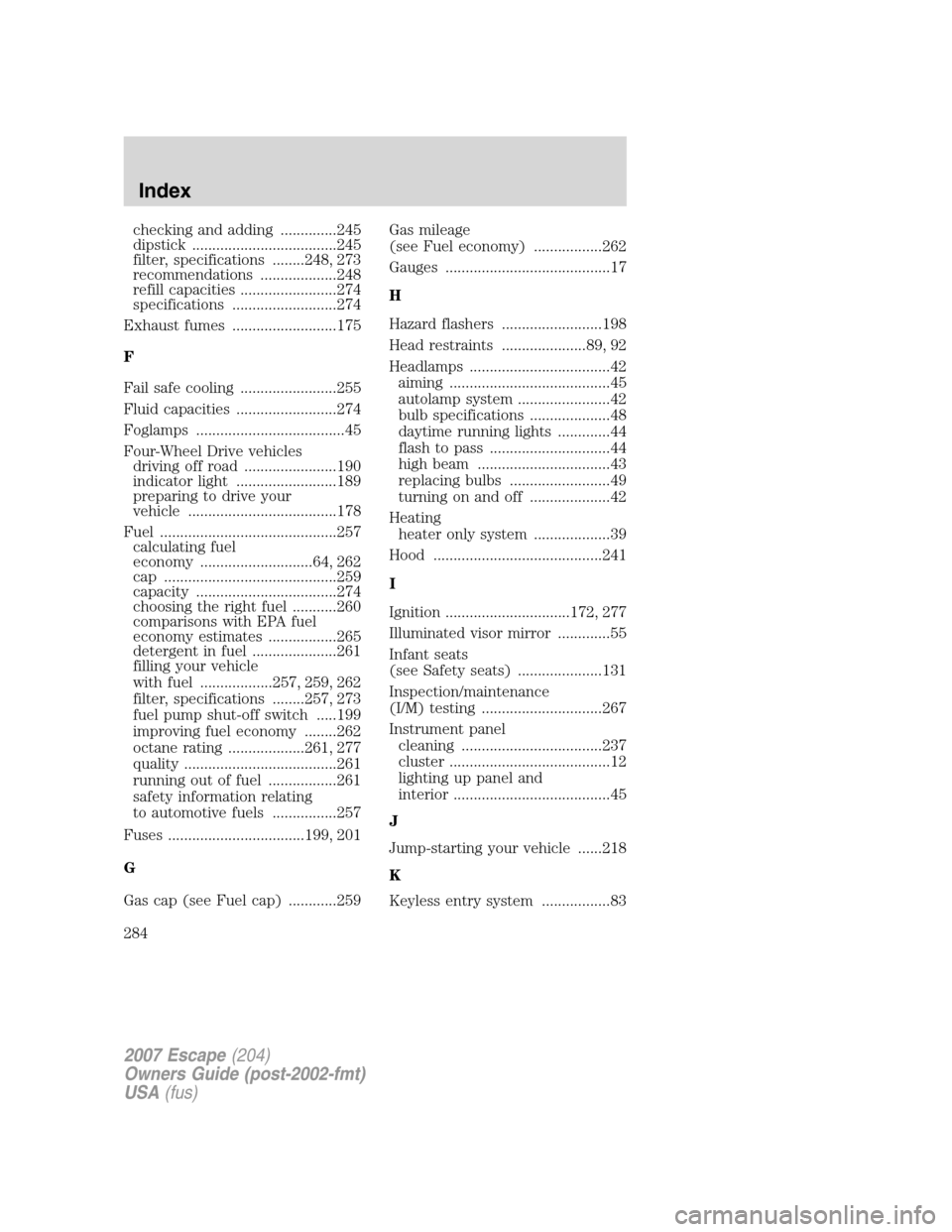

checking and adding ..............245
dipstick ....................................245
filter, specifications ........248, 273
recommendations ...................248
refill capacities ........................274
specifications ..........................274
Exhaust fumes ..........................175
F
Fail safe cooling ........................255
Fluid capacities .........................274
Foglamps .....................................45
Four-Wheel Drive vehicles
driving off road .......................190
indicator light .........................189
preparing to drive your
vehicle .....................................178
Fuel ............................................257
calculating fuel
economy ............................64, 262
cap ...........................................259
capacity ...................................274
choosing the right fuel ...........260
comparisons with EPA fuel
economy estimates .................265
detergent in fuel .....................261
filling your vehicle
with fuel ..................257, 259, 262
filter, specifications ........257, 273
fuel pump shut-off switch .....199
improving fuel economy ........262
octane rating ...................261, 277
quality ......................................261
running out of fuel .................261
safety information relating
to automotive fuels ................257
Fuses ..................................199, 201
G
Gas cap (see Fuel cap) ............259Gas mileage
(see Fuel economy) .................262
Gauges .........................................17
H
Hazard flashers .........................198
Head restraints .....................89, 92
Headlamps ...................................42
aiming ........................................45
autolamp system .......................42
bulb specifications ....................48
daytime running lights .............44
flash to pass ..............................44
high beam .................................43
replacing bulbs .........................49
turning on and off ....................42
Heating
heater only system ...................39
Hood ..........................................241
I
Ignition ...............................172, 277
Illuminated visor mirror .............55
Infant seats
(see Safety seats) .....................131
Inspection/maintenance
(I/M) testing ..............................267
Instrument panel
cleaning ...................................237
cluster ........................................12
lighting up panel and
interior .......................................45
J
Jump-starting your vehicle ......218
K
Keyless entry system .................83
2007 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
284
