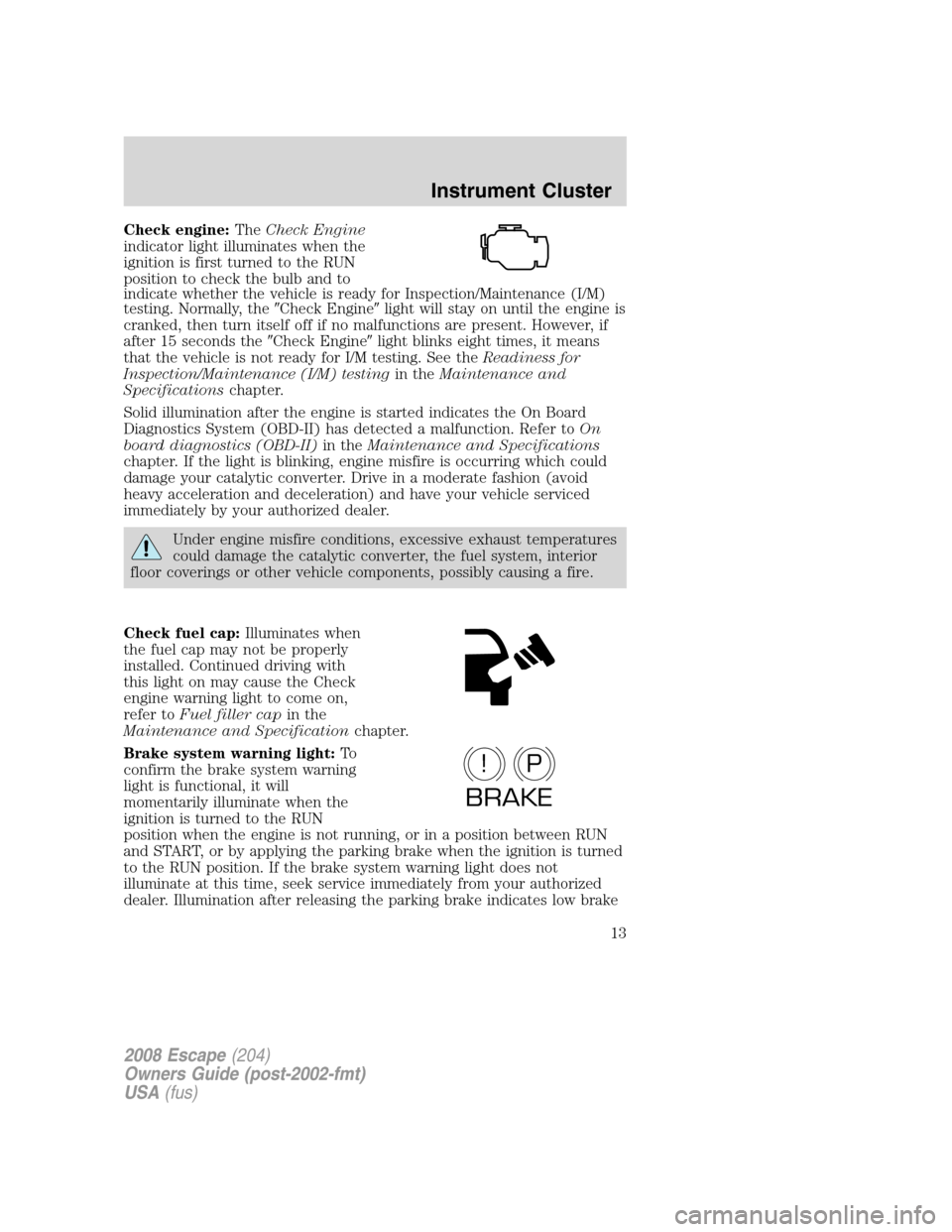

Check engine:TheCheck Engine
indicator light illuminates when the
ignition is first turned to the RUN
position to check the bulb and to
indicate whether the vehicle is ready for Inspection/Maintenance (I/M)
testing. Normally, theCheck Enginelight will stay on until the engine is
cranked, then turn itself off if no malfunctions are present. However, if
after 15 seconds theCheck Enginelight blinks eight times, it means
that the vehicle is not ready for I/M testing. See theReadiness for
Inspection/Maintenance (I/M) testingin theMaintenance and
Specificationschapter.
Solid illumination after the engine is started indicates the On Board
Diagnostics System (OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately by your authorized dealer.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap:Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Check
engine warning light to come on,
refer toFuel filler capin the
Maintenance and Specificationchapter.
Brake system warning light:To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the RUN
position when the engine is not running, or in a position between RUN
and START, or by applying the parking brake when the ignition is turned
to the RUN position. If the brake system warning light does not
illuminate at this time, seek service immediately from your authorized
dealer. Illumination after releasing the parking brake indicates low brake
P!
BRAKE
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
13

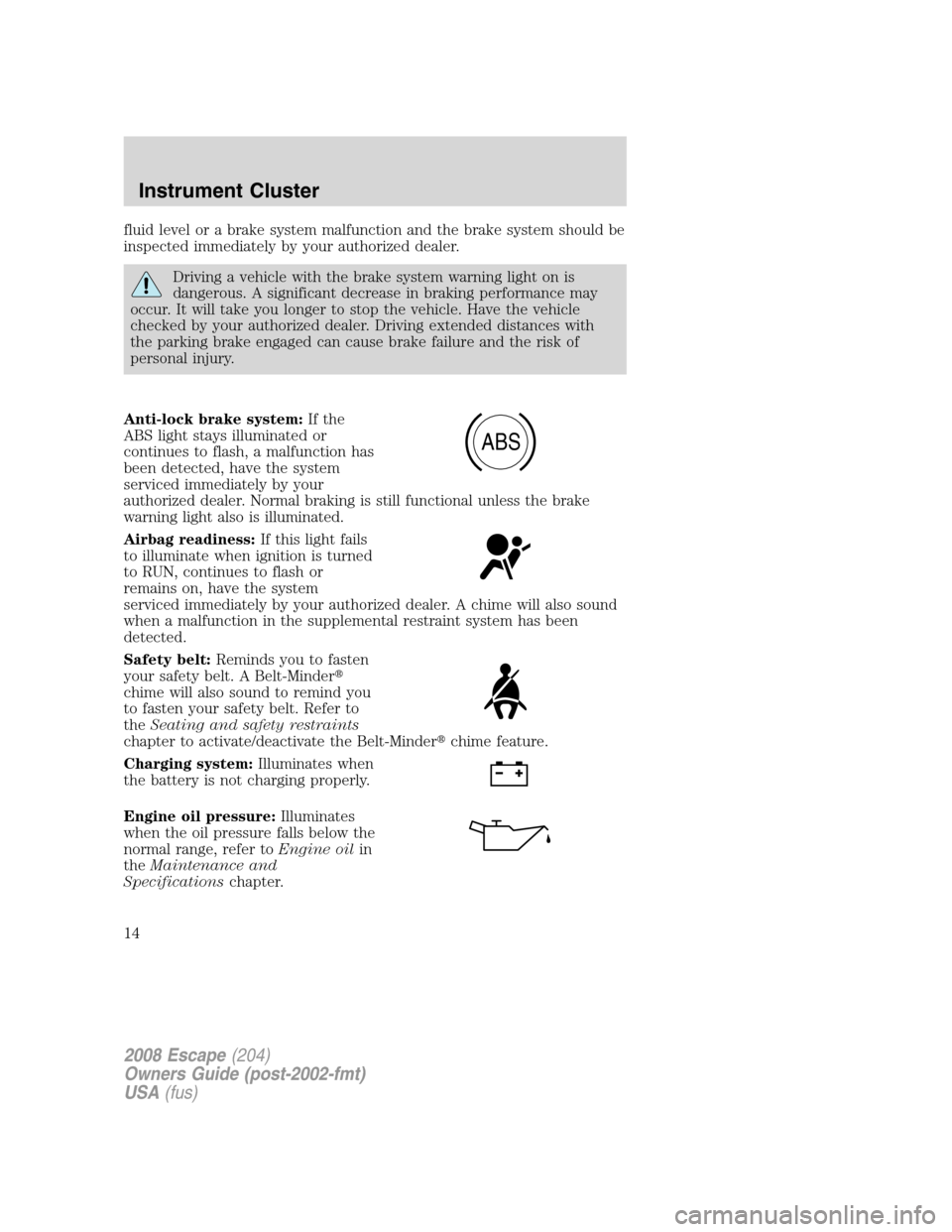

fluid level or a brake system malfunction and the brake system should be
inspected immediately by your authorized dealer.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your authorized dealer. Driving extended distances with
the parking brake engaged can cause brake failure and the risk of
personal injury.
Anti-lock brake system:If the
ABS light stays illuminated or
continues to flash, a malfunction has
been detected, have the system
serviced immediately by your
authorized dealer. Normal braking is still functional unless the brake
warning light also is illuminated.
Airbag readiness:If this light fails
to illuminate when ignition is turned
to RUN, continues to flash or
remains on, have the system
serviced immediately by your authorized dealer. A chime will also sound
when a malfunction in the supplemental restraint system has been
detected.
Safety belt:Reminds you to fasten
your safety belt. A Belt-Minder

chime will also sound to remind you
to fasten your safety belt. Refer to
theSeating and safety restraints
chapter to activate/deactivate the Belt-Minder
chime feature.
Charging system:Illuminates when
the battery is not charging properly.
Engine oil pressure:Illuminates
when the oil pressure falls below the
normal range, refer toEngine oilin
theMaintenance and
Specificationschapter.
ABS
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Instrument Cluster
14

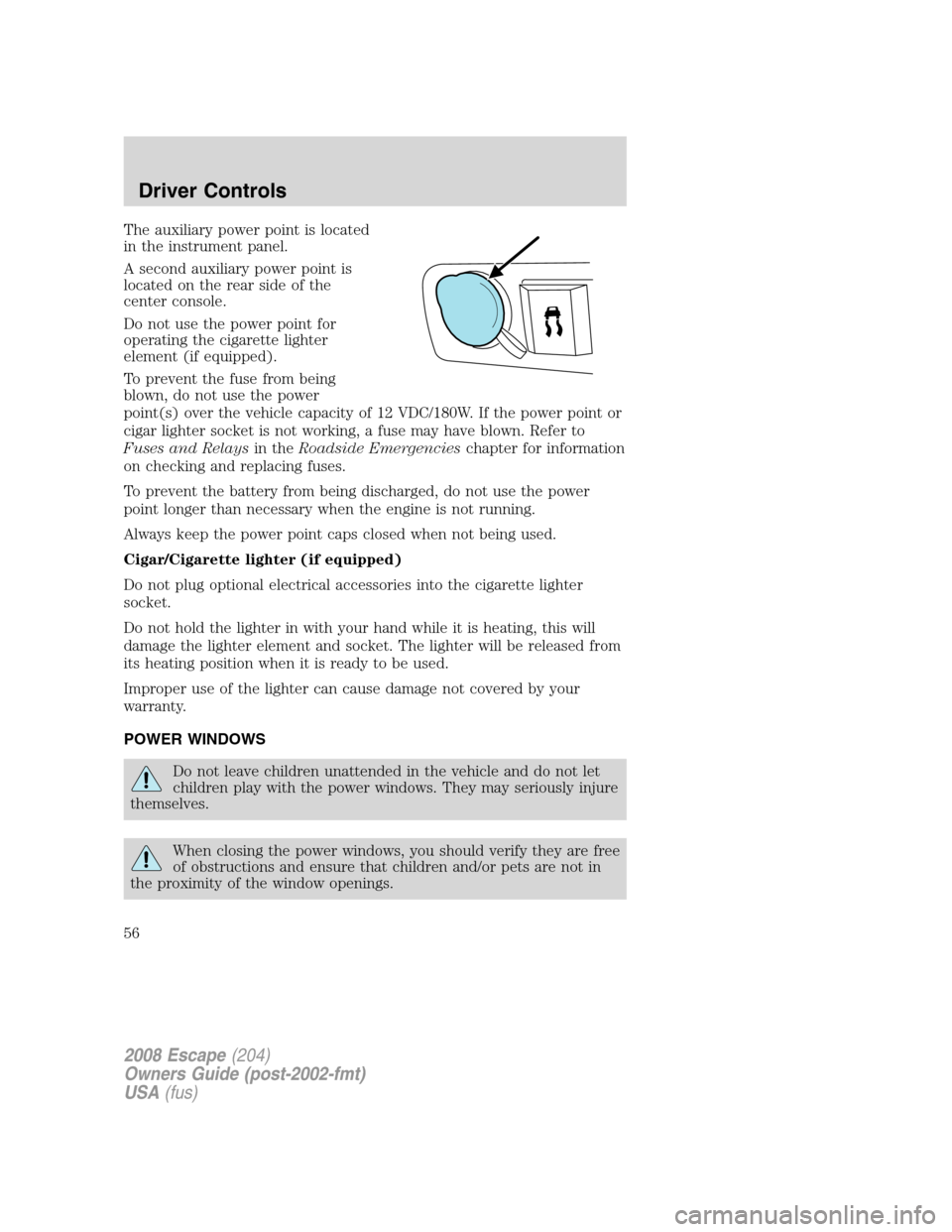

The auxiliary power point is located
in the instrument panel.
A second auxiliary power point is
located on the rear side of the
center console.
Do not use the power point for
operating the cigarette lighter
element (if equipped).
To prevent the fuse from being
blown, do not use the power
point(s) over the vehicle capacity of 12 VDC/180W. If the power point or
cigar lighter socket is not working, a fuse may have blown. Refer to
Fuses and Relaysin theRoadside Emergencieschapter for information
on checking and replacing fuses.
To prevent the battery from being discharged, do not use the power
point longer than necessary when the engine is not running.
Always keep the power point caps closed when not being used.
Cigar/Cigarette lighter (if equipped)
Do not plug optional electrical accessories into the cigarette lighter
socket.
Do not hold the lighter in with your hand while it is heating, this will
damage the lighter element and socket. The lighter will be released from
its heating position when it is ready to be used.
Improper use of the lighter can cause damage not covered by your
warranty.
POWER WINDOWS
Do not leave children unattended in the vehicle and do not let
children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free
of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
56

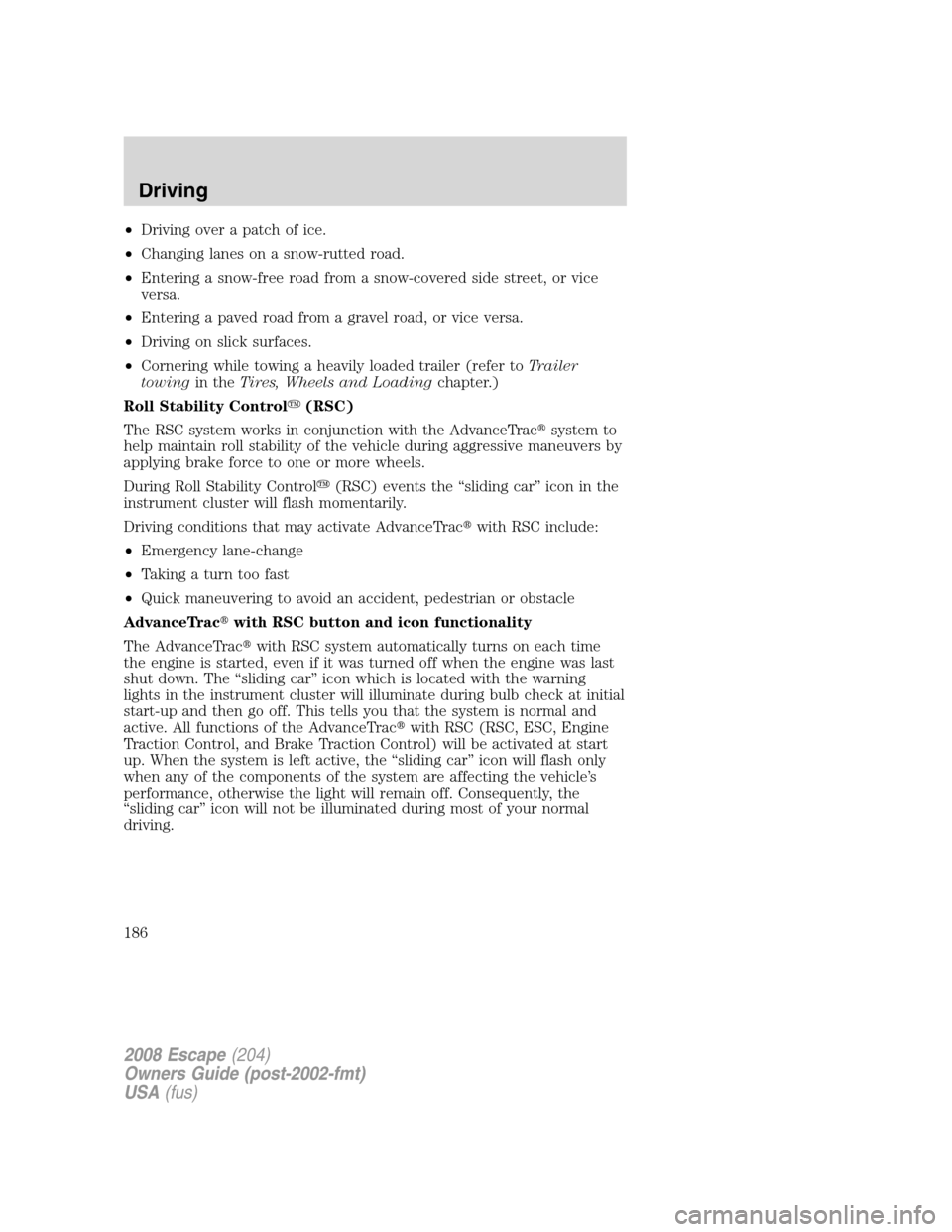

•Driving over a patch of ice.
•Changing lanes on a snow-rutted road.
•Entering a snow-free road from a snow-covered side street, or vice
versa.
•Entering a paved road from a gravel road, or vice versa.
•Driving on slick surfaces.
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter.)
Roll Stability Control(RSC)
The RSC system works in conjunction with the AdvanceTrac
system to
help maintain roll stability of the vehicle during aggressive maneuvers by
applying brake force to one or more wheels.
During Roll Stability Control(RSC) events the “sliding car” icon in the
instrument cluster will flash momentarily.
Driving conditions that may activate AdvanceTrac
with RSC include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
AdvanceTrac
with RSC button and icon functionality
The AdvanceTrac
with RSC system automatically turns on each time
the engine is started, even if it was turned off when the engine was last
shut down. The “sliding car” icon which is located with the warning
lights in the instrument cluster will illuminate during bulb check at initial
start-up and then go off. This tells you that the system is normal and
active. All functions of the AdvanceTrac
with RSC (RSC, ESC, Engine
Traction Control, and Brake Traction Control) will be activated at start
up. When the system is left active, the “sliding car” icon will flash only
when any of the components of the system are affecting the vehicle’s
performance, otherwise the light will remain off. Consequently, the
“sliding car” icon will not be illuminated during most of your normal
driving.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
186

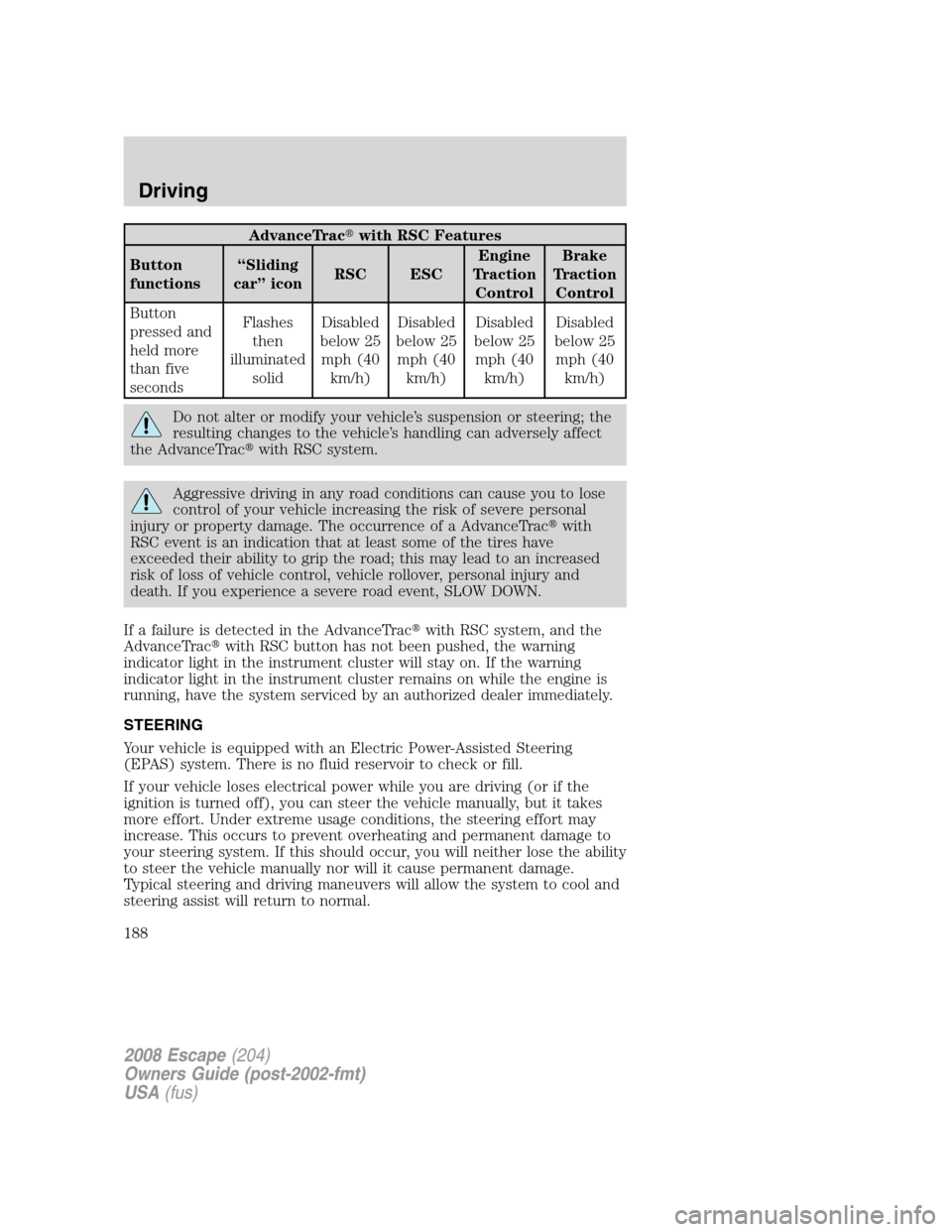

AdvanceTrac
with RSC Features
Button
functions“Sliding
car” iconRSC ESCEngine
Traction
ControlBrake
Traction
Control
Button
pressed and
held more
than five
secondsFlashes
then
illuminated
solidDisabled
below 25
mph (40
km/h)Disabled
below 25
mph (40
km/h)Disabled
below 25
mph (40
km/h)Disabled
below 25
mph (40
km/h)
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
with RSC system.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of a AdvanceTrac
with
RSC event is an indication that at least some of the tires have
exceeded their ability to grip the road; this may lead to an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death. If you experience a severe road event, SLOW DOWN.
If a failure is detected in the AdvanceTrac
with RSC system, and the
AdvanceTrac
with RSC button has not been pushed, the warning
indicator light in the instrument cluster will stay on. If the warning
indicator light in the instrument cluster remains on while the engine is
running, have the system serviced by an authorized dealer immediately.
STEERING
Your vehicle is equipped with an Electric Power-Assisted Steering
(EPAS) system. There is no fluid reservoir to check or fill.
If your vehicle loses electrical power while you are driving (or if the
ignition is turned off), you can steer the vehicle manually, but it takes
more effort. Under extreme usage conditions, the steering effort may
increase. This occurs to prevent overheating and permanent damage to
your steering system. If this should occur, you will neither lose the ability
to steer the vehicle manually nor will it cause permanent damage.
Typical steering and driving maneuvers will allow the system to cool and
steering assist will return to normal.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
188

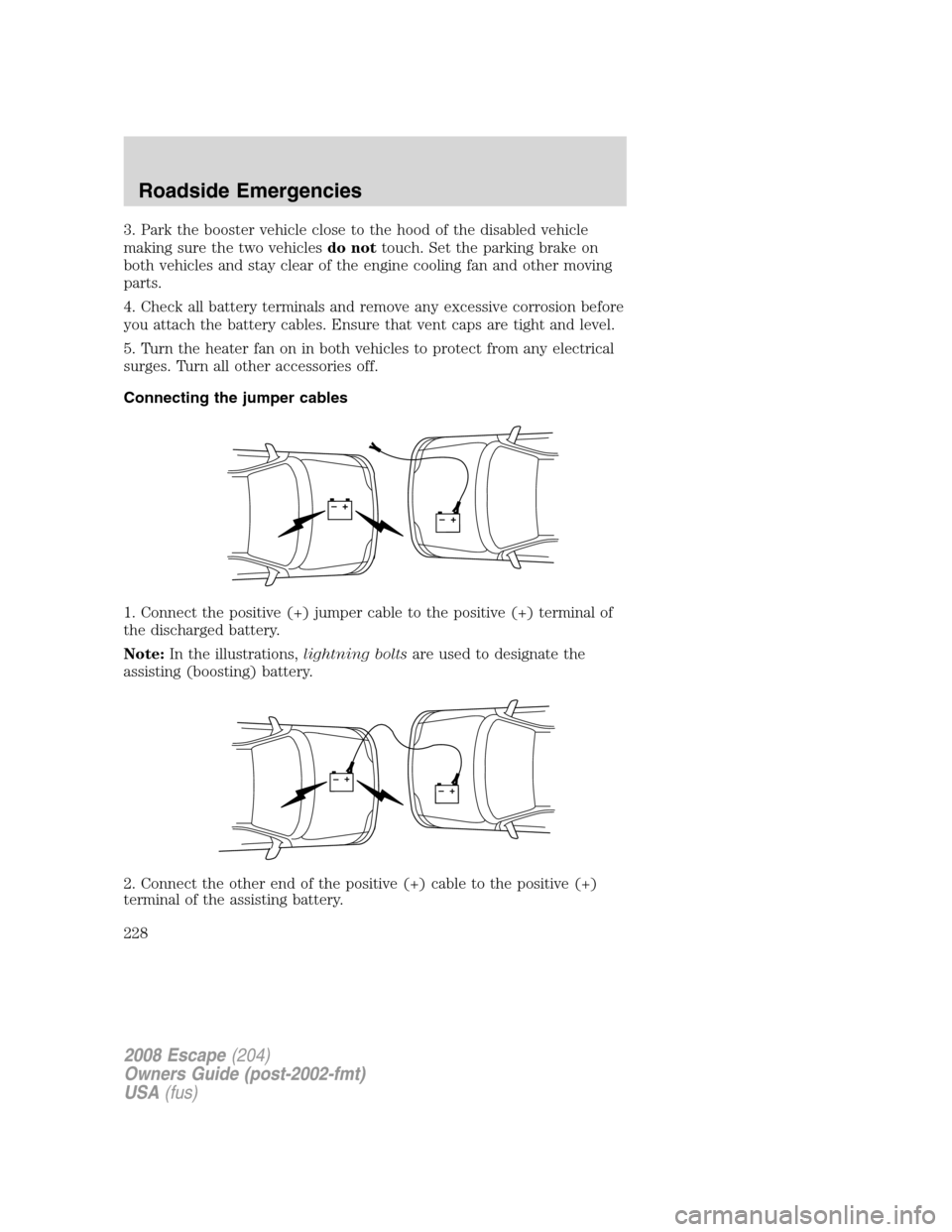

3. Park the booster vehicle close to the hood of the disabled vehicle
making sure the two vehiclesdo nottouch. Set the parking brake on
both vehicles and stay clear of the engine cooling fan and other moving
parts.
4. Check all battery terminals and remove any excessive corrosion before
you attach the battery cables. Ensure that vent caps are tight and level.
5. Turn the heater fan on in both vehicles to protect from any electrical
surges. Turn all other accessories off.
Connecting the jumper cables
1. Connect the positive (+) jumper cable to the positive (+) terminal of
the discharged battery.
Note:In the illustrations,lightning boltsare used to designate the
assisting (boosting) battery.
2. Connect the other end of the positive (+) cable to the positive (+)
terminal of the assisting battery.
+–+–
+–+–
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
228

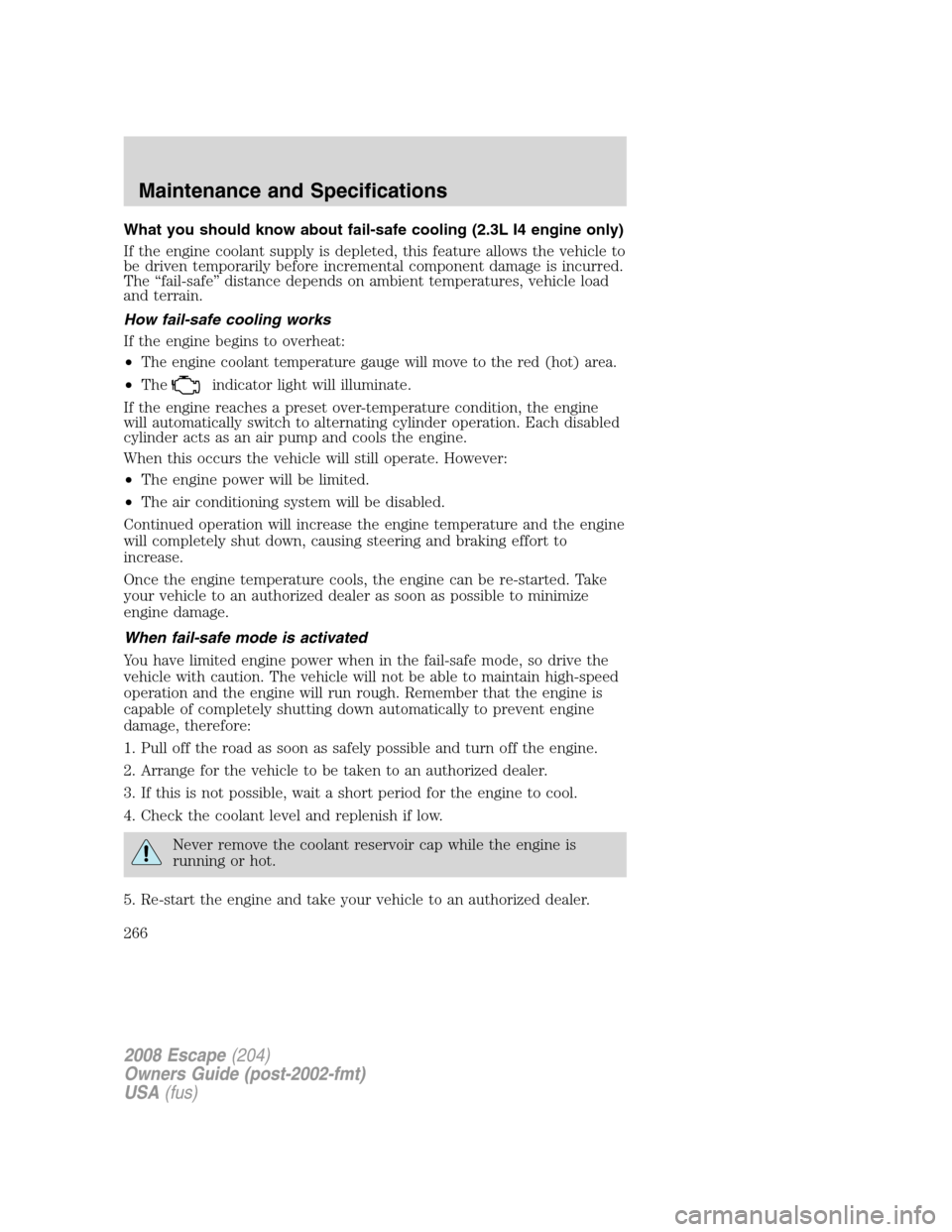

What you should know about fail-safe cooling (2.3L I4 engine only)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•
The engine coolant temperature gauge will move to the red (hot) area.
•Theindicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
266

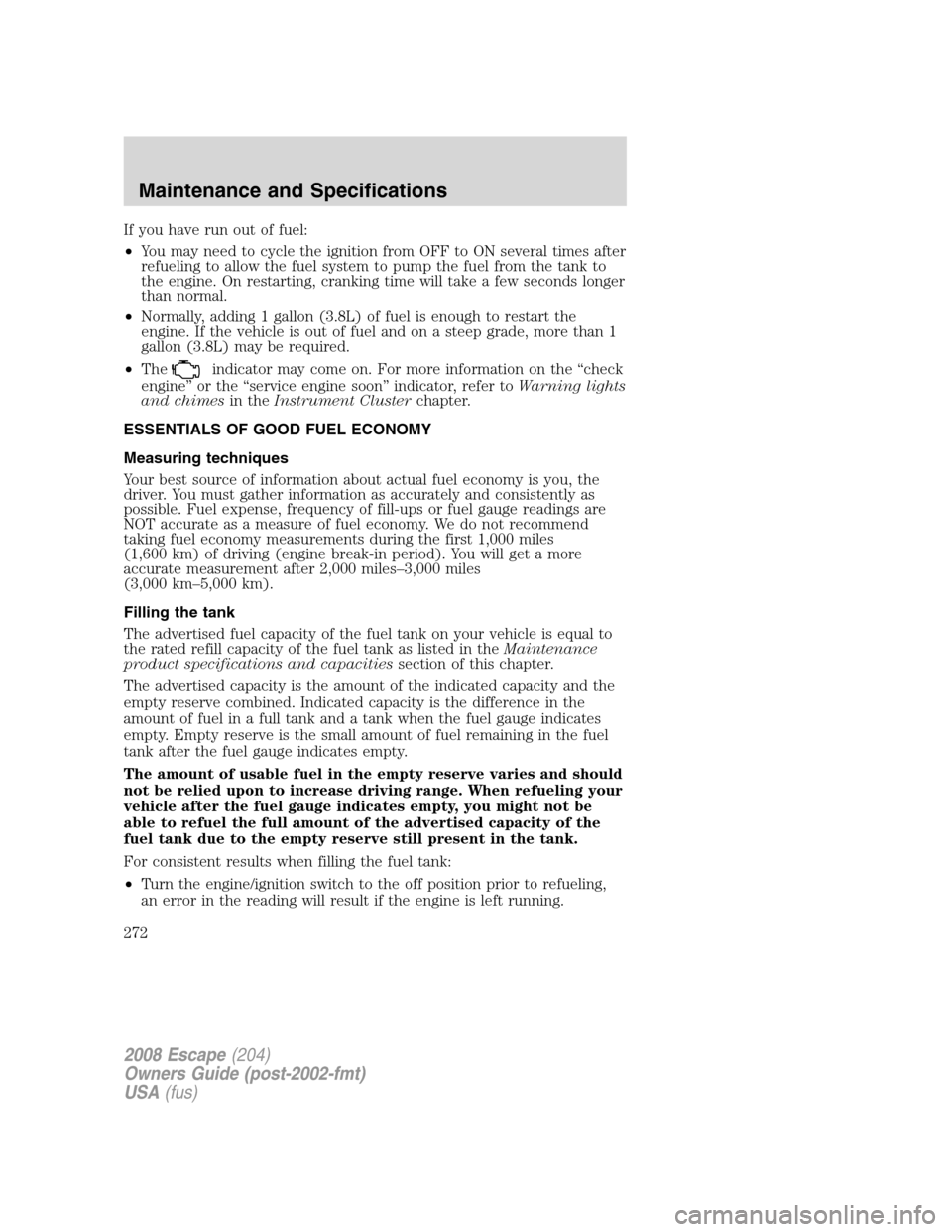

If you have run out of fuel:
•You may need to cycle the ignition from OFF to ON several times after
refueling to allow the fuel system to pump the fuel from the tank to
the engine. On restarting, cranking time will take a few seconds longer
than normal.
•Normally, adding 1 gallon (3.8L) of fuel is enough to restart the
engine. If the vehicle is out of fuel and on a steep grade, more than 1
gallon (3.8L) may be required.
•The
indicator may come on. For more information on the “check
engine” or the “service engine soon” indicator, refer toWarning lights
and chimesin theInstrument Clusterchapter.
ESSENTIALS OF GOOD FUEL ECONOMY
Measuring techniques
Your best source of information about actual fuel economy is you, the
driver. You must gather information as accurately and consistently as
possible. Fuel expense, frequency of fill-ups or fuel gauge readings are
NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles–3,000 miles
(3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
272

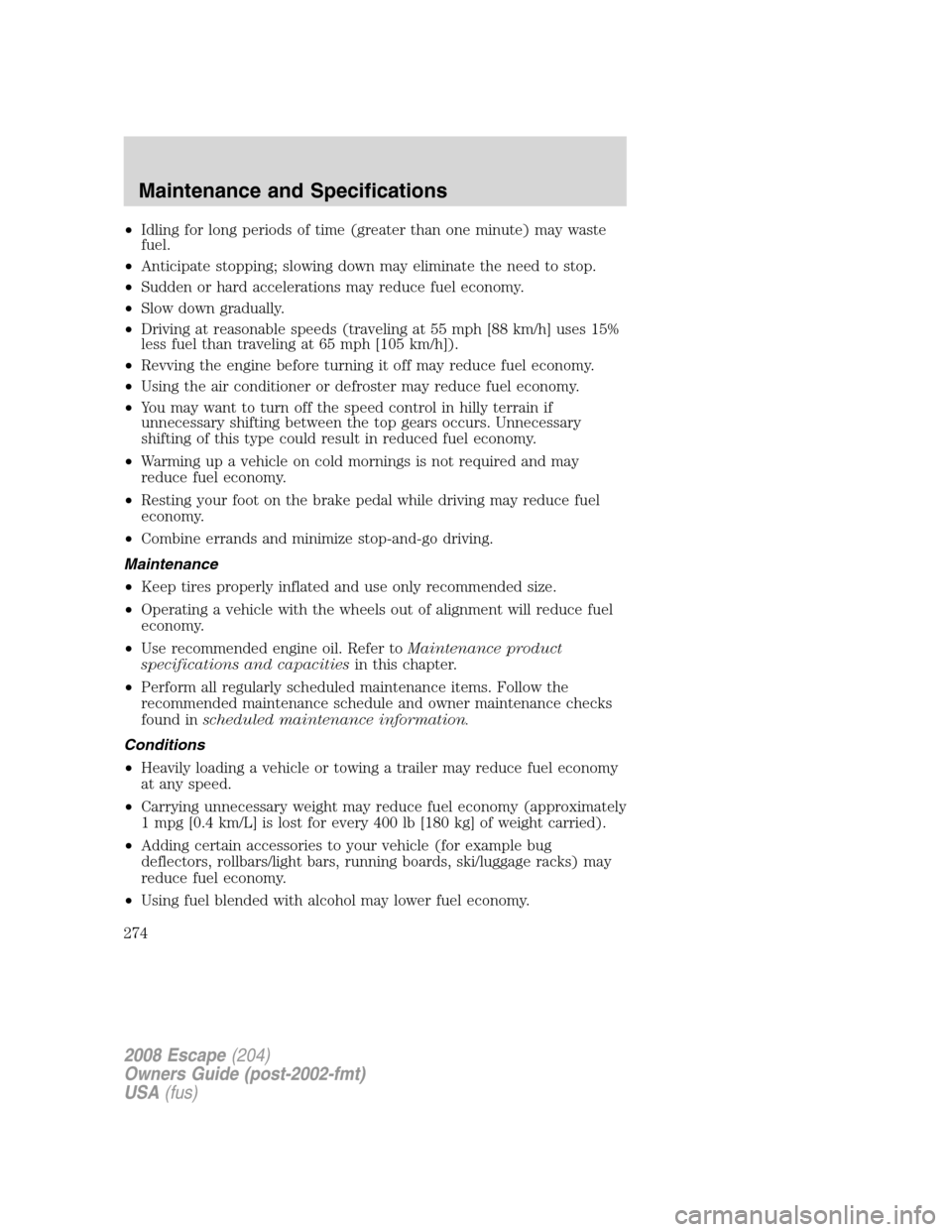

•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
274

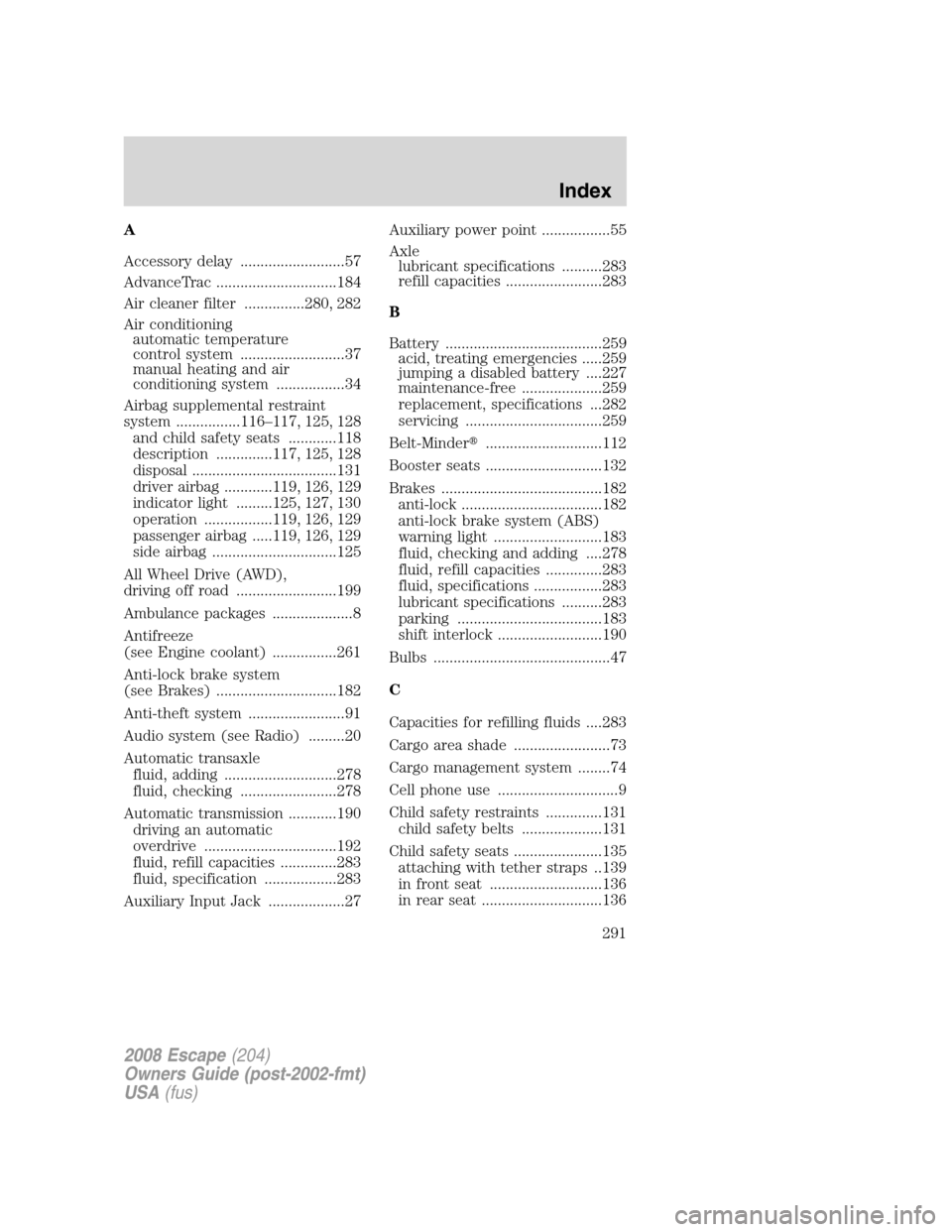

A
Accessory delay ..........................57
AdvanceTrac ..............................184
Air cleaner filter ...............280, 282
Air conditioning
automatic temperature
control system ..........................37
manual heating and air
conditioning system .................34
Airbag supplemental restraint
system ................116–117, 125, 128
and child safety seats ............118
description ..............117, 125, 128
disposal ....................................131
driver airbag ............119, 126, 129
indicator light .........125, 127, 130
operation .................119, 126, 129
passenger airbag .....119, 126, 129
side airbag ...............................125
All Wheel Drive (AWD),
driving off road .........................199
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................261
Anti-lock brake system
(see Brakes) ..............................182
Anti-theft system ........................91
Audio system (see Radio) .........20
Automatic transaxle
fluid, adding ............................278
fluid, checking ........................278
Automatic transmission ............190
driving an automatic
overdrive .................................192
fluid, refill capacities ..............283
fluid, specification ..................283
Auxiliary Input Jack ...................27Auxiliary power point .................55
Axle
lubricant specifications ..........283
refill capacities ........................283
B
Battery .......................................259
acid, treating emergencies .....259
jumping a disabled battery ....227
maintenance-free ....................259
replacement, specifications ...282
servicing ..................................259
Belt-Minder
.............................112
Booster seats .............................132
Brakes ........................................182
anti-lock ...................................182
anti-lock brake system (ABS)
warning light ...........................183
fluid, checking and adding ....278
fluid, refill capacities ..............283
fluid, specifications .................283
lubricant specifications ..........283
parking ....................................183
shift interlock ..........................190
Bulbs ............................................47
C
Capacities for refilling fluids ....283
Cargo area shade ........................73
Cargo management system ........74
Cell phone use ..............................9
Child safety restraints ..............131
child safety belts ....................131
Child safety seats ......................135
attaching with tether straps ..139
in front seat ............................136
in rear seat ..............................136
2008 Escape(204)
Owners Guide (post-2002-fmt)
USA(fus)
Index
291
