bluetooth FORD ESCAPE 2008 2.G Quick Reference Guide

Note:To scroll, pressSEEKor/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. MEDIA MENU will momentarily appear in the radio
display followed by PLAY MENU.
3.
Scroll repeatedly until SYSTEM SETTINGS appears in the radio display.
4. Press OK to confirm and enter the SYSTEM SETTINGS menu.
5. Scroll until BT (BLUETOOTH) DEVICES appears in the display. Press
OK to confirm and enter the BT DEVICES menu.
6. Scroll until ADD DEVICE appears in the radio display. Press OK to
confirm.
7. When FIND SYNC appears in your radio display, scroll repeatedly until
FIND DEVICES appears. Press OK to confirm.
8. After the search for active BT DEVICES is complete, scroll to find the
desired device. Press OK to confirm.
9. Refer to your device’s user guide for instructions on how to put your
device into discoverable mode. When your media device gives you a PIN,
enter that PIN into SYNC using voice commands (or using the 0–9
memory presets on your audio system, if equipped), when prompted.
10. When you have entered your last digit via voice, say “Enter”.
11. When the process is complete, SYNC will display CONNECTED and
the name of the device will appear in the radio display.
You can now change SYNC sources to BT (BLUETOOTH) AUDIO and
stream music from your device.
Connecting a Bluetooth media device
To connect a previously paired Bluetoothdevice:
Note: To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNC appears.
2.
Press MENU. MEDIA MENU will momentarily appear in the radio display.
3. Press OK to access PLAY MENU.
4.
Scroll repeatedly until SYSTEM SETTINGS appears in the radio display.
5. Press OK to confirm and enter the SYSTEM SETTINGS menu.
6. Scroll repeatedly until BT DEVICES menu appears in the radio display.
7. Press OK to confirm the selection. This will take you into the BT
DEVICES menu.
2008 SYNC/MGM (mgm)
Supplement
USA (fus)
SYNC media features
44SeeEnd User License Agreement at the end of this book

8. Scroll repeatedly until CONNECT BT appears in the radio display.
9. Select the desired device and press OK to connect to the device.
Bluetooth on/off
To turn theBluetoothfeature on SYNC on/off:
Note: To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
3. Press OK to access the PLAY MENU.
4.
Scroll repeatedly until SYSTEM SETTINGS appears in the radio display.
5. Press OK to confirm and enter the SYSTEM SETTINGS menu.
6. Scroll repeatedly until BT (BLUETOOTH) DEVICES MENU appears in
the radio display.
7. Press OK to confirm the selection. This will take you into the BT
(BLUETOOTH) DEVICES menu.
8. Scroll repeatedly until BT ON/OFF appears in the radio display.
9. When the desired selection appears in the display, press OK.
Note: Selecting BLUETOOTH (BT) OFF will disconnect all Bluetooth
devices and deactivate all Bluetoothfeatures.
Deleting a device
To delete a previously paired media device from SYNC:
Note: To scroll, press
SEEKor/.
1. Press AUX repeatedly until SYNC appears.
2. Press MENU. MEDIA MENU will momentarily appear in the radio
display.
3. Press OK to access the PLAY MENU.
4.
Scroll repeatedly until SYSTEM SETTINGS appears in the radio display.
5. Press OK to confirm and enter the SYSTEM SETTINGS menu.
6. Scroll repeatedly until BT (BLUETOOTH) DEVICES appears in the
radio display.
7. Press OK to confirm the selection. This will take you into the BT
DEVICES menu.
2008 SYNC/MGM (mgm)
Supplement
USA (fus)
SYNC media features
45SeeEnd User License Agreement at the end of this book

ACCESSING SYNC MEDIA FEATURES THROUGH YOUR DVD
SYSTEM (IF EQUIPPED)
Rear seat passengers can listen to SYNC media sources (USB, BT
AUDIO, LINE IN) through the DVD system (if equipped).
To access:
1. Ensure that:
•The DVD and audio system are ON.
• Your digital media playing device is plugged into the USB port or
SYNC’s Auxiliary input jack (Line in), if desired.
• Your Bluetooth enabled cellular phone from which you wish to stream
music is ON and is currently paired to SYNC as a BluetoothDevice.
2008 SYNC/MGM (mgm)
Supplement
USA (fus)
DVD interaction
57SeeEnd User License Agreement at the end of this book

Similar MusicThe Similar Music screen allows you to play music similar
to what is currently playing from the USB port. The system will use the
metadata information of each song to compile a playlist for you.
Select source menu
The SYNC select source menu screen allows you to choose which SYNC
media source to access.
• From the main screen, select
‘Menu’.
• Choose ‘Select Source’.
Choose from:
• USB: Select to access any
supported device plugged into the
USB port.
• Bluetooth Stereo: Select to
stream audio from your Bluetooth
stereo enabled device over the
vehicle’s speakers.
• Line In: Select to access any
playing device plugged into the Auxiliary input jack (Line in).
2008 SYNC/MGM (mgm)
Supplement
USA (fus)
DVD interaction
62SeeEnd User License Agreement at the end of this book

GLOSSARY OF TERMS
Autoplay:With Autoplay turned ON, SYNC allows you to listen to music
which has already been randomly indexed during the indexing process.
With Autoplay turned off, the chosen music will not begin to play until
all of the music has been indexed by SYNC. Depending on the size of the
material, this may take a few minutes.
Bluetooth enabled cellular phone: Any cellular phone which has the
Bluetooth wireless technology which will enable the phone to connect
with SYNC and exchange information wirelessly.
Digital media player / USB Device: This is a generic term used to
signify any of the following media devices: iPod
, Zune™, “Plays from
device” players, and most USB drives (thumb drives, flash drives, PEN
drives, etc.)
Discoverable mode: A mode which allows other Bluetoothenabled
devices to find your Bluetoothenabled device.
Discovery mode: A mode which allows your Bluetoothenabled device
to search for other ‘discoverable’ Bluetoothenabled devices.
In-band ringing: This is a phone dependent feature. If your Bluetooth
enabled cellular phone supports this feature, SYNC can play your ring
tone during incoming calls.
Indexing: A process in which SYNC builds a voice recognition grammar
for the media content of your digital media player. While indexing, SYNC
will play already indexed media if Autoplay is on. However, voice
recognition is not available for the media until the indexing process is
complete.
Metadata: Descriptive tags embedded in your digital media which
provide SYNC with information such as ARTIST, ALBUM, GENRE and
TRACK.
Pairing: To use your Bluetoothenabled cellular phone with SYNC, you
must go through a pairing (bonding) process. “Pairing” is a special
process used when two devices connect for the first time. The pairing
process is used to generate a link key that is used for authentication
purposes during subsequent Bluetoothconnections between the two
devices.
PIN (Personal Identification number): This six digit number
(sometimes referred to as a passkey) will be shown in the radio display
during the pairing process with your Bluetoothenabled device. You do
not need to write down this number as it will only be used for that
specific pairing procedure.
2008 SYNC/MGM (mgm)
Supplement
USA (fus)
Glossary
64SeeEnd User License Agreement at the end of this book

A
Accessing call history/
phone book during active call ...18
Accessing system settings .........42
Accessing vehicle
applications .................................42
Accessing your phone book .......20
Accessing your playlists .............52
Active call menu options ...........16
Adding a Bluetooth media
device which is in discoverable
mode ............................................43
Adding a Bluetooth media
device which is in discovery
mode ............................................43
Adding a phone ...........................28
Answering an incoming call .......14
Applications .................................27
Automatically download your
phone book ..................................26
C
Call history ..................................19
Changing the SYNC language
setting ....................................32, 47
Connecting a Bluetooth
media device ...............................44
Connecting a digital media
player to SYNC ............................37
Connecting a phone ....................29
D
Delete a device ...........................45
Deleting a phone .........................31Deleting all phones .....................31
Deleting all text messages .........23
Downloading unread text
messages ......................................22
E
End user license agreement ......65
Ending a call ...............................14
Exiting phone mode ...................14
Exploring the USB device ..........54
H
How SYNC interacts with your
Bluetooth device .........................18
I
Incoming new text message ......15
Installing new vehicle
applications ...........................33, 48
J
Joining two calls
(multiparty/conference call) ......17
M
Making a call ...............................14
Message notification ...................25
Modifying your phone book .......25
P
Pairing media devices
to SYNC .......................................43
Pairing your phone .....................28
2008 SYNC/MGM
(mgm)
Supplement
USA (fus)
Index
72

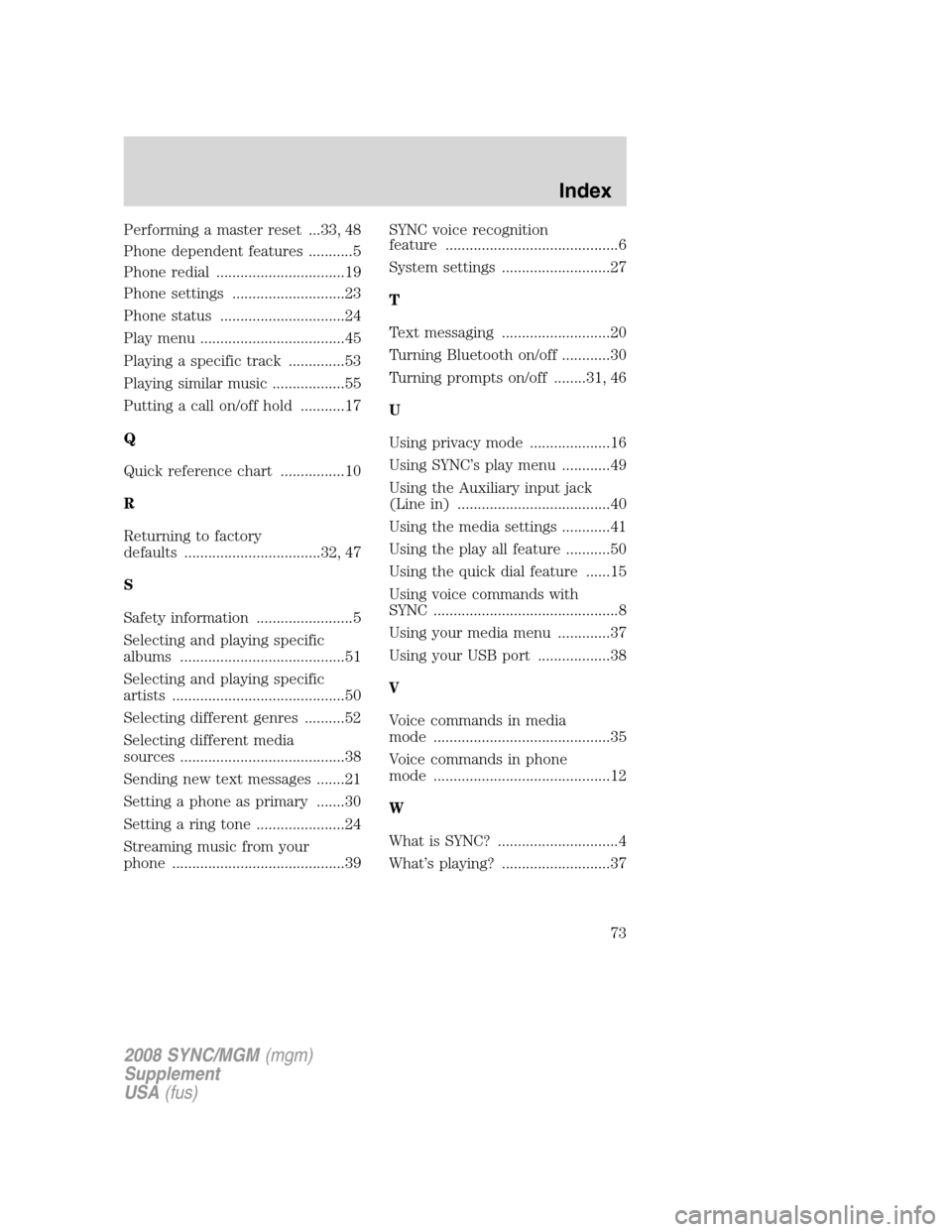

Performing a master reset ...33, 48
Phone dependent features ...........5
Phone redial ................................19
Phone settings ............................23
Phone status ...............................24
Play menu ....................................45
Playing a specific track ..............53
Playing similar music ..................55
Putting a call on/off hold ...........17
Q
Quick reference chart ................10
R
Returning to factory
defaults ..................................32, 47
S
Safety information ........................5
Selecting and playing specific
albums .........................................51
Selecting and playing specific
artists ...........................................50
Selecting different genres ..........52
Selecting different media
sources .........................................38
Sending new text messages .......21
Setting a phone as primary .......30
Setting a ring tone ......................24
Streaming music from your
phone ...........................................39SYNC voice recognition
feature ...........................................6
System settings ...........................27
T
Text messaging ...........................20
Turning Bluetooth on/off ............30
Turning prompts on/off ........31, 46
U
Using privacy mode ....................16
Using SYNC’s play menu ............49
Using the Auxiliary input jack
(Line in) ......................................40
Using the media settings ............41
Using the play all feature ...........50
Using the quick dial feature ......15
Using voice commands with
SYNC ..............................................8
Using your media menu .............37
Using your USB port ..................38
V
Voice commands in media
mode ............................................35
Voice commands in phone
mode ............................................12
W
What is SYNC? ..............................4
What’s playing? ...........................37
2008 SYNC/MGM
(mgm)
Supplement
USA (fus)
Index
73
