FORD ESCAPE 2010 2.G Owners Manual

ENGINE DATA
Engine 2.5L I4 engine 3.0L V6 engine
Cubic inches 152 183
Required fuel 87 octane 87 octane or E85
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35mm)0.045–0.049 inch
(1.15–1.25mm)
Compression
ratio9.7:1 10.3:1
Engine drivebelt routing
•2.5L I4 Engine
•3.0L V6 Engine
Maintenance and Specifications
331
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

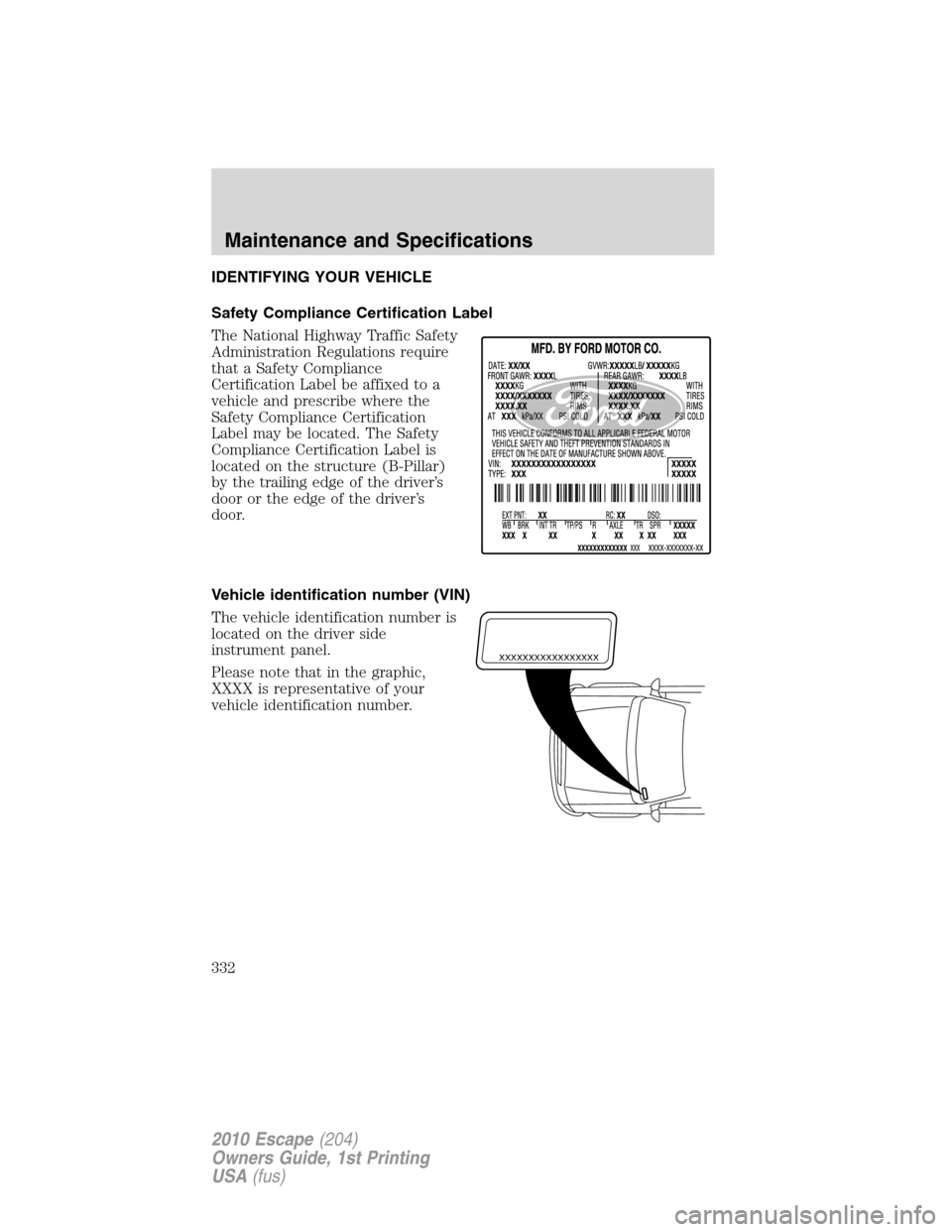

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
332
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

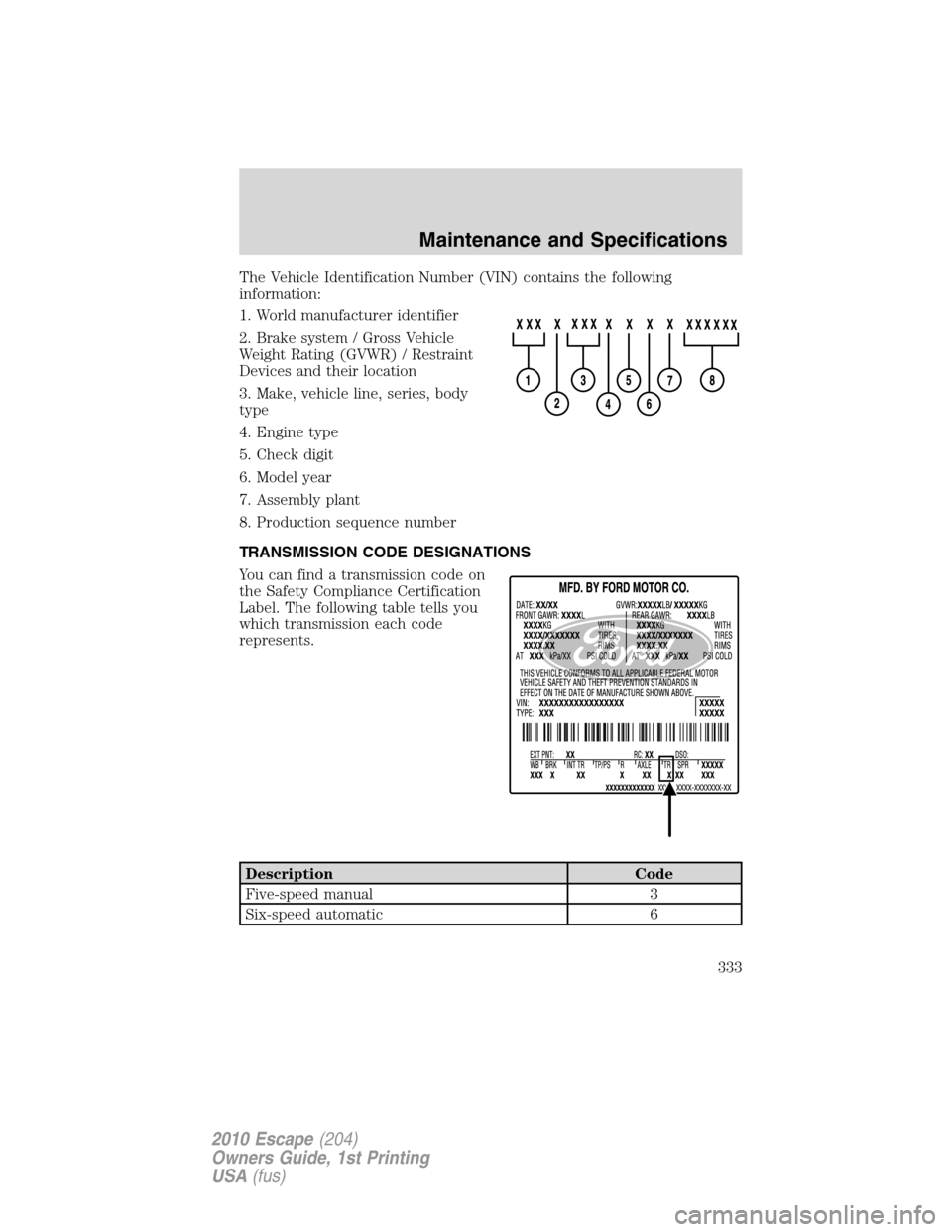

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed manual 3
Six-speed automatic 6
Maintenance and Specifications
333
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

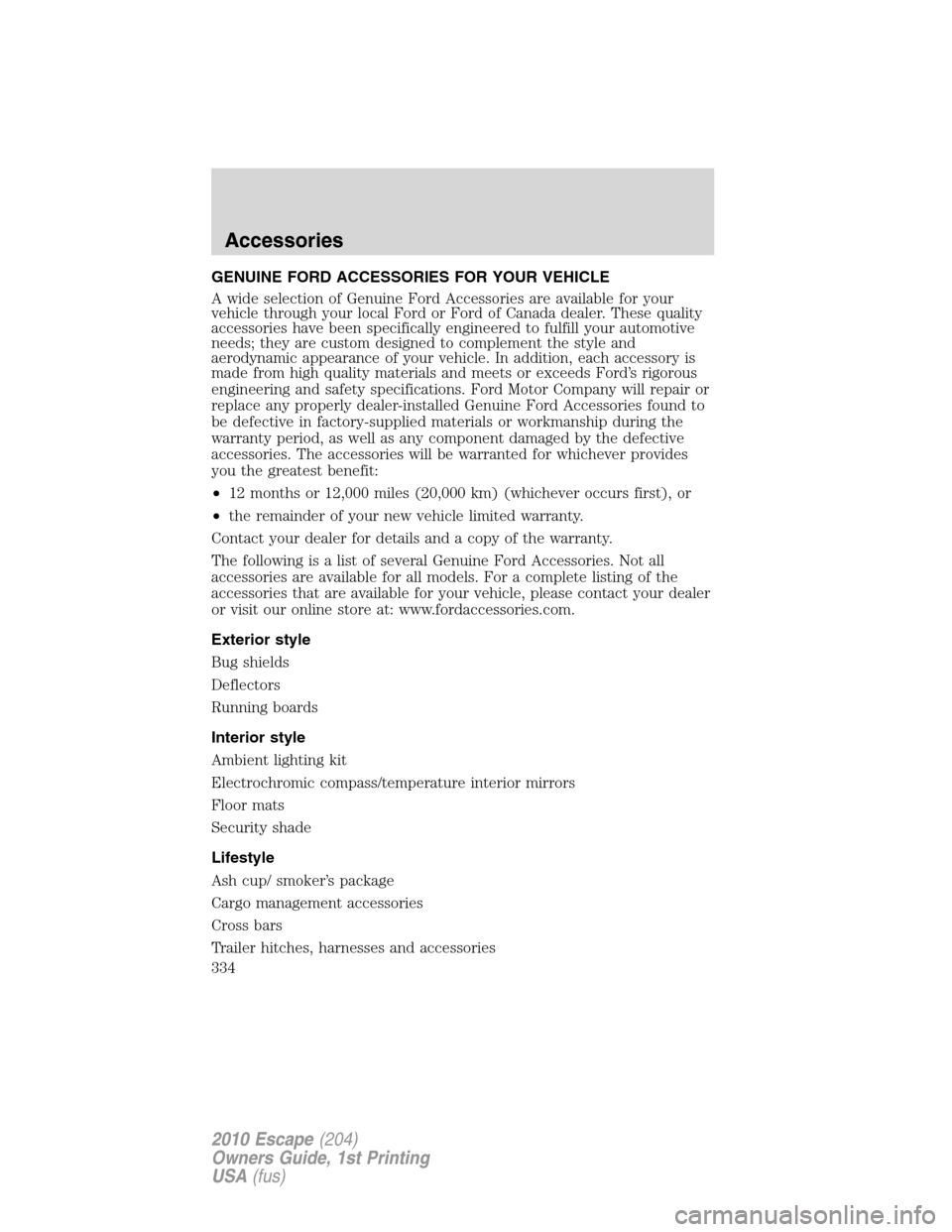

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bug shields
Deflectors
Running boards
Interior style
Ambient lighting kit
Electrochromic compass/temperature interior mirrors
Floor mats
Security shade
Lifestyle
Ash cup/ smoker’s package
Cargo management accessories
Cross bars
Trailer hitches, harnesses and accessories
Accessories
334
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

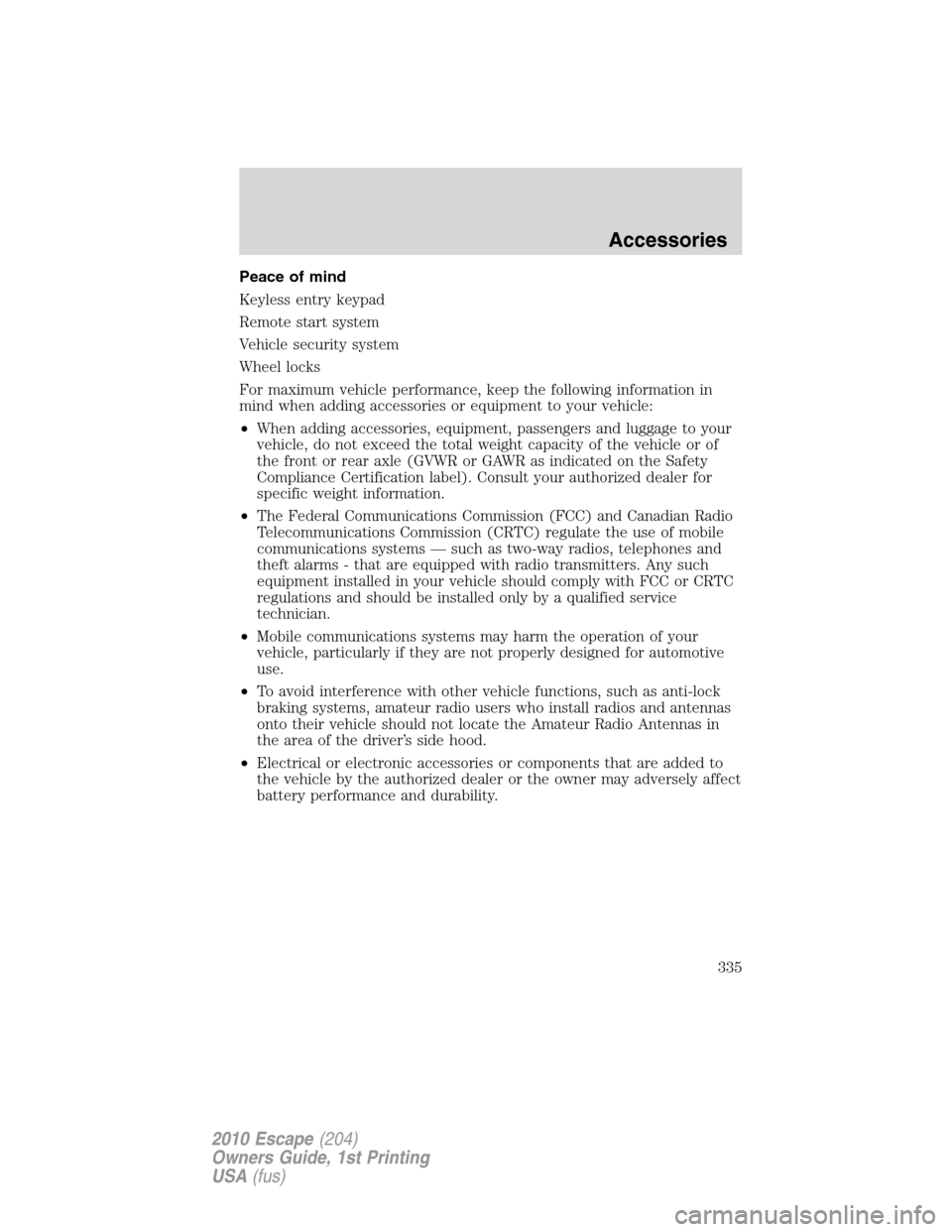

Peace of mind
Keyless entry keypad
Remote start system
Vehicle security system
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
335
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

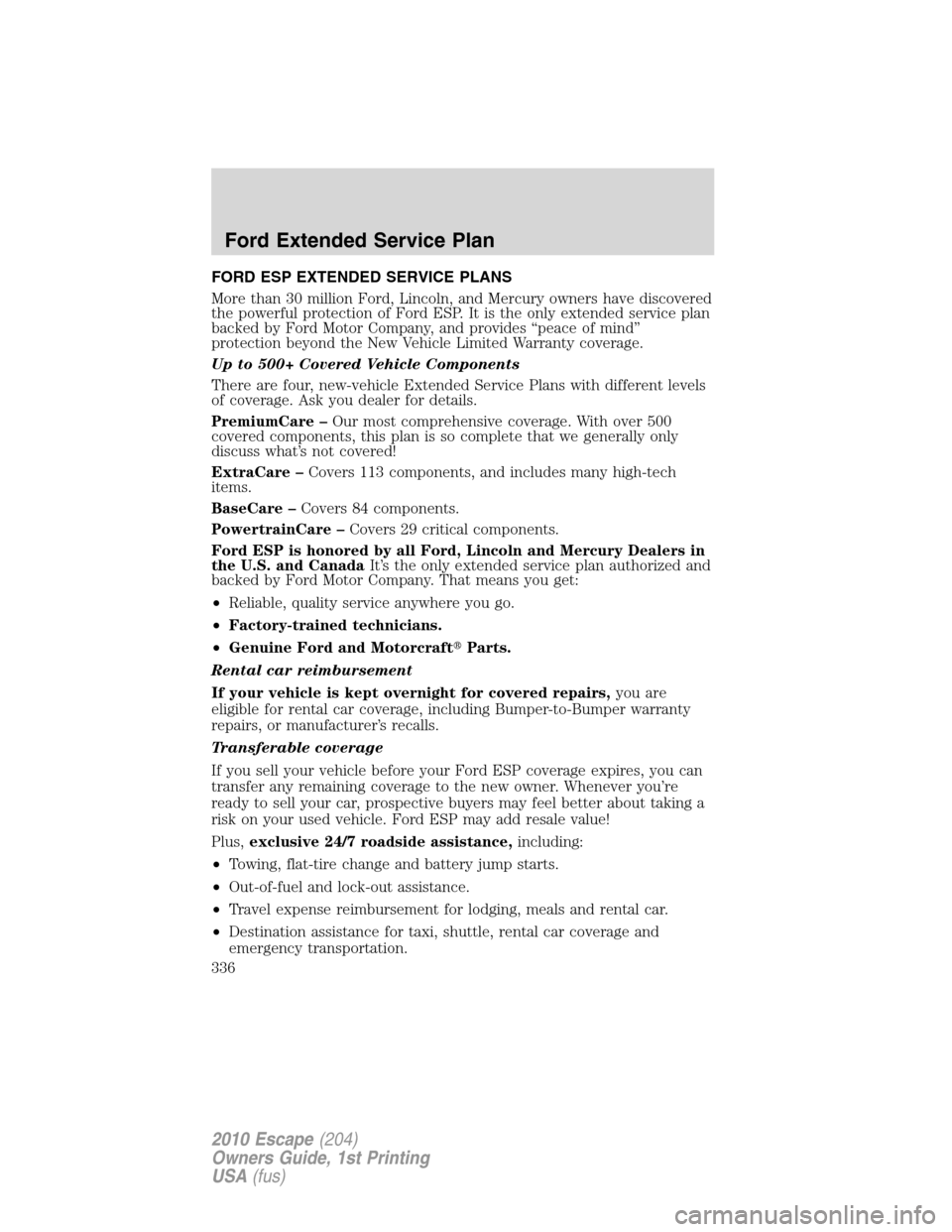

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
336
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs
(except California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
337
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Ford Extended Service Plan
338
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................72
Active Park Assist .....................233
AdvanceTrac ..............................217
Air cleaner filter ...............325, 327
Air conditioning
automatic temperature
control system ..........................49
manual heating and air
conditioning system .................46
Airbag supplemental restraint
system ........................137, 146, 149
and child safety seats ............139
description ..............137, 146, 149
disposal ....................................152
driver airbag ............139, 147, 150
indicator light .........145, 148, 152
operation .................139, 147, 150
passenger airbag .....139, 147, 150
side airbag ...............................146
All Wheel Drive (AWD),
driving off road .........................239
Ambient mood/lighting ...............59
Ambulance packages ....................7
AM/FM .........................................28
Antifreeze
(see Engine coolant) ................302
Anti-lock brake system
(see Brakes) ......................214–215
Anti-theft system ......................102
Audio system (see Radio) .........28
Automatic transmission ............224
driving an automatic
overdrive .................................225
fluid, refill capacities ..............328
fluid, specification ..................328Auxiliary input jack (Line in) ....36
Auxiliary power point .................70
Axle
lubricant specifications ..........328
refill capacities ........................328
B
Battery .......................................300
acid, treating emergencies .....300
jumping a disabled battery ....267
maintenance-free ....................300
replacement, specifications ...327
servicing ..................................300
Belt-Minder
.............................132
Blind Spot Spotter Mirror ........238
Booster seats .............................166
Brakes ........................................214
anti-lock ...........................214–215
anti-lock brake system (ABS)
warning light ...........................215
fluid, checking and adding ....321
fluid, refill capacities ..............328
fluid, specifications .................328
lubricant specifications ..........328
parking ....................................215
shift interlock ..........................223
Bulbs ............................................59
C
Capacities for refilling fluids ....328
Car2U
Home Automation
System .........................................80
Cargo area shade ........................86
Cargo management system ........87
CD ................................................28
Cell phone use ..............................8
Index
339
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Child safety seats ......................157
attaching with tether straps ..164
in front seat ............................158
in rear seat ..............................158
LATCH .....................................161
recommendations ...................155
Child safety seats - booster
seats ...........................................166
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................282
waxing .....................................283
wheels ......................................283
wiper blades ............................285
Climate control (see Air
conditioning or Heating) ......46, 49
Clock ............................................28
Clock adjust
AM/FM/CD .................................28
Clutch
fluid ..........................................321
operation while driving ..........227
recommended shift speeds ....228
Compass, electronic ....................67
calibration .................................69
set zone adjustment .................68
Console ........................................69
overhead ....................................67
Controls
power seat ...............................114
steering column ........................77
Coolant
checking and adding ..............302
refill capacities ................305, 328
specifications ..........................328Cruise control
(see Speed control) ....................74
Customer Assistance ................246

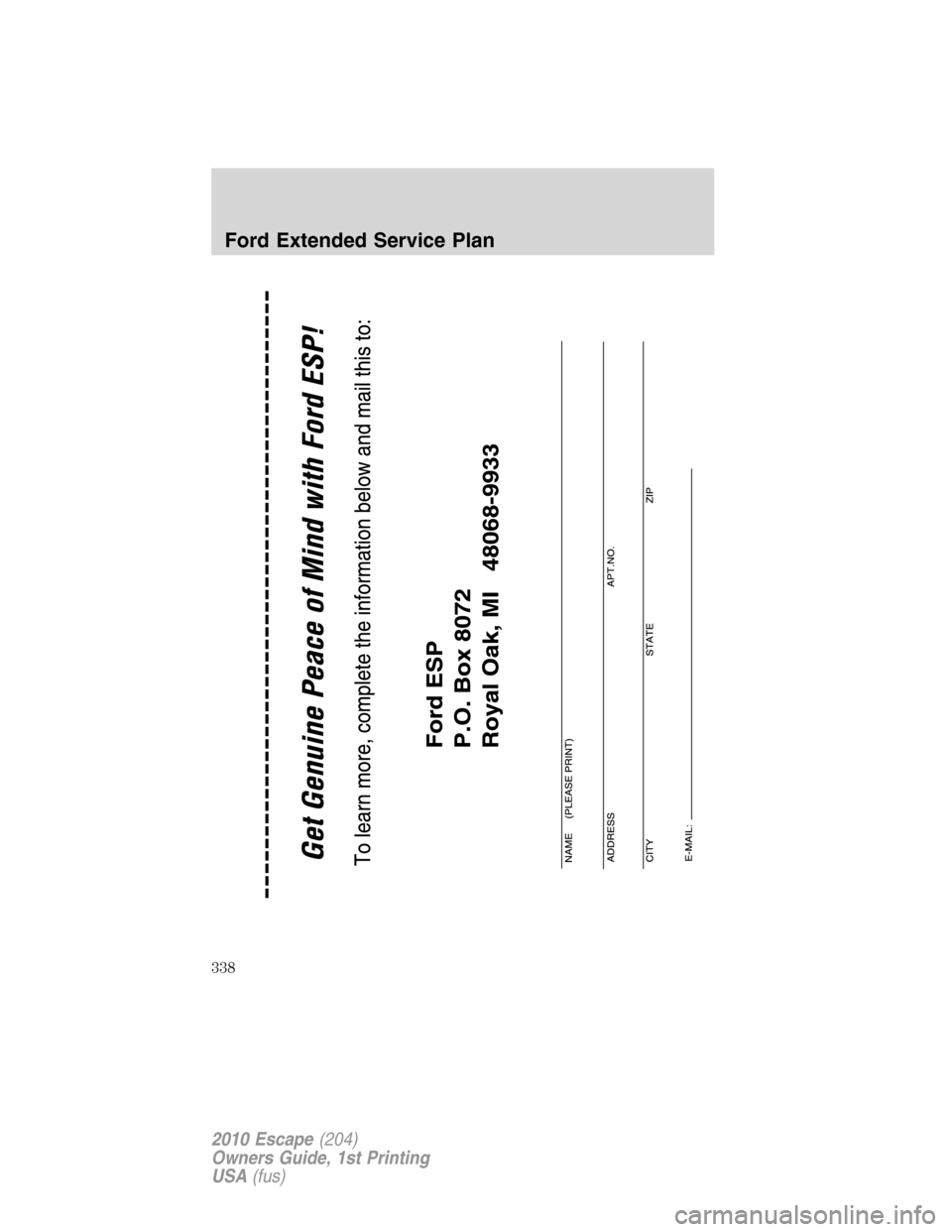

Ford Extended Service
Plan ..........................................336
Getting assistance outside the
U.S. and Canada .....................279
Getting roadside assistance ...246
Getting the service
you need .................................275
Ordering additional owner’s
literature .................................280
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..........................................321
engine oil .................................296
Driving under special
conditions ..................227, 240, 243
sand .........................................241
snow and ice ...........................244
through water .................242, 245
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................267
running out of fuel .........267, 313
Emergency Flashers .................247
Emission control system ..........318
Engine ........................................331
cleaning ...................................284
Index
340
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)
