Customer Assistance 275
Reporting safety defects (U.S. only) 281
Reporting safety defects (Canada only) 281
Cleaning 282
Maintenance and Specifications 290
Engine compartment 292
Engine oil 296
Battery 300
Engine coolant 302
Fuel information 307
Air filter(s) 325
Part numbers 327
Maintenance product specifications and capacities 328
Engine data 331
Accessories 334
Ford Extended Service Plan 336
Index 339
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
3
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

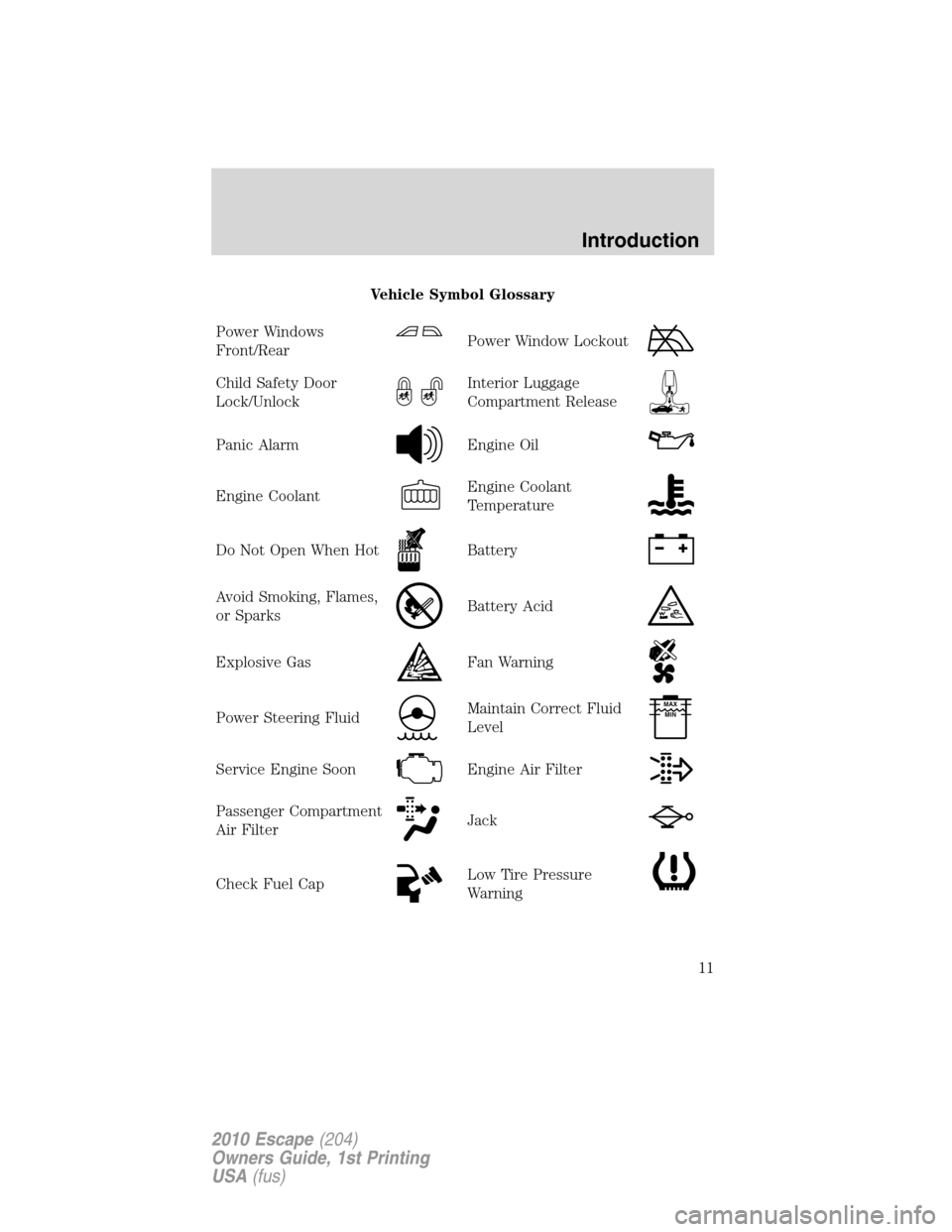

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

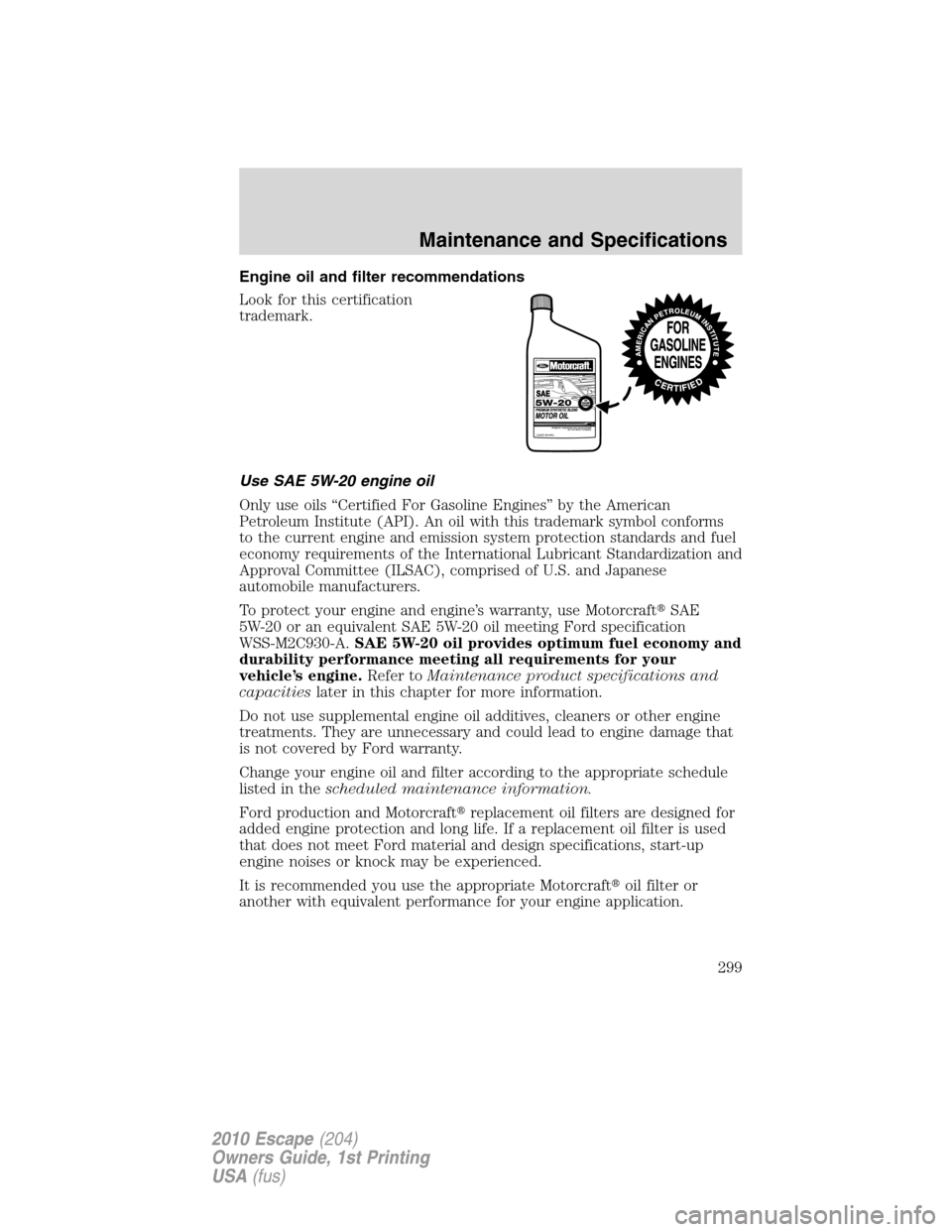

Engine oil and filter recommendations
Look for this certification
trademark.
Use SAE 5W-20 engine oil
Only use oils “Certified For Gasoline Engines” by the American
Petroleum Institute (API). An oil with this trademark symbol conforms
to the current engine and emission system protection standards and fuel
economy requirements of the International Lubricant Standardization and
Approval Committee (ILSAC), comprised of U.S. and Japanese
automobile manufacturers.
To protect your engine and engine’s warranty, use Motorcraft
SAE
5W-20 or an equivalent SAE 5W-20 oil meeting Ford specification
WSS-M2C930-A.SAE 5W-20 oil provides optimum fuel economy and
durability performance meeting all requirements for your
vehicle’s engine.Refer toMaintenance product specifications and
capacitieslater in this chapter for more information.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
Ford production and Motorcraft
replacement oil filters are designed for
added engine protection and long life. If a replacement oil filter is used
that does not meet Ford material and design specifications, start-up
engine noises or knock may be experienced.
It is recommended you use the appropriate Motorcraft
oil filter or
another with equivalent performance for your engine application.
Maintenance and Specifications
299
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

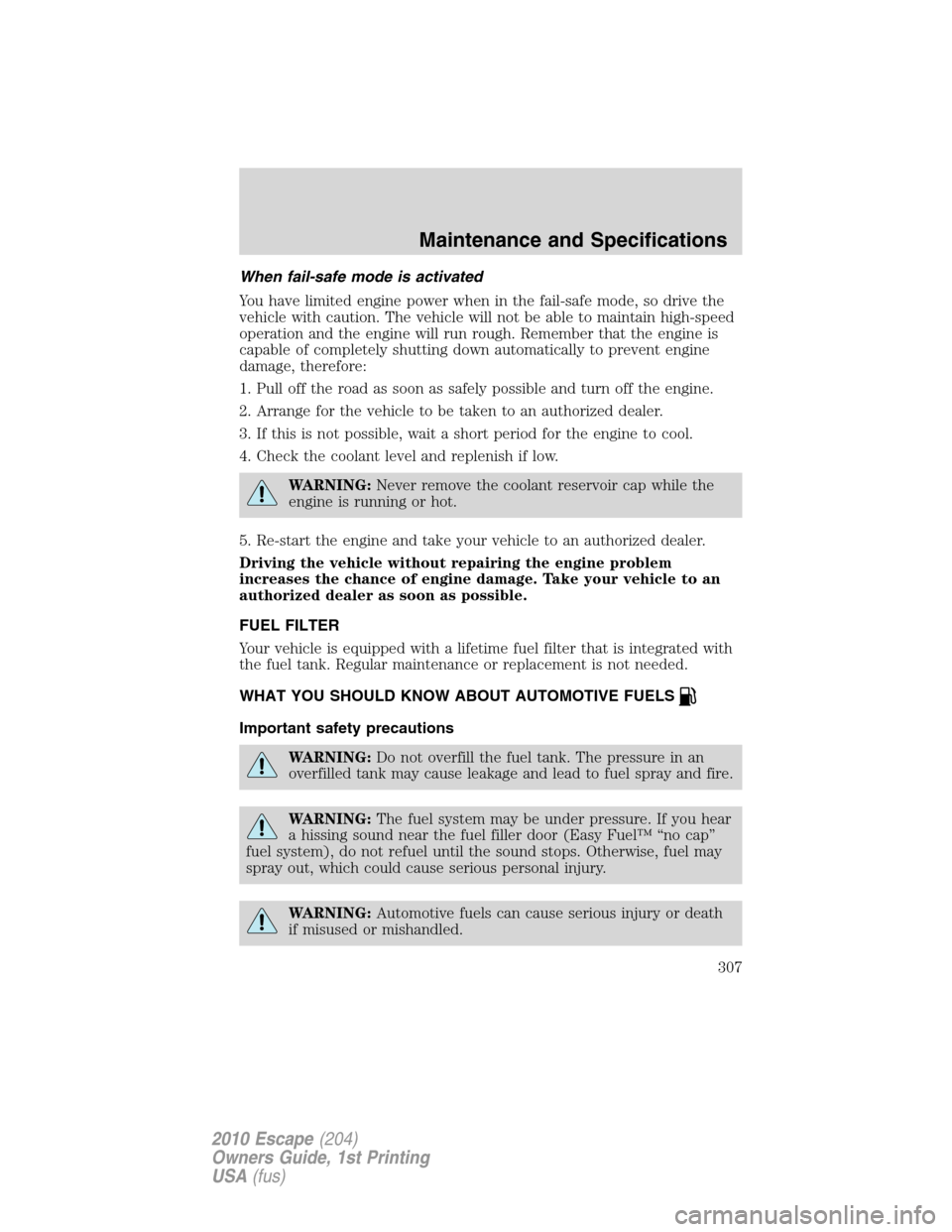

When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Re-start the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
Your vehicle is equipped with a lifetime fuel filter that is integrated with
the fuel tank. Regular maintenance or replacement is not needed.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
WARNING:Do not overfill the fuel tank. The pressure in an
overfilled tank may cause leakage and lead to fuel spray and fire.
WARNING:The fuel system may be under pressure. If you hear
a hissing sound near the fuel filler door (Easy Fuel™ “no cap”
fuel system), do not refuel until the sound stops. Otherwise, fuel may
spray out, which could cause serious personal injury.
WARNING:Automotive fuels can cause serious injury or death
if misused or mishandled.
Maintenance and Specifications
307
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

coolant .....................................302
fail-safe cooling .......................306
idle speed control ...................300
lubrication specifications .......328
refill capacities ........................328
service points ..................292–293
starting after a collision .........248
Engine block heater .................212
Engine oil ..................................296
checking and adding ..............296
dipstick ....................................296
filter, specifications ........299, 327
recommendations ...................299
refill capacities ........................328
specifications ..........................328
Event data recording ....................7
Exhaust fumes ..........................212
F
Fail safe cooling ........................306
Fleet MyKey programming ......105
Flexible Fuel Vehicle (FFV) ....307
Fluid capacities .........................328
Fog lamps ....................................54
Four-Wheel Drive vehicles
driving off road .......................239
preparing to drive your
vehicle .....................................222
Fuel ............................................307
calculating fuel
economy ............................21, 315
cap ...........................................310
capacity ...................................328
choosing the right fuel ...........312
comparisons with EPA fuel
economy estimates .................318
detergent in fuel .....................313
filler funnel .............................313filling your vehicle
with fuel ..................307, 310, 315
filter, specifications ........307, 327
fuel pump shut-off switch .....248
improving fuel economy ........315
octane rating ...................312, 331
quality ......................................313
running out of fuel .........267, 313
safety information relating to
automotive fuels .....................307
Fuel - flex fuel vehicle
(FFV) .................................307, 312
Fuses ..................................248–249
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............310
Gas mileage (see Fuel
economy) ...................................315
Gauges .........................................17
H
Hazard flashers .........................247
Headlamps ...................................53
aiming ........................................56
bulb specifications ....................60
daytime running lights .............55
flash to pass ..............................55
high beam .................................54
replacing bulbs .........................61
turning on and off ....................53
Heating
heating and air conditioning
system .......................................49
manual heating and air
conditioning system .................46
Hood ..........................................291
Index
