Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

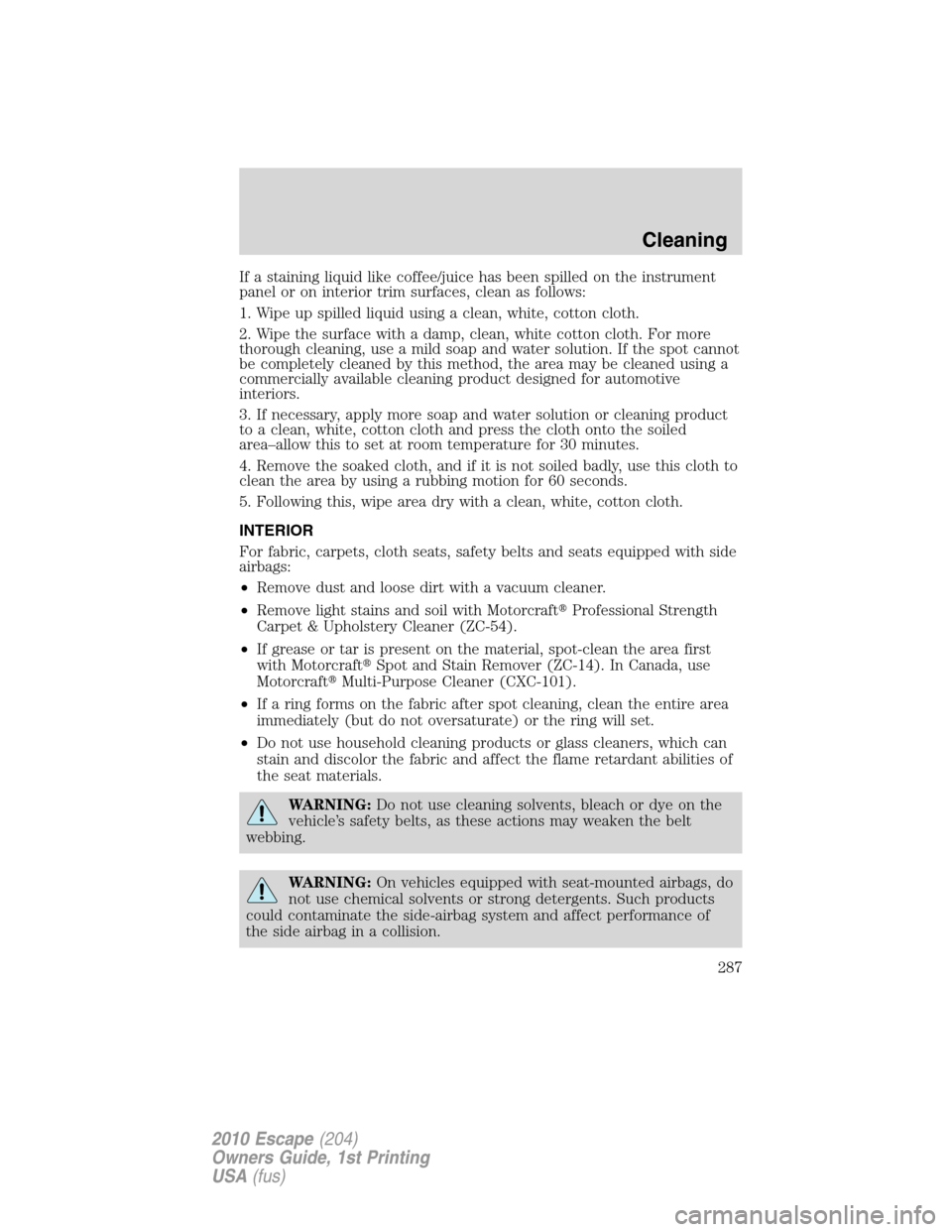

If a staining liquid like coffee/juice has been spilled on the instrument
panel or on interior trim surfaces, clean as follows:
1. Wipe up spilled liquid using a clean, white, cotton cloth.
2. Wipe the surface with a damp, clean, white cotton cloth. For more
thorough cleaning, use a mild soap and water solution. If the spot cannot
be completely cleaned by this method, the area may be cleaned using a
commercially available cleaning product designed for automotive
interiors.
3. If necessary, apply more soap and water solution or cleaning product
to a clean, white, cotton cloth and press the cloth onto the soiled
area–allow this to set at room temperature for 30 minutes.
4. Remove the soaked cloth, and if it is not soiled badly, use this cloth to
clean the area by using a rubbing motion for 60 seconds.
5. Following this, wipe area dry with a clean, white, cotton cloth.
INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with Motorcraft
Professional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with Motorcraft
Spot and Stain Remover (ZC-14). In Canada, use
Motorcraft
Multi-Purpose Cleaner (CXC-101).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
WARNING:Do not use cleaning solvents, bleach or dye on the
vehicle’s safety belts, as these actions may weaken the belt
webbing.
WARNING:On vehicles equipped with seat-mounted airbags, do
not use chemical solvents or strong detergents. Such products
could contaminate the side-airbag system and affect performance of
the side airbag in a collision.
Cleaning
287
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

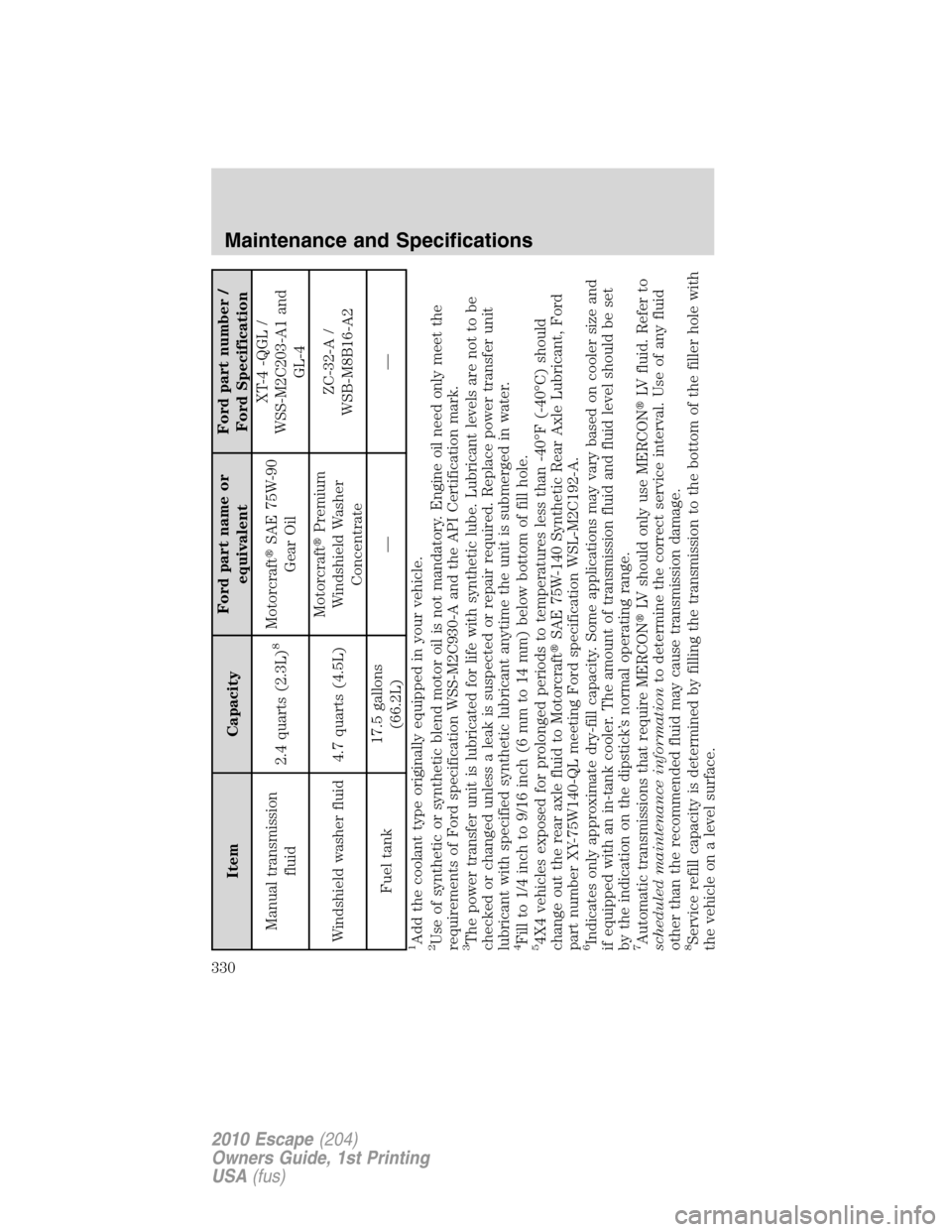

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Manual transmission
fluid2.4 quarts (2.3L)
8
Motorcraft
SAE 75W-90
Gear OilXT-4 -QGL /
WSS-M2C203-A1 and
GL-4
Windshield washer fluid 4.7 quarts (4.5L)Motorcraft
Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank17.5 gallons
(66.2L)——
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.4Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.54X4 vehicles exposed for prolonged periods to temperatures less than -40°F (-40°C) should
change out the rear axle fluid to Motorcraft
SAE 75W-140 Synthetic Rear Axle Lubricant, Ford
part number XY-75W140-QL meeting Ford specification WSL-M2C192-A.6Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCON
LV should only use MERCON
LV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.8Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.
Maintenance and Specifications
330
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)
