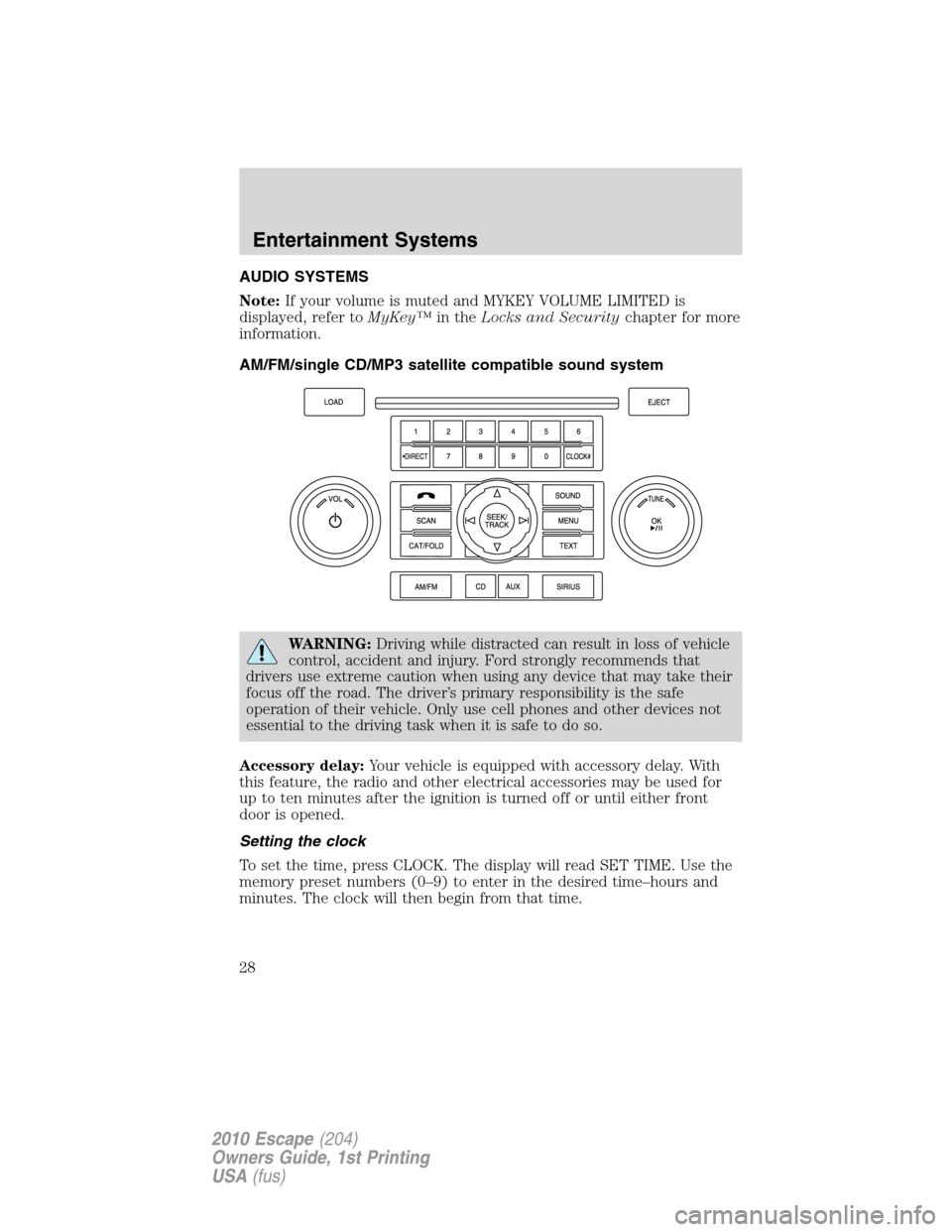

Page 28 of 345
AUDIO SYSTEMS
Note:If your volume is muted and MYKEY VOLUME LIMITED is
displayed, refer toMyKey™in theLocks and Securitychapter for more
information.
AM/FM/single CD/MP3 satellite compatible sound system
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and other electrical accessories may be used for
up to ten minutes after the ignition is turned off or until either front
door is opened.
Setting the clock
To set the time, press CLOCK. The display will read SET TIME. Use the
memory preset numbers (0–9) to enter in the desired time–hours and
minutes. The clock will then begin from that time.
Entertainment Systems
28
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

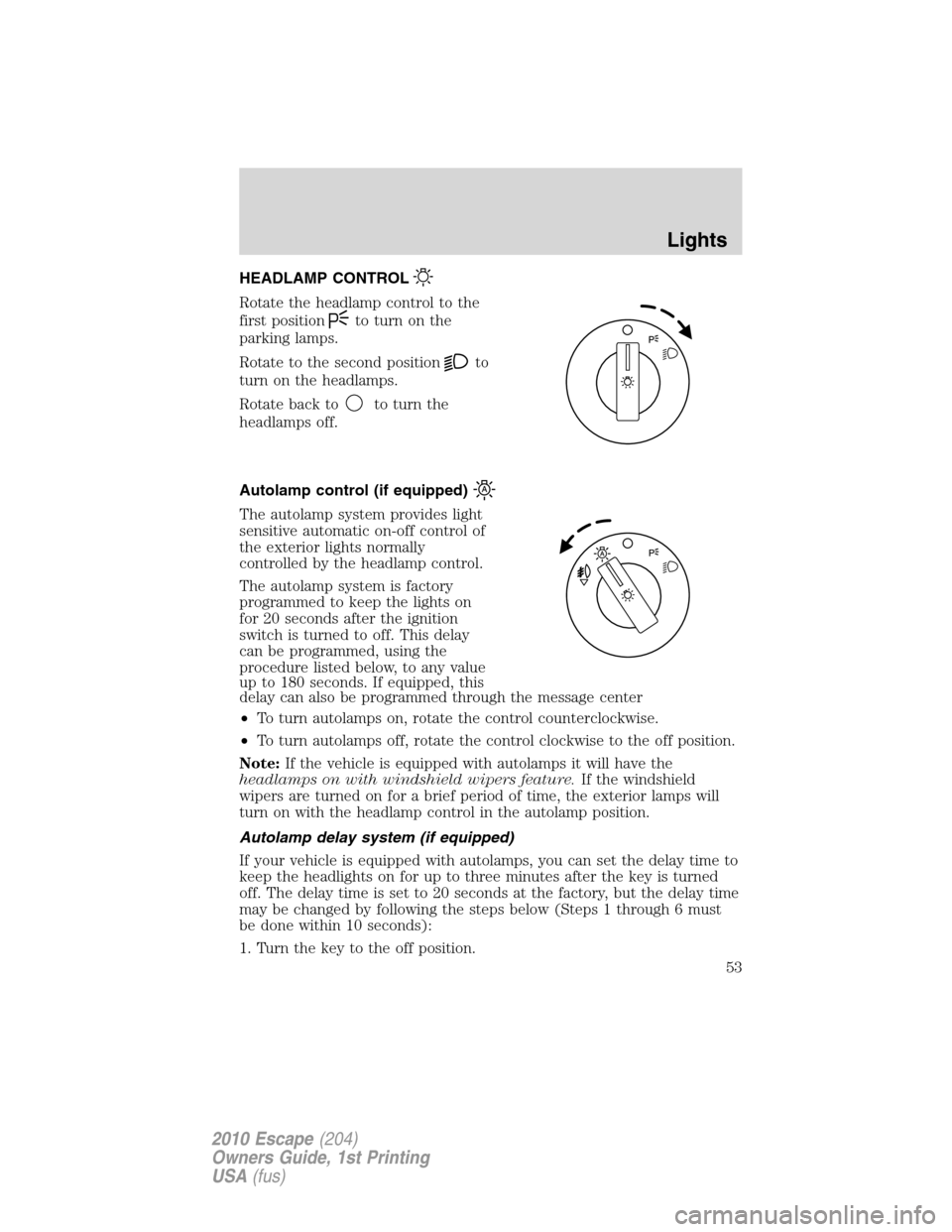

Page 53 of 345
HEADLAMP CONTROL
Rotate the headlamp control to the
first position
to turn on the
parking lamps.
Rotate to the second position
to
turn on the headlamps.
Rotate back to
to turn the
headlamps off.
Autolamp control (if equipped)
The autolamp system provides light
sensitive automatic on-off control of
the exterior lights normally
controlled by the headlamp control.
The autolamp system is factory
programmed to keep the lights on
for 20 seconds after the ignition
switch is turned to off. This delay
can be programmed, using the
procedure listed below, to any value
up to 180 seconds. If equipped, this
delay can also be programmed through the message center
•To turn autolamps on, rotate the control counterclockwise.
•To turn autolamps off, rotate the control clockwise to the off position.
Note:If the vehicle is equipped with autolamps it will have the
headlamps on with windshield wipers feature.If the windshield
wipers are turned on for a brief period of time, the exterior lamps will
turn on with the headlamp control in the autolamp position.
Autolamp delay system (if equipped)
If your vehicle is equipped with autolamps, you can set the delay time to
keep the headlights on for up to three minutes after the key is turned
off. The delay time is set to 20 seconds at the factory, but the delay time
may be changed by following the steps below (Steps 1 through 6 must
be done within 10 seconds):
1. Turn the key to the off position.
Lights
53
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

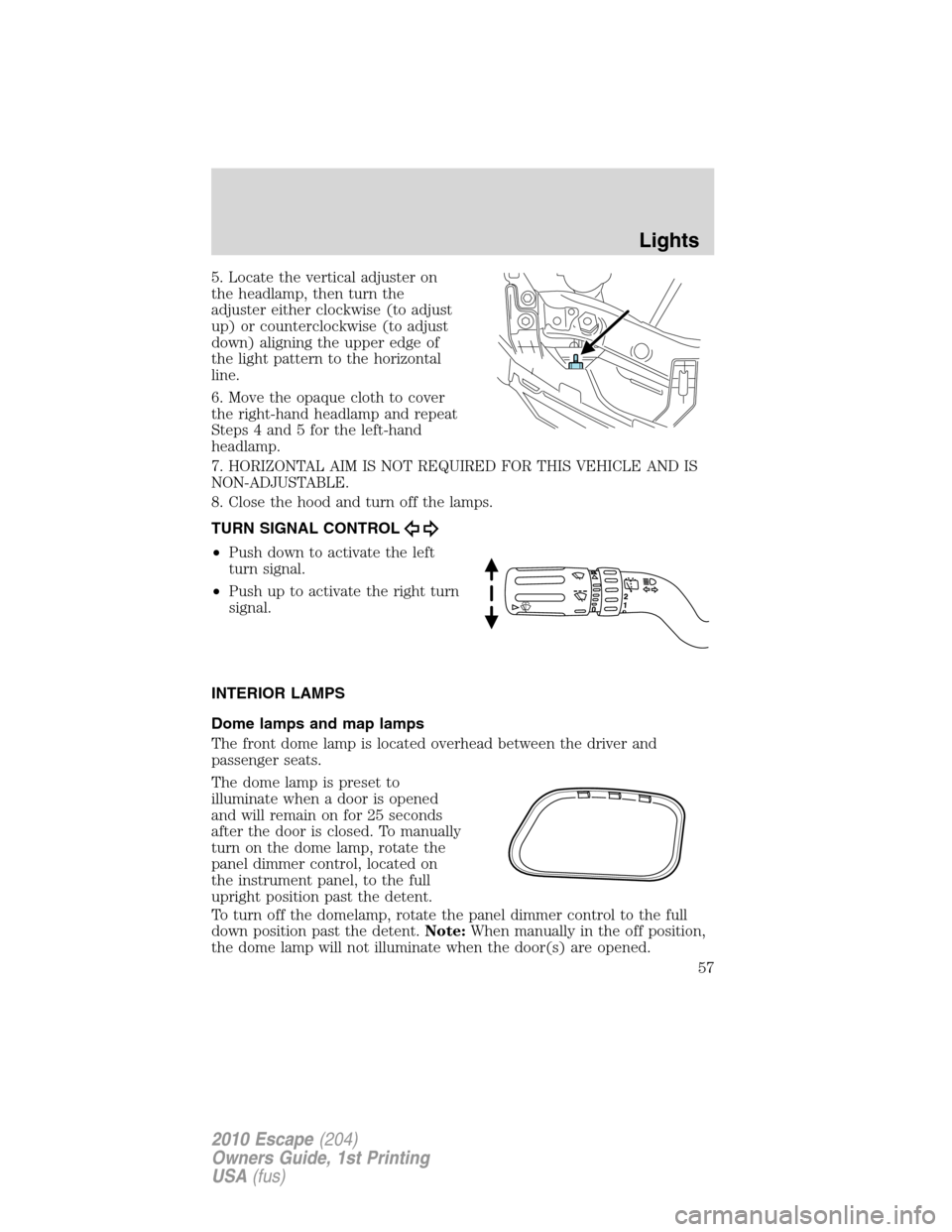

Page 57 of 345
5. Locate the vertical adjuster on
the headlamp, then turn the
adjuster either clockwise (to adjust
up) or counterclockwise (to adjust
down) aligning the upper edge of
the light pattern to the horizontal
line.
6. Move the opaque cloth to cover
the right-hand headlamp and repeat
Steps 4 and 5 for the left-hand
headlamp.
7. HORIZONTAL AIM IS NOT REQUIRED FOR THIS VEHICLE AND IS
NON-ADJUSTABLE.
8. Close the hood and turn off the lamps.
TURN SIGNAL CONTROL
•Push down to activate the left
turn signal.
•Push up to activate the right turn
signal.
INTERIOR LAMPS
Dome lamps and map lamps
The front dome lamp is located overhead between the driver and
passenger seats.
The dome lamp is preset to
illuminate when a door is opened
and will remain on for 25 seconds
after the door is closed. To manually
turn on the dome lamp, rotate the
panel dimmer control, located on
the instrument panel, to the full
upright position past the detent.
To turn off the domelamp, rotate the panel dimmer control to the full
down position past the detent.Note:When manually in the off position,
the dome lamp will not illuminate when the door(s) are opened.
Lights
57
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

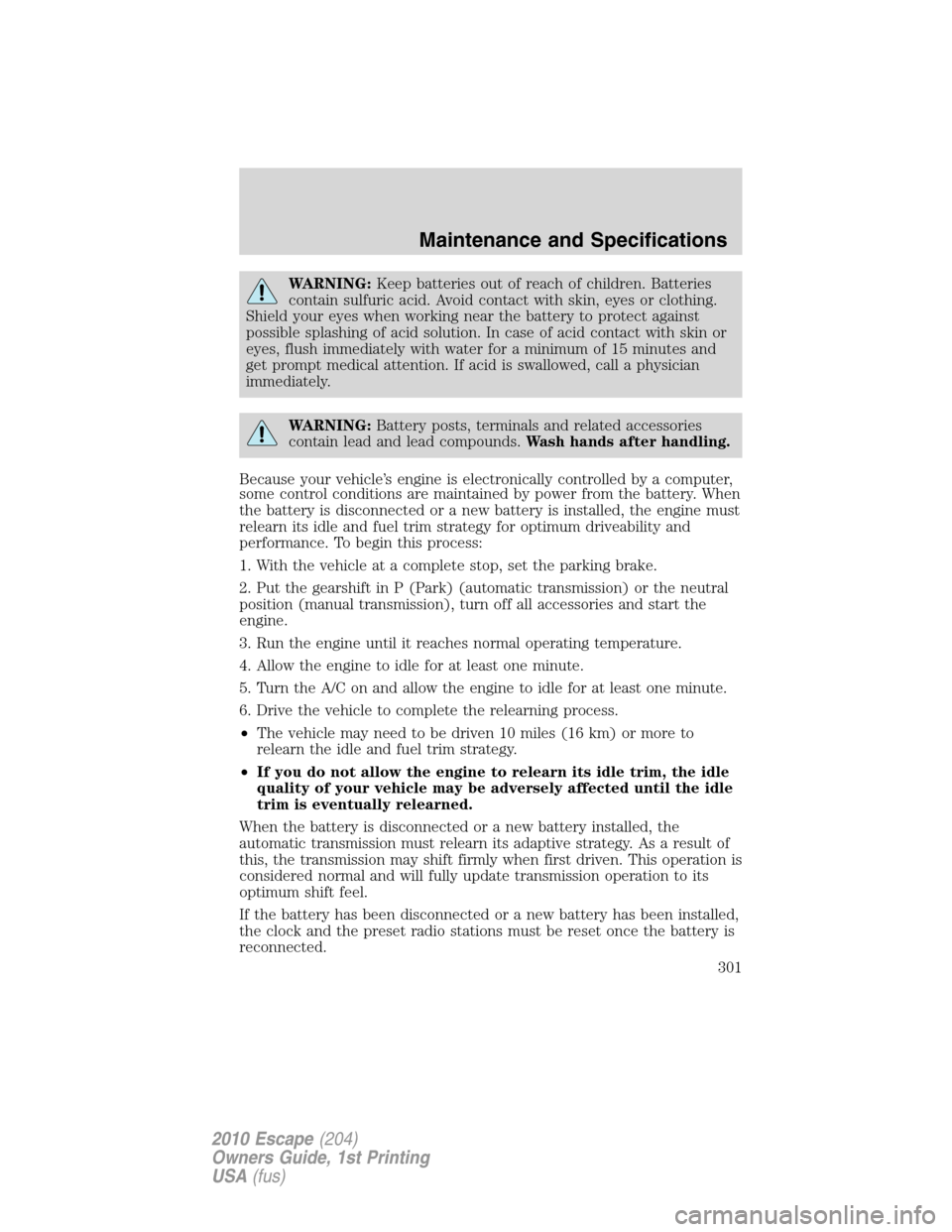

Page 301 of 345
WARNING:Keep batteries out of reach of children. Batteries
contain sulfuric acid. Avoid contact with skin, eyes or clothing.
Shield your eyes when working near the battery to protect against
possible splashing of acid solution. In case of acid contact with skin or
eyes, flush immediately with water for a minimum of 15 minutes and
get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING:Battery posts, terminals and related accessories
contain lead and lead compounds.Wash hands after handling.
Because your vehicle’s engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. With the vehicle at a complete stop, set the parking brake.
2. Put the gearshift in P (Park) (automatic transmission) or the neutral
position (manual transmission), turn off all accessories and start the
engine.
3. Run the engine until it reaches normal operating temperature.
4. Allow the engine to idle for at least one minute.
5. Turn the A/C on and allow the engine to idle for at least one minute.
6. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
When the battery is disconnected or a new battery installed, the
automatic transmission must relearn its adaptive strategy. As a result of
this, the transmission may shift firmly when first driven. This operation is
considered normal and will fully update transmission operation to its
optimum shift feel.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
Maintenance and Specifications
301
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

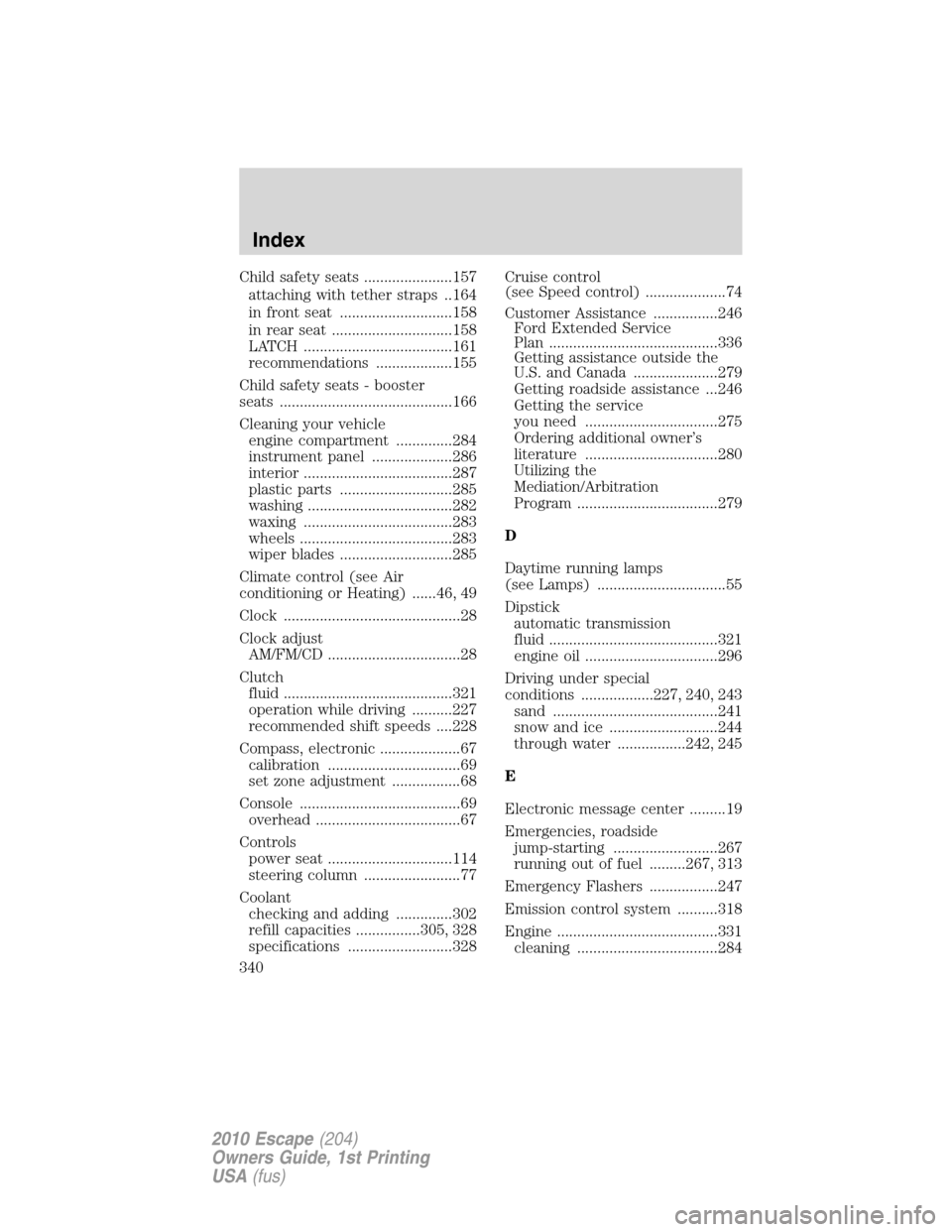

Page 340 of 345
Child safety seats ......................157
attaching with tether straps ..164
in front seat ............................158
in rear seat ..............................158
LATCH .....................................161
recommendations ...................155
Child safety seats - booster
seats ...........................................166
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................282
waxing .....................................283
wheels ......................................283
wiper blades ............................285
Climate control (see Air
conditioning or Heating) ......46, 49
Clock ............................................28
Clock adjust
AM/FM/CD .................................28
Clutch
fluid ..........................................321
operation while driving ..........227
recommended shift speeds ....228
Compass, electronic ....................67
calibration .................................69
set zone adjustment .................68
Console ........................................69
overhead ....................................67
Controls
power seat ...............................114
steering column ........................77
Coolant
checking and adding ..............302
refill capacities ................305, 328
specifications ..........................328Cruise control
(see Speed control) ....................74
Customer Assistance ................246
Ford Extended Service
Plan ..........................................336
Getting assistance outside the
U.S. and Canada .....................279
Getting roadside assistance ...246
Getting the service
you need .................................275
Ordering additional owner’s
literature .................................280
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................55
Dipstick
automatic transmission
fluid ..........................................321
engine oil .................................296
Driving under special
conditions ..................227, 240, 243
sand .........................................241
snow and ice ...........................244
through water .................242, 245
E
Electronic message center .........19
Emergencies, roadside
jump-starting ..........................267
running out of fuel .........267, 313
Emergency Flashers .................247
Emission control system ..........318
Engine ........................................331
cleaning ...................................284
Index
340
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)

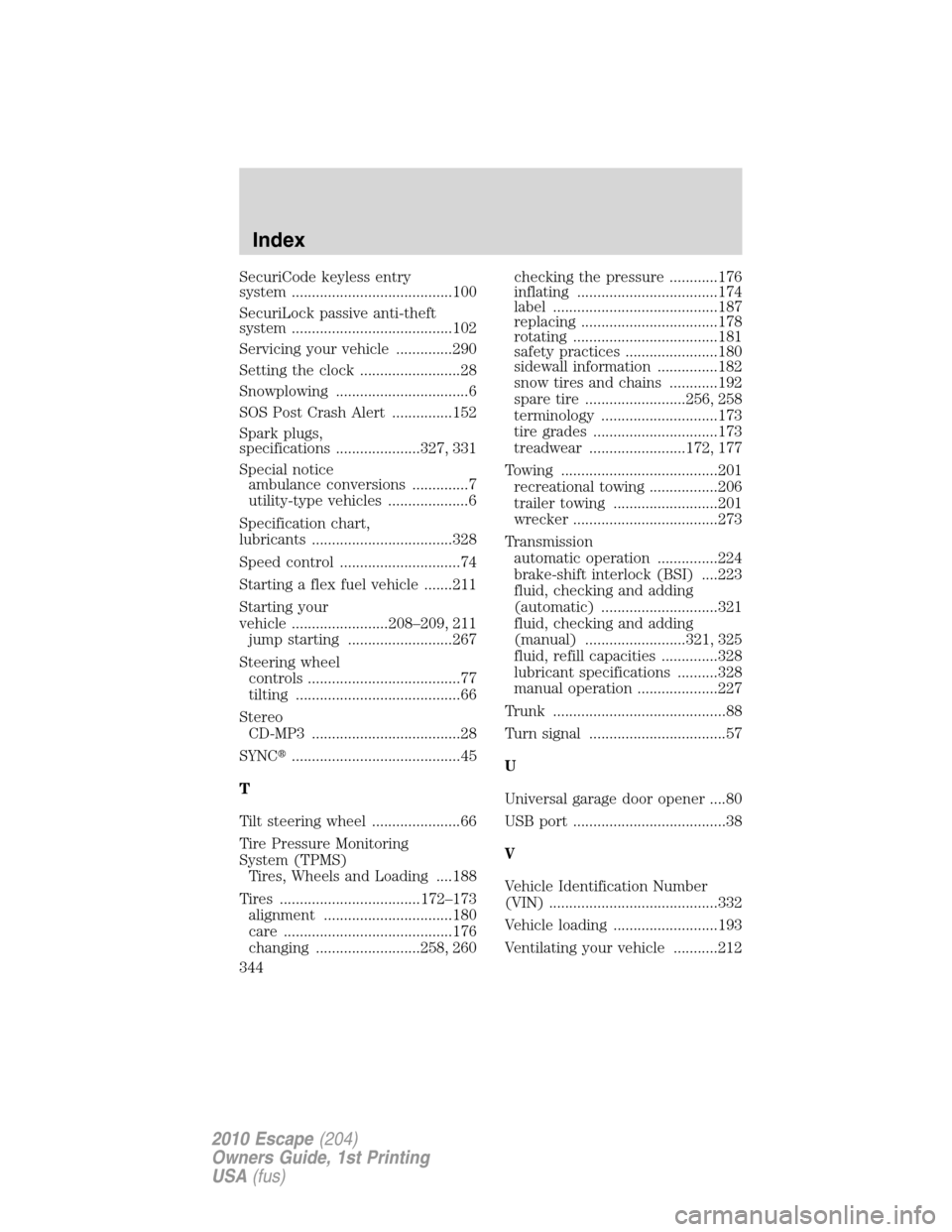

Page 344 of 345
SecuriCode keyless entry
system ........................................100
SecuriLock passive anti-theft
system ........................................102
Servicing your vehicle ..............290
Setting the clock .........................28
Snowplowing .................................6
SOS Post Crash Alert ...............152
Spark plugs,
specifications .....................327, 331
Special notice
ambulance conversions ..............7
utility-type vehicles ....................6
Specification chart,
lubricants ...................................328
Speed control ..............................74
Starting a flex fuel vehicle .......211
Starting your
vehicle ........................208–209, 211
jump starting ..........................267
Steering wheel
controls ......................................77
tilting .........................................66
Stereo
CD-MP3 .....................................28
SYNC..........................................45
T
Tilt steering wheel ......................66
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....188
Tires ...................................172–173
alignment ................................180
care ..........................................176
changing ..........................258, 260checking the pressure ............176
inflating ...................................174
label .........................................187
replacing ..................................178
rotating ....................................181
safety practices .......................180
sidewall information ...............182
snow tires and chains ............192
spare tire .........................256, 258
terminology .............................173
tire grades ...............................173
treadwear ........................172, 177
Towing .......................................201
recreational towing .................206
trailer towing ..........................201
wrecker ....................................273
Transmission
automatic operation ...............224
brake-shift interlock (BSI) ....223
fluid, checking and adding
(automatic) .............................321
fluid, checking and adding
(manual) .........................321, 325
fluid, refill capacities ..............328
lubricant specifications ..........328
manual operation ....................227
Trunk ...........................................88
Turn signal ..................................57
U
Universal garage door opener ....80
USB port ......................................38
V
Vehicle Identification Number
(VIN) ..........................................332
Vehicle loading ..........................193
Ventilating your vehicle ...........212
Index
344
2010 Escape(204)
Owners Guide, 1st Printing
USA(fus)
