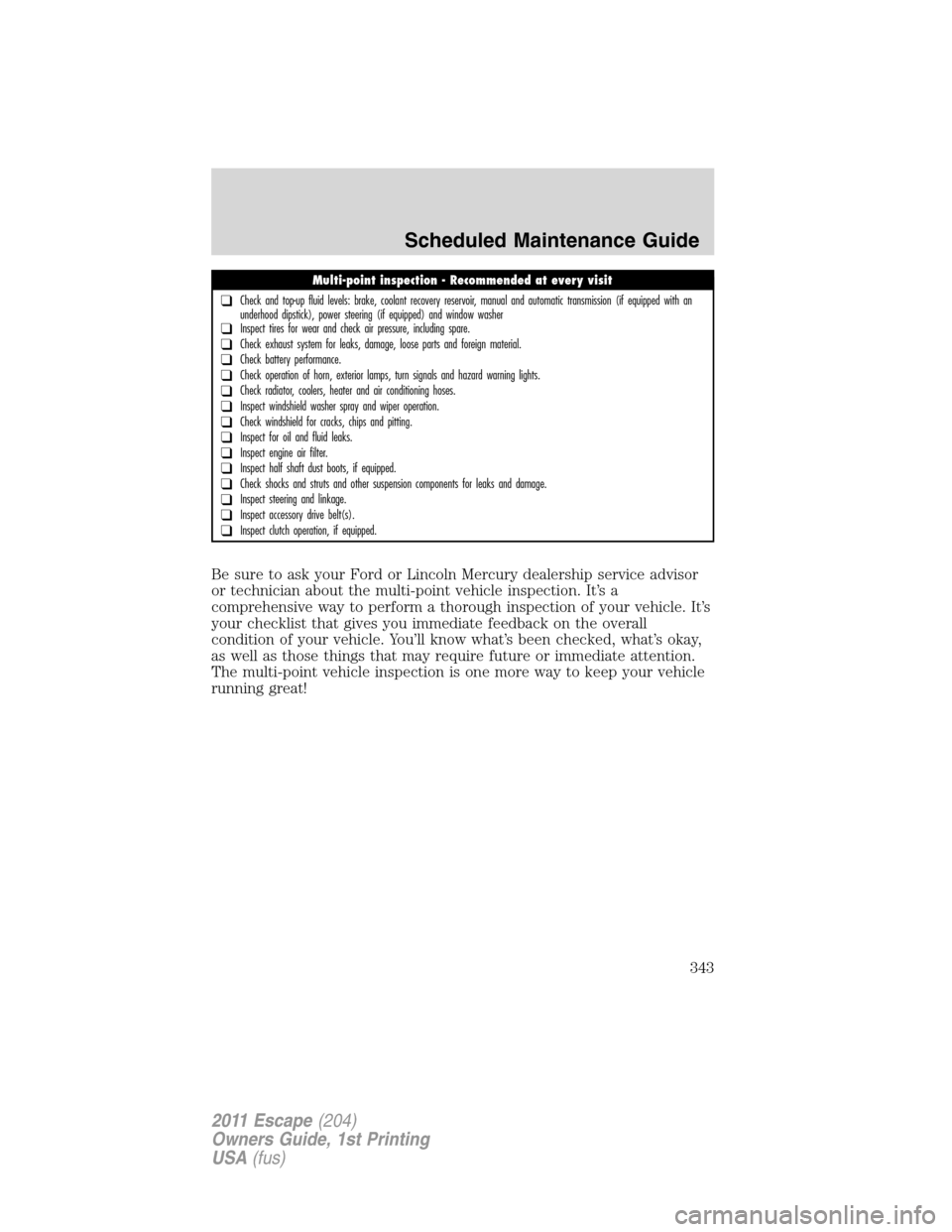

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Multi-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
343
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

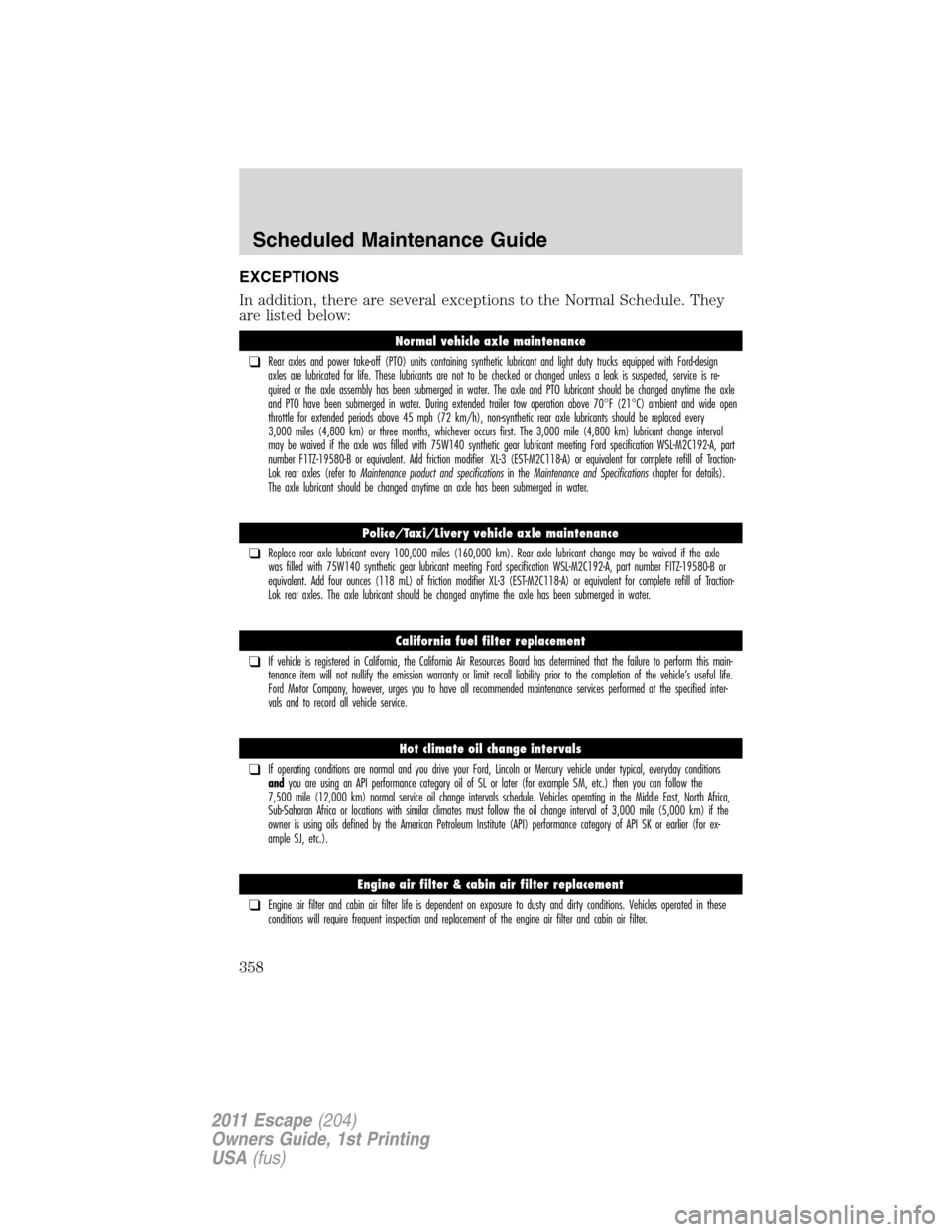

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
358
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

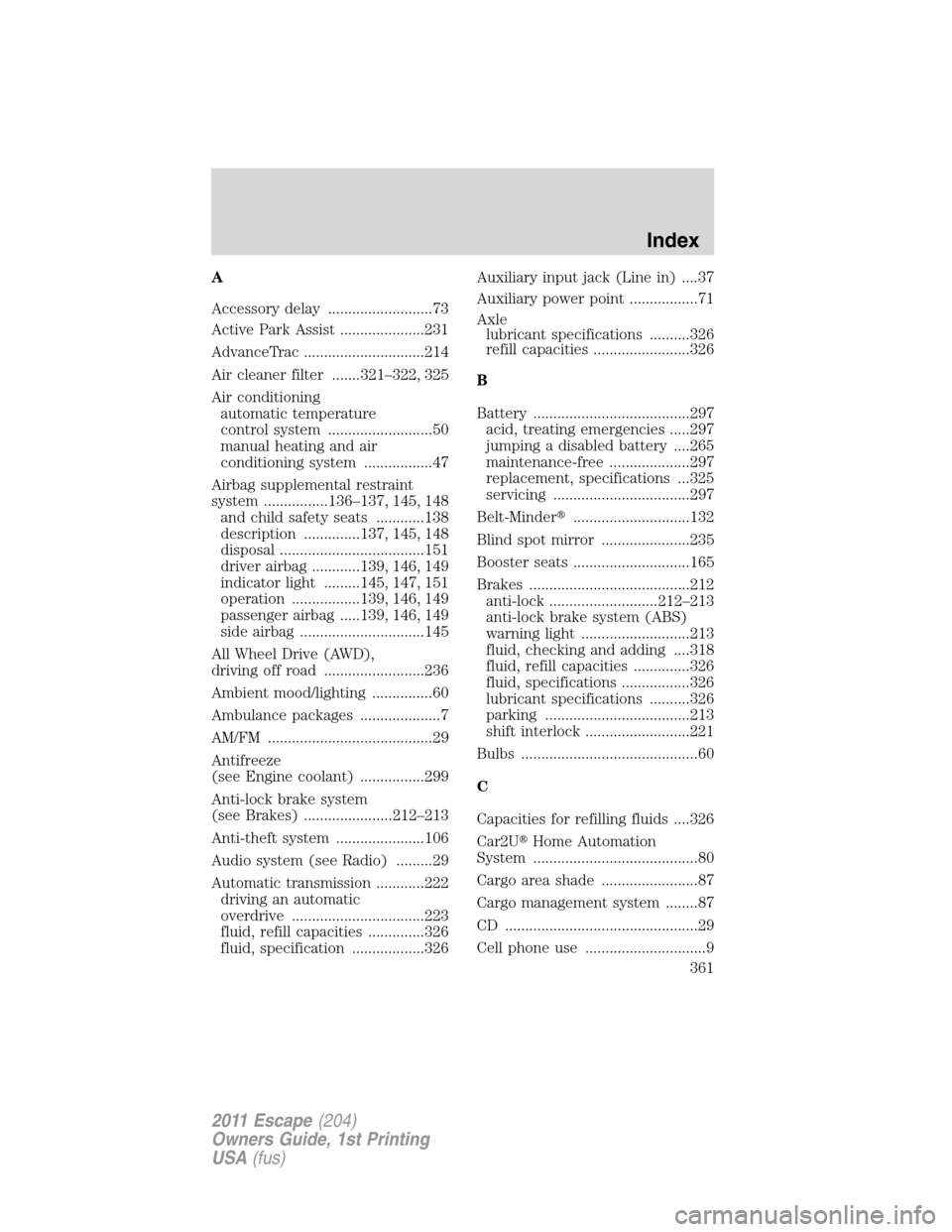

A
Accessory delay ..........................73
Active Park Assist .....................231
AdvanceTrac ..............................214
Air cleaner filter .......321–322, 325
Air conditioning
automatic temperature
control system ..........................50
manual heating and air
conditioning system .................47
Airbag supplemental restraint
system ................136–137, 145, 148
and child safety seats ............138
description ..............137, 145, 148
disposal ....................................151
driver airbag ............139, 146, 149
indicator light .........145, 147, 151
operation .................139, 146, 149
passenger airbag .....139, 146, 149
side airbag ...............................145
All Wheel Drive (AWD),
driving off road .........................236
Ambient mood/lighting ...............60
Ambulance packages ....................7
AM/FM .........................................29
Antifreeze
(see Engine coolant) ................299
Anti-lock brake system
(see Brakes) ......................212–213
Anti-theft system ......................106
Audio system (see Radio) .........29
Automatic transmission ............222
driving an automatic
overdrive .................................223
fluid, refill capacities ..............326
fluid, specification ..................326Auxiliary input jack (Line in) ....37
Auxiliary power point .................71
Axle
lubricant specifications ..........326
refill capacities ........................326
B
Battery .......................................297
acid, treating emergencies .....297
jumping a disabled battery ....265
maintenance-free ....................297
replacement, specifications ...325
servicing ..................................297
Belt-Minder.............................132
Blind spot mirror ......................235
Booster seats .............................165
Brakes ........................................212
anti-lock ...........................212–213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....318
fluid, refill capacities ..............326
fluid, specifications .................326
lubricant specifications ..........326
parking ....................................213
shift interlock ..........................221
Bulbs ............................................60
C
Capacities for refilling fluids ....326
Car2UHome Automation
System .........................................80
Cargo area shade ........................87
Cargo management system ........87
CD ................................................29
Cell phone use ..............................9
Index
361
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

coolant .....................................299
fail-safe cooling .......................303
idle speed control ...................297
lubrication specifications .......326
refill capacities ........................326
service points ..................289–290
starting after a collision .........245
Engine block heater .................210
Engine oil ..................................293
checking and adding ..............293
dipstick ....................................293
filter, specifications ........296, 325
recommendations ...................296
refill capacities ........................326
specifications ..........................326
Event data recording ....................7
Exhaust fumes ..........................210
F
Fail safe cooling ........................303
Fleet MyKey programming ........91
Flexible Fuel Vehicle (FFV) ....304
Floor mats ...................................86
Fluid capacities .........................326
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................237
preparing to drive your
vehicle .....................................221
Fuel ............................................304
calculating fuel
economy ............................22, 312
cap ...........................................307
capacity ...................................326
choosing the right fuel ...........309
detergent in fuel .....................311
filler funnel .............................311filling your vehicle with
fuel ...........................304, 307, 313
filter, specifications ........304, 325
fuel pump shut-off switch .....245
improving fuel economy ........312
octane rating ...........309–310, 329
quality ......................................310
running out of fuel .........265, 311
safety information relating to
automotive fuels .....................304
Fuel - flex fuel vehicle
(FFV) .........................304, 309–310
Fuses ..................................246–247
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............307
Gas mileage (see Fuel
economy) ...................................312
Gauges .........................................17
H
Hazard flashers .........................245
Headlamps ...................................54
aiming ........................................57
bulb specifications ....................61
daytime running lights .............56
flash to pass ..............................56
high beam .................................55
replacing bulbs .........................62
turning on and off ....................54
Heating
heating and air conditioning
system .......................................50
manual heating and air
conditioning system .................47
Hood ..........................................288
Index
363
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)
