•Check brake pedal operation. Drive the vehicle 15 ft (4.5 meters) back
and forth to remove rust build up.
•Check fluid levels (including coolant, oil and gas) to make sure there
are no leaks, and fluids are at recommended levels.
•If the battery was removed, clean the battery cable ends and inspect.
If you have any concerns or issues, contact your authorized dealer.
MOTORCRAFT PART NUMBERS
Component 2.5L I4 engine 3.0L V6 engine
Air filter element FA-1772 FA-1893
Battery BXL-40R BXL-40R
Oil filter FL-910 FL-500-S
Spark Plugs
11
1
For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
325
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Windshield washer fluid Fill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer Fluid
(Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank17.5 gallons
(66.2L)——
1Add the coolant type originally equipped in your vehicle. Check the coolant bottle labeling for the
correct fluid type to use.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.4Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.54X4 vehicles exposed for prolonged periods to temperatures less than -40°F (-40°C) should
change out the rear axle fluid to MotorcraftSAE 75W-140 Synthetic Rear Axle Lubricant, Ford
part number XY-75W140-QL meeting Ford specification WSL-M2C192-A.6Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler. The amount of transmission fluid and fluid level should be set
by the indication on the dipstick’s normal operating range.7Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.8Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.
Maintenance and Specifications
328
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

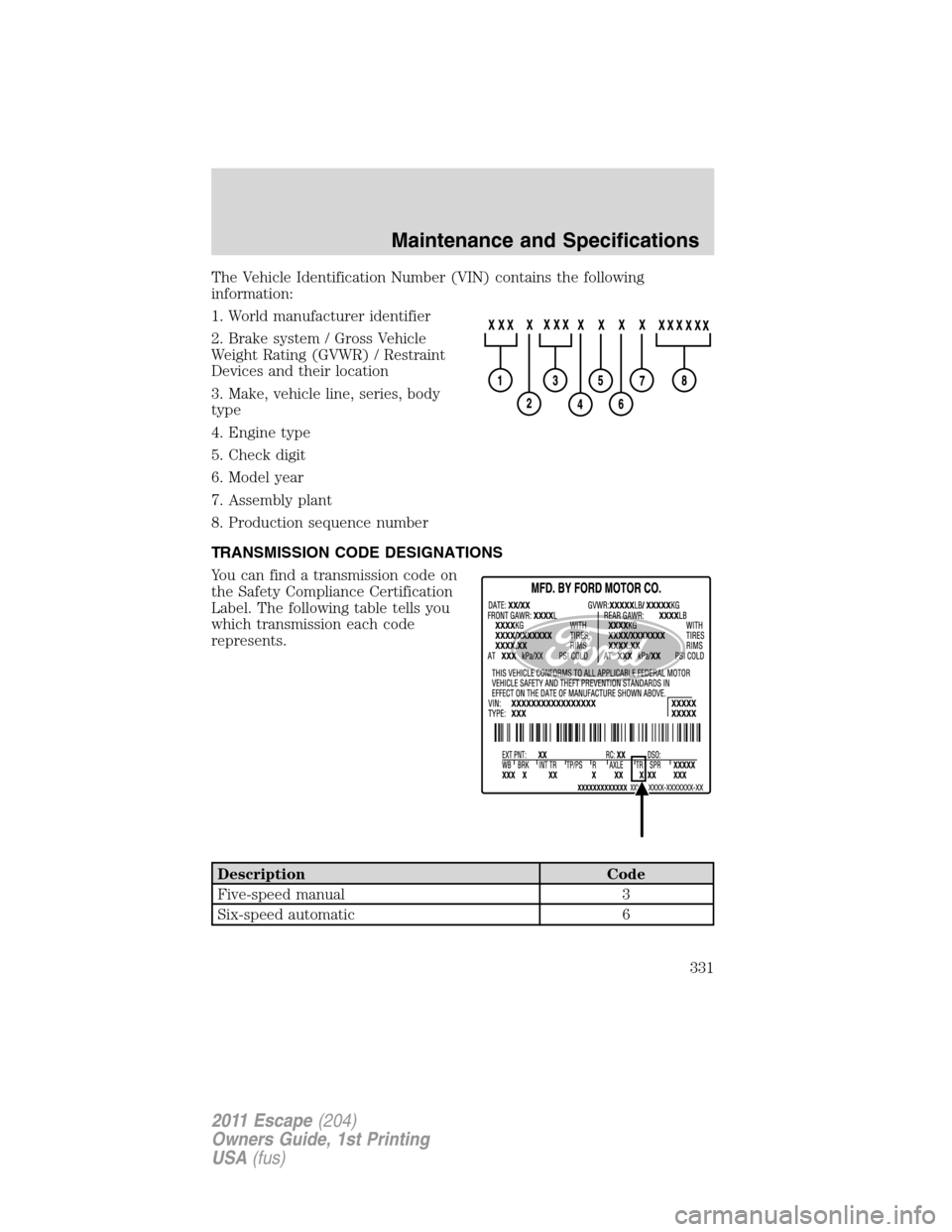

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed manual 3
Six-speed automatic 6
Maintenance and Specifications
331
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or lubricants used.
Multi-point inspection
In order to keep your vehicle running right, it is important to have the
systems on your vehicle checked regularly. This can help identify
potential issues and prevent major problems. Ford Motor Company
recommends the following multi-point inspection be performed at every
scheduled maintenance interval to help ensure your vehicle keeps
running great.
Maximum oil change interval
❑As indicated by the instrument cluster message center (can be up to one year or 10,000 miles [16,000 km])
Engine coolant change interval
❑6 years or 100,000 miles (160,000 km) - change engine coolant (whichever comes first)❑After initial change - change engine coolant every 3 years or 50,000 miles (80,000 km).
Check every month
❑Check function of all interior and exterior lights❑Check tires for wear and correct air pressure, including spare tire
❑Check windshield washer fluid level
❑Check engine oil level
Check every six months
❑Check lap/shoulder belts and seat latches for wear and function❑Check parking brake for proper operation
❑Check safety warning lamps (brake, ABS, airbag, safety belt) for operation
❑Check cooling system fluid level and coolant strength
❑Check battery connections and clean if necessary
❑Check washer spray, wiper operation and clean all wiper blades (replace as necessary)
❑Check and lubricate all hinges, latches and outside locks. Inspect for correct operation
❑Check and lubricate door rubber weatherstrips. Inspect for excessive wear
❑Check and clean body and door drain holes. Inspect for clogs and obstructions
Scheduled Maintenance Guide
342
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Multi-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
343
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic lubricant and light duty trucks equipped with Ford-design
axles are lubricated for life. These lubricants are not to be checked or changed unless a leak is suspected, service is re-
quired or the axle assembly has been submerged in water. The axle and PTO lubricant should be changed anytime the axle
and PTO have been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open
throttle for extended periods above 45 mph (72 km/h), non-synthetic rear axle lubricants should be replaced every
3,000 miles (4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) lubricant change interval
may be waived if the axle was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles (refer to
Maintenance product and specificationsin theMaintenance and Specificationschapter for details).
The axle lubricant should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Replace rear axle lubricant every 100,000 miles (160,000 km). Rear axle lubricant change may be waived if the axle
was filled with 75W140 synthetic gear lubricant meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or
equivalent. Add four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-
Lok rear axles. The axle lubricant should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this main-
tenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life.
Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified inter-
vals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your Ford, Lincoln or Mercury vehicle under typical, everyday conditions
andyou are using an API performance category oil of SL or later (for example SM, etc.) then you can follow the
7,500 mile (12,000 km) normal service oil change intervals schedule. Vehicles operating in the Middle East, North Africa,
Sub-Saharan Africa or locations with similar climates must follow the oil change interval of 3,000 mile (5,000 km) if the
owner is using oils defined by the American Petroleum Institute (API) performance category of API SK or earlier (for ex-
ample SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance Guide
358
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................73
Active Park Assist .....................231
AdvanceTrac ..............................214
Air cleaner filter .......321–322, 325
Air conditioning
automatic temperature
control system ..........................50
manual heating and air
conditioning system .................47
Airbag supplemental restraint
system ................136–137, 145, 148
and child safety seats ............138
description ..............137, 145, 148
disposal ....................................151
driver airbag ............139, 146, 149
indicator light .........145, 147, 151
operation .................139, 146, 149
passenger airbag .....139, 146, 149
side airbag ...............................145
All Wheel Drive (AWD),
driving off road .........................236
Ambient mood/lighting ...............60
Ambulance packages ....................7
AM/FM .........................................29
Antifreeze
(see Engine coolant) ................299
Anti-lock brake system
(see Brakes) ......................212–213
Anti-theft system ......................106
Audio system (see Radio) .........29
Automatic transmission ............222
driving an automatic
overdrive .................................223
fluid, refill capacities ..............326
fluid, specification ..................326Auxiliary input jack (Line in) ....37
Auxiliary power point .................71
Axle
lubricant specifications ..........326
refill capacities ........................326
B
Battery .......................................297
acid, treating emergencies .....297
jumping a disabled battery ....265
maintenance-free ....................297
replacement, specifications ...325
servicing ..................................297
Belt-Minder.............................132
Blind spot mirror ......................235
Booster seats .............................165
Brakes ........................................212
anti-lock ...........................212–213
anti-lock brake system (ABS)
warning light ...........................213
fluid, checking and adding ....318
fluid, refill capacities ..............326
fluid, specifications .................326
lubricant specifications ..........326
parking ....................................213
shift interlock ..........................221
Bulbs ............................................60
C
Capacities for refilling fluids ....326
Car2UHome Automation
System .........................................80
Cargo area shade ........................87
Cargo management system ........87
CD ................................................29
Cell phone use ..............................9
Index
361
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

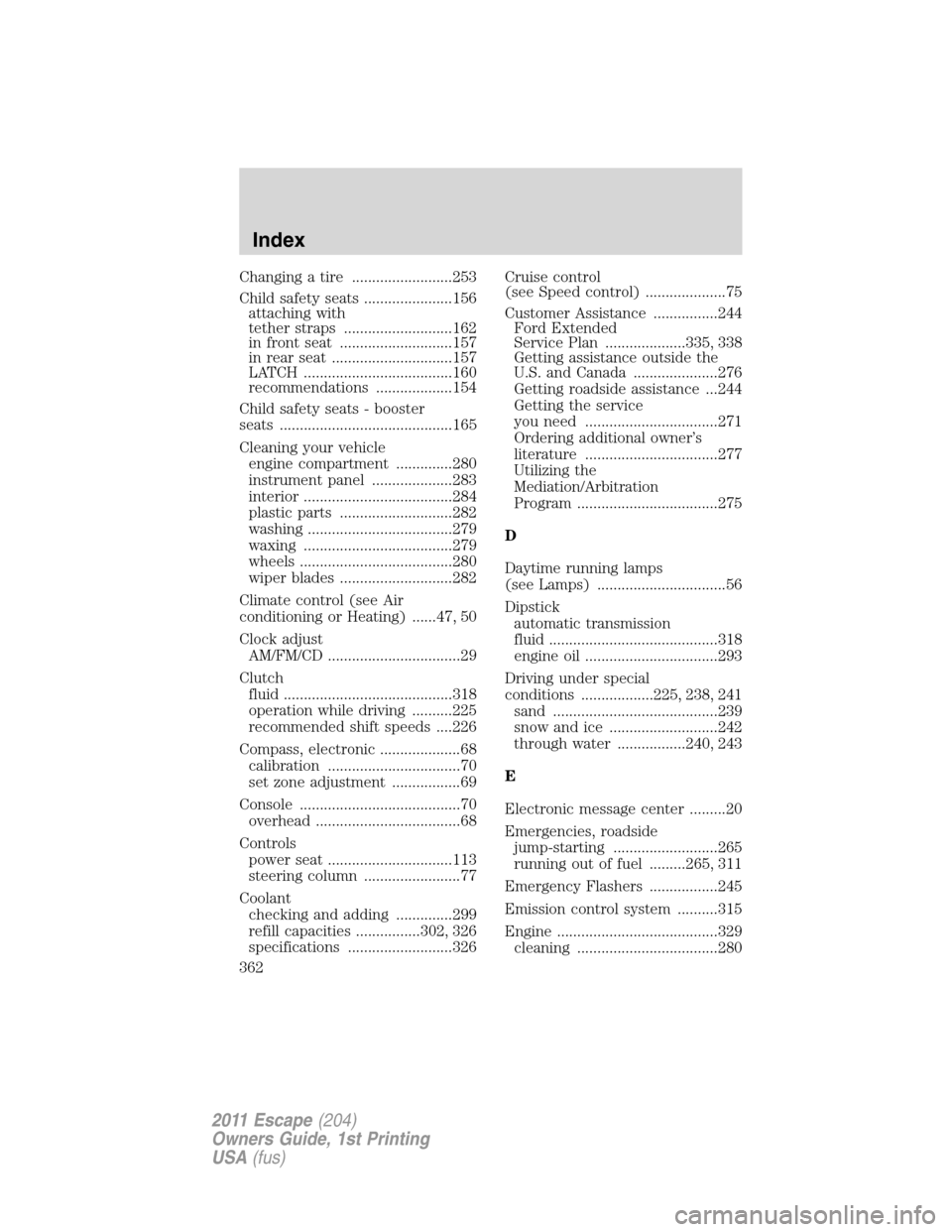

Changing a tire .........................253
Child safety seats ......................156
attaching with
tether straps ...........................162
in front seat ............................157
in rear seat ..............................157
LATCH .....................................160
recommendations ...................154
Child safety seats - booster
seats ...........................................165
Cleaning your vehicle
engine compartment ..............280
instrument panel ....................283
interior .....................................284
plastic parts ............................282
washing ....................................279
waxing .....................................279
wheels ......................................280
wiper blades ............................282
Climate control (see Air
conditioning or Heating) ......47, 50
Clock adjust
AM/FM/CD .................................29
Clutch
fluid ..........................................318
operation while driving ..........225
recommended shift speeds ....226
Compass, electronic ....................68
calibration .................................70
set zone adjustment .................69
Console ........................................70
overhead ....................................68
Controls
power seat ...............................113
steering column ........................77
Coolant
checking and adding ..............299
refill capacities ................302, 326
specifications ..........................326Cruise control
(see Speed control) ....................75
Customer Assistance ................244
Ford Extended
Service Plan ....................335, 338
Getting assistance outside the
U.S. and Canada .....................276
Getting roadside assistance ...244
Getting the service
you need .................................271
Ordering additional owner’s
literature .................................277
Utilizing the
Mediation/Arbitration
Program ...................................275
D
Daytime running lamps
(see Lamps) ................................56
Dipstick
automatic transmission
fluid ..........................................318
engine oil .................................293
Driving under special
conditions ..................225, 238, 241
sand .........................................239
snow and ice ...........................242
through water .................240, 243
E
Electronic message center .........20
Emergencies, roadside
jump-starting ..........................265
running out of fuel .........265, 311
Emergency Flashers .................245
Emission control system ..........315
Engine ........................................329
cleaning ...................................280
Index
362
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

coolant .....................................299
fail-safe cooling .......................303
idle speed control ...................297
lubrication specifications .......326
refill capacities ........................326
service points ..................289–290
starting after a collision .........245
Engine block heater .................210
Engine oil ..................................293
checking and adding ..............293
dipstick ....................................293
filter, specifications ........296, 325
recommendations ...................296
refill capacities ........................326
specifications ..........................326
Event data recording ....................7
Exhaust fumes ..........................210
F
Fail safe cooling ........................303
Fleet MyKey programming ........91
Flexible Fuel Vehicle (FFV) ....304
Floor mats ...................................86
Fluid capacities .........................326
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................237
preparing to drive your
vehicle .....................................221
Fuel ............................................304
calculating fuel
economy ............................22, 312
cap ...........................................307
capacity ...................................326
choosing the right fuel ...........309
detergent in fuel .....................311
filler funnel .............................311filling your vehicle with
fuel ...........................304, 307, 313
filter, specifications ........304, 325
fuel pump shut-off switch .....245
improving fuel economy ........312
octane rating ...........309–310, 329
quality ......................................310
running out of fuel .........265, 311
safety information relating to
automotive fuels .....................304
Fuel - flex fuel vehicle
(FFV) .........................304, 309–310
Fuses ..................................246–247
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............307
Gas mileage (see Fuel
economy) ...................................312
Gauges .........................................17
H
Hazard flashers .........................245
Headlamps ...................................54
aiming ........................................57
bulb specifications ....................61
daytime running lights .............56
flash to pass ..............................56
high beam .................................55
replacing bulbs .........................62
turning on and off ....................54
Heating
heating and air conditioning
system .......................................50
manual heating and air
conditioning system .................47
Hood ..........................................288
Index
363
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)
