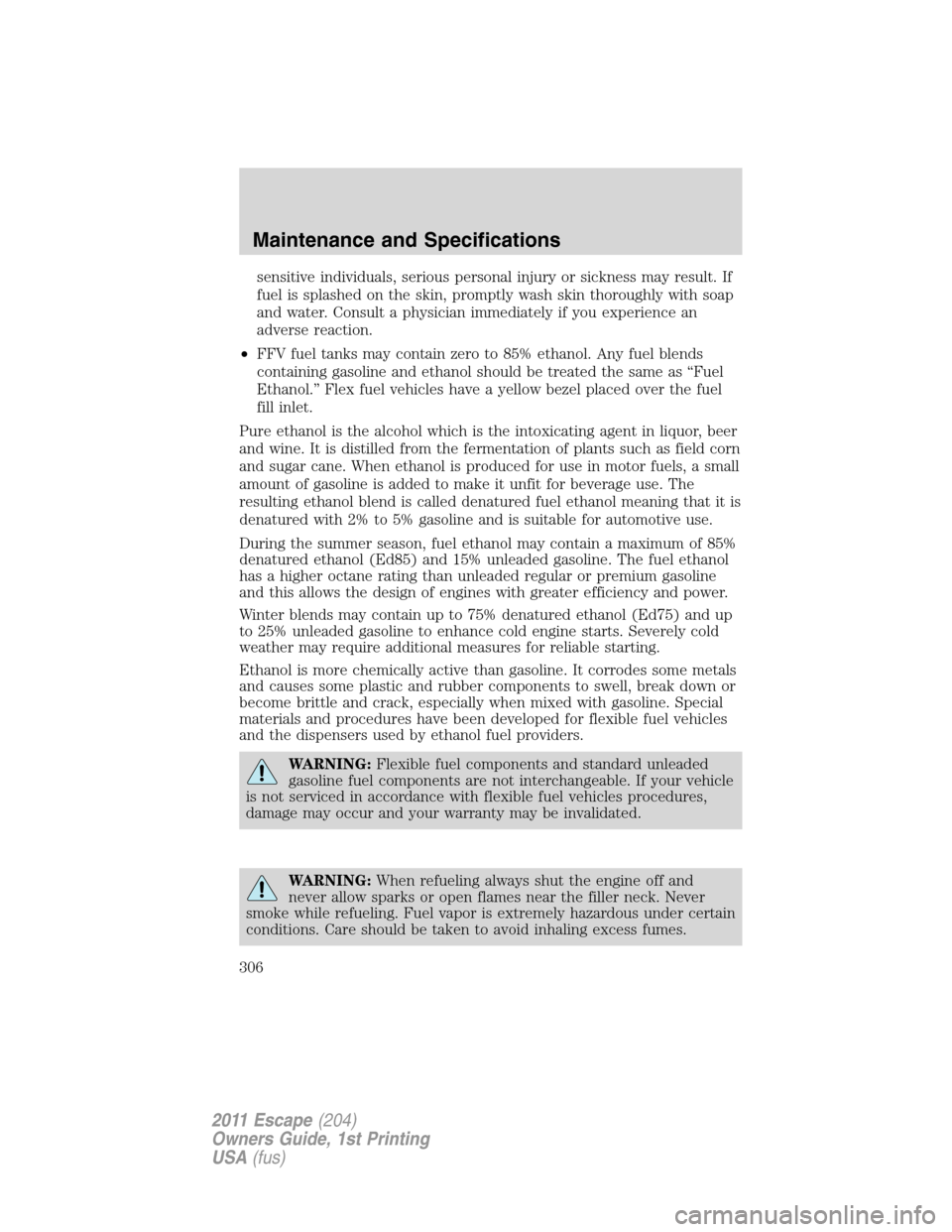

sensitive individuals, serious personal injury or sickness may result. If
fuel is splashed on the skin, promptly wash skin thoroughly with soap
and water. Consult a physician immediately if you experience an
adverse reaction.
•FFV fuel tanks may contain zero to 85% ethanol. Any fuel blends
containing gasoline and ethanol should be treated the same as “Fuel
Ethanol.” Flex fuel vehicles have a yellow bezel placed over the fuel
fill inlet.
Pure ethanol is the alcohol which is the intoxicating agent in liquor, beer
and wine. It is distilled from the fermentation of plants such as field corn
and sugar cane. When ethanol is produced for use in motor fuels, a small
amount of gasoline is added to make it unfit for beverage use. The
resulting ethanol blend is called denatured fuel ethanol meaning that it is
denatured with 2% to 5% gasoline and is suitable for automotive use.
During the summer season, fuel ethanol may contain a maximum of 85%
denatured ethanol (Ed85) and 15% unleaded gasoline. The fuel ethanol
has a higher octane rating than unleaded regular or premium gasoline
and this allows the design of engines with greater efficiency and power.
Winter blends may contain up to 75% denatured ethanol (Ed75) and up
to 25% unleaded gasoline to enhance cold engine starts. Severely cold
weather may require additional measures for reliable starting.
Ethanol is more chemically active than gasoline. It corrodes some metals
and causes some plastic and rubber components to swell, break down or
become brittle and crack, especially when mixed with gasoline. Special
materials and procedures have been developed for flexible fuel vehicles
and the dispensers used by ethanol fuel providers.
WARNING:Flexible fuel components and standard unleaded
gasoline fuel components are not interchangeable. If your vehicle
is not serviced in accordance with flexible fuel vehicles procedures,
damage may occur and your warranty may be invalidated.
WARNING:When refueling always shut the engine off and
never allow sparks or open flames near the filler neck. Never
smoke while refueling. Fuel vapor is extremely hazardous under certain
conditions. Care should be taken to avoid inhaling excess fumes.
Maintenance and Specifications
306
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

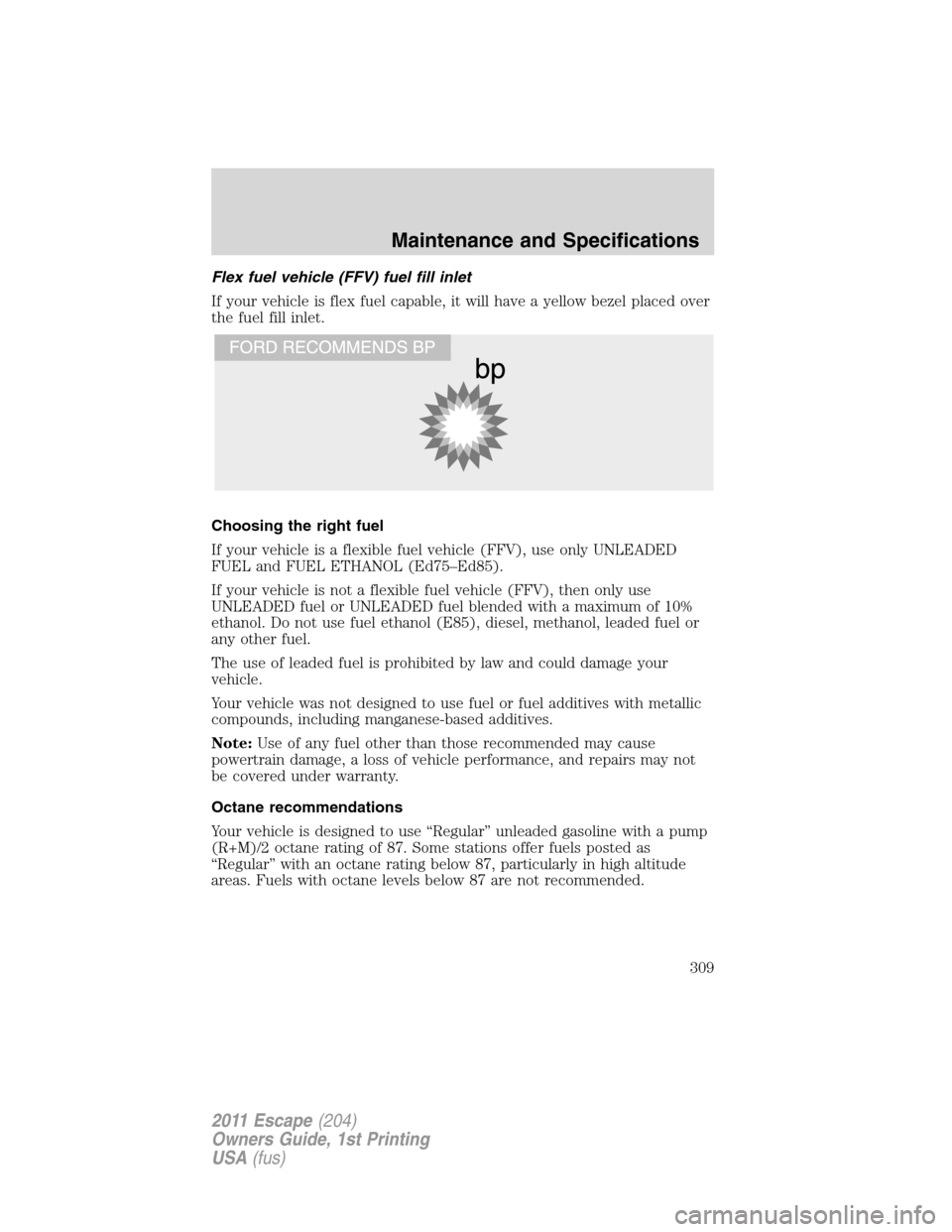

Flex fuel vehicle (FFV) fuel fill inlet
If your vehicle is flex fuel capable, it will have a yellow bezel placed over
the fuel fill inlet.
Choosing the right fuel
If your vehicle is a flexible fuel vehicle (FFV), use only UNLEADED
FUEL and FUEL ETHANOL (Ed75–Ed85).
If your vehicle is not a flexible fuel vehicle (FFV), then only use
UNLEADED fuel or UNLEADED fuel blended with a maximum of 10%
ethanol. Do not use fuel ethanol (E85), diesel, methanol, leaded fuel or
any other fuel.
The use of leaded fuel is prohibited by law and could damage your
vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives.
Note:Use of any fuel other than those recommended may cause
powertrain damage, a loss of vehicle performance, and repairs may not
be covered under warranty.
Octane recommendations
Your vehicle is designed to use “Regular” unleaded gasoline with a pump
(R+M)/2 octane rating of 87. Some stations offer fuels posted as
“Regular” with an octane rating below 87, particularly in high altitude
areas. Fuels with octane levels below 87 are not recommended.
Maintenance and Specifications
309
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

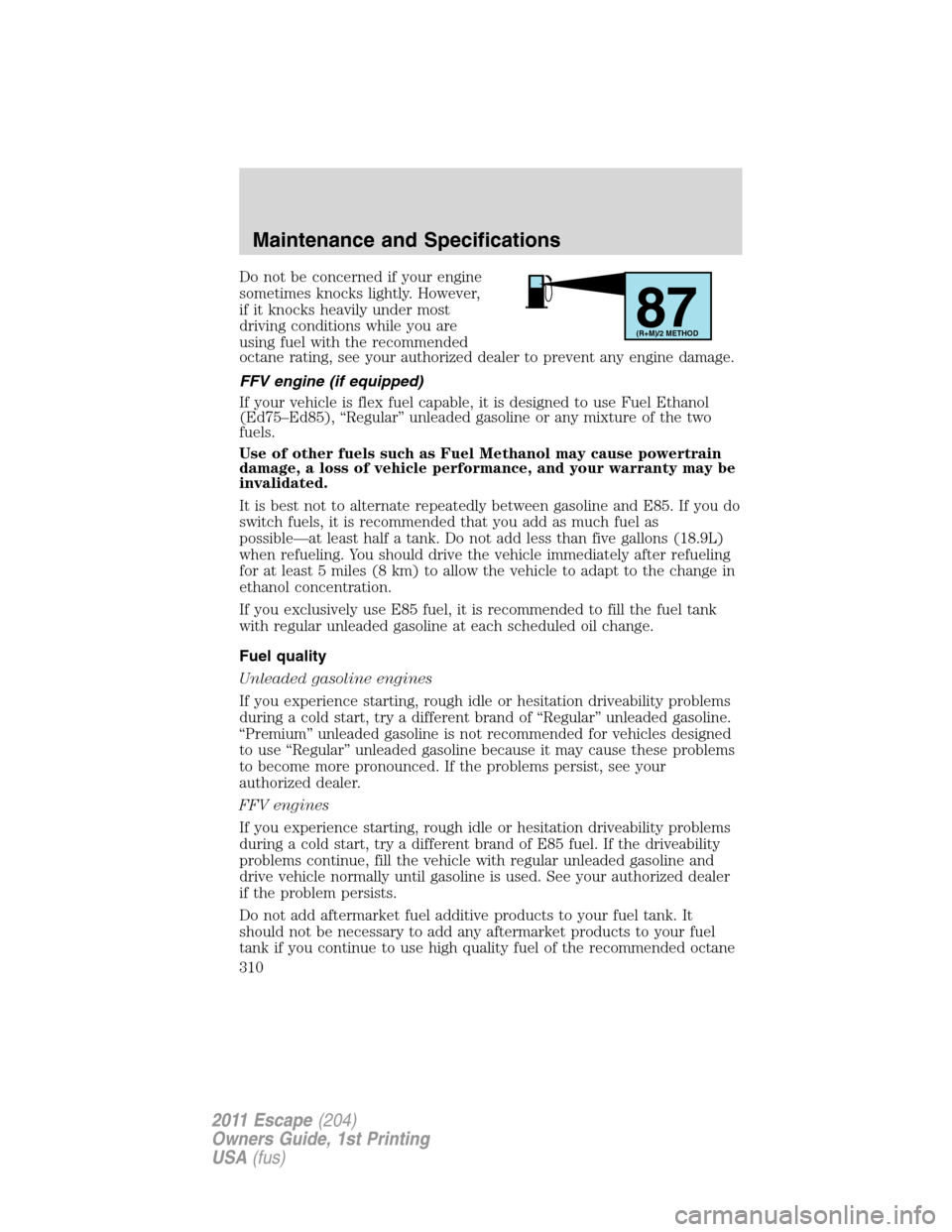

Do not be concerned if your engine
sometimes knocks lightly. However,
if it knocks heavily under most
driving conditions while you are
using fuel with the recommended
octane rating, see your authorized dealer to prevent any engine damage.
FFV engine (if equipped)
If your vehicle is flex fuel capable, it is designed to use Fuel Ethanol
(Ed75–Ed85), “Regular” unleaded gasoline or any mixture of the two
fuels.
Use of other fuels such as Fuel Methanol may cause powertrain
damage, a loss of vehicle performance, and your warranty may be
invalidated.
It is best not to alternate repeatedly between gasoline and E85. If you do
switch fuels, it is recommended that you add as much fuel as
possible—at least half a tank. Do not add less than five gallons (18.9L)
when refueling. You should drive the vehicle immediately after refueling
for at least 5 miles (8 km) to allow the vehicle to adapt to the change in
ethanol concentration.
If you exclusively use E85 fuel, it is recommended to fill the fuel tank
with regular unleaded gasoline at each scheduled oil change.
Fuel quality
Unleaded gasoline engines
If you experience starting, rough idle or hesitation driveability problems
during a cold start, try a different brand of “Regular” unleaded gasoline.
“Premium” unleaded gasoline is not recommended for vehicles designed
to use “Regular” unleaded gasoline because it may cause these problems
to become more pronounced. If the problems persist, see your
authorized dealer.
FFV engines
If you experience starting, rough idle or hesitation driveability problems
during a cold start, try a different brand of E85 fuel. If the driveability
problems continue, fill the vehicle with regular unleaded gasoline and
drive vehicle normally until gasoline is used. See your authorized dealer
if the problem persists.
Do not add aftermarket fuel additive products to your fuel tank. It
should not be necessary to add any aftermarket products to your fuel
tank if you continue to use high quality fuel of the recommended octane
87(R+M)/2 METHOD
Maintenance and Specifications
310
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

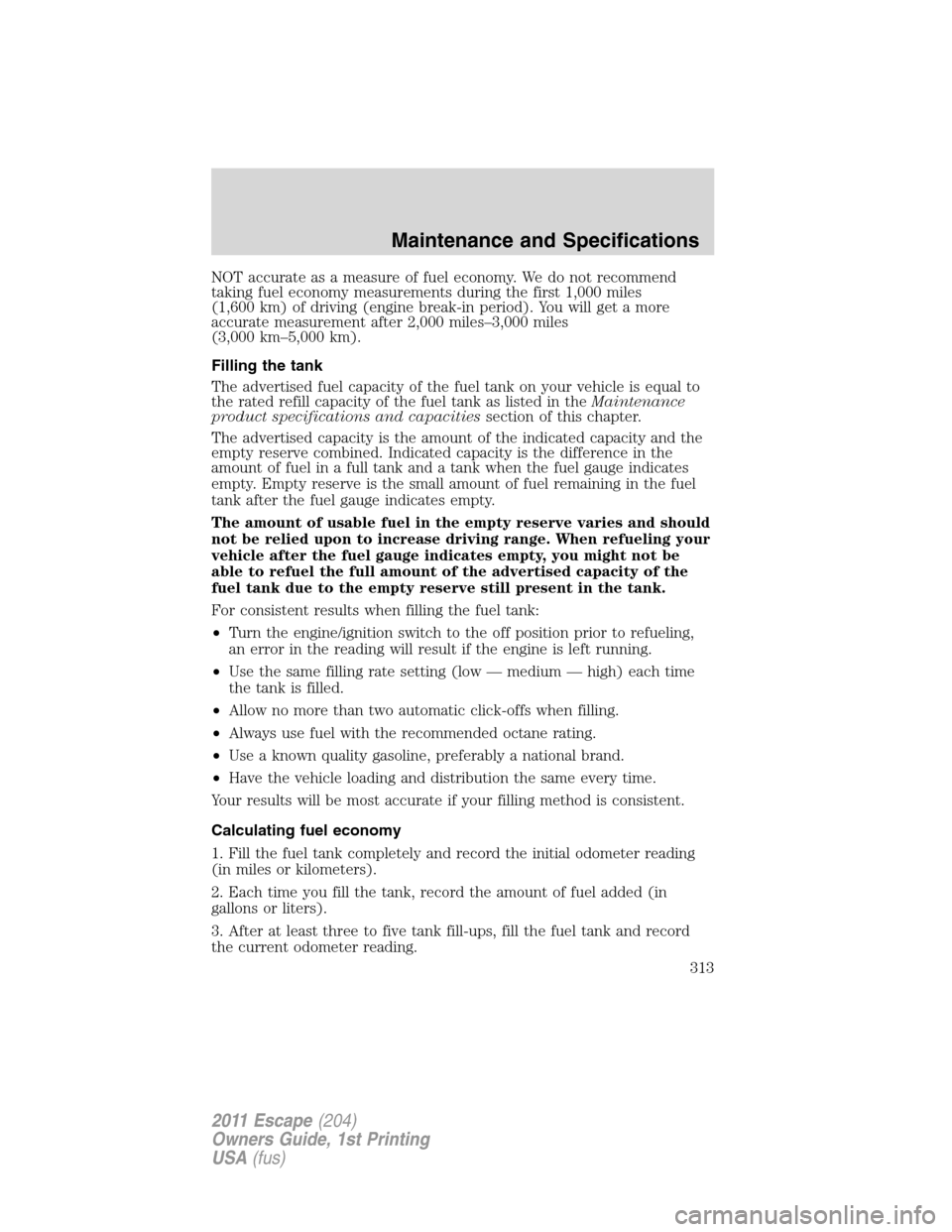

NOT accurate as a measure of fuel economy. We do not recommend
taking fuel economy measurements during the first 1,000 miles
(1,600 km) of driving (engine break-in period). You will get a more
accurate measurement after 2,000 miles–3,000 miles
(3,000 km–5,000 km).
Filling the tank
The advertised fuel capacity of the fuel tank on your vehicle is equal to
the rated refill capacity of the fuel tank as listed in theMaintenance
product specifications and capacitiessection of this chapter.
The advertised capacity is the amount of the indicated capacity and the
empty reserve combined. Indicated capacity is the difference in the
amount of fuel in a full tank and a tank when the fuel gauge indicates
empty. Empty reserve is the small amount of fuel remaining in the fuel
tank after the fuel gauge indicates empty.
The amount of usable fuel in the empty reserve varies and should
not be relied upon to increase driving range. When refueling your
vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low — medium — high) each time
the tank is filled.
•Allow no more than two automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2. Each time you fill the tank, record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
Maintenance and Specifications
313
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

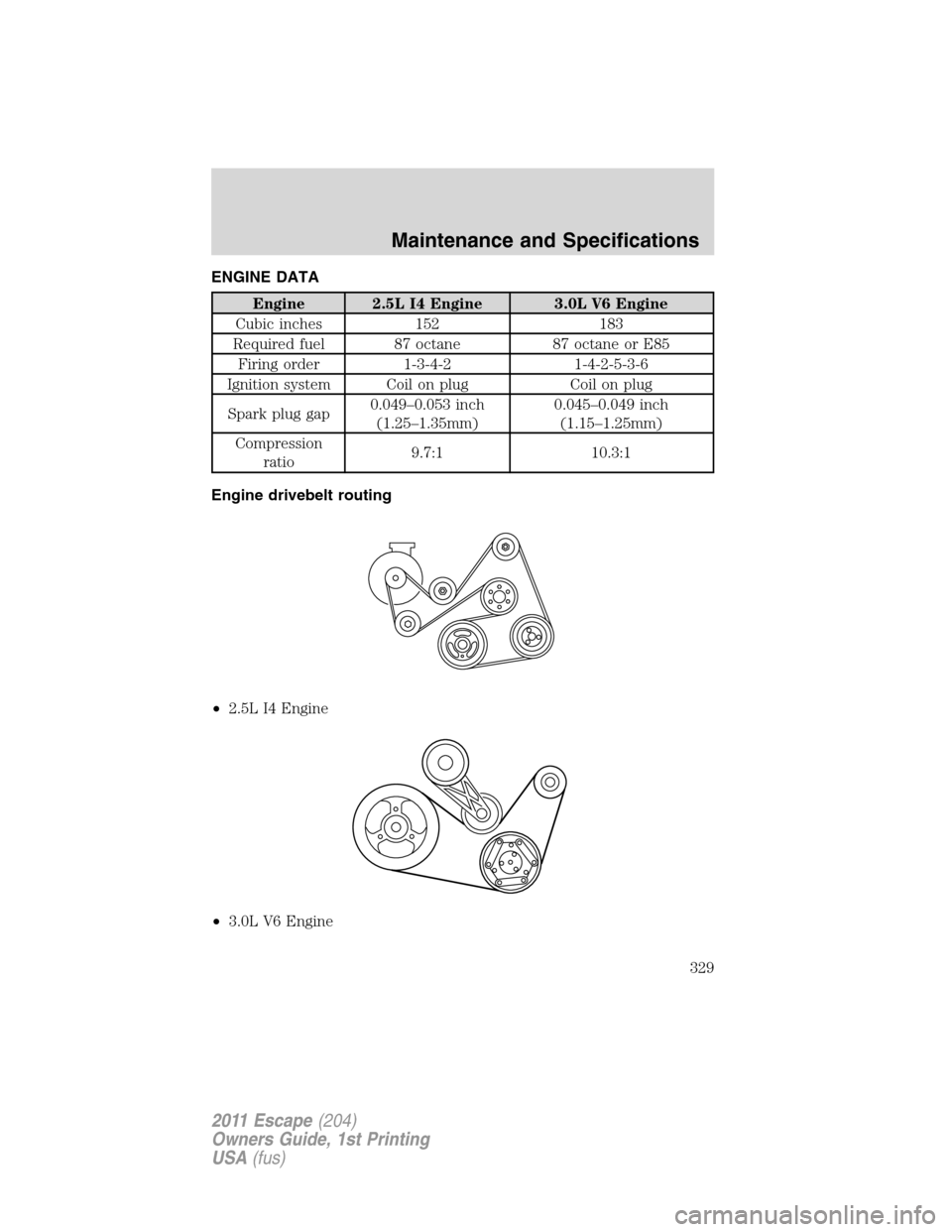

ENGINE DATA
Engine 2.5L I4 Engine 3.0L V6 Engine
Cubic inches 152 183
Required fuel 87 octane 87 octane or E85
Firing order 1-3-4-2 1-4-2-5-3-6
Ignition system Coil on plug Coil on plug
Spark plug gap0.049–0.053 inch
(1.25–1.35mm)0.045–0.049 inch
(1.15–1.25mm)
Compression
ratio9.7:1 10.3:1
Engine drivebelt routing
•2.5L I4 Engine
•3.0L V6 Engine
Maintenance and Specifications
329
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

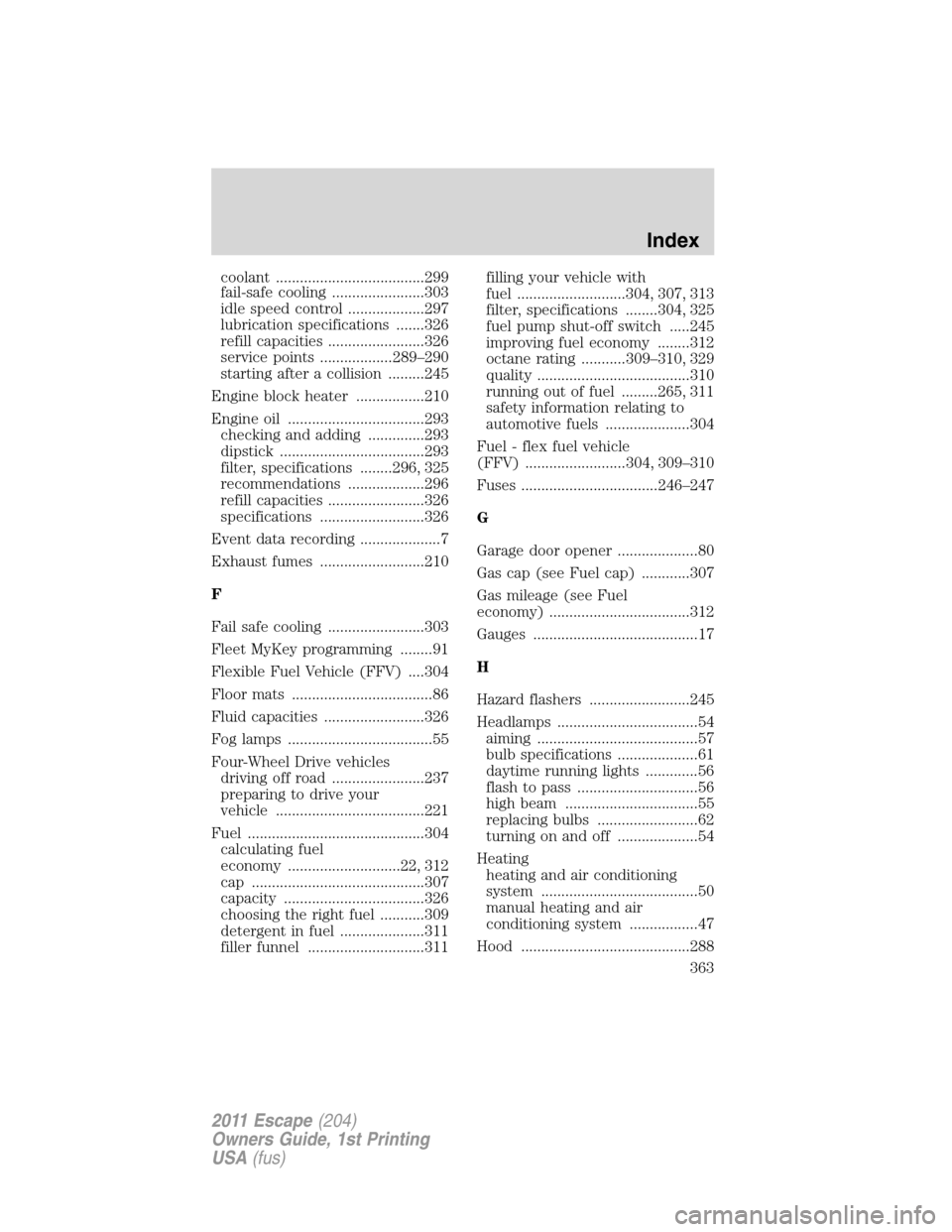

coolant .....................................299
fail-safe cooling .......................303
idle speed control ...................297
lubrication specifications .......326
refill capacities ........................326
service points ..................289–290
starting after a collision .........245
Engine block heater .................210
Engine oil ..................................293
checking and adding ..............293
dipstick ....................................293
filter, specifications ........296, 325
recommendations ...................296
refill capacities ........................326
specifications ..........................326
Event data recording ....................7
Exhaust fumes ..........................210
F
Fail safe cooling ........................303
Fleet MyKey programming ........91
Flexible Fuel Vehicle (FFV) ....304
Floor mats ...................................86
Fluid capacities .........................326
Fog lamps ....................................55
Four-Wheel Drive vehicles
driving off road .......................237
preparing to drive your
vehicle .....................................221
Fuel ............................................304
calculating fuel
economy ............................22, 312
cap ...........................................307
capacity ...................................326
choosing the right fuel ...........309
detergent in fuel .....................311
filler funnel .............................311filling your vehicle with
fuel ...........................304, 307, 313
filter, specifications ........304, 325
fuel pump shut-off switch .....245
improving fuel economy ........312
octane rating ...........309–310, 329
quality ......................................310
running out of fuel .........265, 311
safety information relating to
automotive fuels .....................304
Fuel - flex fuel vehicle
(FFV) .........................304, 309–310
Fuses ..................................246–247
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............307
Gas mileage (see Fuel
economy) ...................................312
Gauges .........................................17
H
Hazard flashers .........................245
Headlamps ...................................54
aiming ........................................57
bulb specifications ....................61
daytime running lights .............56
flash to pass ..............................56
high beam .................................55
replacing bulbs .........................62
turning on and off ....................54
Heating
heating and air conditioning
system .......................................50
manual heating and air
conditioning system .................47
Hood ..........................................288
Index
363
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)

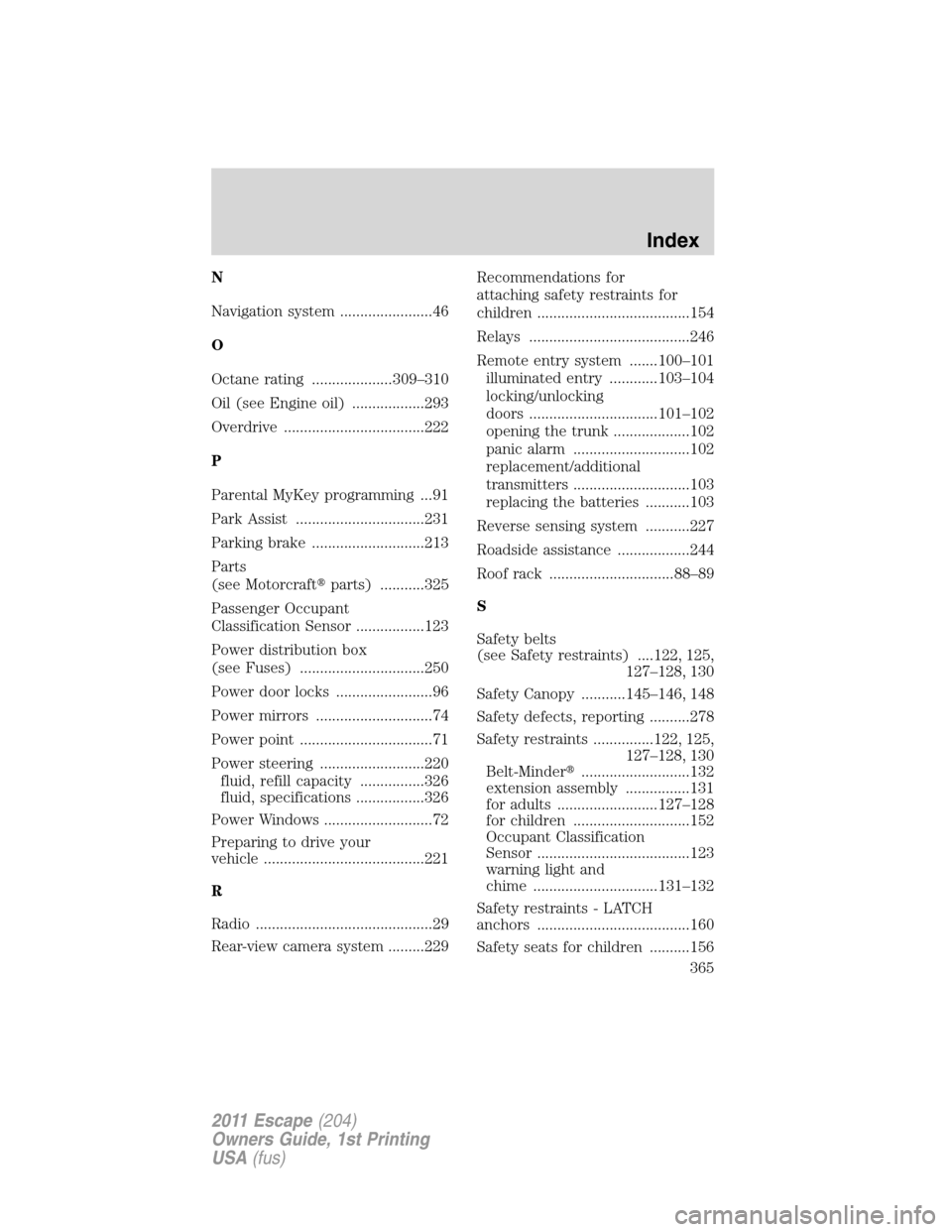

N
Navigation system .......................46
O
Octane rating ....................309–310
Oil (see Engine oil) ..................293
Overdrive ...................................222
P
Parental MyKey programming ...91
Park Assist ................................231
Parking brake ............................213
Parts
(see Motorcraftparts) ...........325
Passenger Occupant
Classification Sensor .................123
Power distribution box
(see Fuses) ...............................250
Power door locks ........................96
Power mirrors .............................74
Power point .................................71
Power steering ..........................220
fluid, refill capacity ................326
fluid, specifications .................326
Power Windows ...........................72
Preparing to drive your
vehicle ........................................221
R
Radio ............................................29
Rear-view camera system .........229Recommendations for
attaching safety restraints for
children ......................................154
Relays ........................................246
Remote entry system .......100–101
illuminated entry ............103–104
locking/unlocking
doors ................................101–102
opening the trunk ...................102
panic alarm .............................102
replacement/additional
transmitters .............................103
replacing the batteries ...........103
Reverse sensing system ...........227
Roadside assistance ..................244
Roof rack ...............................88–89
S
Safety belts
(see Safety restraints) ....122, 125,
127–128, 130
Safety Canopy ...........145–146, 148
Safety defects, reporting ..........278
Safety restraints ...............122, 125,
127–128, 130
Belt-Minder...........................132
extension assembly ................131
for adults .........................127–128
for children .............................152
Occupant Classification
Sensor ......................................123
warning light and
chime ...............................131–132
Safety restraints - LATCH
anchors ......................................160
Safety seats for children ..........156
Index
365
2011 Escape(204)
Owners Guide, 1st Printing
USA(fus)
