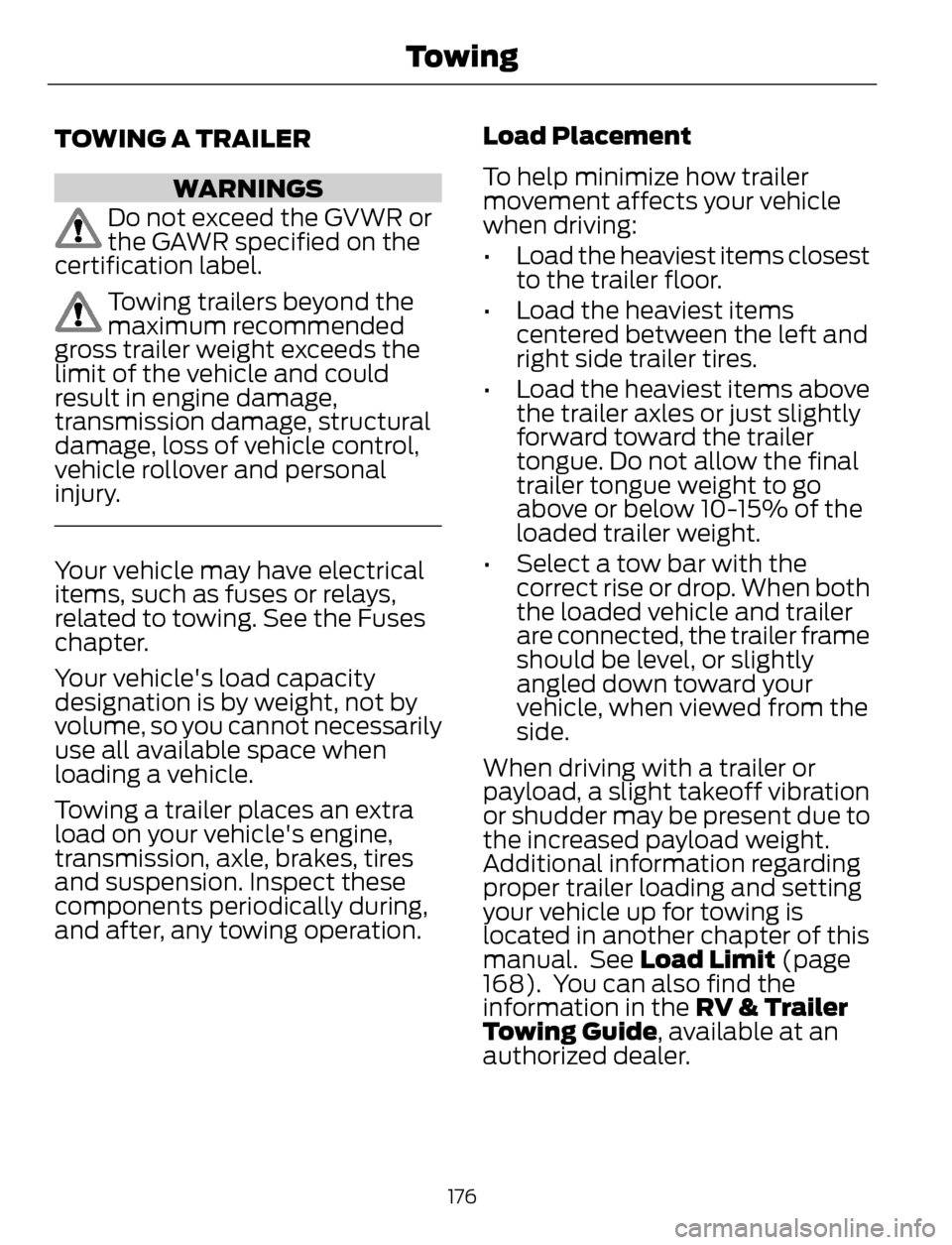

TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or
the GAWR specified on the
certification label.
Towing trailers beyond the
maximum recommended
gross trailer weight exceeds the
limit of the vehicle and could
result in engine damage,
transmission damage, structural
damage, loss of vehicle control,
vehicle rollover and personal
injury.
Your vehicle may have electrical
items, such as fuses or relays,
related to towing. See the Fuses
chapter.
Your vehicle's load capacity
designation is by weight, not by
volume, so you cannot necessarily
use all available space when
loading a vehicle.
Towing a trailer places an extra
load on your vehicle's engine,
transmission, axle, brakes, tires
and suspension. Inspect these
components periodically during,
and after, any towing operation.Load Placement
To help minimize how trailer
movement affects your vehicle
when driving:
• Load the heaviest items closest
to the trailer floor.
• Load the heaviest items
centered between the left and
right side trailer tires.
• Load the heaviest items above
the trailer axles or just slightly
forward toward the trailer
tongue. Do not allow the final
trailer tongue weight to go
above or below 10-15% of the
loaded trailer weight.
• Select a tow bar with the
correct rise or drop. When both
the loaded vehicle and trailer
are connected, the trailer frame
should be level, or slightly
angled down toward your
vehicle, when viewed from the
side.
When driving with a trailer or
payload, a slight takeoff vibration
or shudder may be present due to
the increased payload weight.
Additional information regarding
proper trailer loading and setting
your vehicle up for towing is
located in another chapter of this
manual. See Load Limit (page
168). You can also find the
information in the RV & Trailer
Towing Guide, available at an
authorized dealer.
176
Towing

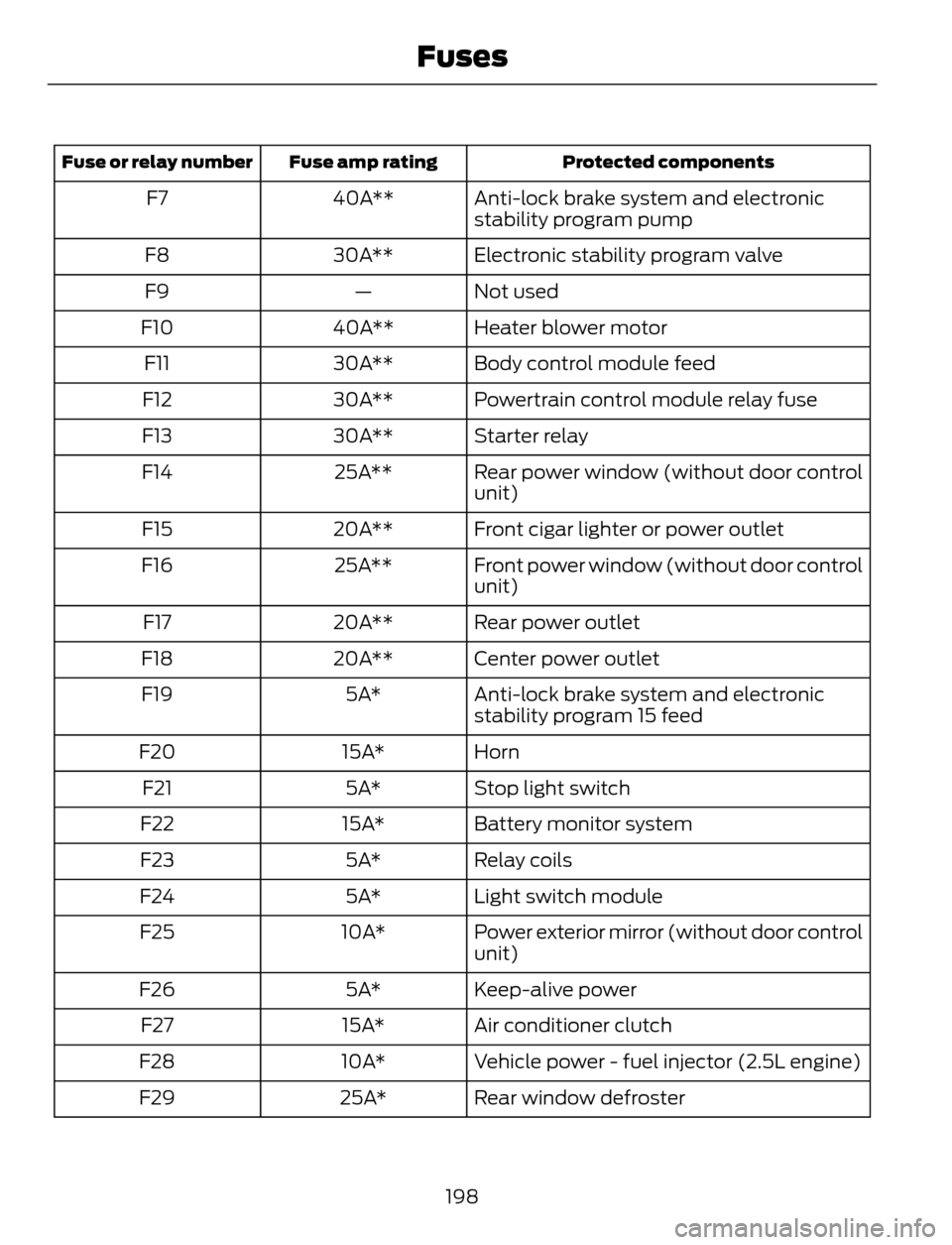

Protected components Fuse amp rating Fuse or relay number
Anti-lock brake system and electronic
stability program pump 40A** F7
Electronic stability program valve 30A** F8
Not used — F9
Heater blower motor 40A** F10
Body control module feed 30A** F11
Powertrain control module relay fuse 30A** F12
Starter relay 30A** F13
Rear power window (without door control
unit) 25A** F14
Front cigar lighter or power outlet 20A** F15
Front power window (without door control
unit) 25A** F16
Rear power outlet 20A** F17
Center power outlet 20A** F18
Anti-lock brake system and electronic
stability program 15 feed 5A* F19
Horn 15A* F20
Stop light switch 5A* F21
Battery monitor system 15A* F22
Relay coils 5A* F23
Light switch module 5A* F24
Power exterior mirror (without door control
unit) 10A* F25
Keep-alive power 5A* F26
Air conditioner clutch 15A* F27
Vehicle power - fuel injector (2.5L engine) 10A* F28
Rear window defroster 25A* F29
198
Fuses

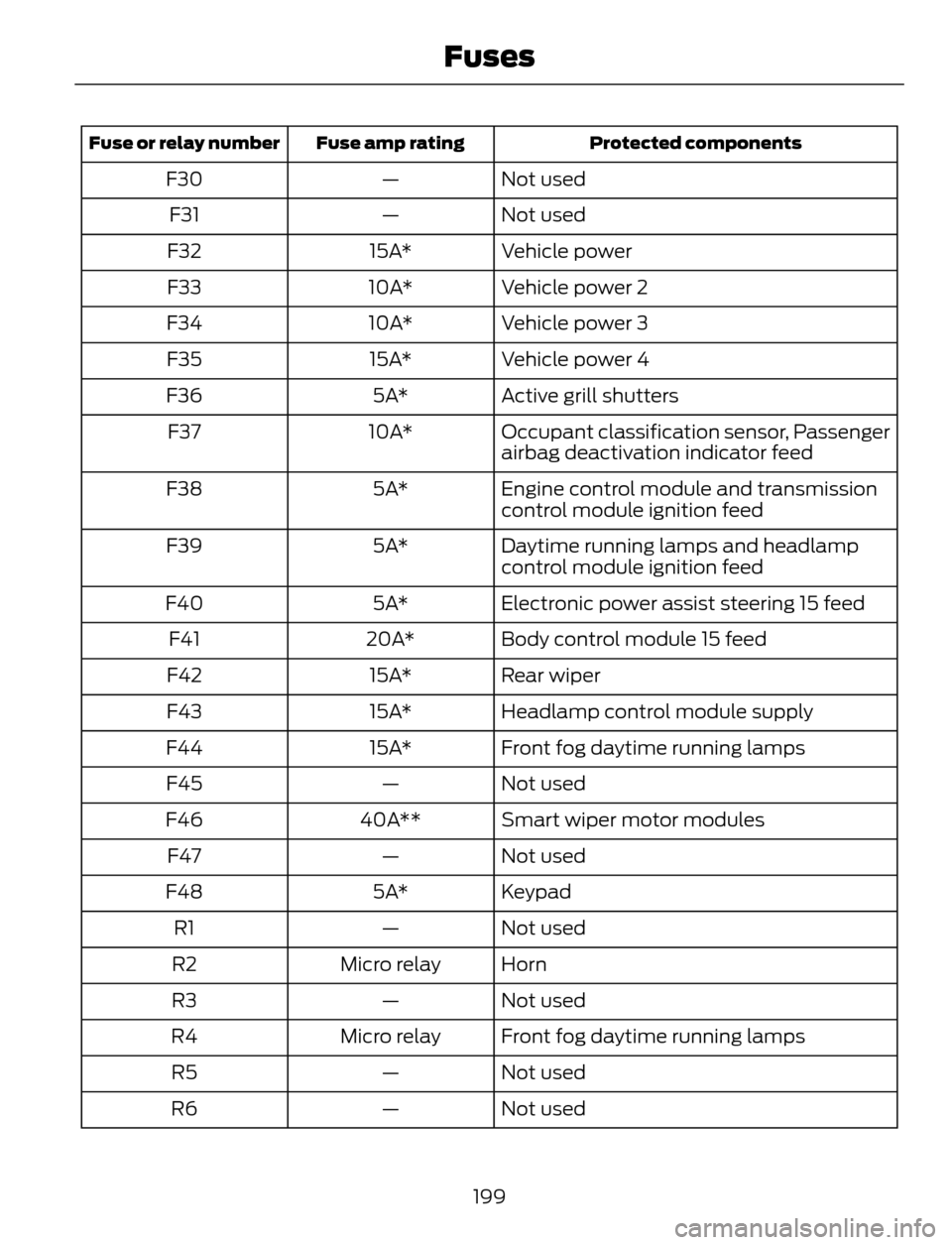

Protected components Fuse amp rating Fuse or relay number
Not used — F30
Not used — F31
Vehicle power 15A* F32
Vehicle power 2 10A* F33
Vehicle power 3 10A* F34
Vehicle power 4 15A* F35
Active grill shutters 5A* F36
Occupant classification sensor, Passenger
airbag deactivation indicator feed 10A* F37
Engine control module and transmission
control module ignition feed 5A* F38
Daytime running lamps and headlamp
control module ignition feed 5A* F39
Electronic power assist steering 15 feed 5A* F40
Body control module 15 feed 20A* F41
Rear wiper 15A* F42
Headlamp control module supply 15A* F43
Front fog daytime running lamps 15A* F44
Not used — F45
Smart wiper motor modules 40A** F46
Not used — F47
Keypad 5A* F48
Not used — R1
Horn Micro relay R2
Not used — R3
Front fog daytime running lamps Micro relay R4
Not used — R5
Not used — R6
199
Fuses

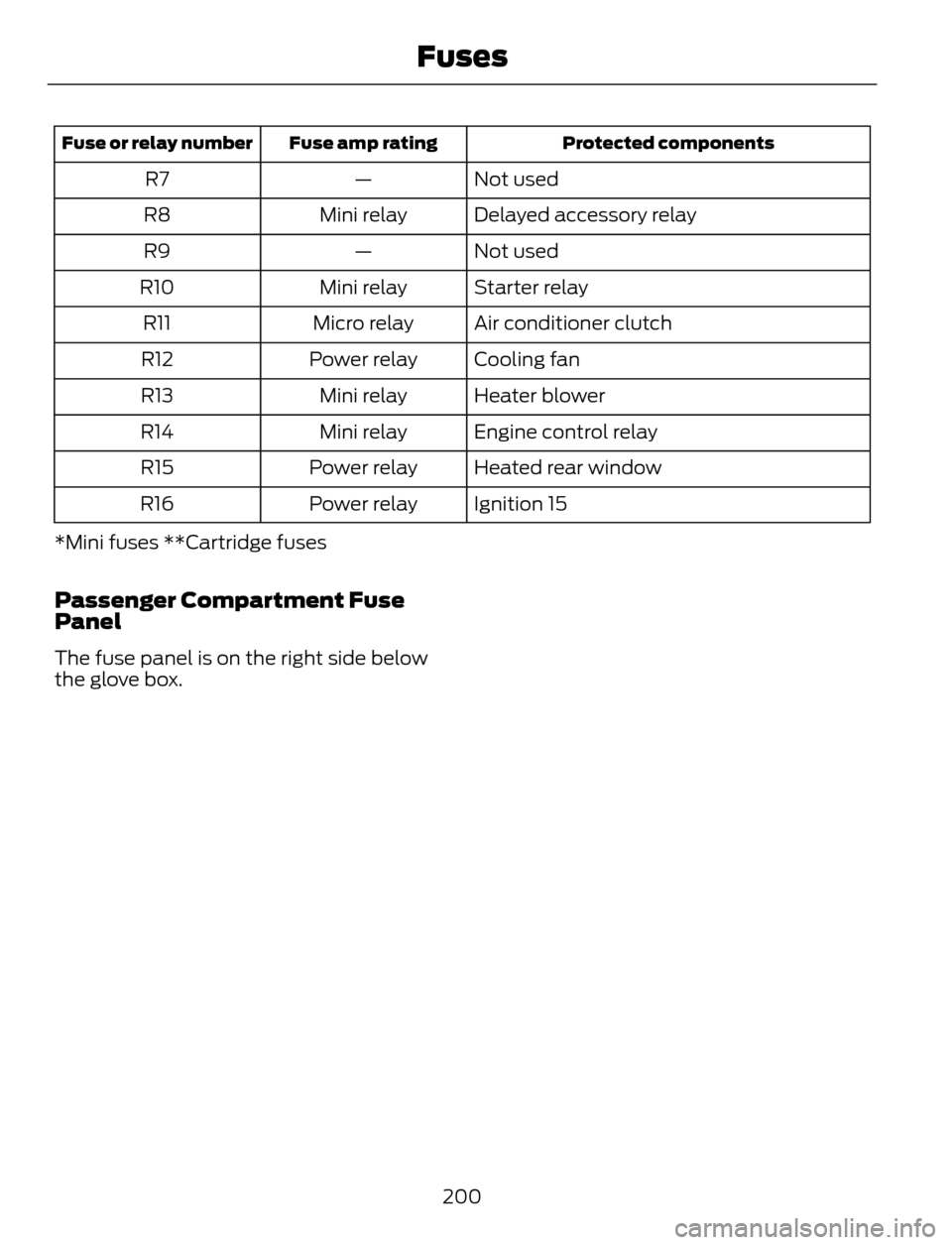

Protected components Fuse amp rating Fuse or relay number
Not used — R7
Delayed accessory relay Mini relay R8
Not used — R9
Starter relay Mini relay R10
Air conditioner clutch Micro relay R11
Cooling fan Power relay R12
Heater blower Mini relay R13
Engine control relay Mini relay R14
Heated rear window Power relay R15
Ignition 15 Power relay R16
*Mini fuses **Cartridge fuses

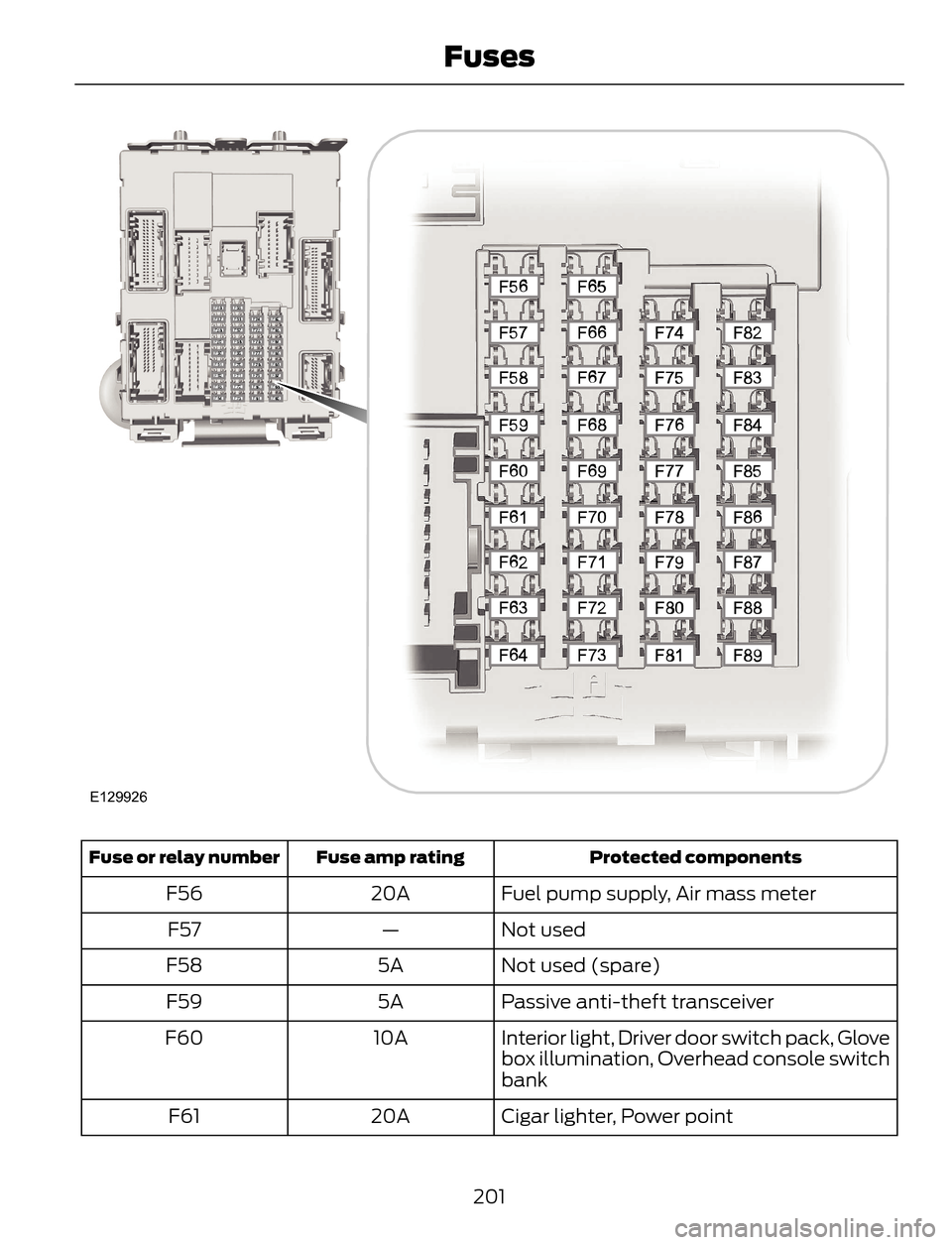

Passenger Compartment Fuse
Panel
The fuse panel is on the right side below
the glove box.
200
Fuses

E129926
Protected components Fuse amp rating Fuse or relay number
Fuel pump supply, Air mass meter 20A F56
Not used — F57
Not used (spare) 5A F58
Passive anti-theft transceiver 5A F59
Interior light, Driver door switch pack, Glove
box illumination, Overhead console switch
bank 10A F60
Cigar lighter, Power point 20A F61
201
Fuses

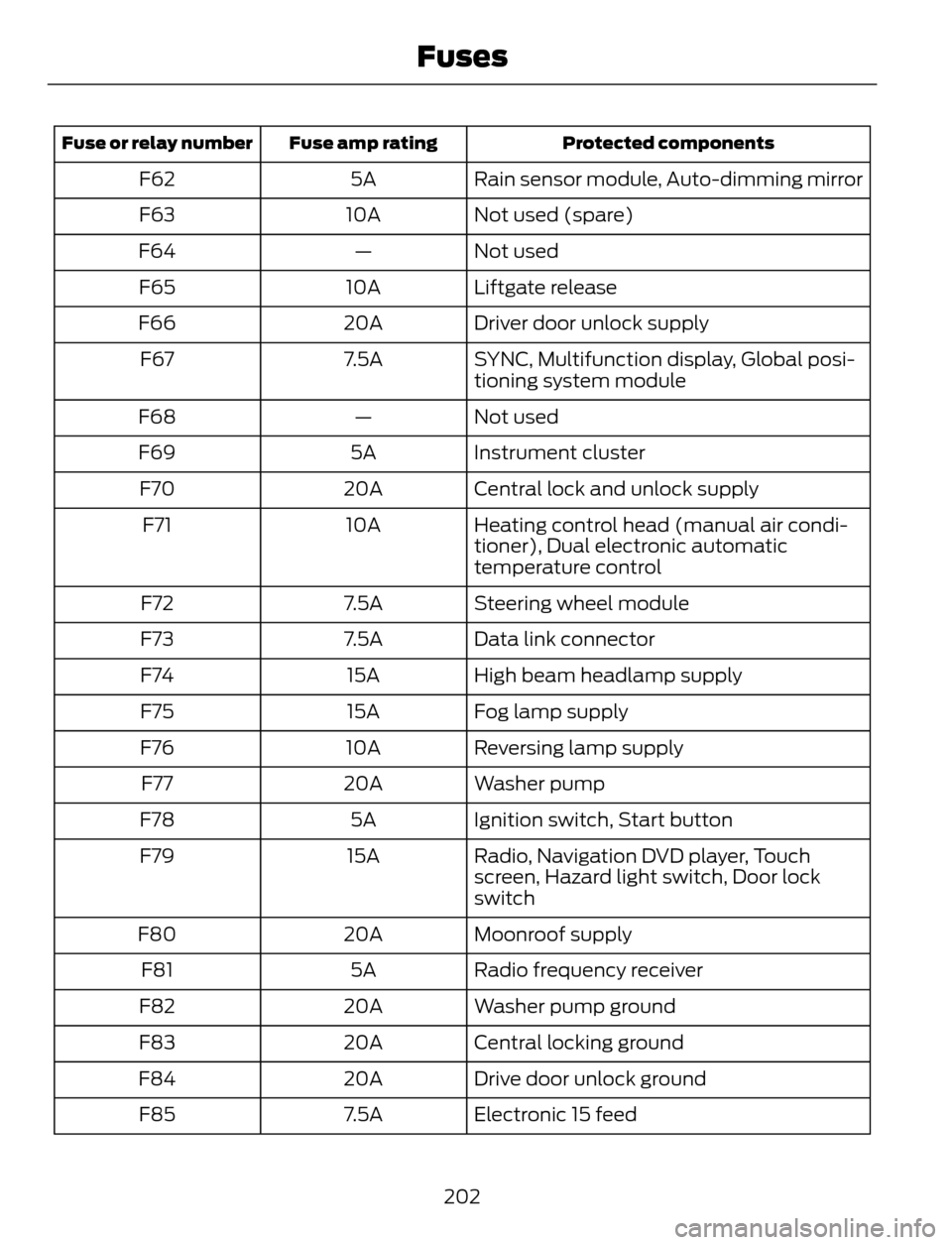

Protected components Fuse amp rating Fuse or relay number
Rain sensor module, Auto-dimming mirror 5A F62
Not used (spare) 10A F63
Not used — F64
Liftgate release 10A F65
Driver door unlock supply 20A F66
SYNC, Multifunction display, Global posi-
tioning system module 7.5A F67
Not used — F68
Instrument cluster 5A F69
Central lock and unlock supply 20A F70
Heating control head (manual air condi-
tioner), Dual electronic automatic
temperature control 10A F71
Steering wheel module 7.5A F72
Data link connector 7.5A F73
High beam headlamp supply 15A F74
Fog lamp supply 15A F75
Reversing lamp supply 10A F76
Washer pump 20A F77
Ignition switch, Start button 5A F78
Radio, Navigation DVD player, Touch
screen, Hazard light switch, Door lock
switch 15A F79
Moonroof supply 20A F80
Radio frequency receiver 5A F81
Washer pump ground 20A F82
Central locking ground 20A F83
Drive door unlock ground 20A F84
Electronic 15 feed 7.5A F85
202
Fuses

Protected components Fuse amp rating Fuse or relay number
Air bag module, Occupant classification
system, Passenger air bag deactivation
indicator 10A F86
Not used (spare) 7.5A F87
Supply for F67, F69, F71 and F79 25A F88
Not used — F89

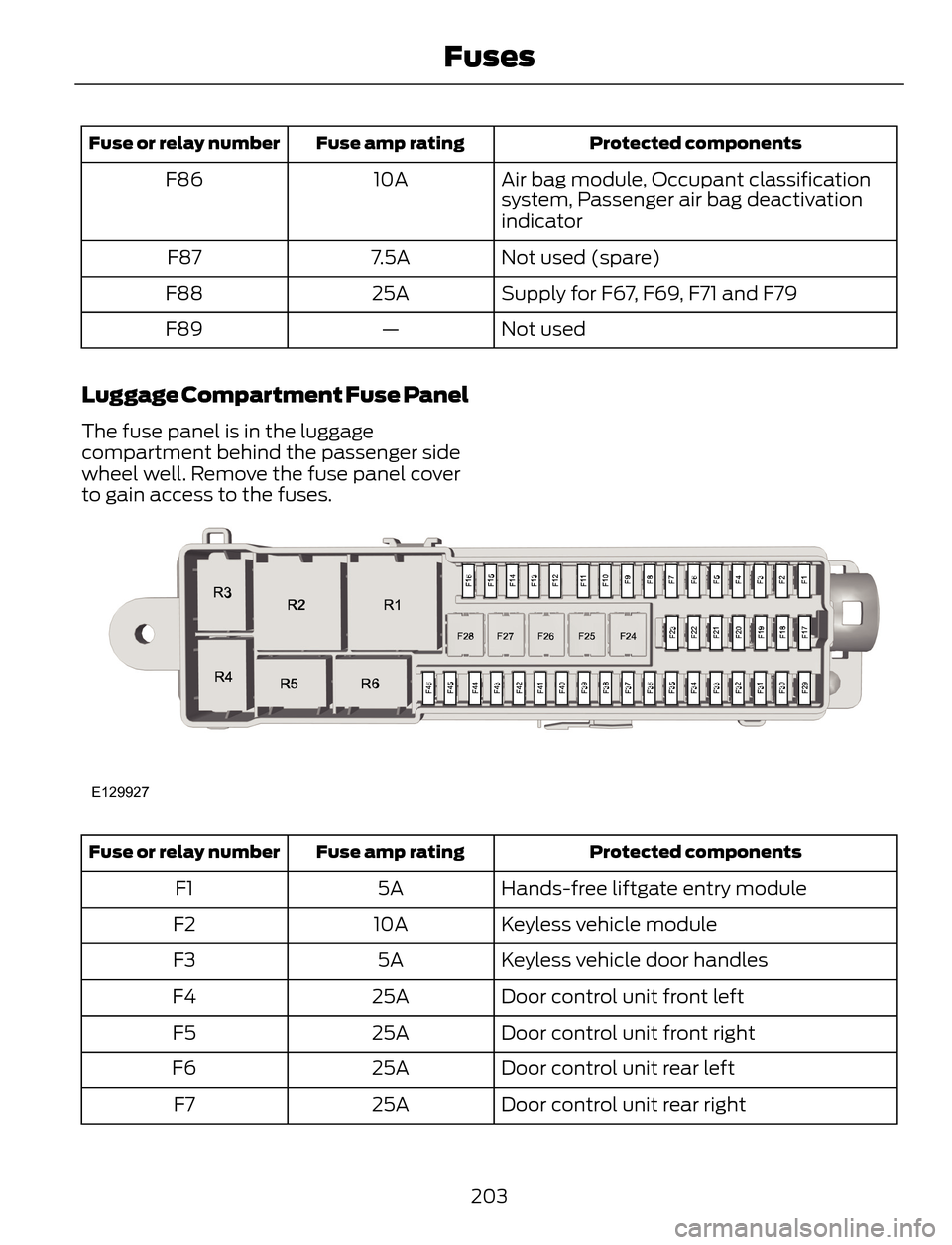

Luggage Compartment Fuse Panel
The fuse panel is in the luggage
compartment behind the passenger side
wheel well. Remove the fuse panel cover
to gain access to the fuses.
E129927
Protected components Fuse amp rating Fuse or relay number
Hands-free liftgate entry module 5A F1
Keyless vehicle module 10A F2
Keyless vehicle door handles 5A F3
Door control unit front left 25A F4
Door control unit front right 25A F5
Door control unit rear left 25A F6
Door control unit rear right 25A F7
203
Fuses

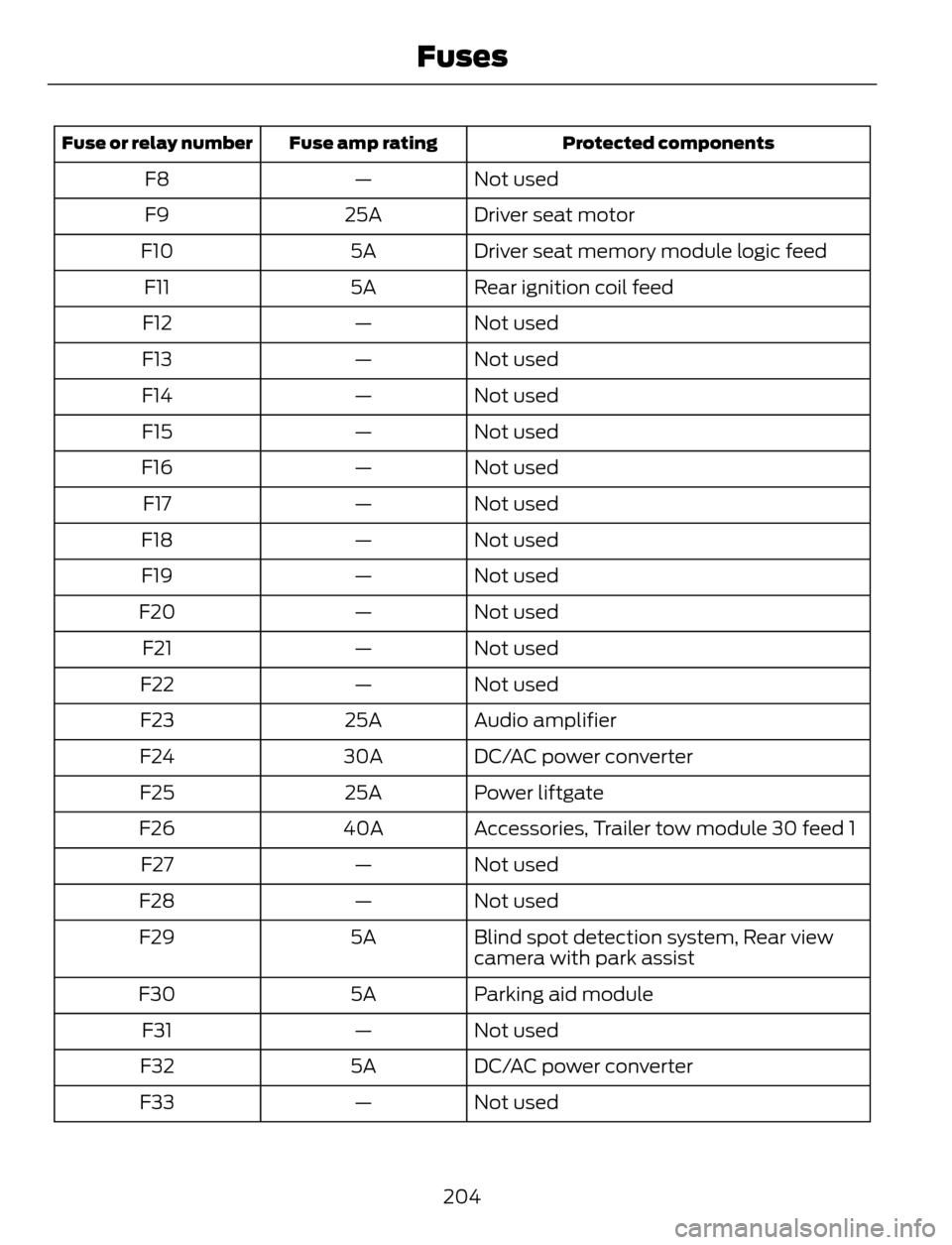

Protected components Fuse amp rating Fuse or relay number
Not used — F8
Driver seat motor 25A F9
Driver seat memory module logic feed 5A F10
Rear ignition coil feed 5A F11
Not used — F12
Not used — F13
Not used — F14
Not used — F15
Not used — F16
Not used — F17
Not used — F18
Not used — F19
Not used — F20
Not used — F21
Not used — F22
Audio amplifier 25A F23
DC/AC power converter 30A F24
Power liftgate 25A F25
Accessories, Trailer tow module 30 feed 1 40A F26
Not used — F27
Not used — F28
Blind spot detection system, Rear view
camera with park assist 5A F29
Parking aid module 5A F30
Not used — F31
DC/AC power converter 5A F32
Not used — F33
204
Fuses

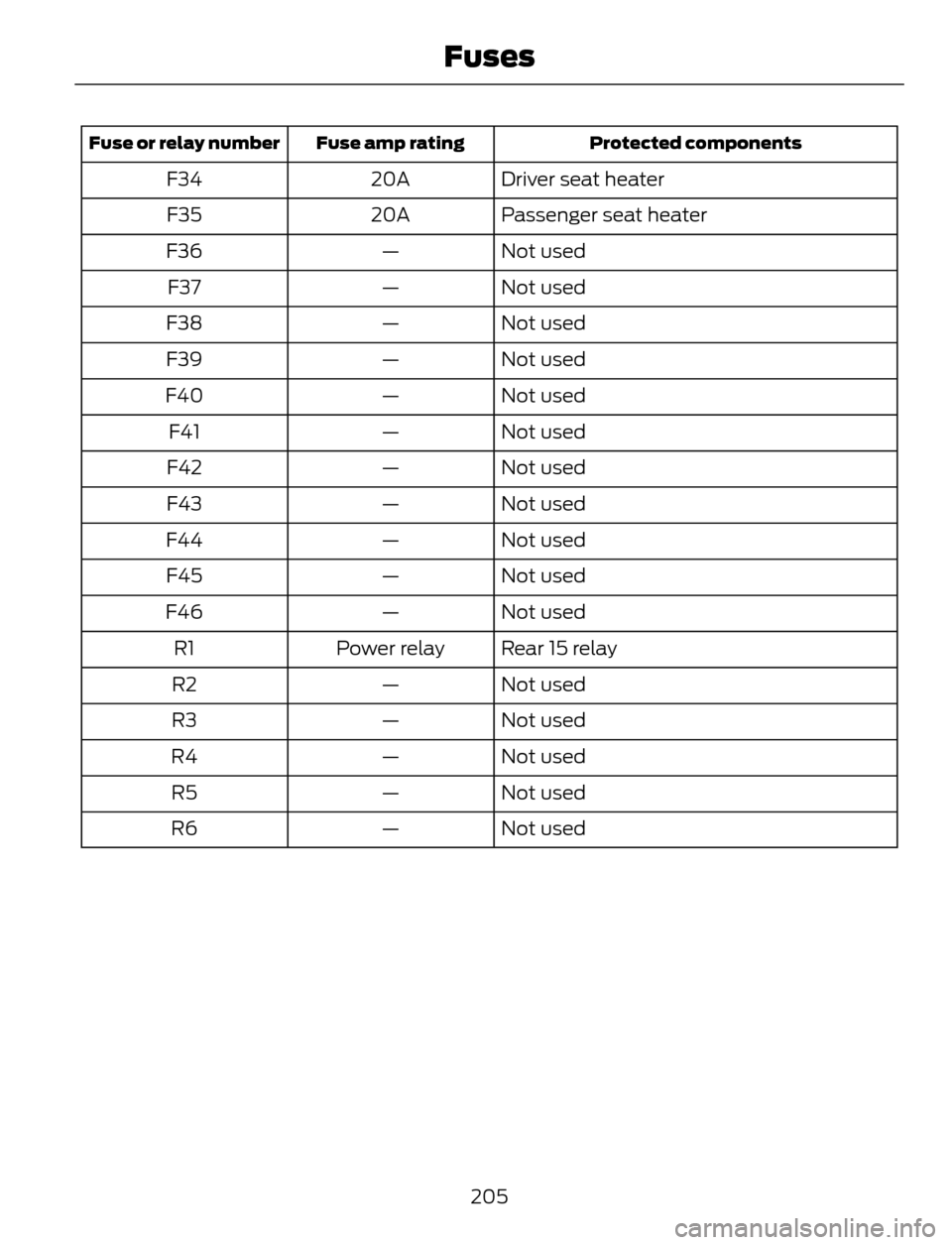

Protected components Fuse amp rating Fuse or relay number
Driver seat heater 20A F34
Passenger seat heater 20A F35
Not used — F36
Not used — F37
Not used — F38
Not used — F39
Not used — F40
Not used — F41
Not used — F42
Not used — F43
Not used — F44
Not used — F45
Not used — F46
Rear 15 relay Power relay R1
Not used — R2
Not used — R3
Not used — R4
Not used — R5
Not used — R6
205
