compression ratio FORD ESCAPE 2016 3.G Owners Manual

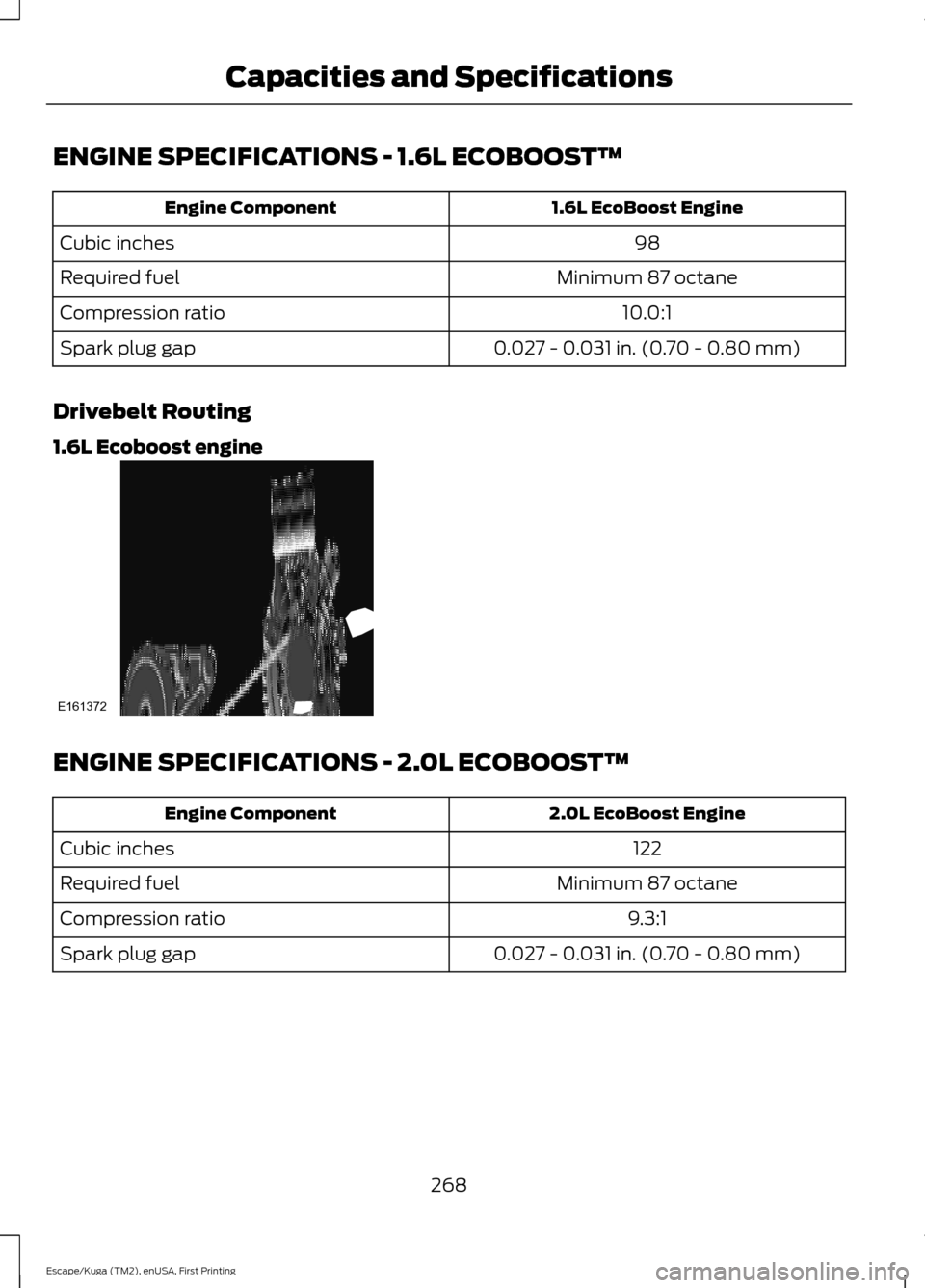

ENGINE SPECIFICATIONS - 1.6L ECOBOOST™
1.6L EcoBoost Engine
Engine Component
98
Cubic inches
Minimum 87 octane
Required fuel
10.0:1
Compression ratio
0.027 - 0.031 in. (0.70 - 0.80 mm)
Spark plug gap
Drivebelt Routing
1.6L Ecoboost engine ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
2.0L EcoBoost Engine
Engine Component
122
Cubic inches
Minimum 87 octane
Required fuel
9.3:1
Compression ratio
0.027 - 0.031 in. (0.70 - 0.80 mm)
Spark plug gap
268
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE161372

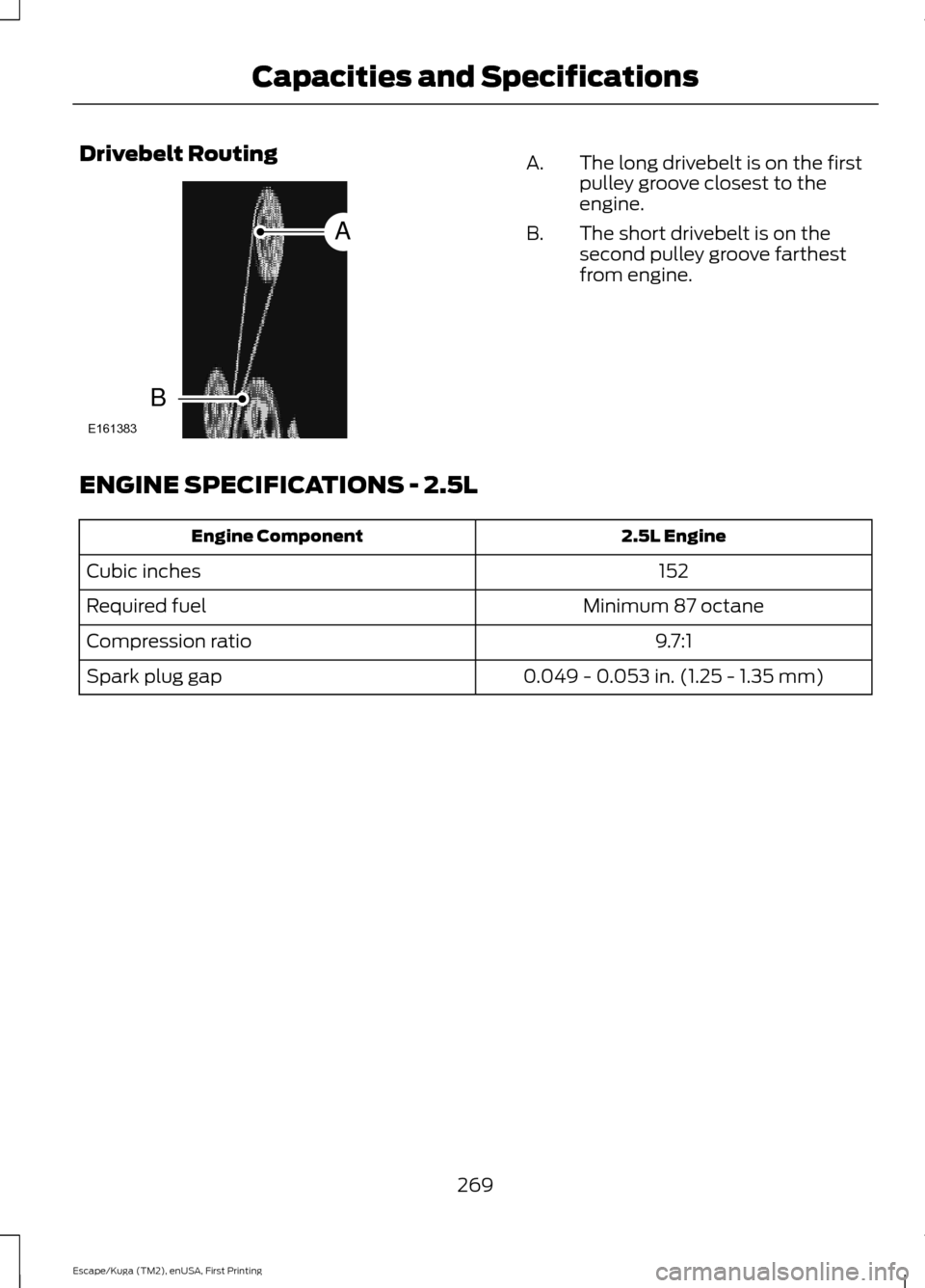

Drivebelt Routing
The long drivebelt is on the first
pulley groove closest to the
engine.
A.
The short drivebelt is on the
second pulley groove farthest
from engine.
B.
ENGINE SPECIFICATIONS - 2.5L 2.5L Engine
Engine Component
152
Cubic inches
Minimum 87 octane
Required fuel
9.7:1
Compression ratio
0.049 - 0.053 in. (1.25 - 1.35 mm)
Spark plug gap
269
Escape/Kuga (TM2), enUSA, First Printing Capacities and SpecificationsE161383
A
B
