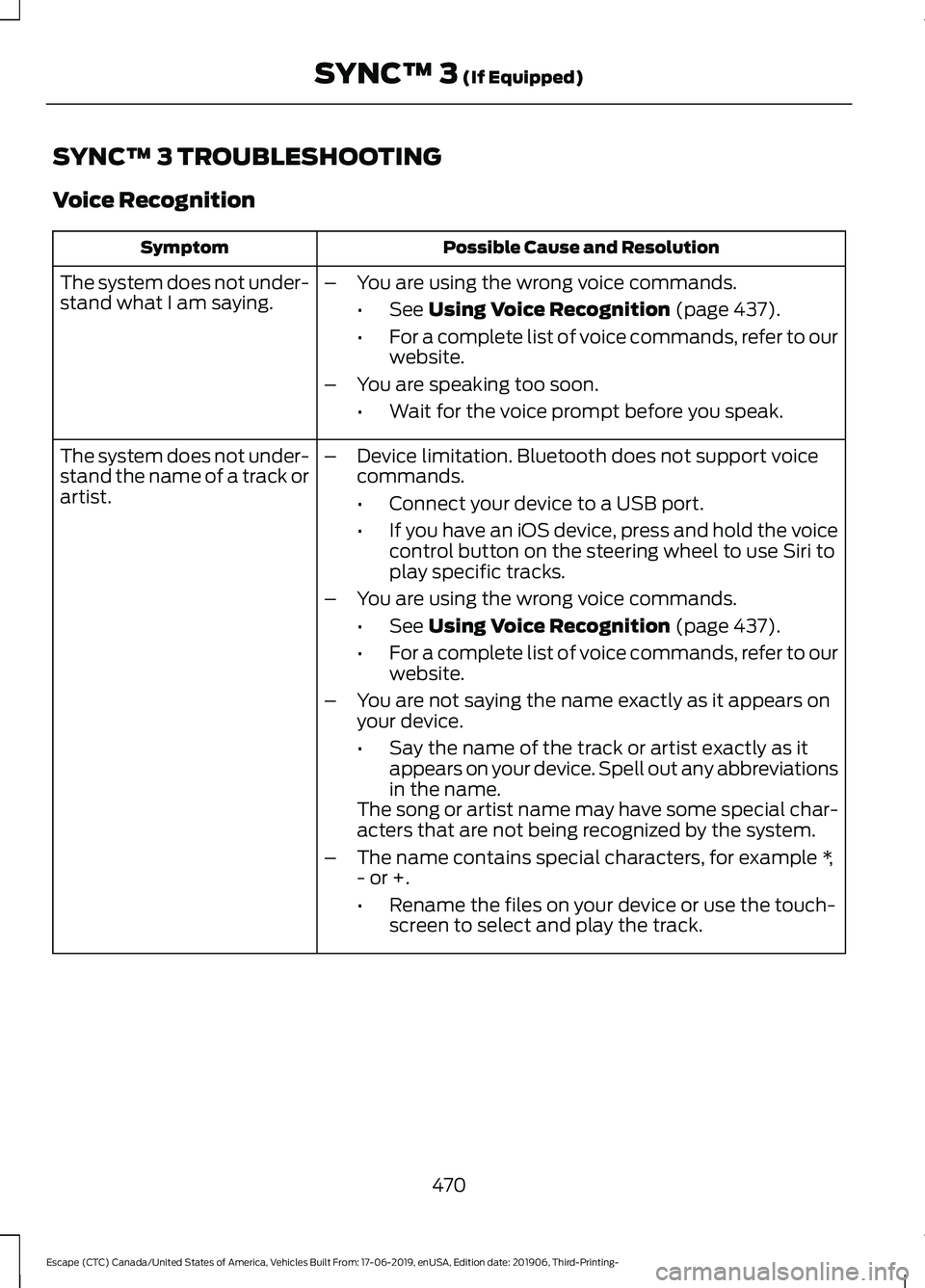

SYNC™ 3 TROUBLESHOOTING
Voice Recognition
Possible Cause and Resolution
Symptom
The system does not under-
stand what I am saying. –
You are using the wrong voice commands.
•See Using Voice Recognition (page 437).
• For a complete list of voice commands, refer to our
website.
– You are speaking too soon.
•Wait for the voice prompt before you speak.
The system does not under-
stand the name of a track or
artist. –
Device limitation. Bluetooth does not support voice
commands.
•Connect your device to a USB port.
• If you have an iOS device, press and hold the voice
control button on the steering wheel to use Siri to
play specific tracks.
– You are using the wrong voice commands.
•See
Using Voice Recognition (page 437).
• For a complete list of voice commands, refer to our
website.
– You are not saying the name exactly as it appears on
your device.
•Say the name of the track or artist exactly as it
appears on your device. Spell out any abbreviations
in the name.
The song or artist name may have some special char-
acters that are not being recognized by the system.
– The name contains special characters, for example *,
- or +.
•Rename the files on your device or use the touch-
screen to select and play the track.
470
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3
(If Equipped)
Page 474 of 553

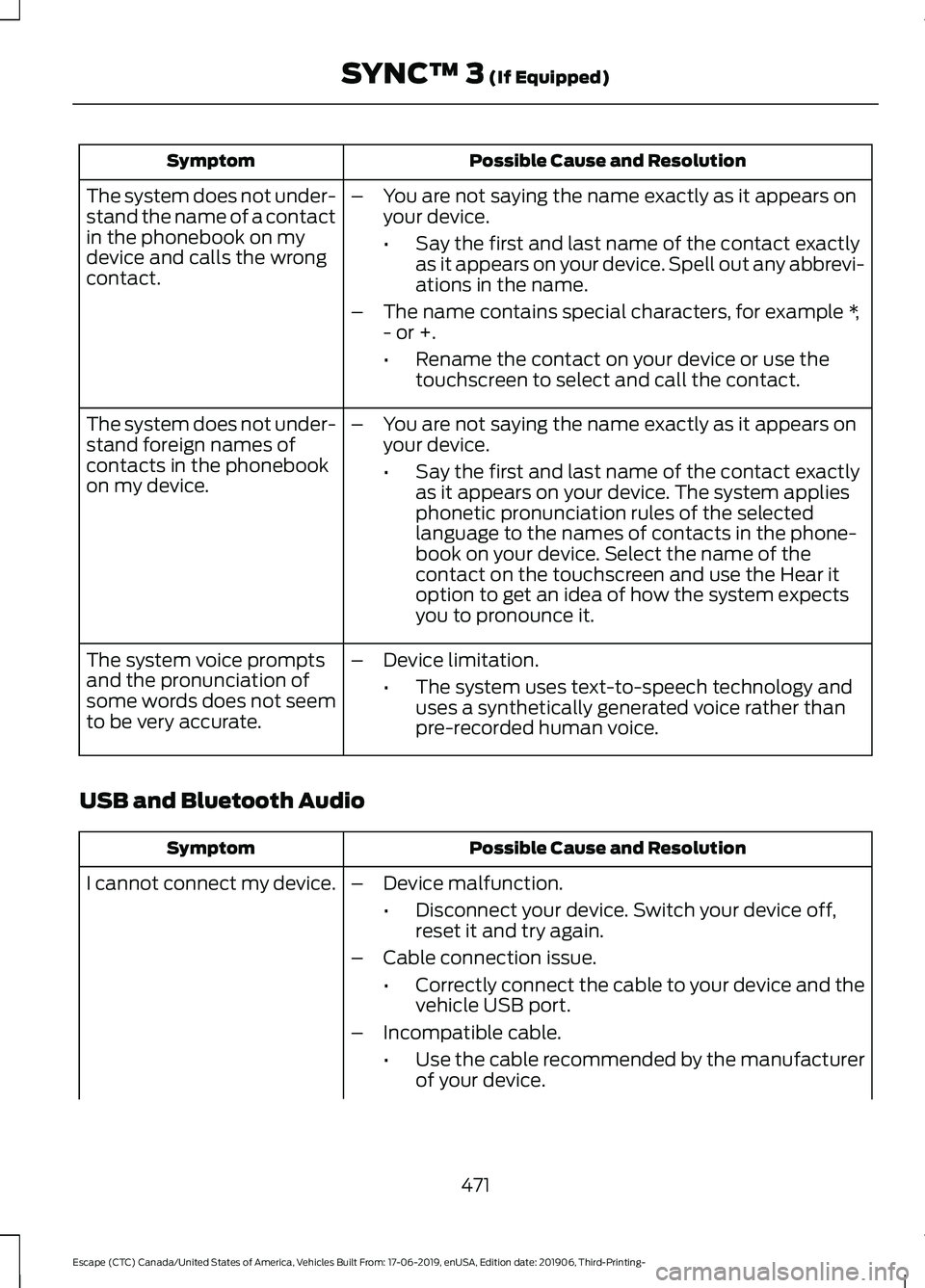

Possible Cause and Resolution
Symptom
–You are not saying the name exactly as it appears on
your device.
•Say the first and last name of the contact exactly
as it appears on your device. Spell out any abbrevi-
ations in the name.
– The name contains special characters, for example *,
- or +.
•Rename the contact on your device or use the
touchscreen to select and call the contact.
The system does not under-
stand the name of a contact
in the phonebook on my
device and calls the wrong
contact.
–You are not saying the name exactly as it appears on
your device.
•Say the first and last name of the contact exactly
as it appears on your device. The system applies
phonetic pronunciation rules of the selected
language to the names of contacts in the phone-
book on your device. Select the name of the
contact on the touchscreen and use the Hear it
option to get an idea of how the system expects
you to pronounce it.
The system does not under-
stand foreign names of
contacts in the phonebook
on my device.
–Device limitation.
•The system uses text-to-speech technology and
uses a synthetically generated voice rather than
pre-recorded human voice.
The system voice prompts
and the pronunciation of
some words does not seem
to be very accurate.
USB and Bluetooth Audio Possible Cause and Resolution
Symptom
I cannot connect my device. –Device malfunction.
•Disconnect your device. Switch your device off,
reset it and try again.
– Cable connection issue.
•Correctly connect the cable to your device and the
vehicle USB port.
– Incompatible cable.
•Use the cable recommended by the manufacturer
of your device.
471
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3 (If Equipped)
Page 475 of 553

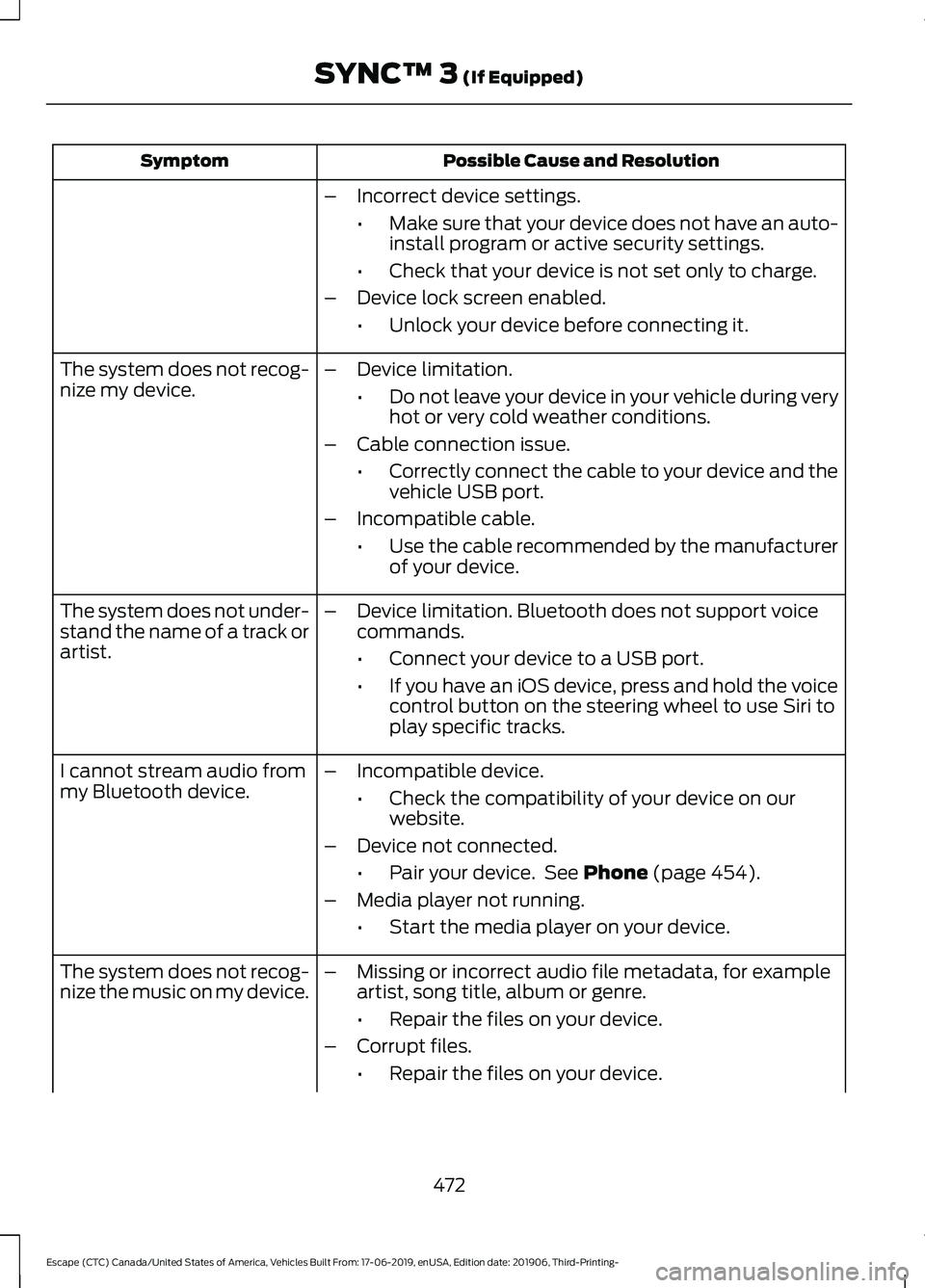

Possible Cause and Resolution
Symptom
–Incorrect device settings.
•Make sure that your device does not have an auto-
install program or active security settings.
• Check that your device is not set only to charge.
– Device lock screen enabled.
•Unlock your device before connecting it.
The system does not recog-
nize my device. –
Device limitation.
•Do not leave your device in your vehicle during very
hot or very cold weather conditions.
– Cable connection issue.
•Correctly connect the cable to your device and the
vehicle USB port.
– Incompatible cable.
•Use the cable recommended by the manufacturer
of your device.
The system does not under-
stand the name of a track or
artist. –
Device limitation. Bluetooth does not support voice
commands.
•Connect your device to a USB port.
• If you have an iOS device, press and hold the voice
control button on the steering wheel to use Siri to
play specific tracks.
I cannot stream audio from
my Bluetooth device. –
Incompatible device.
•Check the compatibility of your device on our
website.
– Device not connected.
•Pair your device. See Phone (page 454).
– Media player not running.
•Start the media player on your device.
The system does not recog-
nize the music on my device. –
Missing or incorrect audio file metadata, for example
artist, song title, album or genre.
•Repair the files on your device.
– Corrupt files.
•Repair the files on your device.
472
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3
(If Equipped)
Page 477 of 553

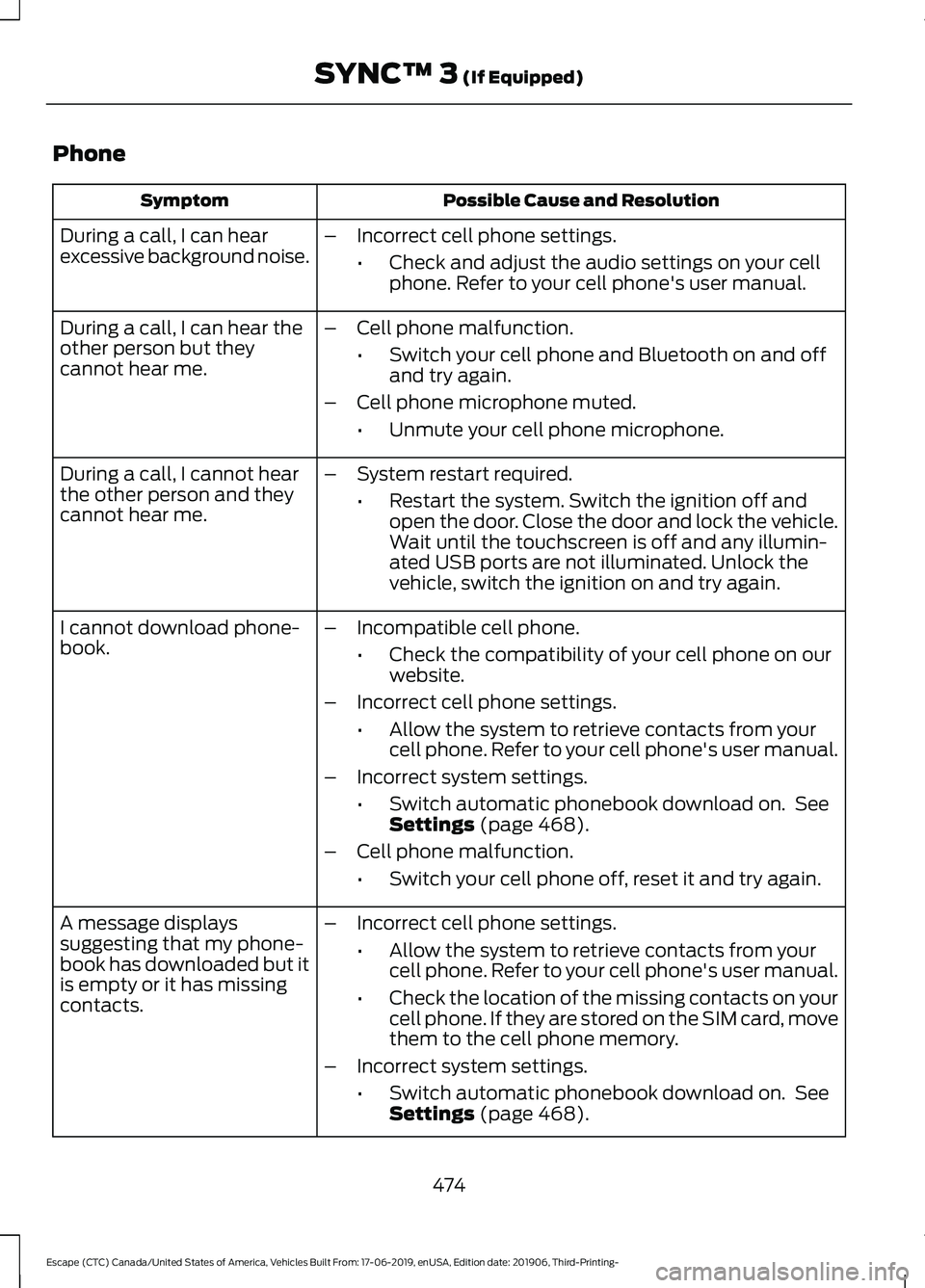

Phone
Possible Cause and Resolution
Symptom
During a call, I can hear
excessive background noise. –
Incorrect cell phone settings.
•Check and adjust the audio settings on your cell
phone. Refer to your cell phone's user manual.
– Cell phone malfunction.
•Switch your cell phone and Bluetooth on and off
and try again.
– Cell phone microphone muted.
•Unmute your cell phone microphone.
During a call, I can hear the
other person but they
cannot hear me.
During a call, I cannot hear
the other person and they
cannot hear me.
–
System restart required.
•Restart the system. Switch the ignition off and
open the door. Close the door and lock the vehicle.
Wait until the touchscreen is off and any illumin-
ated USB ports are not illuminated. Unlock the
vehicle, switch the ignition on and try again.
I cannot download phone-
book. –
Incompatible cell phone.
•Check the compatibility of your cell phone on our
website.
– Incorrect cell phone settings.
•Allow the system to retrieve contacts from your
cell phone. Refer to your cell phone's user manual.
– Incorrect system settings.
•Switch automatic phonebook download on. See
Settings (page 468).
– Cell phone malfunction.
•Switch your cell phone off, reset it and try again.
– Incorrect cell phone settings.
•Allow the system to retrieve contacts from your
cell phone. Refer to your cell phone's user manual.
• Check the location of the missing contacts on your
cell phone. If they are stored on the SIM card, move
them to the cell phone memory.
– Incorrect system settings.
•Switch automatic phonebook download on. See
Settings
(page 468).
A message displays
suggesting that my phone-
book has downloaded but it
is empty or it has missing
contacts.
474
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3
(If Equipped)
Page 480 of 553

Apps
Possible Cause and Resolution
Symptom
The system cannot find any
apps. –
Incompatible device.
•You will need an Android device with OS 4.3 or
higher or an iOS device with iOS 8.0 or higher. Pair
and connect your Android device to find AppLink
compatible apps. Connect your iOS device to a
USB port or pair and connect using Bluetooth.
I have a compatible device
and it is correctly connected
but the system still cannot
find any apps. –
AppLink compatible apps not installed on your device.
•Download and install the latest version of the app.
– AppLink compatible apps not running on your device.
•Start the apps to allow the system to find them
and make sure you sign in to any apps if required.
– Incorrect app settings.
•Check and adjust the app settings on your device
and allow SYNC to access the app if required.
I have a compatible device,
it is correctly connected and
my apps are running but the
system still cannot find any
apps. –
Apps failed to fully close.
•Restart the apps and try again.
• If you have an Android device with apps that have
an exit or quit option, use this and then restart the
apps. Alternatively, use the force stop option in the
settings menu on your device.
• If you have an iOS device with iOS 7.0 or higher, tap
the home button on your device twice and then
swipe the app upward to close it.
I have an Android device
that is correctly connected,
I have restarted my apps
and they are running but the
system still cannot find
them. –
An issue on some older versions of the Android oper-
ating system could result in apps not being found.
•Switch Bluetooth off and on again to force the
system to reconnect to your device.
477
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3 (If Equipped)
Page 481 of 553

Possible Cause and Resolution
Symptom
I have an iOS device that is
correctly connected, I have
restarted my apps and they
are running but the system
still cannot find them. –
Cable connection issue.
•Disconnect the cable from your device, wait for a
moment and then connect it again to force the
system to reconnect to your device.
I have an Android device
running a media app which
the system has found but I
cannot hear the sound or
the sound is very quiet. –
Device volume is low.
•Turn the volume up on your device.
I have an Android device
running a number of
compatible apps but the
system cannot find all of
them. –
Device limitation. Some Android devices have a limited
number of Bluetooth ports that apps can use to
connect. If you have more apps running on your device
than the number of available Bluetooth ports, the
system cannot find all of them.
•Close some of the apps to allow the system to find
those that you want to use.
478
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- SYNC™ 3 (If Equipped)
Page 508 of 553

ELECTROMAGNETIC
COMPATIBILITY
WARNING: Do not place objects
or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash. WARNING: Do not fasten antenna
cables to vehicle wiring, fuel pipes and
brake pipes. WARNING:
Keep antenna and
power cables at least 4 in (10 cm) from
any electronic modules and airbags. Note:
We test and certify your vehicle to
meet electromagnetic compatibility
legislation. It is your responsibility to make
sure that any equipment an authorized
dealer installs on your vehicle complies with
applicable local legislation and other
requirements. Installation of some
aftermarket electronic devices could
degrade the performance of vehicle
functions, which use radio frequency signals
such as broadcast radio receiver, tire
pressure monitoring system, push button
start, Bluetooth connectivity or satellite
navigation.
Note: Any radio frequency transmitter
equipment in your vehicle (such as cellular
telephones and amateur radio transmitters)
must keep to the parameters in the
following illustrations and table. We do not
provide any other special provisions or
conditions for installations or use.
Car/SUV 505
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- AppendicesE239120
Page 543 of 553

Power Flow...........................................................
461
Vehicle Operational States............................. 461
Electromagnetic Compatibility..............505
Emission Law.................................................192 Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance..........193
Tampering With a Noise Control System............................................................... 192
End User License Agreement
.................508
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 508
Engine Block Heater.....................................173 Using the Engine Block Heater....................... 174
Engine Coolant Check.................................321 Adding Coolant.................................................... 321
Coolant Change.................................................. 323
Engine Coolant Temperature Management.................................................. 324
Fail-Safe Cooling................................................ 323
Recycled Coolant............................................... 322
Severe Climates.................................................. 323
Engine Emission Control............................192
Engine Immobilizer See: Passive Anti-Theft System..................... 76
Engine Oil Check............................................317 Adding Engine Oil................................................ 317
Engine Oil Dipstick
........................................317
Engine Specifications - 1.5L EcoBoost™.................................................376
Drivebelt Routing............................................... 376
Engine Specifications - 2.0L EcoBoost™.................................................376
Drivebelt Routing................................................ 377
Engine Specifications - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV)..........................377
Entertainment..............................................444 AM/FM Radio...................................................... 445
Apps........................................................................\
453
Bluetooth Stereo or USB................................ 452
CD (If equipped)................................................. 451
HD Radio ™ Information (If
Available)........................................................ 448
SiriusXM® Satellite Radio (If Activated)........................................................ 445
Sources................................................................. 444
Supported Media Players, Formats and Metadata Information................................ 453USB Ports.............................................................
453
Environment.....................................................19
EPB See: Electric Parking Brake............................. 218
Essential Towing Checks
..........................279
Before Towing a Trailer................................... 280
Hitches................................................................... 279
Launching or Retrieving a Boat or Personal Watercraft (PWC)......................................... 281
Safety Chains...................................................... 279
Trailer Brakes...................................................... 280
Trailer Lamps...................................................... 280
Trailer Towing Connector................................ 279
When Towing a Trailer..................................... 280
Event Data Recording See: Data Recording.............................................. 11
Export Unique Options
.................................18
Exterior Mirrors................................................94 Auto-Folding Mirrors........................................... 95
Blind Spot Monitor.............................................. 95
Fold-Away Exterior Mirrors............................... 94
Heated Exterior Mirrors...................................... 95
Memory Mirrors..................................................... 95
Power Exterior Mirrors........................................ 94
Puddle Lamps ...................................................... 95
Signal Indicator Mirrors...................................... 95
F
Fastening the Seatbelts..............................36 How to Extract Seatbelts in the Rear
Outermost Positions...................................... 38
Seatbelt Locking Modes.................................... 37
Using Seatbelts During Pregnancy................36
Flat Tire See: Changing a Road Wheel....................... 369
Flat Tire Inflation See: Tire Sealant and Inflator Kit.................345
Floor Mats......................................................285
Fog Lamps - Front See: Front Fog Lamps........................................ 88
Ford Credit
.........................................................15
US Only..................................................................... 15
Ford Protect..................................................484 Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 485
Ford Protect Extended Service Plans (U.S. Only)................................................................. 484
540
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index
Page 550 of 553

Bluetooth.............................................................
468
Charge Settings................................................. 469
Clock...................................................................... 468
Display................................................................... 469
Driver Assist........................................................ 468
FordPass............................................................... 468
General................................................................. 468
Message Center................................................. 469
Mobile Apps........................................................ 469
Multi Contour Seats......................................... 469
Navigation............................................................ 469
Personal Profiles............................................... 469
Phone.................................................................... 468
Seats...................................................................... 469
Sound.................................................................... 468
Valet Mode.......................................................... 469
Vehicle................................................................... 468
Voice Control...................................................... 469
Setting the Adaptive Cruise Control Gap .................................................................244
Following a Vehicle........................................... 245
Setting the Adaptive Cruise Control Speed
............................................................243
Manually Changing the Set Speed.............244
Setting the Adaptive Cruise Speed from a
Complete Stop.............................................. 244
Setting the Cruise Control Speed..........237 Changing the Set Speed.................................. 237
Side Airbags
.....................................................48
Side Sensing System..................................229 Object Distance Indicator............................... 230
Sitting in the Correct Position..................148
Snow Chains See: Using Snow Chains................................. 364
Spare Wheel See: Changing a Road Wheel....................... 369
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 17
On Board Diagnostics Data Link Connector............................................................ 17
Special Instructions............................................. 16
Using Your Vehicle as an Ambulance.............17
Using Your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance..............................................492
Exceptions............................................................ 493Speed Control
See: Cruise Control............................................ 237
Stability Control
...........................................223
Principle of Operation...................................... 223
Starter Switch See: Ignition Switch............................................ 167
Starting a Gasoline Engine.......................168 Automatic Engine Shutdown........................ 169
Failure to Start..................................................... 169
Fast Restart.......................................................... 169
Guarding Against Exhaust Fumes................170
Important Ventilating Information...............170
Stopping the Engine When Your Vehicle is Moving................................................................ 170
Stopping the Engine When Your Vehicle is Stationary......................................................... 170
Starting a Hybrid Electric Vehicle System............................................................171
Automatic Shutdown........................................ 172
Fast Restart............................................................ 171
Guarding Against Exhaust Fumes................172
Important Ventilating Information...............173
Switching Off Your Vehicle When It Is Moving................................................................ 172
Switching Off Your Vehicle When It Is Stationary.......................................................... 172
Starting and Stopping the Engine..........167 General Information........................................... 167
Steering...........................................................260 Electric Power Steering................................... 260
Steering Wheel
................................................79
Storage Compartments............................166
Sunroof See: Moonroof...................................................... 96
Sun Visors
.........................................................96
Illuminated Vanity Mirror................................... 96
Supplementary Restraints System.........44 Principle of Operation........................................ 44
Switching Adaptive Cruise Control On and Off..........................................................243
Automatic Cancellation or Deactivation.................................................... 243
Switching Adaptive Cruise Control Off....................................................................... 243
Switching Adaptive Cruise Control On....................................................................... 243
547
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index
Page 551 of 553

Switching Automatic High Beam Control
On and Off......................................................91
Activating the Automatic High Beam Control.................................................................. 91
Switching Cruise Control On and Off...................................................................237
Switching Cruise Control Off......................... 237
Switching Cruise Control On.......................... 237
Switching From Adaptive Cruise Control to Cruise Control
.......................................246
Switching Lane Centering On and Off..................................................................246
Activating Lane Centering............................... 247
System Alerts and Automatic Cancellation.................................................... 247
Switching Rear Occupant Alert System On and Off - Vehicles With: SYNC
3........................................................................\
157
Switching Rear Occupant Alert System On and Off - Vehicles With:
SYNC...............................................................157
Symbols Glossary
.............................................9
SYNC™ 3........................................................435
General Information......................................... 435
SYNC™ 3 Troubleshooting......................470 Additional Information and
Assistance....................................................... 482
Apps........................................................................\
477
Navigation............................................................. 476
Personal Profiles............................................... 480
Phone..................................................................... 474
Resetting the System...................................... 482
USB and Bluetooth Audio............................... 471
Voice Recognition.............................................. 470
Wi-Fi Connectivity............................................. 479
SYNC™ Applications and Services........................................................422
911 Assist............................................................... 422
SYNC Mobile Apps............................................ 424
SYNC™............................................................418 General Information.......................................... 418
SYNC™ Troubleshooting
.........................426
T
Technical Specifications See: Capacities and Specifications............376 The Better Business Bureau (BBB) Auto
Line Program (U.S. Only)......................299
Tire Care
...........................................................351
Glossary of Tire Terminology......................... 353
Information About Uniform Tire Quality Grading.............................................................. 351
Information Contained on the Tire Sidewall........................................................... 354
Temperature A B C............................................ 352
Traction AA A B C............................................... 352
Treadwear............................................................. 352
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit.................345
Tire Pressure Monitoring System
..........365
Changing Tires With a Tire Pressure
Monitoring System....................................... 366
Understanding Your Tire Pressure Monitoring System ...................................... 367
Tire Repair Kit See: Tire Sealant and Inflator Kit.................345
Tire Sealant and Inflator Kit....................345 First Stage: Reinflating the Tire with Sealing
Compound and Air....................................... 347
General Information......................................... 346
Second Stage: Checking Tire Pressure........................................................... 349
Tips for Use of the Kit...................................... 346
What to do after the Tire has been Sealed............................................................... 349
What to do when a Tire Is Punctured.........347
Tires See: Wheels and Tires..................................... 343
Towing a Trailer.............................................276 Load Placement................................................. 276
Towing the Vehicle on Four Wheels - 8-Speed Automatic Transmission –
8F24................................................................281
Emergency Towing............................................. 281
Recreational Towing.......................................... 281
Towing the Vehicle on Four Wheels - 8-Speed Automatic Transmission –
8F35...............................................................282
Emergency Towing............................................ 282
Recreational Towing - All-Wheel and Four-Wheel Drive Vehicles........................ 282
Recreational Towing - Front-Wheel Drive Vehicles............................................................ 282
548
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index
