fuse box FORD ESCAPE 2020 Owners Manual

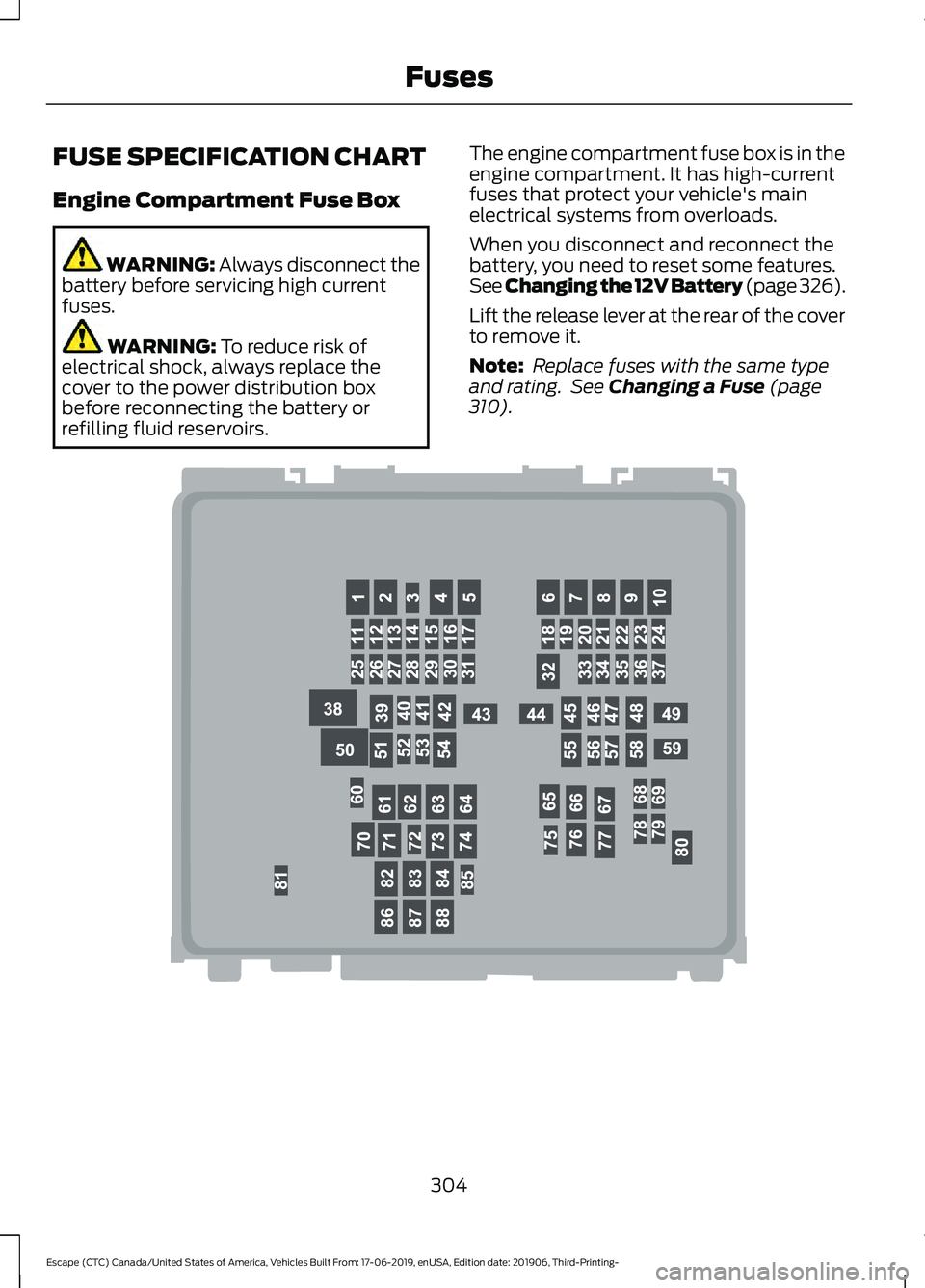

FUSE SPECIFICATION CHART
Engine Compartment Fuse Box
WARNING: Always disconnect the
battery before servicing high current
fuses. WARNING:
To reduce risk of
electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs. The engine compartment fuse box is in the
engine compartment. It has high-current
fuses that protect your vehicle's main
electrical systems from overloads.
When you disconnect and reconnect the
battery, you need to reset some features.
See
Changing the 12V Battery (page 326).
Lift the release lever at the rear of the cover
to remove it.
Note: Replace fuses with the same type
and rating. See
Changing a Fuse (page
310). 304
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Fuses E292669

Protected Component
Fuse
Rating
Fuse
Location
Moonroof.
30 A
51
DC/DC converter (hybrid).
5 A
52
Battery charge control module (hybrid).
10 A
53
Not used.
—
54
Not used.
—
55
Not used.
—
56
Data link connector.
10 A
57
Auxiliary power distribution box (hybrid).
40 A
58
Body control module.
40 A
59
USB smart charger.
5 A
60
Rear cargo power point.
20 A
61
Not used.
—
62
Not used (spare).
30 A
63
Power liftgate.
30 A
64
Not used.
—
65
Not used.
—
66
Not used.
—
67
Mass air flow and intake air temperature sensor (gas).
5 A
68
Port fuel injectors.
15 A
69
Rear console power point.
20 A
70
Media bin power point.
20 A
71
Rear window wiper.
20 A
72
Not used.
—
73
Windshield wiper motor.
30 A
74
Heated exterior mirrors.
10 A
75
Heated backlight.
30 A
76
307
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Fuses

Protected Component
Fuse
Rating
Fuse
Location
Not used.
—
77
Air conditioning clutch.
10 A
78
Not used (spare).
10 A
79
Fuel pump.
20 A
80
Rear window washer pump.
10 A
81
Power inverter.
40 A
82
Not used.
—
83
Driveline control module.
40 A
84
Rain sensor.
5 A
85
Not used.
—
86
Not used.
—
87
Not used.
—
88
Note: Spare fuse amperage may vary.
Passenger Compartment Fuse Box
The fuse box is below the glove
compartment. 308
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- FusesE293328

Protected Component
Fuse
Rating
Fuse
Location
E-shifter module.
Instrument cluster.
7.5 A
22
Gateway module.
Steering column control module.
Audio unit.
20 A
23
Not used (spare).
20 A
24
Power windows.
30 A
25
Exterior mirrors.
Note: Spare fuse amperage may vary.

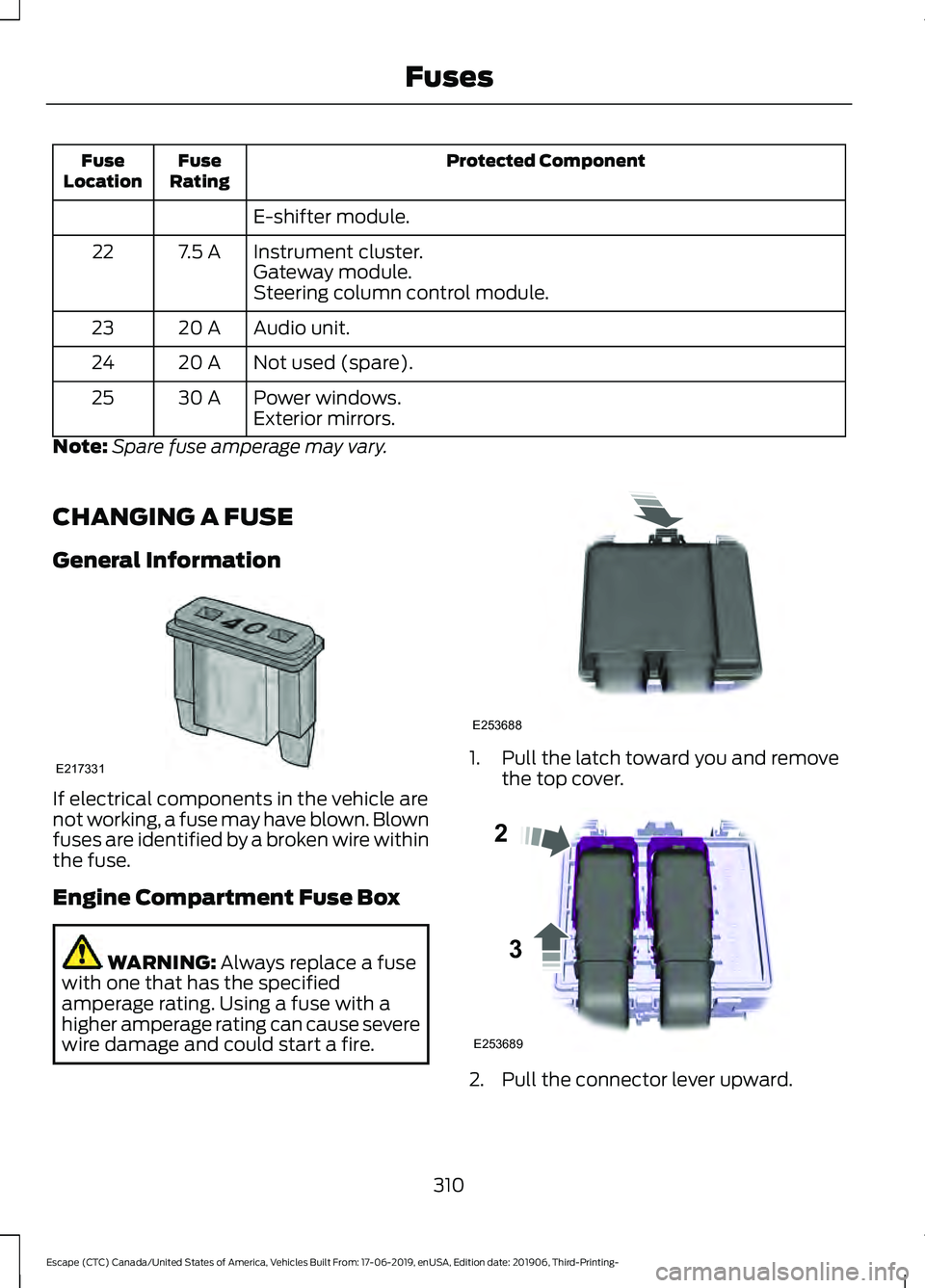

CHANGING A FUSE
General Information If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse.
Engine Compartment Fuse Box
WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. 1. Pull the latch toward you and remove
the top cover. 2. Pull the connector lever upward.
310
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- FusesE217331 E253688 E253689
2
3

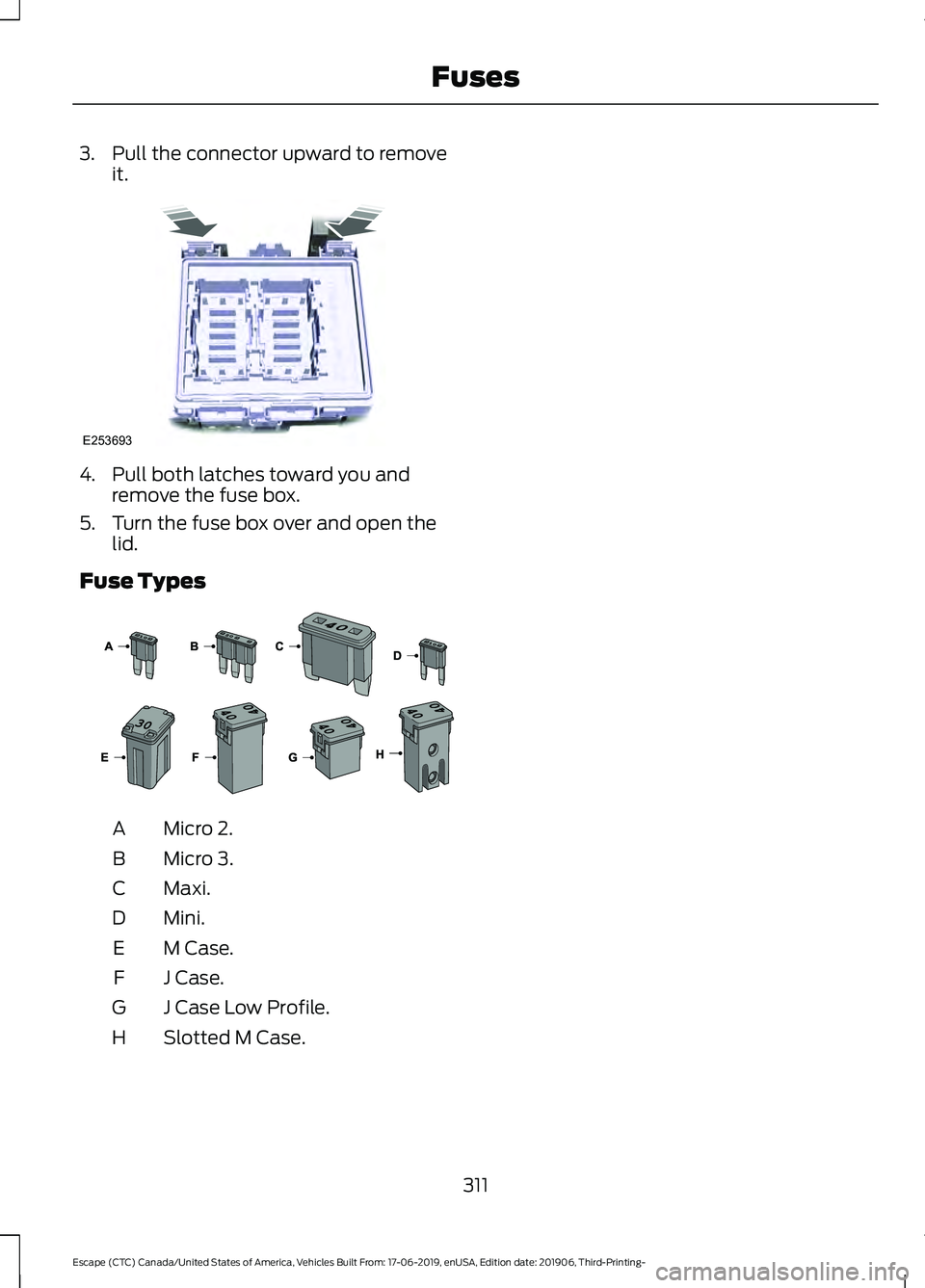

3. Pull the connector upward to remove
it. 4. Pull both latches toward you and
remove the fuse box.
5. Turn the fuse box over and open the lid.
Fuse Types Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
311
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- FusesE253693 E267379

UNDER HOOD OVERVIEW - 1.5L ECOBOOST™
Windshield washer fluid. See Washer Fluid Check (page 329).
A
Engine coolant reservoir. See
Engine Coolant Check (page 321).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 317).
C
Engine oil filler cap. See
Engine Oil Check (page 317).
D
Brake fluid reservoir. See
Brake Fluid Check (page 325).
E
Battery. See
Changing the 12V Battery (page 326).
F
Power distribution box. See
Changing a Fuse (page 310).
G
Air filter. See
Changing the Engine Air Filter (page 319).
H
314
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- MaintenanceE308193

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Windshield washer fluid reservoir. See Washer Fluid Check (page 329).
A
Engine coolant reservoir. See
Engine Coolant Check (page 321).
B
Engine oil dipstick. See
Engine Oil Dipstick (page 317).
C
Engine oil filler cap. See
Engine Oil Check (page 317).
D
Brake fluid reservoir. See
Brake Fluid Check (page 325).
E
Battery. See
Changing the 12V Battery (page 326).
F
Power distribution box. See
Fuse Specification Chart (page 304).
G
Air filter assembly. See
Changing the Engine Air Filter (page 319).
H
315
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- MaintenanceE307705

UNDER HOOD OVERVIEW - 2.5L, HYBRID ELECTRIC VEHICLE
(HEV)/PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
Windshield washer fluid reservoir: See Washer Fluid Check (page 329).
A
Low temp coolant cap:
See Engine Coolant Check (page 321).
B
High temp coolant cap:
See Engine Coolant Check (page 321).
C
Engine oil filler cap:
See Engine Oil Check (page 317).
D
Engine oil dipstick:
See Engine Oil Dipstick (page 317).
E
Brake fluid reservoir:
See Brake Fluid Check (page 325).
F
Power distribution box:
See Fuses (page 304).
G
Air filter assembly:
See Changing the Engine Air Filter (page 319).
H
316
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- MaintenanceE291097
