Your vehicle has anti-lock brakes, therefore
apply the brakes steadily. Do not pump the
brake pedal.
Driving on Snow and Ice
WARNING: If you are driving in
slippery conditions that require tire
chains or cables, then it is critical that
you drive cautiously. Keep speeds down,
allow for longer stopping distances and
avoid aggressive steering to reduce the
chances of a loss of vehicle control
which can lead to serious injury or death.
If the rear end of your vehicle slides while
cornering, steer in the direction of the
slide until you regain control of your
vehicle.
Note: Excessive tire slippage can cause
transmission damage.
All-wheel drive vehicles have advantages
over two-wheel drive vehicles in snow and
ice but can skid like any other vehicle.
Should you start to slide while driving on
snowy or icy roads, turn the steering wheel
in the direction of the slide until you regain
control.
Avoid sudden applications of power and
quick changes of direction on snow and
ice. Apply the accelerator slowly and
steadily when starting from a full stop.
Avoid sudden braking. Although an
all-wheel drive vehicle may accelerate
better than a two-wheel drive vehicle in
snow and ice, it will not stop any faster as
braking occurs at all four wheels. Do not
become overconfident as to road
conditions. Make sure you allow sufficient distance
between you and other vehicles for
stopping. Drive slower than usual and
consider using one of the lower gears. In
emergency stopping situations, apply the
brake steadily. As your vehicle has a four
wheel anti-lock brake system, do not pump
the brake pedal. See Hints on Driving
With Anti-Lock Brakes (page 217).
If Your Vehicle Gets Stuck In Mud or
Snow
If your vehicle gets stuck in mud or snow,
it may be rocked out by shifting between
forward and reverse gears, stopping
between shifts in a steady pattern. Press
lightly on the accelerator in each gear.
Note: Do not rock your vehicle if the engine
is not at normal operating temperature, as
damage to the transmission may occur.
Note: Do not rock your vehicle for more
than a minute, as damage to the
transmission and tires may occur or the
engine may overheat.
Maintenance and Modifications
The suspension and steering systems on
your vehicle have been designed and
tested to provide predictable performance
whether loaded or empty. For this reason,
we strongly recommend that you do not
make modifications such as adding or
removing parts (i.e. lift kits or stabilizer
bars) or by using replacement parts not
equivalent to the original factory
equipment.
We recommend that you use caution when
your vehicle has either a high-load or
device (i.e. ladder or luggage racks). Any
modifications to your vehicle that raise the
center of gravity may cause your vehicle
to roll over when there is a loss of vehicle
control.
215
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- All-Wheel Drive

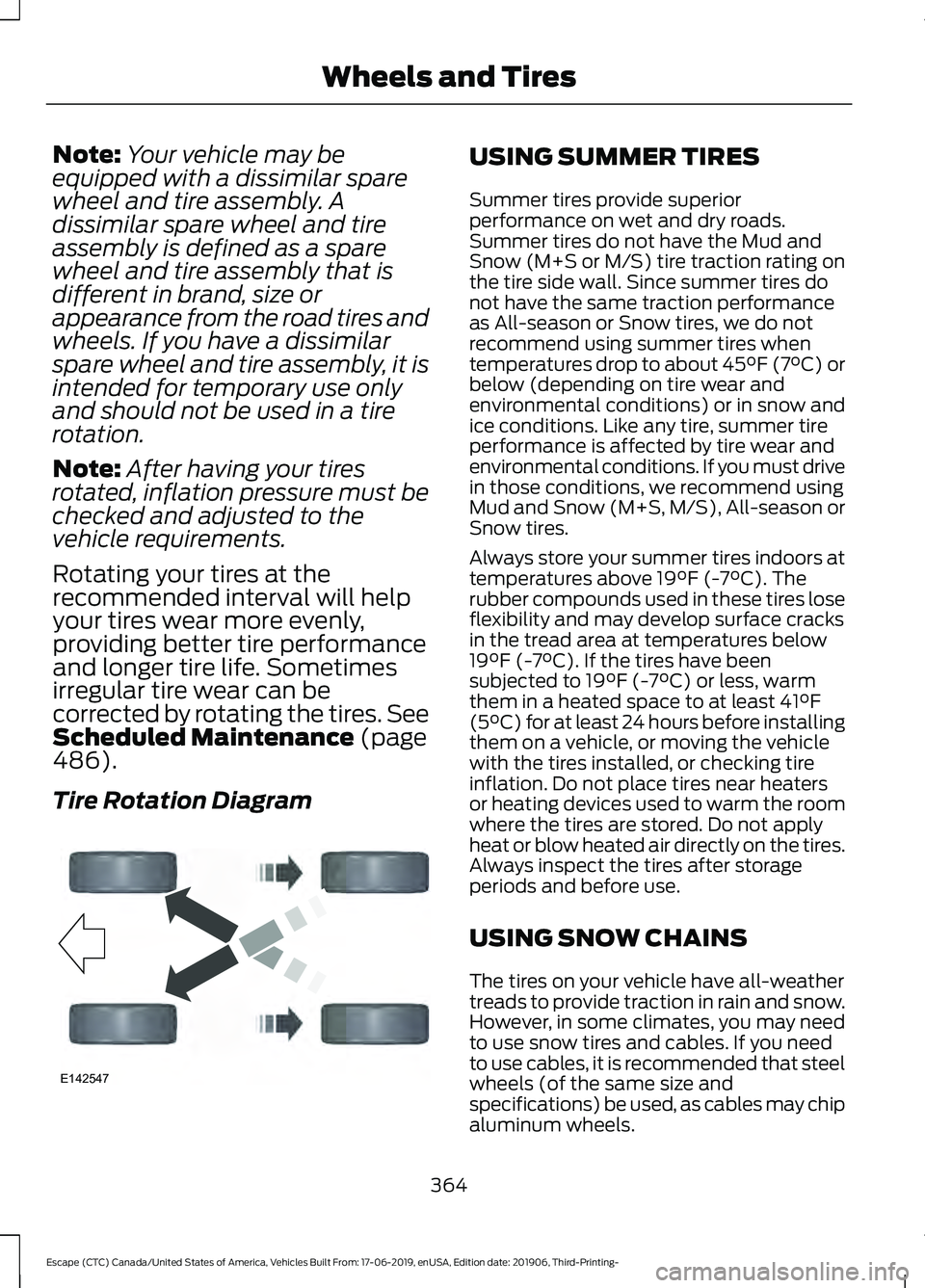

(If Equipped)

Note:
Your vehicle may be
equipped with a dissimilar spare
wheel and tire assembly. A
dissimilar spare wheel and tire
assembly is defined as a spare
wheel and tire assembly that is
different in brand, size or
appearance from the road tires and
wheels. If you have a dissimilar
spare wheel and tire assembly, it is
intended for temporary use only
and should not be used in a tire
rotation.
Note: After having your tires
rotated, inflation pressure must be
checked and adjusted to the
vehicle requirements.
Rotating your tires at the
recommended interval will help
your tires wear more evenly,
providing better tire performance
and longer tire life. Sometimes
irregular tire wear can be
corrected by rotating the tires. See
Scheduled Maintenance (page
486).
Tire Rotation Diagram USING SUMMER TIRES
Summer tires provide superior
performance on wet and dry roads.
Summer tires do not have the Mud and
Snow (M+S or M/S) tire traction rating on
the tire side wall. Since summer tires do
not have the same traction performance
as All-season or Snow tires, we do not
recommend using summer tires when
temperatures drop to about 45°F (7°C) or
below (depending on tire wear and
environmental conditions) or in snow and
ice conditions. Like any tire, summer tire
performance is affected by tire wear and
environmental conditions. If you must drive
in those conditions, we recommend using
Mud and Snow (M+S, M/S), All-season or
Snow tires.
Always store your summer tires indoors at
temperatures above
19°F (-7°C). The
rubber compounds used in these tires lose
flexibility and may develop surface cracks
in the tread area at temperatures below
19°F (-7°C)
. If the tires have been
subjected to 19°F (-7°C) or less, warm
them in a heated space to at least 41°F
(5°C) for at least 24 hours before installing
them on a vehicle, or moving the vehicle
with the tires installed, or checking tire
inflation. Do not place tires near heaters
or heating devices used to warm the room
where the tires are stored. Do not apply
heat or blow heated air directly on the tires.
Always inspect the tires after storage
periods and before use.
USING SNOW CHAINS
The tires on your vehicle have all-weather
treads to provide traction in rain and snow.
However, in some climates, you may need
to use snow tires and cables. If you need
to use cables, it is recommended that steel
wheels (of the same size and
specifications) be used, as cables may chip
aluminum wheels.
364
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Wheels and TiresE142547

Follow these guidelines when using snow
tires and traction devices
•
If possible, avoid fully loading your
vehicle
• Purchase chains or cables from a
manufacturer that clearly labels body
to tire dimension restrictions.
• Use 10 mm cables or chains only on
front axle with 225/65R17 tires.
• Not all S-class snow chains or cables
meet these restrictions. Chains of this
size restriction will include a tensioning
device.
• The snow chains or cables must be
mounted in pairs on the front axle.
• Do not use chains or cables on
225/60R18 and 225/55R19 tires.
• Install cables securely, verifying that
the cables do not touch any wiring,
brake lines or fuel lines.
• When driving with tire cables do not
exceed 30 mph (48 km/h) or the
maximum speed recommended by the
chain manufacturer, whichever is less.
• Drive cautiously. If you hear the cables
rub or bang against the vehicle, stop
and retighten them. If this does not
work, remove the cables to prevent
vehicle damage.
• Remove the cables when they are no
longer needed. Do not use cables on
dry roads.
If you have any questions regarding snow
chains or cables, please contact your
authorized dealer. TIRE PRESSURE MONITORING
SYSTEM WARNING: The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
Note: If the tire pressure monitoring system
sensor becomes damaged, it may not
function. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires).
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
365
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Wheels and Tires

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Tow a trailer.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability
3. Full-size dissimilar spare without
label on wheel When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•
Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing
equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability
When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
• Towing a trailer.
• Driving vehicles equipped with a
camper body.
• Driving vehicles with a load on the
cargo rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.
Tire Change Procedure WARNING:
Never place anything
between the vehicle jack and the ground. WARNING:
Never place anything
between the vehicle jack and your
vehicle.
370
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Wheels and Tires

Bluetooth.............................................................
468
Charge Settings................................................. 469
Clock...................................................................... 468
Display................................................................... 469
Driver Assist........................................................ 468
FordPass............................................................... 468
General................................................................. 468
Message Center................................................. 469
Mobile Apps........................................................ 469
Multi Contour Seats......................................... 469
Navigation............................................................ 469
Personal Profiles............................................... 469
Phone.................................................................... 468
Seats...................................................................... 469
Sound.................................................................... 468
Valet Mode.......................................................... 469
Vehicle................................................................... 468
Voice Control...................................................... 469
Setting the Adaptive Cruise Control Gap .................................................................244
Following a Vehicle........................................... 245
Setting the Adaptive Cruise Control Speed
............................................................243
Manually Changing the Set Speed.............244
Setting the Adaptive Cruise Speed from a
Complete Stop.............................................. 244
Setting the Cruise Control Speed..........237 Changing the Set Speed.................................. 237
Side Airbags
.....................................................48
Side Sensing System..................................229 Object Distance Indicator............................... 230
Sitting in the Correct Position..................148
Snow Chains See: Using Snow Chains................................. 364
Spare Wheel See: Changing a Road Wheel....................... 369
Special Notices
................................................16
New Vehicle Limited Warranty........................ 16
Notice to Owners of Pickup Trucks and Utility Type Vehicles......................................... 17
On Board Diagnostics Data Link Connector............................................................ 17
Special Instructions............................................. 16
Using Your Vehicle as an Ambulance.............17
Using Your Vehicle With a Snowplow............17
Special Operating Conditions Scheduled Maintenance..............................................492
Exceptions............................................................ 493Speed Control
See: Cruise Control............................................ 237
Stability Control
...........................................223
Principle of Operation...................................... 223
Starter Switch See: Ignition Switch............................................ 167
Starting a Gasoline Engine.......................168 Automatic Engine Shutdown........................ 169
Failure to Start..................................................... 169
Fast Restart.......................................................... 169
Guarding Against Exhaust Fumes................170
Important Ventilating Information...............170
Stopping the Engine When Your Vehicle is Moving................................................................ 170
Stopping the Engine When Your Vehicle is Stationary......................................................... 170
Starting a Hybrid Electric Vehicle System............................................................171
Automatic Shutdown........................................ 172
Fast Restart............................................................ 171
Guarding Against Exhaust Fumes................172
Important Ventilating Information...............173
Switching Off Your Vehicle When It Is Moving................................................................ 172
Switching Off Your Vehicle When It Is Stationary.......................................................... 172
Starting and Stopping the Engine..........167 General Information........................................... 167
Steering...........................................................260 Electric Power Steering................................... 260
Steering Wheel
................................................79
Storage Compartments............................166
Sunroof See: Moonroof...................................................... 96
Sun Visors
.........................................................96
Illuminated Vanity Mirror................................... 96
Supplementary Restraints System.........44 Principle of Operation........................................ 44
Switching Adaptive Cruise Control On and Off..........................................................243
Automatic Cancellation or Deactivation.................................................... 243
Switching Adaptive Cruise Control Off....................................................................... 243
Switching Adaptive Cruise Control On....................................................................... 243
547
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index

Recreational Towing - Rear-Wheel Drive
Vehicles............................................................ 282
Towing the Vehicle on Four Wheels - Automatic Transmission – HF45........283
Emergency Towing............................................ 283
Recreational Towing......................................... 283
Towing..............................................................276
Traction Control............................................222
Principle of Operation...................................... 222
Trailer Sway Control
....................................277
Transmission Code Designation............382
Transmission.................................................204
Transporting the Vehicle...........................295
U
Under Hood Overview - 1.5L EcoBoost™..................................................314
Under Hood Overview - 2.0L EcoBoost™..................................................315
Under Hood Overview - 2.5L, Hybrid Electric Vehicle (HEV)/Plug-In Hybrid
Electric Vehicle (PHEV)..........................316
Unique Driving Characteristics.................175
Universal Garage Door Opener...............159 HomeLink Wireless Control System...........159
USB Port
...........................................................417
Locating the USB Ports.................................... 417
Using All-Wheel Drive
.................................212
Driving in Special Conditions With
All-Wheel Drive............................................... 212
Using MyKey With Remote Start Systems..........................................................64
Using Snow Chains.....................................364
Using Stability Control
...............................224
Using Summer Tires...................................364
Using SYNC™ With Your Media Player............................................................425
Audio Voice Commands................................. 426
Media Sources.................................................... 425
Using SYNC™ With Your Phone.............421 Accessing Features through the Phone
Menu.................................................................. 422
Pairing a Phone................................................... 421
Phone Controls................................................... 422
Phone Voice Commands................................. 421
Using Traction Control
...............................222
Switching the System Off............................... 222System Indicator Lights and
Messages.......................................................... 222
Using a Switch..................................................... 222
Using the Information Display Controls............................................................ 222
Using Voice Recognition............................419 Audio Voice Commands................................. 438
Climate Voice Commands............................. 439
Initiating a Voice Session................................. 419
Mobile App Voice Commands...................... 442
Navigation Voice Commands........................ 441
Phone Voice Commands................................ 439
SiriusXM Traffic and Travel Link Voice Commands..................................................... 443
System Interaction and Feedback..............420
Voice Settings Commands............................ 443
Utilizing the Mediation/Arbitration Program (Canada Only)........................300
V
Vehicle Care
...................................................335
General Information......................................... 335
Vehicle Certification Label.......................382
Vehicle Identification Number.................381
Vehicle Storage
............................................340
Body....................................................................... 340
Brakes..................................................................... 341
Cooling system.................................................... 341
Disconnecting Your 12 Volt Battery..............341
Engine..................................................................... 341
Fuel system........................................................... 341
General.................................................................. 340
Miscellaneous..................................................... 342
Plugging in Your HYBRID................................. 341
Removing Vehicle From Storage.................. 342
Tires........................................................................\
. 341
Vehicle Wi-Fi Hotspot................................407
Ventilation See: Climate Control.......................................... 137
VIN See: Vehicle Identification Number.............381
Voice Control...................................................80
W
Warning Lamps and Indicators...............105 Adaptive Cruise Control................................... 105
549
Escape (CTC) Canada/United States of America, Vehicles Built From: 17-06-2019, enUSA, Edition date: 201906, Third-Printing- Index
