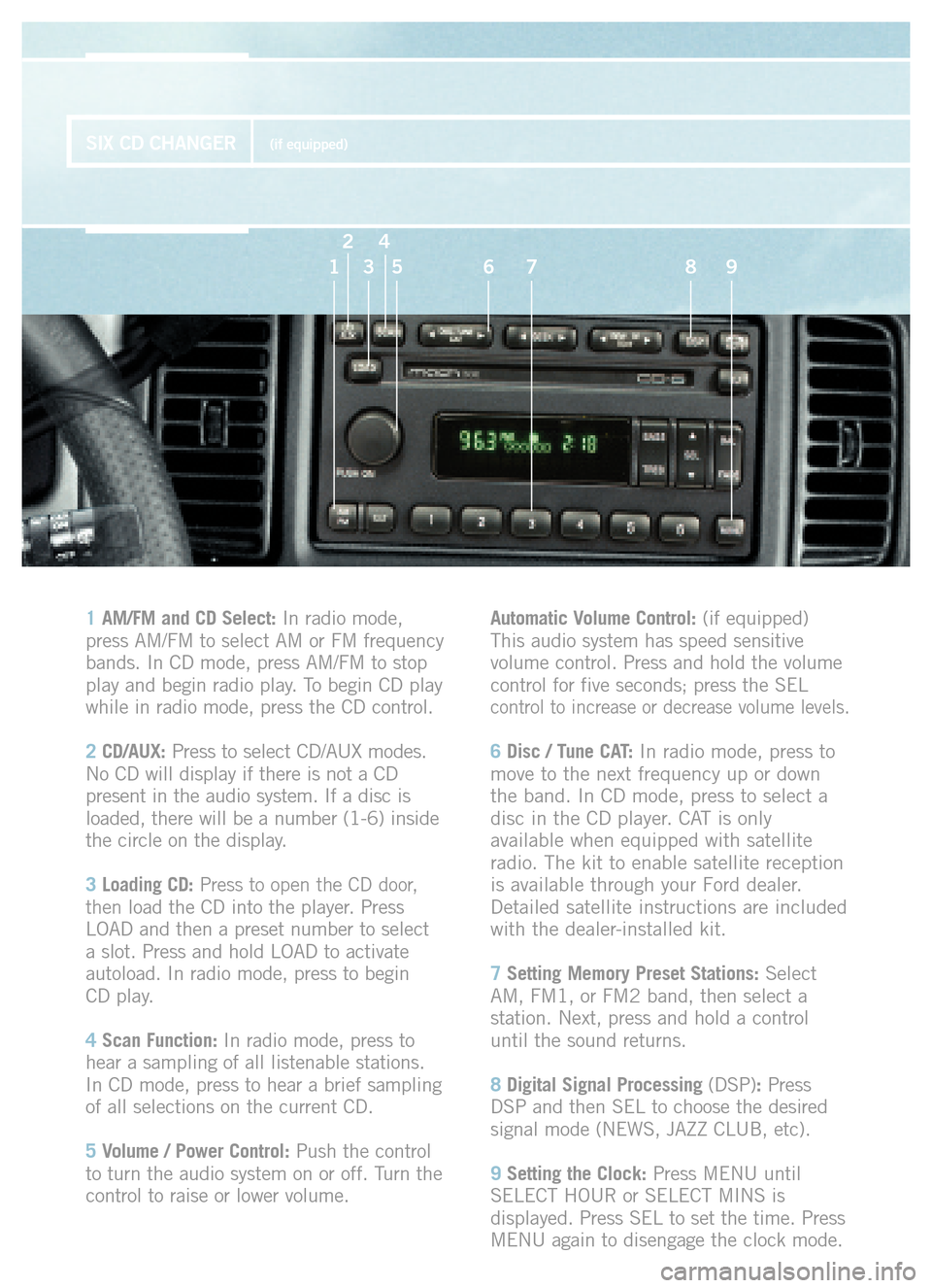

1 AM/FM and CD Select:In radio mode,
press AM/FM to select AM or FM frequency
bands. In CD mode, press AM/FM to stop
play and begin radio play. To begin CD play
while in radio mode, press the CD control.
2 CD/AUX:Press to select CD/AUX modes.
No CD will display if there is not a CD
present in the audio system. If a disc is
loaded, there will be a number (1 6) inside
the circle on the display.
3 Loading CD:Press to open the CD door,
thenload the CD into the player. Press
LOAD and then a preset number to select
a slot. Press and hold LOAD to activate
autoload. In radio mode, press to begin
CD play.
4 Scan Function:In radio mode, press to
hear a sampling of all listenable stations.
In CD mode, press to hear a brief sampling
of all selections on the current CD.
5 Volume / Power Control:Push the control
to turn the audio system on or off. Turn the
control to raise or lower volume.
Automatic Volume Control:(if equipped)
This audio system has speed sensitive
volume control. Press and hold the volume
control for five seconds; press the SEL
control to increase or decrease volume levels.
6 Disc / Tune CAT:In radio mode, press to
move to the next frequency up or down
the band. In CD mode, press to select a
disc in the CD player. CAT is onlyavailable when equipped with satellite
radio. The kit to enable satellite reception
is available through your Ford dealer.
Detailed satellite instructions are included
with the dealer installed kit.
7 Setting Memory Preset Stations:Select
AM, FM1, or FM2 band, then select a
station. Next, press and hold a control
until the sound returns.
8 Digital Signal Processing (DSP):Press
DSP and then SEL to choose the desiredsignal mode (NEWS, JAZZ CLUB, etc).
9 Setting the Clock:Press MENU until
SELECT HOUR or SELECT MINS is
displayed. Press SEL to set the time. PressMENU again to disengage the clock mode.
SIX CD CHANGER(if equipped)
13
4
5
679
2
8
