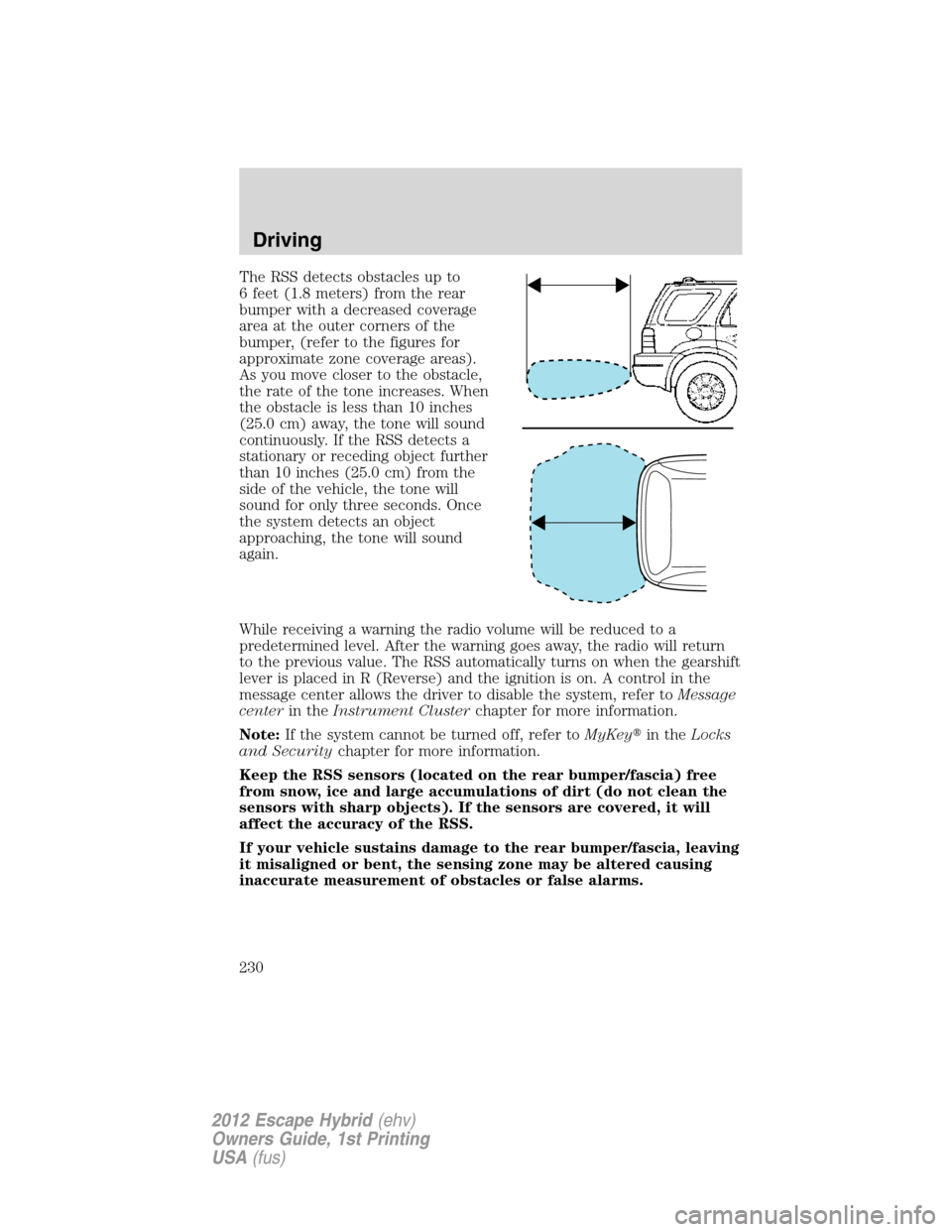

The RSS detects obstacles up to
6 feet (1.8 meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As you move closer to the obstacle,
the rate of the tone increases. When
the obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the RSS detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will
sound for only three seconds. Once
the system detects an object
approaching, the tone will sound
again.
While receiving a warning the radio volume will be reduced to a
predetermined level. After the warning goes away, the radio will return
to the previous value. The RSS automatically turns on when the gearshift
lever is placed in R (Reverse) and the ignition is on. A control in the
message center allows the driver to disable the system, refer toMessage
centerin theInstrument Clusterchapter for more information.
Note:If the system cannot be turned off, refer toMyKeyin theLocks
and Securitychapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
Driving
230
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

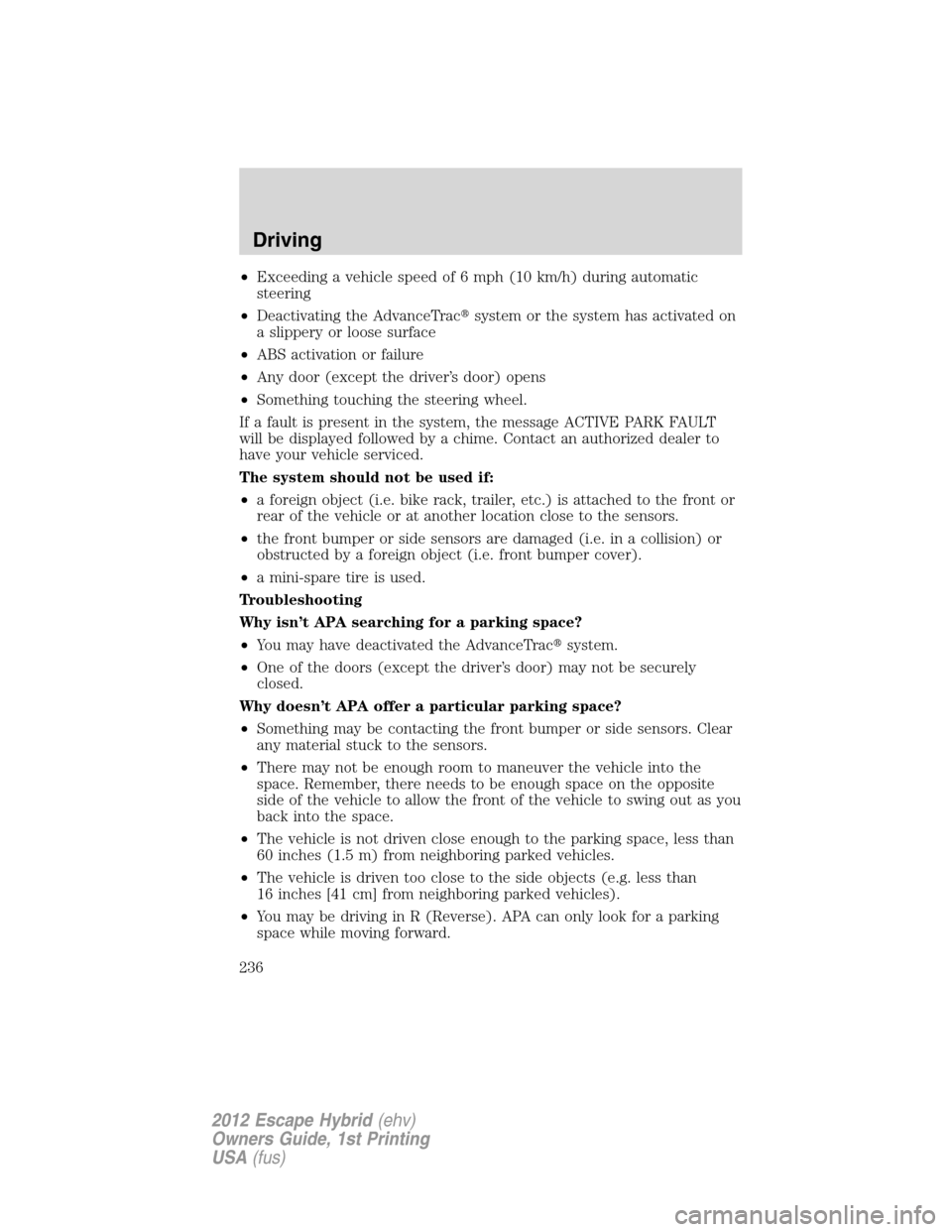

•Exceeding a vehicle speed of 6 mph (10 km/h) during automatic
steering
•Deactivating the AdvanceTracsystem or the system has activated on
a slippery or loose surface
•ABS activation or failure
•Any door (except the driver’s door) opens
•Something touching the steering wheel.
If a fault is present in the system, the message ACTIVE PARK FAULT
will be displayed followed by a chime. Contact an authorized dealer to
have your vehicle serviced.
The system should not be used if:
•a foreign object (i.e. bike rack, trailer, etc.) is attached to the front or
rear of the vehicle or at another location close to the sensors.
•the front bumper or side sensors are damaged (i.e. in a collision) or
obstructed by a foreign object (i.e. front bumper cover).
•a mini-spare tire is used.
Troubleshooting
Why isn’t APA searching for a parking space?
•You may have deactivated the AdvanceTracsystem.
•One of the doors (except the driver’s door) may not be securely
closed.
Why doesn’t APA offer a particular parking space?
•Something may be contacting the front bumper or side sensors. Clear
any material stuck to the sensors.
•There may not be enough room to maneuver the vehicle into the
space. Remember, there needs to be enough space on the opposite
side of the vehicle to allow the front of the vehicle to swing out as you
back into the space.
•The vehicle is not driven close enough to the parking space, less than
60 inches (1.5 m) from neighboring parked vehicles.
•The vehicle is driven too close to the side objects (e.g. less than
16 inches [41 cm] from neighboring parked vehicles).
•You may be driving in R (Reverse). APA can only look for a parking
space while moving forward.
Driving
236
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

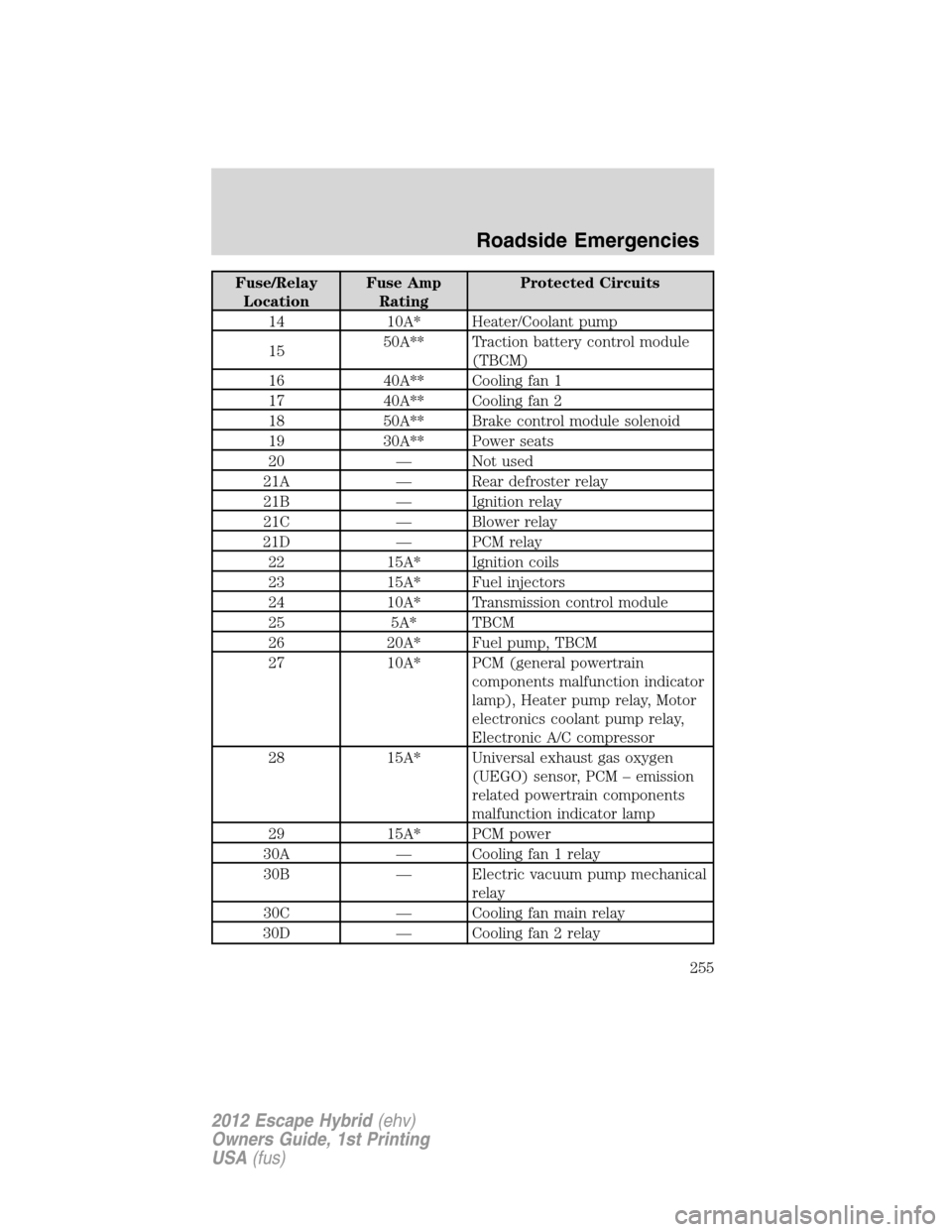

Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
14 10A* Heater/Coolant pump
1550A** Traction battery control module
(TBCM)
16 40A** Cooling fan 1
17 40A** Cooling fan 2
18 50A** Brake control module solenoid
19 30A** Power seats
20 — Not used
21A — Rear defroster relay
21B — Ignition relay
21C — Blower relay
21D — PCM relay
22 15A* Ignition coils
23 15A* Fuel injectors
24 10A* Transmission control module
25 5A* TBCM
26 20A* Fuel pump, TBCM
27 10A* PCM (general powertrain
components malfunction indicator
lamp), Heater pump relay, Motor
electronics coolant pump relay,
Electronic A/C compressor
28 15A* Universal exhaust gas oxygen
(UEGO) sensor, PCM – emission
related powertrain components
malfunction indicator lamp
29 15A* PCM power
30A — Cooling fan 1 relay
30B — Electric vacuum pump mechanical
relay
30C — Cooling fan main relay
30D — Cooling fan 2 relay
Roadside Emergencies
255
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

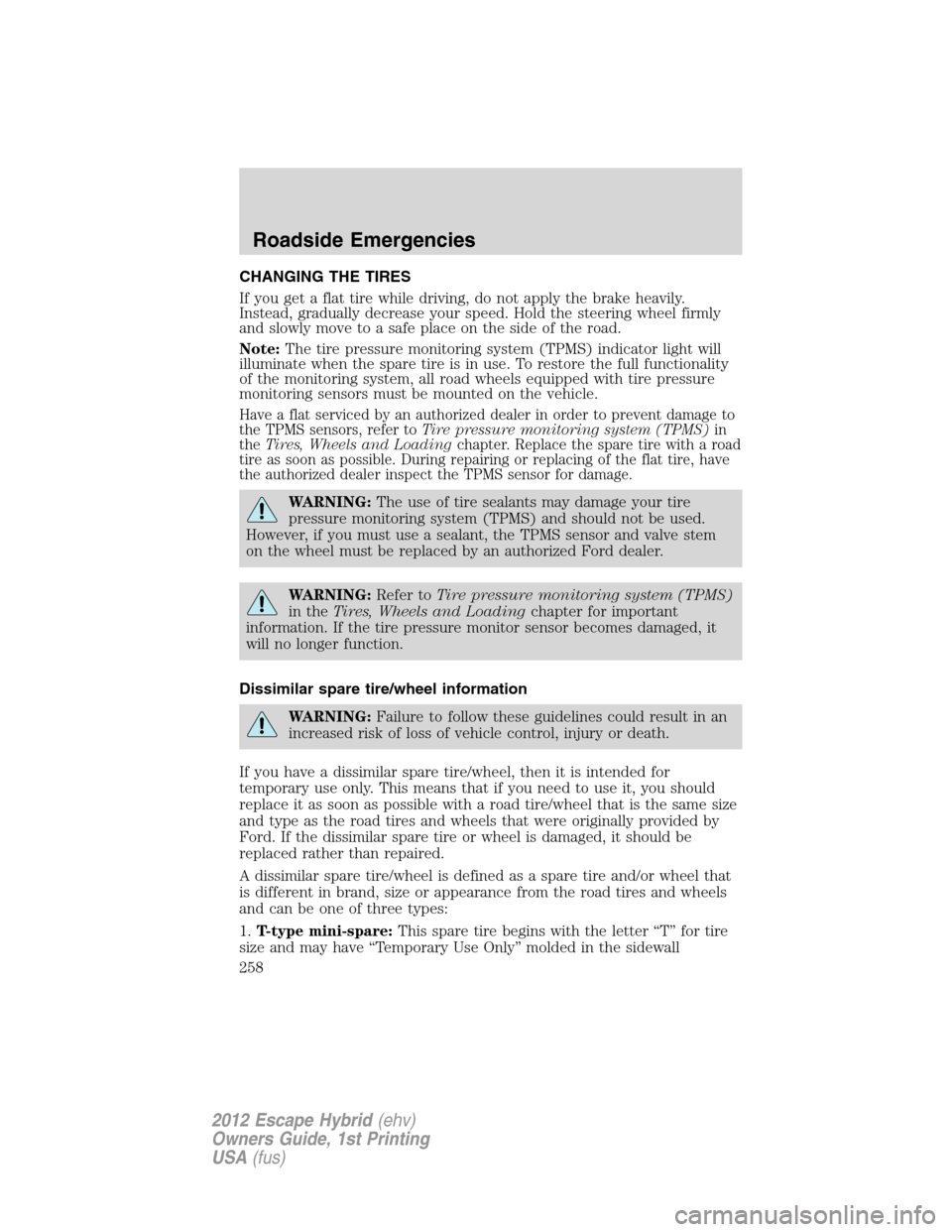

CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Note:The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare tire is in use. To restore the full functionality
of the monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
Have a flat serviced by an authorized dealer in order to prevent damage to
the TPMS sensors, refer toTire pressure monitoring system (TPMS)in
theTires, Wheels and Loadingchapter. Replace the spare tire with a road
tire as soon as possible. During repairing or replacing of the flat tire, have
the authorized dealer inspect the TPMS sensor for damage.
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem
on the wheel must be replaced by an authorized Ford dealer.
WARNING:Refer toTire pressure monitoring system (TPMS)
in theTires, Wheels and Loadingchapter for important
information. If the tire pressure monitor sensor becomes damaged, it
will no longer function.
Dissimilar spare tire/wheel information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.
A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall
Roadside Emergencies
258
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

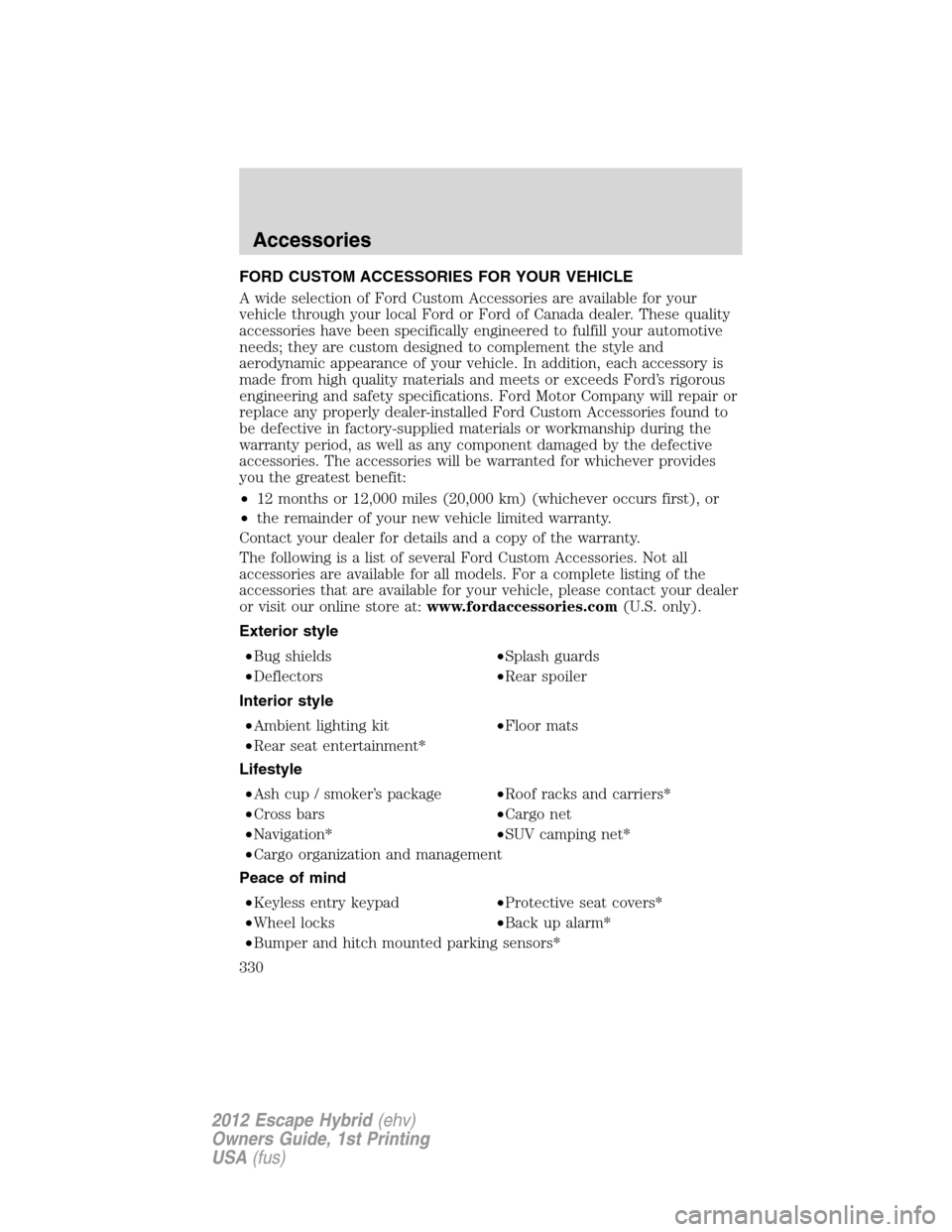

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Bug shields•Splash guards
•Deflectors•Rear spoiler
Interior style
•Ambient lighting kit•Floor mats
•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Cross bars•Cargo net
•Navigation*•SUV camping net*
•Cargo organization and management
Peace of mind
•Keyless entry keypad•Protective seat covers*
•Wheel locks•Back up alarm*
•Bumper and hitch mounted parking sensors*
Accessories
330
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

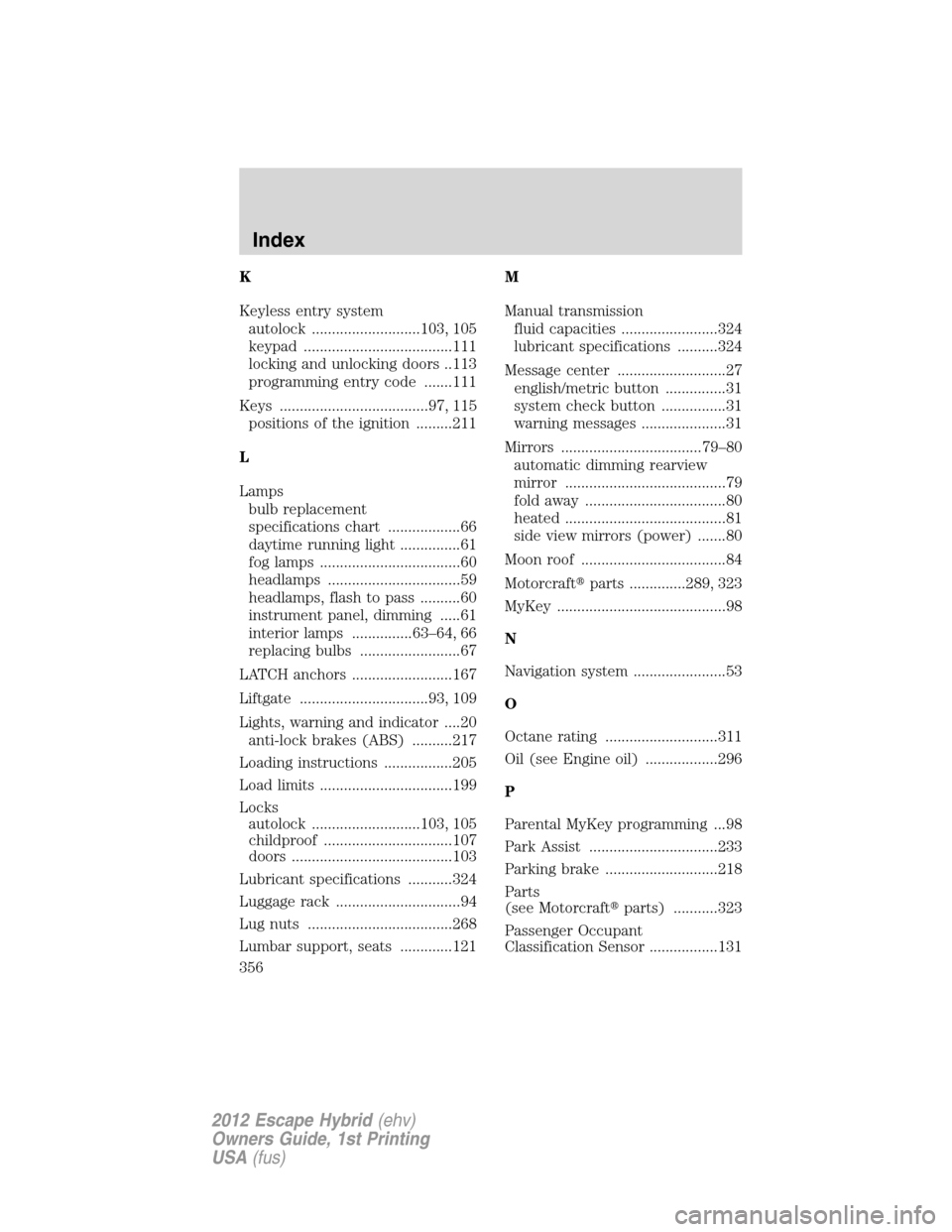

K
Keyless entry system
autolock ...........................103, 105
keypad .....................................111
locking and unlocking doors ..113
programming entry code .......111
Keys .....................................97, 115
positions of the ignition .........211
L
Lamps
bulb replacement
specifications chart ..................66
daytime running light ...............61
fog lamps ...................................60
headlamps .................................59
headlamps, flash to pass ..........60
instrument panel, dimming .....61
interior lamps ...............63–64, 66
replacing bulbs .........................67
LATCH anchors .........................167
Liftgate ................................93, 109
Lights, warning and indicator ....20
anti-lock brakes (ABS) ..........217
Loading instructions .................205
Load limits .................................199
Locks
autolock ...........................103, 105
childproof ................................107
doors ........................................103
Lubricant specifications ...........324
Luggage rack ...............................94
Lug nuts ....................................268
Lumbar support, seats .............121M
Manual transmission
fluid capacities ........................324
lubricant specifications ..........324
Message center ...........................27
english/metric button ...............31
system check button ................31
warning messages .....................31
Mirrors ...................................79–80
automatic dimming rearview
mirror ........................................79
fold away ...................................80
heated ........................................81
side view mirrors (power) .......80
Moon roof ....................................84
Motorcraftparts ..............289, 323
MyKey ..........................................98
N
Navigation system .......................53
O
Octane rating ............................311
Oil (see Engine oil) ..................296
P
Parental MyKey programming ...98
Park Assist ................................233
Parking brake ............................218
Parts
(see Motorcraftparts) ...........323
Passenger Occupant
Classification Sensor .................131
Index
356
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Power distribution box
(see Fuses) ...............................253
Power door locks ......................103
Power mirrors .............................80
Power point .................................76
Power steering ..........................225
Power Windows ...........................78
Preparing to drive your
vehicle ........................................225
R
Radio ............................................36
Rear-view camera system .........231
Recommendations for
attaching safety restraints
for children ................................161
Relays ........................................249
Remote entry system .......107–108
illuminated entry ....................111
locking/unlocking
doors ................................108–109
opening the trunk ...................109
panic alarm .............................109
replacement/additional
transmitters .............................110
replacing the batteries ...........110
Reverse sensing system ...........229
Roadside assistance ..................246
Roof rack ...............................94–95
S
Safety belts (see Safety
restraints) ..................133–135, 137
Safety Canopy ...................153, 155
Safety defects, reporting ..........282Safety restraints ........133–135, 137
Belt-Minder...........................139
extension assembly ................138
for adults .........................134–135
for children .............................159
Occupant Classification
Sensor ......................................131
warning light and chime ........138
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................328
Satellite Radio .............................40
Satellite Radio Information ........50
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............342
Seats ..........................................117
child safety seats ....................163
heated ......................................123
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................113
Servicing your vehicle ..............290
Setting the clock .........................36
Snowplowing ...............................14
SOS Post Crash Alert ...............158
Spark plugs,
specifications .....................323, 327
Special notice
ambulance conversions ............14
utility-type vehicles ..................13
Specification chart,
lubricants ...................................324
Speed control ..............................81
Index
357
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)
