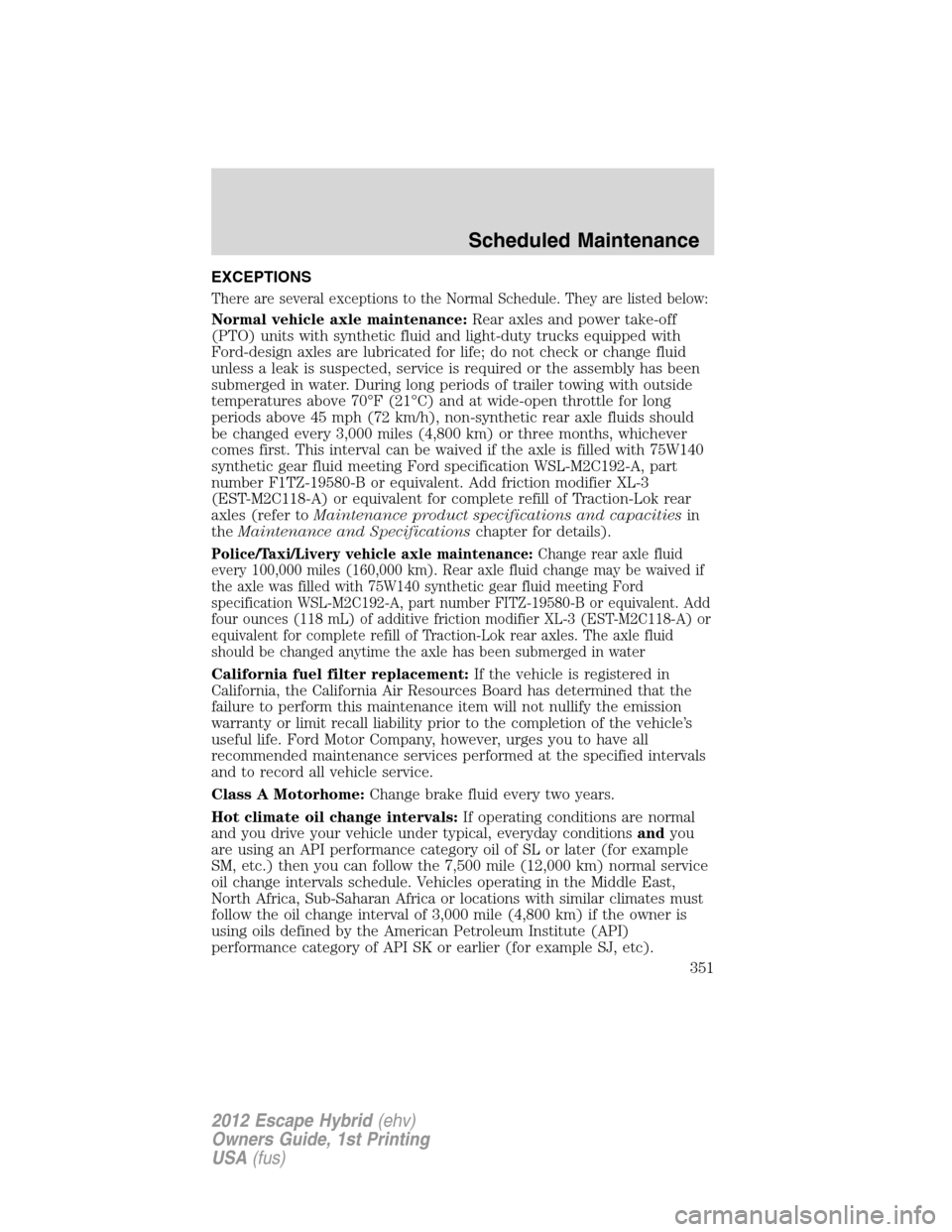

EXCEPTIONS
There are several exceptions to the Normal Schedule. They are listed below:
Normal vehicle axle maintenance:Rear axles and power take-off
(PTO) units with synthetic fluid and light-duty trucks equipped with
Ford-design axles are lubricated for life; do not check or change fluid
unless a leak is suspected, service is required or the assembly has been
submerged in water. During long periods of trailer towing with outside
temperatures above 70°F (21°C) and at wide-open throttle for long
periods above 45 mph (72 km/h), non-synthetic rear axle fluids should
be changed every 3,000 miles (4,800 km) or three months, whichever
comes first. This interval can be waived if the axle is filled with 75W140
synthetic gear fluid meeting Ford specification WSL-M2C192-A, part
number F1TZ-19580-B or equivalent. Add friction modifier XL-3
(EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear
axles (refer toMaintenance product specifications and capacitiesin
theMaintenance and Specificationschapter for details).
Police/Taxi/Livery vehicle axle maintenance:Change rear axle fluid
every 100,000 miles (160,000 km). Rear axle fluid change may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford
specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of additive friction modifier XL-3 (EST-M2C118-A) or
equivalent for complete refill of Traction-Lok rear axles. The axle fluid
should be changed anytime the axle has been submerged in water
California fuel filter replacement:If the vehicle is registered in
California, the California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify the emission
warranty or limit recall liability prior to the completion of the vehicle’s
useful life. Ford Motor Company, however, urges you to have all
recommended maintenance services performed at the specified intervals
and to record all vehicle service.
Class A Motorhome:Change brake fluid every two years.
Hot climate oil change intervals:If operating conditions are normal
and you drive your vehicle under typical, everyday conditionsandyou
are using an API performance category oil of SL or later (for example
SM, etc.) then you can follow the 7,500 mile (12,000 km) normal service
oil change intervals schedule. Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or locations with similar climates must
follow the oil change interval of 3,000 mile (4,800 km) if the owner is
using oils defined by the American Petroleum Institute (API)
performance category of API SK or earlier (for example SJ, etc).
Scheduled Maintenance
351
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

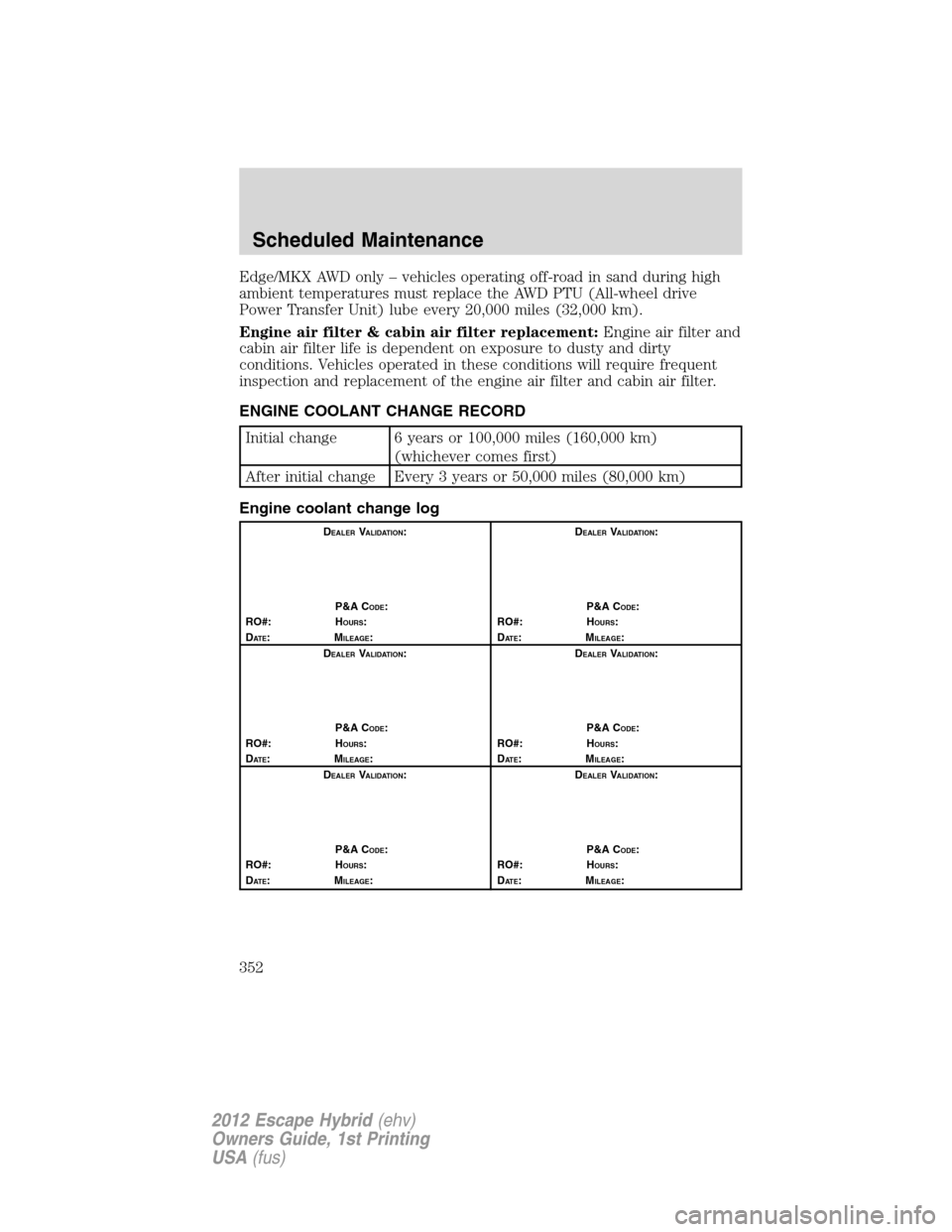

Edge/MKX AWD only – vehicles operating off-road in sand during high
ambient temperatures must replace the AWD PTU (All-wheel drive
Power Transfer Unit) lube every 20,000 miles (32,000 km).
Engine air filter & cabin air filter replacement:Engine air filter and
cabin air filter life is dependent on exposure to dusty and dirty
conditions. Vehicles operated in these conditions will require frequent
inspection and replacement of the engine air filter and cabin air filter.
ENGINE COOLANT CHANGE RECORD
Initial change 6 years or 100,000 miles (160,000 km)
(whichever comes first)
After initial change Every 3 years or 50,000 miles (80,000 km)
Engine coolant change log
DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance
352
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

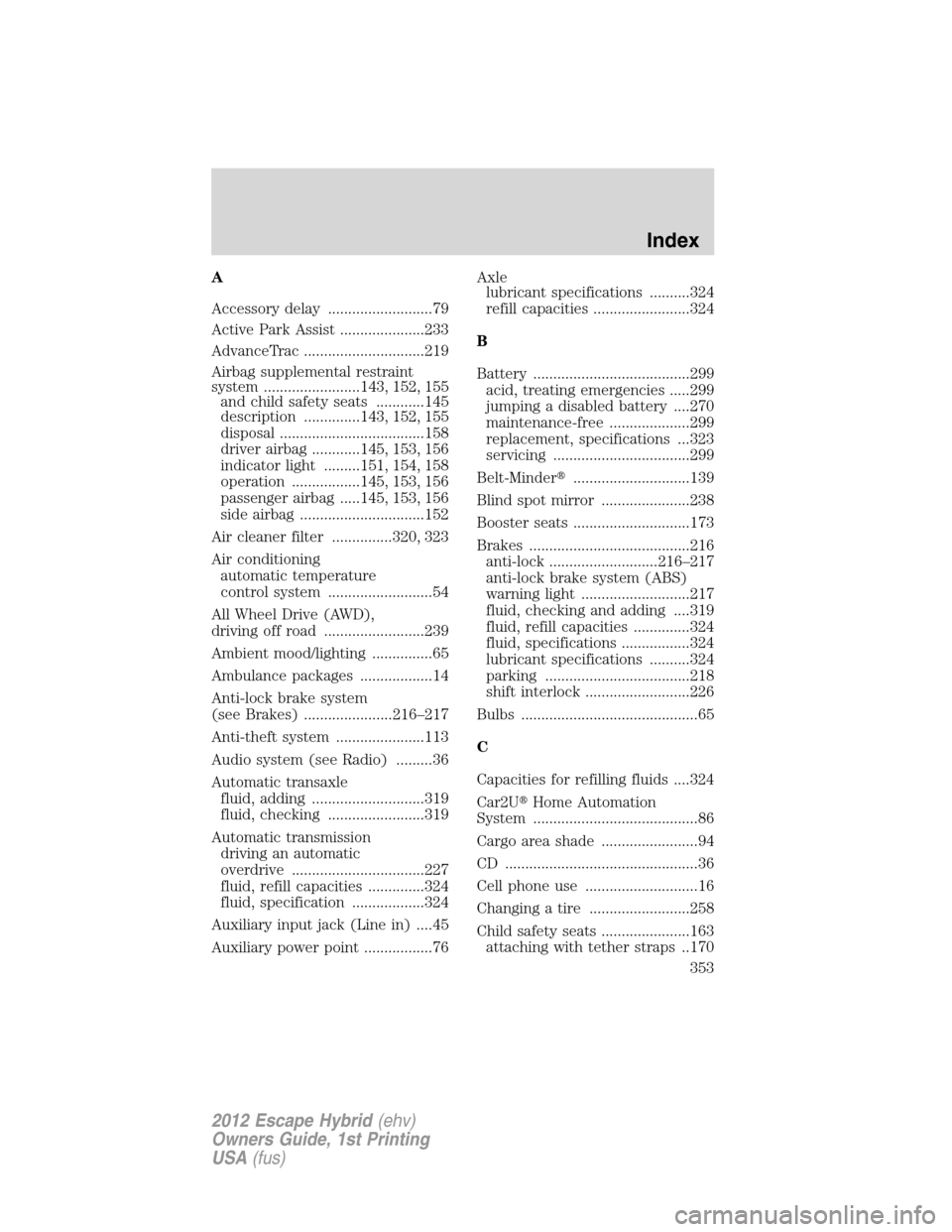

A
Accessory delay ..........................79
Active Park Assist .....................233
AdvanceTrac ..............................219
Airbag supplemental restraint
system ........................143, 152, 155
and child safety seats ............145
description ..............143, 152, 155
disposal ....................................158
driver airbag ............145, 153, 156
indicator light .........151, 154, 158
operation .................145, 153, 156
passenger airbag .....145, 153, 156
side airbag ...............................152
Air cleaner filter ...............320, 323
Air conditioning
automatic temperature
control system ..........................54
All Wheel Drive (AWD),
driving off road .........................239
Ambient mood/lighting ...............65
Ambulance packages ..................14
Anti-lock brake system
(see Brakes) ......................216–217
Anti-theft system ......................113
Audio system (see Radio) .........36
Automatic transaxle
fluid, adding ............................319
fluid, checking ........................319
Automatic transmission
driving an automatic
overdrive .................................227
fluid, refill capacities ..............324
fluid, specification ..................324
Auxiliary input jack (Line in) ....45
Auxiliary power point .................76Axle
lubricant specifications ..........324
refill capacities ........................324
B
Battery .......................................299
acid, treating emergencies .....299
jumping a disabled battery ....270
maintenance-free ....................299
replacement, specifications ...323
servicing ..................................299
Belt-Minder.............................139
Blind spot mirror ......................238
Booster seats .............................173
Brakes ........................................216
anti-lock ...........................216–217
anti-lock brake system (ABS)
warning light ...........................217
fluid, checking and adding ....319
fluid, refill capacities ..............324
fluid, specifications .................324
lubricant specifications ..........324
parking ....................................218
shift interlock ..........................226
Bulbs ............................................65
C
Capacities for refilling fluids ....324
Car2UHome Automation
System .........................................86
Cargo area shade ........................94
CD ................................................36
Cell phone use ............................16
Changing a tire .........................258
Child safety seats ......................163
attaching with tether straps ..170
Index
353
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

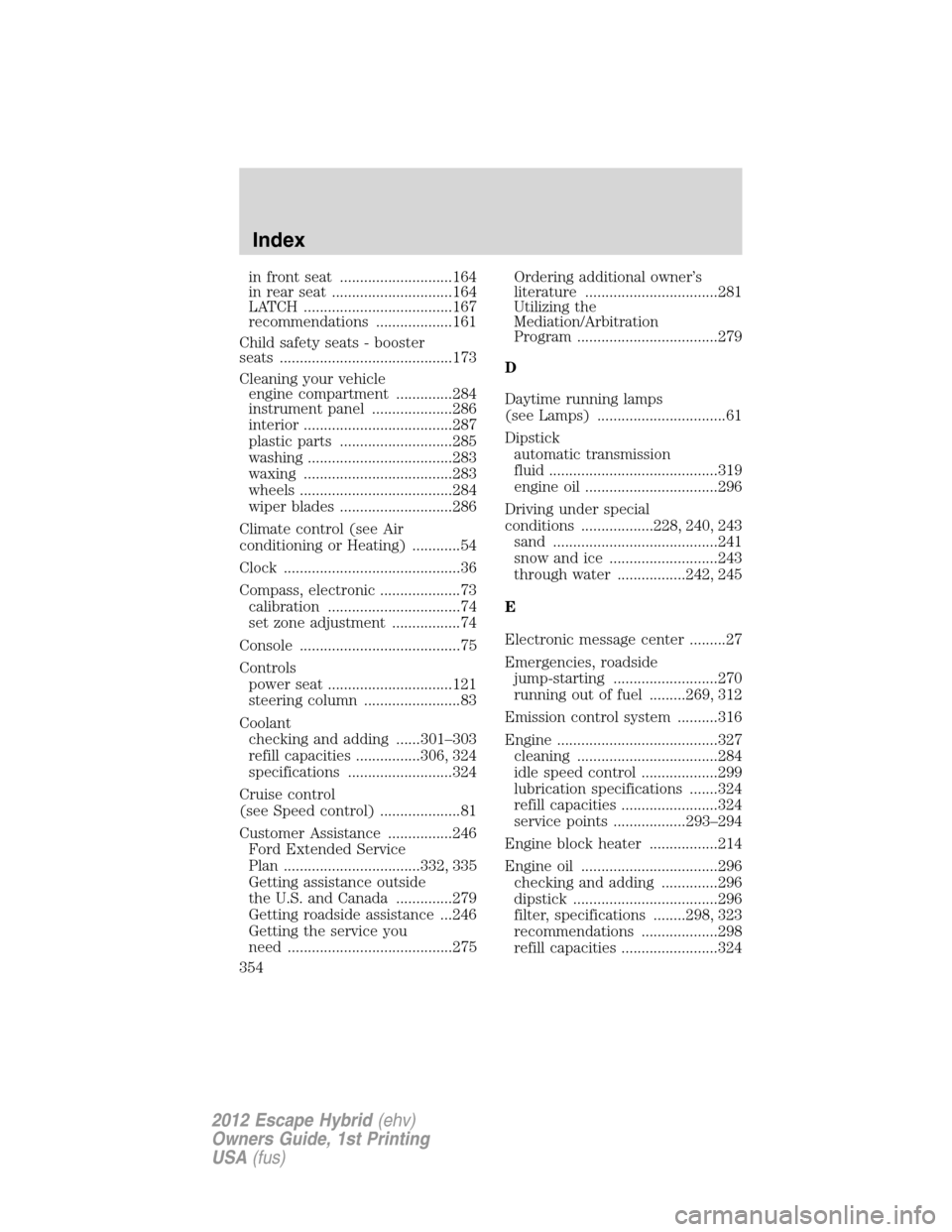

in front seat ............................164
in rear seat ..............................164
LATCH .....................................167
recommendations ...................161
Child safety seats - booster
seats ...........................................173
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................283
waxing .....................................283
wheels ......................................284
wiper blades ............................286
Climate control (see Air
conditioning or Heating) ............54
Clock ............................................36
Compass, electronic ....................73
calibration .................................74
set zone adjustment .................74
Console ........................................75
Controls
power seat ...............................121
steering column ........................83
Coolant
checking and adding ......301–303
refill capacities ................306, 324
specifications ..........................324
Cruise control
(see Speed control) ....................81
Customer Assistance ................246
Ford Extended Service
Plan ..................................332, 335
Getting assistance outside
the U.S. and Canada ..............279
Getting roadside assistance ...246
Getting the service you
need .........................................275Ordering additional owner’s
literature .................................281
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................61
Dipstick
automatic transmission
fluid ..........................................319
engine oil .................................296
Driving under special
conditions ..................228, 240, 243
sand .........................................241
snow and ice ...........................243
through water .................242, 245
E
Electronic message center .........27
Emergencies, roadside
jump-starting ..........................270
running out of fuel .........269, 312
Emission control system ..........316
Engine ........................................327
cleaning ...................................284
idle speed control ...................299
lubrication specifications .......324
refill capacities ........................324
service points ..................293–294
Engine block heater .................214
Engine oil ..................................296
checking and adding ..............296
dipstick ....................................296
filter, specifications ........298, 323
recommendations ...................298
refill capacities ........................324
Index
354
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

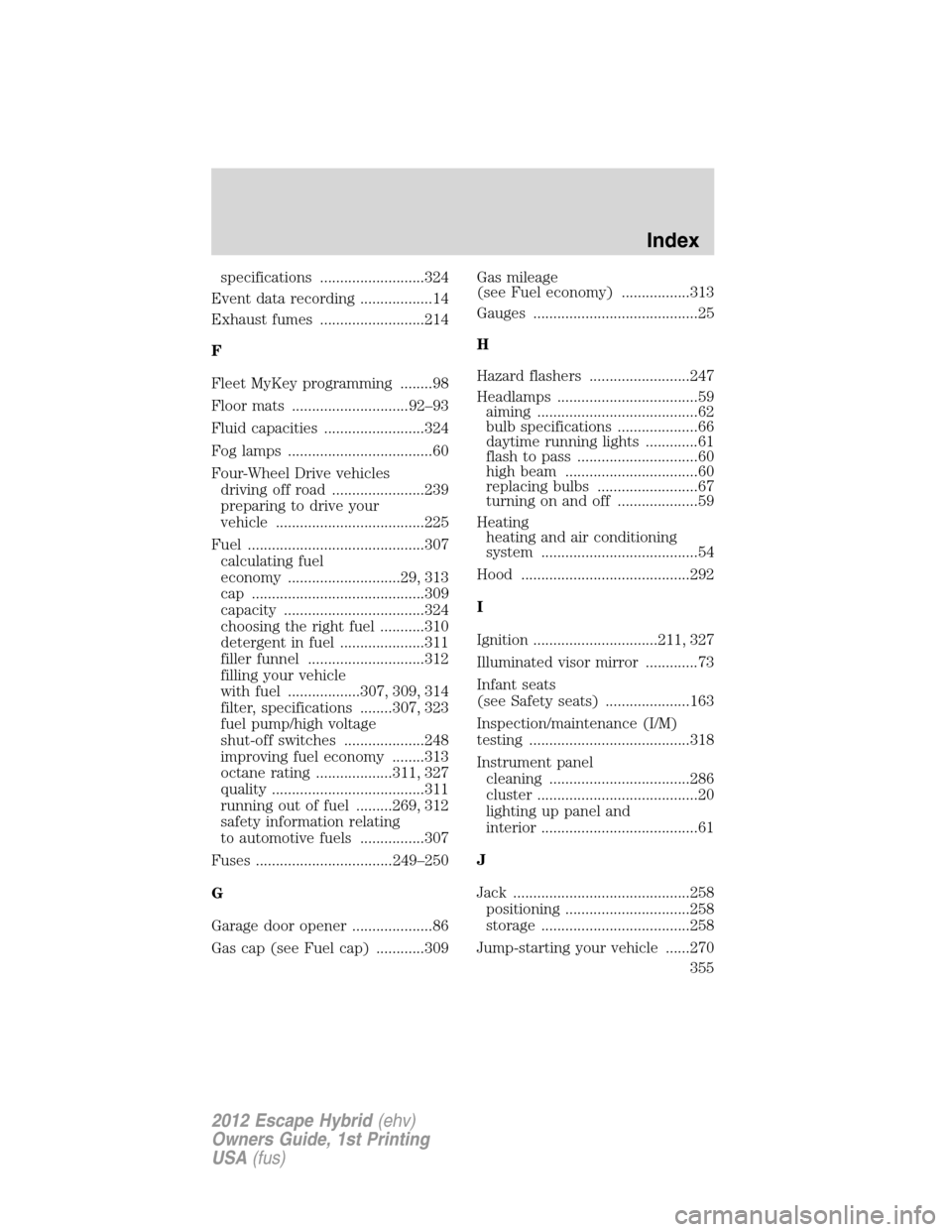

specifications ..........................324
Event data recording ..................14
Exhaust fumes ..........................214
F
Fleet MyKey programming ........98
Floor mats .............................92–93
Fluid capacities .........................324
Fog lamps ....................................60
Four-Wheel Drive vehicles
driving off road .......................239
preparing to drive your
vehicle .....................................225
Fuel ............................................307
calculating fuel
economy ............................29, 313
cap ...........................................309
capacity ...................................324
choosing the right fuel ...........310
detergent in fuel .....................311
filler funnel .............................312
filling your vehicle
with fuel ..................307, 309, 314
filter, specifications ........307, 323
fuel pump/high voltage
shut-off switches ....................248
improving fuel economy ........313
octane rating ...................311, 327
quality ......................................311
running out of fuel .........269, 312
safety information relating
to automotive fuels ................307
Fuses ..................................249–250
G
Garage door opener ....................86
Gas cap (see Fuel cap) ............309Gas mileage
(see Fuel economy) .................313
Gauges .........................................25
H
Hazard flashers .........................247
Headlamps ...................................59
aiming ........................................62
bulb specifications ....................66
daytime running lights .............61
flash to pass ..............................60
high beam .................................60
replacing bulbs .........................67
turning on and off ....................59
Heating
heating and air conditioning
system .......................................54
Hood ..........................................292
I
Ignition ...............................211, 327
Illuminated visor mirror .............73
Infant seats
(see Safety seats) .....................163
Inspection/maintenance (I/M)
testing ........................................318
Instrument panel
cleaning ...................................286
cluster ........................................20
lighting up panel and
interior .......................................61
J
Jack ............................................258
positioning ...............................258
storage .....................................258
Jump-starting your vehicle ......270
Index
355
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

K
Keyless entry system
autolock ...........................103, 105
keypad .....................................111
locking and unlocking doors ..113
programming entry code .......111
Keys .....................................97, 115
positions of the ignition .........211
L
Lamps
bulb replacement
specifications chart ..................66
daytime running light ...............61
fog lamps ...................................60
headlamps .................................59
headlamps, flash to pass ..........60
instrument panel, dimming .....61
interior lamps ...............63–64, 66
replacing bulbs .........................67
LATCH anchors .........................167
Liftgate ................................93, 109
Lights, warning and indicator ....20
anti-lock brakes (ABS) ..........217
Loading instructions .................205
Load limits .................................199
Locks
autolock ...........................103, 105
childproof ................................107
doors ........................................103
Lubricant specifications ...........324
Luggage rack ...............................94
Lug nuts ....................................268
Lumbar support, seats .............121M
Manual transmission
fluid capacities ........................324
lubricant specifications ..........324
Message center ...........................27
english/metric button ...............31
system check button ................31
warning messages .....................31
Mirrors ...................................79–80
automatic dimming rearview
mirror ........................................79
fold away ...................................80
heated ........................................81
side view mirrors (power) .......80
Moon roof ....................................84
Motorcraftparts ..............289, 323
MyKey ..........................................98
N
Navigation system .......................53
O
Octane rating ............................311
Oil (see Engine oil) ..................296
P
Parental MyKey programming ...98
Park Assist ................................233
Parking brake ............................218
Parts
(see Motorcraftparts) ...........323
Passenger Occupant
Classification Sensor .................131
Index
356
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Power distribution box
(see Fuses) ...............................253
Power door locks ......................103
Power mirrors .............................80
Power point .................................76
Power steering ..........................225
Power Windows ...........................78
Preparing to drive your
vehicle ........................................225
R
Radio ............................................36
Rear-view camera system .........231
Recommendations for
attaching safety restraints
for children ................................161
Relays ........................................249
Remote entry system .......107–108
illuminated entry ....................111
locking/unlocking
doors ................................108–109
opening the trunk ...................109
panic alarm .............................109
replacement/additional
transmitters .............................110
replacing the batteries ...........110
Reverse sensing system ...........229
Roadside assistance ..................246
Roof rack ...............................94–95
S
Safety belts (see Safety
restraints) ..................133–135, 137
Safety Canopy ...................153, 155
Safety defects, reporting ..........282Safety restraints ........133–135, 137
Belt-Minder...........................139
extension assembly ................138
for adults .........................134–135
for children .............................159
Occupant Classification
Sensor ......................................131
warning light and chime ........138
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................328
Satellite Radio .............................40
Satellite Radio Information ........50
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............342
Seats ..........................................117
child safety seats ....................163
heated ......................................123
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................113
Servicing your vehicle ..............290
Setting the clock .........................36
Snowplowing ...............................14
SOS Post Crash Alert ...............158
Spark plugs,
specifications .....................323, 327
Special notice
ambulance conversions ............14
utility-type vehicles ..................13
Specification chart,
lubricants ...................................324
Speed control ..............................81
Index
357
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Starting your vehicle ........211–213
jump starting ..........................270
Steering wheel
controls ......................................83
tilting .........................................72
Stereo
CD-MP3 .....................................36
SYNC..........................................53
T
Tilt steering wheel ......................72
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....194
Tires ...........................179–181, 258
alignment ................................188
care ..........................................184
changing ..................258, 260, 263
checking the pressure ............184
inflating ...................................182
label .........................................193
replacing ..................................185
rotating ....................................188
safety practices .......................187
sidewall information ...............189
snow tires and chains ............198
spare tire .........................258, 260
terminology .............................181
tire grades ...............................180
treadwear ........................180, 184
Towing .......................................206
recreational towing .................210
trailer towing ..........................206
wrecker ....................................273Transmission .............................227
brake-shift interlock (BSI) ....226
fluid, checking and adding
(automatic) .............................319
fluid, refill capacities ..............324
lubricant specifications ..........324
Turn signal ..................................63
U
Universal garage door opener ....86
USB port ......................................47
V
Vehicle Identification Number
(VIN) ..........................................328
Vehicle loading ..........................199
Ventilating your vehicle ...........214
W
Warning lights (see Lights) .......20
Washer fluid ..............................294
Water, Driving through .............245
Windows
power .........................................78
rear wiper/washer .....................72
Windshield washer fluid and
wipers ..........................................71
checking and adding fluid .....294
liftgate reservoir .....................294
replacing wiper blades ...295–296
Wrecker towing .........................273
Index
358
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)
