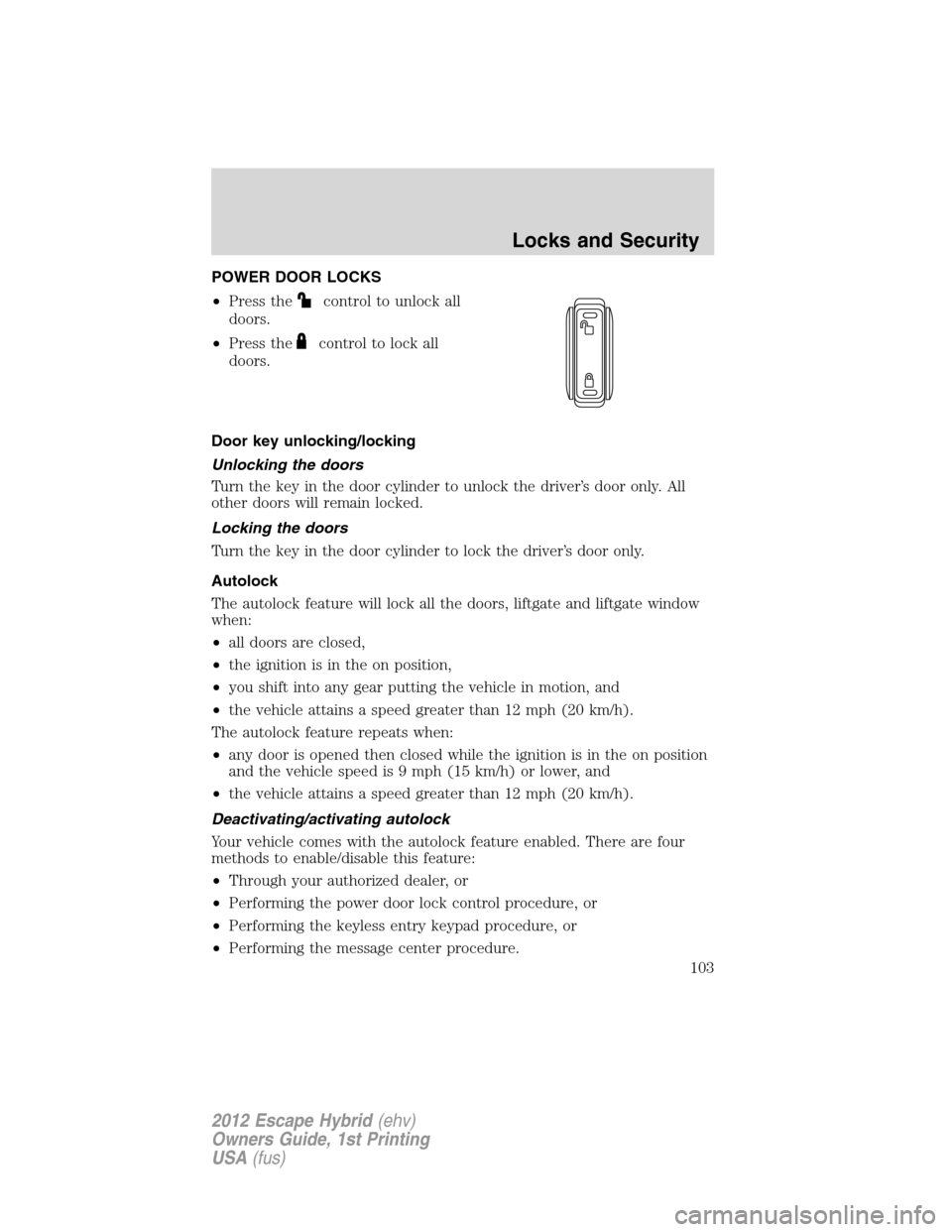

POWER DOOR LOCKS
•Press the
control to unlock all
doors.
•Press the
control to lock all
doors.
Door key unlocking/locking
Unlocking the doors
Turn the key in the door cylinder to unlock the driver’s door only. All
other doors will remain locked.
Locking the doors
Turn the key in the door cylinder to lock the driver’s door only.
Autolock
The autolock feature will lock all the doors, liftgate and liftgate window
when:
•all doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock
Your vehicle comes with the autolock feature enabled. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•Performing the power door lock control procedure, or
•Performing the keyless entry keypad procedure, or
•Performing the message center procedure.
Locks and Security
103
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

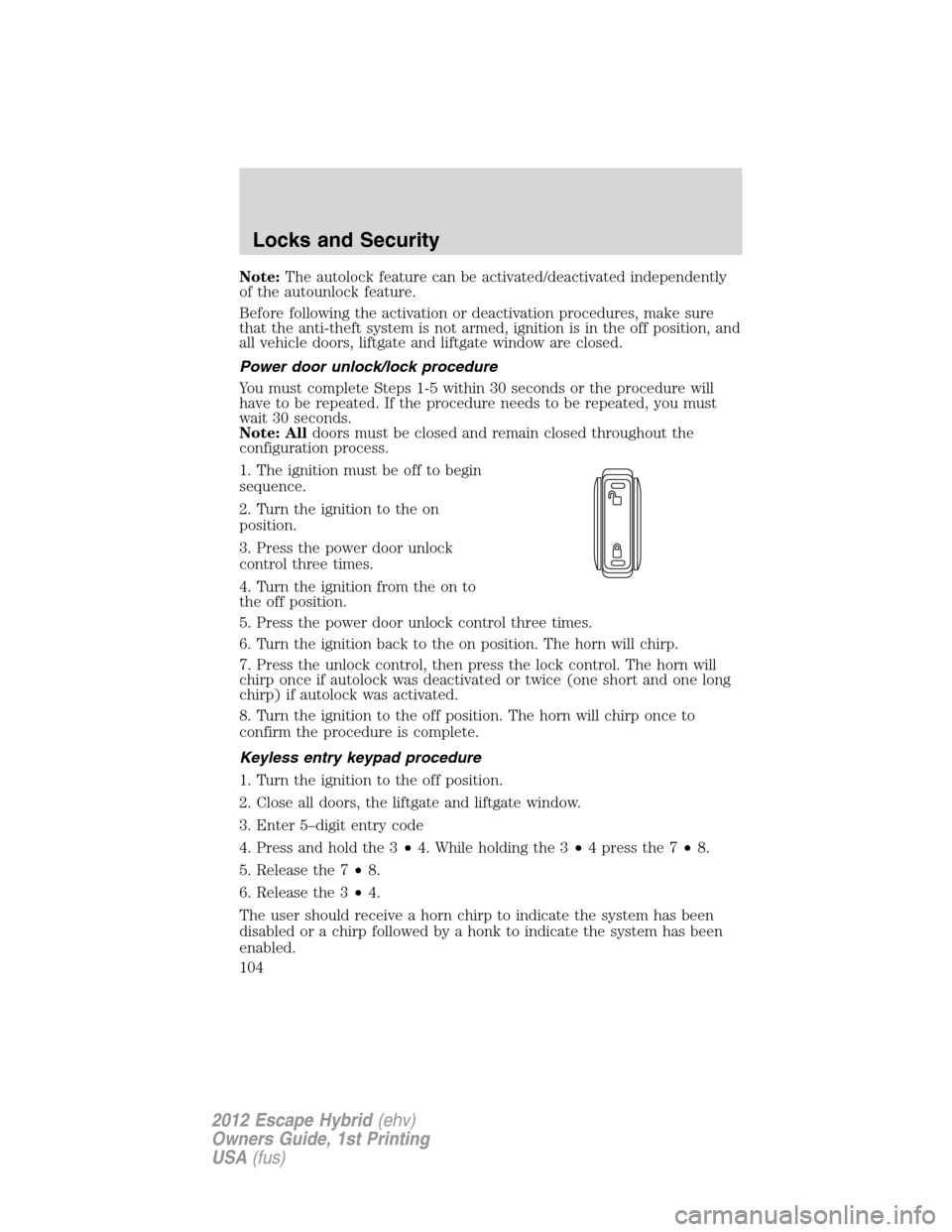

Note:The autolock feature can be activated/deactivated independently
of the autounlock feature.
Before following the activation or deactivation procedures, make sure
that the anti-theft system is not armed, ignition is in the off position, and
all vehicle doors, liftgate and liftgate window are closed.
Power door unlock/lock procedure
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.
Note: Alldoors must be closed and remain closed throughout the
configuration process.
1. The ignition must be off to begin
sequence.
2. Turn the ignition to the on
position.
3. Press the power door unlock
control three times.
4. Turn the ignition from the on to
the off position.
5. Press the power door unlock control three times.
6. Turn the ignition back to the on position. The horn will chirp.
7. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
8. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad procedure
1. Turn the ignition to the off position.
2. Close all doors, the liftgate and liftgate window.
3. Enter 5–digit entry code
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Locks and Security
104
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

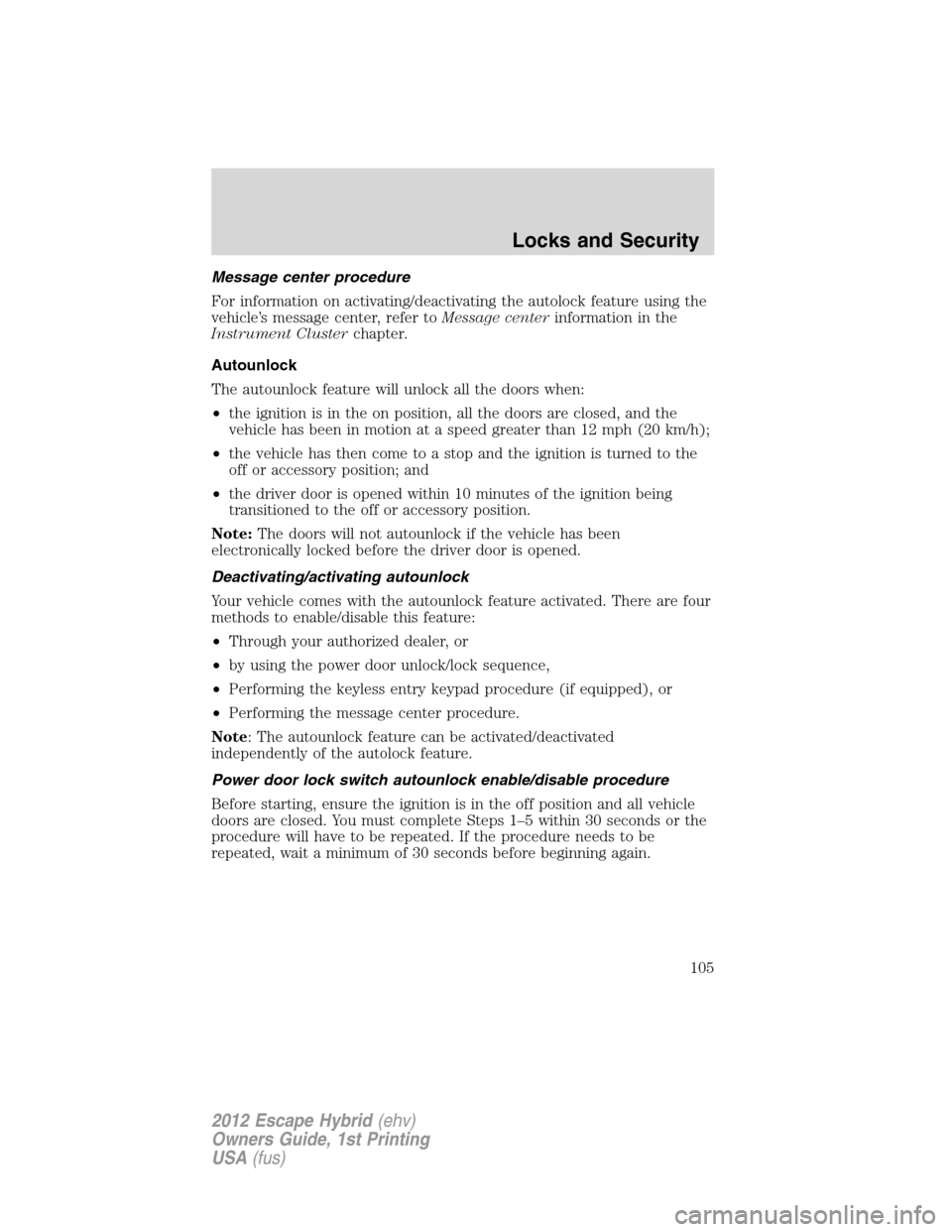

Message center procedure
For information on activating/deactivating the autolock feature using the
vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Autounlock
The autounlock feature will unlock all the doors when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock
Your vehicle comes with the autounlock feature activated. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•by using the power door unlock/lock sequence,
•Performing the keyless entry keypad procedure (if equipped), or
•Performing the message center procedure.
Note: The autounlock feature can be activated/deactivated
independently of the autolock feature.
Power door lock switch autounlock enable/disable procedure
Before starting, ensure the ignition is in the off position and all vehicle
doors are closed. You must complete Steps 1–5 within 30 seconds or the
procedure will have to be repeated. If the procedure needs to be
repeated, wait a minimum of 30 seconds before beginning again.
Locks and Security
105
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

1. Place the key in the ignition and
turn the ignition to the on position.
2. Press the power door unlock
control on the door panel three
times.
3. Turn the ignition from the on
position to the off position.
4. Press the power door unlock control on the door panel three times.
5. Turn the ignition back to the on position. The horn will chirp one time
to confirm programming mode has been entered and is active.
6. To enable/disable the autounlock feature, press the lock control, then
press the unlock control. The horn will chirp once if autounlock was
deactivated or twice (one short and one long chirp) if autounlock was
activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Keyless entry keypad autounlock enable/disable procedure
1. Turn the ignition to the off position.
2. Close all doors.
3. Enter factory–set 5–digit entry code.
4. Press and hold the 3•4. While holding the 3•4, press and release
the 7•8. While still holding the 3•4, press and release the 7•8a
second time.
5. Release the 3•4.
The user should receive ahorn chirpto indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autounlock feature using
the vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Smart unlocking feature
The smart unlocking feature helps prevent you from locking yourself out
of the vehicle. With the key in any ignition position, the driver’s door will
automatically unlock if it is locked using the power lock control on the
driver’s door panel while the driver’s door is open.
Locks and Security
106
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

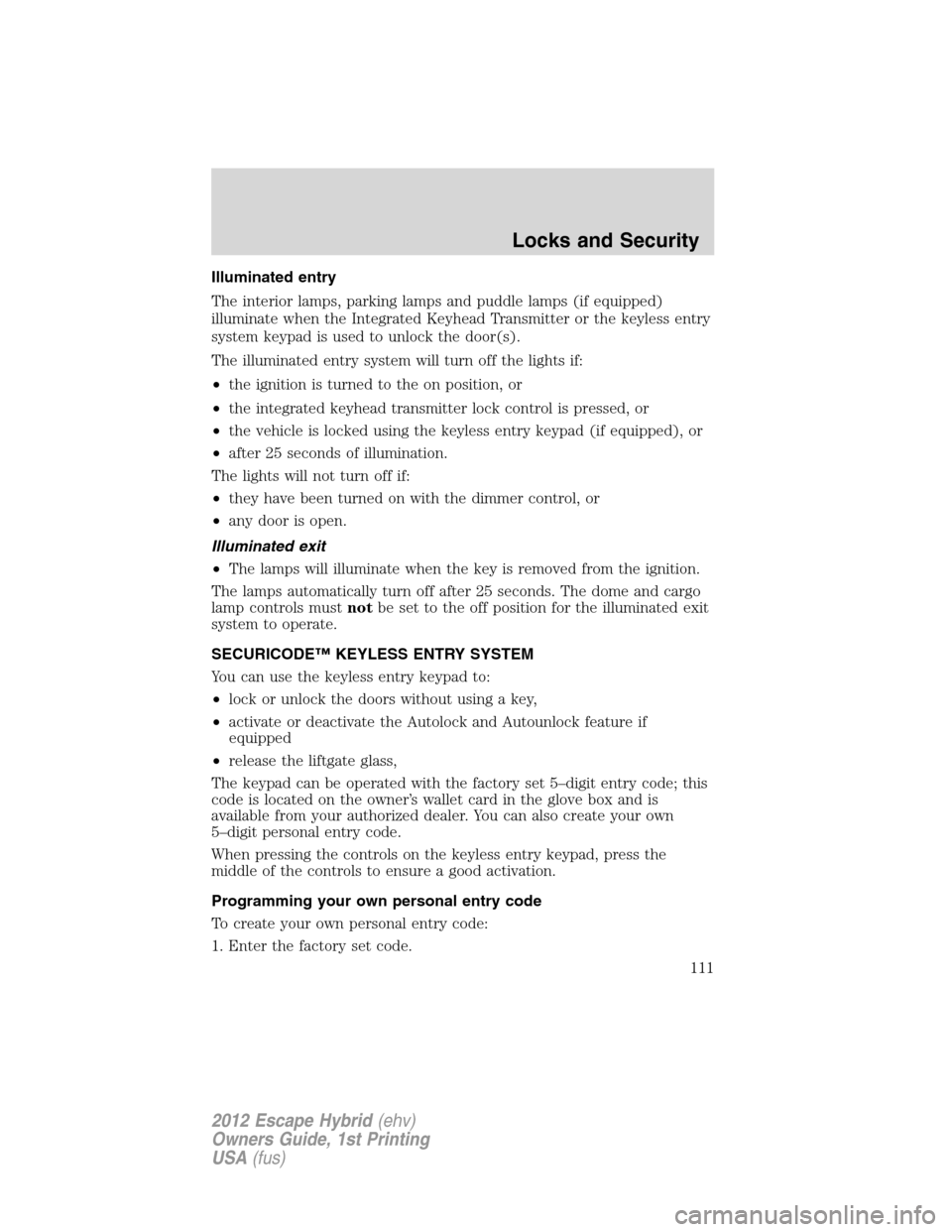

Illuminated entry
The interior lamps, parking lamps and puddle lamps (if equipped)
illuminate when the Integrated Keyhead Transmitter or the keyless entry
system keypad is used to unlock the door(s).
The illuminated entry system will turn off the lights if:
•the ignition is turned to the on position, or
•the integrated keyhead transmitter lock control is pressed, or
•the vehicle is locked using the keyless entry keypad (if equipped), or
•after 25 seconds of illumination.
The lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
Illuminated exit
•The lamps will illuminate when the key is removed from the ignition.
The lamps automatically turn off after 25 seconds. The dome and cargo
lamp controls mustnotbe set to the off position for the illuminated exit
system to operate.
SECURICODE™ KEYLESS ENTRY SYSTEM
You can use the keyless entry keypad to:
•lock or unlock the doors without using a key,
•activate or deactivate the Autolock and Autounlock feature if
equipped
•release the liftgate glass,
The keypad can be operated with the factory set 5–digit entry code; this
code is located on the owner’s wallet card in the glove box and is
available from your authorized dealer. You can also create your own
5–digit personal entry code.
When pressing the controls on the keyless entry keypad, press the
middle of the controls to ensure a good activation.
Programming your own personal entry code
To create your own personal entry code:
1. Enter the factory set code.
Locks and Security
111
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

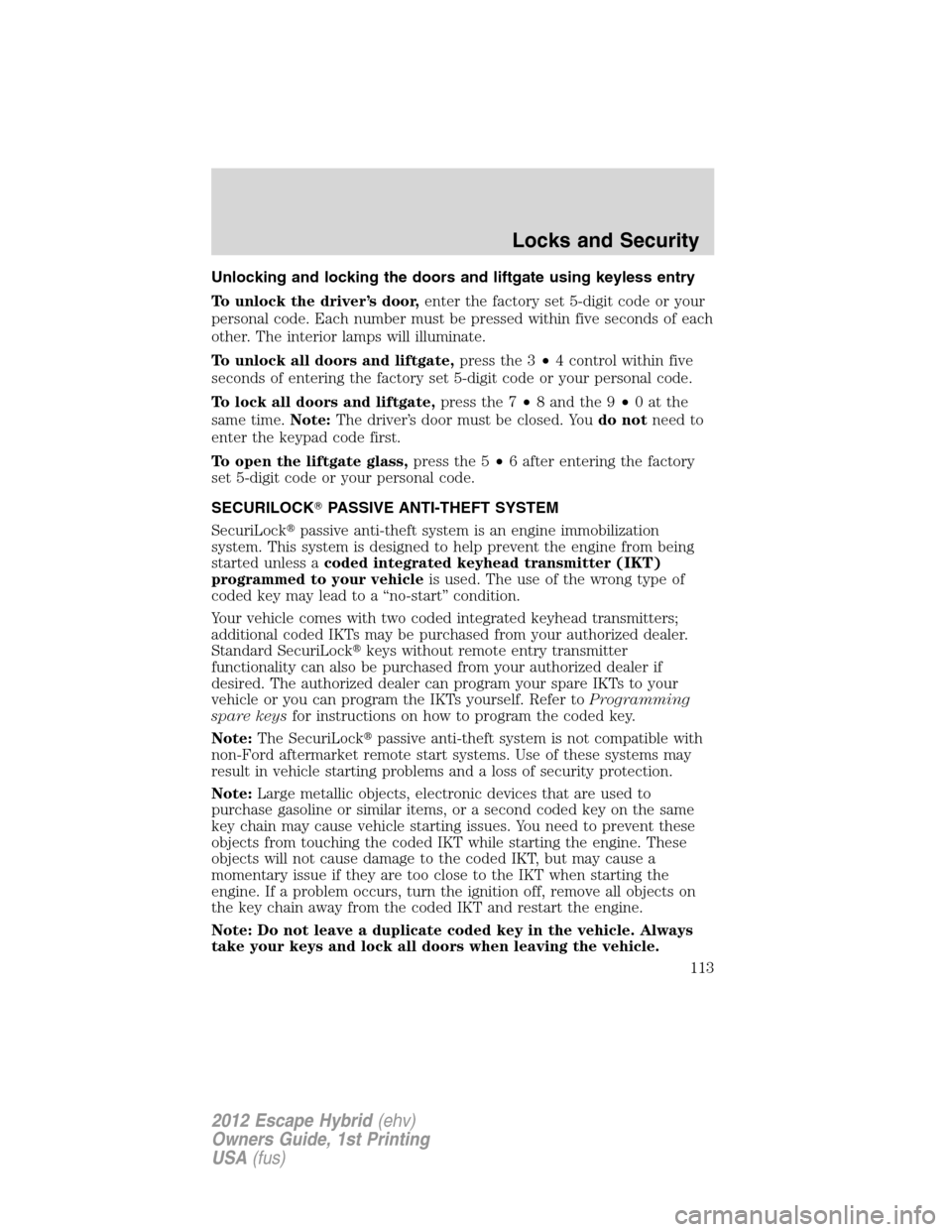

Unlocking and locking the doors and liftgate using keyless entry
To unlock the driver’s door,enter the factory set 5-digit code or your
personal code. Each number must be pressed within five seconds of each
other. The interior lamps will illuminate.
To unlock all doors and liftgate,press the 3•4 control within five
seconds of entering the factory set 5-digit code or your personal code.
To lock all doors and liftgate,press the 7•8 and the 9•0atthe
same time.Note:The driver’s door must be closed. Youdo notneed to
enter the keypad code first.
To open the liftgate glass,press the 5•6 after entering the factory
set 5-digit code or your personal code.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLockpassive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded integrated keyhead transmitter (IKT)
programmed to your vehicleis used. The use of the wrong type of
coded key may lead to a “no-start” condition.
Your vehicle comes with two coded integrated keyhead transmitters;
additional coded IKTs may be purchased from your authorized dealer.
Standard SecuriLockkeys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired. The authorized dealer can program your spare IKTs to your
vehicle or you can program the IKTs yourself. Refer toProgramming
spare keysfor instructions on how to program the coded key.
Note:The SecuriLockpassive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded IKT while starting the engine. These
objects will not cause damage to the coded IKT, but may cause a
momentary issue if they are too close to the IKT when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded IKT and restart the engine.
Note: Do not leave a duplicate coded key in the vehicle. Always
take your keys and lock all doors when leaving the vehicle.
Locks and Security
113
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

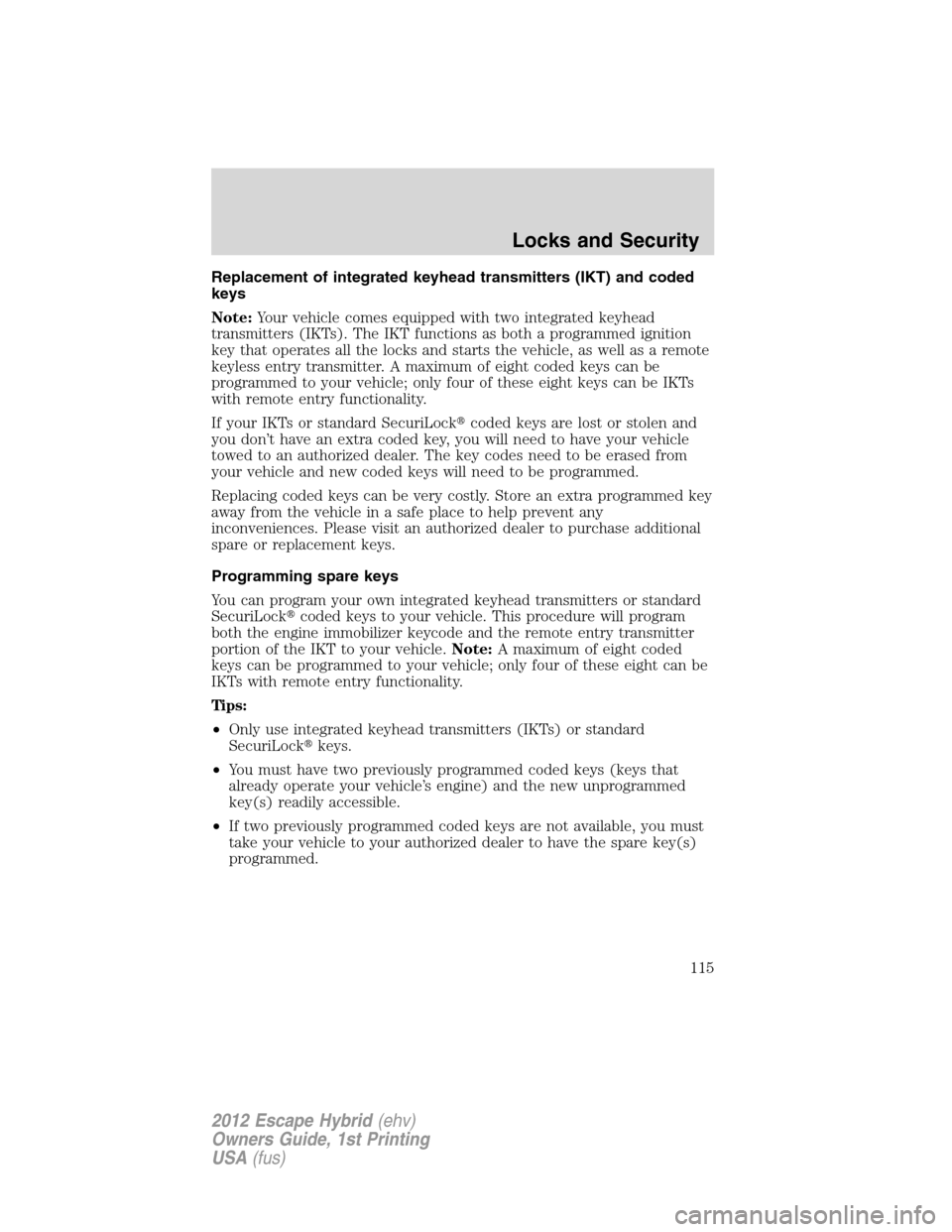

Replacement of integrated keyhead transmitters (IKT) and coded
keys
Note:Your vehicle comes equipped with two integrated keyhead
transmitters (IKTs). The IKT functions as both a programmed ignition
key that operates all the locks and starts the vehicle, as well as a remote
keyless entry transmitter. A maximum of eight coded keys can be
programmed to your vehicle; only four of these eight keys can be IKTs
with remote entry functionality.
If your IKTs or standard SecuriLockcoded keys are lost or stolen and
you don’t have an extra coded key, you will need to have your vehicle
towed to an authorized dealer. The key codes need to be erased from
your vehicle and new coded keys will need to be programmed.
Replacing coded keys can be very costly. Store an extra programmed key
away from the vehicle in a safe place to help prevent any
inconveniences. Please visit an authorized dealer to purchase additional
spare or replacement keys.
Programming spare keys
You can program your own integrated keyhead transmitters or standard
SecuriLockcoded keys to your vehicle. This procedure will program
both the engine immobilizer keycode and the remote entry transmitter
portion of the IKT to your vehicle.Note:A maximum of eight coded
keys can be programmed to your vehicle; only four of these eight can be
IKTs with remote entry functionality.
Tips:
•Only use integrated keyhead transmitters (IKTs) or standard
SecuriLockkeys.
•You must have two previously programmed coded keys (keys that
already operate your vehicle’s engine) and the new unprogrammed
key(s) readily accessible.
•If two previously programmed coded keys are not available, you must
take your vehicle to your authorized dealer to have the spare key(s)
programmed.
Locks and Security
115
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

FORD CUSTOM ACCESSORIES FOR YOUR VEHICLE
A wide selection of Ford Custom Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Ford Custom Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at:www.fordaccessories.com(U.S. only).
Exterior style
•Bug shields•Splash guards
•Deflectors•Rear spoiler
Interior style
•Ambient lighting kit•Floor mats
•Rear seat entertainment*
Lifestyle
•Ash cup / smoker’s package•Roof racks and carriers*
•Cross bars•Cargo net
•Navigation*•SUV camping net*
•Cargo organization and management
Peace of mind
•Keyless entry keypad•Protective seat covers*
•Wheel locks•Back up alarm*
•Bumper and hitch mounted parking sensors*
Accessories
330
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

K
Keyless entry system
autolock ...........................103, 105
keypad .....................................111
locking and unlocking doors ..113
programming entry code .......111
Keys .....................................97, 115
positions of the ignition .........211
L
Lamps
bulb replacement
specifications chart ..................66
daytime running light ...............61
fog lamps ...................................60
headlamps .................................59
headlamps, flash to pass ..........60
instrument panel, dimming .....61
interior lamps ...............63–64, 66
replacing bulbs .........................67
LATCH anchors .........................167
Liftgate ................................93, 109
Lights, warning and indicator ....20
anti-lock brakes (ABS) ..........217
Loading instructions .................205
Load limits .................................199
Locks
autolock ...........................103, 105
childproof ................................107
doors ........................................103
Lubricant specifications ...........324
Luggage rack ...............................94
Lug nuts ....................................268
Lumbar support, seats .............121M
Manual transmission
fluid capacities ........................324
lubricant specifications ..........324
Message center ...........................27
english/metric button ...............31
system check button ................31
warning messages .....................31
Mirrors ...................................79–80
automatic dimming rearview
mirror ........................................79
fold away ...................................80
heated ........................................81
side view mirrors (power) .......80
Moon roof ....................................84
Motorcraftparts ..............289, 323
MyKey ..........................................98
N
Navigation system .......................53
O
Octane rating ............................311
Oil (see Engine oil) ..................296
P
Parental MyKey programming ...98
Park Assist ................................233
Parking brake ............................218
Parts
(see Motorcraftparts) ...........323
Passenger Occupant
Classification Sensor .................131
Index
356
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Power distribution box
(see Fuses) ...............................253
Power door locks ......................103
Power mirrors .............................80
Power point .................................76
Power steering ..........................225
Power Windows ...........................78
Preparing to drive your
vehicle ........................................225
R
Radio ............................................36
Rear-view camera system .........231
Recommendations for
attaching safety restraints
for children ................................161
Relays ........................................249
Remote entry system .......107–108
illuminated entry ....................111
locking/unlocking
doors ................................108–109
opening the trunk ...................109
panic alarm .............................109
replacement/additional
transmitters .............................110
replacing the batteries ...........110
Reverse sensing system ...........229
Roadside assistance ..................246
Roof rack ...............................94–95
S
Safety belts (see Safety
restraints) ..................133–135, 137
Safety Canopy ...................153, 155
Safety defects, reporting ..........282Safety restraints ........133–135, 137
Belt-Minder...........................139
extension assembly ................138
for adults .........................134–135
for children .............................159
Occupant Classification
Sensor ......................................131
warning light and chime ........138
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................328
Satellite Radio .............................40
Satellite Radio Information ........50
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............342
Seats ..........................................117
child safety seats ....................163
heated ......................................123
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................113
Servicing your vehicle ..............290
Setting the clock .........................36
Snowplowing ...............................14
SOS Post Crash Alert ...............158
Spark plugs,
specifications .....................323, 327
Special notice
ambulance conversions ............14
utility-type vehicles ..................13
Specification chart,
lubricants ...................................324
Speed control ..............................81
Index
357
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)
