spark plugs replace FORD ESCAPE HYBRID 2012 2.G Owners Manual

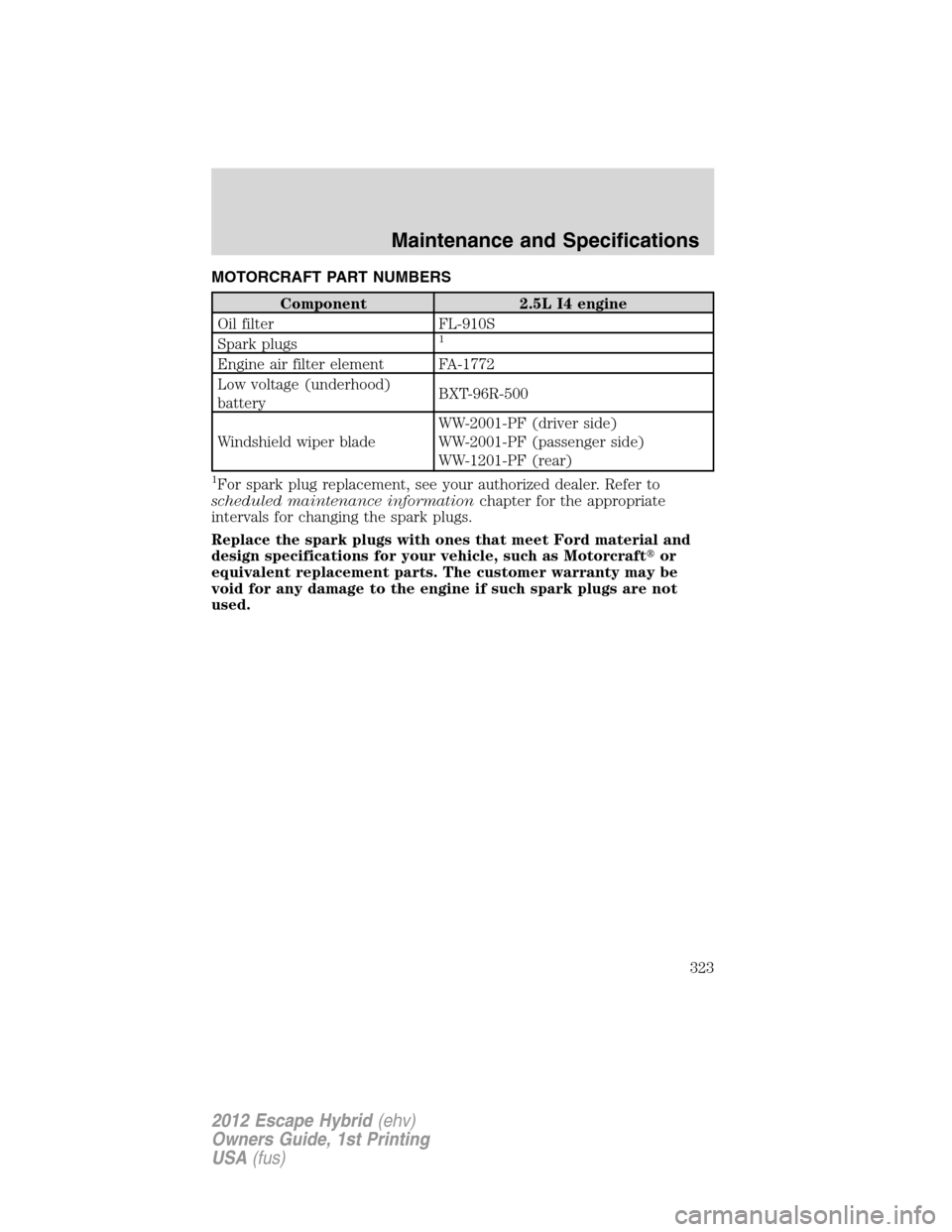

MOTORCRAFT PART NUMBERS
Component 2.5L I4 engine
Oil filter FL-910S
Spark plugs
1
Engine air filter element FA-1772
Low voltage (underhood)
batteryBXT-96R-500
Windshield wiper bladeWW-2001-PF (driver side)
WW-2001-PF (passenger side)
WW-1201-PF (rear)
1For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationchapter for the appropriate
intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraftor
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
Maintenance and Specifications
323
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

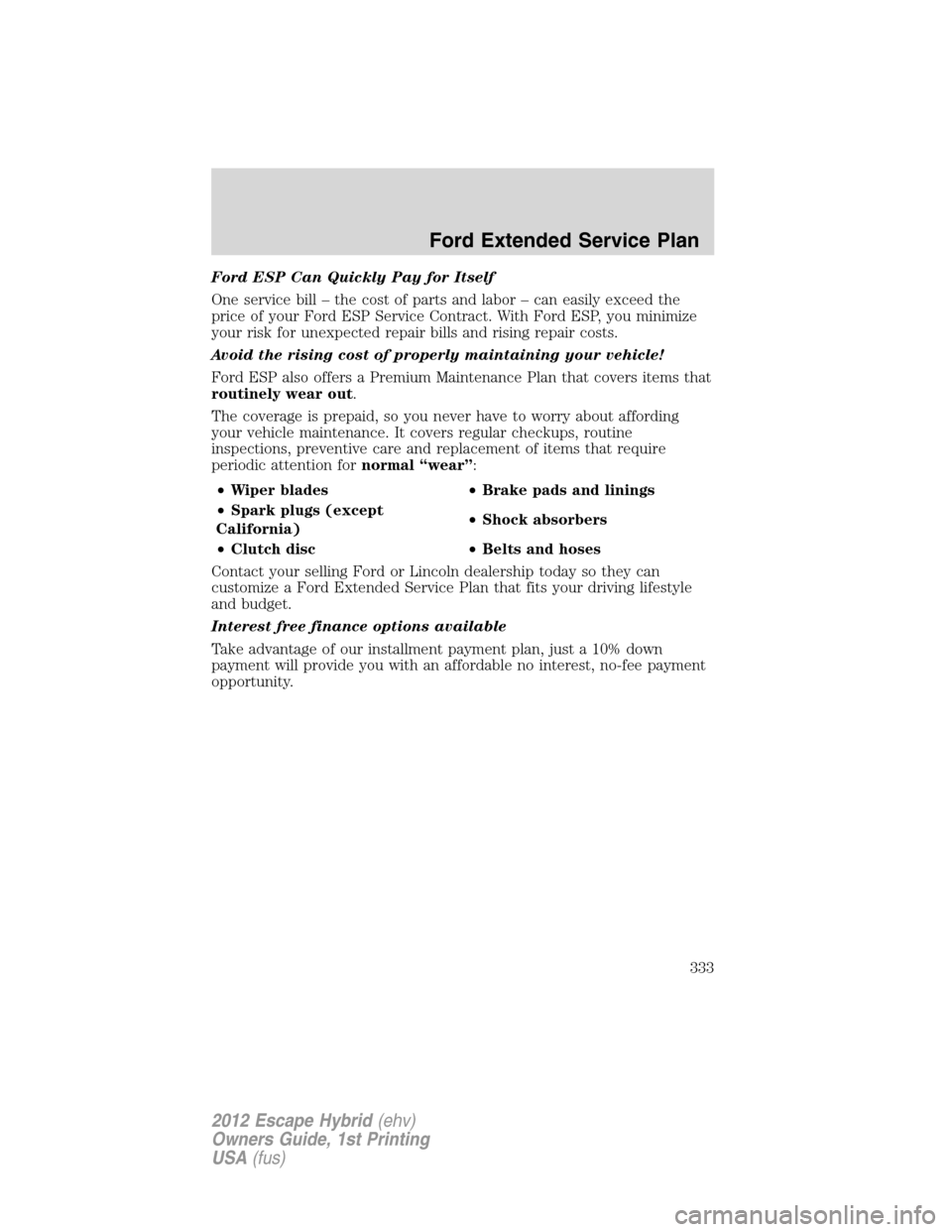

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
333
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

Additional maintenance items
1
Miles (x 1,000) 20 30 40 60 80 90 100 120 140 150
Kilometers (x 1,000) 32 48 64 96 128 144 160 192 225 240
Replace cabin air filter (if equipped)• ••• •••
Replace climate-controlled seat filter (if equipped)•• • • •
Replace engine air filter (except Fusion Hybrid and MKZ Hybrid)
2
•• • • •
Change engine coolant
3
•
Change motor/electronics coolant (hybrid vehicles only)
3
•
Replace spark plugs•
Inspect accessory drive belt(s)••
Change rear axle fluid (AWD vehicles)•
Change transmission fluid (Fiesta)•
Replace accessory drive belt(s) if not replaced within the last
100,000 miles (160,000 km)•
Replace timing belt if not replaced within the last 150,000 miles
(240,000 km) or 10 years (Fiesta);failure to replace belt can cause
internal engine damage•
1Additional maintenance items can be performed within 3,000 miles (4,800 km) of the last oil change. Do not exceed
the designated distance for the interval.2Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that does not normally require replacement. Refer to
Air filterin theMaintenance and Specificationschapter for more information.3Initial replacement at 6 years or 100,000 miles (160,000 km), then every 3 years or 50,000 miles (80,000 km)
Scheduled Maintenance
343
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

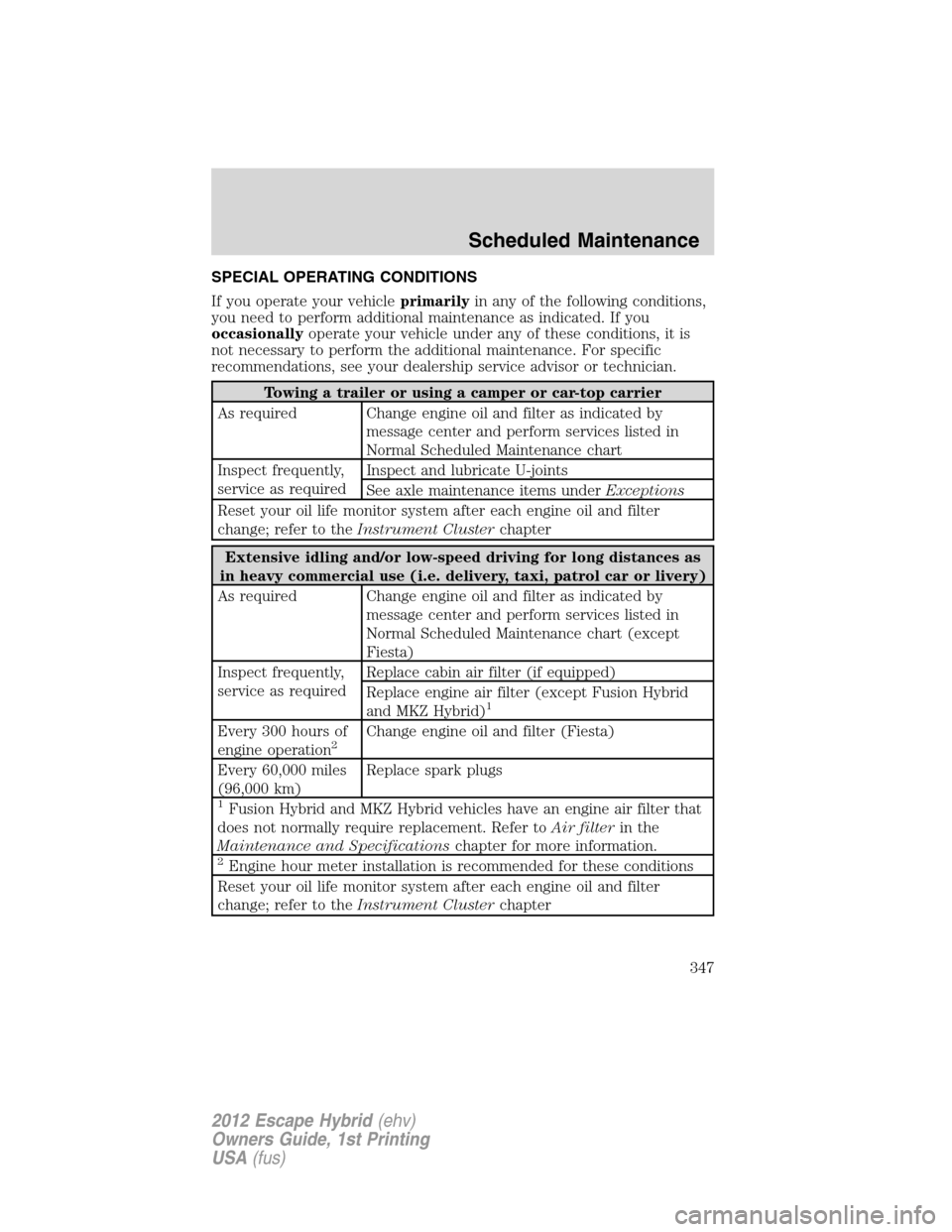

SPECIAL OPERATING CONDITIONS
If you operate your vehicleprimarilyin any of the following conditions,
you need to perform additional maintenance as indicated. If you
occasionallyoperate your vehicle under any of these conditions, it is
not necessary to perform the additional maintenance. For specific
recommendations, see your dealership service advisor or technician.
Towing a trailer or using a camper or car-top carrier
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart
Inspect frequently,
service as requiredInspect and lubricate U-joints
See axle maintenance items underExceptions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Extensive idling and/or low-speed driving for long distances as
in heavy commercial use (i.e. delivery, taxi, patrol car or livery)
As required Change engine oil and filter as indicated by
message center and perform services listed in
Normal Scheduled Maintenance chart (except
Fiesta)
Inspect frequently,
service as requiredReplace cabin air filter (if equipped)
Replace engine air filter (except Fusion Hybrid
and MKZ Hybrid)
1
Every 300 hours of
engine operation2Change engine oil and filter (Fiesta)
Every 60,000 miles
(96,000 km)Replace spark plugs
1Fusion Hybrid and MKZ Hybrid vehicles have an engine air filter that
does not normally require replacement. Refer toAir filterin the
Maintenance and Specificationschapter for more information.
2Engine hour meter installation is recommended for these conditions
Reset your oil life monitor system after each engine oil and filter
change; refer to theInstrument Clusterchapter
Scheduled Maintenance
347
2012 Escape Hybrid(ehv)
Owners Guide, 1st Printing
USA(fus)

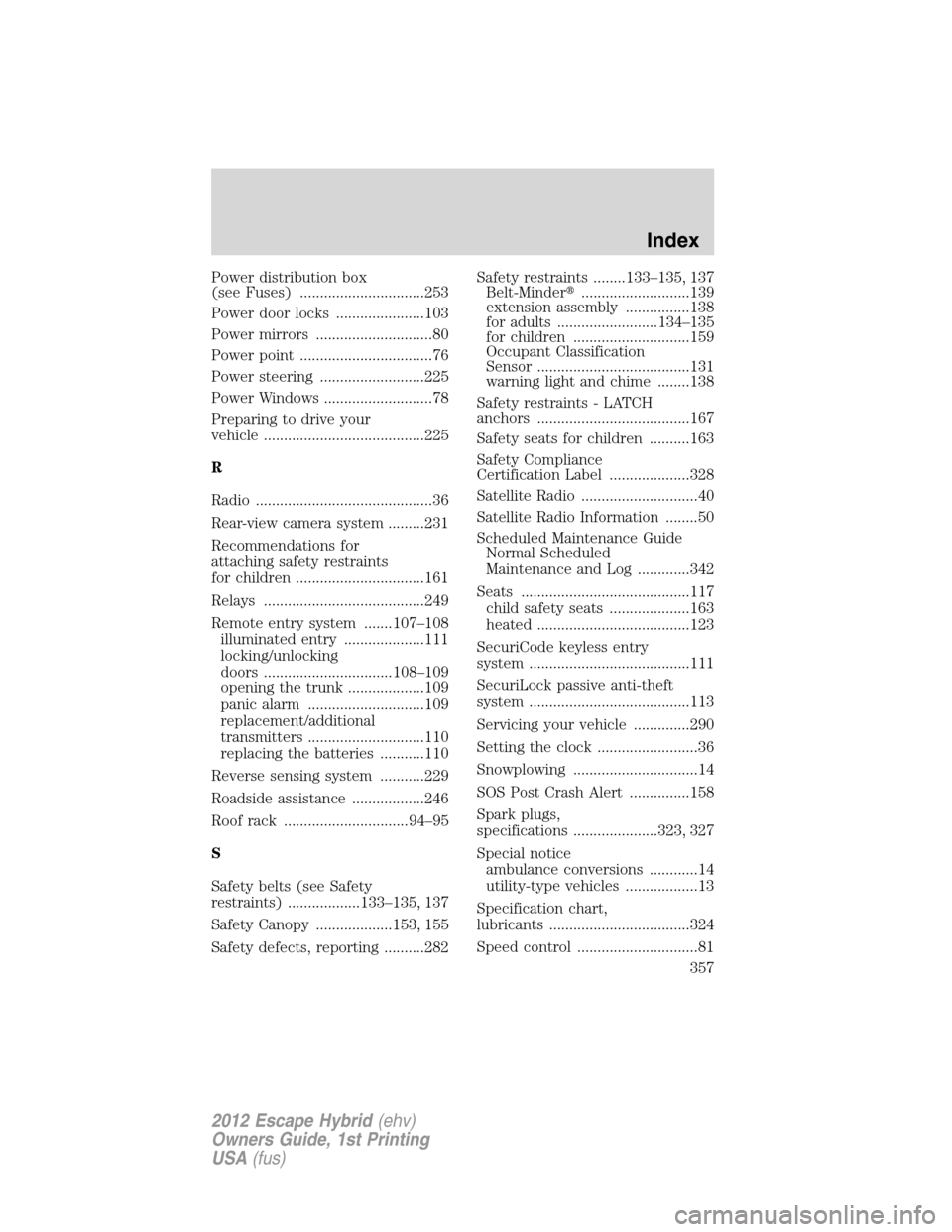

Power distribution box
(see Fuses) ...............................253
Power door locks ......................103
Power mirrors .............................80
Power point .................................76
Power steering ..........................225
Power Windows ...........................78
Preparing to drive your
vehicle ........................................225
R
Radio ............................................36
Rear-view camera system .........231
Recommendations for
attaching safety restraints
for children ................................161
Relays ........................................249
Remote entry system .......107–108
illuminated entry ....................111
locking/unlocking
doors ................................108–109
opening the trunk ...................109
panic alarm .............................109
replacement/additional
transmitters .............................110
replacing the batteries ...........110
Reverse sensing system ...........229
Roadside assistance ..................246
Roof rack ...............................94–95
S
Safety belts (see Safety
restraints) ..................133–135, 137
Safety Canopy ...................153, 155
Safety defects, reporting ..........282Safety restraints ........133–135, 137
Belt-Minder...........................139
extension assembly ................138
for adults .........................134–135
for children .............................159
Occupant Classification
Sensor ......................................131
warning light and chime ........138
Safety restraints - LATCH
anchors ......................................167
Safety seats for children ..........163
Safety Compliance
Certification Label ....................328
Satellite Radio .............................40
Satellite Radio Information ........50
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............342
Seats ..........................................117
child safety seats ....................163
heated ......................................123
SecuriCode keyless entry
system ........................................111
SecuriLock passive anti-theft
system ........................................113
Servicing your vehicle ..............290
Setting the clock .........................36
Snowplowing ...............................14
SOS Post Crash Alert ...............158
Spark plugs,
specifications .....................323, 327
Special notice
ambulance conversions ............14
utility-type vehicles ..................13
Specification chart,
lubricants ...................................324
Speed control ..............................81
