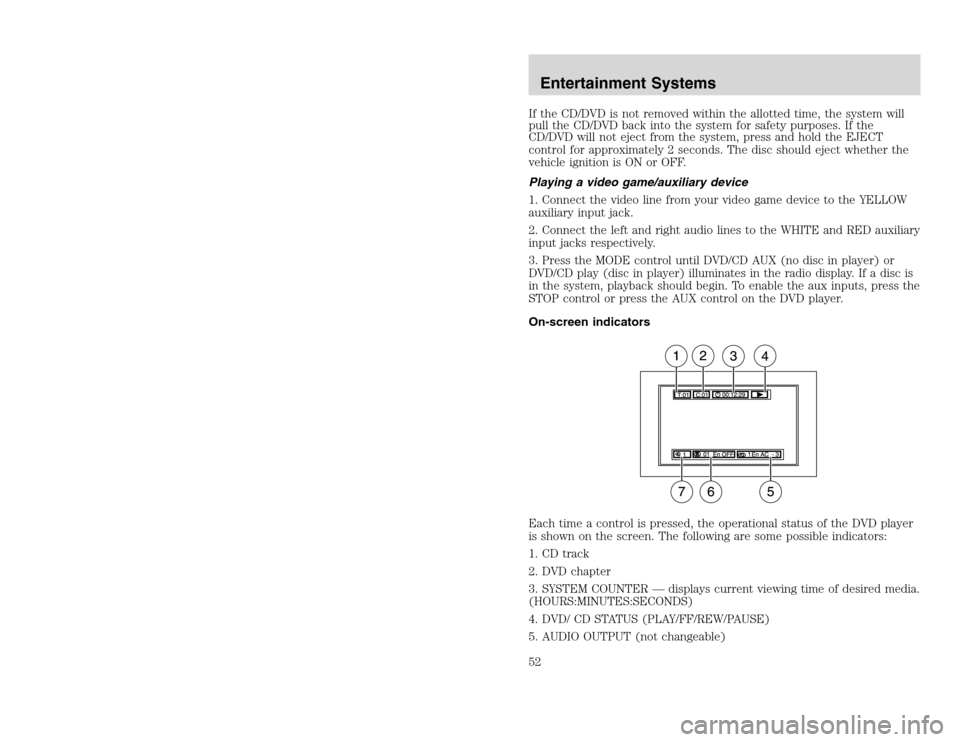

If the CD/DVD is not removed within the allotted time, the system will
pull the CD/DVD back into the system for safety purposes. If the
CD/DVD will not eject from the system, press and hold the EJECT
control for approximately 2 seconds. The disc should eject whether the
vehicle ignition is ON or OFF.
Playing a video game/auxiliary device
1. Connect the video line from your video game device to the YELLOW
auxiliary input jack.
2. Connect the left and right audio lines to the WHITE and RED auxiliary
input jacks respectively.
3. Press the MODE control until DVD/CD AUX (no disc in player) or
DVD/CD play (disc in player) illuminates in the radio display. If a disc is
in the system, playback should begin. To enable the aux inputs, press the
STOP control or press the AUX control on the DVD player.
On-screen indicators
Each time a control is pressed, the operational status of the DVD player
is shown on the screen. The following are some possible indicators:
1. CD track
2. DVD chapter
3. SYSTEM COUNTER — displays current viewing time of desired media.
(HOURS:MINUTES:SECONDS)
4. DVD/ CD STATUS (PLAY/FF/REW/PAUSE)
5. AUDIO OUTPUT (not changeable)Entertainment Systems52
If the CD/DVD is not removed within the allotted time, the system will
pull the CD/DVD back into the system for safety purposes. If the
CD/DVD will not eject from the system, press and hold the EJECT
control for approximately 2 seconds. The disc should eject whether the
vehicle ignition is ON or OFF.
Playing a video game/auxiliary device
1. Connect the video line from your video game device to the YELLOW
auxiliary input jack.
2. Connect the left and right audio lines to the WHITE and RED auxiliary
input jacks respectively.
3. Press the MODE control until DVD/CD AUX (no disc in player) or
DVD/CD play (disc in player) illuminates in the radio display. If a disc is
in the system, playback should begin. To enable the aux inputs, press the
STOP control or press the AUX control on the DVD player.
On-screen indicators
Each time a control is pressed, the operational status of the DVD player
is shown on the screen. The following are some possible indicators:
1. CD track
2. DVD chapter
3. SYSTEM COUNTER — displays current viewing time of desired media.
(HOURS:MINUTES:SECONDS)
4. DVD/ CD STATUS (PLAY/FF/REW/PAUSE)
5. AUDIO OUTPUT (not changeable)Entertainment Systems52

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 27 A

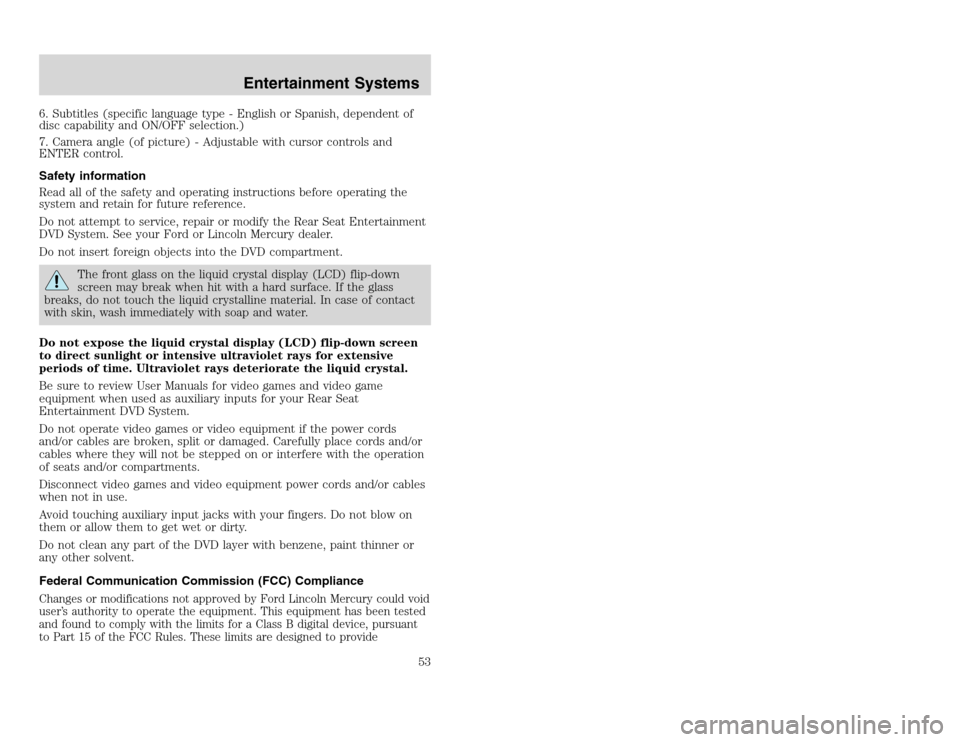

6. Subtitles (specific language type - English or Spanish, dependent of
disc capability and ON/OFF selection.)
7. Camera angle (of picture) - Adjustable with cursor controls and
ENTER control.
Safety information
Read all of the safety and operating instructions before operating the
system and retain for future reference.
Do not attempt to service, repair or modify the Rear Seat Entertainment
DVD System. See your Ford or Lincoln Mercury dealer.
Do not insert foreign objects into the DVD compartment.
The front glass on the liquid crystal display (LCD) flip-down
screen may break when hit with a hard surface. If the glass
breaks, do not touch the liquid crystalline material. In case of contact
with skin, wash immediately with soap and water.
Do not expose the liquid crystal display (LCD) flip-down screen
to direct sunlight or intensive ultraviolet rays for extensive
periods of time. Ultraviolet rays deteriorate the liquid crystal.
Be sure to review User Manuals for video games and video game
equipment when used as auxiliary inputs for your Rear Seat
Entertainment DVD System.
Do not operate video games or video equipment if the power cords
and/or cables are broken, split or damaged. Carefully place cords and/or
cables where they will not be stepped on or interfere with the operation
of seats and/or compartments.
Disconnect video games and video equipment power cords and/or cables
when not in use.
Avoid touching auxiliary input jacks with your fingers. Do not blow on
them or allow them to get wet or dirty.
Do not clean any part of the DVD layer with benzene, paint thinner or
any other solvent.
Federal Communication Commission (FCC) Compliance
Changes or modifications not approved by Ford Lincoln Mercury could void
user’s authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide
Entertainment Systems
53
6. Subtitles (specific language type - English or Spanish, dependent of
disc capability and ON/OFF selection.)
7. Camera angle (of picture) - Adjustable with cursor controls and
ENTER control.
Safety information
Read all of the safety and operating instructions before operating the
system and retain for future reference.
Do not attempt to service, repair or modify the Rear Seat Entertainment
DVD System. See your Ford or Lincoln Mercury dealer.
Do not insert foreign objects into the DVD compartment.
The front glass on the liquid crystal display (LCD) flip-down
screen may break when hit with a hard surface. If the glass
breaks, do not touch the liquid crystalline material. In case of contact
with skin, wash immediately with soap and water.
Do not expose the liquid crystal display (LCD) flip-down screen
to direct sunlight or intensive ultraviolet rays for extensive
periods of time. Ultraviolet rays deteriorate the liquid crystal.
Be sure to review User Manuals for video games and video game
equipment when used as auxiliary inputs for your Rear Seat
Entertainment DVD System.
Do not operate video games or video equipment if the power cords
and/or cables are broken, split or damaged. Carefully place cords and/or
cables where they will not be stepped on or interfere with the operation
of seats and/or compartments.
Disconnect video games and video equipment power cords and/or cables
when not in use.
Avoid touching auxiliary input jacks with your fingers. Do not blow on
them or allow them to get wet or dirty.
Do not clean any part of the DVD layer with benzene, paint thinner or
any other solvent.
Federal Communication Commission (FCC) Compliance
Changes or modifications not approved by Ford Lincoln Mercury could void
user’s authority to operate the equipment. This equipment has been tested
and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide
Entertainment Systems
53

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 27 B

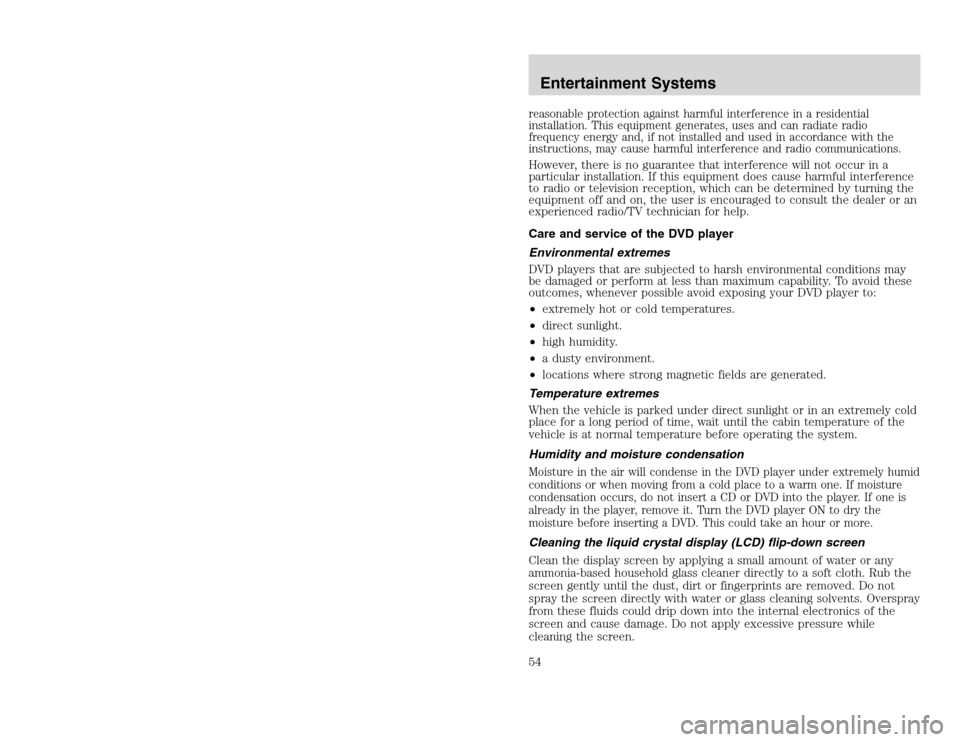

reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference and radio communications.However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Care and service of the DVD player
Environmental extremes
DVD players that are subjected to harsh environmental conditions may
be damaged or perform at less than maximum capability. To avoid these
outcomes, whenever possible avoid exposing your DVD player to:
•extremely hot or cold temperatures.
•direct sunlight.
•high humidity.
•a dusty environment.
•locations where strong magnetic fields are generated.
Temperature extremes
When the vehicle is parked under direct sunlight or in an extremely cold
place for a long period of time, wait until the cabin temperature of the
vehicle is at normal temperature before operating the system.
Humidity and moisture condensationMoisture in the air will condense in the DVD player under extremely humid
conditions or when moving from a cold place to a warm one. If moisture
condensation occurs, do not insert a CD or DVD into the player. If one is
already in the player, remove it. Turn the DVD player ON to dry the
moisture before inserting a DVD. This could take an hour or more.Cleaning the liquid crystal display (LCD) flip-down screen
Clean the display screen by applying a small amount of water or any
ammonia-based household glass cleaner directly to a soft cloth. Rub the
screen gently until the dust, dirt or fingerprints are removed. Do not
spray the screen directly with water or glass cleaning solvents. Overspray
from these fluids could drip down into the internal electronics of the
screen and cause damage. Do not apply excessive pressure while
cleaning the screen.Entertainment Systems54
reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference and radio communications.However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to consult the dealer or an
experienced radio/TV technician for help.
Care and service of the DVD player
Environmental extremes
DVD players that are subjected to harsh environmental conditions may
be damaged or perform at less than maximum capability. To avoid these
outcomes, whenever possible avoid exposing your DVD player to:
•extremely hot or cold temperatures.
•direct sunlight.
•high humidity.
•a dusty environment.
•locations where strong magnetic fields are generated.
Temperature extremes
When the vehicle is parked under direct sunlight or in an extremely cold
place for a long period of time, wait until the cabin temperature of the
vehicle is at normal temperature before operating the system.
Humidity and moisture condensationMoisture in the air will condense in the DVD player under extremely humid
conditions or when moving from a cold place to a warm one. If moisture
condensation occurs, do not insert a CD or DVD into the player. If one is
already in the player, remove it. Turn the DVD player ON to dry the
moisture before inserting a DVD. This could take an hour or more.Cleaning the liquid crystal display (LCD) flip-down screen
Clean the display screen by applying a small amount of water or any
ammonia-based household glass cleaner directly to a soft cloth. Rub the
screen gently until the dust, dirt or fingerprints are removed. Do not
spray the screen directly with water or glass cleaning solvents. Overspray
from these fluids could drip down into the internal electronics of the
screen and cause damage. Do not apply excessive pressure while
cleaning the screen.Entertainment Systems54

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 28 B

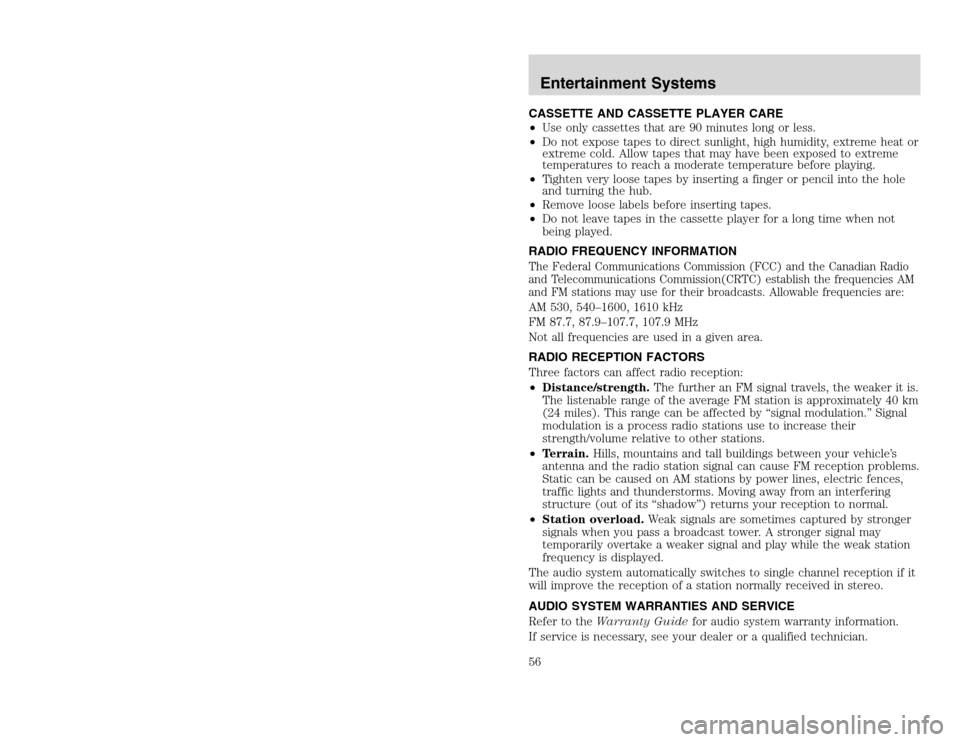

CASSETTE AND CASSETTE PLAYER CARE
•Use only cassettes that are 90 minutes long or less.
•Do not expose tapes to direct sunlight, high humidity, extreme heat or
extreme cold. Allow tapes that may have been exposed to extreme
temperatures to reach a moderate temperature before playing.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
•Remove loose labels before inserting tapes.
•Do not leave tapes in the cassette player for a long time when not
being played.
RADIO FREQUENCY INFORMATIONThe Federal Communications Commission (FCC) and the Canadian Radio
and Telecommunications Commission(CRTC) establish the frequencies AM
and FM stations may use for their broadcasts. Allowable frequencies are:AM 530, 540–1600, 1610 kHz
FM 87.7, 87.9–107.7, 107.9 MHz
Not all frequencies are used in a given area.
RADIO RECEPTION FACTORS
Three factors can affect radio reception:
•Distance/strength.The further an FM signal travels, the weaker it is.
The listenable range of the average FM station is approximately 40 km
(24 miles). This range can be affected by “signal modulation.” Signal
modulation is a process radio stations use to increase their
strength/volume relative to other stations.
•Terrain.Hills, mountains and tall buildings between your vehicle’s
antenna and the radio station signal can cause FM reception problems.
Static can be caused on AM stations by power lines, electric fences,
traffic lights and thunderstorms. Moving away from an interfering
structure (out of its “shadow”) returns your reception to normal.
•Station overload.Weak signals are sometimes captured by stronger
signals when you pass a broadcast tower. A stronger signal may
temporarily overtake a weaker signal and play while the weak station
frequency is displayed.
The audio system automatically switches to single channel reception if it
will improve the reception of a station normally received in stereo.
AUDIO SYSTEM WARRANTIES AND SERVICE
Refer to theWarranty Guidefor audio system warranty information.
If service is necessary, see your dealer or a qualified technician.Entertainment Systems56
CASSETTE AND CASSETTE PLAYER CARE
•Use only cassettes that are 90 minutes long or less.
•Do not expose tapes to direct sunlight, high humidity, extreme heat or
extreme cold. Allow tapes that may have been exposed to extreme
temperatures to reach a moderate temperature before playing.
•Tighten very loose tapes by inserting a finger or pencil into the hole
and turning the hub.
•Remove loose labels before inserting tapes.
•Do not leave tapes in the cassette player for a long time when not
being played.
RADIO FREQUENCY INFORMATIONThe Federal Communications Commission (FCC) and the Canadian Radio
and Telecommunications Commission(CRTC) establish the frequencies AM
and FM stations may use for their broadcasts. Allowable frequencies are:AM 530, 540–1600, 1610 kHz
FM 87.7, 87.9–107.7, 107.9 MHz
Not all frequencies are used in a given area.
RADIO RECEPTION FACTORS
Three factors can affect radio reception:
•Distance/strength.The further an FM signal travels, the weaker it is.
The listenable range of the average FM station is approximately 40 km
(24 miles). This range can be affected by “signal modulation.” Signal
modulation is a process radio stations use to increase their
strength/volume relative to other stations.
•Terrain.Hills, mountains and tall buildings between your vehicle’s
antenna and the radio station signal can cause FM reception problems.
Static can be caused on AM stations by power lines, electric fences,
traffic lights and thunderstorms. Moving away from an interfering
structure (out of its “shadow”) returns your reception to normal.
•Station overload.Weak signals are sometimes captured by stronger
signals when you pass a broadcast tower. A stronger signal may
temporarily overtake a weaker signal and play while the weak station
frequency is displayed.
The audio system automatically switches to single channel reception if it
will improve the reception of a station normally received in stereo.
AUDIO SYSTEM WARRANTIES AND SERVICE
Refer to theWarranty Guidefor audio system warranty information.
If service is necessary, see your dealer or a qualified technician.Entertainment Systems56

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 31 A

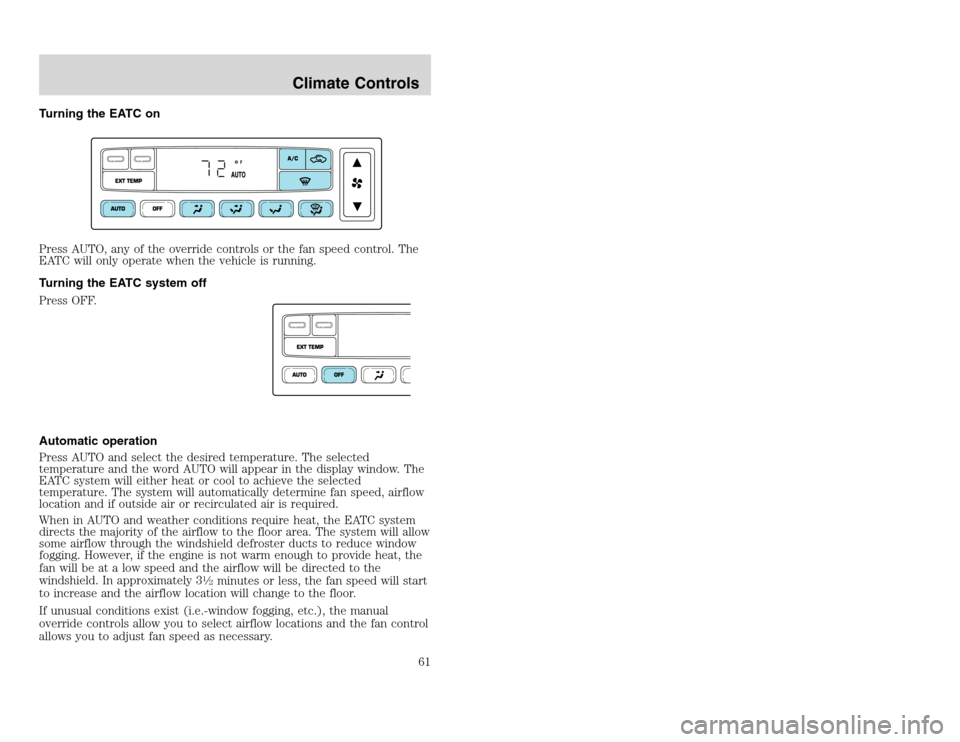

Turning the EATC on
Press AUTO, any of the override controls or the fan speed control. The
EATC will only operate when the vehicle is running.
Turning the EATC system off
Press OFF.
Automatic operation
Press AUTO and select the desired temperature. The selected
temperature and the word AUTO will appear in the display window. The
EATC system will either heat or cool to achieve the selected
temperature. The system will automatically determine fan speed, airflow
location and if outside air or recirculated air is required.
When in AUTO and weather conditions require heat, the EATC system
directs the majority of the airflow to the floor area. The system will allow
some airflow through the windshield defroster ducts to reduce window
fogging. However, if the engine is not warm enough to provide heat, the
fan will be at a low speed and the airflow will be directed to the
windshield. In approximately 3
12minutes or less, the fan speed will start
to increase and the airflow location will change to the floor.
If unusual conditions exist (i.e.-window fogging, etc.), the manual
override controls allow you to select airflow locations and the fan control
allows you to adjust fan speed as necessary.
Climate Controls
61
Turning the EATC on
Press AUTO, any of the override controls or the fan speed control. The
EATC will only operate when the vehicle is running.
Turning the EATC system off
Press OFF.
Automatic operation
Press AUTO and select the desired temperature. The selected
temperature and the word AUTO will appear in the display window. The
EATC system will either heat or cool to achieve the selected
temperature. The system will automatically determine fan speed, airflow
location and if outside air or recirculated air is required.
When in AUTO and weather conditions require heat, the EATC system
directs the majority of the airflow to the floor area. The system will allow
some airflow through the windshield defroster ducts to reduce window
fogging. However, if the engine is not warm enough to provide heat, the
fan will be at a low speed and the airflow will be directed to the
windshield. In approximately 3
12minutes or less, the fan speed will start
to increase and the airflow location will change to the floor.
If unusual conditions exist (i.e.-window fogging, etc.), the manual
override controls allow you to select airflow locations and the fan control
allows you to adjust fan speed as necessary.
Climate Controls
61

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 31 B

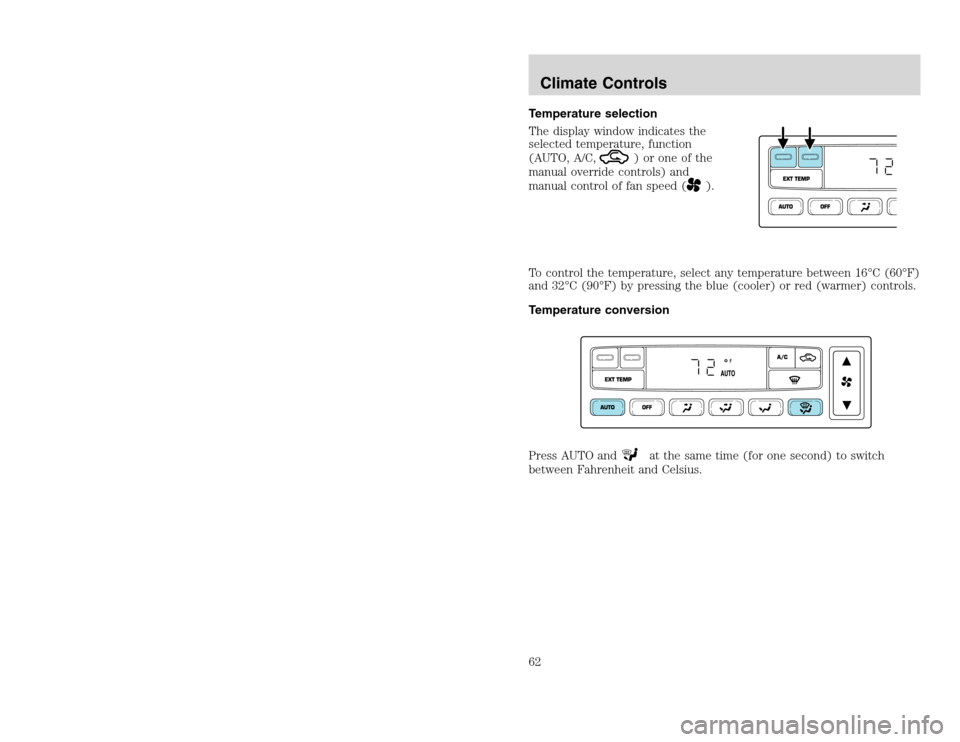

Temperature selection
The display window indicates the
selected temperature, function
(AUTO, A/C,
) or one of the
manual override controls) and
manual control of fan speed (
).
To control the temperature, select any temperature between 16°C (60°F)
and 32°C (90°F) by pressing the blue (cooler) or red (warmer) controls.
Temperature conversion
Press AUTO and
at the same time (for one second) to switch
between Fahrenheit and Celsius.
Climate Controls62
Temperature selection
The display window indicates the
selected temperature, function
(AUTO, A/C,
) or one of the
manual override controls) and
manual control of fan speed (
).
To control the temperature, select any temperature between 16°C (60°F)
and 32°C (90°F) by pressing the blue (cooler) or red (warmer) controls.
Temperature conversion
Press AUTO and
at the same time (for one second) to switch
between Fahrenheit and Celsius.
Climate Controls62

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 32 A

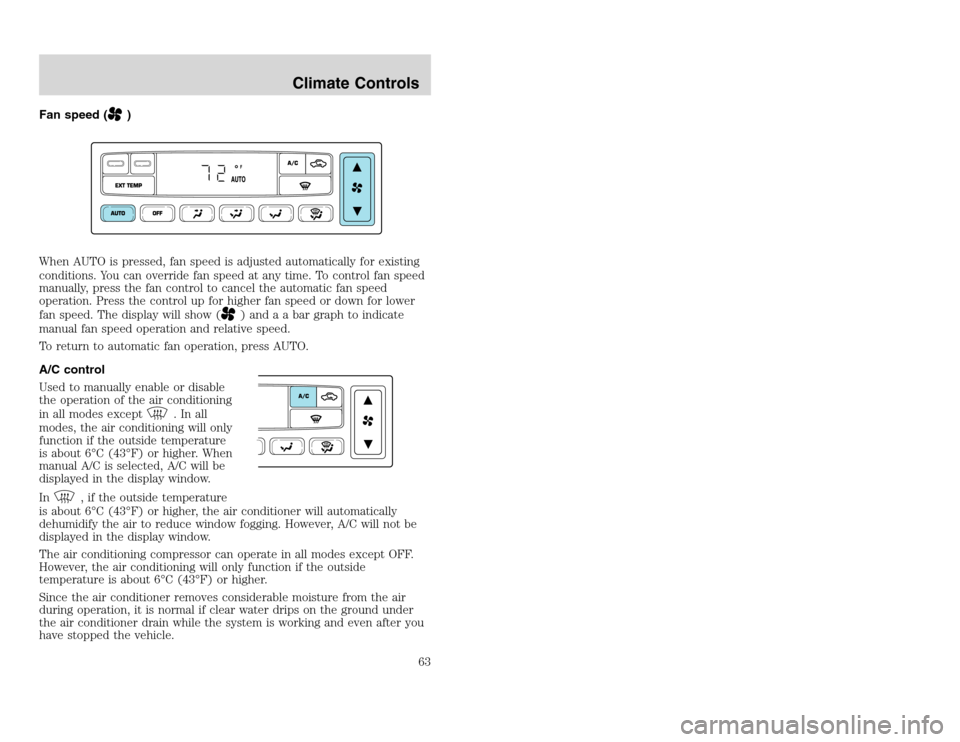

Fan speed (
)
When AUTO is pressed, fan speed is adjusted automatically for existing
conditions. You can override fan speed at any time. To control fan speed
manually, press the fan control to cancel the automatic fan speed
operation. Press the control up for higher fan speed or down for lower
fan speed. The display will show (
) and a a bar graph to indicate
manual fan speed operation and relative speed.
To return to automatic fan operation, press AUTO.
A/C control
Used to manually enable or disable
the operation of the air conditioning
in all modes except
. In all
modes, the air conditioning will only
function if the outside temperature
is about 6°C (43°F) or higher. When
manual A/C is selected, A/C will be
displayed in the display window.
In
, if the outside temperature
is about 6°C (43°F) or higher, the air conditioner will automatically
dehumidify the air to reduce window fogging. However, A/C will not be
displayed in the display window.
The air conditioning compressor can operate in all modes except OFF.
However, the air conditioning will only function if the outside
temperature is about 6°C (43°F) or higher.
Since the air conditioner removes considerable moisture from the air
during operation, it is normal if clear water drips on the ground under
the air conditioner drain while the system is working and even after you
have stopped the vehicle.
Climate Controls
63
Fan speed (
)
When AUTO is pressed, fan speed is adjusted automatically for existing
conditions. You can override fan speed at any time. To control fan speed
manually, press the fan control to cancel the automatic fan speed
operation. Press the control up for higher fan speed or down for lower
fan speed. The display will show (
) and a a bar graph to indicate
manual fan speed operation and relative speed.
To return to automatic fan operation, press AUTO.
A/C control
Used to manually enable or disable
the operation of the air conditioning
in all modes except
.Inall
modes, the air conditioning will only
function if the outside temperature
is about 6°C (43°F) or higher. When
manual A/C is selected, A/C will be
displayed in the display window.
In
, if the outside temperature
is about 6°C (43°F) or higher, the air conditioner will automatically
dehumidify the air to reduce window fogging. However, A/C will not be
displayed in the display window.
The air conditioning compressor can operate in all modes except OFF.
However, the air conditioning will only function if the outside
temperature is about 6°C (43°F) or higher.
Since the air conditioner removes considerable moisture from the air
during operation, it is normal if clear water drips on the ground under
the air conditioner drain while the system is working and even after you
have stopped the vehicle.
Climate Controls
63

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 32 B

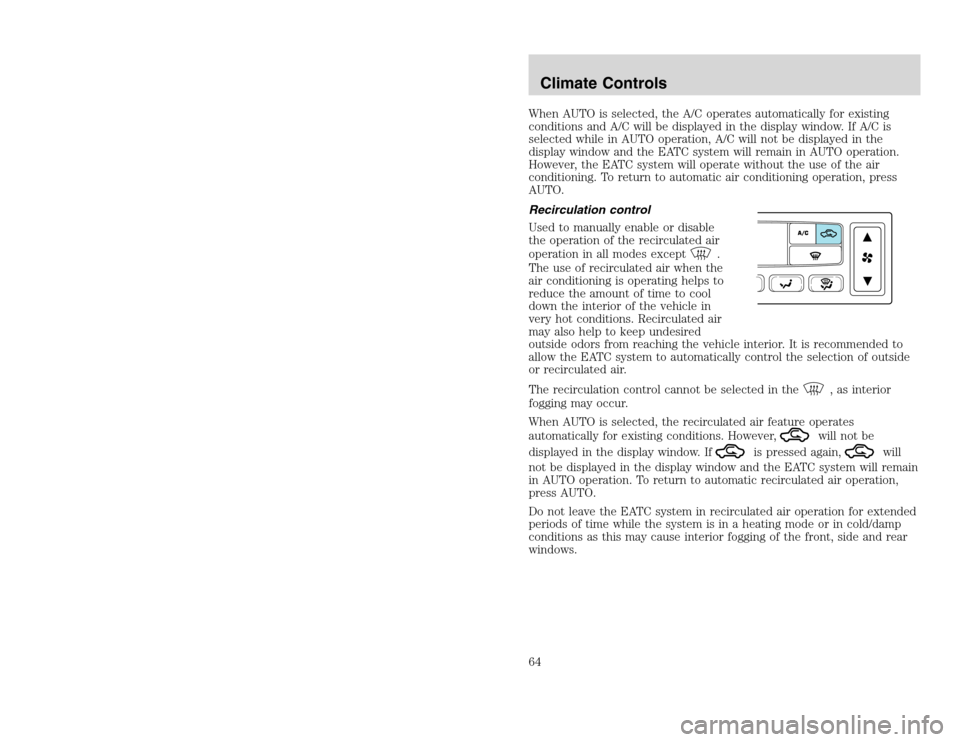

When AUTO is selected, the A/C operates automatically for existing
conditions and A/C will be displayed in the display window. If A/C is
selected while in AUTO operation, A/C will not be displayed in the
display window and the EATC system will remain in AUTO operation.
However, the EATC system will operate without the use of the air
conditioning. To return to automatic air conditioning operation, press
AUTO.
Recirculation control
Used to manually enable or disable
the operation of the recirculated air
operation in all modes except
.
The use of recirculated air when the
air conditioning is operating helps to
reduce the amount of time to cool
down the interior of the vehicle in
very hot conditions. Recirculated air
may also help to keep undesired
outside odors from reaching the vehicle interior. It is recommended to
allow the EATC system to automatically control the selection of outside
or recirculated air.
The recirculation control cannot be selected in the
, as interior
fogging may occur.
When AUTO is selected, the recirculated air feature operates
automatically for existing conditions. However,will not be
displayed in the display window. If
is pressed again,
will
not be displayed in the display window and the EATC system will remain
in AUTO operation. To return to automatic recirculated air operation,
press AUTO.
Do not leave the EATC system in recirculated air operation for extended
periods of time while the system is in a heating mode or in cold/damp
conditions as this may cause interior fogging of the front, side and rear
windows.
Climate Controls64
When AUTO is selected, the A/C operates automatically for existing
conditions and A/C will be displayed in the display window. If A/C is
selected while in AUTO operation, A/C will not be displayed in the
display window and the EATC system will remain in AUTO operation.
However, the EATC system will operate without the use of the air
conditioning. To return to automatic air conditioning operation, press
AUTO.
Recirculation control
Used to manually enable or disable
the operation of the recirculated air
operation in all modes except
.
The use of recirculated air when the
air conditioning is operating helps to
reduce the amount of time to cool
down the interior of the vehicle in
very hot conditions. Recirculated air
may also help to keep undesired
outside odors from reaching the vehicle interior. It is recommended to
allow the EATC system to automatically control the selection of outside
or recirculated air.
The recirculation control cannot be selected in the
, as interior
fogging may occur.
When AUTO is selected, the recirculated air feature operates
automatically for existing conditions. However,will not be
displayed in the display window. If
is pressed again,
will
not be displayed in the display window and the EATC system will remain
in AUTO operation. To return to automatic recirculated air operation,
press AUTO.
Do not leave the EATC system in recirculated air operation for extended
periods of time while the system is in a heating mode or in cold/damp
conditions as this may cause interior fogging of the front, side and rear
windows.
Climate Controls64

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 33 A

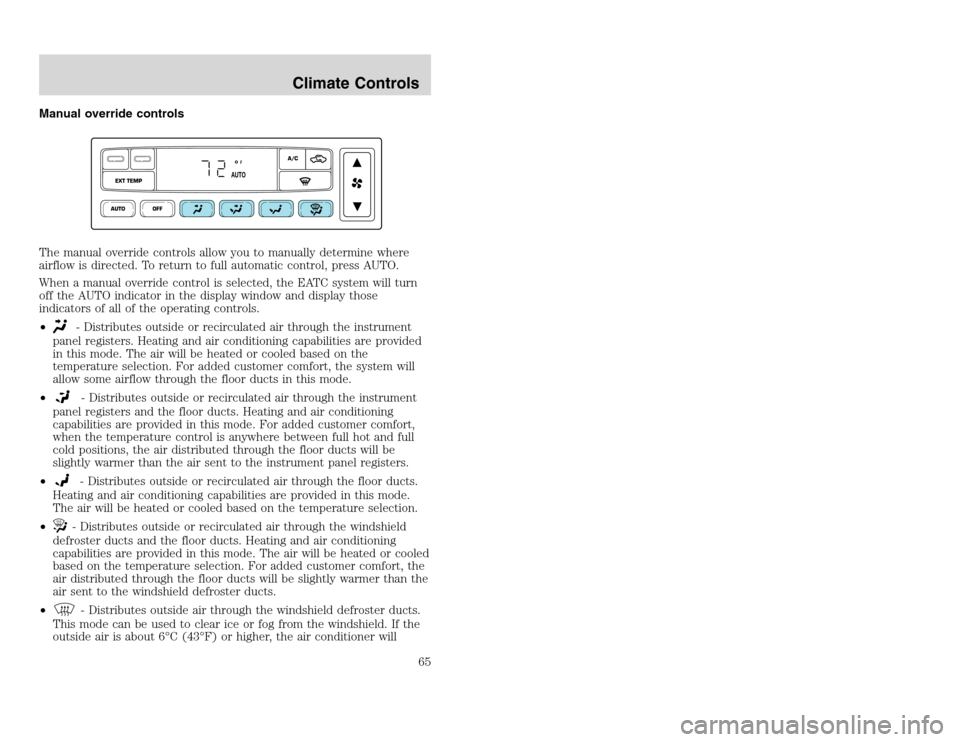

Manual override controls
The manual override controls allow you to manually determine where
airflow is directed. To return to full automatic control, press AUTO.
When a manual override control is selected, the EATC system will turn
off the AUTO indicator in the display window and display those
indicators of all of the operating controls.
•
- Distributes outside or recirculated air through the instrument
panel registers. Heating and air conditioning capabilities are provided
in this mode. The air will be heated or cooled based on the
temperature selection. For added customer comfort, the system will
allow some airflow through the floor ducts in this mode.
•- Distributes outside or recirculated air through the instrument
panel registers and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. For added customer comfort,
when the temperature control is anywhere between full hot and full
cold positions, the air distributed through the floor ducts will be
slightly warmer than the air sent to the instrument panel registers.
•- Distributes outside or recirculated air through the floor ducts.
Heating and air conditioning capabilities are provided in this mode.
The air will be heated or cooled based on the temperature selection.
•- Distributes outside or recirculated air through the windshield
defroster ducts and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. The air will be heated or cooled
based on the temperature selection. For added customer comfort, the
air distributed through the floor ducts will be slightly warmer than the
air sent to the windshield defroster ducts.
•- Distributes outside air through the windshield defroster ducts.
This mode can be used to clear ice or fog from the windshield. If the
outside air is about 6°C (43°F) or higher, the air conditioner will
OFF
AUTOEXT TEMPA/C
FAUTO
Climate Controls
65
Manual override controls
The manual override controls allow you to manually determine where
airflow is directed. To return to full automatic control, press AUTO.
When a manual override control is selected, the EATC system will turn
off the AUTO indicator in the display window and display those
indicators of all of the operating controls.
•
- Distributes outside or recirculated air through the instrument
panel registers. Heating and air conditioning capabilities are provided
in this mode. The air will be heated or cooled based on the
temperature selection. For added customer comfort, the system will
allow some airflow through the floor ducts in this mode.
•- Distributes outside or recirculated air through the instrument
panel registers and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. For added customer comfort,
when the temperature control is anywhere between full hot and full
cold positions, the air distributed through the floor ducts will be
slightly warmer than the air sent to the instrument panel registers.
•- Distributes outside or recirculated air through the floor ducts.
Heating and air conditioning capabilities are provided in this mode.
The air will be heated or cooled based on the temperature selection.
•- Distributes outside or recirculated air through the windshield
defroster ducts and the floor ducts. Heating and air conditioning
capabilities are provided in this mode. The air will be heated or cooled
based on the temperature selection. For added customer comfort, the
air distributed through the floor ducts will be slightly warmer than the
air sent to the windshield defroster ducts.
•- Distributes outside air through the windshield defroster ducts.
This mode can be used to clear ice or fog from the windshield. If the
outside air is about 6°C (43°F) or higher, the air conditioner will
OFF
AUTOEXT TEMPA/C
FAUTO
Climate Controls
65

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 33 B

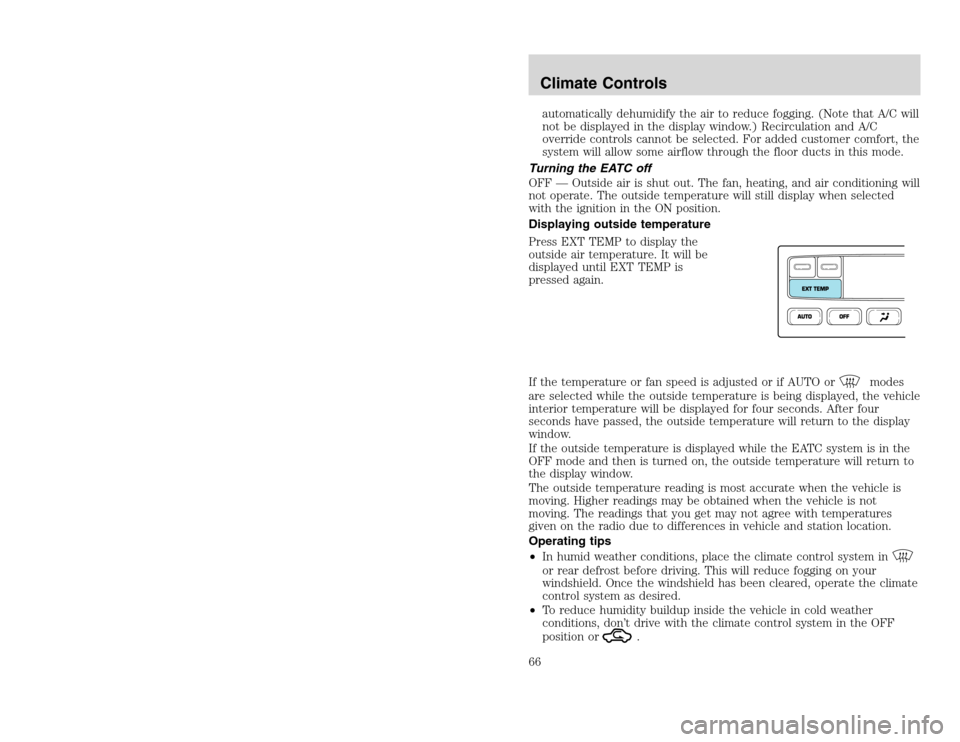

automatically dehumidify the air to reduce fogging. (Note that A/C will
not be displayed in the display window.) Recirculation and A/C
override controls cannot be selected. For added customer comfort, the
system will allow some airflow through the floor ducts in this mode.
Turning the EATC off
OFF — Outside air is shut out. The fan, heating, and air conditioning will
not operate. The outside temperature will still display when selected
with the ignition in the ON position.
Displaying outside temperature
Press EXT TEMP to display the
outside air temperature. It will be
displayed until EXT TEMP is
pressed again.
If the temperature or fan speed is adjusted or if AUTO or
modes
are selected while the outside temperature is being displayed, the vehicle
interior temperature will be displayed for four seconds. After four
seconds have passed, the outside temperature will return to the display
window.
If the outside temperature is displayed while the EATC system is in the
OFF mode and then is turned on, the outside temperature will return to
the display window.
The outside temperature reading is most accurate when the vehicle is
moving. Higher readings may be obtained when the vehicle is not
moving. The readings that you get may not agree with temperatures
given on the radio due to differences in vehicle and station location.
Operating tips
•In humid weather conditions, place the climate control system in
or rear defrost before driving. This will reduce fogging on your
windshield. Once the windshield has been cleared, operate the climate
control system as desired.
•To reduce humidity buildup inside the vehicle in cold weather
conditions, don’t drive with the climate control system in the OFF
position or
.
Climate Controls66
automatically dehumidify the air to reduce fogging. (Note that A/C will
not be displayed in the display window.) Recirculation and A/C
override controls cannot be selected. For added customer comfort, the
system will allow some airflow through the floor ducts in this mode.
Turning the EATC off
OFF — Outside air is shut out. The fan, heating, and air conditioning will
not operate. The outside temperature will still display when selected
with the ignition in the ON position.
Displaying outside temperature
Press EXT TEMP to display the
outside air temperature. It will be
displayed until EXT TEMP is
pressed again.
If the temperature or fan speed is adjusted or if AUTO or
modes
are selected while the outside temperature is being displayed, the vehicle
interior temperature will be displayed for four seconds. After four
seconds have passed, the outside temperature will return to the display
window.
If the outside temperature is displayed while the EATC system is in the
OFF mode and then is turned on, the outside temperature will return to
the display window.
The outside temperature reading is most accurate when the vehicle is
moving. Higher readings may be obtained when the vehicle is not
moving. The readings that you get may not agree with temperatures
given on the radio due to differences in vehicle and station location.
Operating tips
•In humid weather conditions, place the climate control system in
or rear defrost before driving. This will reduce fogging on your
windshield. Once the windshield has been cleared, operate the climate
control system as desired.
•To reduce humidity buildup inside the vehicle in cold weather
conditions, don’t drive with the climate control system in the OFF
position or
.
Climate Controls66
