maintenance FORD EXCURSION 2002 1.G Workshop Manual

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 127 B
MOTORCRAFT PART NUMBERSComponent* 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve EV-233 EV-233
Battery BXT-65-750 BXT-65-750
Spark plugs-platinum** AGSF-22W AGSF-22W
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
Lubricant4X4 vehicles 1.8L (3.8 pints)
Rear axle
1
Motorcraft SAE
75W-140 Synthetic
Rear Axle
LubricantAll 3.3L (6.9 pints)
2
Brake fluid High Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoirMaintenance and Specifications254
MOTORCRAFT PART NUMBERSComponent* 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve EV-233 EV-233
Battery BXT-65-750 BXT-65-750
Spark plugs-platinum** AGSF-22W AGSF-22W
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
Lubricant4X4 vehicles 1.8L (3.8 pints)
Rear axle
1
Motorcraft SAE
75W-140 Synthetic
Rear Axle
LubricantAll 3.3L (6.9 pints)
2
Brake fluid High Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoirMaintenance and Specifications254

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 128 A
Fluid Ford Part Name Application Capacity
Engine coolant-
Gasoline
engines
3
Motorcraft
Premium Engine
Coolant
(green-colored)or
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)
4
6.8L V10 engine 27.0L (28.5
quarts)
4
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 7.3L Diesel Supplement
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5
Motorcraft
MERCONAT F4x2 vehicles 16.1L (17.1
quarts)
6
4x4 vehicles 16.7L (17.7
quarts)
6
Windshield
washer fluidUltra-Clear
Windshield Washer
ConcentrateAll 4.2L (1.1
gallons)
Maintenance and Specifications
255
Fluid Ford Part Name Application Capacity
Engine coolant-
Gasoline
engines
3
Motorcraft
Premium Engine
Coolant
(green-colored)or
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)
4
6.8L V10 engine 27.0L (28.5
quarts)
4
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 7.3L Diesel Supplement
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5
Motorcraft
MERCONAT F4x2 vehicles 16.1L (17.1
quarts)
6
4x4 vehicles 16.7L (17.7
quarts)
6
Windshield
washer fluidUltra-Clear
Windshield Washer
ConcentrateAll 4.2L (1.1
gallons)
Maintenance and Specifications
255

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 128 B
1Your vehicle’s rear axle is filled with a synthetic lubricant. Axle lubricant
quantities should not need to be checked unless a leak is suspected,
service is required or the axle assembly has been submerged in water.
The axle lubricant should be changed any time the rear axle has been
submerged in water.2Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford Specification EST-M2C118-A for complete refill
of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle to the
bottom of the filler hole with the specified lubricant.3Add the coolant type originally equipped in your vehicle.4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.Maintenance and Specifications256
1Your vehicle’s rear axle is filled with a synthetic lubricant. Axle lubricant
quantities should not need to be checked unless a leak is suspected,
service is required or the axle assembly has been submerged in water.
The axle lubricant should be changed any time the rear axle has been
submerged in water.2Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford Specification EST-M2C118-A for complete refill
of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle to the
bottom of the filler hole with the specified lubricant.3Add the coolant type originally equipped in your vehicle.4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.Maintenance and Specifications256

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 129 A
LUBRICANT SPECIFICATIONSItemFord part name
or equivalentFord part
numberFord
specification
Spindle bearingHigh Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Rear axle
1
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (in
Canada,
Motorcraft
CXC-10 )ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
257
LUBRICANT SPECIFICATIONSItemFord part name
or equivalentFord part
numberFord
specification
Spindle bearingHigh Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Rear axle
1
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (in
Canada,
Motorcraft
CXC-10 )ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
257

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 129 B
ItemFord part name
or equivalentFord part
numberFord
specification
Engine oil-Diesel
engineRefer to your 7.3L Diesel Supplement
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4or
F5AZ-19G209-AAESR-M1C159-A
Transmission
/steering/parking
brake linkages
and pivots,
brake pedal
shaftPremium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid and
transfer case
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
2
Motorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Traction-Lok axles. Ford design rear axles contain a synthetic
lubricant that does not require changing unless the axle has been
submerged in water.Maintenance and Specifications258
ItemFord part name
or equivalentFord part
numberFord
specification
Engine oil-Diesel
engineRefer to your 7.3L Diesel Supplement
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4or
F5AZ-19G209-AAESR-M1C159-A
Transmission
/steering/parking
brake linkages
and pivots,
brake pedal
shaftPremium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid and
transfer case
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
2
Motorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Traction-Lok axles. Ford design rear axles contain a synthetic
lubricant that does not require changing unless the axle has been
submerged in water.Maintenance and Specifications258

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 130 A
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATAEngine* 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.
Maintenance and Specifications
259
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATAEngine* 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.
Maintenance and Specifications
259

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 130 B
VEHICLE DIMENSIONS
EXCURSIONDimension 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5 759 (226.7) 5 759 (226.7)
(2) Overall width 2 031 (79.9) 2 031 (79.9)
(3) Overall height 1 967 (77.4) 2 043 (80.4)
(4) Wheelbase 3 480 (137.0) 3 480 (137.0)
(5) Track (Front /
Rear)1 738 (68.4)/
1 729 (68.1)1 738 (68.4)/
1 729 (68.1)
4
1
Maintenance and Specifications260
VEHICLE DIMENSIONS
EXCURSIONDimension 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5 759 (226.7) 5 759 (226.7)
(2) Overall width 2 031 (79.9) 2 031 (79.9)
(3) Overall height 1 967 (77.4) 2 043 (80.4)
(4) Wheelbase 3 480 (137.0) 3 480 (137.0)
(5) Track (Front /
Rear)1 738 (68.4)/
1 729 (68.1)1 738 (68.4)/
1 729 (68.1)
4
1
Maintenance and Specifications260

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 131 A

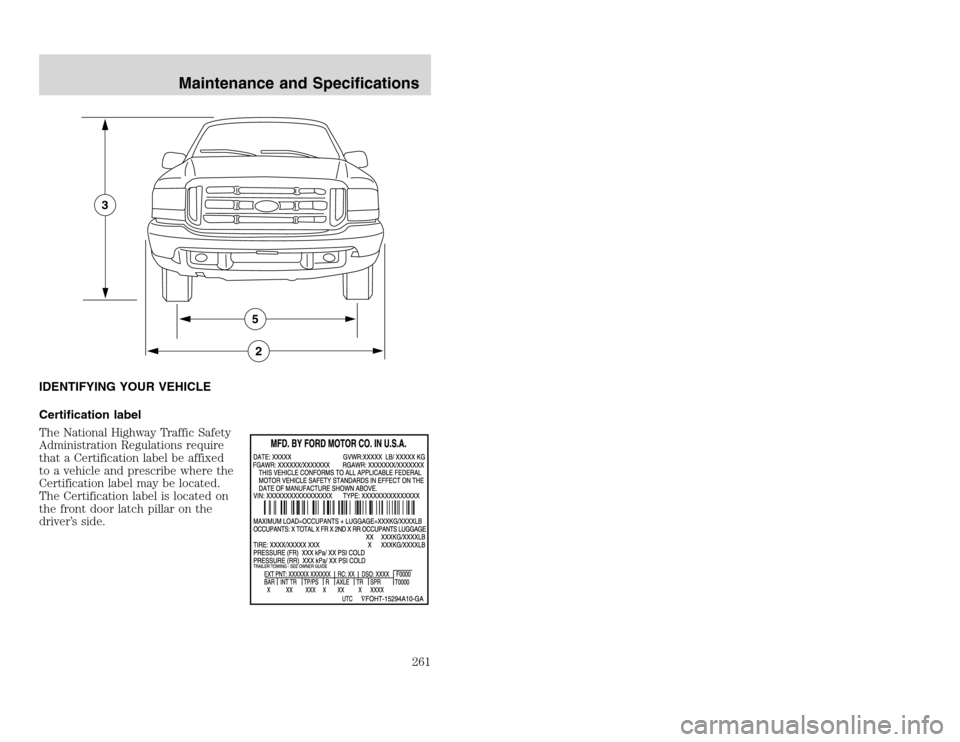

IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
52
3
Maintenance and Specifications
261
IDENTIFYING YOUR VEHICLE
Certification label
The National Highway Traffic Safety
Administration Regulations require
that a Certification label be affixed
to a vehicle and prescribe where the
Certification label may be located.
The Certification label is located on
the front door latch pillar on the
driver’s side.
52
3
Maintenance and Specifications
261

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 131 B
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Maintenance and Specifications262
Vehicle identification number
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
Maintenance and Specifications262

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 133 B
A
ABS (see Brakes) .....................157
Accessory delay ..........................86
Air bag supplemental restraint
system ........................................140
and child safety seats ............142
description ..............................140
disposal ....................................144
driver air bag ..........................142
indicator light ...................12, 144
operation .................................142
passenger air bag ...................142
Air cleaner filter ...............248, 254
Air conditioning ..........................60
auxiliary heater and air
conditioner ................................68
manual heating and air
conditioning system .................57
Antifreeze (see Engine
coolant) .....................................227
Anti-lock brake system
(see Brakes) ..............................157
Anti-theft system
warning light .............................14
Audio system (see Radio) ...19, 27
Automatic transmission
driving an automatic
overdrive .................................161
fluid, adding ............................245
fluid, checking ........................245
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................83
Axle
lubricant specifications ..257, 259
refill capacities ........................254
traction lok ..............................159B
Battery .......................................225
acid, treating emergencies .....225
charging system warning
light ............................................12
jumping a disabled battery ....197
maintenance-free ....................225
replacement, specifications ...254
servicing ..................................225
BeltMinder .................................135
Brakes ........................................156
anti-lock ...................................157
anti-lock brake system (ABS)
warning light .....................12, 157
brake warning light ..................11
fluid, checking and adding ....244
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................158
pedals (see Power adjustable
foot pedals) ...............................89
shift interlock ..........................160
Break-in period .............................5
Bulbs ............................................75
C
Capacities for refilling fluids ....254
Cargo net ...................................102
CD-6 disc .....................................27
CD-single premium .....................19
Certification Label ....................261
Changing a tire .........................192
Child safety restraints ..............145
child safety belts ....................145
Child safety seats ......................145Index266
A
ABS (see Brakes) .....................157
Accessory delay ..........................86
Air bag supplemental restraint
system ........................................140
and child safety seats ............142
description ..............................140
disposal ....................................144
driver air bag ..........................142
indicator light ...................12, 144
operation .................................142
passenger air bag ...................142
Air cleaner filter ...............248, 254
Air conditioning ..........................60
auxiliary heater and air
conditioner ................................68
manual heating and air
conditioning system .................57
Antifreeze (see Engine
coolant) .....................................227
Anti-lock brake system
(see Brakes) ..............................157
Anti-theft system
warning light .............................14
Audio system (see Radio) ...19, 27
Automatic transmission
driving an automatic
overdrive .................................161
fluid, adding ............................245
fluid, checking ........................245
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................83
Axle
lubricant specifications ..257, 259
refill capacities ........................254
traction lok ..............................159B
Battery .......................................225
acid, treating emergencies .....225
charging system warning
light ............................................12
jumping a disabled battery ....197
maintenance-free ....................225
replacement, specifications ...254
servicing ..................................225
BeltMinder .................................135
Brakes ........................................156
anti-lock ...................................157
anti-lock brake system (ABS)
warning light .....................12, 157
brake warning light ..................11
fluid, checking and adding ....244
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................158
pedals (see Power adjustable
foot pedals) ...............................89
shift interlock ..........................160
Break-in period .............................5
Bulbs ............................................75
C
Capacities for refilling fluids ....254
Cargo net ...................................102
CD-6 disc .....................................27
CD-single premium .....................19
Certification Label ....................261
Changing a tire .........................192
Child safety restraints ..............145
child safety belts ....................145
Child safety seats ......................145Index266
