20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 7 A

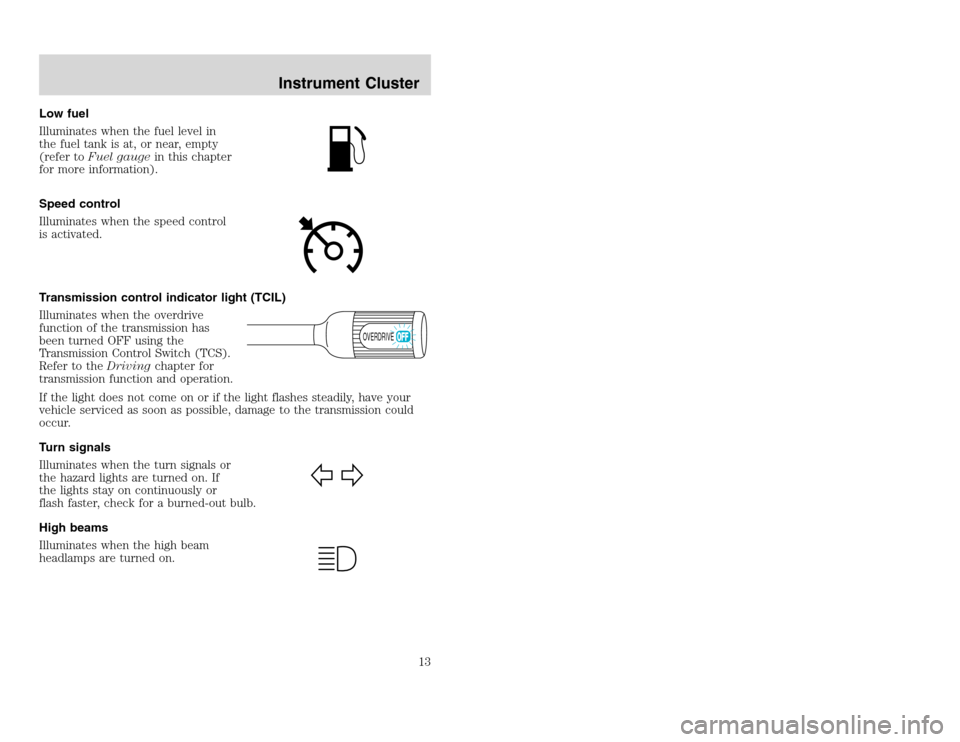

Low fuel
Illuminates when the fuel level in
the fuel tank is at, or near, empty
(refer toFuel gaugein this chapter
for more information).
Speed control
Illuminates when the speed control
is activated.
Transmission control indicator light (TCIL)
Illuminates when the overdrive
function of the transmission has
been turned OFF using the
Transmission Control Switch (TCS).
Refer to theDrivingchapter for
transmission function and operation.
If the light does not come on or if the light flashes steadily, have your
vehicle serviced as soon as possible, damage to the transmission could
occur.
Turn signals
Illuminates when the turn signals or
the hazard lights are turned on. If
the lights stay on continuously or
flash faster, check for a burned-out bulb.
High beams
Illuminates when the high beam
headlamps are turned on.
OVERDRIVE
Instrument Cluster
13
Low fuel
Illuminates when the fuel level in
the fuel tank is at, or near, empty
(refer toFuel gaugein this chapter
for more information).
Speed control
Illuminates when the speed control
is activated.
Transmission control indicator light (TCIL)
Illuminates when the overdrive
function of the transmission has
been turned OFF using the
Transmission Control Switch (TCS).
Refer to theDrivingchapter for
transmission function and operation.
If the light does not come on or if the light flashes steadily, have your
vehicle serviced as soon as possible, damage to the transmission could
occur.
Turn signals
Illuminates when the turn signals or
the hazard lights are turned on. If
the lights stay on continuously or
flash faster, check for a burned-out bulb.
High beams
Illuminates when the high beam
headlamps are turned on.
OVERDRIVE
Instrument Cluster
13

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 95 B

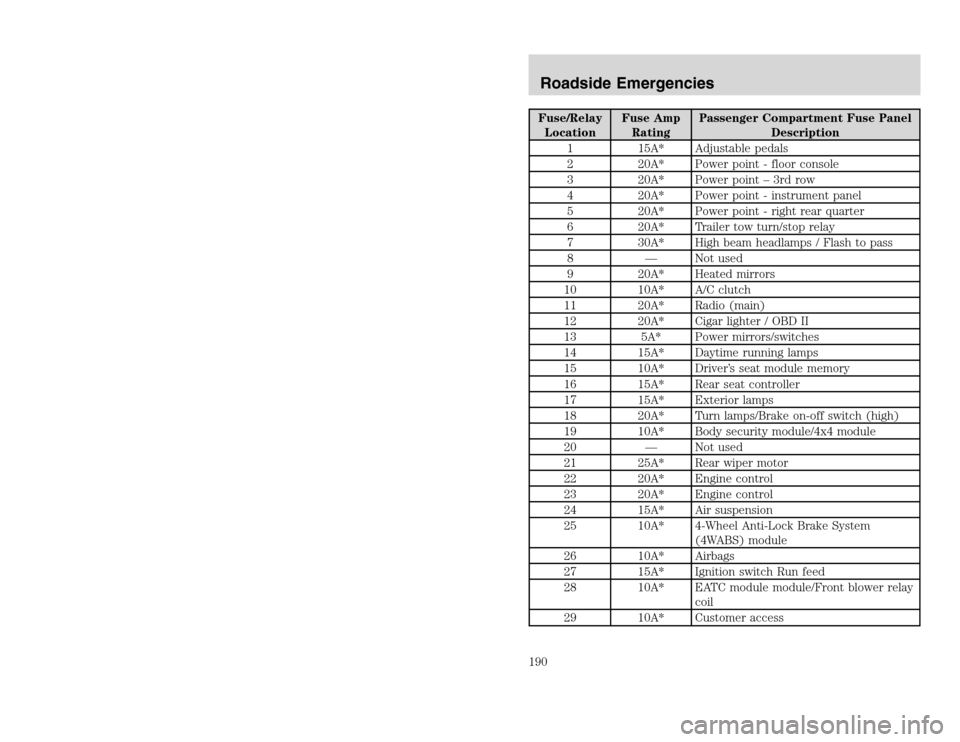

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
1 15A* Adjustable pedals
2 20A* Power point - floor console
3 20A* Power point – 3rd row
4 20A* Power point - instrument panel
5 20A* Power point - right rear quarter
6 20A* Trailer tow turn/stop relay
7 30A* High beam headlamps / Flash to pass
8 — Not used
9 20A* Heated mirrors
10 10A* A/C clutch
11 20A* Radio (main)
12 20A* Cigar lighter / OBD II
13 5A* Power mirrors/switches
14 15A* Daytime running lamps
15 10A* Driver’s seat module memory
16 15A* Rear seat controller
17 15A* Exterior lamps
18 20A* Turn lamps/Brake on-off switch (high)
19 10A* Body security module/4x4 module
20 — Not used
21 25A* Rear wiper motor
22 20A* Engine control
23 20A* Engine control
24 15A* Air suspension
25 10A* 4-Wheel Anti-Lock Brake System
(4WABS) module
26 10A* Airbags
27 15A* Ignition switch Run feed
28 10A* EATC module module/Front blower relay
coil
29 10A* Customer accessRoadside Emergencies190
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
1 15A* Adjustable pedals
2 20A* Power point - floor console
3 20A* Power point – 3rd row
4 20A* Power point - instrument panel
5 20A* Power point - right rear quarter
6 20A* Trailer tow turn/stop relay
7 30A* High beam headlamps / Flash to pass
8 — Not used
9 20A* Heated mirrors
10 10A* A/C clutch
11 20A* Radio (main)
12 20A* Cigar lighter / OBD II
13 5A* Power mirrors/switches
14 15A* Daytime running lamps
15 10A* Driver’s seat module memory
16 15A* Rear seat controller
17 15A* Exterior lamps
18 20A* Turn lamps/Brake on-off switch (high)
19 10A* Body security module/4x4 module
20 — Not used
21 25A* Rear wiper motor
22 20A* Engine control
23 20A* Engine control
24 15A* Air suspension
25 10A* 4-Wheel Anti-Lock Brake System
(4WABS) module
26 10A* Airbags
27 15A* Ignition switch Run feed
28 10A* EATC module module/Front blower relay
coil
29 10A* Customer accessRoadside Emergencies190

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 96 A

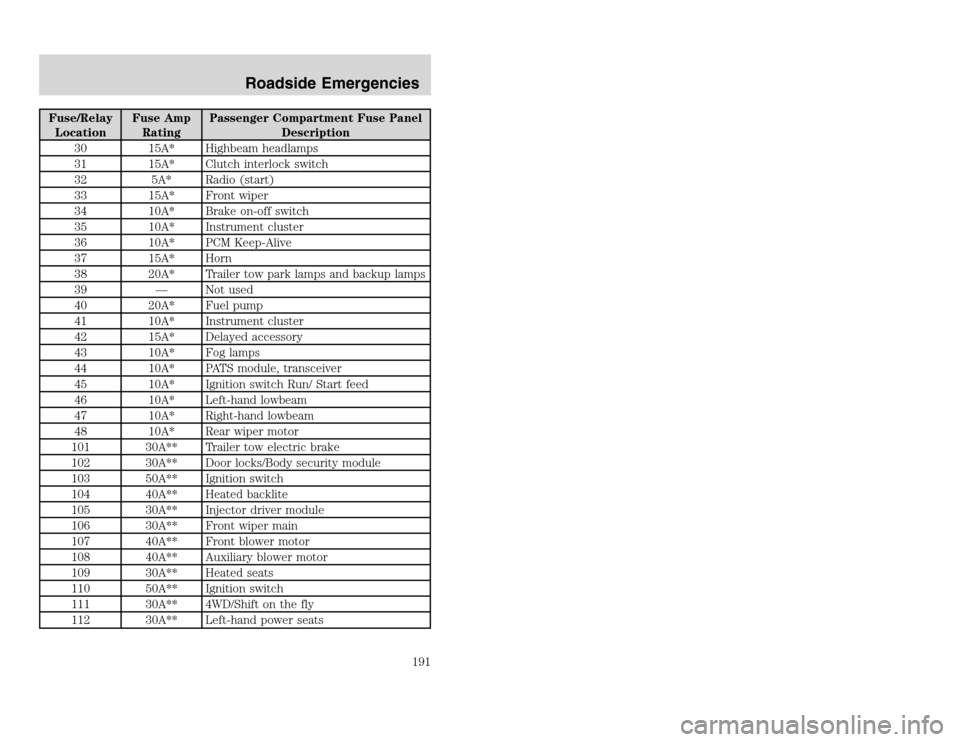

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
30 15A* Highbeam headlamps
31 15A* Clutch interlock switch
32 5A* Radio (start)
33 15A* Front wiper
34 10A* Brake on-off switch
35 10A* Instrument cluster
36 10A* PCM Keep-Alive
37 15A* Horn
38 20A* Trailer tow park lamps and backup lamps
39 — Not used
40 20A* Fuel pump
41 10A* Instrument cluster
42 15A* Delayed accessory
43 10A* Fog lamps
44 10A* PATS module, transceiver
45 10A* Ignition switch Run/ Start feed
46 10A* Left-hand lowbeam
47 10A* Right-hand lowbeam
48 10A* Rear wiper motor
101 30A** Trailer tow electric brake
102 30A** Door locks/Body security module
103 50A** Ignition switch
104 40A** Heated backlite
105 30A** Injector driver module
106 30A** Front wiper main
107 40A** Front blower motor
108 40A** Auxiliary blower motor
109 30A** Heated seats
110 50A** Ignition switch
111 30A** 4WD/Shift on the fly
112 30A** Left-hand power seats
Roadside Emergencies
191
Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment Fuse Panel
Description
30 15A* Highbeam headlamps
31 15A* Clutch interlock switch
32 5A* Radio (start)
33 15A* Front wiper
34 10A* Brake on-off switch
35 10A* Instrument cluster
36 10A* PCM Keep-Alive
37 15A* Horn
38 20A* Trailer tow park lamps and backup lamps
39 — Not used
40 20A* Fuel pump
41 10A* Instrument cluster
42 15A* Delayed accessory
43 10A* Fog lamps
44 10A* PATS module, transceiver
45 10A* Ignition switch Run/ Start feed
46 10A* Left-hand lowbeam
47 10A* Right-hand lowbeam
48 10A* Rear wiper motor
101 30A** Trailer tow electric brake
102 30A** Door locks/Body security module
103 50A** Ignition switch
104 40A** Heated backlite
105 30A** Injector driver module
106 30A** Front wiper main
107 40A** Front blower motor
108 40A** Auxiliary blower motor
109 30A** Heated seats
110 50A** Ignition switch
111 30A** 4WD/Shift on the fly
112 30A** Left-hand power seats
Roadside Emergencies
191

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 135 A

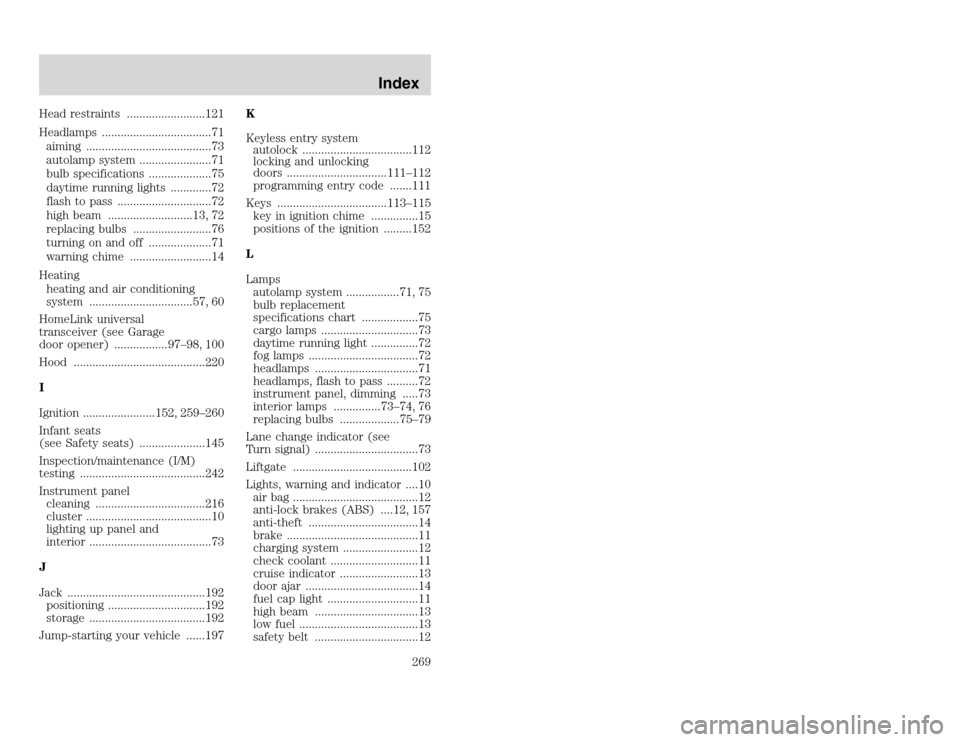

Head restraints .........................121
Headlamps ...................................71
aiming ........................................73
autolamp system .......................71
bulb specifications ....................75
daytime running lights .............72
flash to pass ..............................72
high beam ...........................13, 72
replacing bulbs .........................76
turning on and off ....................71
warning chime ..........................14
Heating
heating and air conditioning
system .................................57, 60
HomeLink universal
transceiver (see Garage
door opener) .................97–98, 100
Hood ..........................................220
I
Ignition .......................152, 259–260
Infant seats
(see Safety seats) .....................145
Inspection/maintenance (I/M)
testing ........................................242
Instrument panel
cleaning ...................................216
cluster ........................................10
lighting up panel and
interior .......................................73
J
Jack ............................................192
positioning ...............................192
storage .....................................192
Jump-starting your vehicle ......197K
Keyless entry system
autolock ...................................112
locking and unlocking
doors ................................111–112
programming entry code .......111
Keys ...................................113–115
key in ignition chime ...............15
positions of the ignition .........152
L
Lamps
autolamp system .................71, 75
bulb replacement
specifications chart ..................75
cargo lamps ...............................73
daytime running light ...............72
fog lamps ...................................72
headlamps .................................71
headlamps, flash to pass ..........72
instrument panel, dimming .....73
interior lamps ...............73–74, 76
replacing bulbs ...................75–79
Lane change indicator (see
Turn signal) .................................73
Liftgate ......................................102
Lights, warning and indicator ....10
air bag ........................................12
anti-lock brakes (ABS) ....12, 157
anti-theft ...................................14
brake ..........................................11
charging system ........................12
check coolant ............................11
cruise indicator .........................13
door ajar ....................................14
fuel cap light .............................11
high beam .................................13
low fuel ......................................13
safety belt .................................12
Index
269
Head restraints .........................121
Headlamps ...................................71
aiming ........................................73
autolamp system .......................71
bulb specifications ....................75
daytime running lights .............72
flash to pass ..............................72
high beam ...........................13, 72
replacing bulbs .........................76
turning on and off ....................71
warning chime ..........................14
Heating
heating and air conditioning
system .................................57, 60
HomeLink universal
transceiver (see Garage
door opener) .................97–98, 100
Hood ..........................................220
I
Ignition .......................152, 259–260
Infant seats
(see Safety seats) .....................145
Inspection/maintenance (I/M)
testing ........................................242
Instrument panel
cleaning ...................................216
cluster ........................................10
lighting up panel and
interior .......................................73
J
Jack ............................................192
positioning ...............................192
storage .....................................192
Jump-starting your vehicle ......197K
Keyless entry system
autolock ...................................112
locking and unlocking
doors ................................111–112
programming entry code .......111
Keys ...................................113–115
key in ignition chime ...............15
positions of the ignition .........152
L
Lamps
autolamp system .................71, 75
bulb replacement
specifications chart ..................75
cargo lamps ...............................73
daytime running light ...............72
fog lamps ...................................72
headlamps .................................71
headlamps, flash to pass ..........72
instrument panel, dimming .....73
interior lamps ...............73–74, 76
replacing bulbs ...................75–79
Lane change indicator (see
Turn signal) .................................73
Liftgate ......................................102
Lights, warning and indicator ....10
air bag ........................................12
anti-lock brakes (ABS) ....12, 157
anti-theft ...................................14
brake ..........................................11
charging system ........................12
check coolant ............................11
cruise indicator .........................13
door ajar ....................................14
fuel cap light .............................11
high beam .................................13
low fuel ......................................13
safety belt .................................12
Index
269
