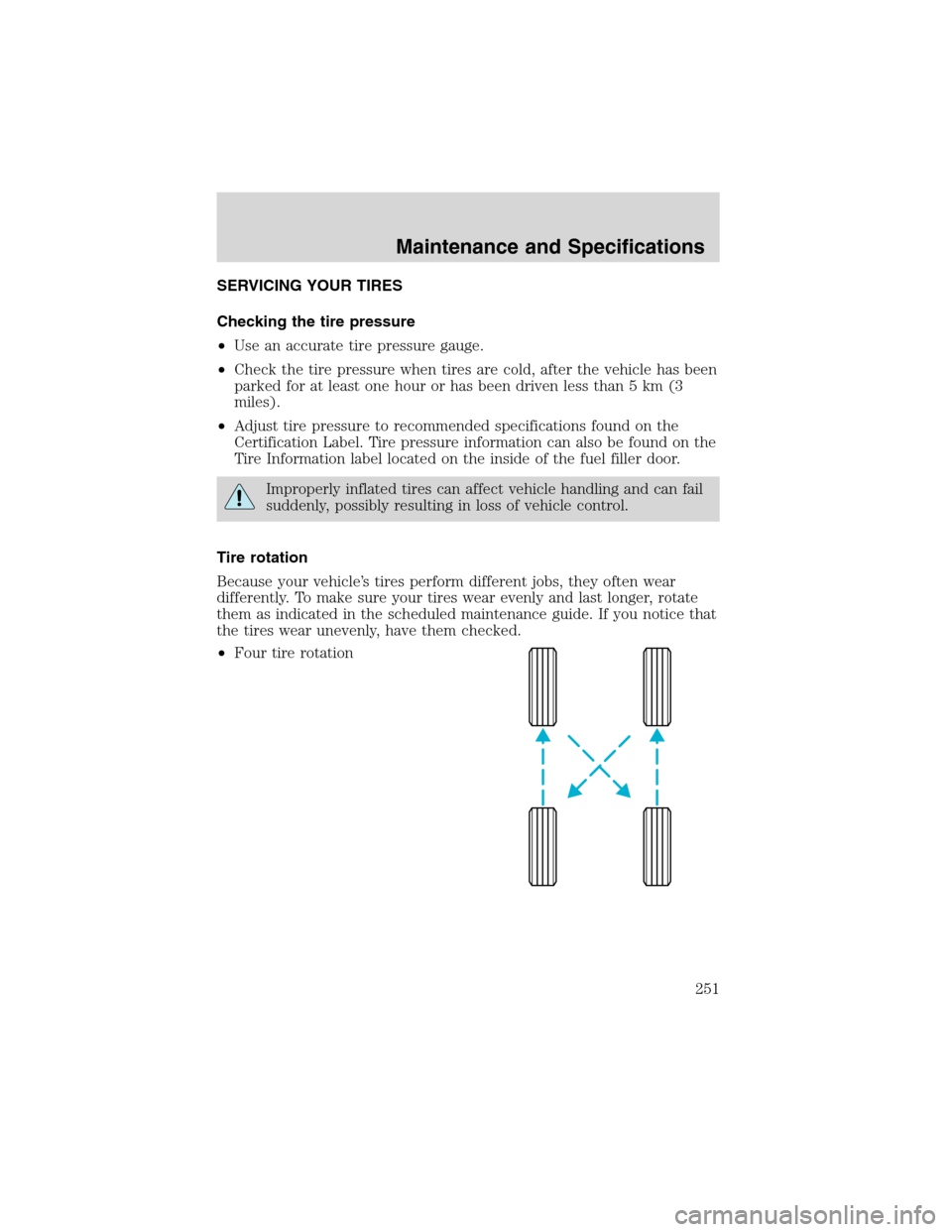

SERVICING YOUR TIRES
Checking the tire pressure
•Use an accurate tire pressure gauge.
•Check the tire pressure when tires are cold, after the vehicle has been
parked for at least one hour or has been driven less than 5 km (3
miles).
•Adjust tire pressure to recommended specifications found on the
Certification Label. Tire pressure information can also be found on the
Tire Information label located on the inside of the fuel filler door.
Improperly inflated tires can affect vehicle handling and can fail
suddenly, possibly resulting in loss of vehicle control.
Tire rotation
Because your vehicle’s tires perform different jobs, they often wear
differently. To make sure your tires wear evenly and last longer, rotate
them as indicated in the scheduled maintenance guide. If you notice that
the tires wear unevenly, have them checked.
•Four tire rotation
Maintenance and Specifications
251

•Five tire rotation
Replacing the tires
Replace the tires when the wear
band is visible through the tire
treads.
When replacing full size tires, never mix radial bias-belted, or
bias-type tires. Use only the tire sizes that are listed on the
Certification Label. Make sure that all tires are the same size, speed
rating, and load-carrying capacity. Use only the tire combinations
recommended on the label. If you do not follow these precautions,
your vehicle may not drive properly and safely.
Make sure that all replacement tires are of the same size, type,
load-carrying capacity and tread design (e.g., “All Terrain”,
“Touring”, etc.), as originally offered by Ford.
Maintenance and Specifications
252

Do not replace your tires with “high performance” tires or larger
size tires.
Failure to follow these precautions may adversely affect the
handling of the vehicle and make it easier for the driver to lose
control and roll over.
Tires that are larger or smaller than your vehicle’s original tires may also
affect the accuracy of your speedometer.
SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used as chains may chip
aluminum wheels.
Follow these guidelines when using snow tires and chains:
•Use only SAE Class S chains.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
•If possible, avoid fully loading your vehicle.
•Remove the tire chains when they are no longer needed. Do not use
tire chains on dry roads.
•The suspension insulation and bumpers will help prevent vehicle
damage. Do not remove these components from your vehicle when
using snow tires and chains.
Maintenance and Specifications
253

MOTORCRAFT PART NUMBERS
Component* 5.4L V8 engine 6.8L V10 engine
Air filter element FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve EV-233 EV-233
Battery BXT-65-750 BXT-65-750
Spark plugs-platinum** AGSF-22W AGSF-22W
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor Motorcraft diesel engine service part
numbers.
**Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
REFILL CAPACITIES
Fluid Ford Part Name Application Capacity
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
Lubricant4X4 vehicles 1.8L (3.8 pints)
Rear axle
1Motorcraft SAE
75W-140 Synthetic
Rear Axle
LubricantAll 3.3L (6.9 pints)2
Brake fluid High Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Maintenance and Specifications
254

Fluid Ford Part Name Application Capacity
Engine coolant-
Gasoline
engines
3
Motorcraft
Premium Engine
Coolant
(green-colored)or
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)4
6.8L V10 engine 27.0L (28.5
quarts)4
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 7.3L Diesel Supplement
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5Motorcraft
MERCONAT F4x2 vehicles 16.1L (17.1
quarts)6
4x4 vehicles 16.7L (17.7
quarts)6
Windshield
washer fluidUltra-Clear
Windshield Washer
ConcentrateAll 4.2L (1.1
gallons)
Maintenance and Specifications
255

1Your vehicle’s rear axle is filled with a synthetic lubricant. Axle lubricant
quantities should not need to be checked unless a leak is suspected,
service is required or the axle assembly has been submerged in water.
The axle lubricant should be changed any time the rear axle has been
submerged in water.
2Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford Specification EST-M2C118-A for complete refill
of Traction-Lok axles.
Service refill capacities are determined by filling the rear axle to the
bottom of the filler hole with the specified lubricant.
3Add the coolant type originally equipped in your vehicle.
4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).
5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
Maintenance and Specifications
256

LUBRICANT SPECIFICATIONS
ItemFord part name
or equivalentFord part
numberFord
specification
Spindle bearingHigh Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Rear axle
1Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (in
Canada,
Motorcraft
CXC-10 )ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
257

ItemFord part name
or equivalentFord part
numberFord
specification
Engine oil-Diesel
engineRefer to your 7.3L Diesel Supplement
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4or
F5AZ-19G209-AAESR-M1C159-A
Transmission
/steering/parking
brake linkages
and pivots,
brake pedal
shaftPremium
Long-Life GreaseXG-1-C or
XG-1-KESA-M1C75-B
Power steering
fluid and
transfer case
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
2Motorcraft
MERCONAT FXT-2-QDX MERCON
Windshield
washer fluidUltra-clear
Windshield
Washer
ConcentrateC9AZ-19550-AC ESR-M17P5-A
1Add 236 ml (8 oz.) of Additive Friction Modifier C8AZ-19B546-A or
equivalent meeting Ford specification EST-M2C118-A for complete refill
of Traction-Lok axles. Ford design rear axles contain a synthetic
lubricant that does not require changing unless the axle has been
submerged in water.
Maintenance and Specifications
258

2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine* 5.4L V8 engine 6.8L V10 engine
Cubic inches 330 415
Required fuel 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Spark plug gap1.3-1.4 mm
(0.052-0.056 inch)1.3-1.4 mm
(0.052-0.056 inch)
Ignition system Coil on plug Coil on plug
Compression ratio 9.0:1 9.0:1
*Refer to the7.3 Liter Power Stroke Direct Injection Turbo Diesel
Owner’s Guide Supplementfor diesel engine information.
Maintenance and Specifications
259

VEHICLE DIMENSIONS
EXCURSION
Dimension 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5 759 (226.7) 5 759 (226.7)
(2) Overall width 2 031 (79.9) 2 031 (79.9)
(3) Overall height 1 967 (77.4) 2 043 (80.4)
(4) Wheelbase 3 480 (137.0) 3 480 (137.0)
(5) Track (Front /
Rear)1 738 (68.4)/
1 729 (68.1)1 738 (68.4)/
1 729 (68.1)
4
1
