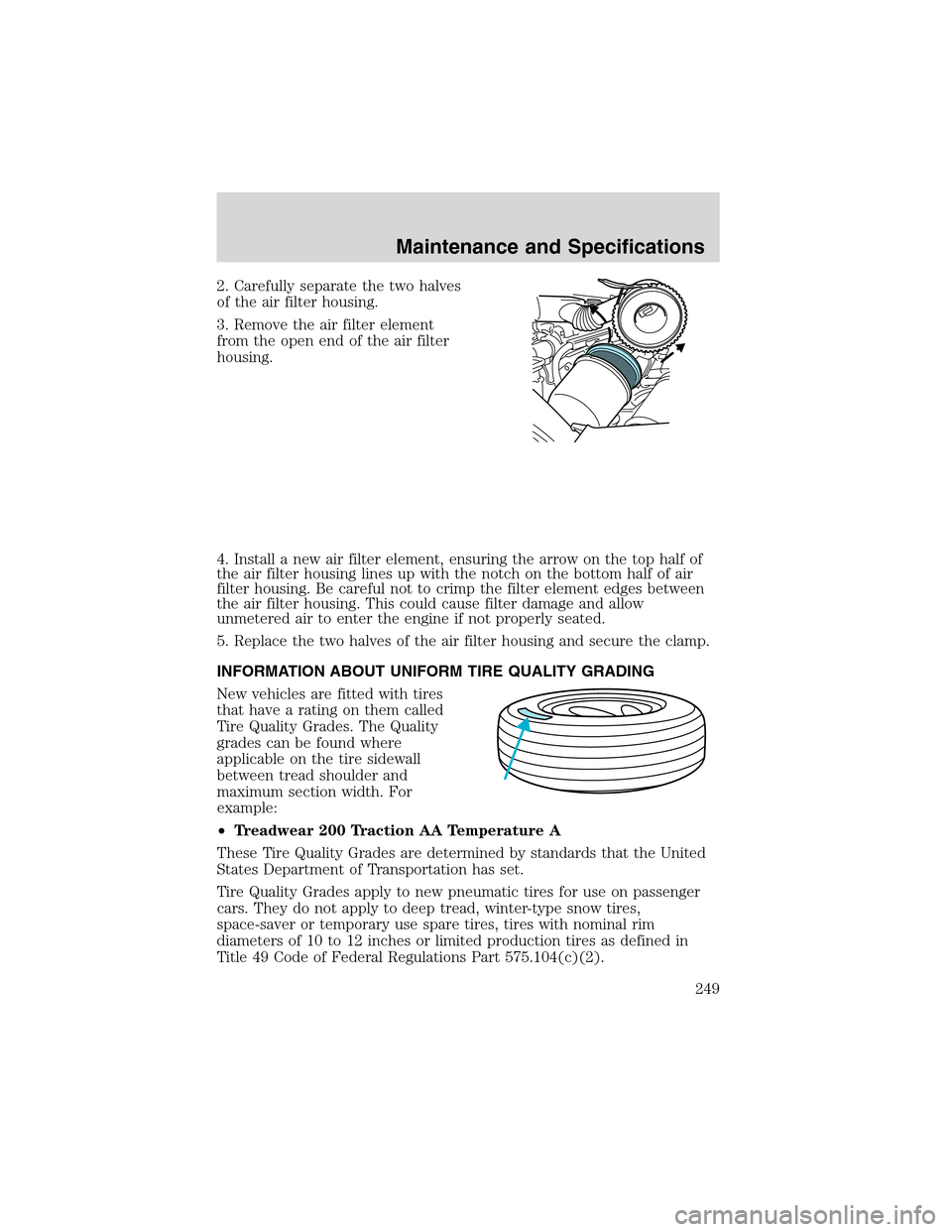

2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the open end of the air filter
housing.
4. Install a new air filter element, ensuring the arrow on the top half of
the air filter housing lines up with the notch on the bottom half of air
filter housing. Be careful not to crimp the filter element edges between
the air filter housing. This could cause filter damage and allow
unmetered air to enter the engine if not properly seated.
5. Replace the two halves of the air filter housing and secure the clamp.
INFORMATION ABOUT UNIFORM TIRE QUALITY GRADING
New vehicles are fitted with tires
that have a rating on them called
Tire Quality Grades. The Quality
grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
•Treadwear 200 Traction AA Temperature A
These Tire Quality Grades are determined by standards that the United
States Department of Transportation has set.
Tire Quality Grades apply to new pneumatic tires for use on passenger
cars. They do not apply to deep tread, winter-type snow tires,
space-saver or temporary use spare tires, tires with nominal rim
diameters of 10 to 12 inches or limited production tires as defined in
Title 49 Code of Federal Regulations Part 575.104(c)(2).
Maintenance and Specifications
249

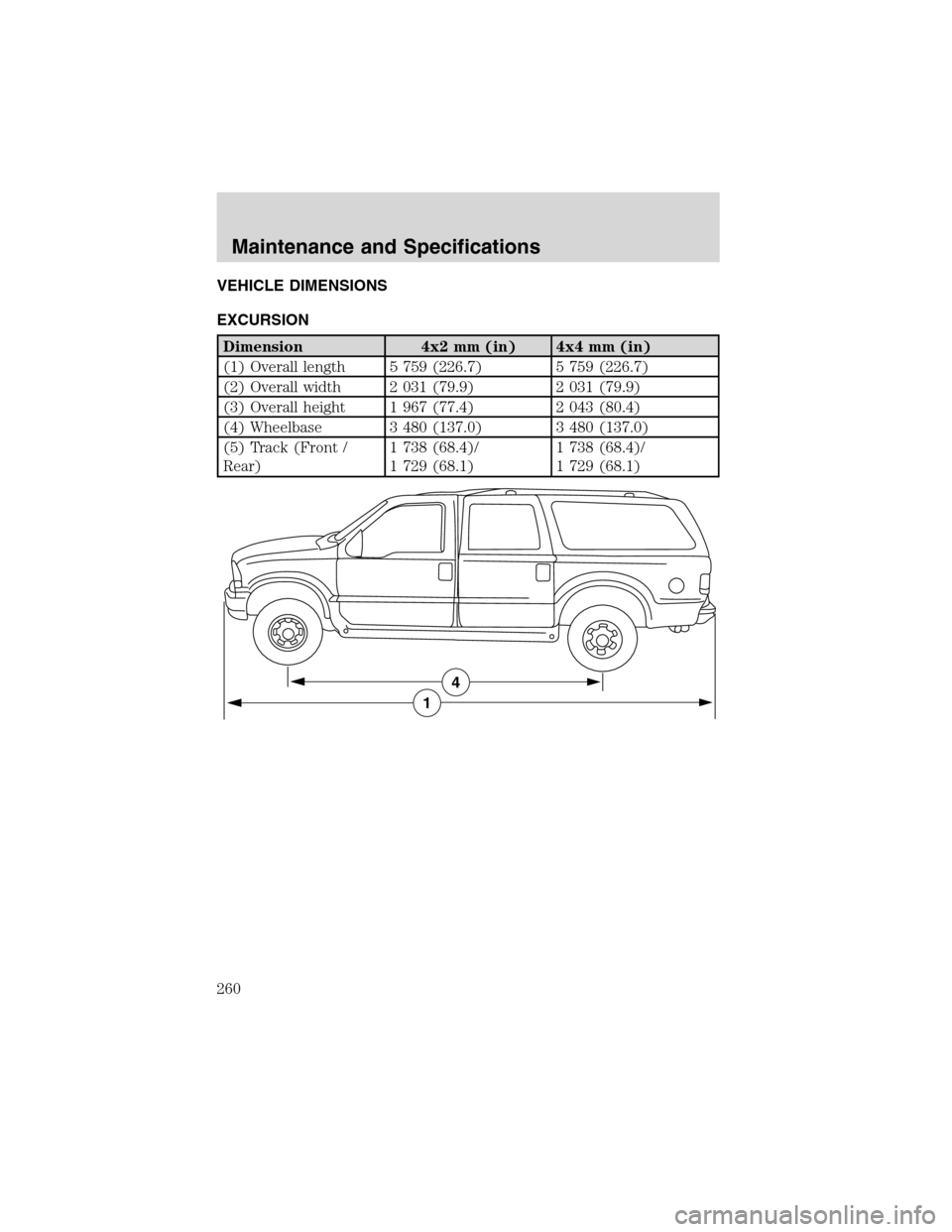

VEHICLE DIMENSIONS
EXCURSION
Dimension 4x2 mm (in) 4x4 mm (in)
(1) Overall length 5 759 (226.7) 5 759 (226.7)
(2) Overall width 2 031 (79.9) 2 031 (79.9)
(3) Overall height 1 967 (77.4) 2 043 (80.4)
(4) Wheelbase 3 480 (137.0) 3 480 (137.0)
(5) Track (Front /
Rear)1 738 (68.4)/
1 729 (68.1)1 738 (68.4)/
1 729 (68.1)
4
1
Maintenance and Specifications
260
