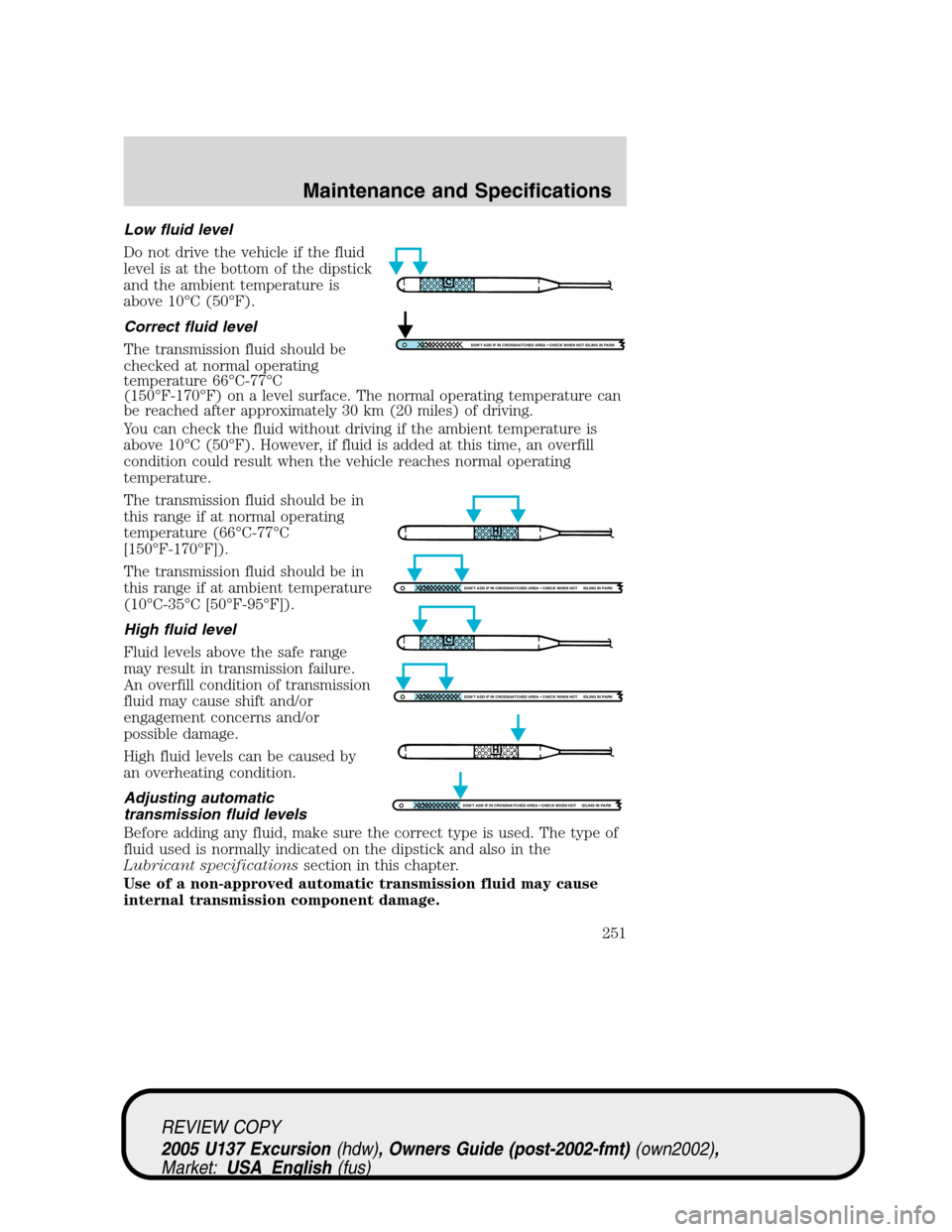

Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the ambient temperature is
above 10°C (50°F).
Correct fluid level
The transmission fluid should be
checked at normal operating
temperature 66°C-77°C
(150°F-170°F) on a level surface. The normal operating temperature can
be reached after approximately 30 km (20 miles) of driving.
You can check the fluid without driving if the ambient temperature is
above 10°C (50°F). However, if fluid is added at this time, an overfill
condition could result when the vehicle reaches normal operating
temperature.
The transmission fluid should be in
this range if at normal operating
temperature (66°C-77°C
[150°F-170°F]).
The transmission fluid should be in
this range if at ambient temperature
(10°C-35°C [50°F-95°F]).
High fluid level
Fluid levels above the safe range
may result in transmission failure.
An overfill condition of transmission
fluid may cause shift and/or
engagement concerns and/or
possible damage.
High fluid levels can be caused by
an overheating condition.
Adjusting automatic
transmission fluid levels
Before adding any fluid, make sure the correct type is used. The type of
fluid used is normally indicated on the dipstick and also in the
Lubricant specificationssection in this chapter.
Use of a non-approved automatic transmission fluid may cause
internal transmission component damage.
DON'T ADD IF IN CROSSHATCHED AREA  CHECK WHEN HOT IDLING IN PARK
DON'T ADD IF IN CROSSHATCHED AREA  CHECK WHEN HOT IDLING IN PARK
DON'T ADD IF IN CROSSHATCHED AREA  CHECK WHEN HOT IDLING IN PARK
DON'T ADD IF IN CROSSHATCHED AREA  CHECK WHEN HOT IDLING IN PARK
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
251

If necessary, add fluid in 250 ml (1/2 pint) increments through the filler
tube until the level is correct.
If an overfill occurs, excess fluid
should be removed by a qualified
technician.
An overfill condition of
transmission fluid may cause
shift and/or engagement
concerns and/or possible
damage.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
Automatic transmission fluid filter (if equipped)
The TorqShift automatic
transmission is equipped with a
serviceable external fluid filter
mounted on the frame rail. Refer to
theScheduled Maintenance Guide
for service intervals.
To replace the transmission filter:
1. Shut off the engine.
2. Unscrew filter housing.
3. Replace filter with a new authorized Motorcraft filter element. Refer to
theMotorcraft part numberschart in this chapter.
DON'T ADD IF IN CROSSHATCHED AREA  CHECK WHEN HOT IDLING IN PARK
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
252

4. Reinstall housing and check transmission fluid level using procedure in
this section.
Checking and adding transfer case fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
AIR FILTER MAINTENANCE
Refer to the scheduled maintenance guide for the appropriate intervals
for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.

REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
253

Changing the air filter element
1. Loosen the clamp that secures
the air filter element in place.
2. Carefully separate the two halves
of the air filter housing.
3. Remove the air filter element
from the open end of the air filter
housing.
4. Install a new air filter element, ensuring the arrow on the top half of
the air filter housing lines up with the notch on the bottom half of air
filter housing. Be careful not to crimp the filter element edges between
the air filter housing. This could cause filter damage and allow
unmetered air to enter the engine if not properly seated.
5. Replace the two halves of the air filter housing and secure the clamp.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
254

MOTORCRAFT PART NUMBERS
Component 5.4L V8 engine 6.8L V10 engine
Air filter element1FA-1634 FA-1634
Fuel filter FG-986B FG-986B
Oil filter FL-820-S FL-820-S
PCV valve
2
Battery BXT-65-750 BXT-65-750
Spark plugs3
Automatic Transmission
Filter4——
1Always use the authorized Motorcraft air filter listed.Failure to use
the correct air filter may result in severe engine damage.
2The PCV valve is a critical emission component. It is one of the items
listed in theScheduled Maintenance Guideand is essential to the life
and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
3For spark plug replacement, see your dealer or a qualified service
technician. Refer to theScheduled Maintenance Guidefor the
appropriate intervals for changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
4Only available with 6.0L Diesel engine/TorqShift transmission. Part
number is FT-145.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
255

REFILL CAPACITIES
FluidFord Part
NameApplication Capacity
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant4X4 vehicles 1.8L (3.6 pints)
Rear axle
1Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantAll 3.3L (6.9 pints)2
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine coolant-
Gasoline engines
3
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)4
6.8L V10 engine 26.0L (27.5
quarts)4
Engine
coolant-Diesel
engineRefer to your 6.0L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
engines
7
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)5.4L V8/6.8L
V10 engine5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 6.0L Diesel Supplement
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
256

FluidFord Part
NameApplication Capacity
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to FULL
COLD range on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5Motorcraft
MERCONAT F4x2 4R100
(4–speed)16.1L (17.1
quarts)6
4x4 4R100
(4–speed)16.7L (17.7
quarts)6
Motorcraft
MERCONSP
AT F4x2/4x4
TorqShift
(5–speed)–
includes remote
filter element
change16.6L (17.5
qts)6
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.2L (1.1
gallons)
1Your vehicle’s rear axle is filled with a synthetic lubricant. Axle lubricant
quantities should not need to be checked unless a leak is suspected,
service is required or the axle assembly has been submerged in water.
The axle lubricant should be changed any time the rear axle has been
submerged in water.
Service refill capacities are determined by filling the rear axle to the
bottom of the filler hole with the specified lubricant.
2Add 236 ml (8 oz.) of Additive Friction Modifier XL—3 or equivalent
meeting Ford Specification EST-M2C118-A for complete refill of limited
slip axles.
Service refill capacities are determined by filling the rear axle to the
bottom of the filler hole with the specified lubricant.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
257

3Add the coolant type originally equipped in your vehicle.
4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).
5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the end of the dipstick. Check the
container to verify the fluid being added is of the correct type. Refer to
yourScheduled Maintenance Guideto determine the correct service
interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCON, MERCONV and MERCONSP are not
interchangeable. DO NOT mix MERCON, MERCONV and
MERCONSP. Use of dual usage fluids in an automatic
transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
7Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
258

LUBRICANT SPECIFICATIONS
ItemFord part
name or
equivalentFord part
numberFord
specification
Spindle bearingHigh
Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W-90–QL WSP-M2C197–A
Rear axle Motorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant
(10.5 inch)
1
XY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 6.0L Diesel Supplement
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
259

ItemFord part
name or
equivalentFord part
numberFord
specification
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
and API
Certification
Mark
Engine
oil-Diesel engineRefer to your 6.0L Diesel Supplement
Hinges, latches,
striker plates,
fuel filler door
hinge and seat
tracksMulti-Purpose
GreaseXG-4 or XL-5 ESR-M1C159-A
or
ESB-M1C93-B
Transmission
/steering/parking
brake linkages
and pivots,
brake pedal
shaftPremium
Long-Life
GreaseXG-1-C or XG-1-K ESA-M1C75-B
Power steering
fluid and
transfer case
fluid (if
equipped)Motorcraft
MERCONAT FXT-2-QDX MERCON
Automatic
transmission
4R100
(4–speed)Motorcraft
MERCONAT F
2
XT-2-QDX MERCON
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
260
