clock setting FORD EXCURSION 2005 1.G Owners Manual

FIND Program type:Allows you to search RDS-equipped stations for a
certain category of music format: Classic, Country, Info, Jazz, Oldies,
R&B, Religious, Rock, Soft, Top 40.
Show TYPE:Displays the station’s call letters and format.
Compression:In CD mode, press to bring soft and loud CD passages
together for a more consistent listening level.
Setting the clock:Press MENU until SELECT HOUR or SELECT MINS
is displayed. Use SEL to manually increase (
) or decrease () the
hours/minutes. Press MENU again to disengage clock mode.
10.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound
returns. In CD mode, press to move between CDs.
This radio is equipped with six station memory preset controls which
allow you to set up to six AM stations and 12 FM stations (six in FM1
and six in FM2).
11.CD:Press to select CD mode.
Seamless play:In CD mode, the
transition between the end of one
CD and the beginning of another will not contain delay time unless SEEK
or a preset control is pressed.
12.AM/FM:Press to select a
frequency band in radio mode.
Autoset:Allows you to set the
strongest local radio stations without losing your original manually set
preset stations for AM/FM1/FM2 . Press and momentarily hold AM/FM.
AUTOSET will flash on the display. When the six strongest stations are
filled, the station stored in preset 1 will begin playing. If there are less
than six strong stations, the system will store the last one in the
remaining presets. Press again to disengage.
13.Power/volume:Press to turn
ON/OFF; turn to increase or
decrease volume levels.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Entertainment Systems
23

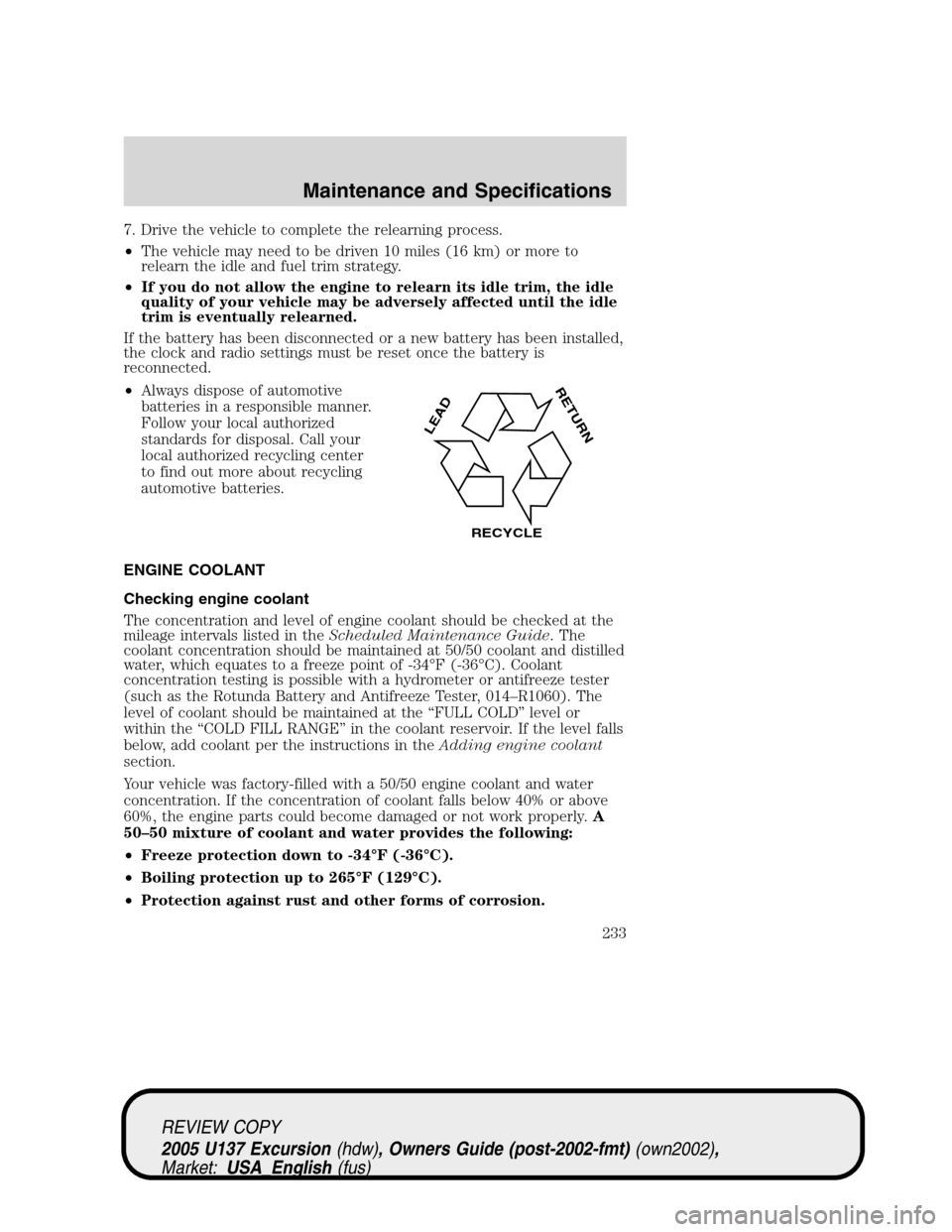

7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 10 miles (16 km) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in theScheduled Maintenance Guide. The
coolant concentration should be maintained at 50/50 coolant and distilled
water, which equates to a freeze point of -34°F (-36°C). Coolant
concentration testing is possible with a hydrometer or antifreeze tester
(such as the Rotunda Battery and Antifreeze Tester, 014–R1060). The
level of coolant should be maintained at the“FULL COLD”level or
within the“COLD FILL RANGE”in the coolant reservoir. If the level falls
below, add coolant per the instructions in theAdding engine coolant
section.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50–50 mixture of coolant and water provides the following:
•Freeze protection down to -34°F (-36°C).
•Boiling protection up to 265°F (129°C).
•Protection against rust and other forms of corrosion.
LEAD
RETURN
RECYCLE
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
233

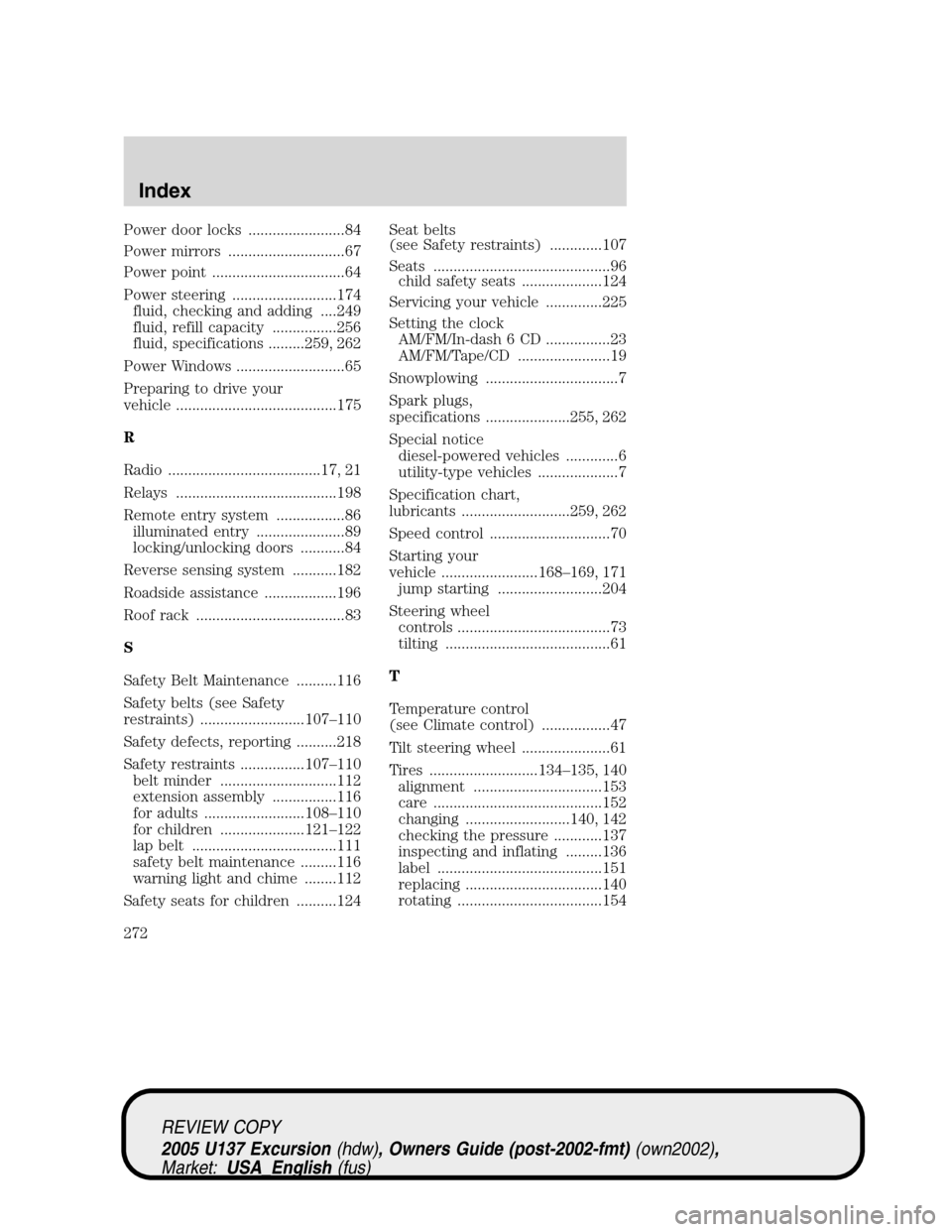

Power door locks ........................84
Power mirrors .............................67
Power point .................................64
Power steering ..........................174
fluid, checking and adding ....249
fluid, refill capacity ................256
fluid, specifications .........259, 262
Power Windows ...........................65
Preparing to drive your
vehicle ........................................175
R
Radio ......................................17, 21
Relays ........................................198
Remote entry system .................86
illuminated entry ......................89
locking/unlocking doors ...........84
Reverse sensing system ...........182
Roadside assistance ..................196
Roof rack .....................................83
S
Safety Belt Maintenance ..........116
Safety belts (see Safety
restraints) ..........................107–110
Safety defects, reporting ..........218
Safety restraints ................107–110
belt minder .............................112
extension assembly ................116
for adults .........................108–110
for children .....................121–122
lap belt ....................................111
safety belt maintenance .........116
warning light and chime ........112
Safety seats for children ..........124Seat belts
(see Safety restraints) .............107
Seats ............................................96
child safety seats ....................124
Servicing your vehicle ..............225
Setting the clock
AM/FM/In-dash 6 CD ................23
AM/FM/Tape/CD .......................19
Snowplowing .................................7
Spark plugs,
specifications .....................255, 262
Special notice
diesel-powered vehicles .............6
utility-type vehicles ....................7
Specification chart,
lubricants ...........................259, 262
Speed control ..............................70
Starting your
vehicle ........................168–169, 171
jump starting ..........................204
Steering wheel
controls ......................................73
tilting .........................................61
T
Temperature control
(see Climate control) .................47
Tilt steering wheel ......................61
Tires ...........................134–135, 140
alignment ................................153
care ..........................................152
changing ..........................140, 142
checking the pressure ............137
inspecting and inflating .........136
label .........................................151
replacing ..................................140
rotating ....................................154
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
272
