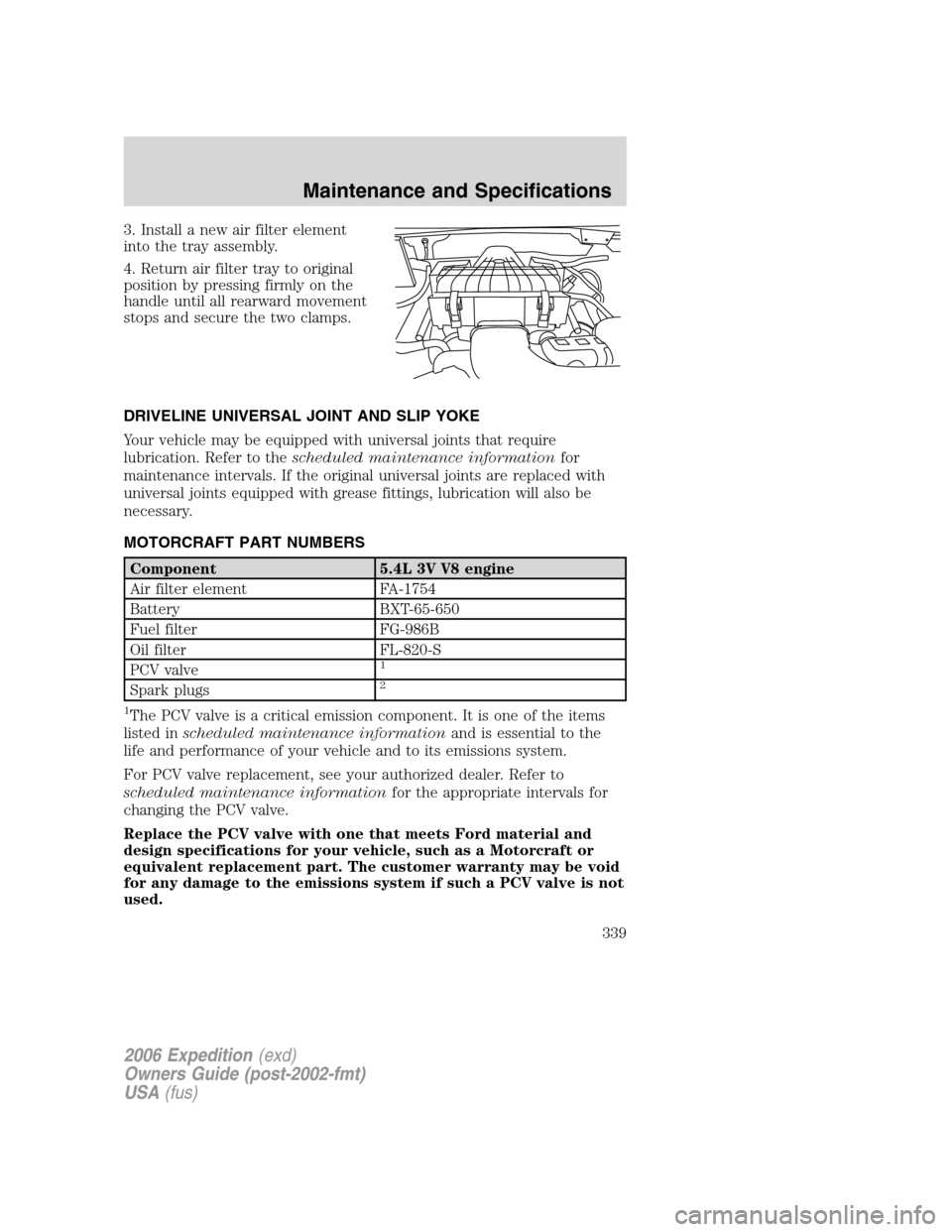

3. Install a new air filter element
into the tray assembly.
4. Return air filter tray to original
position by pressing firmly on the
handle until all rearward movement
stops and secure the two clamps.
DRIVELINE UNIVERSAL JOINT AND SLIP YOKE
Your vehicle may be equipped with universal joints that require
lubrication. Refer to thescheduled maintenance informationfor
maintenance intervals. If the original universal joints are replaced with
universal joints equipped with grease fittings, lubrication will also be
necessary.
MOTORCRAFT PART NUMBERS
Component 5.4L 3V V8 engine
Air filter element FA-1754
Battery BXT-65-650
Fuel filter FG-986B
Oil filter FL-820-S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
339

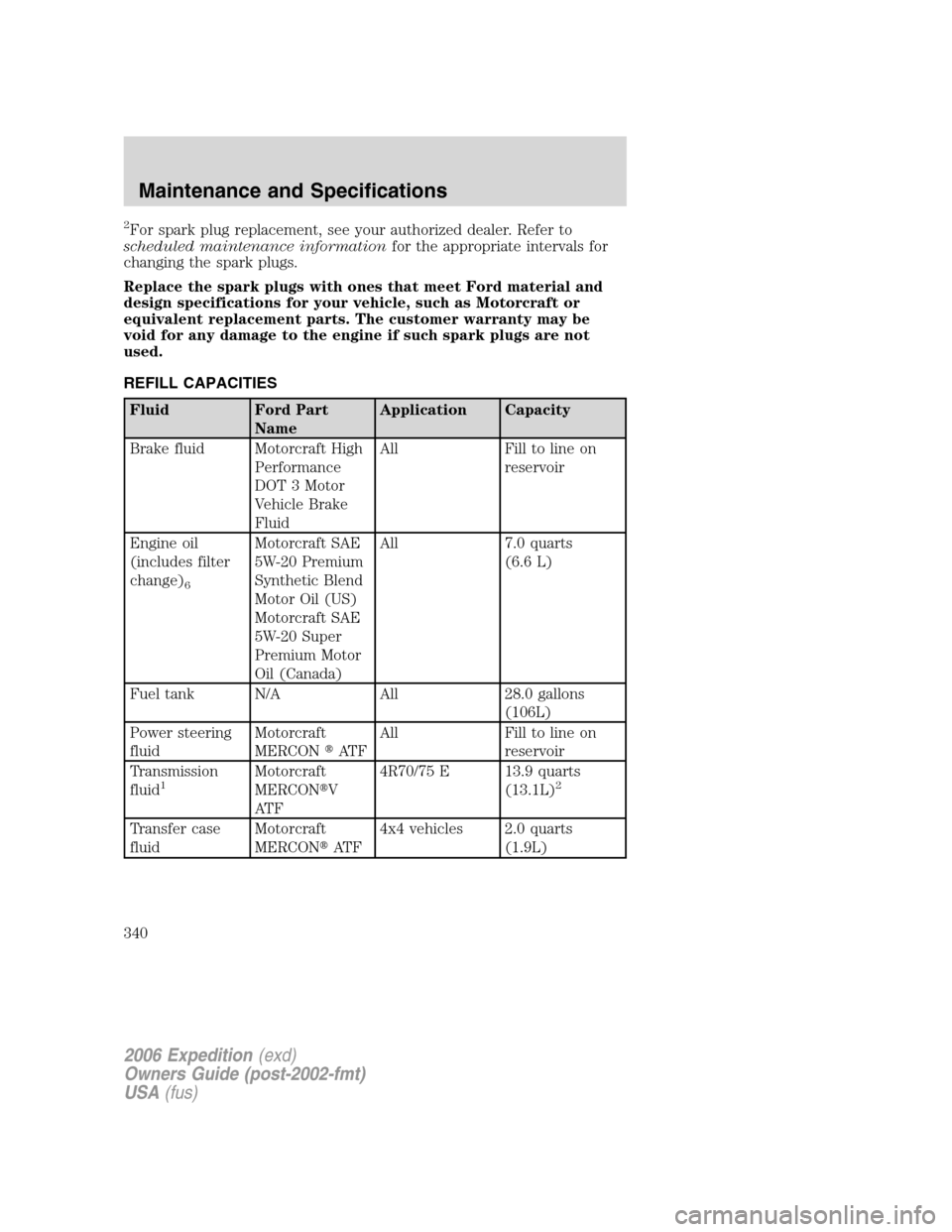

2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Fill to line on
reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)All 7.0 quarts
(6.6 L)
Fuel tank N/A All 28.0 gallons
(106L)
Power steering
fluidMotorcraft
MERCON
AT FAll Fill to line on
reservoir
Transmission
fluid
1Motorcraft
MERCON
V
AT F4R70/75 E 13.9 quarts
(13.1L)2
Transfer case
fluidMotorcraft
MERCON
AT F4x4 vehicles 2.0 quarts
(1.9L)
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
340

Pedals (see Power adjustable
foot pedals) ...............................114
Power adjustable foot pedals ...114
Power distribution box
(see Fuses) ...............................269
Power door locks ......................138
Power mirrors ...........................112
Power point ...............................108
Power steering ..........................244
fluid, checking and adding ....335
fluid, refill capacity ................340
fluid, specifications .........343, 345
Power Windows .........................111
Preparing to drive
your vehicle ...............................247
R
Radio ......................................19, 24
Rear window defroster ...............92
Relays ........................................268
Remote entry system .......139, 141
illuminated entry ....................144
locking/unlocking doors .........140
opening the trunk ...................140
panic alarm .............................141
replacement/additional
transmitters .............................143
Reverse sensing system ...........252
Roadside assistance ..................265
S
Safety Belt Maintenance ..........175
Safety belts
(see Safety restraints) ............166,
169–170, 172–173, 175Safety Canopy ...........................184
Safety defects, reporting ..........300
Safety restraints .......................166,
169–170, 172–175
belt minder .............................176
extension assembly ................175
for adults .................170, 172–173
for children .....................187–188
lap belt ....................................171
safety belt maintenance .........175
warning light and chime ........176
Safety seats for children ..........191
Safety Compliance
Certification Label ....................347
Seat belts
(see Safety restraints) .............166
Seats ..........................................151
child safety seats ....................191
cleaning ...................................305
memory seat ...................141, 155
SecuriLock passive
anti-theft system ...............147–149
Servicing your vehicle ..............308
Setting the clock
AM/FM/In-dash 6 CD ................26
Snowplowing .................................8
Spare tire
(see Changing the Tire) ...........279
Spark plugs,
specifications .............339, 345–346
Special notice
utility-type vehicles ....................8
Specification chart,
lubricants ...........................343, 345
Speed control ............................114
Starting your vehicle ........235–237
jump starting ..........................285
2006 Expedition(exd)
Owners Guide (post-2002-fmt)
USA(fus)
Index
357
