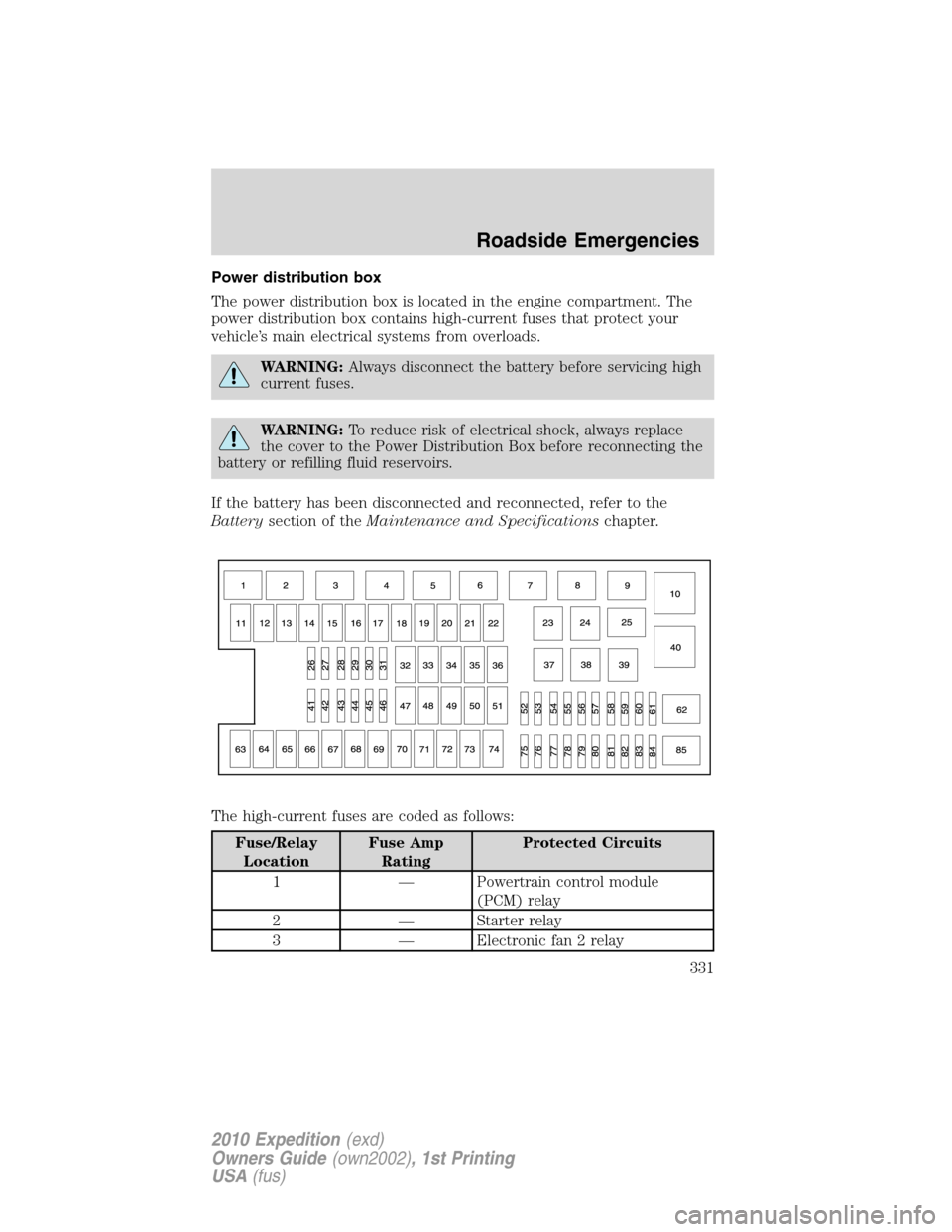

Page 331 of 420

FORD EXPEDITION 2010 3.G Owners Manual Power distribution box
The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems fro

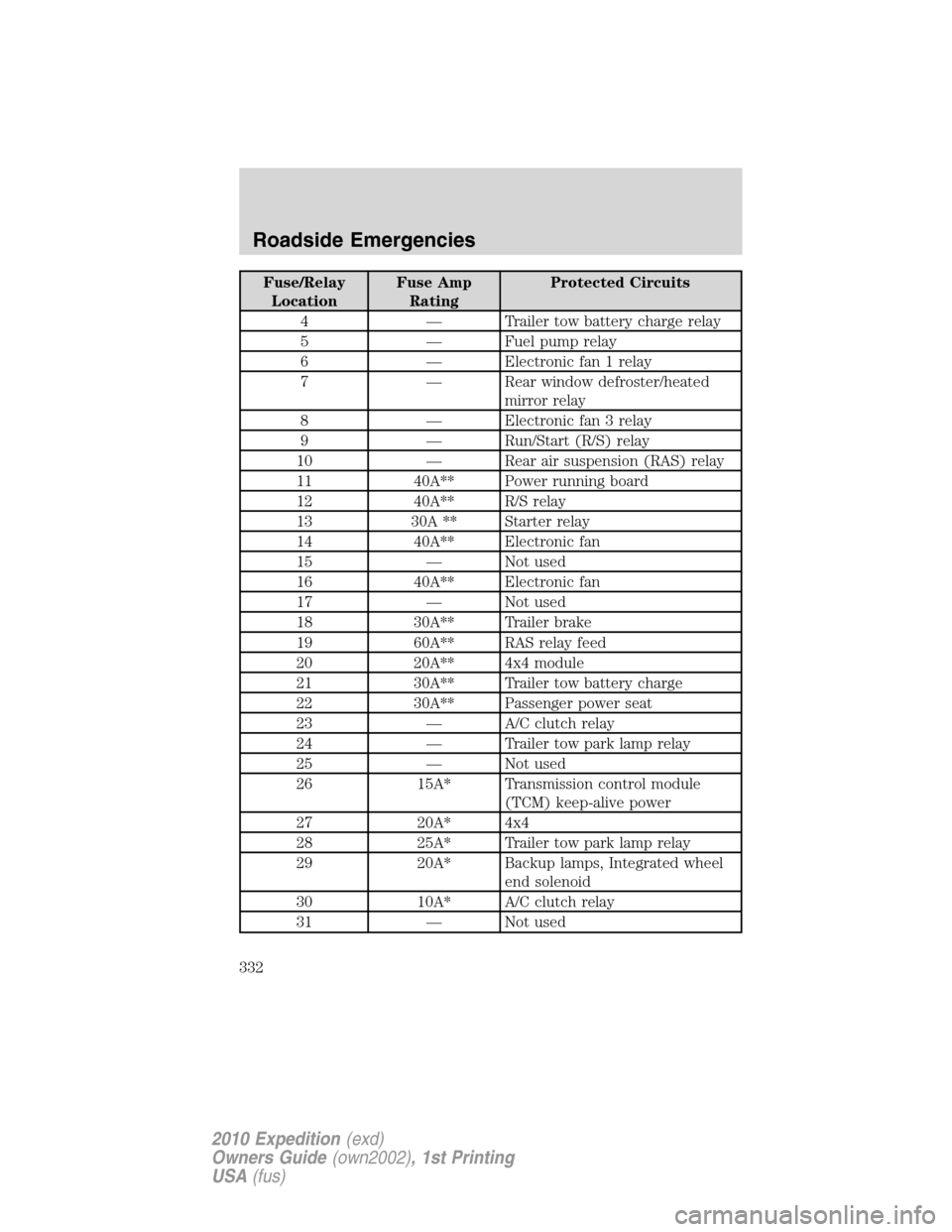

Page 332 of 420

FORD EXPEDITION 2010 3.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
4 — Trailer tow battery charge relay
5 — Fuel pump relay
6 — Electronic fan 1 relay
7 — Rear window defroster/heated
mirror relay
8 — Ele

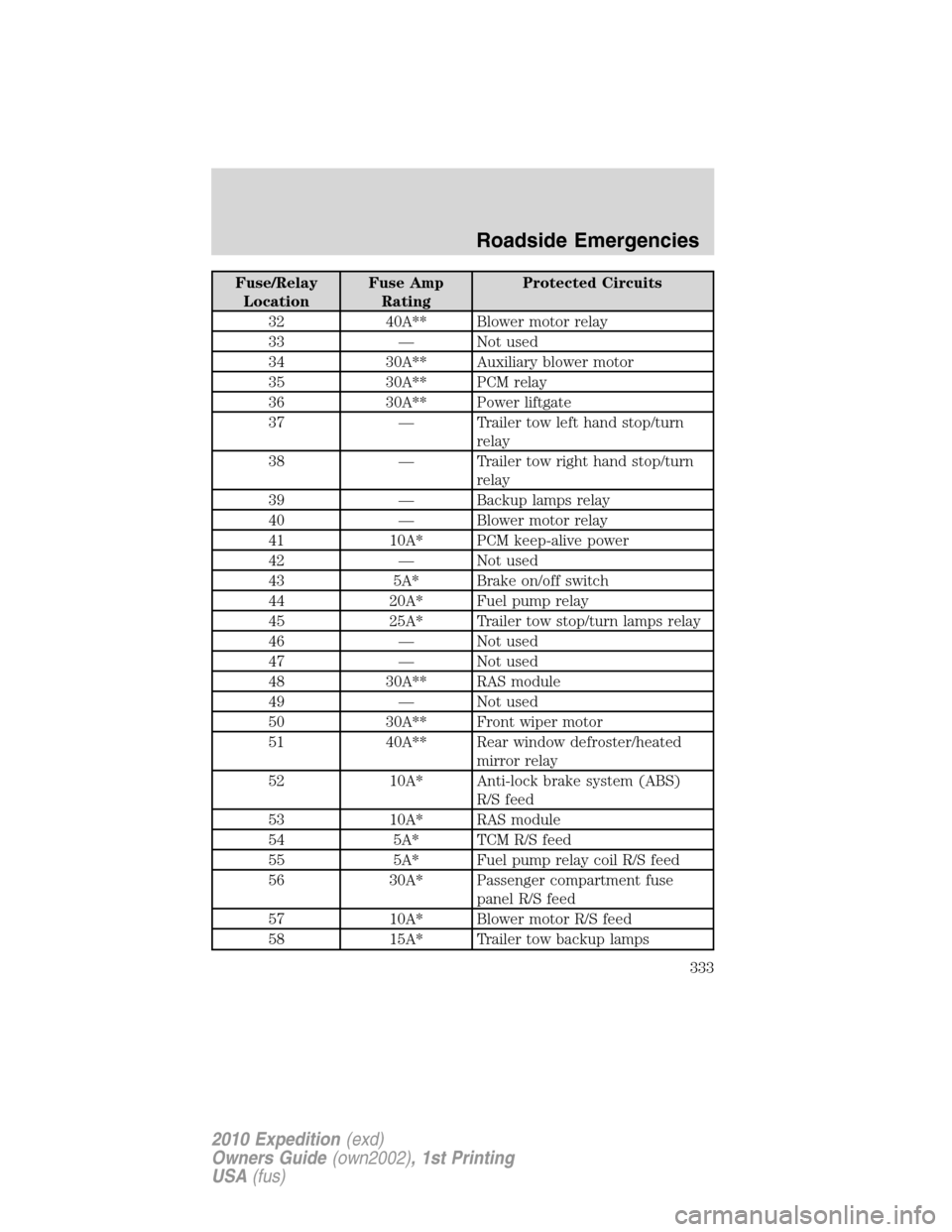

Page 333 of 420

FORD EXPEDITION 2010 3.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
32 40A** Blower motor relay
33 — Not used
34 30A** Auxiliary blower motor
35 30A** PCM relay
36 30A** Power liftgate
37 — Trailer tow left hand

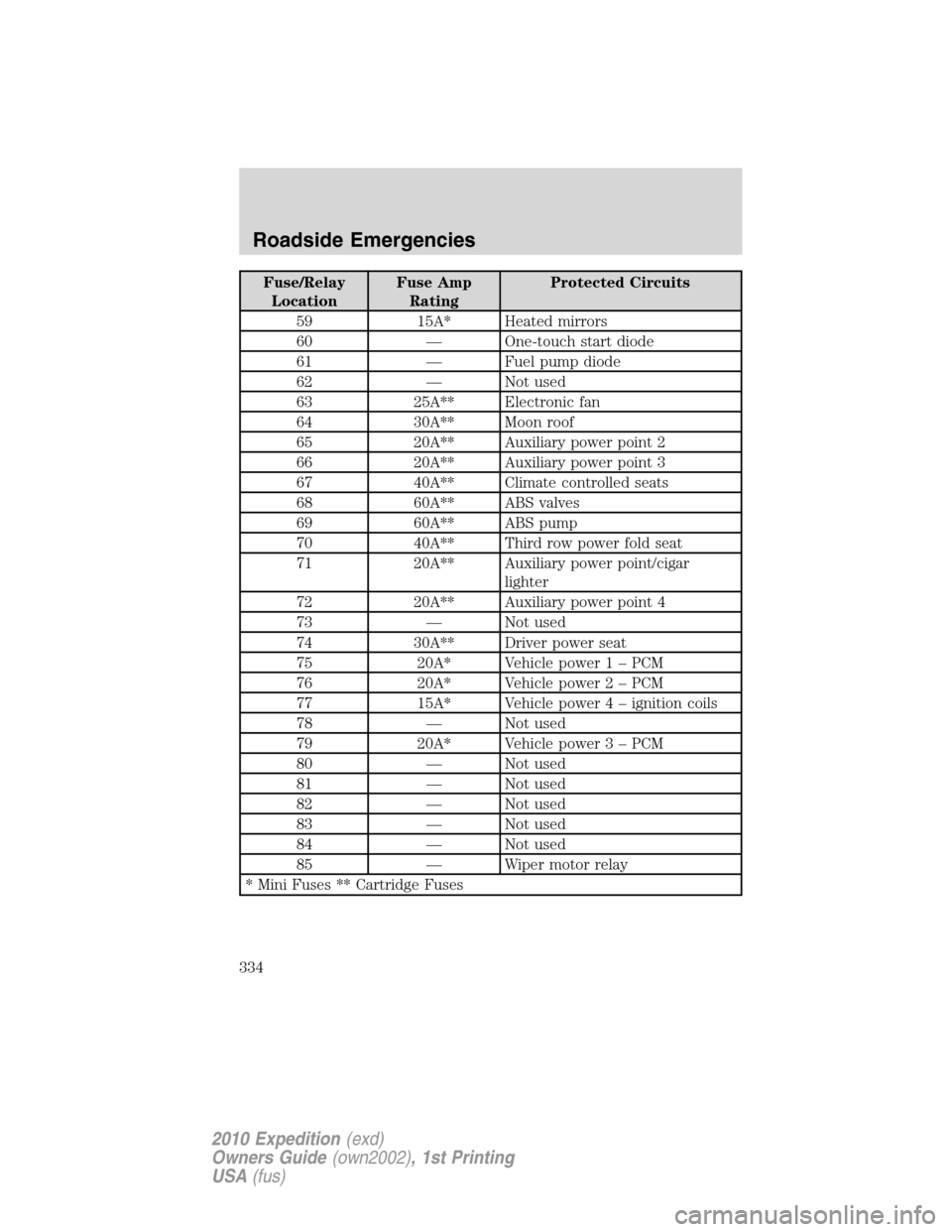

Page 334 of 420

FORD EXPEDITION 2010 3.G Owners Manual Fuse/Relay
LocationFuse Amp
RatingProtected Circuits
59 15A* Heated mirrors
60 — One-touch start diode
61 — Fuel pump diode
62 — Not used
63 25A** Electronic fan
64 30A** Moon roof
65 20A** Auxi

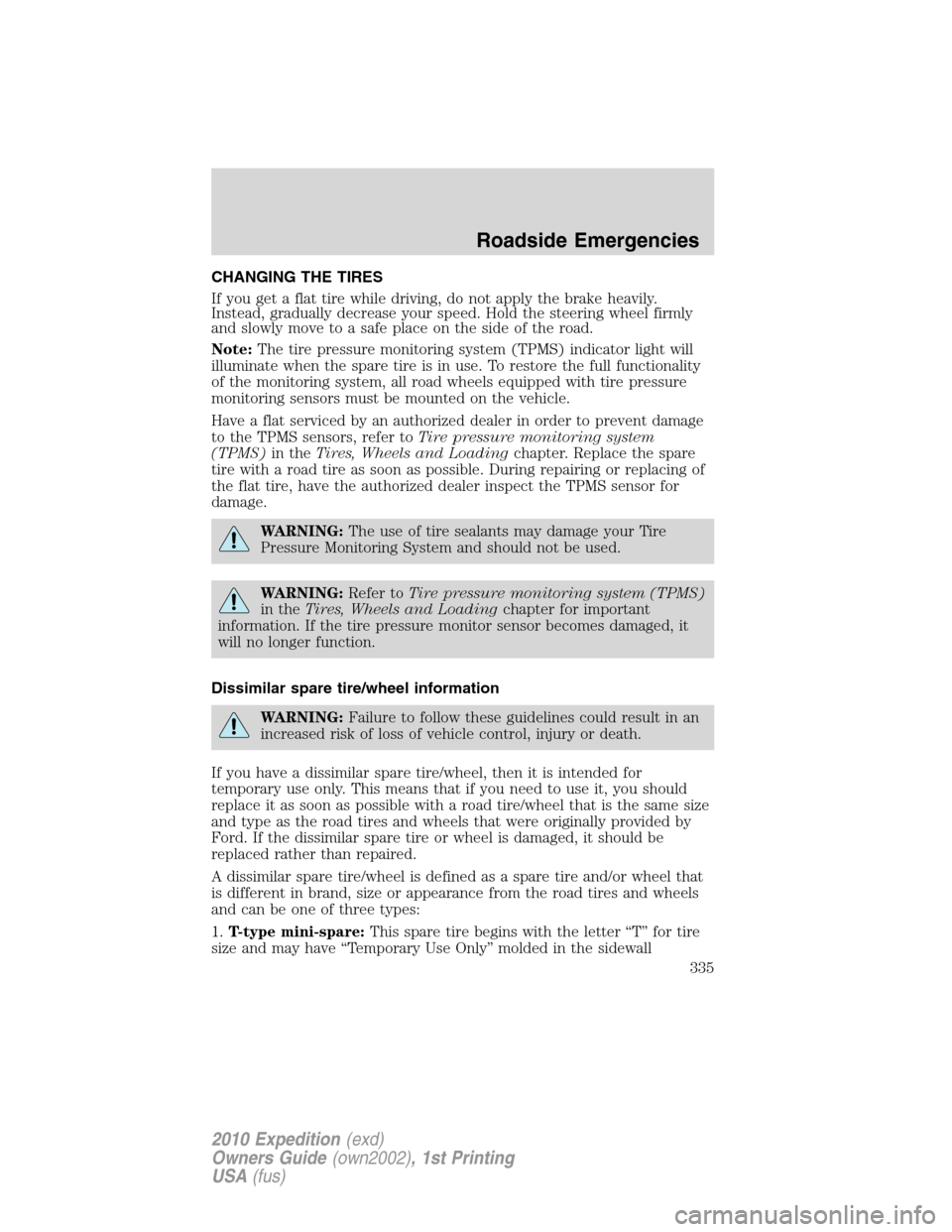

Page 335 of 420

FORD EXPEDITION 2010 3.G Owners Manual CHANGING THE TIRES
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the s

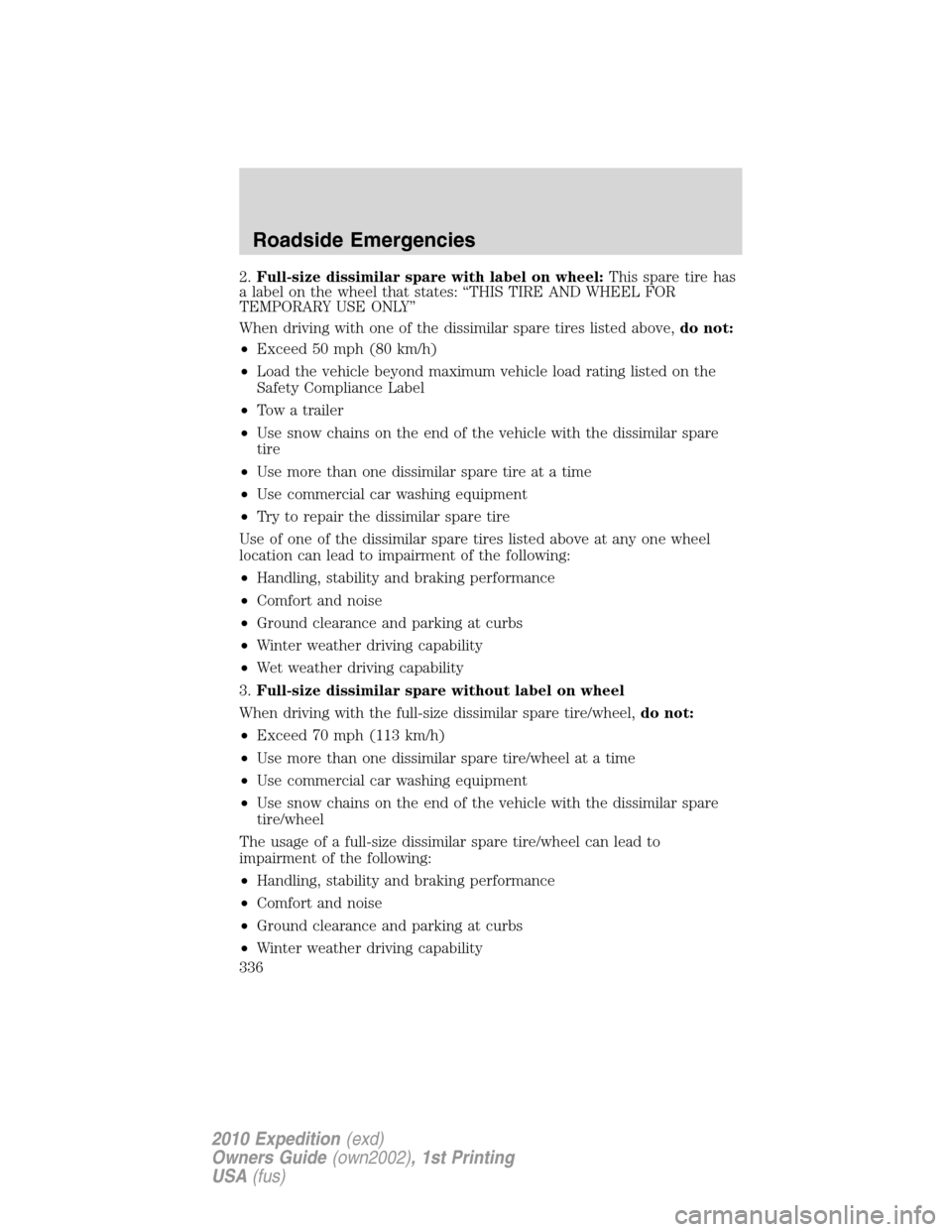

Page 336 of 420

FORD EXPEDITION 2010 3.G Owners Manual 2.Full-size dissimilar spare with label on wheel:This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”
When driving with one of the dissimilar spare ti

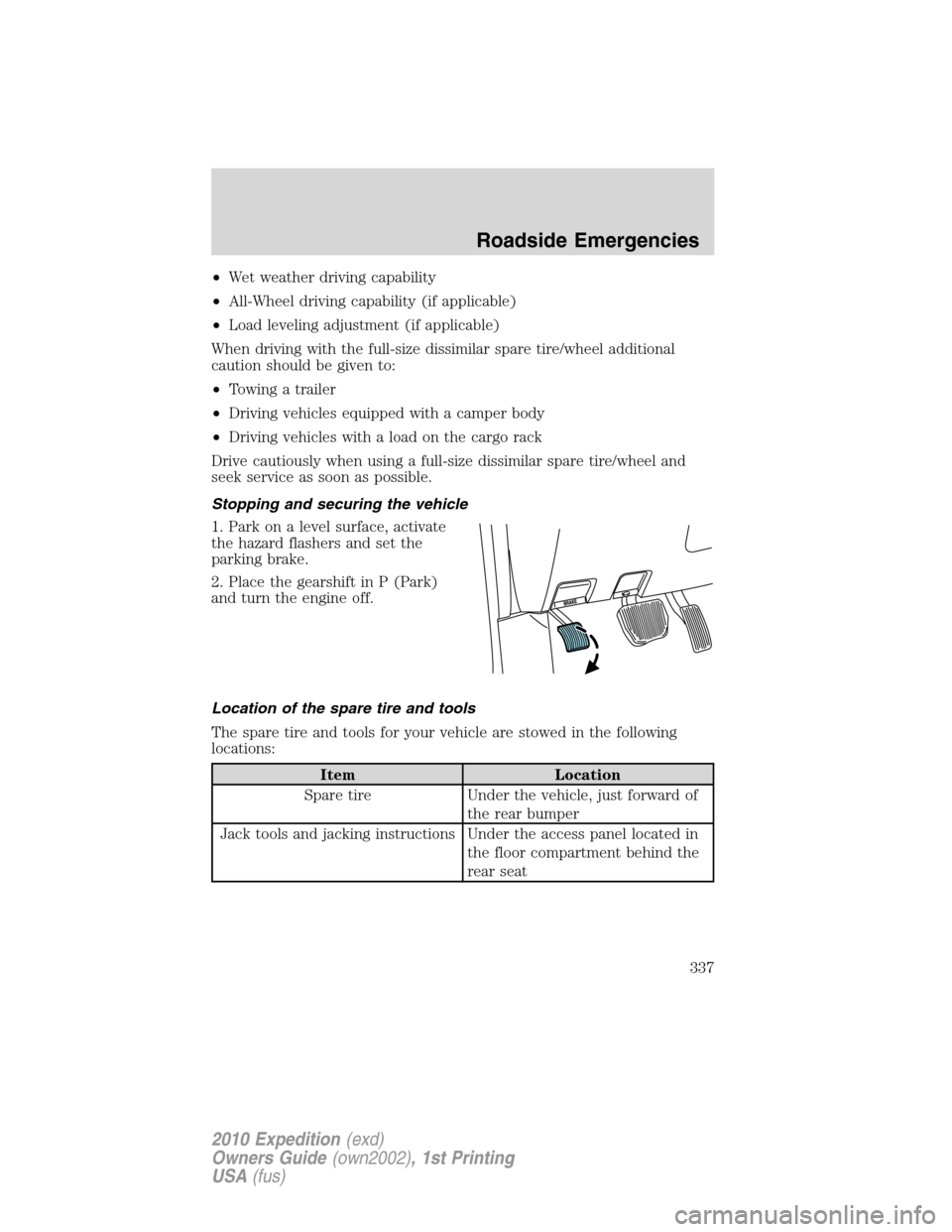

Page 337 of 420

FORD EXPEDITION 2010 3.G Owners Manual •Wet weather driving capability
•All-Wheel driving capability (if applicable)
•Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
cau

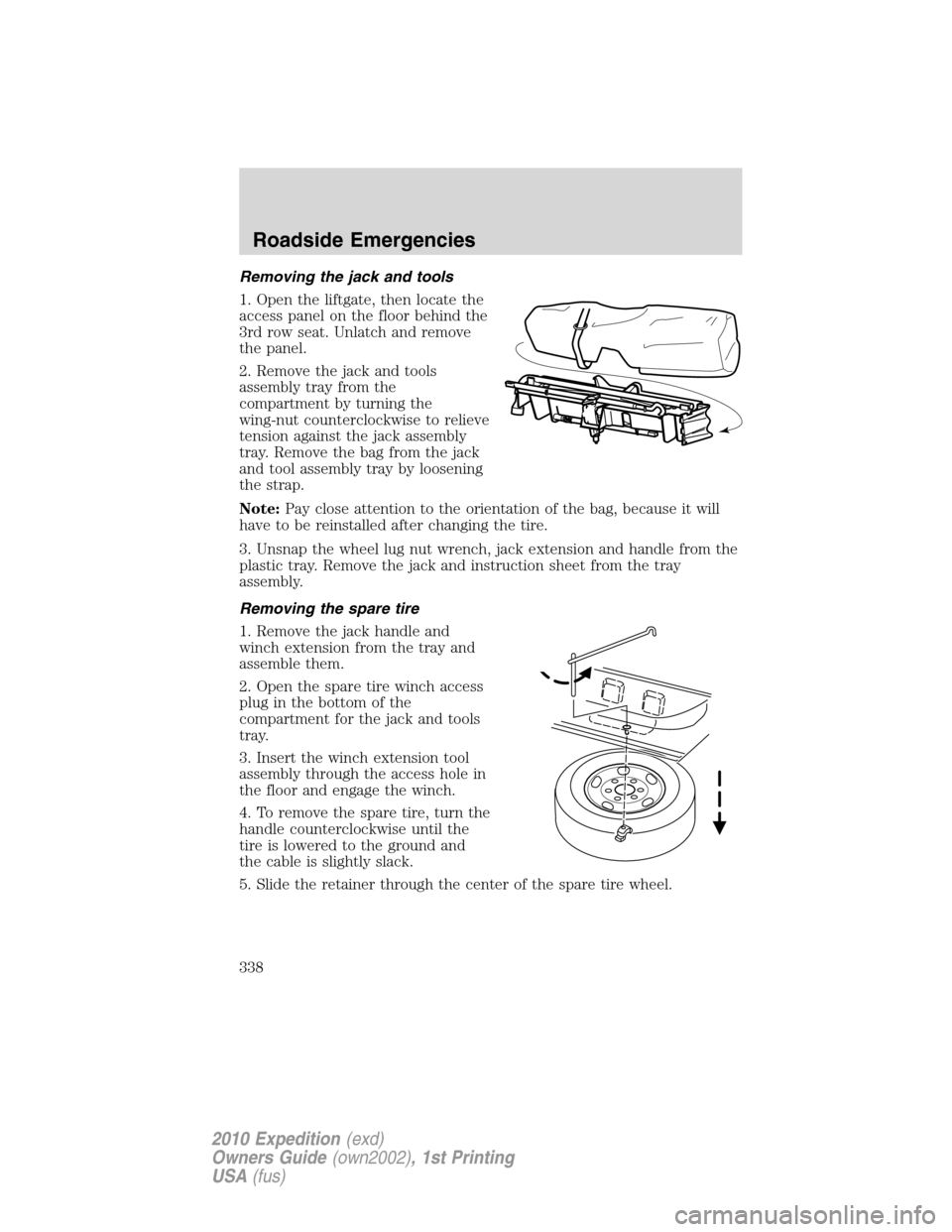

Page 338 of 420

FORD EXPEDITION 2010 3.G Owners Manual Removing the jack and tools
1. Open the liftgate, then locate the
access panel on the floor behind the
3rd row seat. Unlatch and remove
the panel.
2. Remove the jack and tools
assembly tray from the
c

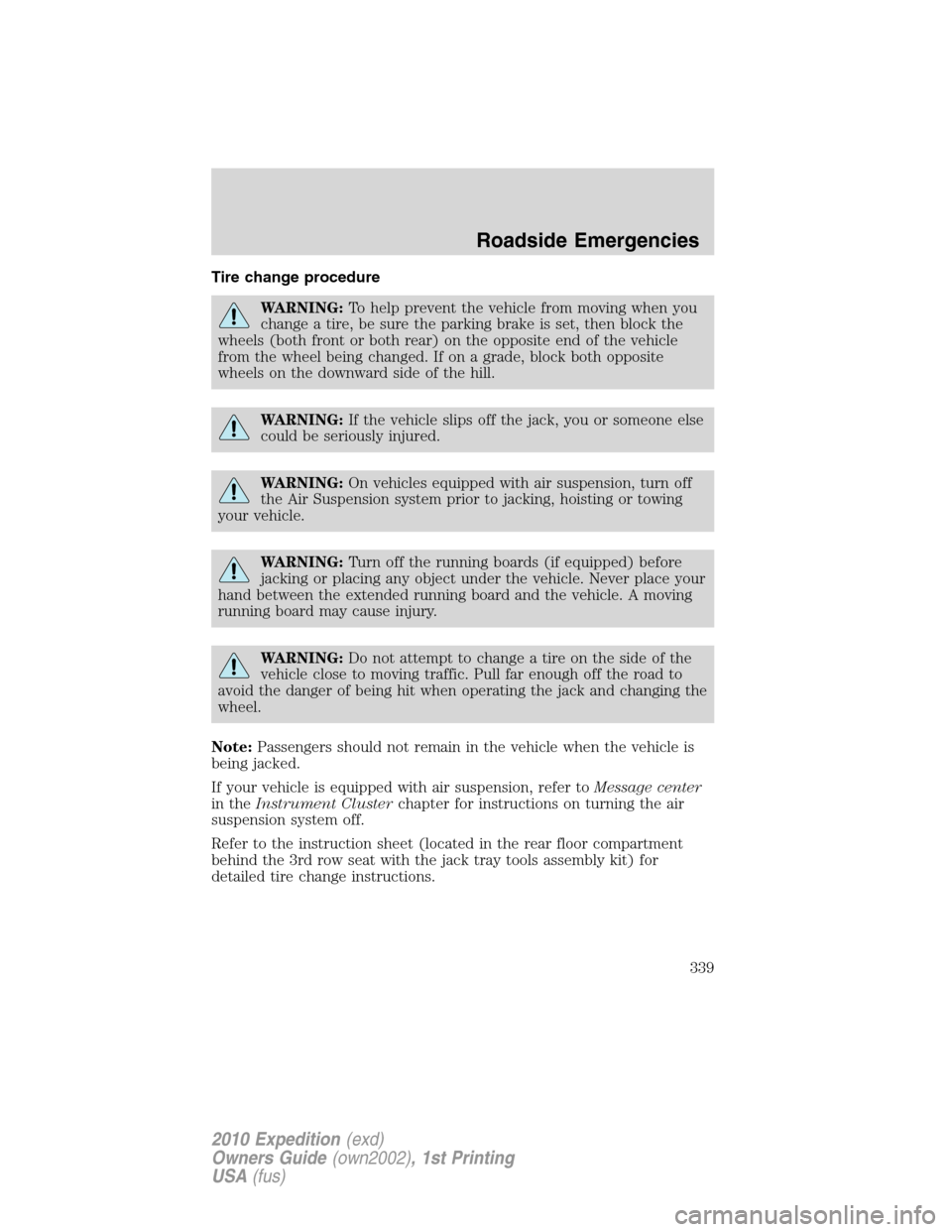

Page 339 of 420

FORD EXPEDITION 2010 3.G Owners Manual Tire change procedure
WARNING:To help prevent the vehicle from moving when you
change a tire, be sure the parking brake is set, then block the
wheels (both front or both rear) on the opposite end of t

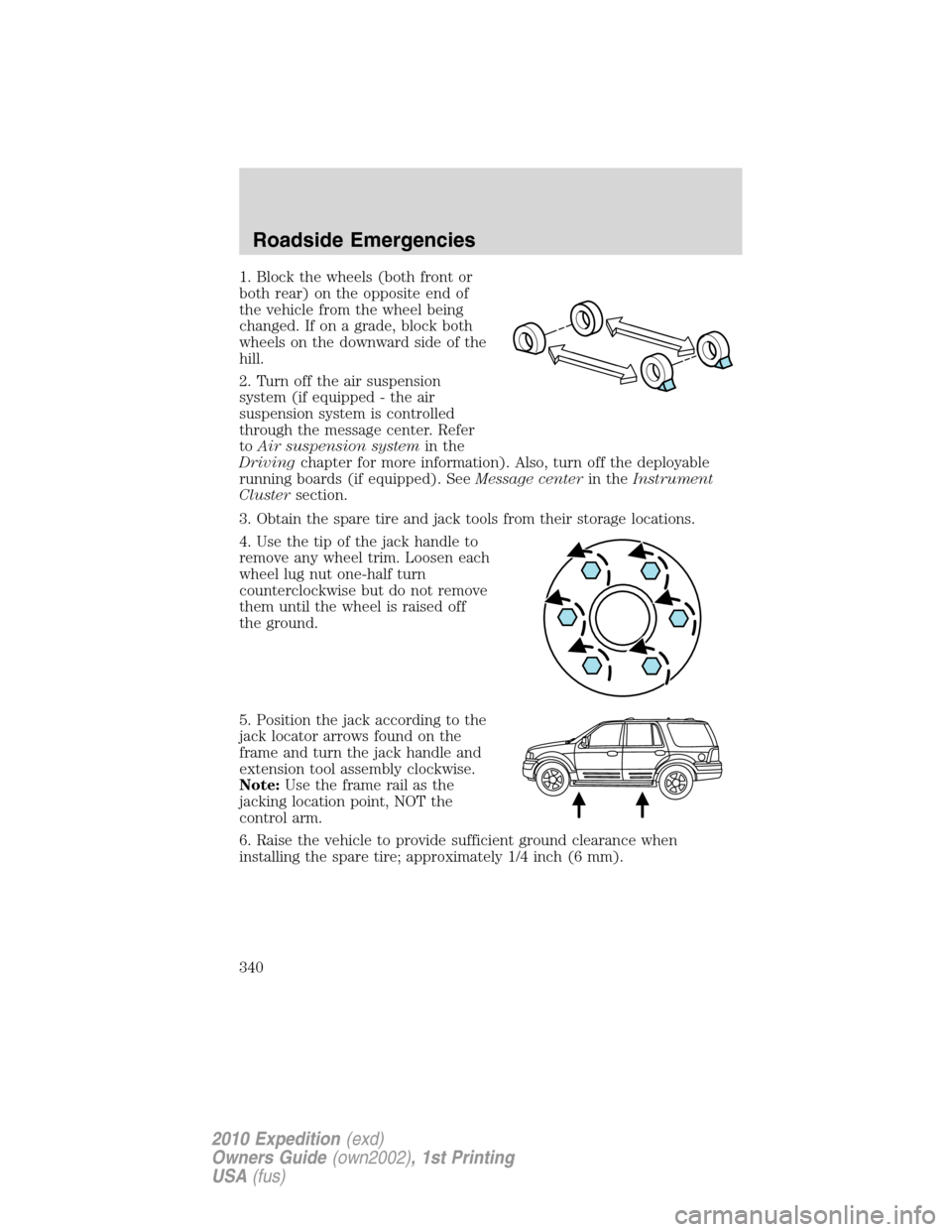

Page 340 of 420

FORD EXPEDITION 2010 3.G Owners Manual 1. Block the wheels (both front or
both rear) on the opposite end of
the vehicle from the wheel being
changed. If on a grade, block both
wheels on the downward side of the
hill.
2. Turn off the air su
