TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourscheduled maintenance informationfor scheduled
intervals for fluid checks and changes. Your transmission does not
consume fluid. However, the fluid level should be checked if the
transmission is not working properly, (i.e., if the transmission slips or
shifts slowly) or if you notice some sign of fluid leakage.
Transmission fluid should be checked by an authorized dealer. If
required, fluid should be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Locate the mass air flow sensor
electrical connector on the air outlet
tube. This connector will need to be
unplugged.
Maintenance and Specifications
398
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)

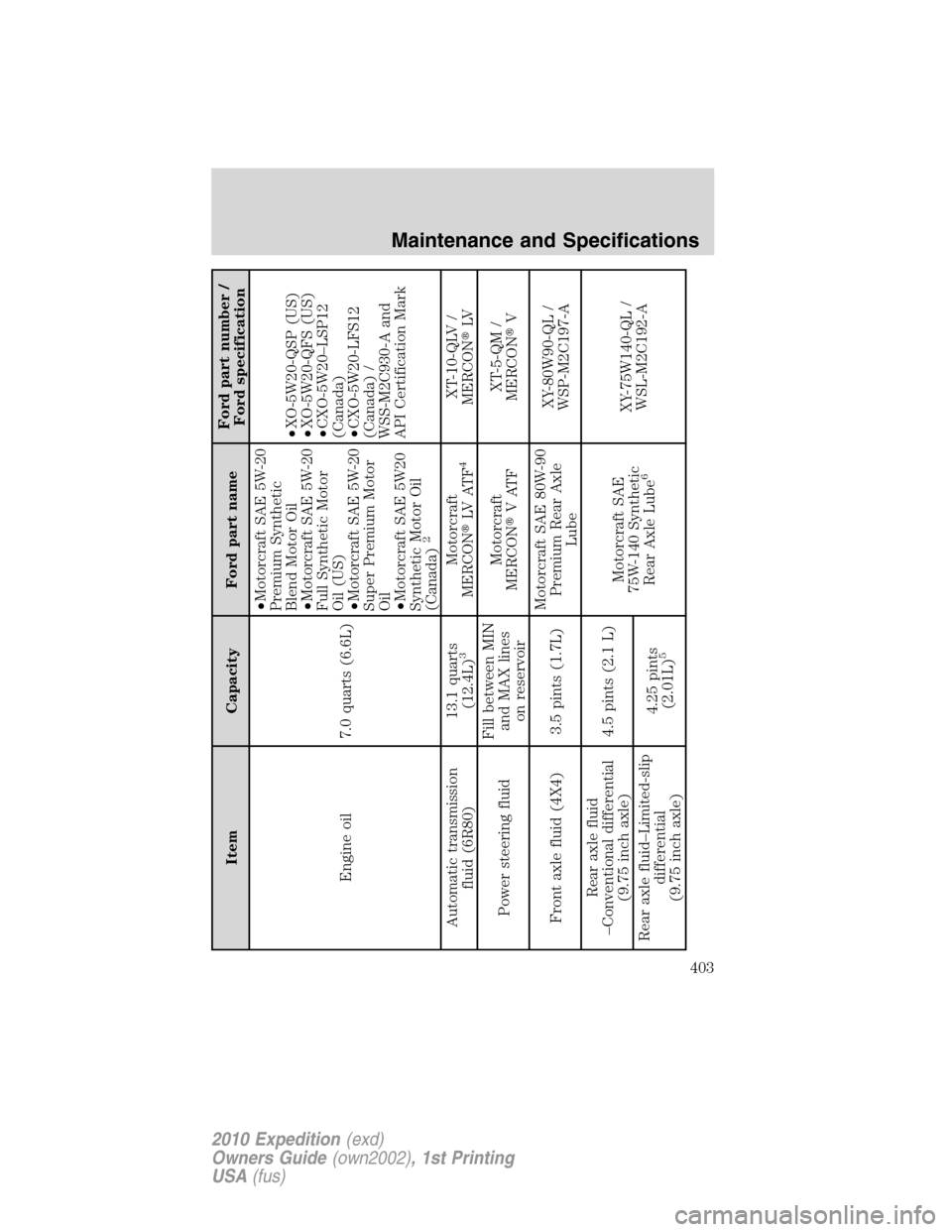

Page 403 of 420
Item Capacity Ford part nameFord part number /
Ford specification
Engine oil 7.0 quarts (6.6L)•Motorcraft SAE 5W-20
Premium Synthetic
Blend Motor Oil
•Motorcraft SAE 5W-20
Full Synthetic Motor
Oil (US)
•Motorcraft SAE 5W-20
Super Premium Motor
Oil
•Motorcraft SAE 5W20
Synthetic Motor Oil
(Canada)
2
•XO-5W20-QSP (US)
•XO-5W20-QFS (US)
•CXO-5W20–LSP12
(Canada)
•CXO-5W20-LFS12
(Canada) /
WSS-M2C930-A and
API Certification Mark
Automatic transmission
fluid (6R80)13.1 quarts
(12.4L)
3
Motorcraft
MERCONLV AT F
4
XT-10-QLV /
MERCONLV
Power steering fluidFill between MIN
and MAX lines
on reservoirMotorcraft
MERCONVATFXT-5-QM /
MERCONV
Front axle fluid (4X4) 3.5 pints (1.7L)Motorcraft SAE 80W-90
Premium Rear Axle
LubeXY-80W90-QL /
WSP-M2C197-A
Rear axle fluid
–Conventional differential
(9.75 inch axle)4.5 pints (2.1 L)
Motorcraft SAE
75W-140 Synthetic
Rear Axle Lube
6
XY-75W140-QL /
WSL-M2C192-A
Rear axle fluid–Limited-slip
differential
(9.75 inch axle)4.25 pints
(2.01L)
5
Maintenance and Specifications
403
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 404 of 420
Item Capacity Ford part nameFord part number /
Ford specification
Transfer case fluid (4X4)1.6-1.8 quarts
(1.5-1.7L)Motorcraft Transfer
Case FluidXL–12 /
—
Windshield washer fluid 4.5 quarts (4.1L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16-A2
Fuel tank (Standard)28.0 gallons
(106.0L)——
Fuel tank
(Expedition EL – U.S. only)33.5 gallons
(126.8L)
Fuel tank
(Expedition Max – Canada
only)33.5 gallons
(126.8L)
1Add the coolant type originally equipped in your vehicle.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity. Some applications may vary based on cooler size and
if equipped with an in-tank cooler.4Automatic transmissions that require MERCONLV should only use MERCONLV fluid. Refer to
scheduled maintenance informationto determine the correct service interval. Use of any fluid
other than the recommended fluid may cause transmission damage.5Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for complete refill of Ford
Limited Slip rear axles.6Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is considered lubricated
for life. These lubricants are not to be checked or changed unless a leak is suspected, service is
required or the axle has been submerged in water. The axle lubricant should be changed any time
the axle has been submerged in water.
Maintenance and Specifications
404
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 414 of 420
A
ABS (see Brakes) .....................291
Accessory delay ........................133
AdvanceTrac ..............................293
Air cleaner filter ...............398, 401
Air suspension ...........................299
description ..............................299
Airbag supplemental restraint
system ........................217, 221, 223
and child safety seats ............219
description ..............217, 221, 223
disposal ....................................227
driver airbag ............219, 222, 224
indicator light .................221, 226
operation .................219, 222, 224
passenger airbag .....219, 222, 224
side airbag ...............................221
Antifreeze
(see Engine coolant) ................378
Anti-lock brake system
(see Brakes) ..............................291
Anti-theft system ..............173, 180
arming the system ..................181
disarming a triggered
system .....................................182
Armrests ....................................187
Audio system
(see Radio) ......................39, 43, 51
Automatic transmission
driving an automatic
overdrive .................................304
fluid, adding ............................398
fluid, checking ........................398
fluid, refill capacities ..............402
fluid, specification ..................402
Auxiliary input jack (Line in) ....59
Auxiliary power point ...............131Axle
lubricant specifications ..........402
refill capacities ........................402
B
Battery .......................................376
acid, treating emergencies .....376
jumping a disabled battery ....345
maintenance-free ....................376
replacement, specifications ...401
servicing ..................................376
Belt-Minder.............................213
Booster seats .............................242
Brakes ........................................290
anti-lock ...................................291
anti-lock brake system (ABS)
warning light ...........................291
fluid, checking and adding ....397
fluid, refill capacities ..............402
fluid, specifications .................402
lubricant specifications ..........402
parking ....................................292
shift interlock ..................301–302
Bulbs ..........................................120
C
Capacities for refilling fluids ....402
Car2U garage door opener .......148
Cargo cover ...............................159
Cargo management system ......159
Cassette tape player ...................43
Cell phone use ..............................8
Changing a tire .........................335
Child safety seats ......................231
in front seat ............................231
in rear seat ..............................231
Index
414
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 415 of 420
LATCH .....................................235
recommendations ...................229
Child safety seats - booster
seats ...........................................242
Cleaning your vehicle
engine compartment ..............361
instrument panel ....................363
interior .....................................364
plastic parts ............................361
washing ....................................359
waxing .....................................360
wheels ......................................360
wiper blades ............................362
Clock adjust
6-CD in dash .............................53
AM/FM/CD .................................45
Compass, electronic ....................23
calibration .................................23
set zone adjustment ...........23, 35
Console ......................................130
overhead ..........................129–130
Controls
power seat ...............................188
steering column ......................141
Coolant
checking and adding ..............378
refill capacities ................381, 402
specifications ..........................402
Cruise control
(see Speed control) ..................138
Customer Assistance ................324
Ford Extended Service
Plan ..........................................411
Getting assistance outside the
U.S. and Canada .....................356
Getting roadside assistance ...324
Getting the service you
need .........................................352Ordering additional owner’s
literature .................................357
Utilizing the
Mediation/Arbitration
Program ...................................356
D
Daytime running lamps
(see Lamps) ..............................115
Dipstick
automatic transmission
fluid ..........................................398
engine oil .................................373
Driving under special
conditions ..................307, 317, 320
sand .........................................318
snow and ice ...........................321
through water .................319, 323
DVD system .................................70
E
Electronic message center ...20, 28
Emergencies, roadside
jump-starting ..........................345
running out of fuel .........344, 389
Emission control system ..........394
Engine ................................405–406
cleaning ...................................361
coolant .....................................378
fail-safe cooling .......................382
idle speed control ...................376
lubrication specifications .......402
refill capacities ........................402
service points ..........................370
starting after a collision .........326
Engine block heater .................288
Engine oil ..................................373
Index
415
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
Page 419 of 420
Satellite Radio Information ........67
Seats ..........................................183
child safety seats ....................231
cleaning ...................................365
climate control ........................192
heated ......................................200
memory seat ...................169, 190
SecuriCode keyless entry
system ........................................171
SecuriLock passive anti-theft
system ................................173, 175
Servicing your vehicle ..............368
Setting the clock
AM/FM single CD .....................45
AM/FM/In-dash 6 CD ................53
Snowplowing .................................6
SOS Post Crash Alert ...............226
Spark plugs,
specifications .............401, 405–406
Special notice
utility-type vehicles ....................6
Specification chart,
lubricants ...................................402
Speed control ............................138
Stability system .........................293
Starting a flex fuel vehicle .......287
Starting your vehicle ........284–287
jump starting ..........................345
Steering wheel
controls ....................................141
tilting .......................................128
SYNC........................................102
T
Third-row power fold seat .......203
Tilt steering wheel ....................128Tire Pressure Monitoring
System (TPMS)
Driving .....................................318
Tires, Wheels and Loading ....263
Warning Displays ..........12, 25, 35
Tires ...........................248–250, 335
alignment ................................257
care ..........................................253
changing ..........................335, 339
checking the pressure ............253
inflating ...................................251
label .........................................262
replacing ..................................254
rotating ....................................257
safety practices .......................256
sidewall information ...............258
snow tires and chains ............268
spare tire .................................335
terminology .............................250
tire grades ...............................249
treadwear ........................249, 253
Towing .......................................275
recreational towing .................283
trailer towing ..........................275
wrecker ....................................350
Transmission .............................304
brake-shift interlock
(BSI) ................................301–302
fluid, checking and adding
(automatic) .............................398
fluid, refill capacities ..............402
lubricant specifications ..........402
Turn signal ................................118
U
Universal garage door opener ..144
USB port ......................................61
Index
419
2010 Expedition(exd)
Owners Guide(own2002), 1st Printing
USA(fus)
