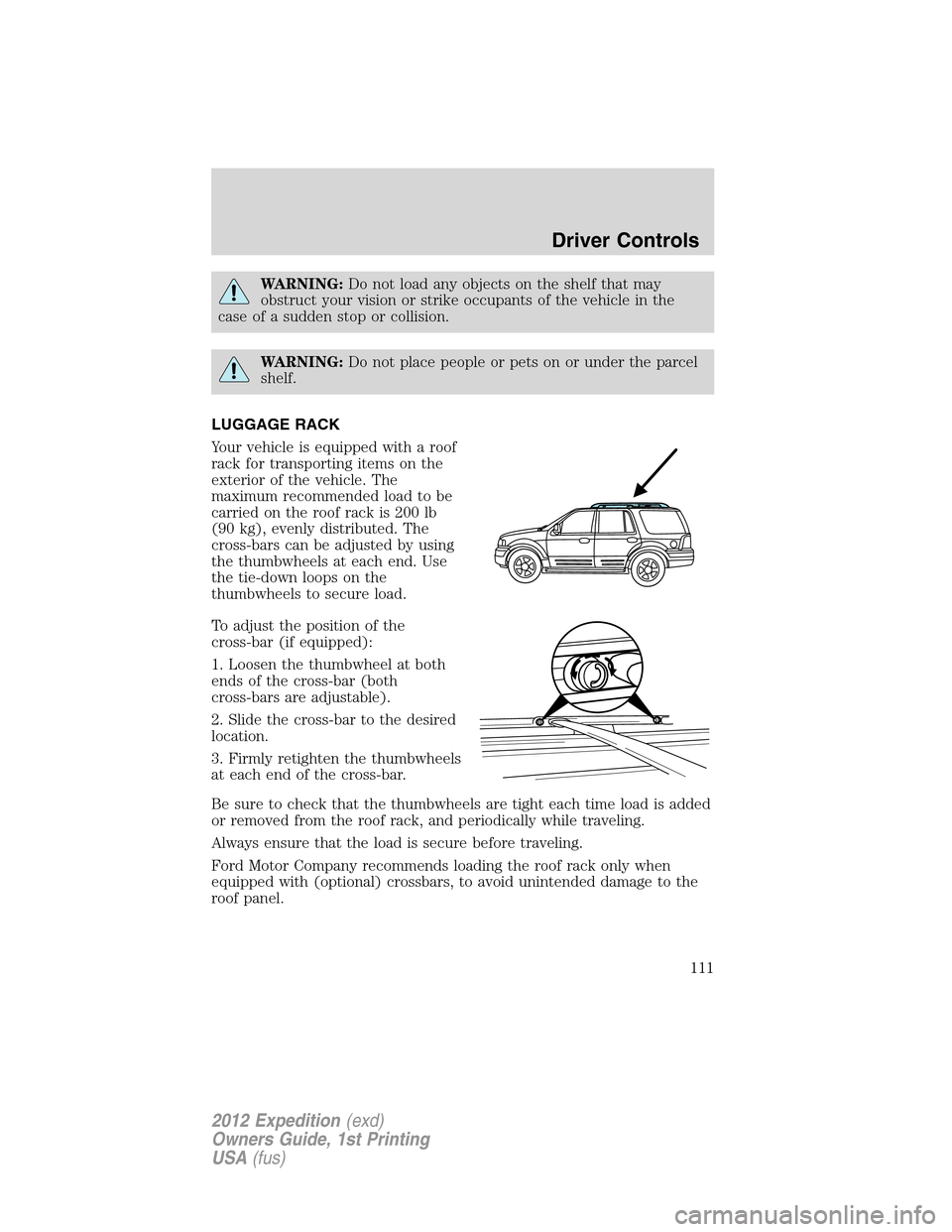

FORD EXPEDITION 2012 3.G Owners Manual

WARNING:Do not load any objects on the shelf that may
obstruct your vision or strike occupants of the vehicle in the
case of a sudden stop or collision.
WARNING:Do not place people or pets on or under the parcel
shelf.
LUGGAGE RACK
Your vehicle is equipped with a roof
rack for transporting items on the
exterior of the vehicle. The
maximum recommended load to be
carried on the roof rack is 200 lb
(90 kg), evenly distributed. The
cross-bars can be adjusted by using
the thumbwheels at each end. Use
the tie-down loops on the
thumbwheels to secure load.
To adjust the position of the
cross-bar (if equipped):
1. Loosen the thumbwheel at both
ends of the cross-bar (both
cross-bars are adjustable).
2. Slide the cross-bar to the desired
location.
3. Firmly retighten the thumbwheels
at each end of the cross-bar.
Be sure to check that the thumbwheels are tight each time load is added
or removed from the roof rack, and periodically while traveling.
Always ensure that the load is secure before traveling.
Ford Motor Company recommends loading the roof rack only when
equipped with (optional) crossbars, to avoid unintended damage to the
roof panel.
Driver Controls
111
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

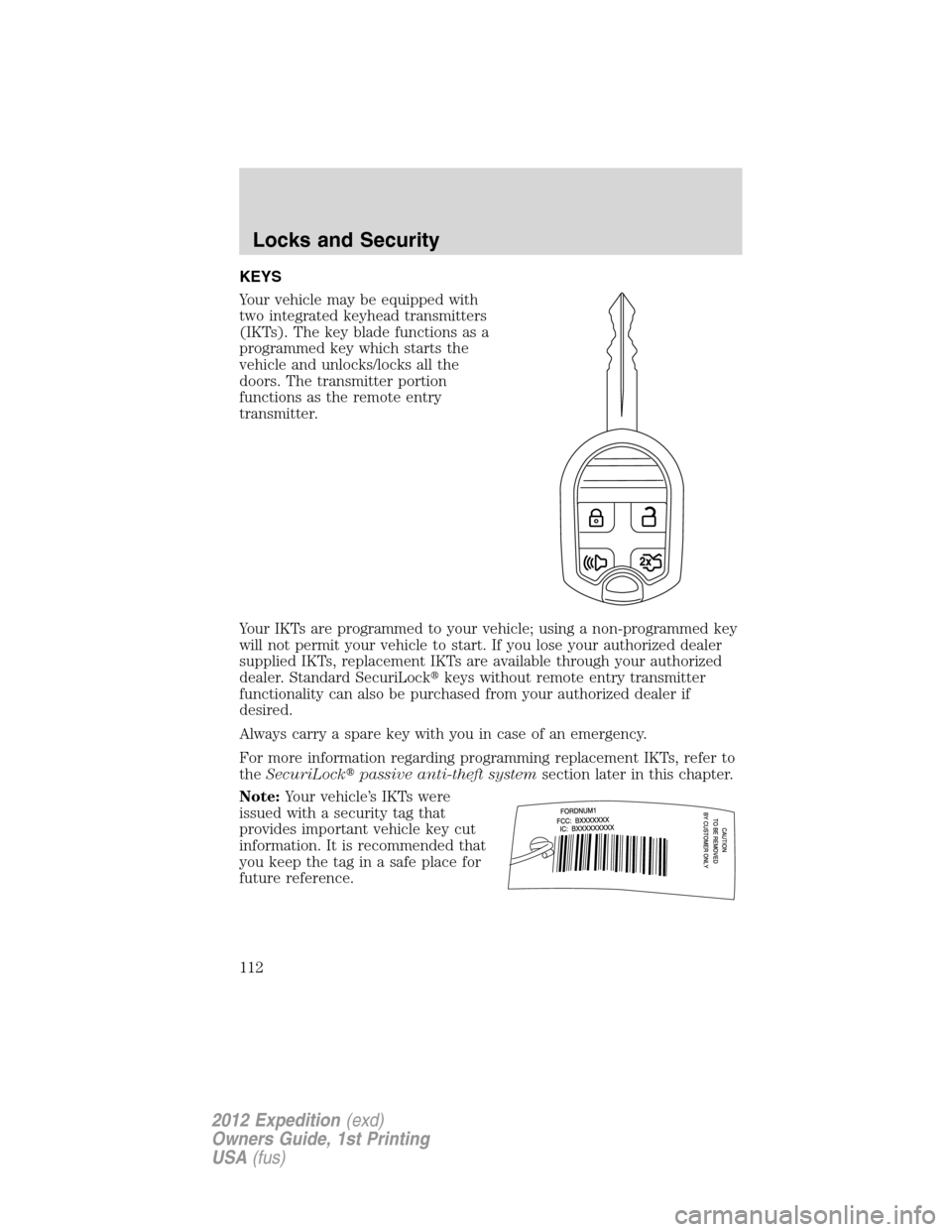

KEYS
Your vehicle may be equipped with
two integrated keyhead transmitters
(IKTs). The key blade functions as a
programmed key which starts the
vehicle and unlocks/locks all the
doors. The transmitter portion
functions as the remote entry
transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied IKTs, replacement IKTs are available through your authorized
dealer. Standard SecuriLockkeys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLockpassive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Locks and Security
112
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

MYKEY
The MyKeyfeature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey. The key will remain restricted
until MyKeyis cleared. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey, program optional MyKeysettings, and clear the MyKey
feature. When the MyKeyfeature is enabled the user can use system
check in the message center to see how many MyKeysand admin keys
are programmed to the vehicle, and how many total miles have been
driven with the MyKeyactive.
MyKeyrestricted features
Standard settings – These settings cannot be changed
•
The audio system will be muted whenever Belt-Minderis activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minderoperation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The reverse sensing system cannot be turned off.
Optional settings – These settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or (if equipped)
navigation screen when attempting to exceed the limited volume.
•The AdvanceTracsystem cannot be turned off. When this optional
setting is on, the MyKeyuser will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac
system if the vehicle is stuck in snow, mud, or sand.
Create a MyKey
To program MyKeyon one of the keys programmed to the vehicle,
insert the key that you want to make a MyKeyinto the ignition. Turn
the ignition on. Use the message center buttons to do the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
Locks and Security
113
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKeyis successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKeyoptional settings
section. If your vehicle is equipped with remote start, see theUsing
MyKeywith remote start systemssection.
Note:The MyKeycan be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKeyprogramming. To clear all MyKeysgo to Step 2 in the
Clear MyKeysection.
Programming MyKeyoptional settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKeysetup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional settings.
Clear MyKey
To reset all MyKeysas admin keys do the following:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
Locks and Security
114
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKeysystem status
The vehicle system check will provide the status of the following MyKey
parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey
is used. If mileage does not accumulate as expected, then the MyKey
is not being used by the intended user. The only way to reset this
odometer to zero is by clearing MyKey. If this odometer is lower than
the last time you checked, then the MyKeysystem has been recently
cleared.
•
# MYKEY(S) PROGRAMMED — Indicates how many MyKeysare
programmed to the vehicle. Can be used to detect deletion of a MyKey.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle.
Refer toMessage centerin theInstrument Clusterchapter for MyKey
system warnings displays.
Using MyKeywith remote start systems
MyKeyis not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. You should program the remote start system as
a MyKeyin addition to the key that you have already programmed as a
MyKey. To program the remote start system as MyKey,dothe
following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKeysection.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKeysystem
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKeysystem statussection.
Locks and Security
115
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

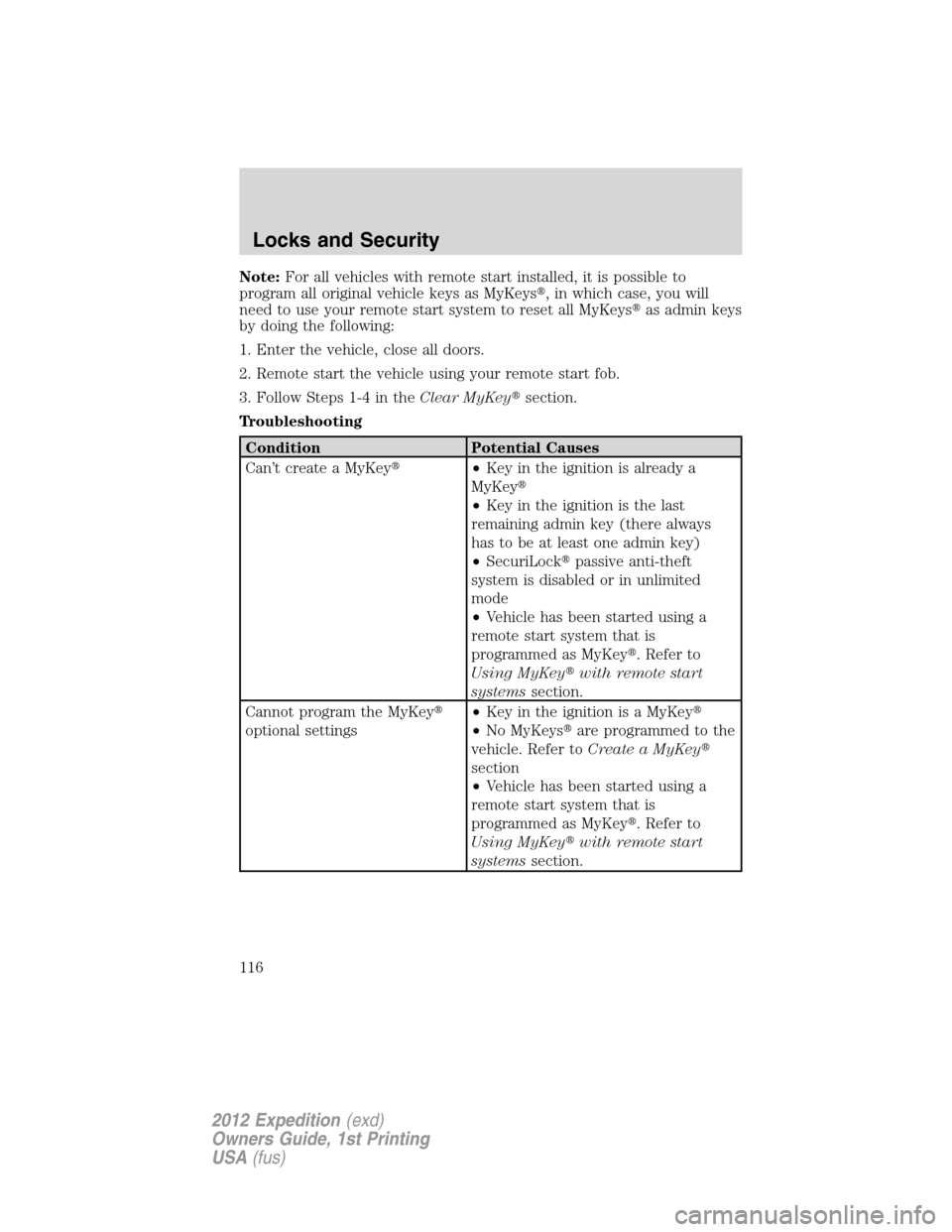

Note:For all vehicles with remote start installed, it is possible to
program all original vehicle keys as MyKeys, in which case, you will
need to use your remote start system to reset all MyKeysas admin keys
by doing the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow Steps 1-4 in theClear MyKeysection.
Troubleshooting
Condition Potential Causes
Can’t create a MyKey•Key in the ignition is already a
MyKey
•Key in the ignition is the last
remaining admin key (there always
has to be at least one admin key)
•SecuriLockpassive anti-theft
system is disabled or in unlimited
mode
•Vehicle has been started using a
remote start system that is
programmed as MyKey. Refer to
Using MyKeywith remote start
systemssection.
Cannot program the MyKey
optional settings•Key in the ignition is a MyKey
•No MyKeysare programmed to the
vehicle. Refer toCreate a MyKey
section
•Vehicle has been started using a
remote start system that is
programmed as MyKey. Refer to
Using MyKeywith remote start
systemssection.
Locks and Security
116
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

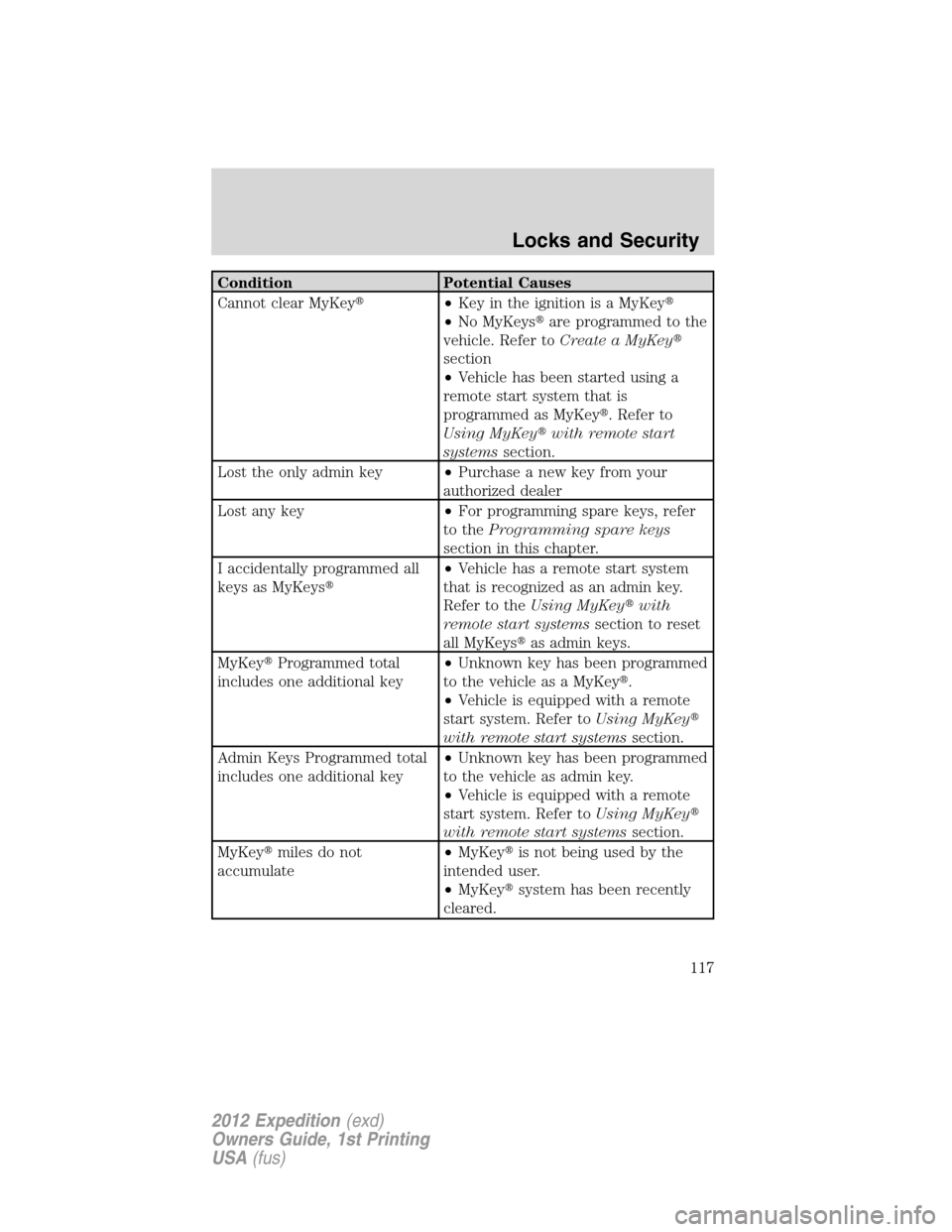

Condition Potential Causes
Cannot clear MyKey•Key in the ignition is a MyKey
•No MyKeysare programmed to the
vehicle. Refer toCreate a MyKey
section
•Vehicle has been started using a
remote start system that is
programmed as MyKey. Refer to
Using MyKeywith remote start
systemssection.
Lost the only admin key•Purchase a new key from your
authorized dealer
Lost any key•For programming spare keys, refer
to theProgramming spare keys
section in this chapter.
I accidentally programmed all
keys as MyKeys•Vehicle has a remote start system
that is recognized as an admin key.
Refer to theUsing MyKeywith
remote start systemssection to reset
all MyKeysas admin keys.
MyKeyProgrammed total
includes one additional key•Unknown key has been programmed
to the vehicle as a MyKey.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKey
with remote start systemssection.
Admin Keys Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as admin key.
•Vehicle is equipped with a remote
start system. Refer toUsing MyKey
with remote start systemssection.
MyKeymiles do not
accumulate•MyKeyis not being used by the
intended user.
•MyKeysystem has been recently
cleared.
Locks and Security
117
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

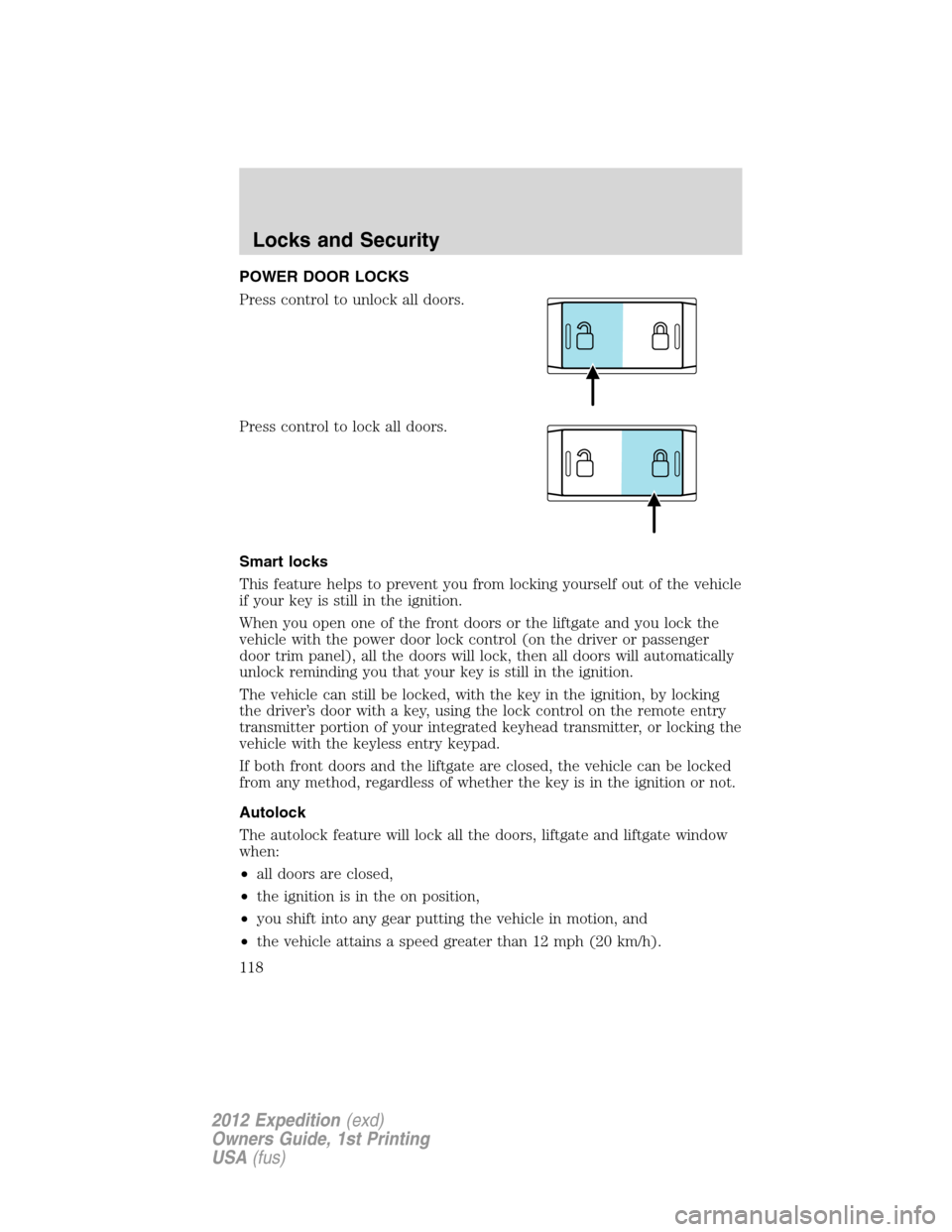

POWER DOOR LOCKS
Press control to unlock all doors.
Press control to lock all doors.
Smart locks
This feature helps to prevent you from locking yourself out of the vehicle
if your key is still in the ignition.
When you open one of the front doors or the liftgate and you lock the
vehicle with the power door lock control (on the driver or passenger
door trim panel), all the doors will lock, then all doors will automatically
unlock reminding you that your key is still in the ignition.
The vehicle can still be locked, with the key in the ignition, by locking
the driver’s door with a key, using the lock control on the remote entry
transmitter portion of your integrated keyhead transmitter, or locking the
vehicle with the keyless entry keypad.
If both front doors and the liftgate are closed, the vehicle can be locked
from any method, regardless of whether the key is in the ignition or not.
Autolock
The autolock feature will lock all the doors, liftgate and liftgate window
when:
•all doors are closed,
•the ignition is in the on position,
•you shift into any gear putting the vehicle in motion, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
Locks and Security
118
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

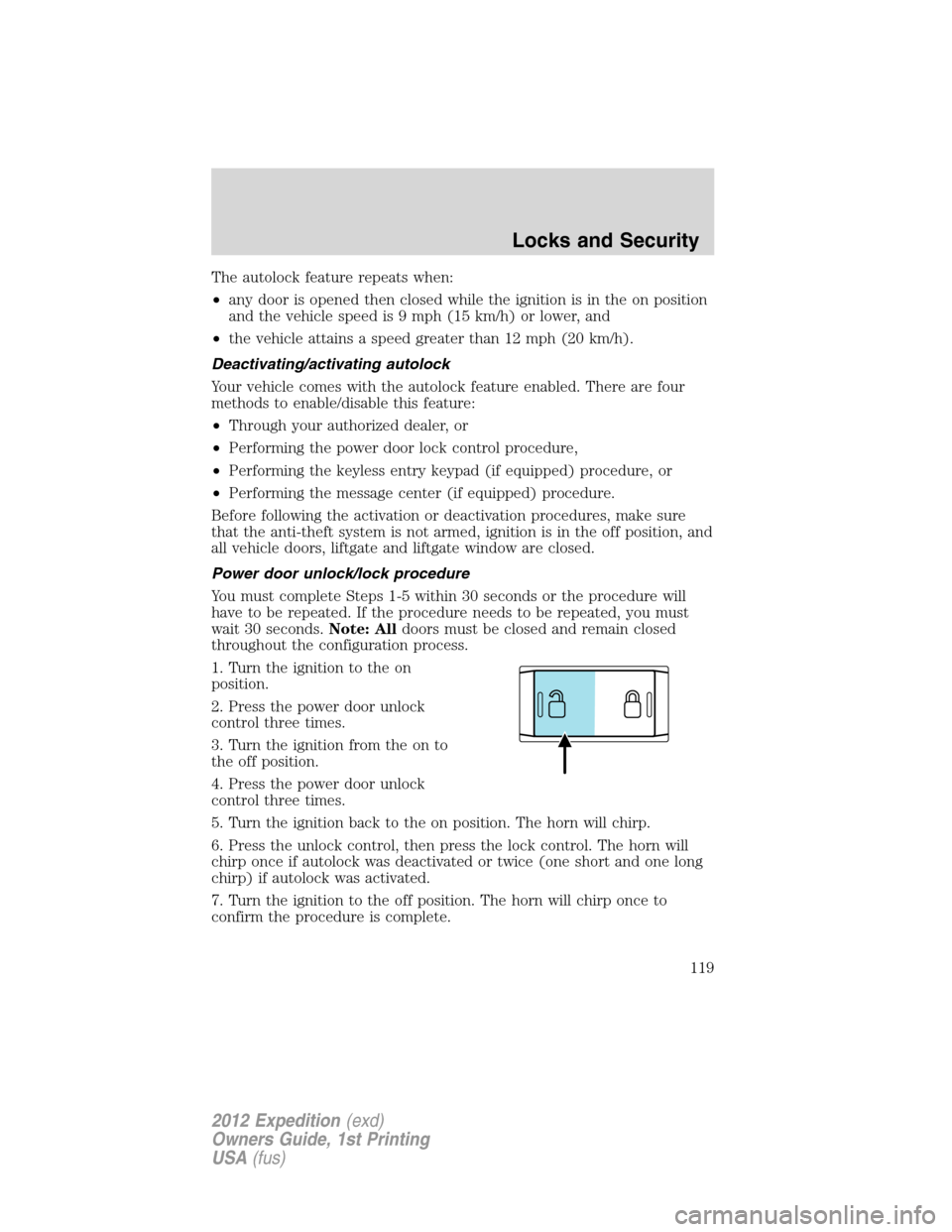

The autolock feature repeats when:
•any door is opened then closed while the ignition is in the on position
and the vehicle speed is 9 mph (15 km/h) or lower, and
•the vehicle attains a speed greater than 12 mph (20 km/h).
Deactivating/activating autolock
Your vehicle comes with the autolock feature enabled. There are four
methods to enable/disable this feature:
•Through your authorized dealer, or
•Performing the power door lock control procedure,
•Performing the keyless entry keypad (if equipped) procedure, or
•Performing the message center (if equipped) procedure.
Before following the activation or deactivation procedures, make sure
that the anti-theft system is not armed, ignition is in the off position, and
all vehicle doors, liftgate and liftgate window are closed.
Power door unlock/lock procedure
You must complete Steps 1-5 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.Note: Alldoors must be closed and remain closed
throughout the configuration process.
1. Turn the ignition to the on
position.
2. Press the power door unlock
control three times.
3. Turn the ignition from the on to
the off position.
4. Press the power door unlock
control three times.
5. Turn the ignition back to the on position. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to the off position. The horn will chirp once to
confirm the procedure is complete.
Locks and Security
119
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)

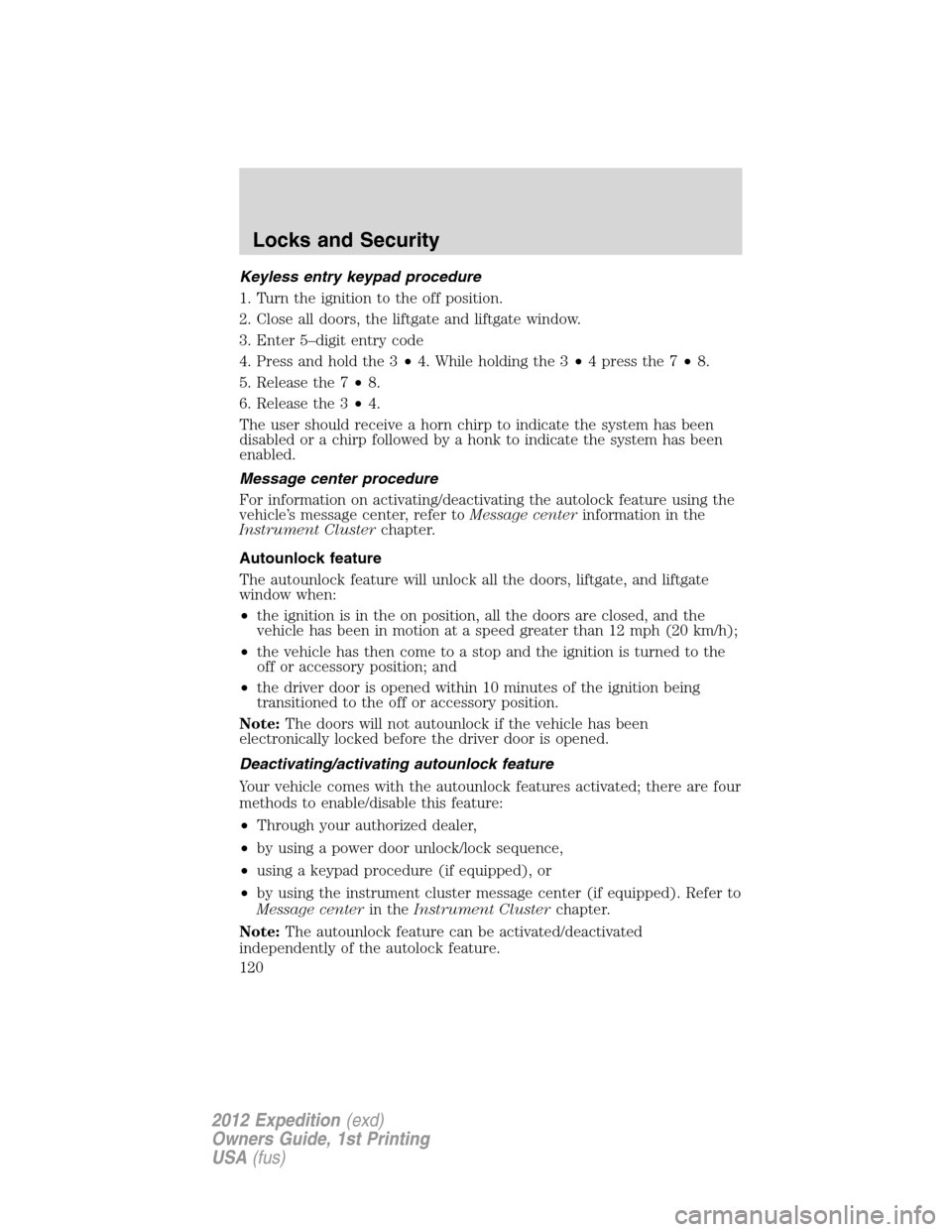

Keyless entry keypad procedure
1. Turn the ignition to the off position.
2. Close all doors, the liftgate and liftgate window.
3. Enter 5–digit entry code
4. Press and hold the 3•4. While holding the 3•4pressthe7•8.
5. Release the 7•8.
6. Release the 3•4.
The user should receive a horn chirp to indicate the system has been
disabled or a chirp followed by a honk to indicate the system has been
enabled.
Message center procedure
For information on activating/deactivating the autolock feature using the
vehicle’s message center, refer toMessage centerinformation in the
Instrument Clusterchapter.
Autounlock feature
The autounlock feature will unlock all the doors, liftgate, and liftgate
window when:
•the ignition is in the on position, all the doors are closed, and the
vehicle has been in motion at a speed greater than 12 mph (20 km/h);
•the vehicle has then come to a stop and the ignition is turned to the
off or accessory position; and
•the driver door is opened within 10 minutes of the ignition being
transitioned to the off or accessory position.
Note:The doors will not autounlock if the vehicle has been
electronically locked before the driver door is opened.
Deactivating/activating autounlock feature
Your vehicle comes with the autounlock features activated; there are four
methods to enable/disable this feature:
•Through your authorized dealer,
•by using a power door unlock/lock sequence,
•using a keypad procedure (if equipped), or
•by using the instrument cluster message center (if equipped). Refer to
Message centerin theInstrument Clusterchapter.
Note:The autounlock feature can be activated/deactivated
independently of the autolock feature.
Locks and Security
120
2012 Expedition(exd)
Owners Guide, 1st Printing
USA(fus)
