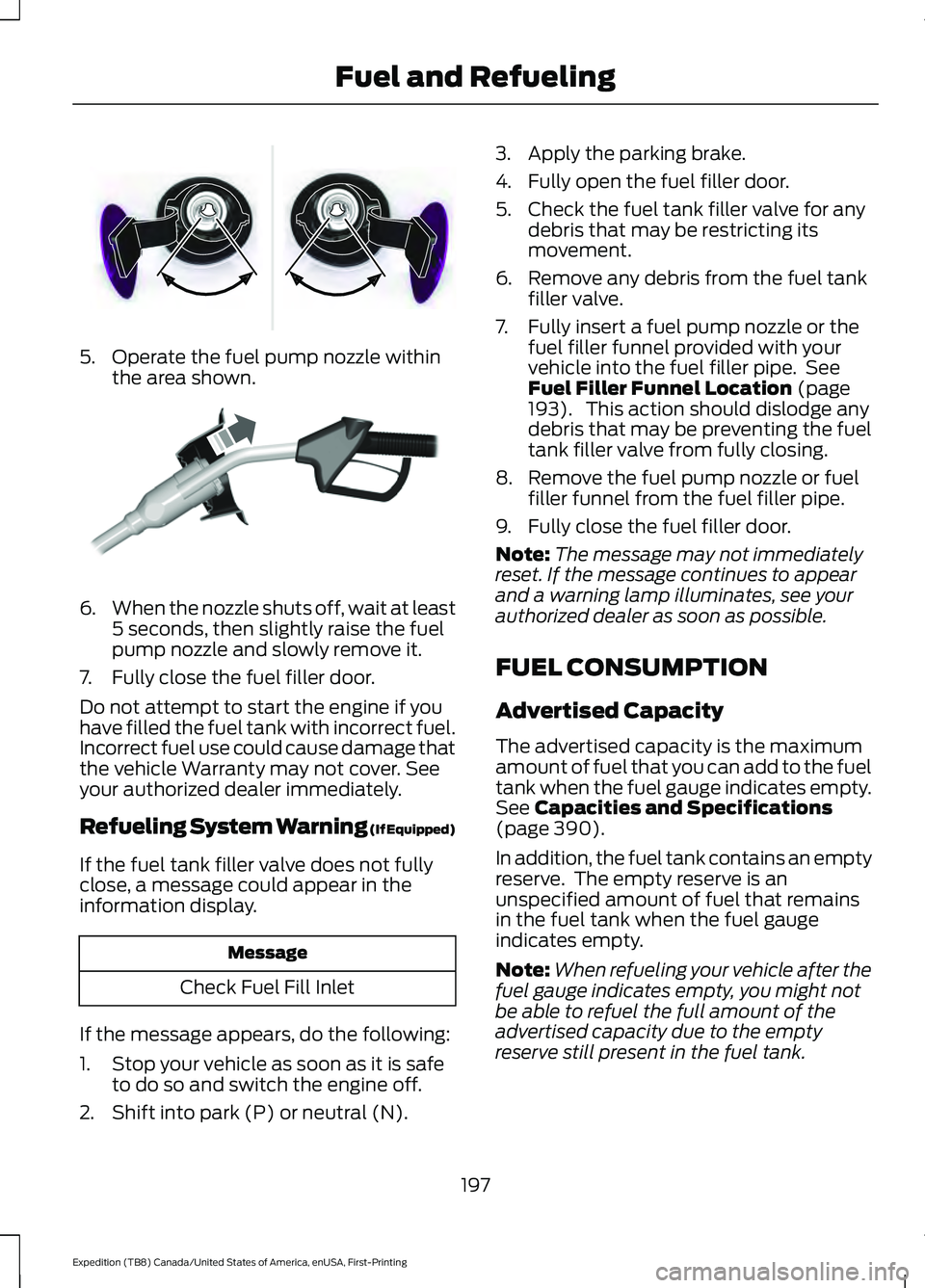

5. Operate the fuel pump nozzle within
the area shown. 6.
When the nozzle shuts off, wait at least
5 seconds, then slightly raise the fuel
pump nozzle and slowly remove it.
7. Fully close the fuel filler door.
Do not attempt to start the engine if you
have filled the fuel tank with incorrect fuel.
Incorrect fuel use could cause damage that
the vehicle Warranty may not cover. See
your authorized dealer immediately.
Refueling System Warning (If Equipped)
If the fuel tank filler valve does not fully
close, a message could appear in the
information display. Message
Check Fuel Fill Inlet
If the message appears, do the following:
1. Stop your vehicle as soon as it is safe to do so and switch the engine off.
2. Shift into park (P) or neutral (N). 3. Apply the parking brake.
4. Fully open the fuel filler door.
5. Check the fuel tank filler valve for any
debris that may be restricting its
movement.
6. Remove any debris from the fuel tank filler valve.
7. Fully insert a fuel pump nozzle or the fuel filler funnel provided with your
vehicle into the fuel filler pipe. See
Fuel Filler Funnel Location (page
193). This action should dislodge any
debris that may be preventing the fuel
tank filler valve from fully closing.
8. Remove the fuel pump nozzle or fuel filler funnel from the fuel filler pipe.
9. Fully close the fuel filler door.
Note: The message may not immediately
reset. If the message continues to appear
and a warning lamp illuminates, see your
authorized dealer as soon as possible.
FUEL CONSUMPTION
Advertised Capacity
The advertised capacity is the maximum
amount of fuel that you can add to the fuel
tank when the fuel gauge indicates empty.
See
Capacities and Specifications
(page 390).
In addition, the fuel tank contains an empty
reserve. The empty reserve is an
unspecified amount of fuel that remains
in the fuel tank when the fuel gauge
indicates empty.
Note: When refueling your vehicle after the
fuel gauge indicates empty, you might not
be able to refuel the full amount of the
advertised capacity due to the empty
reserve still present in the fuel tank.
197
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Fuel and RefuelingE337395 E119081

EPB
See: Electric Parking Brake............................ 220
Essential Towing Checks..........................299 Before Towing a Trailer................................... 304
Hitches.................................................................. 300
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 305
Safety Chains....................................................... 301
Trailer Brakes........................................................ 301
Trailer Hitch Cover............................................. 299
Trailer Lamps...................................................... 304
Trailer Towing Connector (Vehicles with a Trailer Towing Package and 7 –Pin
Connector)...................................................... 299
When Towing a Trailer..................................... 305
Event Data Recording See: Data Recording.............................................. 11
Export Unique Options.................................18
Exterior Mirrors..............................................106
360-Degree Camera......................................... 107
Auto-Dimming Feature..................................... 107
Auto-Folding Mirrors......................................... 106
Blind Spot Monitor............................................. 107
Fold-Away Exterior Mirrors............................. 106
Heated Exterior Mirrors..................................... 107
Memory Mirrors.................................................... 107
Power Exterior Mirrors...................................... 106
Puddle Lamps ..................................................... 107
Signal Indicator Mirrors..................................... 107
F
Fastening the Seatbelts..............................40 Rear Inflatable Seatbelt..................................... 43
Seatbelt Locking Modes.................................... 42
Using Seatbelts During Pregnancy.................41
Flat Tire See: Changing a Road Wheel....................... 382
Floor Mats.......................................................310
Fog Lamps - Front See: Front Fog Lamps...................................... 100
Foot Pedals See: Adjusting the Pedals................................. 95
Ford Credit
.........................................................15
US Only..................................................................... 15
Ford Protect
...................................................481
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 482Ford Protect Extended Service Plans (U.S.
Only)................................................................... 481
Four-Wheel Drive
.........................................210
Front Fog Lamps..........................................100
Front Fog Lamp Indicator................................. 101
Switching the Front Fog Lamps On or Off....................................................................... 100
Front Parking Aid.........................................230 Object Distance Indicator................................ 231
Front Passenger Sensing System............52
Fuel and Refueling.......................................192
Fuel Consumption
........................................197
Advertised Capacity........................................... 197
Calculating Fuel Economy.............................. 198
Filling the Fuel Tank.......................................... 198
Fuel Filler Funnel Location
........................193
Fuel Filter........................................................349
Fuel Quality.....................................................192 Choosing the Right Fuel................................... 192
Fuel Shutoff....................................................313
Fuse Box Locations.....................................325 Engine Compartment Fuse Box................... 325
Passenger Compartment Fuse Box............325
Fuses................................................................325
Fuse Specification Chart...........................325 Engine Compartment Fuse Box................... 325
Passenger Compartment Fuse Box.............331
G
Garage Door Opener....................................174
Garage Door Opener See: Universal Garage Door Opener............174
Gauges - Vehicles With: 4 Inch Information and Entertainment Display
Screen..............................................................111
4 Inch Display......................................................... 111
Configurable Gauge............................................ 112
Engine Coolant Temperature Gauge............112
Engine Oil Pressure Gauge............................... 112
Fuel Gauge.............................................................. 112
Gauges - Vehicles With: 8 Inch Information and Entertainment Display
Screen.............................................................113
8 Inch Display........................................................ 113
Configurable Gauge............................................ 114
Engine Coolant Temperature Gauge............114
Engine Oil Pressure Gauge............................... 114
562
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Index
