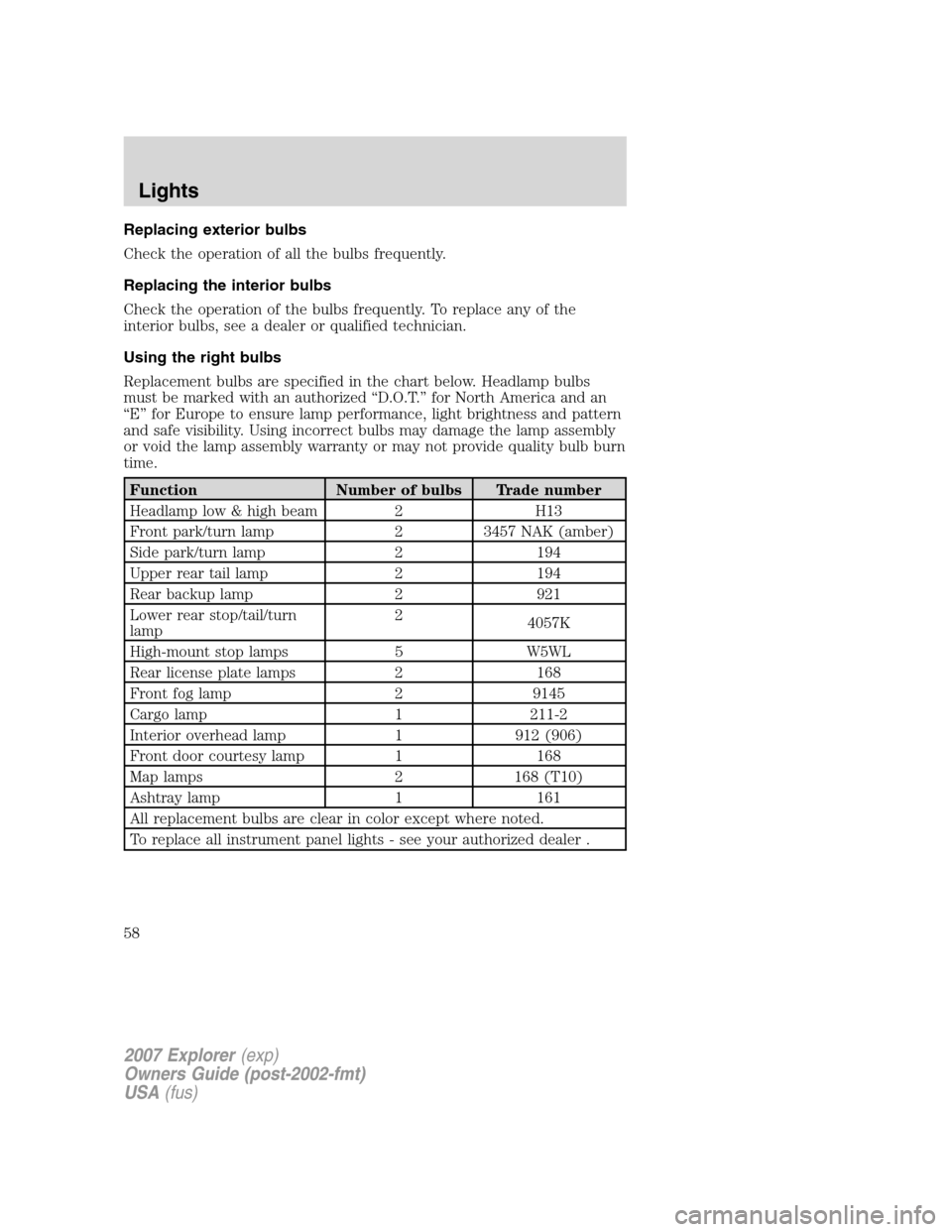

Replacing exterior bulbs
Check the operation of all the bulbs frequently.
Replacing the interior bulbs
Check the operation of the bulbs frequently. To replace any of the
interior bulbs, see a dealer or qualified technician.
Using the right bulbs
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized “D.O.T.” for North America and an
“E” for Europe to ensure lamp performance, light brightness and pattern
and safe visibility. Using incorrect bulbs may damage the lamp assembly
or void the lamp assembly warranty or may not provide quality bulb burn
time.
Function Number of bulbs Trade number
Headlamp low & high beam 2 H13
Front park/turn lamp 2 3457 NAK (amber)
Side park/turn lamp 2 194
Upper rear tail lamp 2 194
Rear backup lamp 2 921
Lower rear stop/tail/turn
lamp2
4057K
High-mount stop lamps 5 W5WL
Rear license plate lamps 2 168
Front fog lamp 2 9145
Cargo lamp 1 211-2
Interior overhead lamp 1 912 (906)
Front door courtesy lamp 1 168
Map lamps 2 168 (T10)
Ashtray lamp 1 161
All replacement bulbs are clear in color except where noted.
To replace all instrument panel lights - see your authorized dealer .
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
58

4. Rotate the bulb socket
counterclockwise and remove it
from the lamp assembly.
5. Pull the bulb straight out of the
socket.
Reverse steps to reinstall bulb(s).
Replacing foglamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the bulb socket from the
foglamp by turning it
counterclockwise.
3. Disconnect the electrical
connector.
Reverse steps to reinstall bulb(s).
Replacing license plate lamp bulbs
1. Make sure the headlamp switch is
in the OFF position.
2. Remove the lamp assembly by
depressing the small tab and rocking
the lamp assembly out.
3. Remove the bulb socket from the
lamp assembly by turning
counterclockwise and pull the bulb
straight out.
Reverse steps to reinstall bulb(s).
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Lights
61

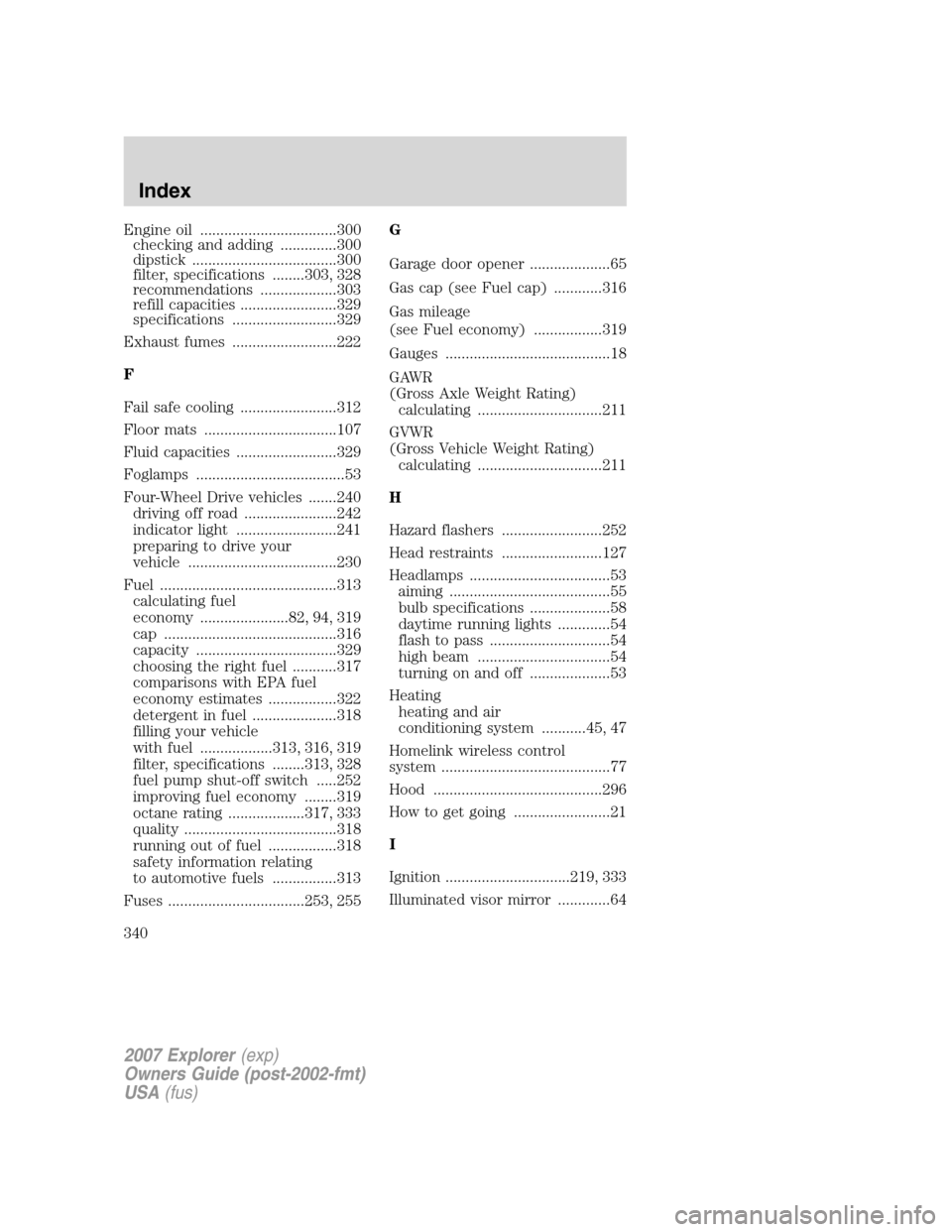

Engine oil ..................................300
checking and adding ..............300
dipstick ....................................300
filter, specifications ........303, 328
recommendations ...................303
refill capacities ........................329
specifications ..........................329
Exhaust fumes ..........................222
F
Fail safe cooling ........................312
Floor mats .................................107
Fluid capacities .........................329
Foglamps .....................................53
Four-Wheel Drive vehicles .......240
driving off road .......................242
indicator light .........................241
preparing to drive your
vehicle .....................................230
Fuel ............................................313
calculating fuel
economy ......................82, 94, 319
cap ...........................................316
capacity ...................................329
choosing the right fuel ...........317
comparisons with EPA fuel
economy estimates .................322
detergent in fuel .....................318
filling your vehicle
with fuel ..................313, 316, 319
filter, specifications ........313, 328
fuel pump shut-off switch .....252
improving fuel economy ........319
octane rating ...................317, 333
quality ......................................318
running out of fuel .................318
safety information relating
to automotive fuels ................313
Fuses ..................................253, 255G
Garage door opener ....................65
Gas cap (see Fuel cap) ............316
Gas mileage
(see Fuel economy) .................319
Gauges .........................................18
GAWR
(Gross Axle Weight Rating)
calculating ...............................211
GVWR
(Gross Vehicle Weight Rating)
calculating ...............................211
H
Hazard flashers .........................252
Head restraints .........................127
Headlamps ...................................53
aiming ........................................55
bulb specifications ....................58
daytime running lights .............54
flash to pass ..............................54
high beam .................................54
turning on and off ....................53
Heating
heating and air
conditioning system ...........45, 47
Homelink wireless control
system ..........................................77
Hood ..........................................296
How to get going ........................21
I
Ignition ...............................219, 333
Illuminated visor mirror .............64
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
340

Infant seats
(see Safety seats) .....................174
Inspection/maintenance
(I/M) testing ..............................324
Instrument panel
cleaning ...................................291
cluster ........................................12
J
Jack ....................................261, 265
positioning .......................261, 267
storage .....................261, 264–265
Jump-starting your vehicle ......272
K
Keyless entry system ...............122
autolock ...........................111, 113
keypad .....................................122
locking and unlocking doors ..123
programming entry code .......122
Keys ...........................................125
positions of the ignition .........219
L
Lamps
bulb replacement
specifications chart ............57–58
daytime running light ...............54
fog lamps ...................................53
headlamps .................................53
interior lamps ...........................57
Liftgate ......................................109
remote release ........................118
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........223
Load limits .................................205
Loading instructions .................211Locks
autolock ...........................111, 113
childproof ................................116
doors ........................................111
Lubricant specifications ...........329
Lug nuts ....................................271
Luggage rack .............................110
Lumbar support, seats .....129, 131
M
Message center .....................81, 92
english/metric button .........84, 97
system check button ..........83, 96
warning messages .............88, 103
Mirrors .........................................70
automatic dimming rearview
mirror ........................................69
fold away ...................................70
heated ........................................70
side view mirrors (power) .......70
Moon roof ....................................75
Motorcraft parts ........293, 313, 328
N
Navigation system .......................44
O
Octane rating ............................317
Oil (see Engine oil) ..................300
P
Parking brake ............................224
Parts (see Motorcraft parts) ....328
Passenger Occupant
Classification Sensor .................140
2007 Explorer(exp)
Owners Guide (post-2002-fmt)
USA(fus)
Index
341
