Page 161 of 407

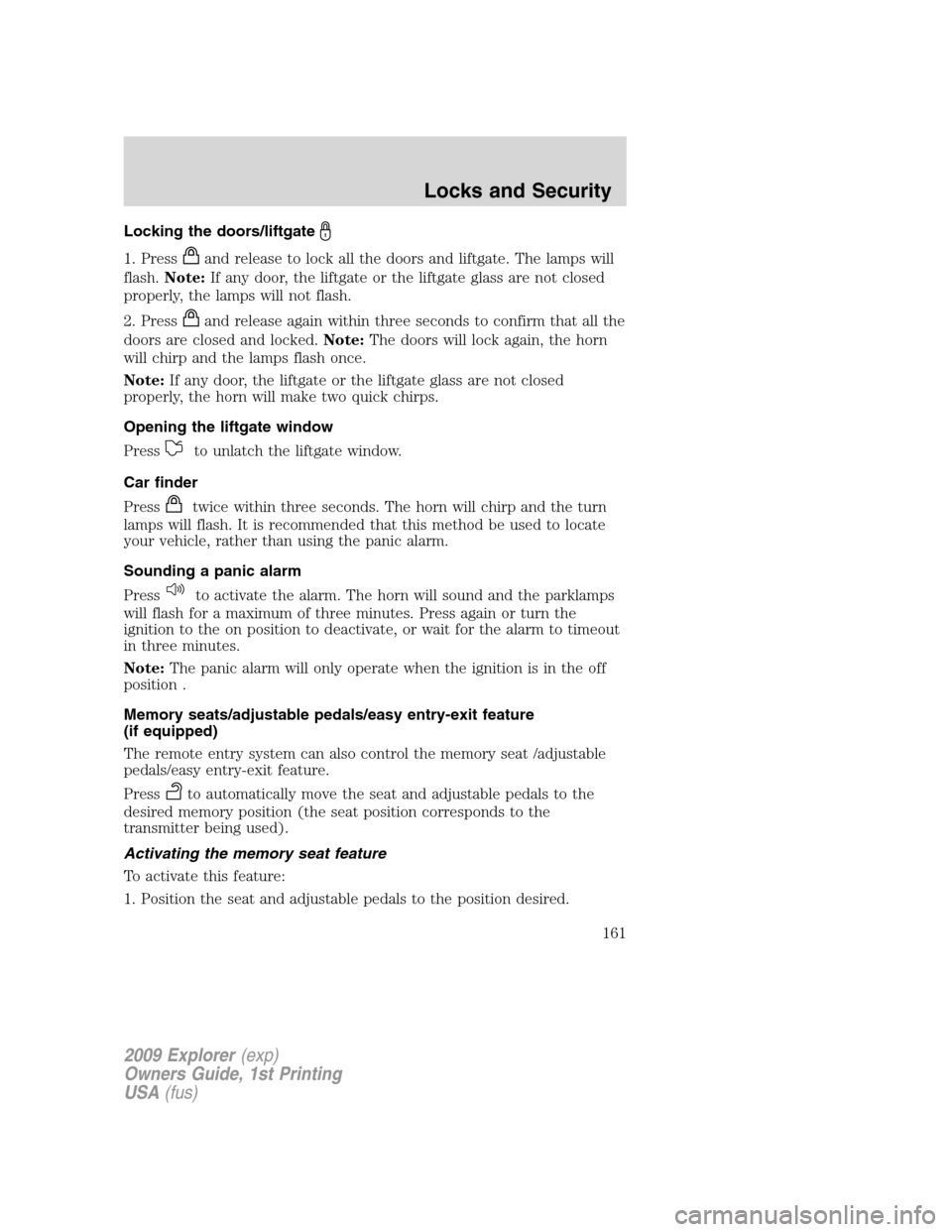

FORD EXPLORER 2009 4.G Owners Manual Locking the doors/liftgate
1. Pressand release to lock all the doors and liftgate. The lamps will
flash.Note:If any door, the liftgate or the liftgate glass are not closed
properly, the lamps will not

Page 162 of 407

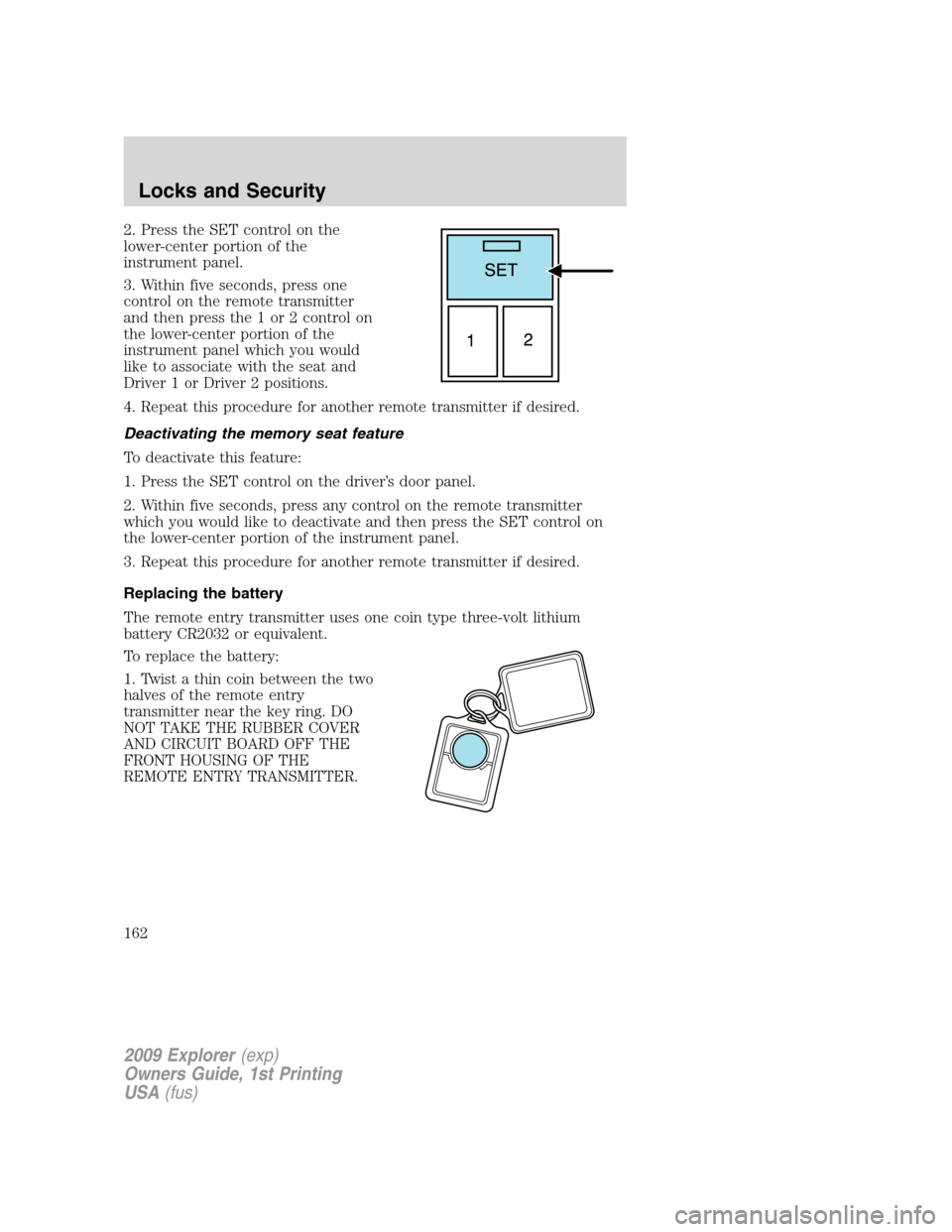

FORD EXPLORER 2009 4.G Owners Manual 2. Press the SET control on the
lower-center portion of the
instrument panel.
3. Within five seconds, press one
control on the remote transmitter
and then press the 1 or 2 control on
the lower-center

Page 163 of 407

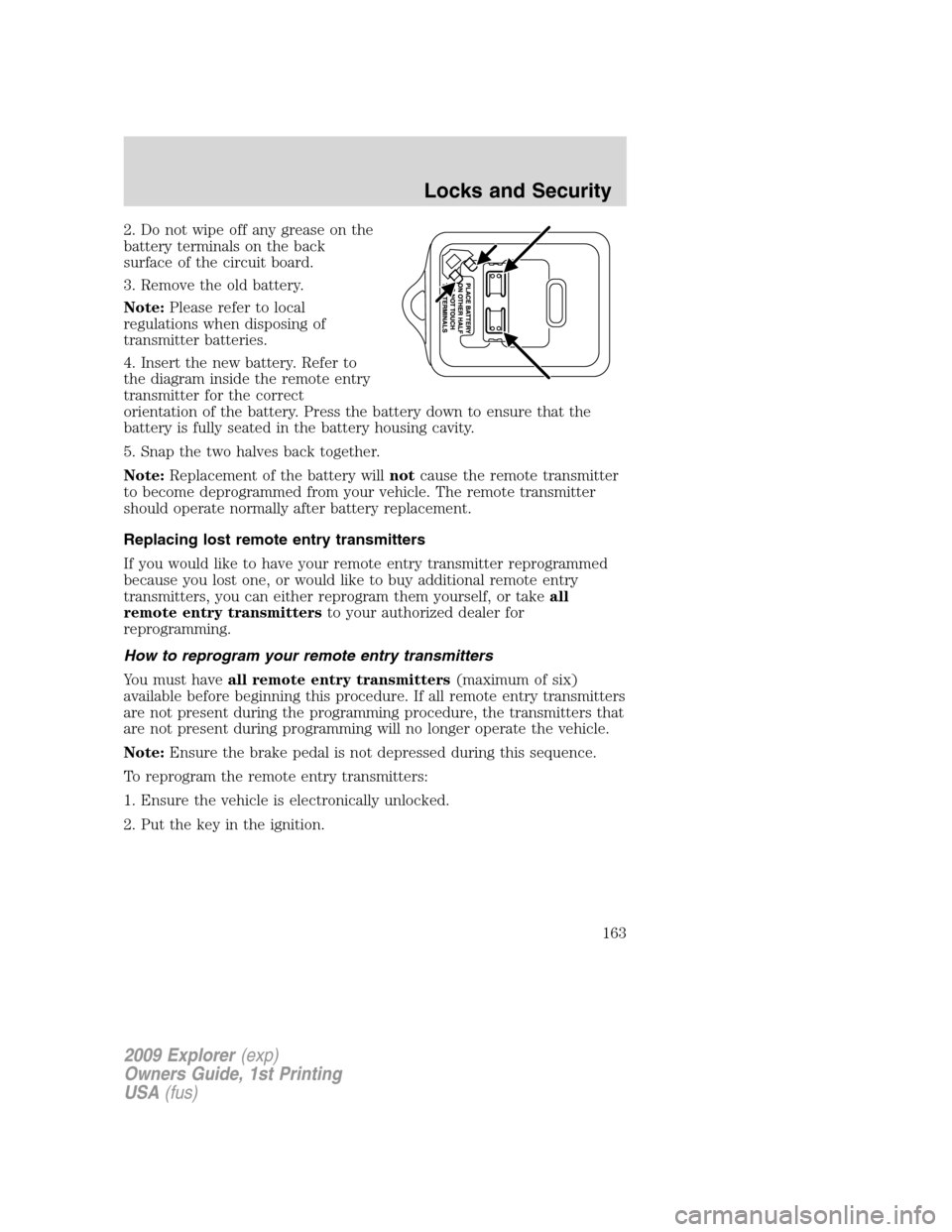

FORD EXPLORER 2009 4.G Owners Manual 2. Do not wipe off any grease on the
battery terminals on the back
surface of the circuit board.
3. Remove the old battery.
Note:Please refer to local
regulations when disposing of
transmitter batteri

Page 164 of 407

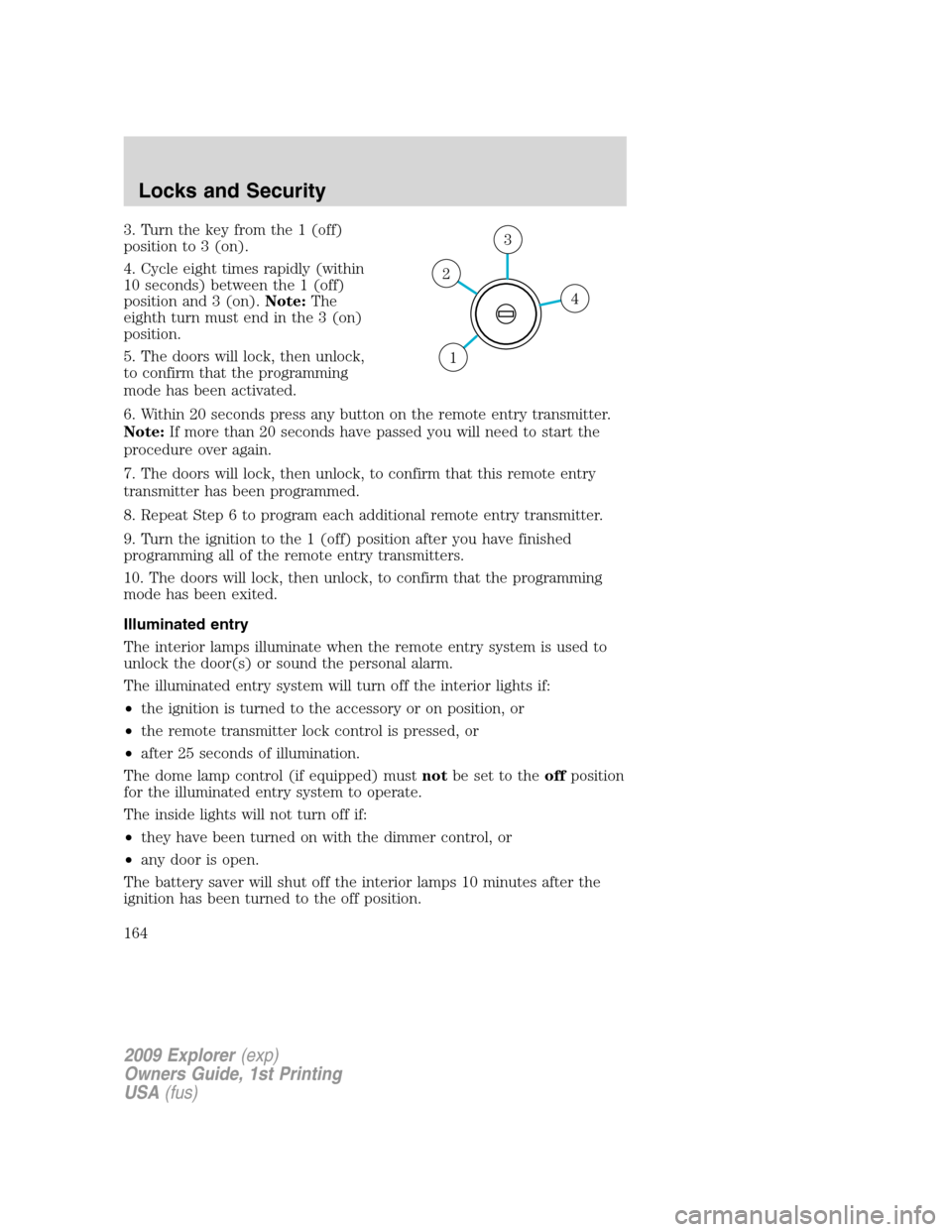

FORD EXPLORER 2009 4.G Owners Manual 3. Turn the key from the 1 (off)
position to 3 (on).
4. Cycle eight times rapidly (within
10 seconds) between the 1 (off)
position and 3 (on).Note:The
eighth turn must end in the 3 (on)
position.
5. T

Page 165 of 407

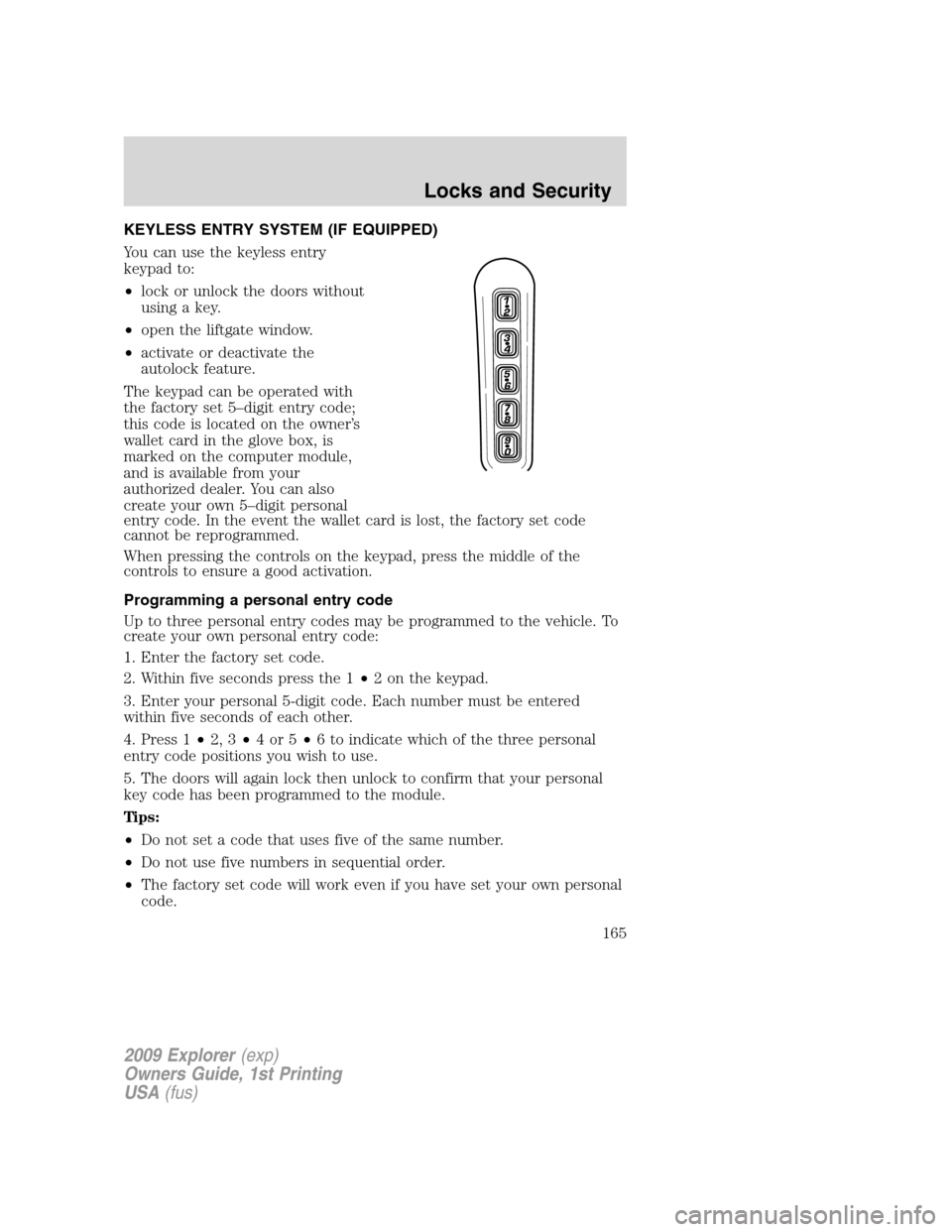

FORD EXPLORER 2009 4.G Owners Manual KEYLESS ENTRY SYSTEM (IF EQUIPPED)
You can use the keyless entry
keypad to:
•lock or unlock the doors without
using a key.
•open the liftgate window.
•activate or deactivate the
autolock feature

Page 166 of 407

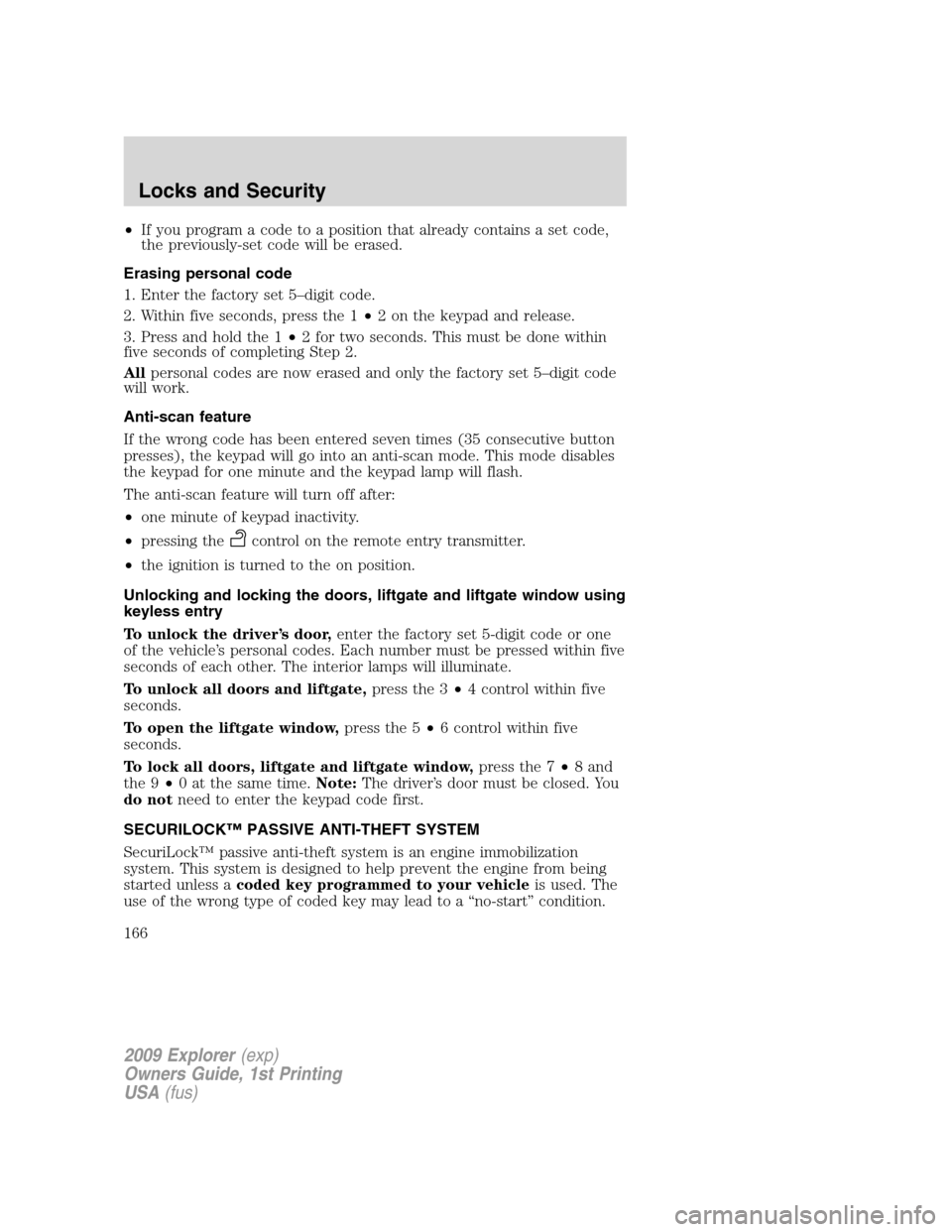

FORD EXPLORER 2009 4.G Owners Manual •If you program a code to a position that already contains a set code,
the previously-set code will be erased.
Erasing personal code
1. Enter the factory set 5–digit code.
2. Within five seconds,

Page 167 of 407

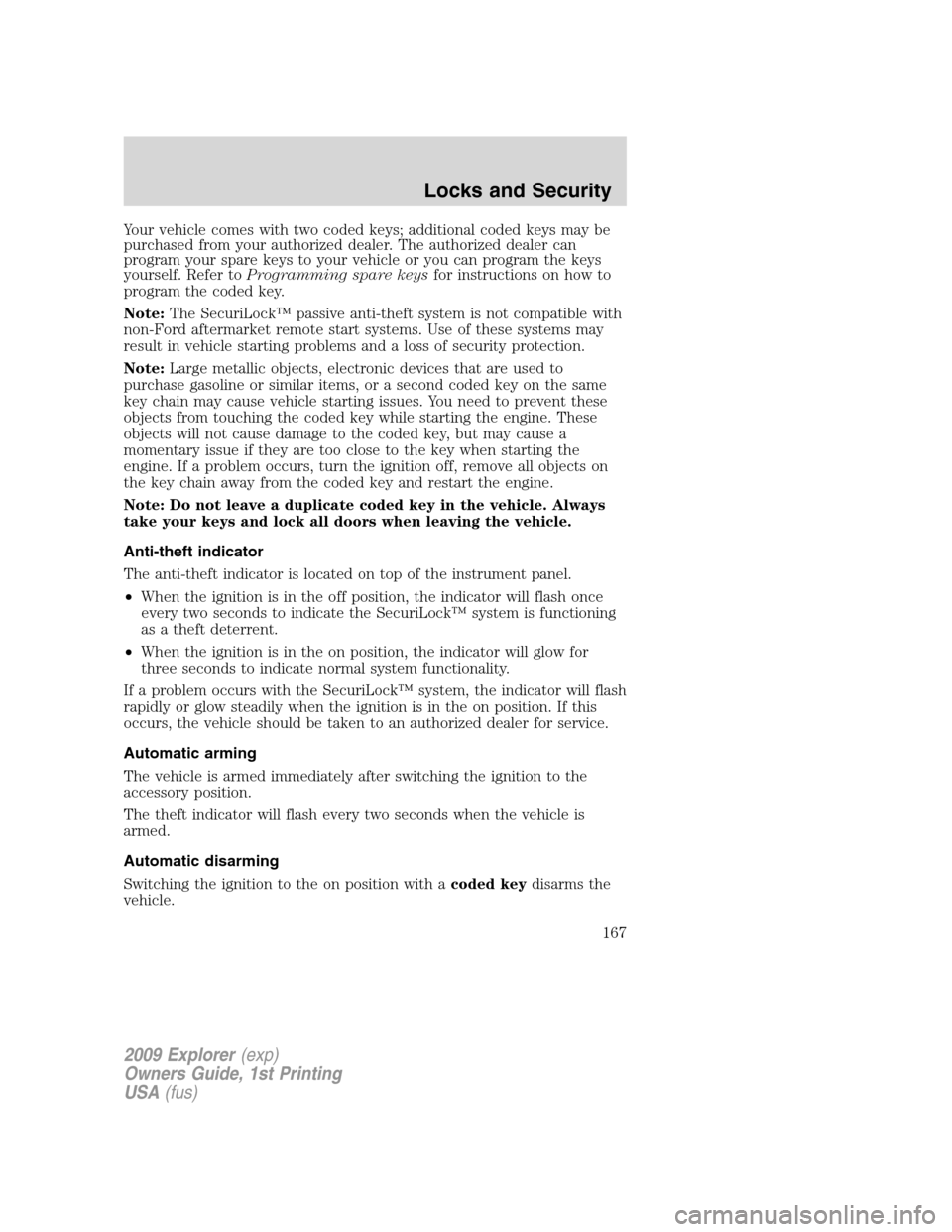

FORD EXPLORER 2009 4.G Owners Manual Your vehicle comes with two coded keys; additional coded keys may be
purchased from your authorized dealer. The authorized dealer can
program your spare keys to your vehicle or you can program the key

Page 168 of 407

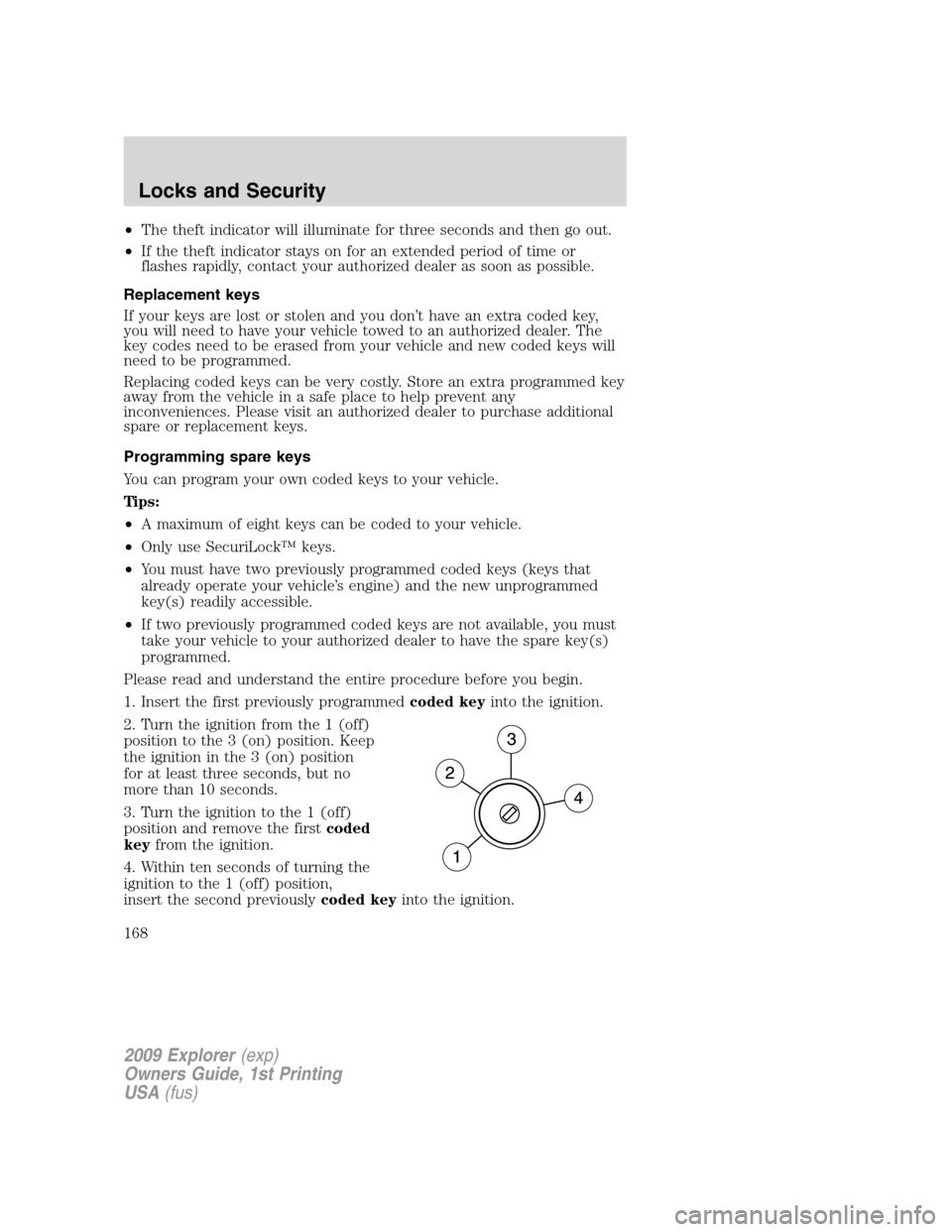

FORD EXPLORER 2009 4.G Owners Manual •The theft indicator will illuminate for three seconds and then go out.
•If the theft indicator stays on for an extended period of time or
flashes rapidly, contact your authorized dealer as soon a

Page 169 of 407

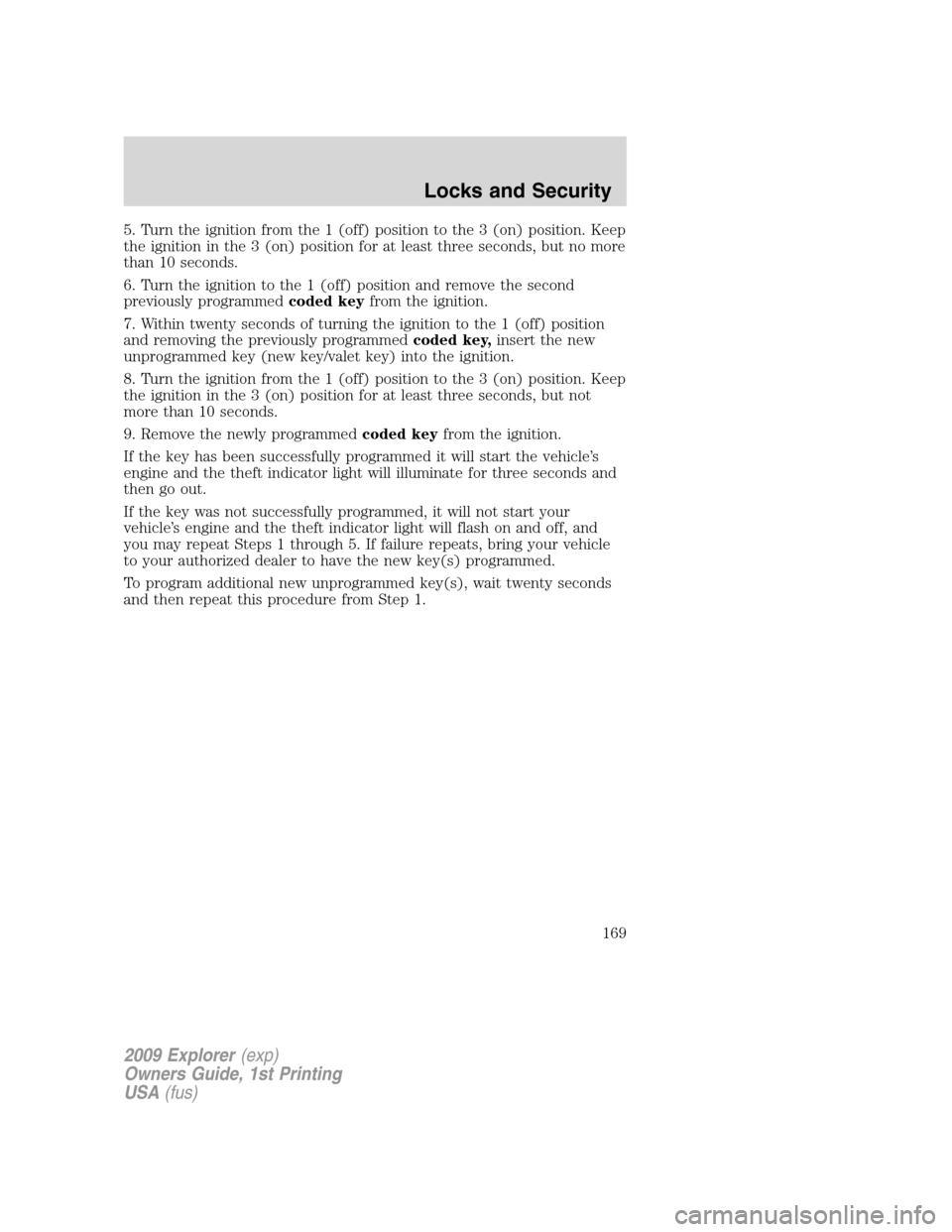

FORD EXPLORER 2009 4.G Owners Manual 5. Turn the ignition from the 1 (off) position to the 3 (on) position. Keep
the ignition in the 3 (on) position for at least three seconds, but no more
than 10 seconds.
6. Turn the ignition to the 1 (

Page 170 of 407

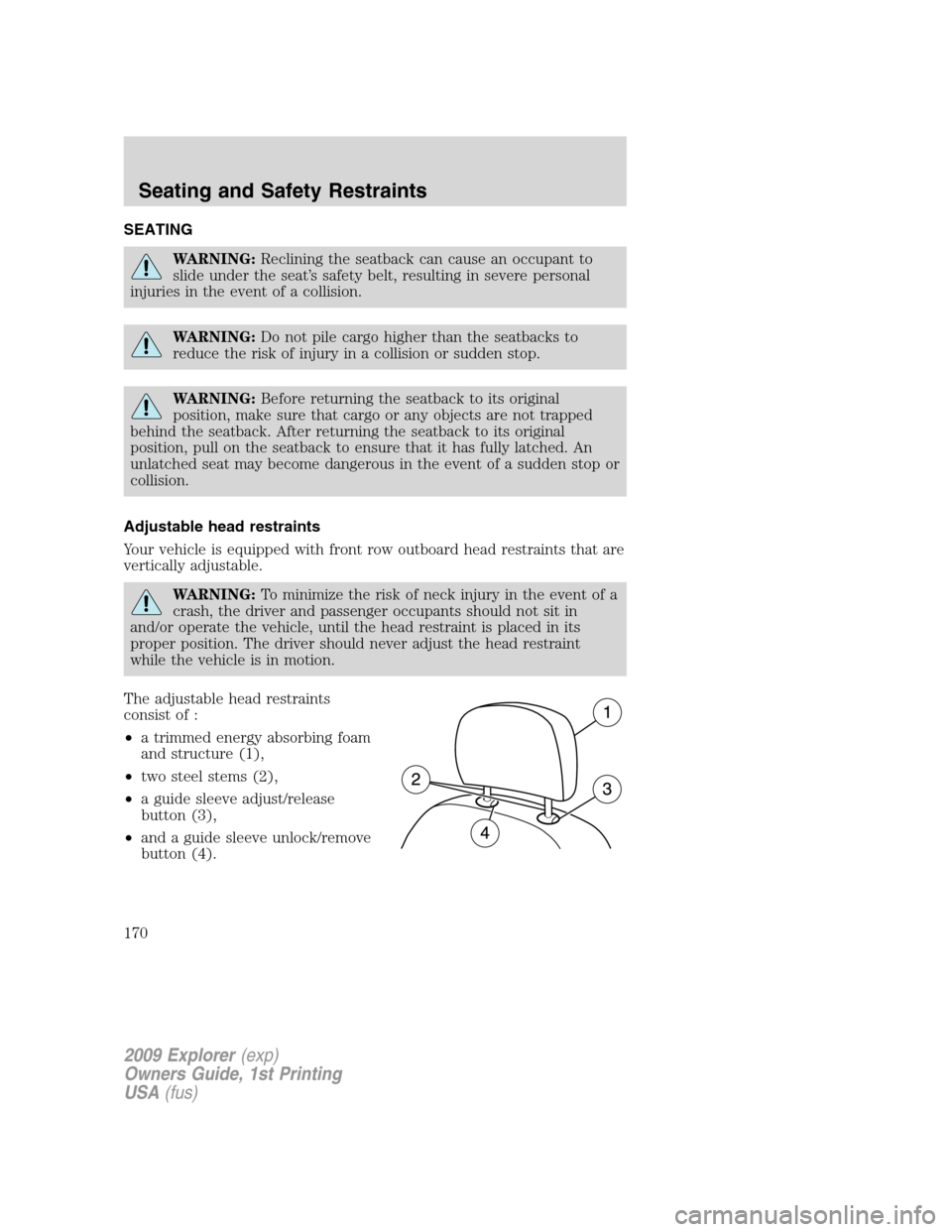

FORD EXPLORER 2009 4.G Owners Manual SEATING
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo highe
