air filter FORD EXPLORER 2009 4.G Owners Manual

Customer Assistance 339
Reporting safety defects (U.S. only) 346
Reporting safety defects (Canada only) 346
Cleaning 347
Maintenance and Specifications 355
Engine compartment 357
Engine oil 361
Battery 366
Engine coolant 368
Fuel information 375
Air filter(s) 389
Part numbers 391
Maintenance product specifications and capacities 392
Engine data 396
Accessories 399
Index 401
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2008 Ford Motor Company

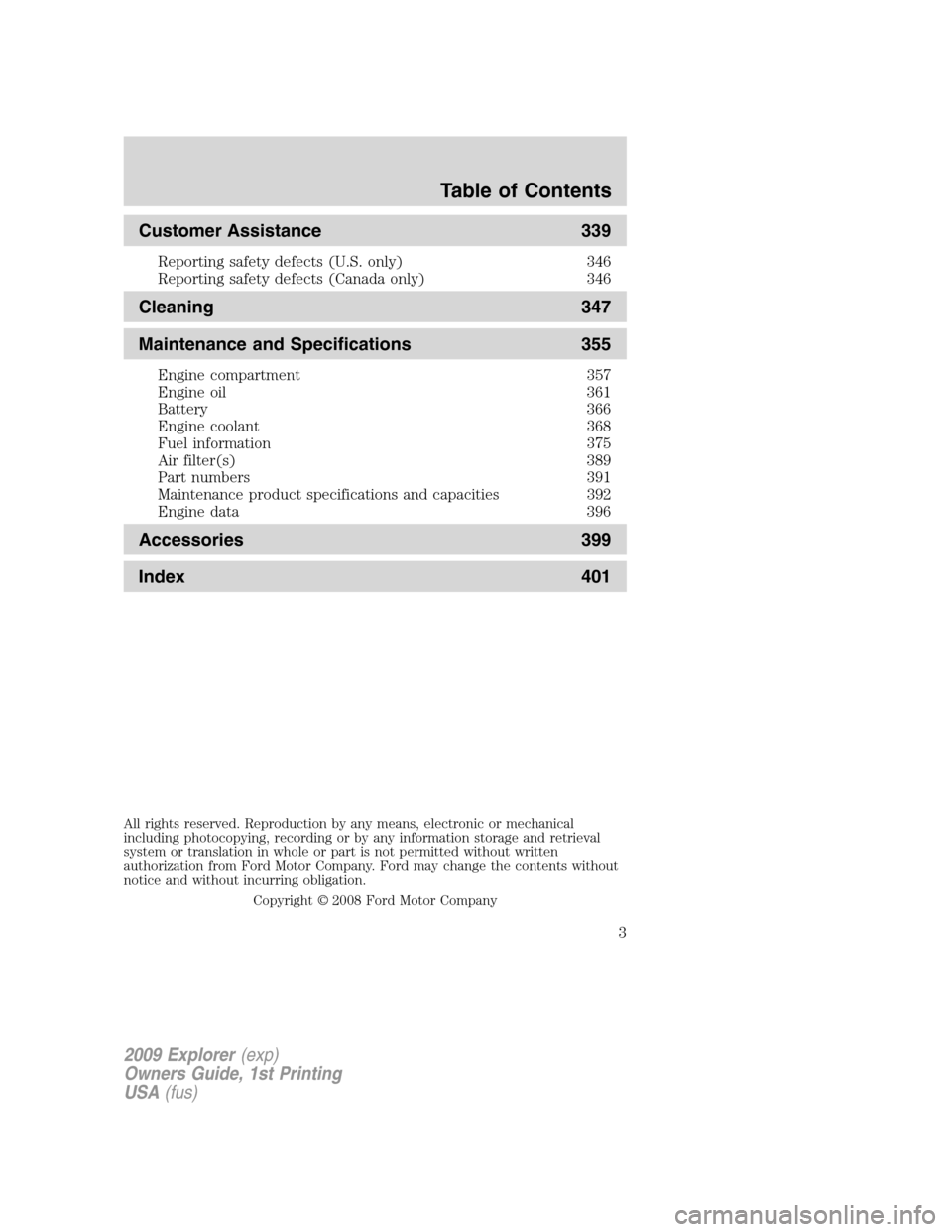

Table of Contents
3
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Introduction
11

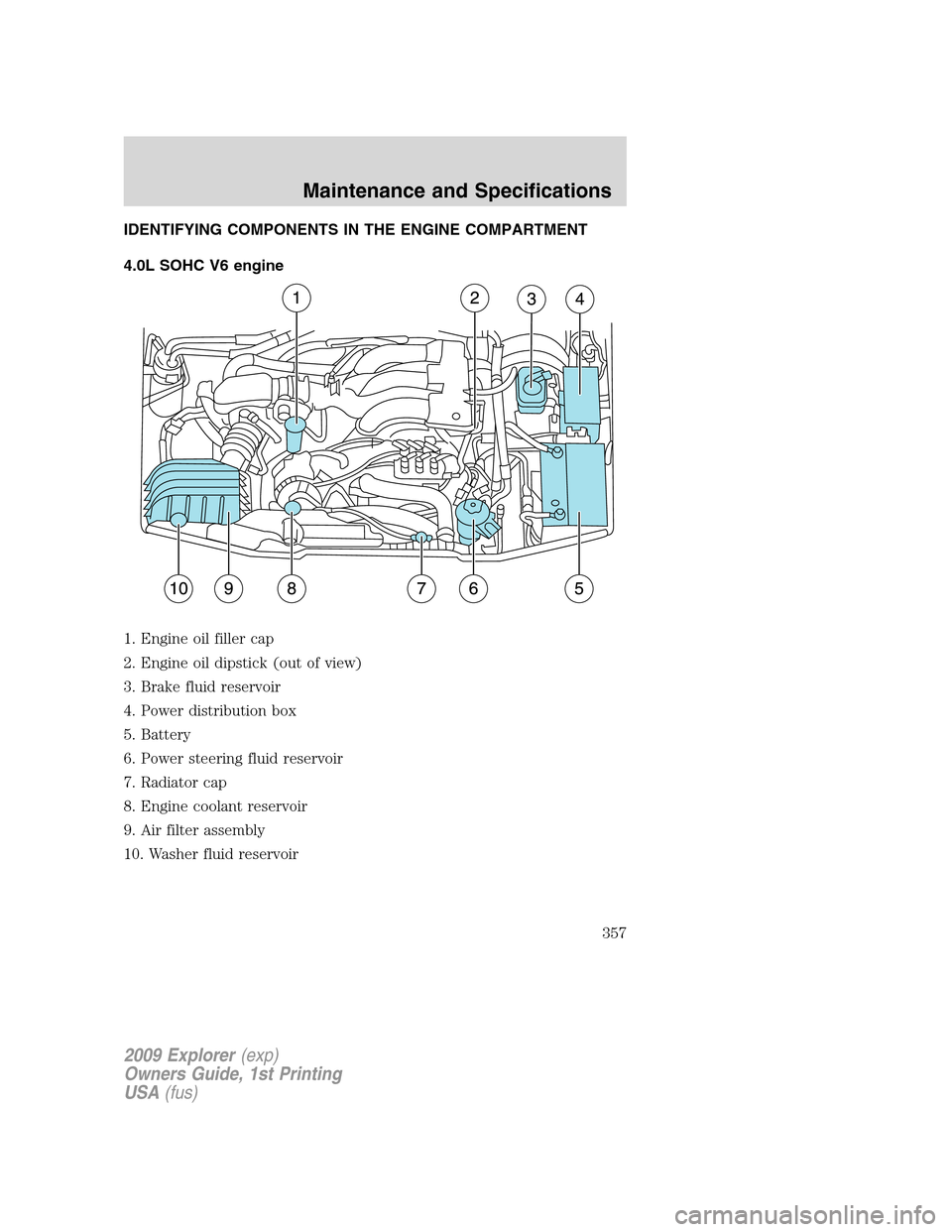

IDENTIFYING COMPONENTS IN THE ENGINE COMPARTMENT
4.0L SOHC V6 engine
1. Engine oil filler cap
2. Engine oil dipstick (out of view)
3. Brake fluid reservoir
4. Power distribution box
5. Battery
6. Power steering fluid reservoir
7. Radiator cap
8. Engine coolant reservoir
9. Air filter assembly
10. Washer fluid reservoir
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
357

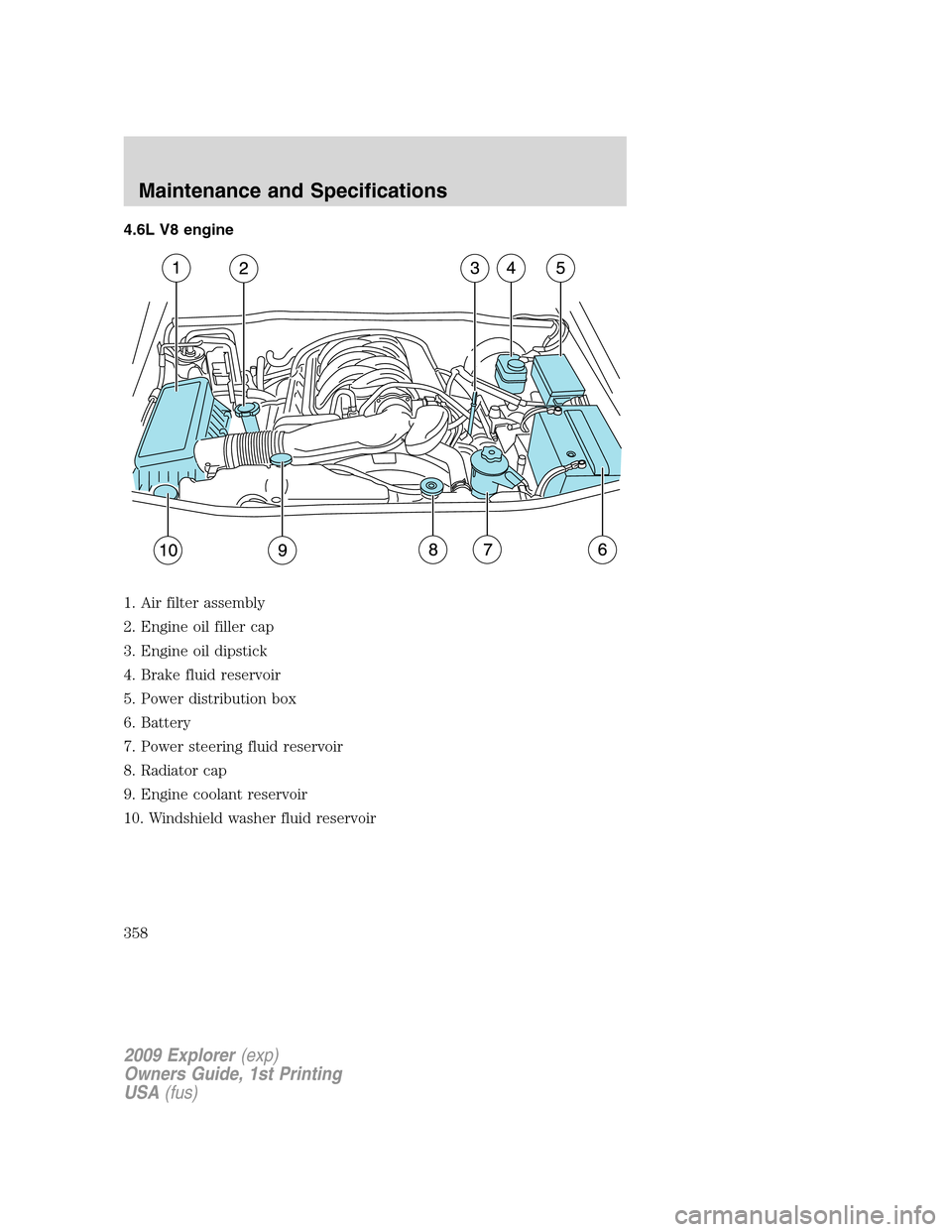

4.6L V8 engine
1. Air filter assembly
2. Engine oil filler cap
3. Engine oil dipstick
4. Brake fluid reservoir
5. Power distribution box
6. Battery
7. Power steering fluid reservoir
8. Radiator cap
9. Engine coolant reservoir
10. Windshield washer fluid reservoir
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
358

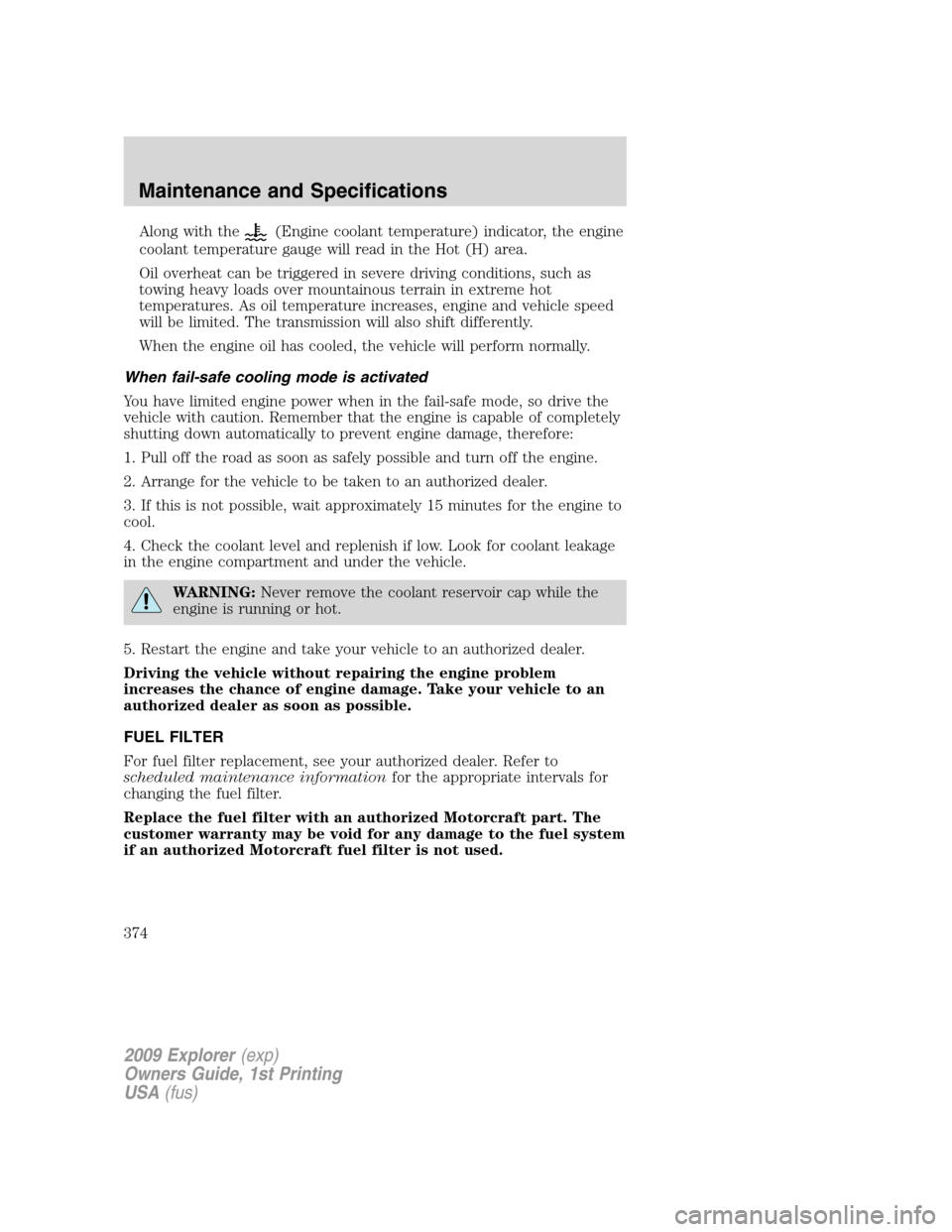

Along with the(Engine coolant temperature) indicator, the engine
coolant temperature gauge will read in the Hot (H) area.
Oil overheat can be triggered in severe driving conditions, such as
towing heavy loads over mountainous terrain in extreme hot
temperatures. As oil temperature increases, engine and vehicle speed
will be limited. The transmission will also shift differently.
When the engine oil has cooled, the vehicle will perform normally.
When fail-safe cooling mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. Remember that the engine is capable of completely
shutting down automatically to prevent engine damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait approximately 15 minutes for the engine to
cool.
4. Check the coolant level and replenish if low. Look for coolant leakage
in the engine compartment and under the vehicle.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
5. Restart the engine and take your vehicle to an authorized dealer.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to an
authorized dealer as soon as possible.
FUEL FILTER
For fuel filter replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the fuel filter.
Replace the fuel filter with an authorized Motorcraft part. The
customer warranty may be void for any damage to the fuel system
if an authorized Motorcraft fuel filter is not used.
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
374

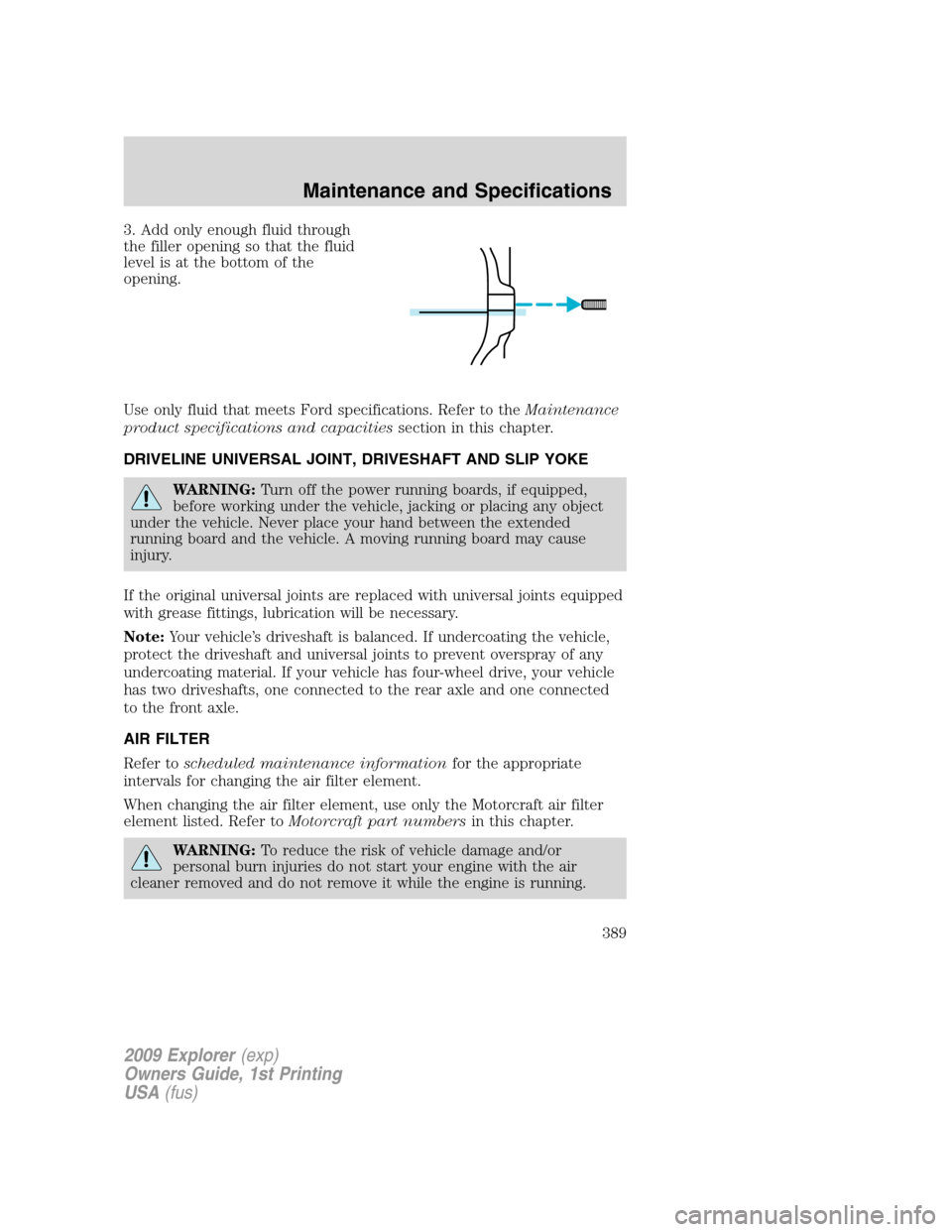

3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer to theMaintenance
product specifications and capacitiessection in this chapter.
DRIVELINE UNIVERSAL JOINT, DRIVESHAFT AND SLIP YOKE
WARNING:Turn off the power running boards, if equipped,
before working under the vehicle, jacking or placing any object
under the vehicle. Never place your hand between the extended
running board and the vehicle. A moving running board may cause
injury.
If the original universal joints are replaced with universal joints equipped
with grease fittings, lubrication will be necessary.
Note:Your vehicle’s driveshaft is balanced. If undercoating the vehicle,
protect the driveshaft and universal joints to prevent overspray of any
undercoating material. If your vehicle has four-wheel drive, your vehicle
has two driveshafts, one connected to the rear axle and one connected
to the front axle.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
389

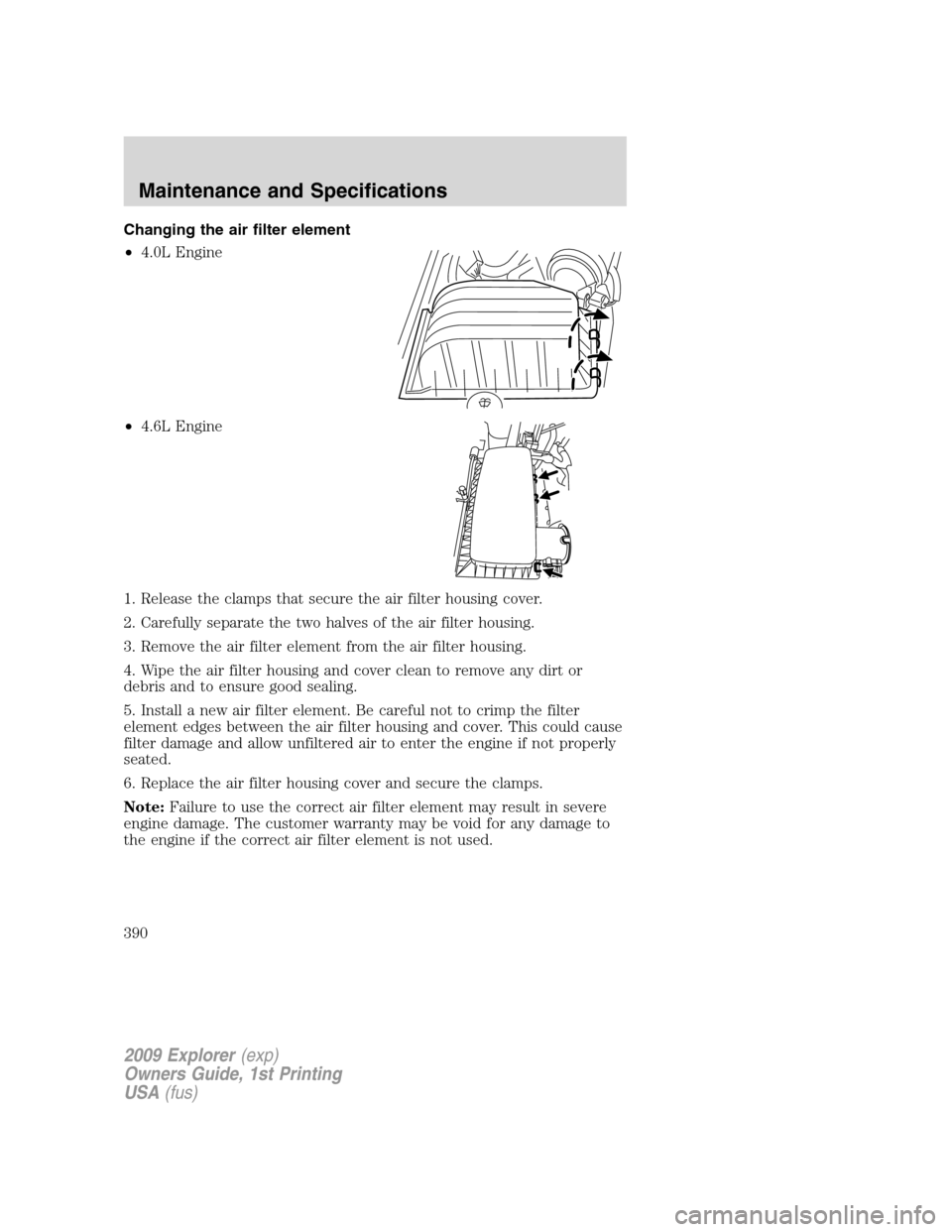

Changing the air filter element
•4.0L Engine
•4.6L Engine
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
3. Remove the air filter element from the air filter housing.
4. Wipe the air filter housing and cover clean to remove any dirt or
debris and to ensure good sealing.
5. Install a new air filter element. Be careful not to crimp the filter
element edges between the air filter housing and cover. This could cause
filter damage and allow unfiltered air to enter the engine if not properly
seated.
6. Replace the air filter housing cover and secure the clamps.
Note:Failure to use the correct air filter element may result in severe
engine damage. The customer warranty may be void for any damage to
the engine if the correct air filter element is not used.
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
390

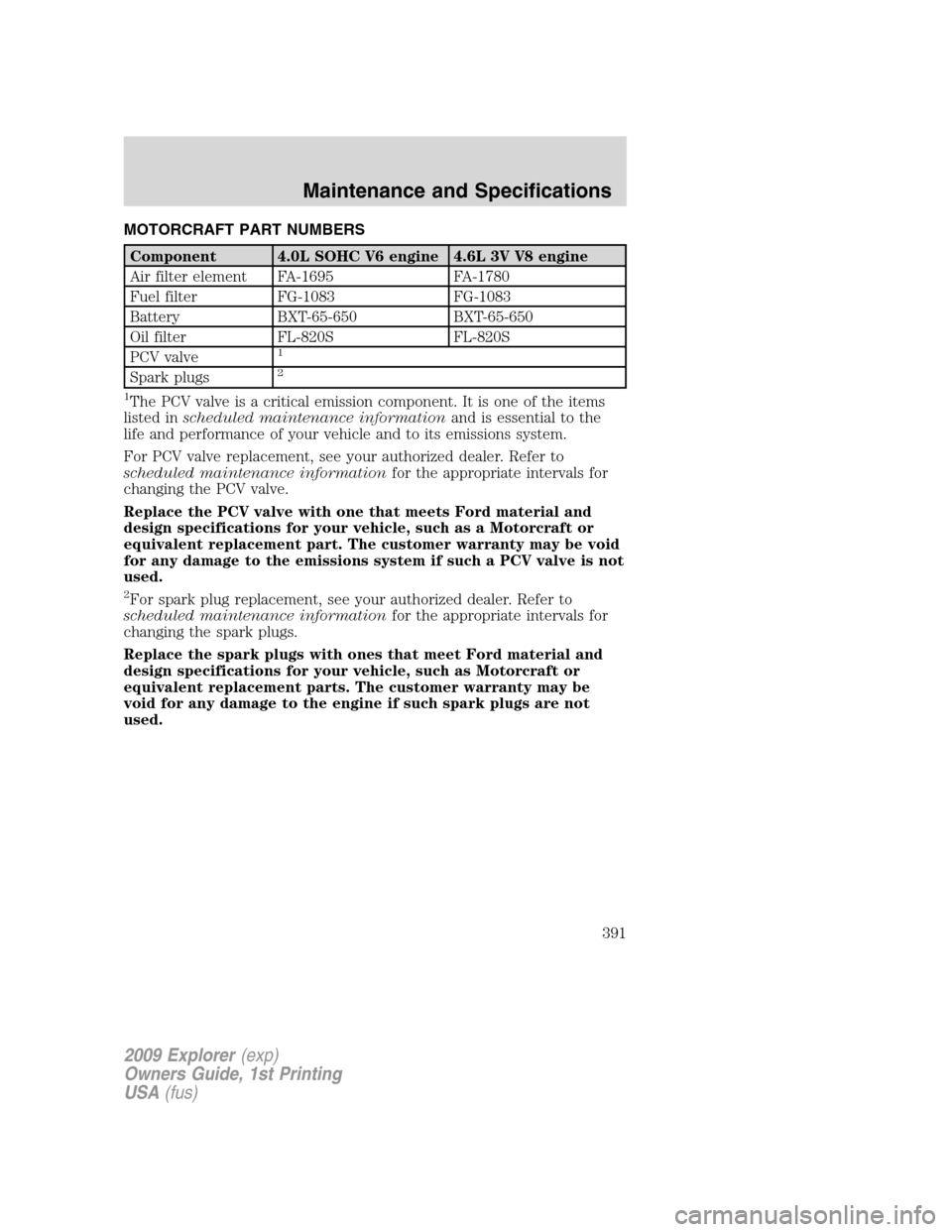

MOTORCRAFT PART NUMBERS
Component 4.0L SOHC V6 engine 4.6L 3V V8 engine
Air filter element FA-1695 FA-1780
Fuel filter FG-1083 FG-1083
Battery BXT-65-650 BXT-65-650
Oil filter FL-820S FL-820S
PCV valve
1
Spark plugs2
1
The PCV valve is a critical emission component. It is one of the items
listed inscheduled maintenance informationand is essential to the
life and performance of your vehicle and to its emissions system.
For PCV valve replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the PCV valve.
Replace the PCV valve with one that meets Ford material and
design specifications for your vehicle, such as a Motorcraft or
equivalent replacement part. The customer warranty may be void
for any damage to the emissions system if such a PCV valve is not
used.
2For spark plug replacement, see your authorized dealer. Refer to
scheduled maintenance informationfor the appropriate intervals for
changing the spark plugs.
Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or
equivalent replacement parts. The customer warranty may be
void for any damage to the engine if such spark plugs are not
used.
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Maintenance and Specifications
391

A
Accessory delay ........................107
AdvanceTrac ..............................282
Air cleaner filter ...............389–391
Air conditioning ..........................84
Airbag supplemental restraint
system ........................204, 213, 215
and child safety seats ............206
description ..............204, 213, 215
disposal ....................................218
driver airbag ............206, 214, 216
indicator light .................213, 218
operation .................206, 214, 216
passenger airbag .....206, 214, 216
side airbag ...............................213
All Wheel Drive (AWD),
driving off road .........................300
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................368
Anti-lock brake system
(see Brakes) ..............................280
Anti-theft system ......................166
Audio system
(see Radio) ......................21, 25, 33
Automatic transmission
driving an automatic
overdrive .........................290, 293
fluid, adding ............................388
fluid, checking ........................388
fluid, refill capacities ..............392
fluid, specification ..................392
Auxiliary input jack (Line in) ....41
Auxiliary power point ...............104
Axle
lubricant specifications ..........392refill capacities ........................392
B
Battery .......................................366
acid, treating emergencies .....366
jumping a disabled battery ....331
maintenance-free ....................366
replacement, specifications ...391
servicing ..................................366
Belt-Minder
.............................199
Booster seats .............................234
Brakes ........................................279
anti-lock ...................................280
anti-lock brake system (ABS)
warning light ...........................280
fluid, checking and adding ....387
fluid, refill capacities ..............392
fluid, specifications .................392
lubricant specifications ..........392
parking ....................................281
shift interlock ..........................289
C
Calculating load ........................266
Capacities for refilling fluids ....392
Cargo cover ...............................150
Cargo management system ......151
Cell phone use ..............................8
Changing a tire .........................321
Child safety seats ......................223
attaching with tether straps ..231
in front seat ............................224
in rear seat ..............................224
LATCH .....................................227
recommendations ...................221
Child safety seats - booster
seats ...........................................234
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Index
401

lubrication specifications .......392
refill capacities ........................392
service points ..................357–358
starting after a collision .........312
Engine block heater .................278
Engine oil ..................................361
checking and adding ..............361
dipstick ....................................361
filter, specifications ........364, 391
recommendations ...................364
refill capacities ........................392
specifications ..........................392
Event data recording ....................7
Exhaust fumes ..........................277
F
Fail safe cooling ........................373
Family entertainment system ....49
Floor mats .................................150
Fluid capacities .........................392
Fog lamps ....................................90
Four-Wheel Drive vehicles .......299
driving off road .......................302
indicator light .........................299
preparing to drive your
vehicle .....................................288
Fuel ............................................375
calculating fuel
economy ..................124, 137, 381
cap ...........................................377
capacity ...................................392
choosing the right fuel ...........378
comparisons with EPA fuel
economy estimates .................384
detergent in fuel .....................379
filler funnel .............................379
filling your vehicle with
fuel ...........................375, 377, 381filter, specifications ........374, 391
fuel pump shut-off switch .....312
improving fuel economy ........381
octane rating ...................378, 396
quality ......................................379
running out of fuel .........331, 379
safety information relating to
automotive fuels .....................375
Fuses ..................................313–314
G
Garage door opener ..................103
Gas cap (see Fuel cap) ............377
Gas mileage
(see Fuel economy) .................381
Gauges .........................................18
GAWR
(Gross Axle Weight Rating)
calculating ...............................266
GVWR
(Gross Vehicle Weight Rating)
calculating ...............................266
H
Hazard flashers .........................311
Headlamps ...................................89
aiming ........................................91
bulb specifications ....................94
daytime running lights .............90
flash to pass ..............................91
high beam .................................90
turning on and off ....................89
Heating
heating and air conditioning
system .................................82, 84
Homelink wireless control
system ........................................117
2009 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
Index
403
