Windshield washer:Press the end
of the stalk:
•briefly: causes the wipers to
swipe three times with washer
fluid.
•a long press and hold: the wipers
and washer fluid will be activated
for up to ten seconds.
Mist wipe:Press the stalk down and release for a single swipe of the
wipers without washer fluid.
Note:Do not operate the washer when the washer reservoir is empty.
This may cause the washer pump to overheat. Check the washer fluid
level frequently. Do not operate the wipers when the windshield is dry.
This may scratch the glass, damage the wiper blades and cause the wiper
motor to burn out. Before operating the wiper on a dry windshield,
always use the windshield washer. In freezing weather, be sure the wiper
blades are not frozen to the windshield before operating the wipers.
Courtesy wipe feature:One extra wipe will occur a few seconds after
washing the front window to clear any excess washer fluid remaining on
the windshield. This feature can be enabled/disabled through the
message center. Refer toMessage centerin theInstrument Cluster
chapter.
Windshield wiper rainlamp feature (if equipped with autolamp)
When the windshield wipers are turned on during daylight, and the
headlamp control is in the autolamp position, the exterior lamps will turn
on after a brief delay and will remain on until the wipers are turned off.
Rear window wiper/washer controls
For rear wiper operation, rotate the
rear window wiper and washer
control to the desired position.
Select:
2 — Intermittent operation
(shortest pause between wipes).
1 — Intermittent operation (longest
pause between wipes).
O (off) — Rear wiper and washer off.
2
1
0
2
1
0
Driver Controls
87
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

2.0L EcoBoost™ engine
PLASTIC (NON-PAINTED) EXTERIOR PARTS
Use only approved products to clean plastic parts. These products are
available from your authorized dealer.
•For routine cleaning, use MotorcraftDetail Wash (ZC-3-A).
•If tar or grease spots are present, use MotorcraftBug and Tar
Remover (ZC-42).
WINDOWS AND WIPER BLADES
The windshield, rear and side windows and the wiper blades should be
cleaned regularly. If the wipers do not wipe properly, substances on the
vehicle’s glass or the wiper blades may be the cause. These may include
hot wax treatments used by commercial car washes, water repellent
coatings, tree sap, or other organic contamination; these contaminants
may cause squeaking or chatter noise from the blades, and streaking and
smearing of the windshield. To clean these items, follow these tips:
•The windshield, rear windows and side windows may be cleaned with
a non-abrasive cleaner such as MotorcraftUltra-Clear Spray Glass
Cleaner (ZC-23), available from your authorized dealer.
Cleaning
359
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

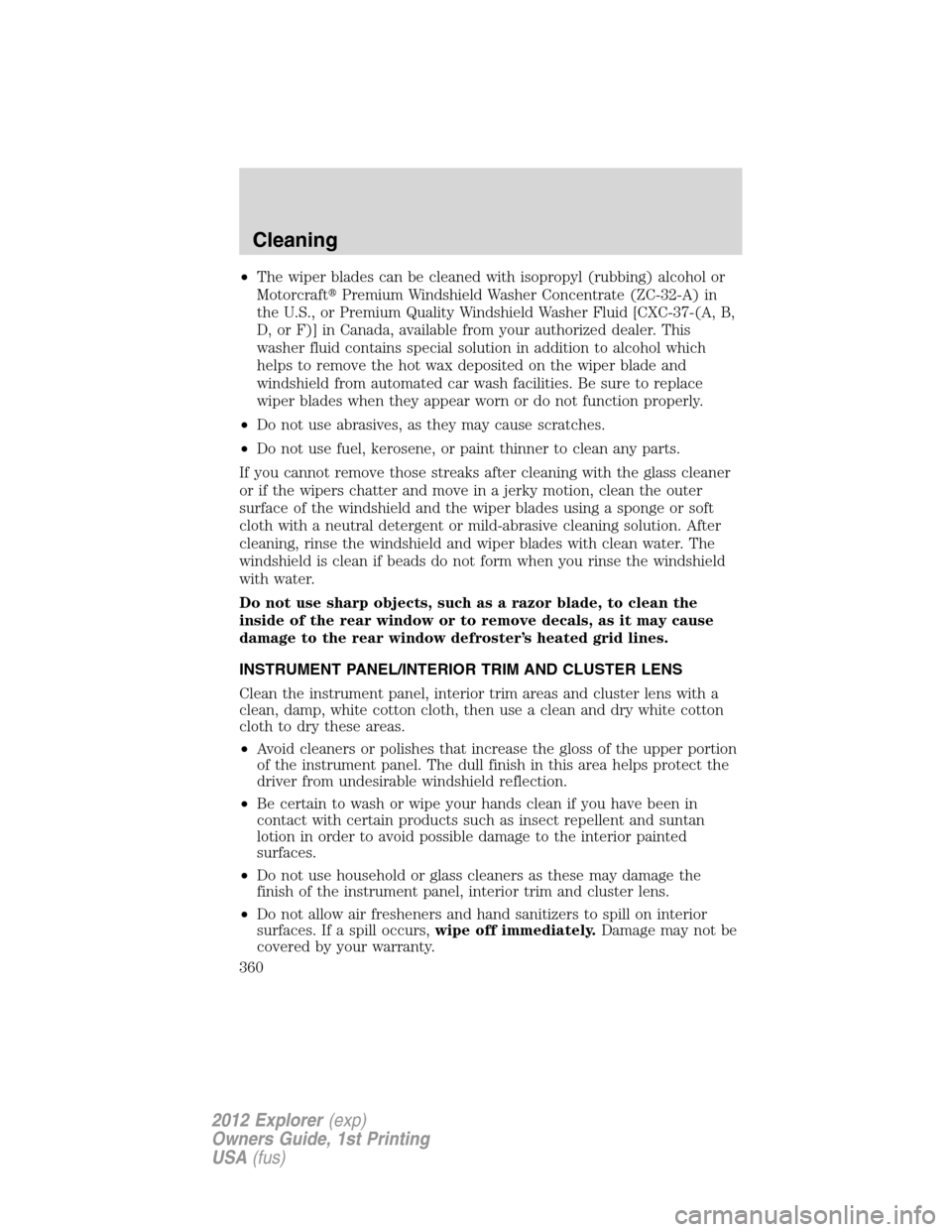

•The wiper blades can be cleaned with isopropyl (rubbing) alcohol or
MotorcraftPremium Windshield Washer Concentrate (ZC-32-A) in
the U.S., or Premium Quality Windshield Washer Fluid [CXC-37-(A, B,
D, or F)] in Canada, available from your authorized dealer. This
washer fluid contains special solution in addition to alcohol which
helps to remove the hot wax deposited on the wiper blade and
windshield from automated car wash facilities. Be sure to replace
wiper blades when they appear worn or do not function properly.
•Do not use abrasives, as they may cause scratches.
•Do not use fuel, kerosene, or paint thinner to clean any parts.
If you cannot remove those streaks after cleaning with the glass cleaner
or if the wipers chatter and move in a jerky motion, clean the outer
surface of the windshield and the wiper blades using a sponge or soft
cloth with a neutral detergent or mild-abrasive cleaning solution. After
cleaning, rinse the windshield and wiper blades with clean water. The
windshield is clean if beads do not form when you rinse the windshield
with water.
Do not use sharp objects, such as a razor blade, to clean the
inside of the rear window or to remove decals, as it may cause
damage to the rear window defroster’s heated grid lines.
INSTRUMENT PANEL/INTERIOR TRIM AND CLUSTER LENS
Clean the instrument panel, interior trim areas and cluster lens with a
clean, damp, white cotton cloth, then use a clean and dry white cotton
cloth to dry these areas.
•Avoid cleaners or polishes that increase the gloss of the upper portion
of the instrument panel. The dull finish in this area helps protect the
driver from undesirable windshield reflection.
•Be certain to wash or wipe your hands clean if you have been in
contact with certain products such as insect repellent and suntan
lotion in order to avoid possible damage to the interior painted
surfaces.
•Do not use household or glass cleaners as these may damage the
finish of the instrument panel, interior trim and cluster lens.
•Do not allow air fresheners and hand sanitizers to spill on interior
surfaces. If a spill occurs,wipe off immediately.Damage may not be
covered by your warranty.
Cleaning
360
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

WINDSHIELD WASHER FLUID
Add fluid to fill the reservoir if the
level is low. In very cold weather, do
not fill the reservoir completely.
Only use a washer fluid that meets Ford specifications. Do not use any
special washer fluid such as windshield water repellent type fluid or bug
wash. They may cause squeaking, chatter noise, streaking and smearing.
Refer to theMaintenance product specifications and capacities
section in this chapter.
State or local regulations on volatile organic compounds may restrict the
use of methanol, a common windshield washer antifreeze additive.
Washer fluids containing non-methanol antifreeze agents should be used
only if they provide cold weather protection without damaging the
vehicle’s paint finish, wiper blades or washer system.
WARNING:If you operate your vehicle in temperatures below
40°F (5°C), use washer fluid with antifreeze protection. Failure
to use washer fluid with antifreeze protection in cold weather could
result in impaired windshield vision and increase the risk of injury or
accident.
Do not put washer fluid in the engine coolant reservoir. Washer
fluid placed in the cooling system may harm engine and cooling
system components.
Checking and adding washer fluid for the liftgate
Washer fluid for the liftgate is supplied by the same reservoir as the
windshield.
Maintenance and Specifications
368
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

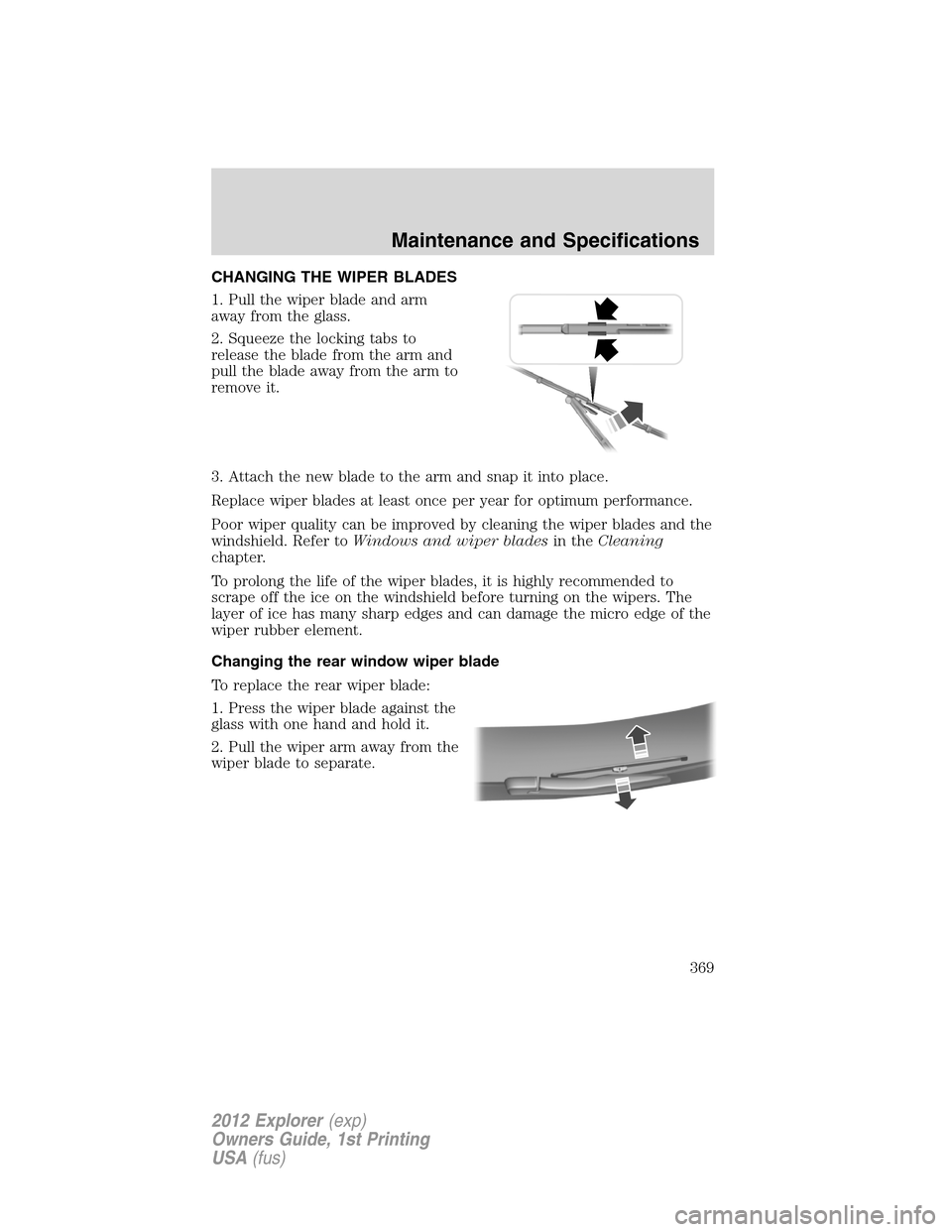

CHANGING THE WIPER BLADES
1. Pull the wiper blade and arm
away from the glass.
2. Squeeze the locking tabs to
release the blade from the arm and
pull the blade away from the arm to
remove it.
3. Attach the new blade to the arm and snap it into place.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer toWindows and wiper bladesin theCleaning
chapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing the rear window wiper blade
To replace the rear wiper blade:
1. Press the wiper blade against the
glass with one hand and hold it.
2. Pull the wiper arm away from the
wiper blade to separate.
Maintenance and Specifications
369
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

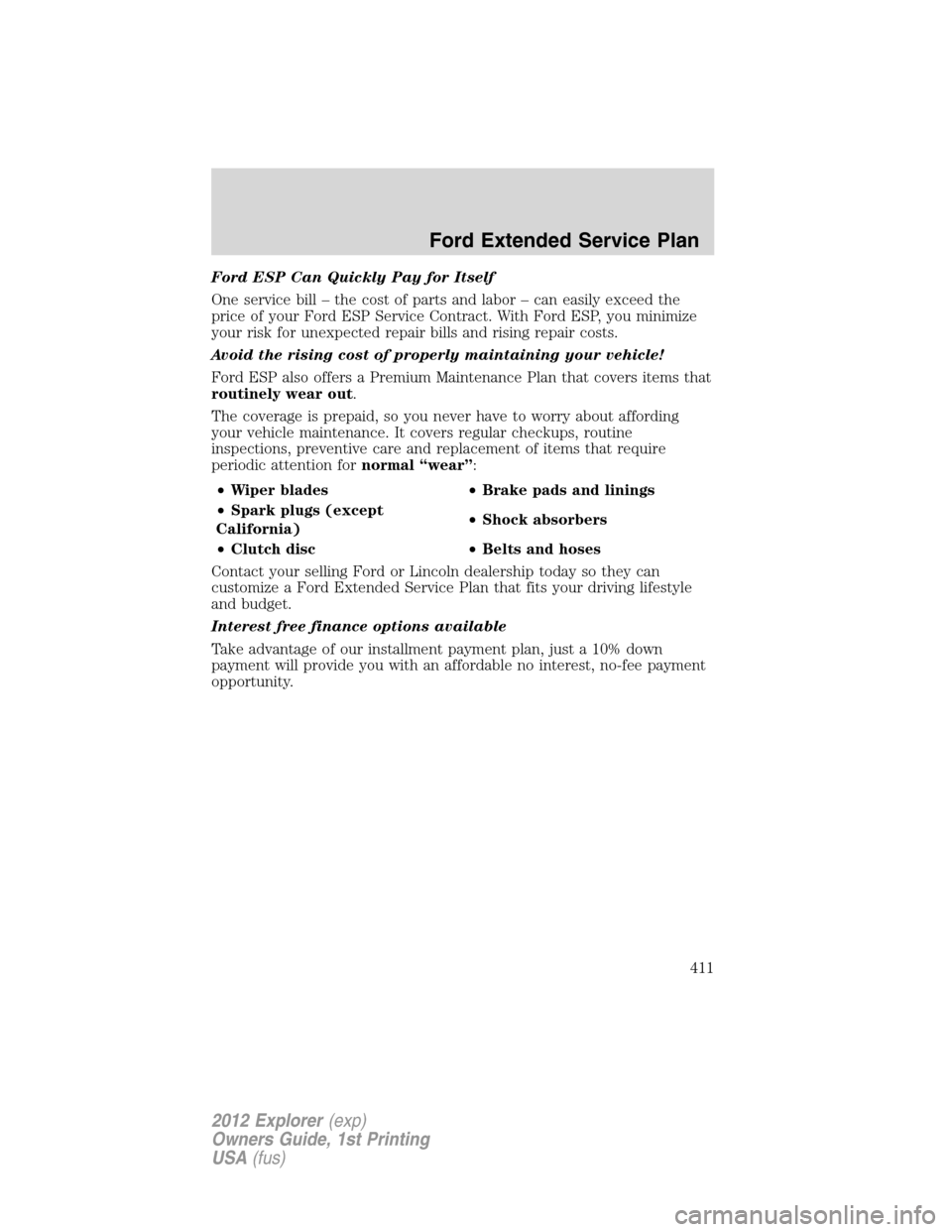

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford or Lincoln dealership today so they can
customize a Ford Extended Service Plan that fits your driving lifestyle
and budget.
Interest free finance options available
Take advantage of our installment payment plan, just a 10% down
payment will provide you with an affordable no interest, no-fee payment
opportunity.
Ford Extended Service Plan
411
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

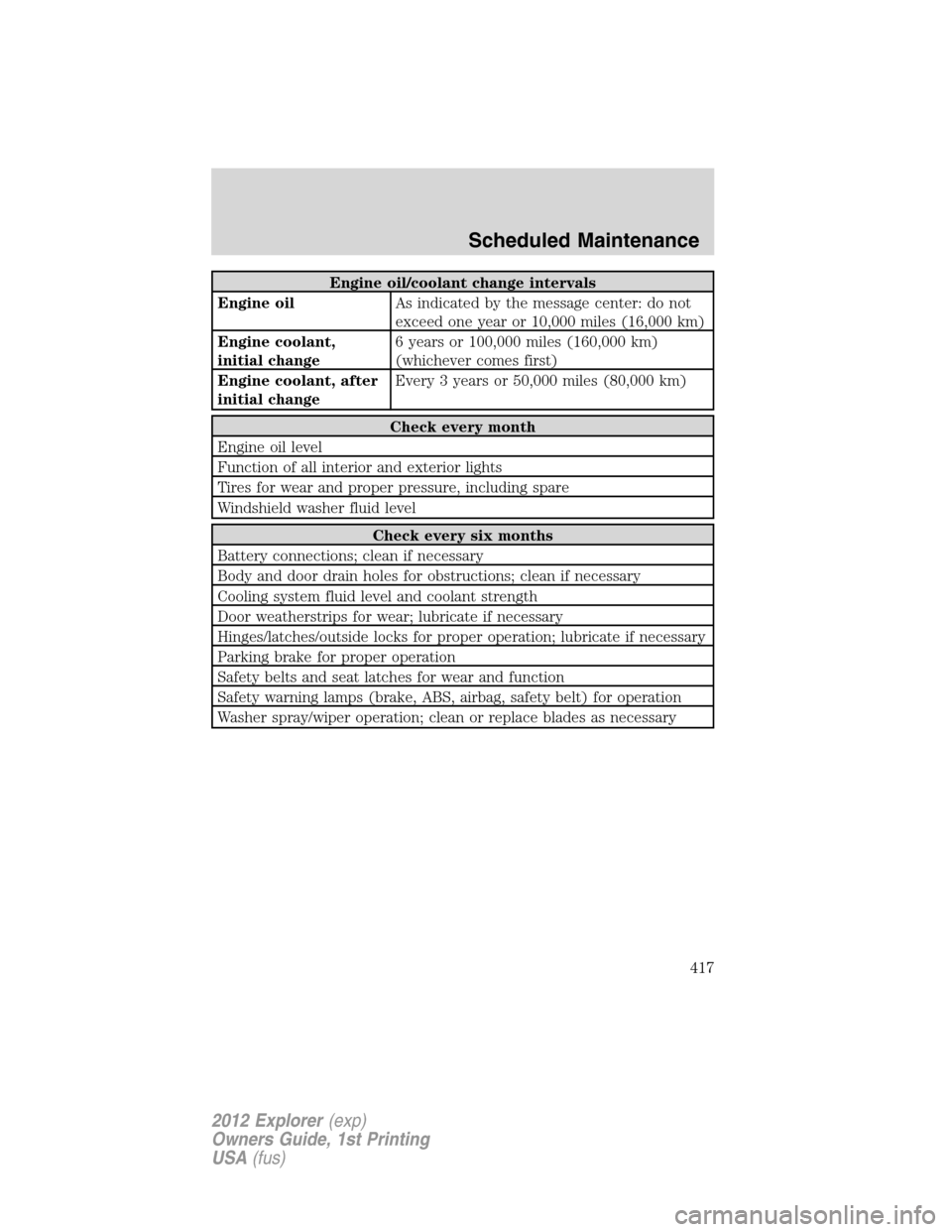

Engine oil/coolant change intervals
Engine oilAs indicated by the message center: do not
exceed one year or 10,000 miles (16,000 km)
Engine coolant,
initial change6 years or 100,000 miles (160,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 50,000 miles (80,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance
417
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

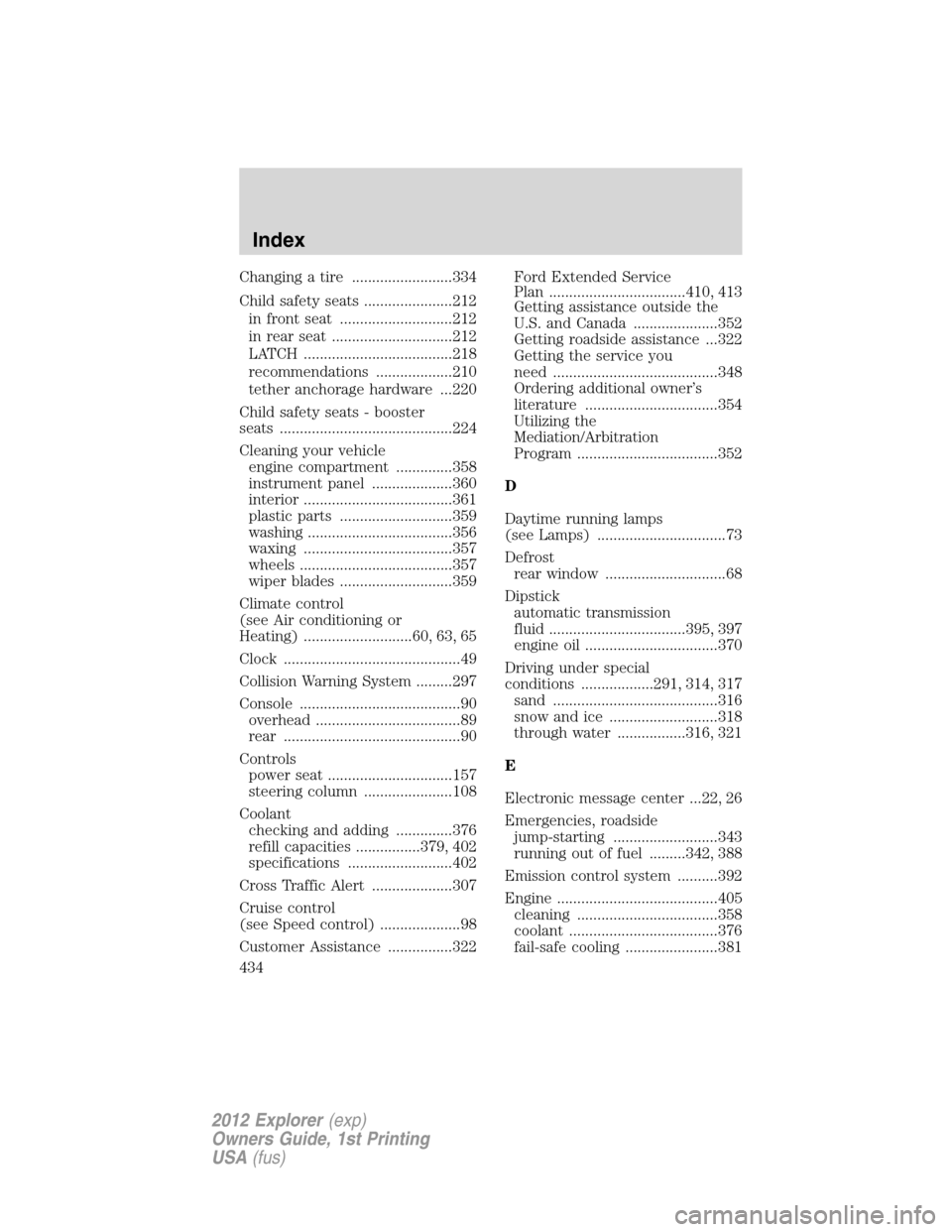

Changing a tire .........................334
Child safety seats ......................212
in front seat ............................212
in rear seat ..............................212
LATCH .....................................218
recommendations ...................210
tether anchorage hardware ...220
Child safety seats - booster
seats ...........................................224
Cleaning your vehicle
engine compartment ..............358
instrument panel ....................360
interior .....................................361
plastic parts ............................359
washing ....................................356
waxing .....................................357
wheels ......................................357
wiper blades ............................359
Climate control
(see Air conditioning or
Heating) ...........................60, 63, 65
Clock ............................................49
Collision Warning System .........297
Console ........................................90
overhead ....................................89
rear ............................................90
Controls
power seat ...............................157
steering column ......................108
Coolant
checking and adding ..............376
refill capacities ................379, 402
specifications ..........................402
Cross Traffic Alert ....................307
Cruise control
(see Speed control) ....................98
Customer Assistance ................322Ford Extended Service
Plan ..................................410, 413
Getting assistance outside the
U.S. and Canada .....................352
Getting roadside assistance ...322
Getting the service you
need .........................................348
Ordering additional owner’s
literature .................................354
Utilizing the
Mediation/Arbitration
Program ...................................352
D
Daytime running lamps
(see Lamps) ................................73
Defrost
rear window ..............................68
Dipstick
automatic transmission
fluid ..................................395, 397
engine oil .................................370
Driving under special
conditions ..................291, 314, 317
sand .........................................316
snow and ice ...........................318
through water .................316, 321
E
Electronic message center ...22, 26
Emergencies, roadside
jump-starting ..........................343
running out of fuel .........342, 388
Emission control system ..........392
Engine ........................................405
cleaning ...................................358
coolant .....................................376
fail-safe cooling .......................381
Index
434
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)

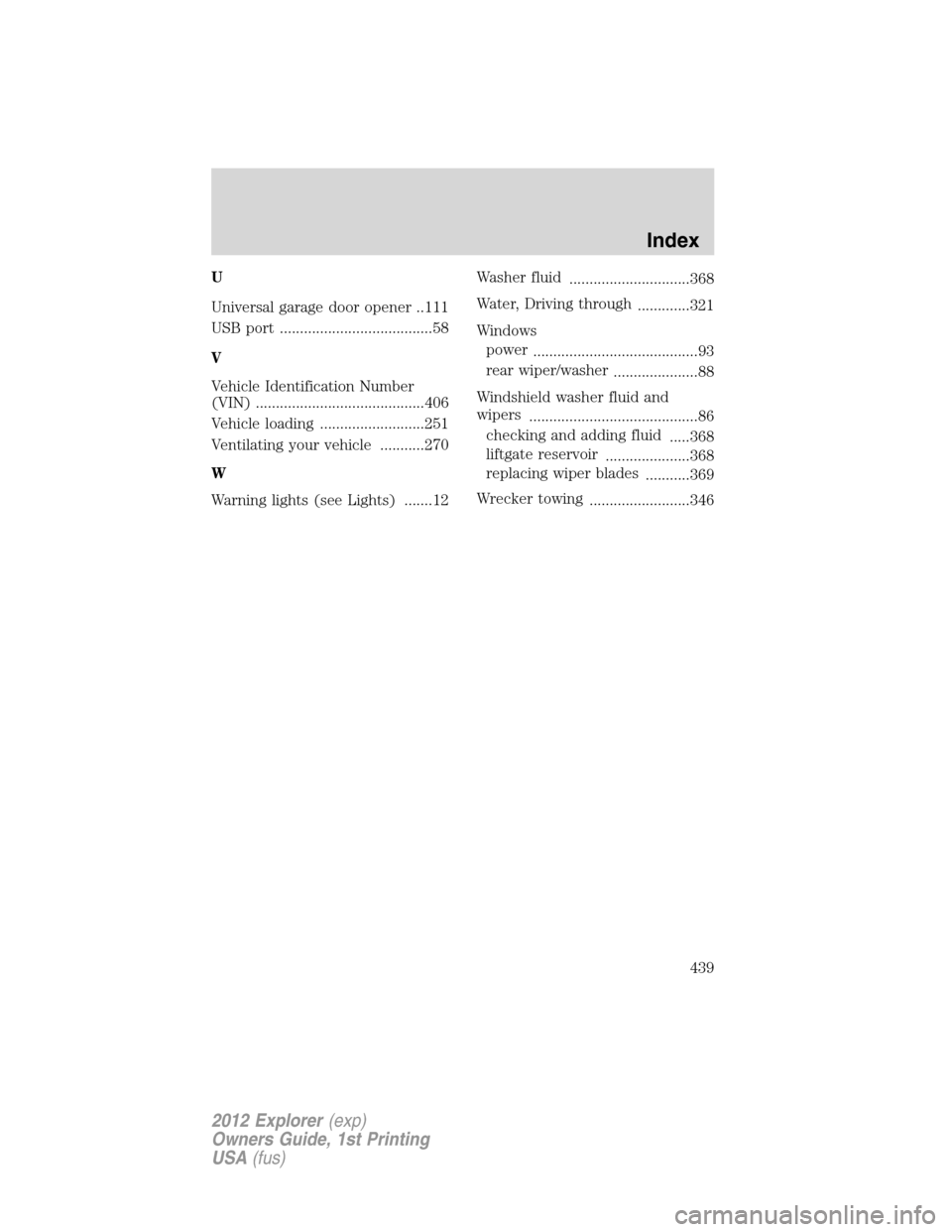

U
Universal garage door opener ..111
USB port ......................................58
V
Vehicle Identification Number
(VIN) ..........................................406
Vehicle loading ..........................251
Ventilating your vehicle ...........270
W
Warning lights (see Lights) .......12Washer fluid
..............................368
Water, Driving through
.............321
Windows
power
.........................................93
rear wiper/washer
.....................88
Windshield washer fluid and
wipers
..........................................86
checking and adding fluid
.....368
liftgate reservoir
.....................368
replacing wiper blades
...........369
Wrecker towing
.........................346
Index
439
2012 Explorer(exp)
Owners Guide, 1st Printing
USA(fus)
