Page 271 of 576

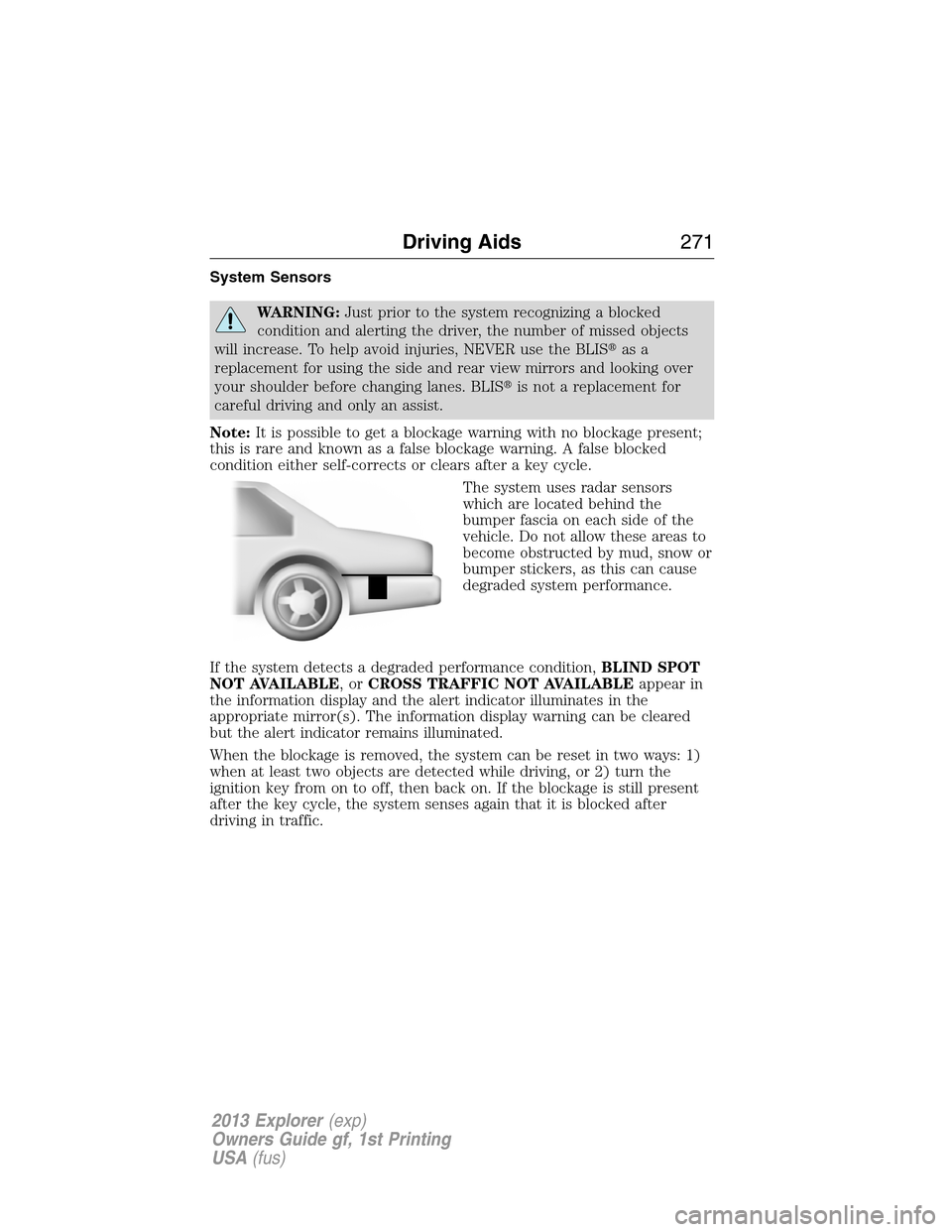

FORD EXPLORER 2013 5.G Owners Manual System Sensors
WARNING:Just prior to the system recognizing a blocked
condition and alerting the driver, the number of missed objects
will increase. To help avoid injuries, NEVER use the BLISas a
rep

Page 272 of 576

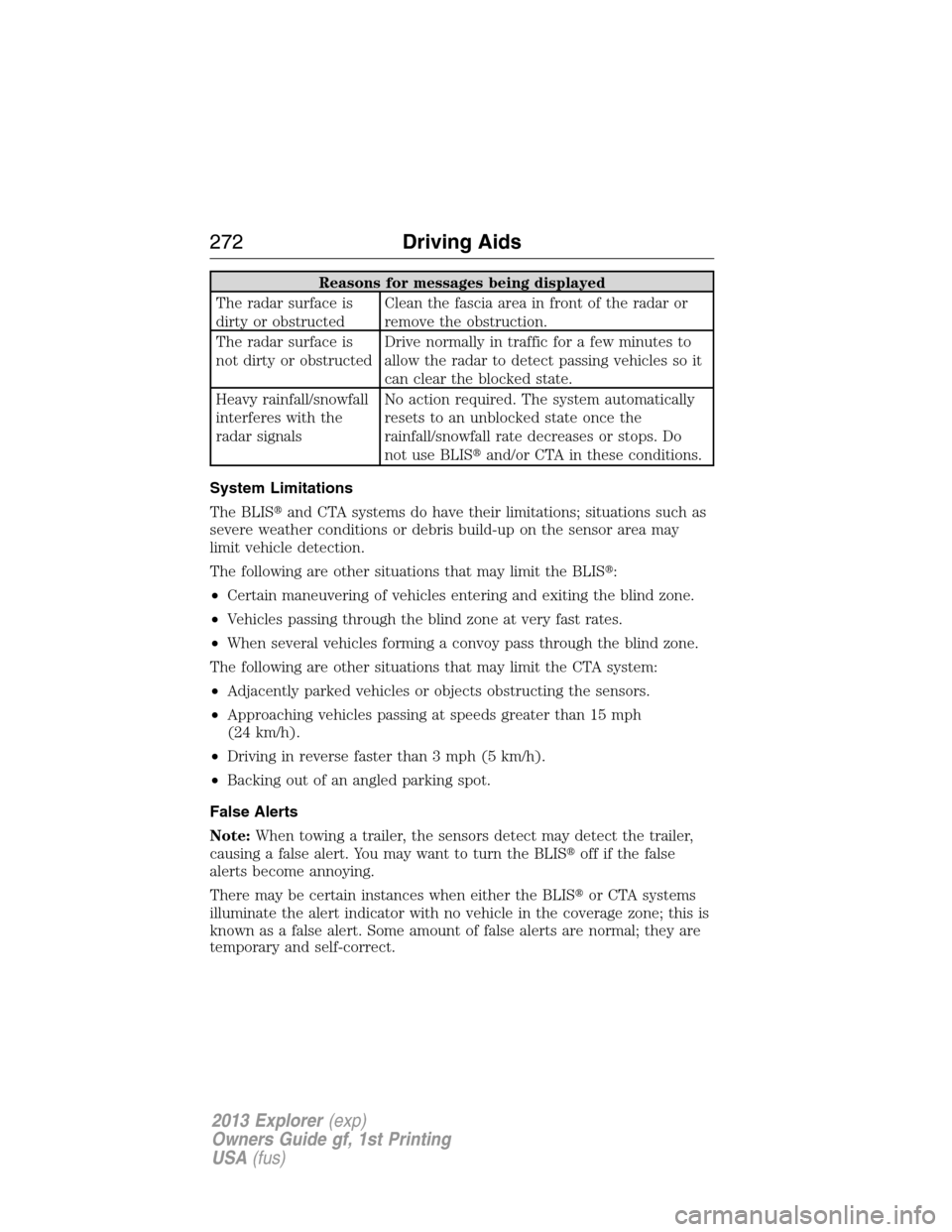

FORD EXPLORER 2013 5.G Owners Manual Reasons for messages being displayed
The radar surface is
dirty or obstructedClean the fascia area in front of the radar or
remove the obstruction.
The radar surface is
not dirty or obstructedDrive no

Page 273 of 576

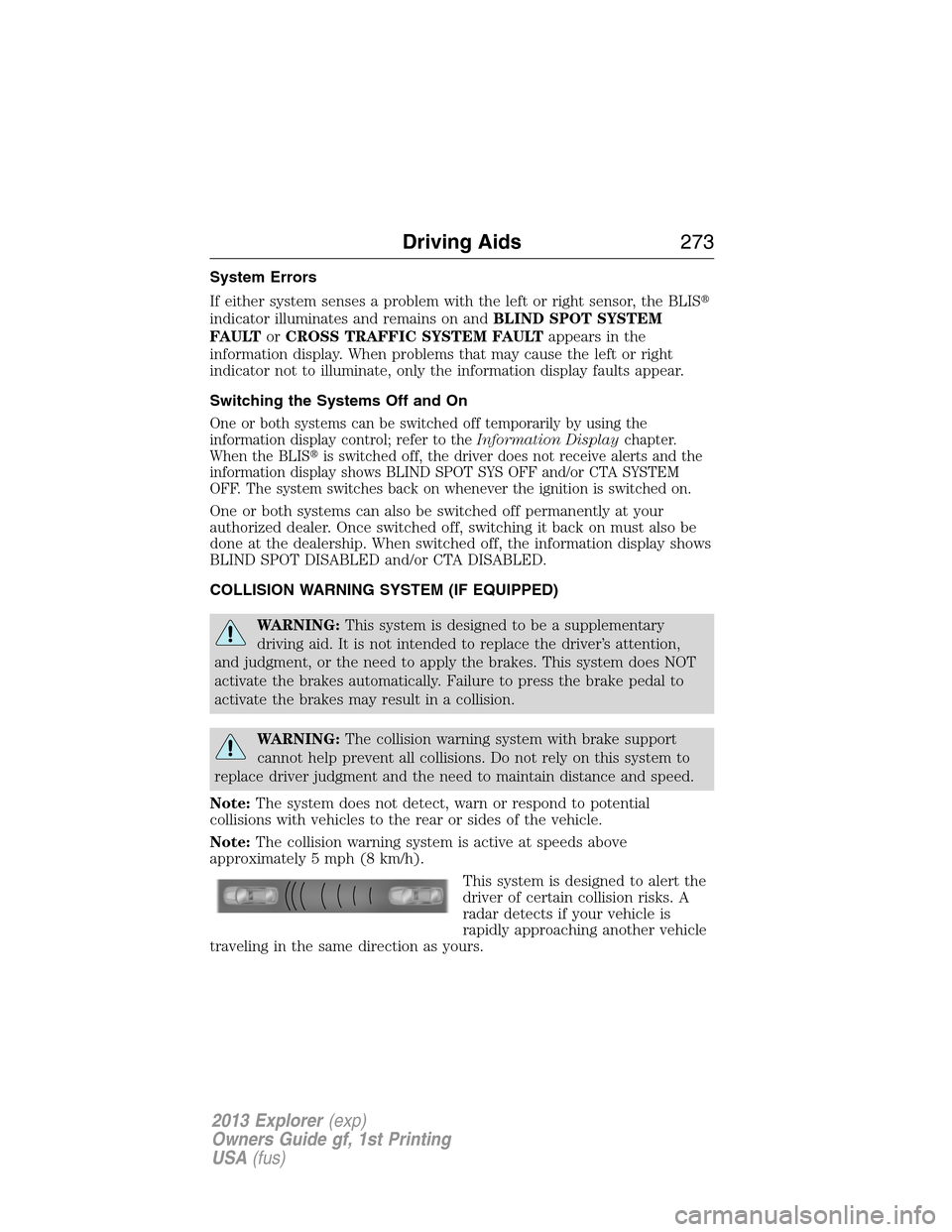

FORD EXPLORER 2013 5.G Owners Manual System Errors
If either system senses a problem with the left or right sensor, the BLIS
indicator illuminates and remains on andBLIND SPOT SYSTEM
FAULTorCROSS TRAFFIC SYSTEM FAULTappears in the
infor

Page 274 of 576

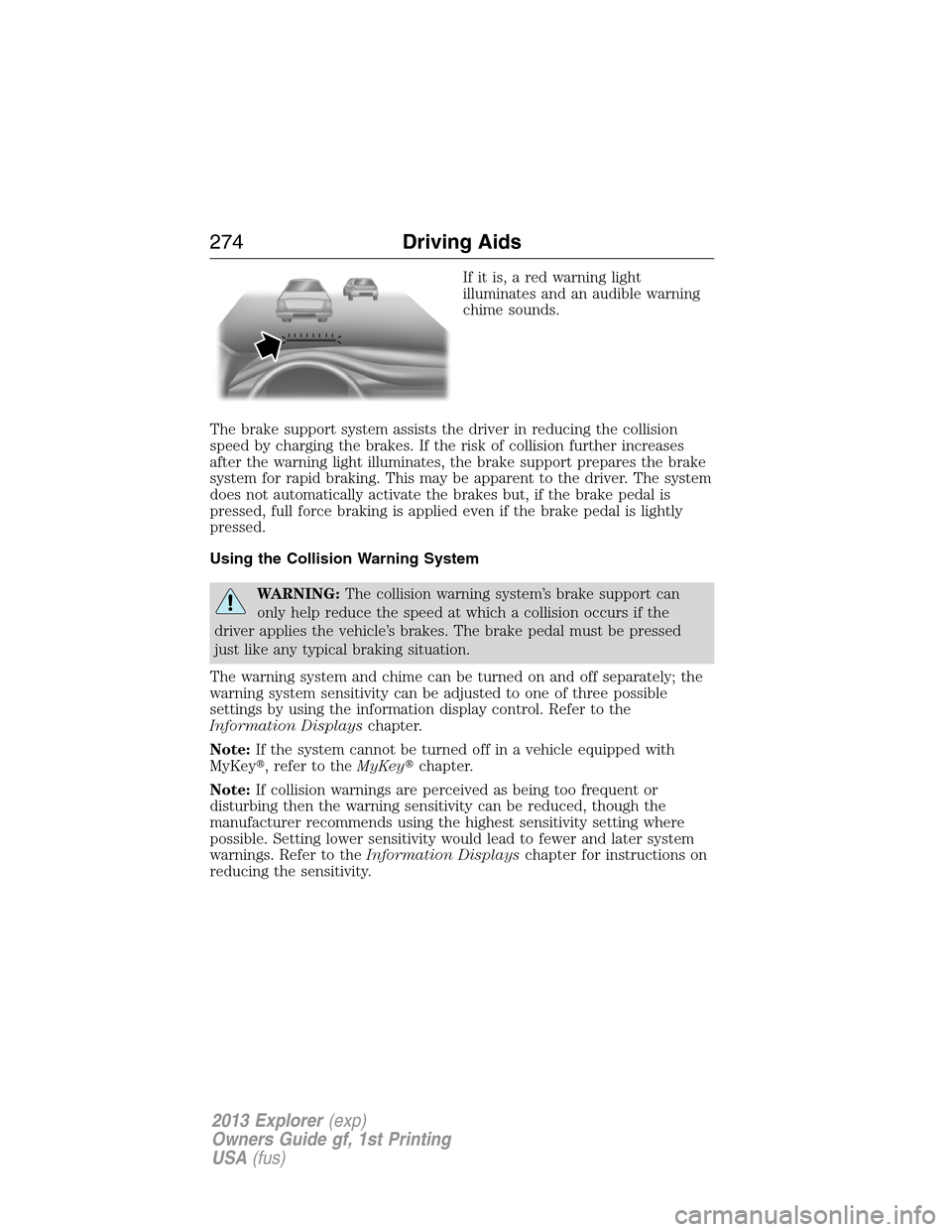

FORD EXPLORER 2013 5.G Owners Manual If it is, a red warning light
illuminates and an audible warning
chime sounds.
The brake support system assists the driver in reducing the collision
speed by charging the brakes. If the risk of collis

Page 275 of 576

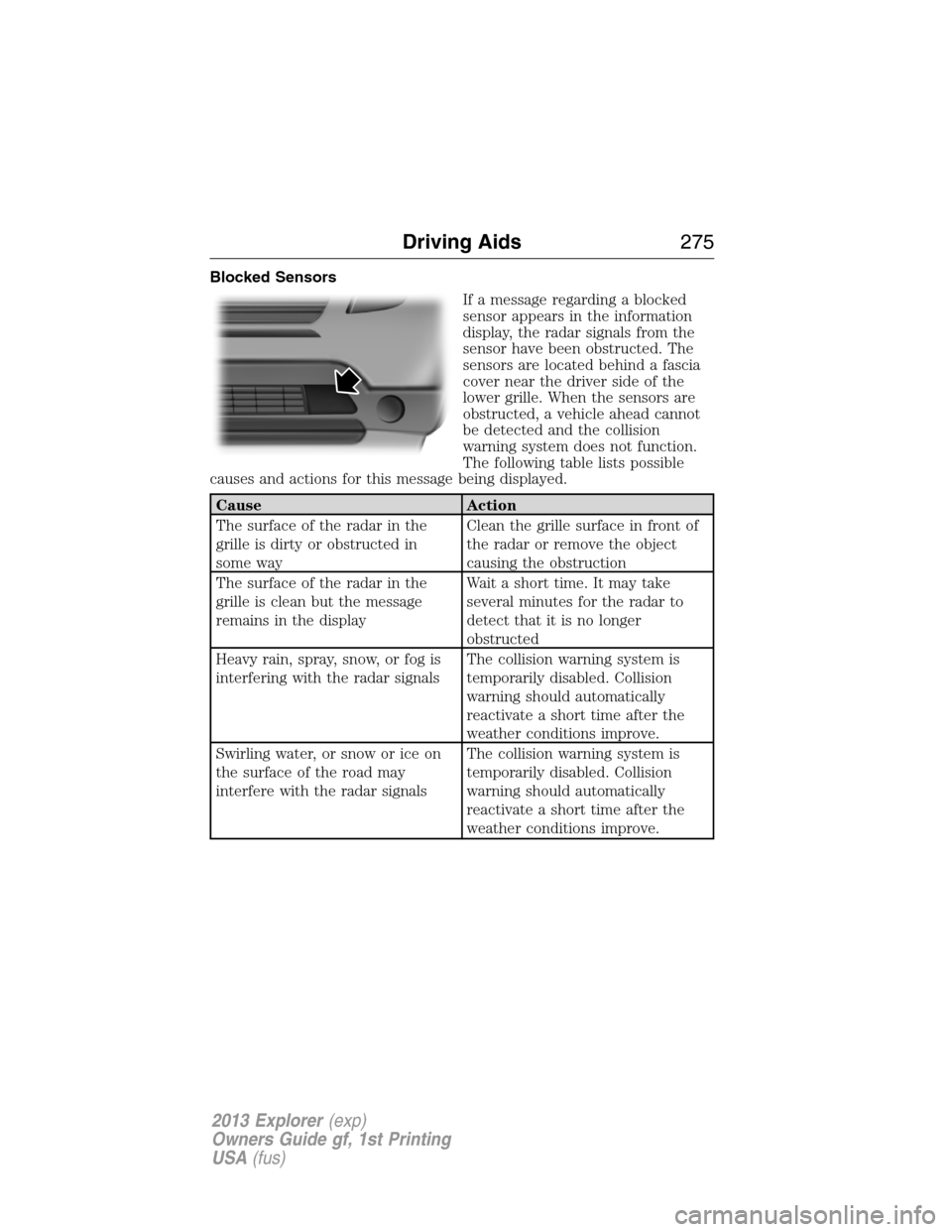

FORD EXPLORER 2013 5.G Owners Manual Blocked Sensors
If a message regarding a blocked
sensor appears in the information
display, the radar signals from the
sensor have been obstructed. The
sensors are located behind a fascia
cover near t

Page 276 of 576

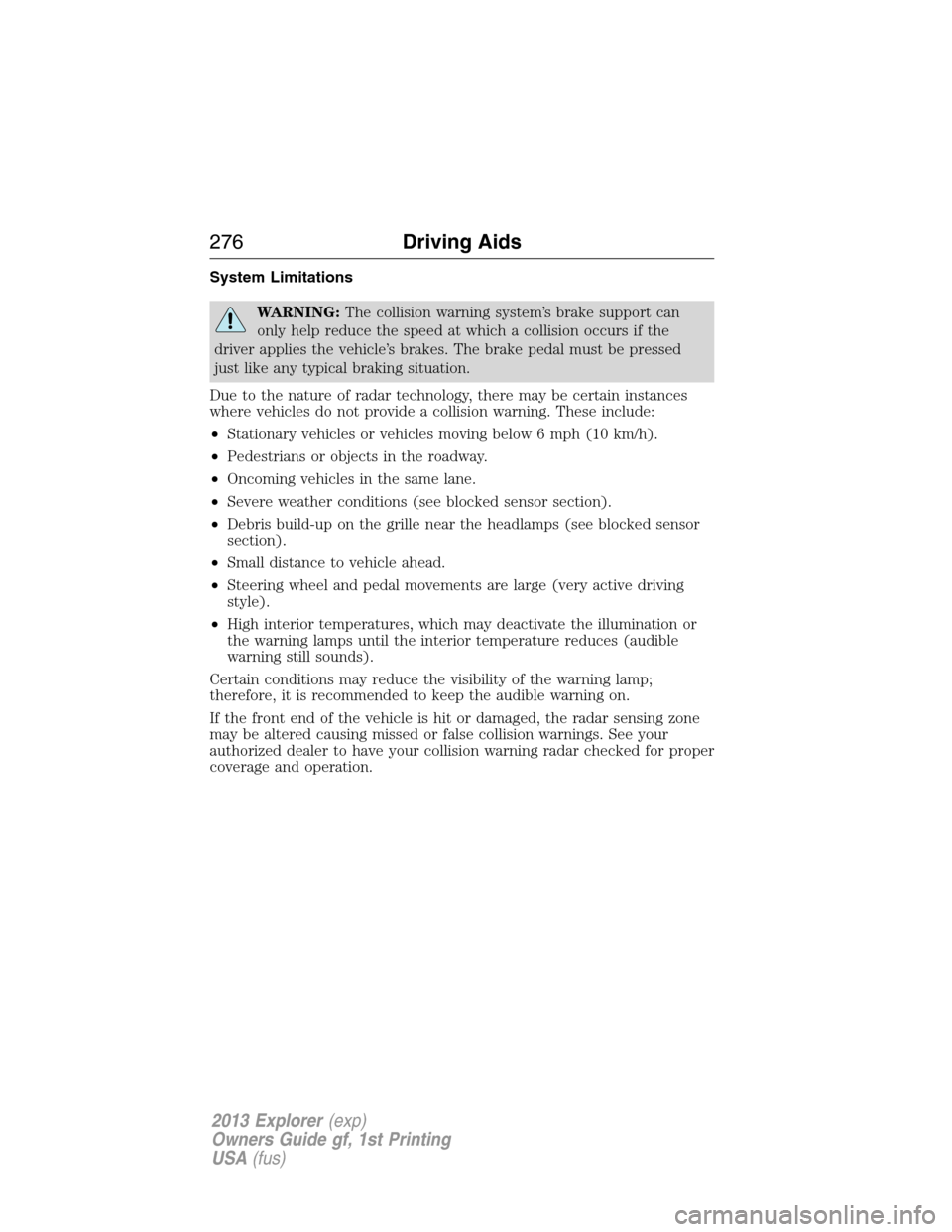

FORD EXPLORER 2013 5.G Owners Manual System Limitations
WARNING:The collision warning system’s brake support can
only help reduce the speed at which a collision occurs if the
driver applies the vehicle’s brakes. The brake pedal must

Page 277 of 576

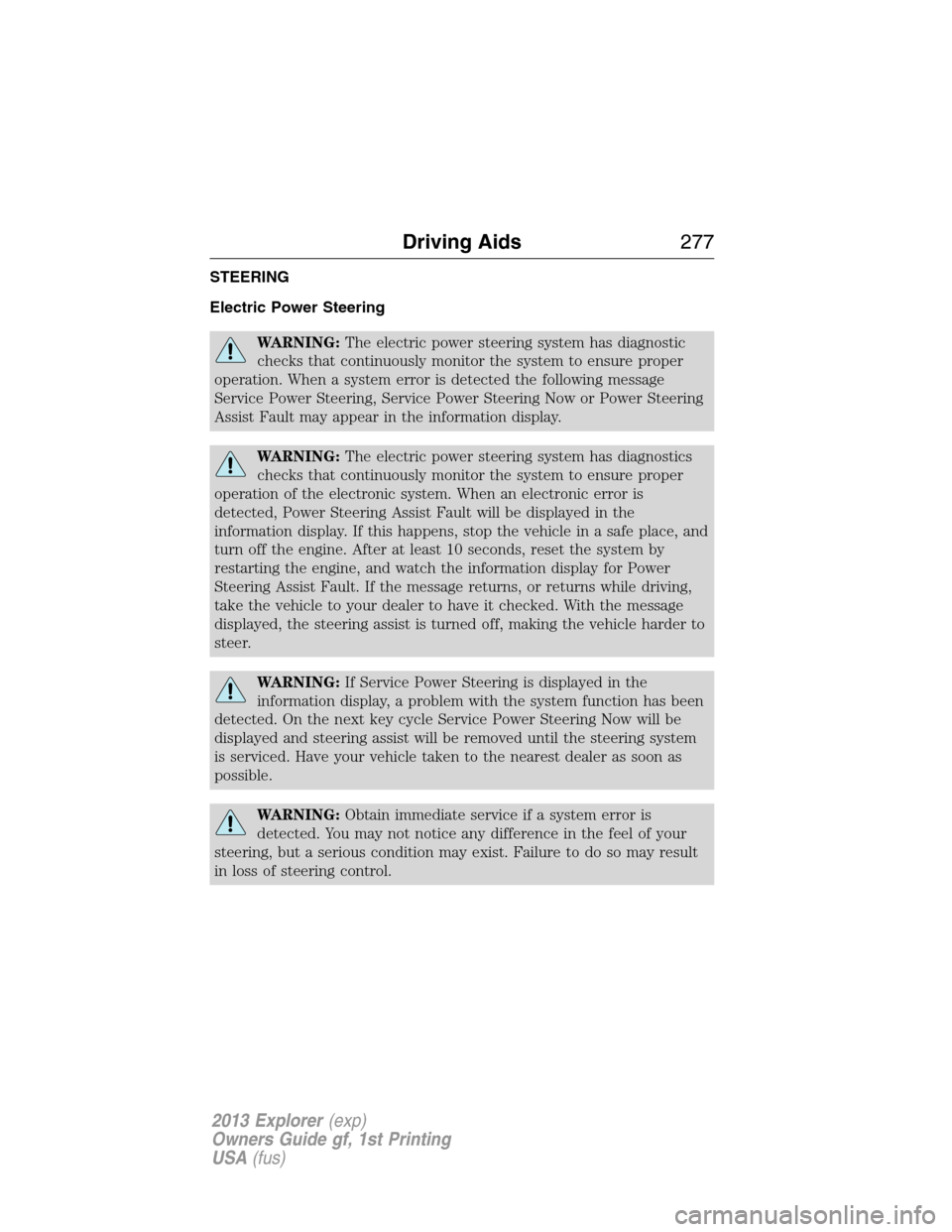

FORD EXPLORER 2013 5.G Owners Manual STEERING
Electric Power Steering
WARNING:The electric power steering system has diagnostic
checks that continuously monitor the system to ensure proper
operation. When a system error is detected the f

Page 278 of 576

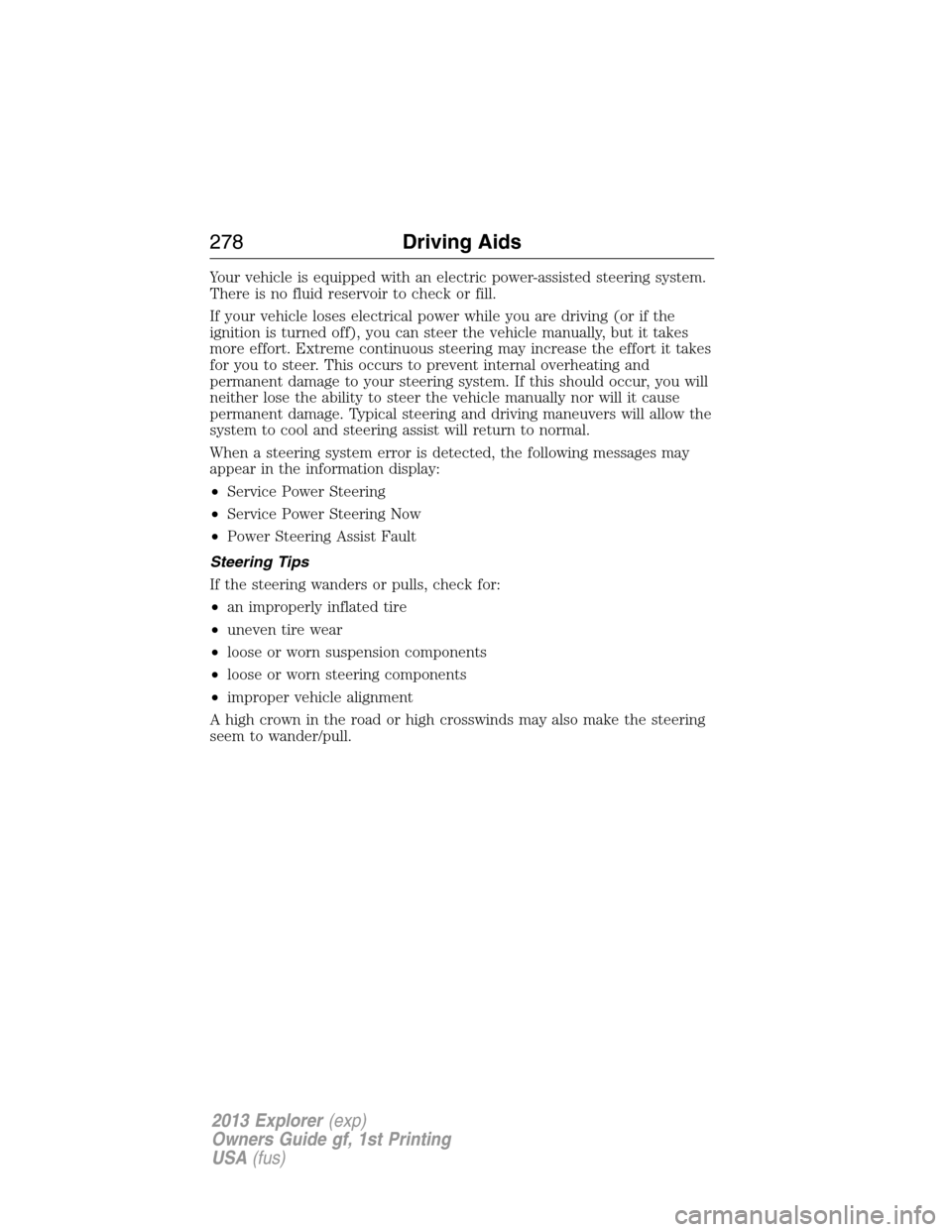

FORD EXPLORER 2013 5.G Owners Manual Your vehicle is equipped with an electric power-assisted steering system.
There is no fluid reservoir to check or fill.
If your vehicle loses electrical power while you are driving (or if the
ignition

Page 279 of 576

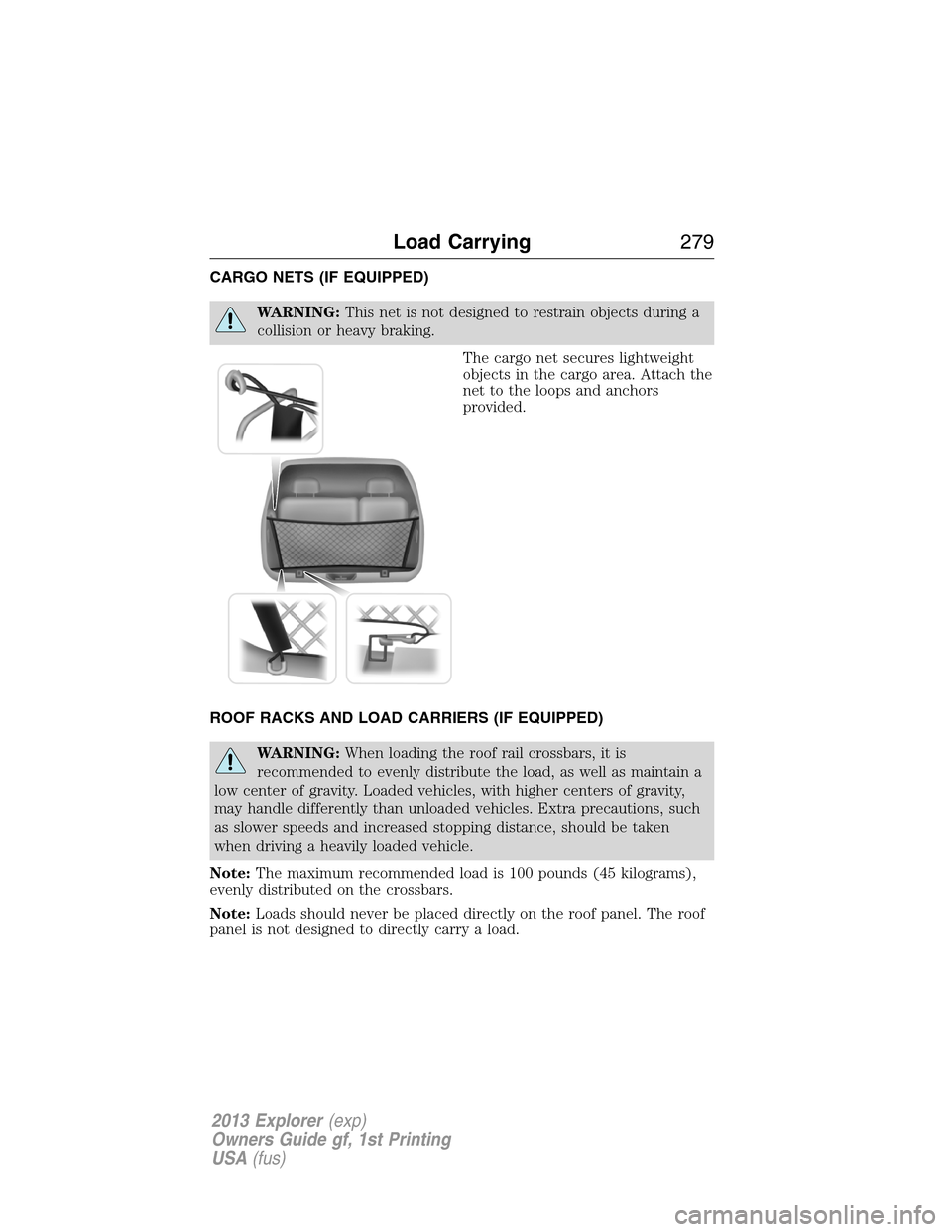

FORD EXPLORER 2013 5.G Owners Manual CARGO NETS (IF EQUIPPED)
WARNING:This net is not designed to restrain objects during a
collision or heavy braking.
The cargo net secures lightweight
objects in the cargo area. Attach the
net to the lo

Page 280 of 576

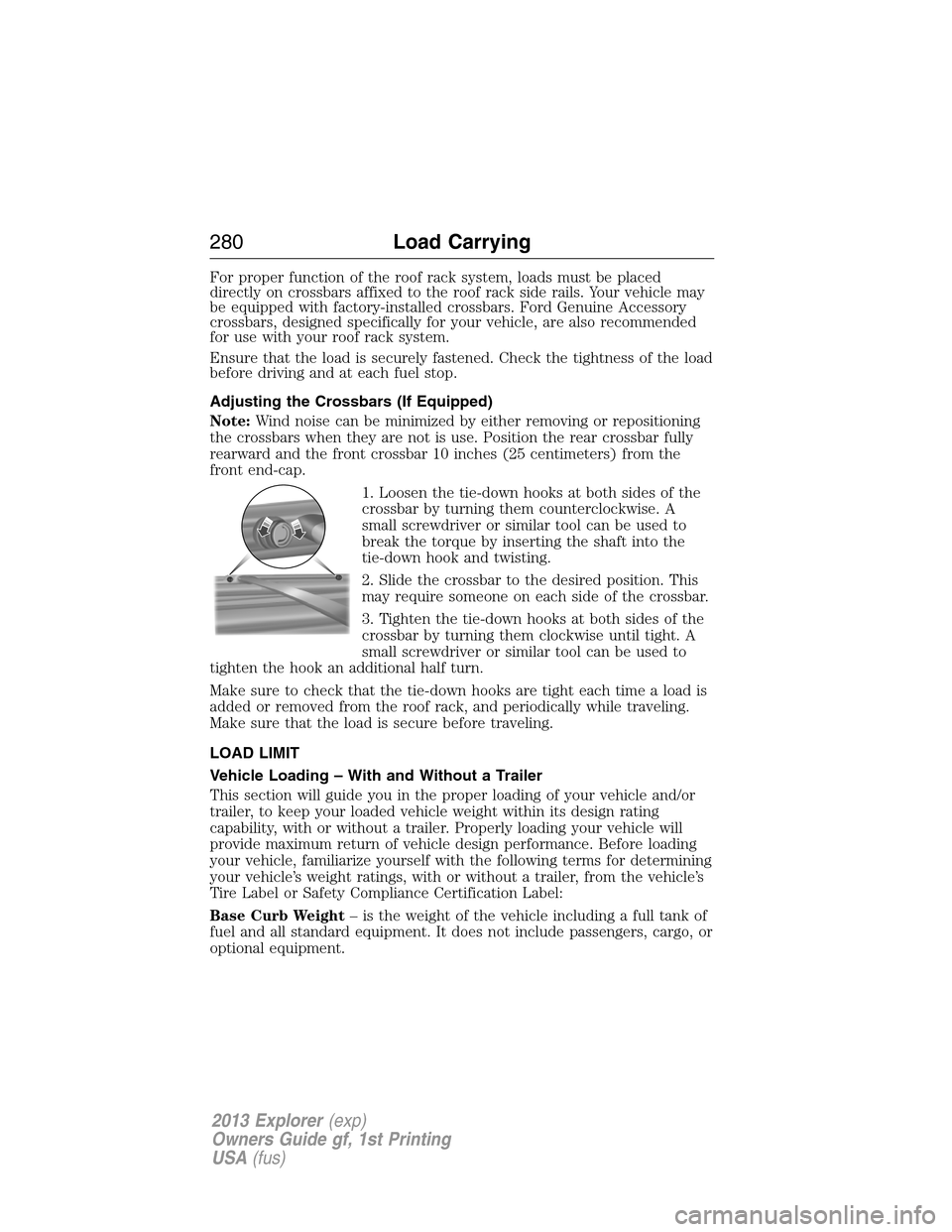

FORD EXPLORER 2013 5.G Owners Manual For proper function of the roof rack system, loads must be placed
directly on crossbars affixed to the roof rack side rails. Your vehicle may
be equipped with factory-installed crossbars. Ford Genuine
