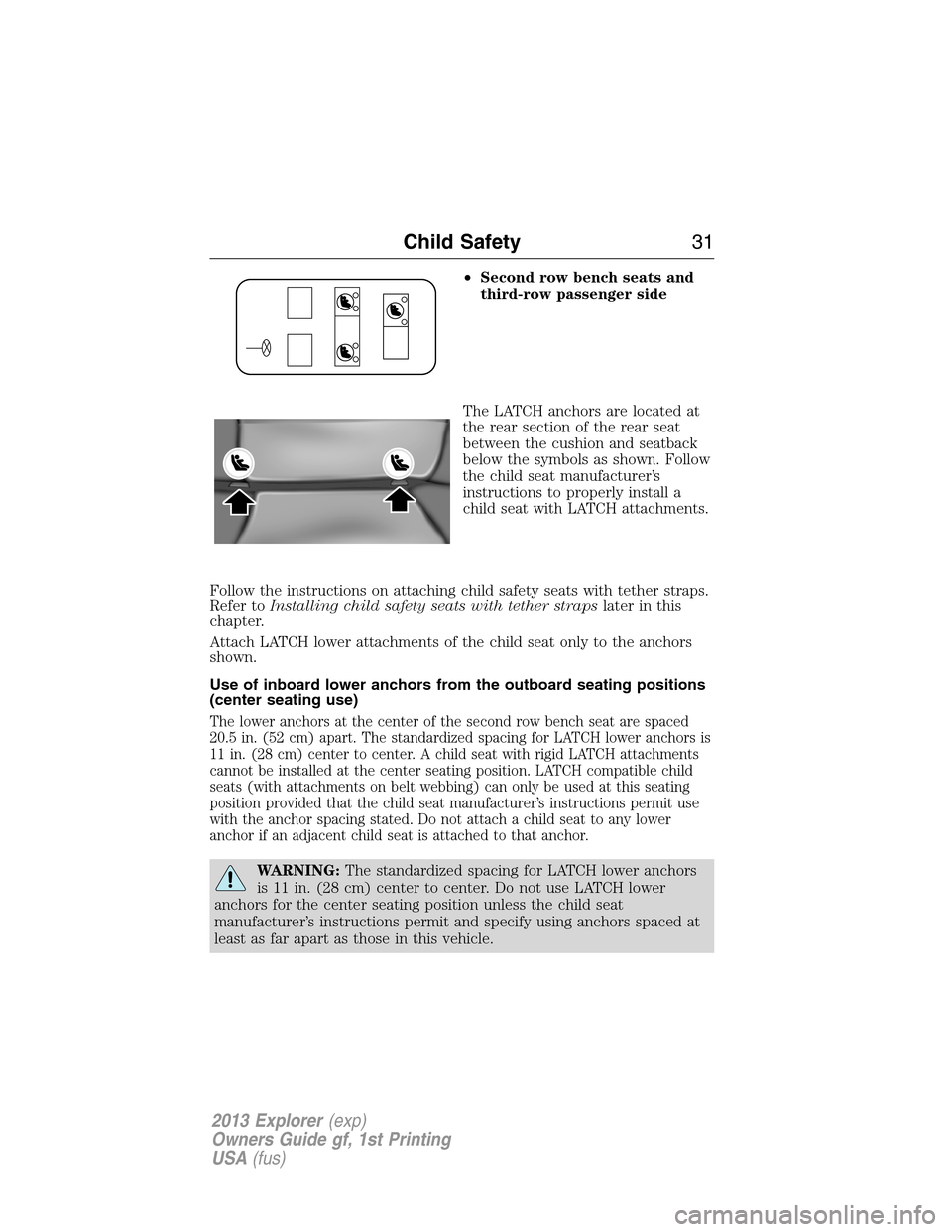

•Second row bench seats and
third-row passenger side
The LATCH anchors are located at
the rear section of the rear seat
between the cushion and seatback
below the symbols as shown. Follow
the child seat manufacturer’s
instructions to properly install a
child seat with LATCH attachments.
Follow the instructions on attaching child safety seats with tether straps.
Refer toInstalling child safety seats with tether strapslater in this
chapter.
Attach LATCH lower attachments of the child seat only to the anchors
shown.
Use of inboard lower anchors from the outboard seating positions
(center seating use)
The lower anchors at the center of the second row bench seat are spaced
20.5 in. (52 cm) apart. The standardized spacing for LATCH lower anchors is
11 in. (28 cm) center to center. A child seat with rigid LATCH attachments
cannot be installed at the center seating position. LATCH compatible child
seats (with attachments on belt webbing) can only be used at this seating
position provided that the child seat manufacturer’s instructions permit use
with the anchor spacing stated. Do not attach a child seat to any lower
anchor if an adjacent child seat is attached to that anchor.
WARNING:The standardized spacing for LATCH lower anchors
is 11 in. (28 cm) center to center. Do not use LATCH lower
anchors for the center seating position unless the child seat
manufacturer’s instructions permit and specify using anchors spaced at
least as far apart as those in this vehicle.
Child Safety31
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

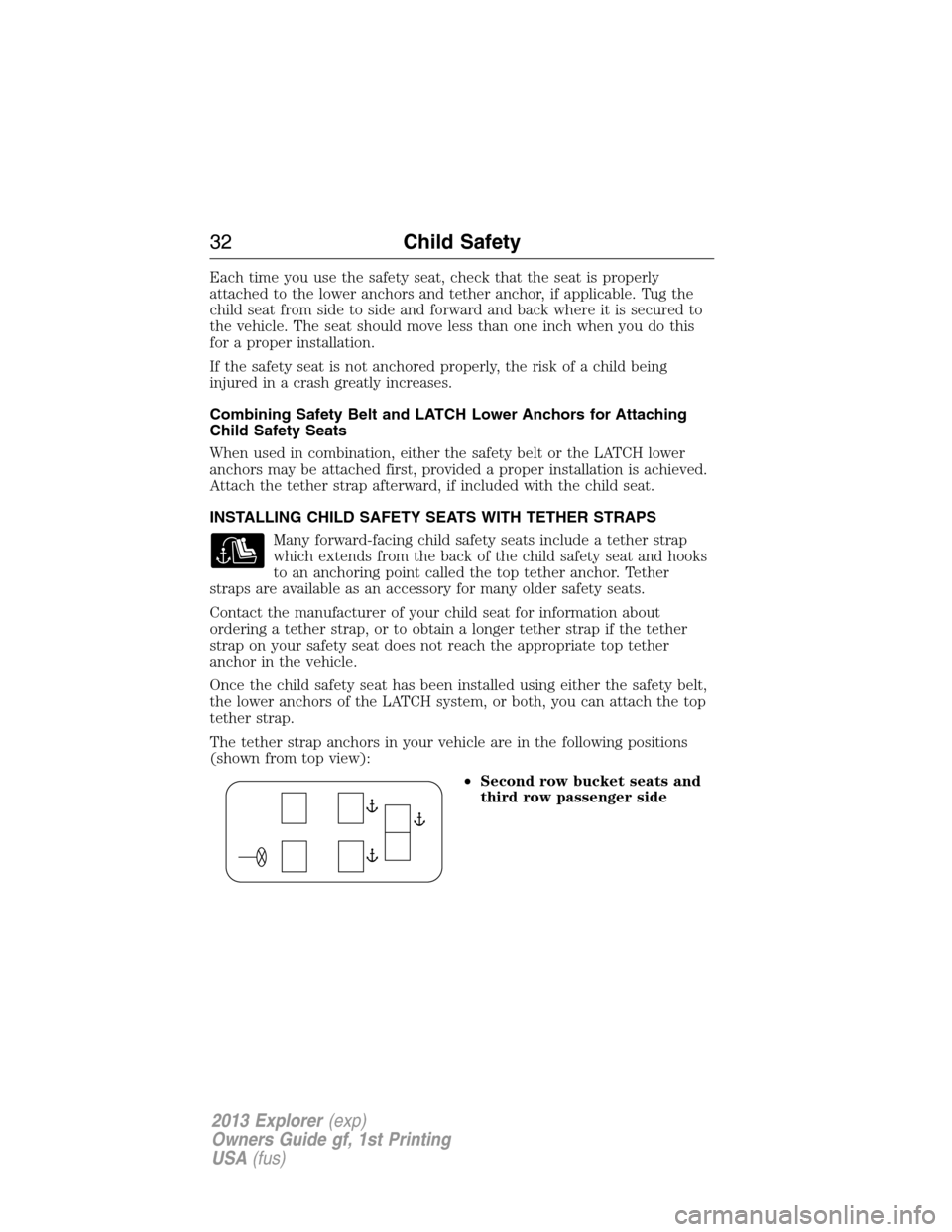

Each time you use the safety seat, check that the seat is properly
attached to the lower anchors and tether anchor, if applicable. Tug the
child seat from side to side and forward and back where it is secured to
the vehicle. The seat should move less than one inch when you do this
for a proper installation.
If the safety seat is not anchored properly, the risk of a child being
injured in a crash greatly increases.
Combining Safety Belt and LATCH Lower Anchors for Attaching
Child Safety Seats
When used in combination, either the safety belt or the LATCH lower
anchors may be attached first, provided a proper installation is achieved.
Attach the tether strap afterward, if included with the child seat.
INSTALLING CHILD SAFETY SEATS WITH TETHER STRAPS
Many forward-facing child safety seats include a tether strap
which extends from the back of the child safety seat and hooks
to an anchoring point called the top tether anchor. Tether
straps are available as an accessory for many older safety seats.
Contact the manufacturer of your child seat for information about
ordering a tether strap, or to obtain a longer tether strap if the tether
strap on your safety seat does not reach the appropriate top tether
anchor in the vehicle.
Once the child safety seat has been installed using either the safety belt,
the lower anchors of the LATCH system, or both, you can attach the top
tether strap.
The tether strap anchors in your vehicle are in the following positions
(shown from top view):
•Second row bucket seats and
third row passenger side
32Child Safety
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

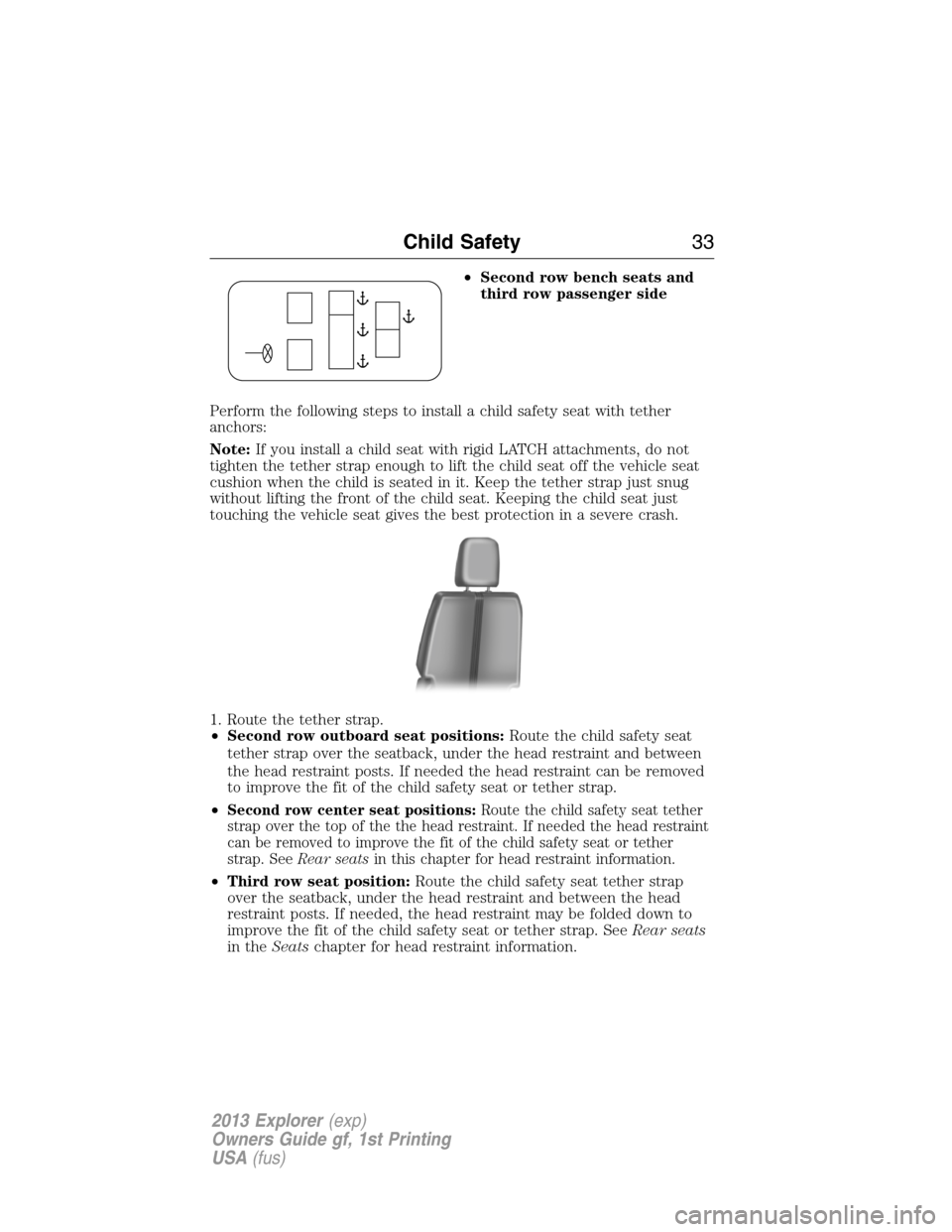

•Second row bench seats and
third row passenger side
Perform the following steps to install a child safety seat with tether
anchors:
Note:If you install a child seat with rigid LATCH attachments, do not
tighten the tether strap enough to lift the child seat off the vehicle seat
cushion when the child is seated in it. Keep the tether strap just snug
without lifting the front of the child seat. Keeping the child seat just
touching the vehicle seat gives the best protection in a severe crash.
1. Route the tether strap.
•Second row outboard seat positions:Route the child safety seat
tether strap over the seatback, under the head restraint and between
the head restraint posts. If needed the head restraint can be removed
to improve the fit of the child safety seat or tether strap.
•
Second row center seat positions:Route the child safety seat tether
strap over the top of the the head restraint. If needed the head restraint
can be removed to improve the fit of the child safety seat or tether
strap. SeeRear seatsin this chapter for head restraint information.
•Third row seat position:Route the child safety seat tether strap
over the seatback, under the head restraint and between the head
restraint posts. If needed, the head restraint may be folded down to
improve the fit of the child safety seat or tether strap. SeeRear seats
in theSeatschapter for head restraint information.
Child Safety33
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

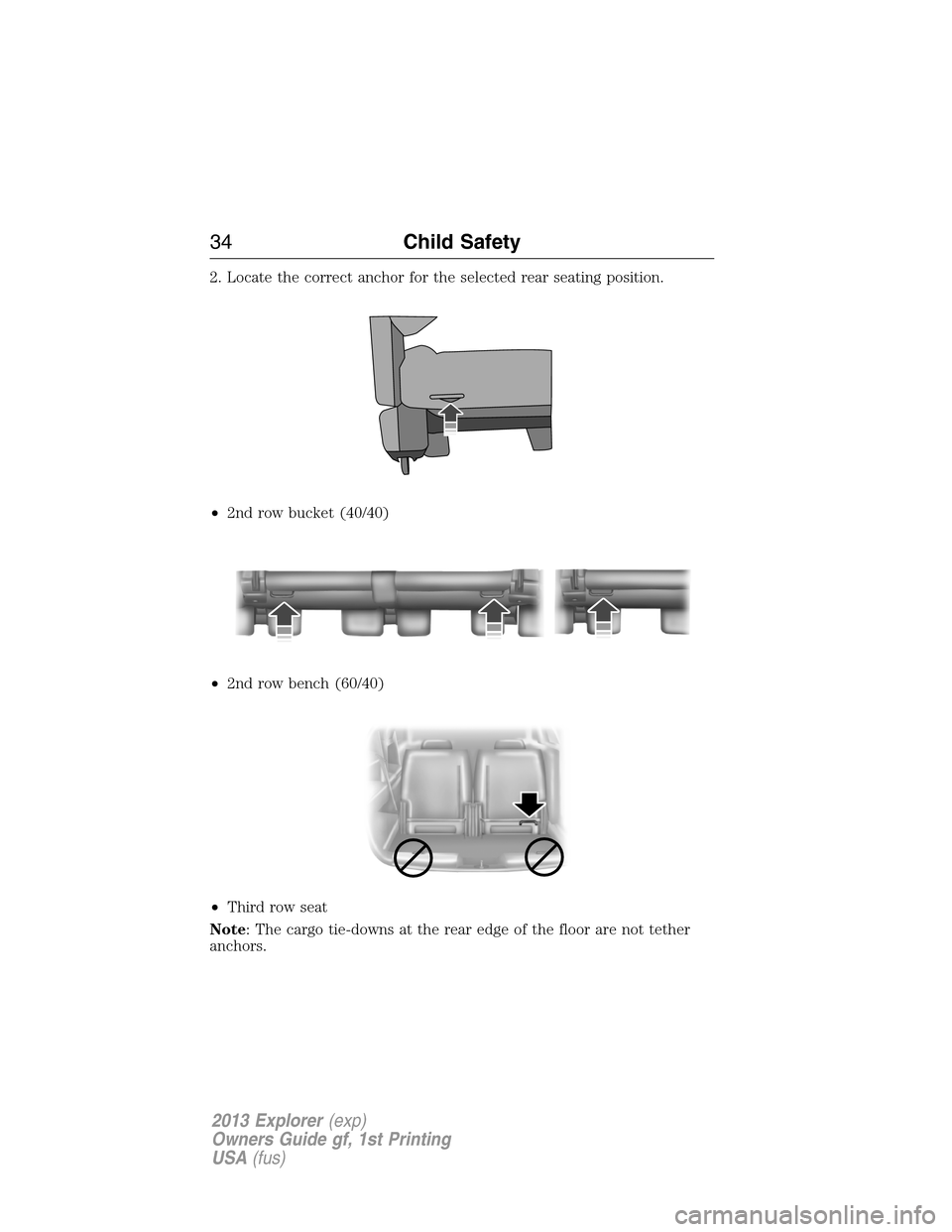

2. Locate the correct anchor for the selected rear seating position.
•2nd row bucket (40/40)
•2nd row bench (60/40)
•Third row seat
Note: The cargo tie-downs at the rear edge of the floor are not tether
anchors.
34Child Safety
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

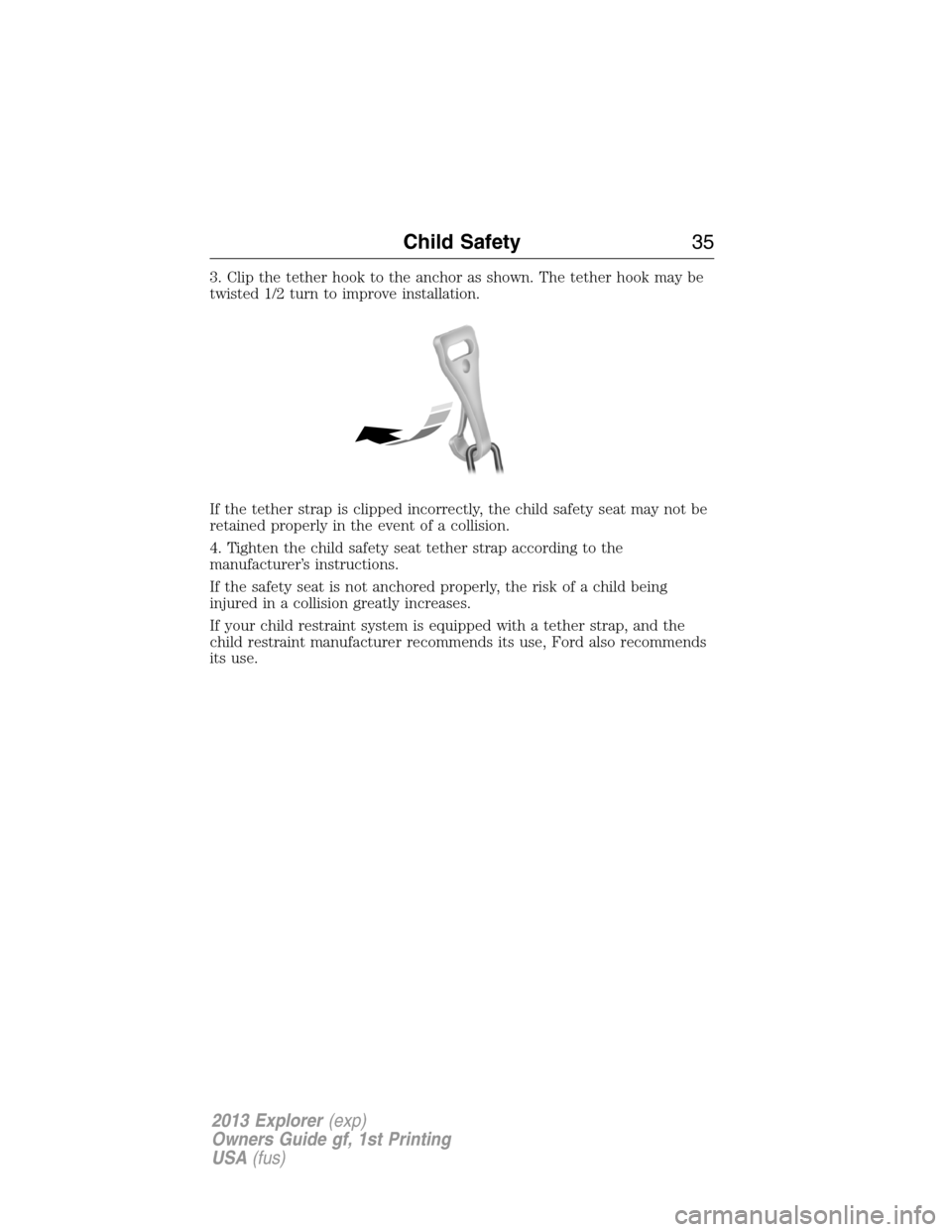

3. Clip the tether hook to the anchor as shown. The tether hook may be
twisted 1/2 turn to improve installation.
If the tether strap is clipped incorrectly, the child safety seat may not be
retained properly in the event of a collision.
4. Tighten the child safety seat tether strap according to the
manufacturer’s instructions.
If the safety seat is not anchored properly, the risk of a child being
injured in a collision greatly increases.
If your child restraint system is equipped with a tether strap, and the
child restraint manufacturer recommends its use, Ford also recommends
its use.
Child Safety35
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

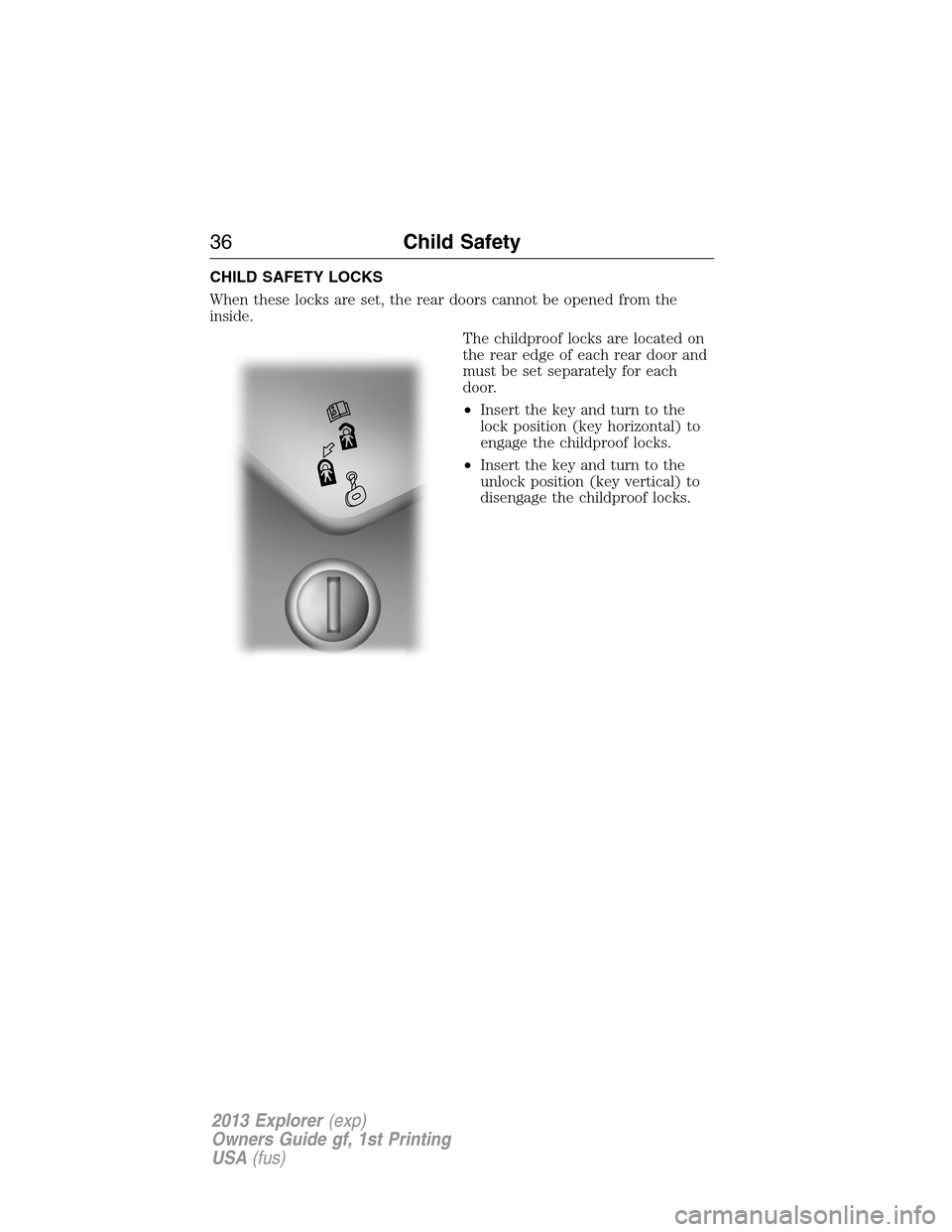

CHILD SAFETY LOCKS
When these locks are set, the rear doors cannot be opened from the
inside.
The childproof locks are located on
the rear edge of each rear door and
must be set separately for each
door.
•Insert the key and turn to the
lock position (key horizontal) to
engage the childproof locks.
•Insert the key and turn to the
unlock position (key vertical) to
disengage the childproof locks.
36Child Safety
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

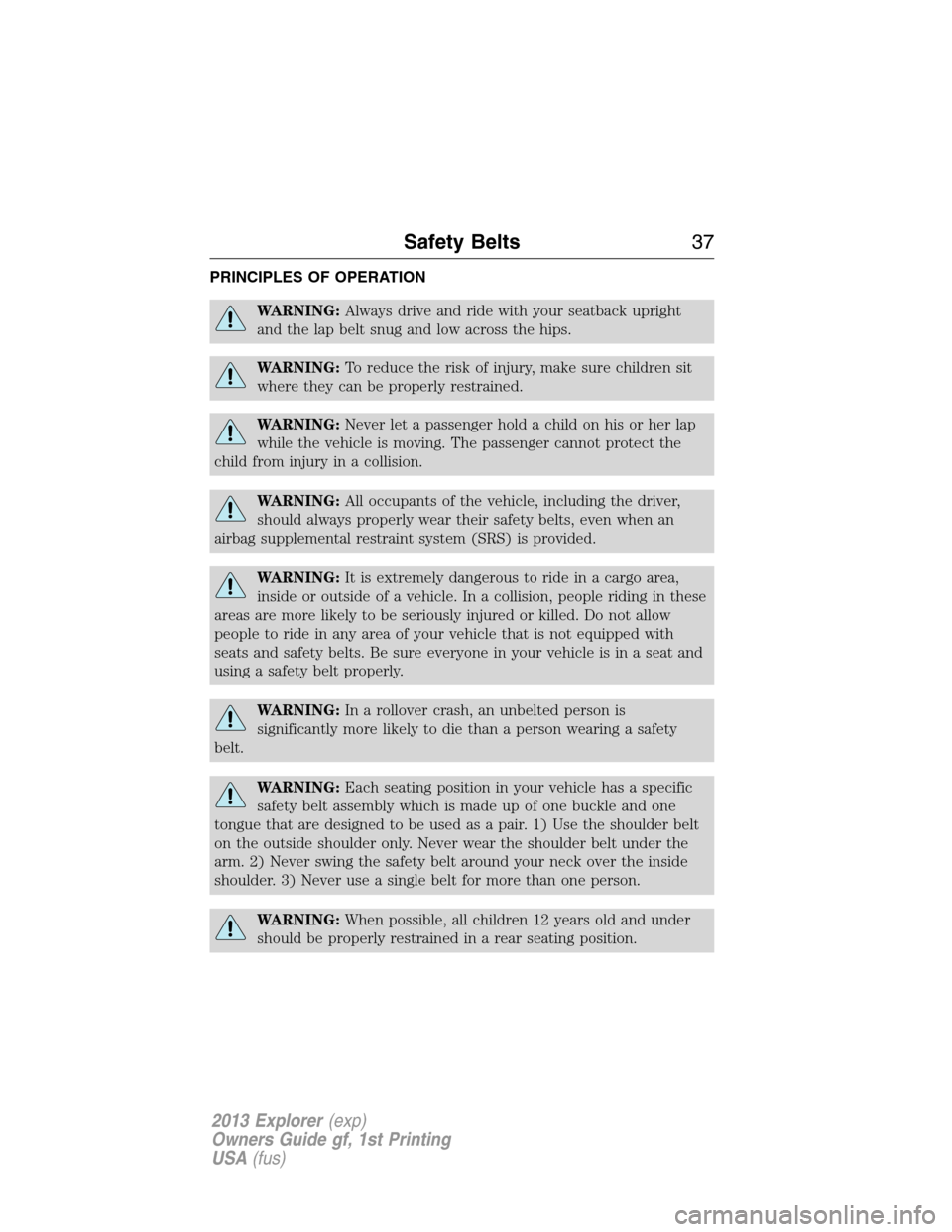

PRINCIPLES OF OPERATION
WARNING:Always drive and ride with your seatback upright
and the lap belt snug and low across the hips.
WARNING:To reduce the risk of injury, make sure children sit
where they can be properly restrained.
WARNING:Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision.
WARNING:All occupants of the vehicle, including the driver,
should always properly wear their safety belts, even when an
airbag supplemental restraint system (SRS) is provided.
WARNING:It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people riding in these
areas are more likely to be seriously injured or killed. Do not allow
people to ride in any area of your vehicle that is not equipped with
seats and safety belts. Be sure everyone in your vehicle is in a seat and
using a safety belt properly.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a safety
belt.
WARNING:Each seating position in your vehicle has a specific
safety belt assembly which is made up of one buckle and one
tongue that are designed to be used as a pair. 1) Use the shoulder belt
on the outside shoulder only. Never wear the shoulder belt under the
arm. 2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
WARNING:When possible, all children 12 years old and under
should be properly restrained in a rear seating position.
Safety Belts37
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

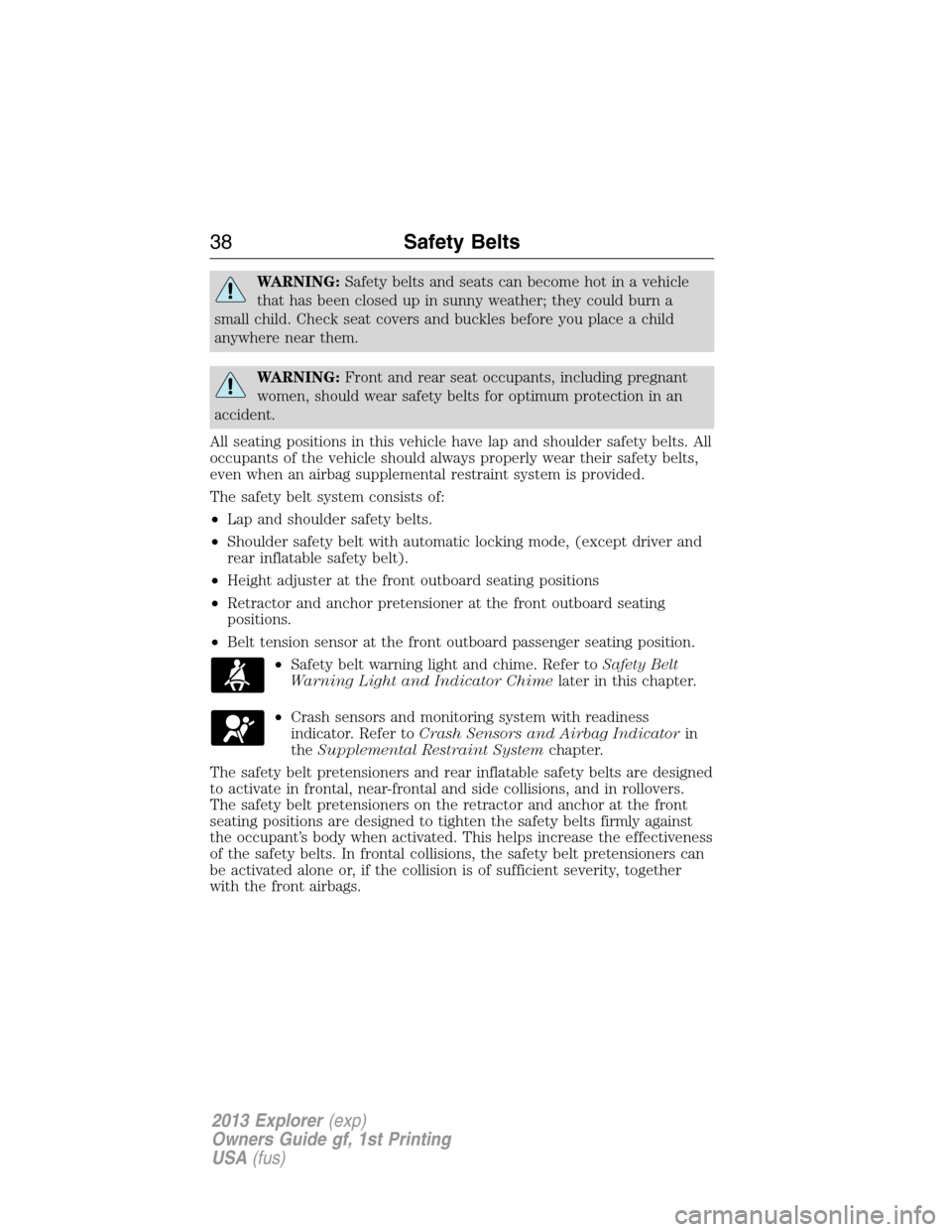

WARNING:Safety belts and seats can become hot in a vehicle
that has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you place a child
anywhere near them.
WARNING:Front and rear seat occupants, including pregnant
women, should wear safety belts for optimum protection in an
accident.
All seating positions in this vehicle have lap and shoulder safety belts. All
occupants of the vehicle should always properly wear their safety belts,
even when an airbag supplemental restraint system is provided.
The safety belt system consists of:
•Lap and shoulder safety belts.
•Shoulder safety belt with automatic locking mode, (except driver and
rear inflatable safety belt).
•Height adjuster at the front outboard seating positions
•Retractor and anchor pretensioner at the front outboard seating
positions.
•Belt tension sensor at the front outboard passenger seating position.
•Safety belt warning light and chime. Refer toSafety Belt
Warning Light and Indicator Chimelater in this chapter.
•Crash sensors and monitoring system with readiness
indicator. Refer toCrash Sensors and Airbag Indicatorin
theSupplemental Restraint Systemchapter.
The safety belt pretensioners and rear inflatable safety belts are designed
to activate in frontal, near-frontal and side collisions, and in rollovers.
The safety belt pretensioners on the retractor and anchor at the front
seating positions are designed to tighten the safety belts firmly against
the occupant’s body when activated. This helps increase the effectiveness
of the safety belts. In frontal collisions, the safety belt pretensioners can
be activated alone or, if the collision is of sufficient severity, together
with the front airbags.
38Safety Belts
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

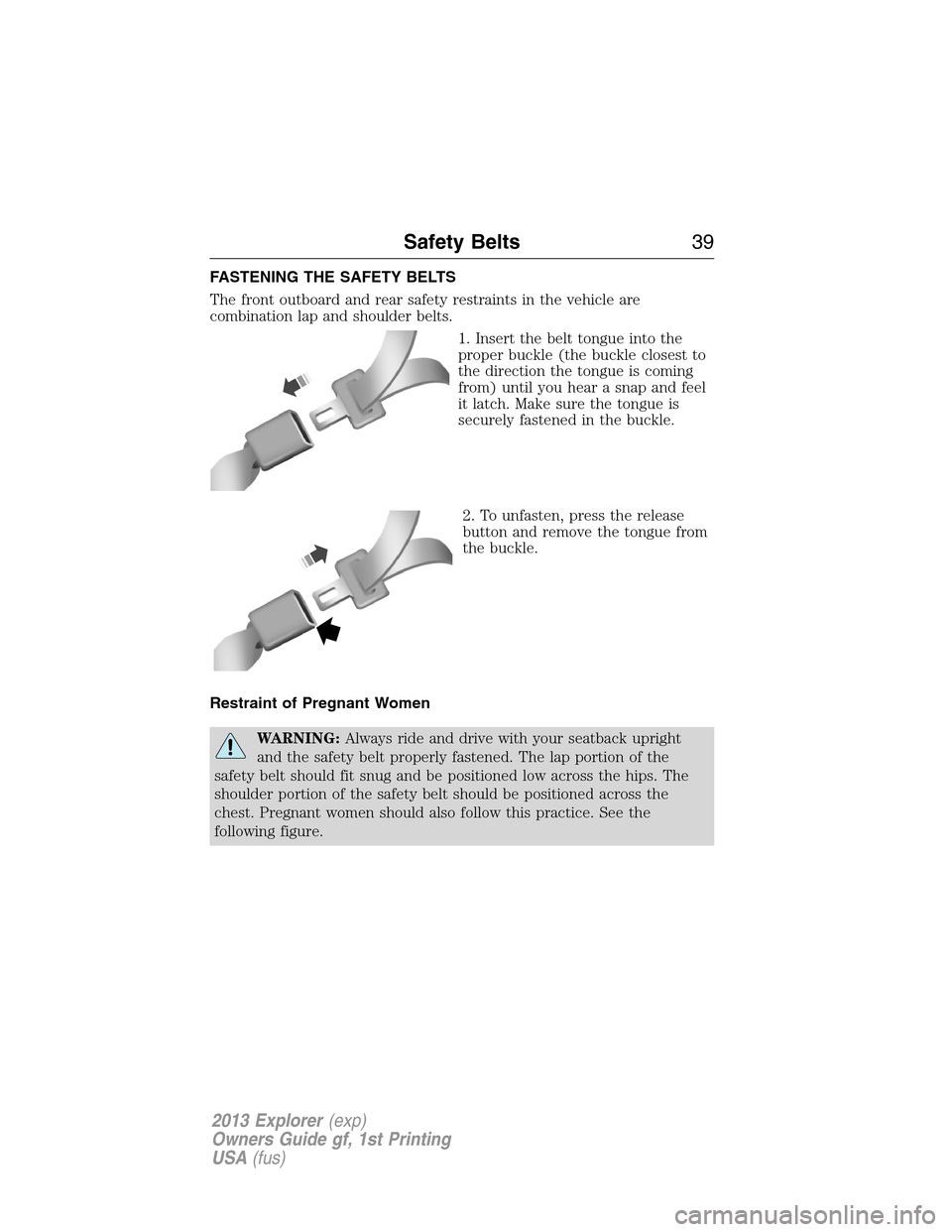

FASTENING THE SAFETY BELTS
The front outboard and rear safety restraints in the vehicle are
combination lap and shoulder belts.
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, press the release
button and remove the tongue from
the buckle.
Restraint of Pregnant Women
WARNING:Always ride and drive with your seatback upright
and the safety belt properly fastened. The lap portion of the
safety belt should fit snug and be positioned low across the hips. The
shoulder portion of the safety belt should be positioned across the
chest. Pregnant women should also follow this practice. See the
following figure.
Safety Belts39
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

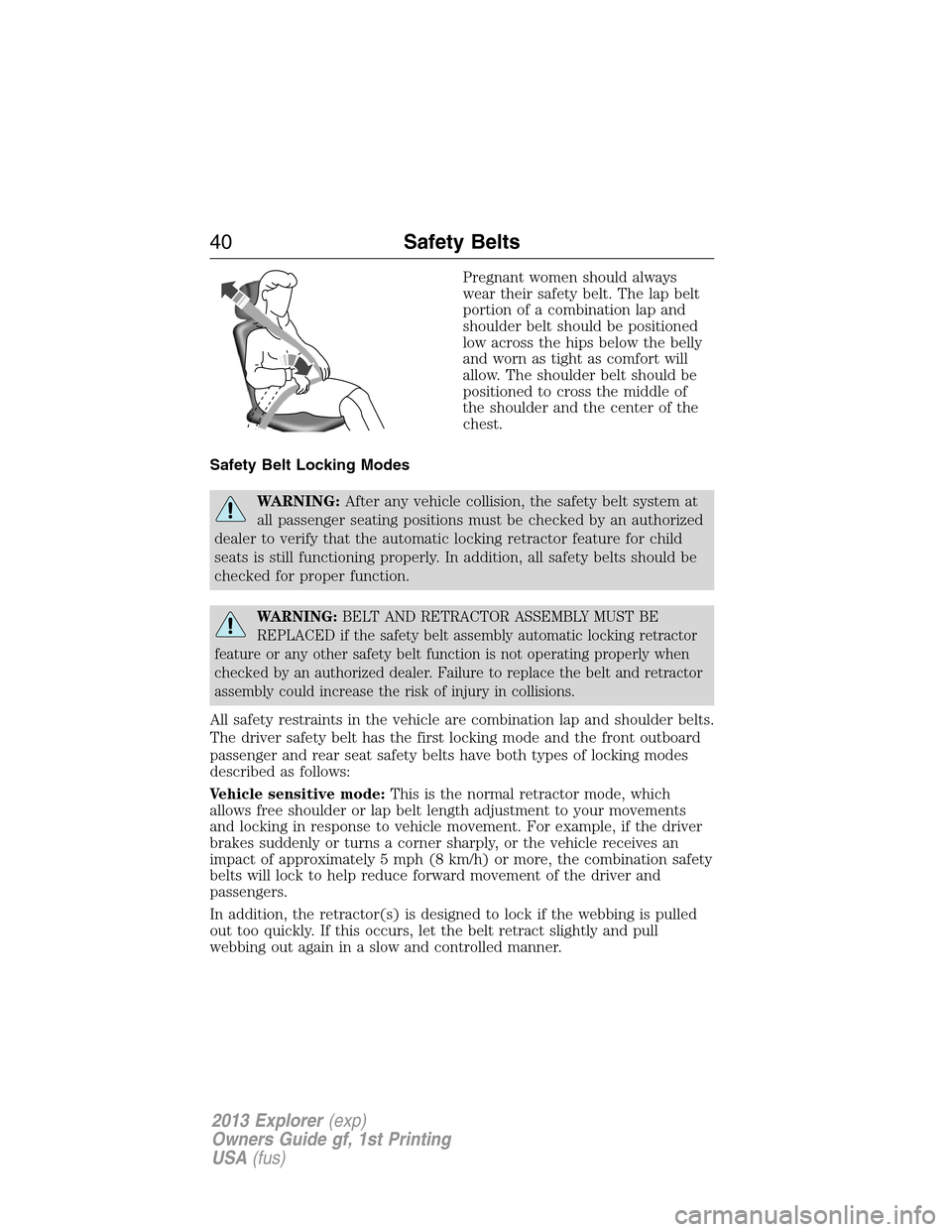

Pregnant women should always
wear their safety belt. The lap belt
portion of a combination lap and
shoulder belt should be positioned
low across the hips below the belly
and worn as tight as comfort will
allow. The shoulder belt should be
positioned to cross the middle of
the shoulder and the center of the
chest.
Safety Belt Locking Modes
WARNING:After any vehicle collision, the safety belt system at
all passenger seating positions must be checked by an authorized
dealer to verify that the automatic locking retractor feature for child
seats is still functioning properly. In addition, all safety belts should be
checked for proper function.
WARNING:BELT AND RETRACTOR ASSEMBLY MUST BE
REPLACED if the safety belt assembly automatic locking retractor
feature or any other safety belt function is not operating properly when
checked by an authorized dealer. Failure to replace the belt and retractor
assembly could increase the risk of injury in collisions.
All safety restraints in the vehicle are combination lap and shoulder belts.
The driver safety belt has the first locking mode and the front outboard
passenger and rear seat safety belts have both types of locking modes
described as follows:
Vehicle sensitive mode:This is the normal retractor mode, which
allows free shoulder or lap belt length adjustment to your movements
and locking in response to vehicle movement. For example, if the driver
brakes suddenly or turns a corner sharply, or the vehicle receives an
impact of approximately 5 mph (8 km/h) or more, the combination safety
belts will lock to help reduce forward movement of the driver and
passengers.
In addition, the retractor(s) is designed to lock if the webbing is pulled
out too quickly. If this occurs, let the belt retract slightly and pull
webbing out again in a slow and controlled manner.
40Safety Belts
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
