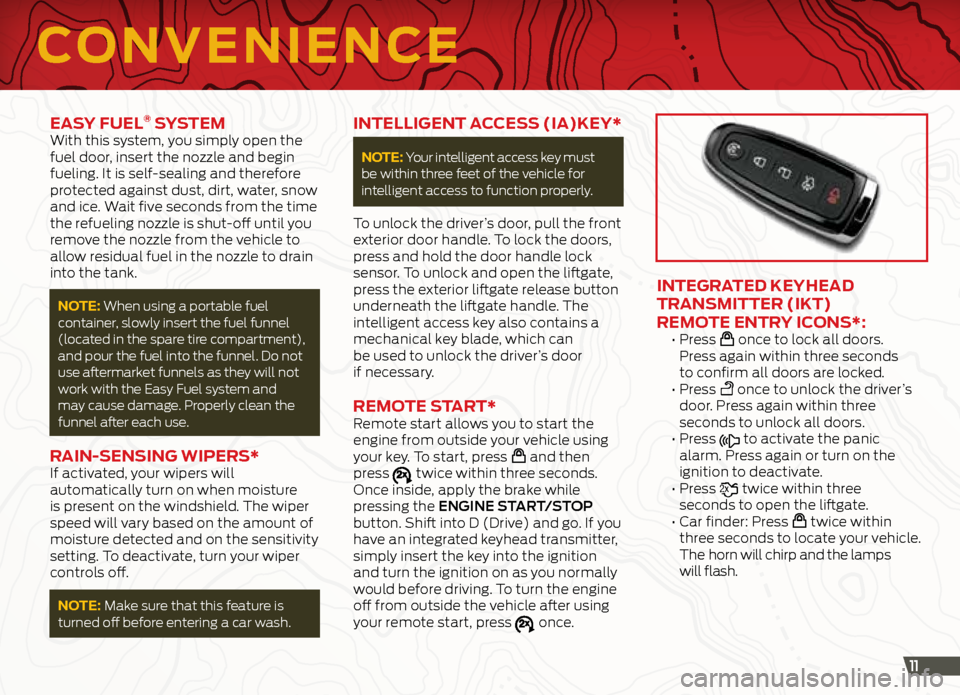

remote start FORD EXPLORER 2013 5.G Quick Reference Guide

11
eaSy FueL® S ySteM With this system, you simply open the
fuel door, insert the nozzle and begin
fueling. It is self-sealing and therefore
protected against dust, dirt, water, snow
and ice. Wait five seconds from the time
the refueling nozzle is shut-off until you
remove the nozzle from the vehicle to
allow residual fuel in the nozzle to drain
into the tank.
note: When using a portable fuel
container, slowly insert the fuel funnel
(located in the spare tire compartment),
and pour the fuel into the funnel. Do not
use aftermarket funnels as they will not
work with the Easy Fuel system and
may cause damage. Properly clean the
funnel after each use.
Rain- SenSing wiPeRS* If activated, your wipers will
automatically turn on when moisture
is present on the windshield. The wiper
speed will vary based on the amount of
moisture detected and on the sensitivity
setting. To deactivate, turn your wiper
controls off.
note: Make sure that this feature is
turned off before entering a car wash.
inteLLigent a cceSS (ia )Key* note: Your intelligent access key must
be within three feet of the vehicle for
intelligent access to function properly.
To unlock the driver’s door, pull the front
exterior door handle. To lock the doors,
press and hold the door handle lock
sensor. To unlock and open the liftgate,
press the exterior liftgate release button
underneath the liftgate handle. The
intelligent access key also contains a
mechanical key blade, which can
be used to unlock the driver’s door
if necessary.
ReMote StaR t* Remote start allows you to start the
engine from outside your vehicle using
your key. To start, press
and then
press twice within three seconds.
Once inside, apply the brake while
pressing the ENGINE START/STOP
button. Shift into D (Drive) and go. If you
have an integrated keyhead transmitter,
simply insert the key into the ignition
and turn the ignition on as you normally
would before driving. To turn the engine
off from outside the vehicle after using
your remote start, press
once.
integR ated Keyhead
tR anSMitteR (iK t)
ReMote entR y iconS*:
• Press once to lock all doors.
Press again within three seconds
to confirm all doors are locked.
• Press
once to unlock the driver’s
door. Press again within three
seconds to unlock all doors.
• Press
to activate the panic
alarm. Press again or turn on the
ignition to deactivate.
• Press
twice within three
seconds to open the liftgate.
• Car finder: Press
twice within
three seconds to locate your vehicle.
The horn will chirp and the lamps
will flash.
c onvenience
