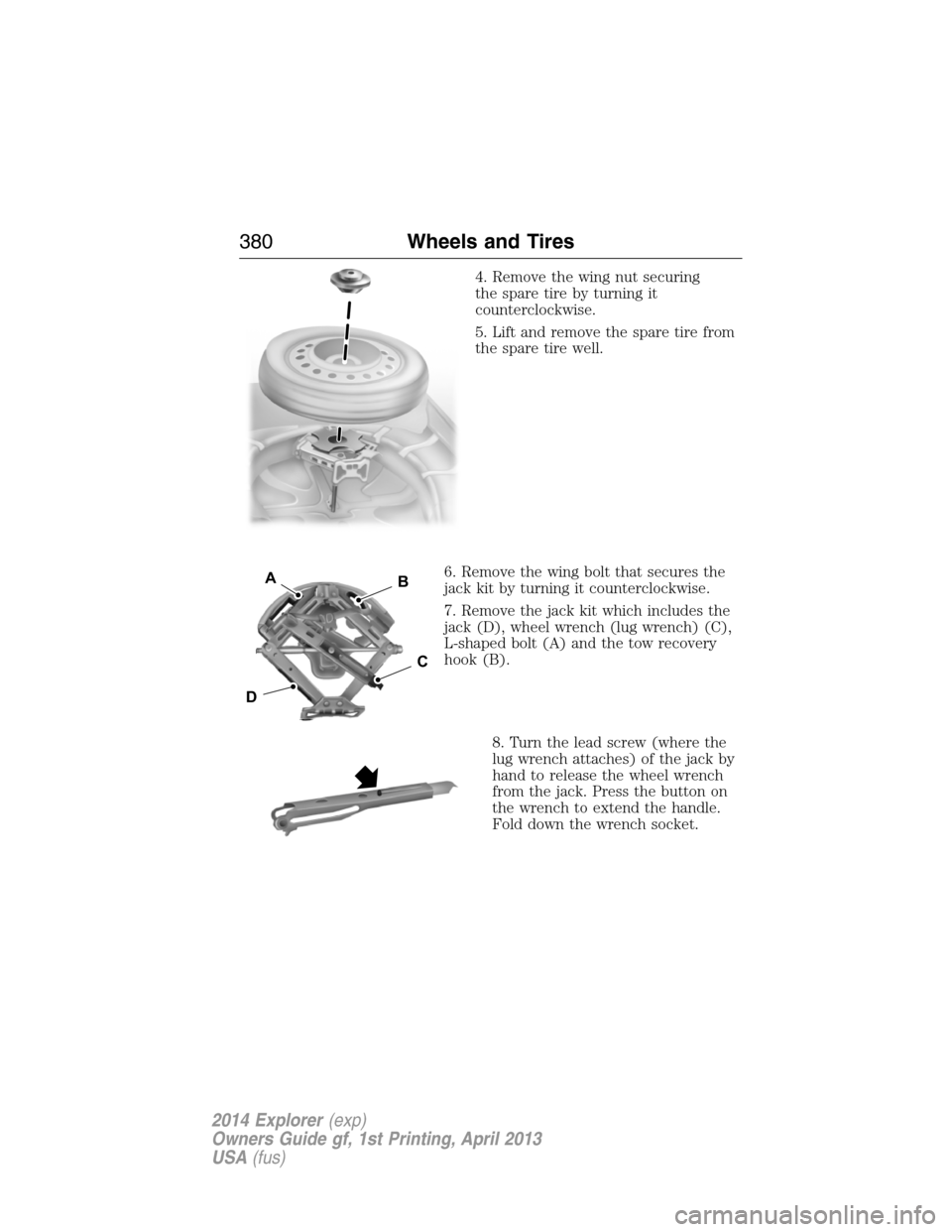

4. Remove the wing nut securing
the spare tire by turning it
counterclockwise.
5. Lift and remove the spare tire from
the spare tire well.
6. Remove the wing bolt that secures the
jack kit by turning it counterclockwise.
7. Remove the jack kit which includes the
jack (D), wheel wrench (lug wrench) (C),
L-shaped bolt (A) and the tow recovery
hook (B).
8. Turn the lead screw (where the
lug wrench attaches) of the jack by
hand to release the wheel wrench
from the jack. Press the button on
the wrench to extend the handle.
Fold down the wrench socket.
D
B
C
A
380Wheels and Tires
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

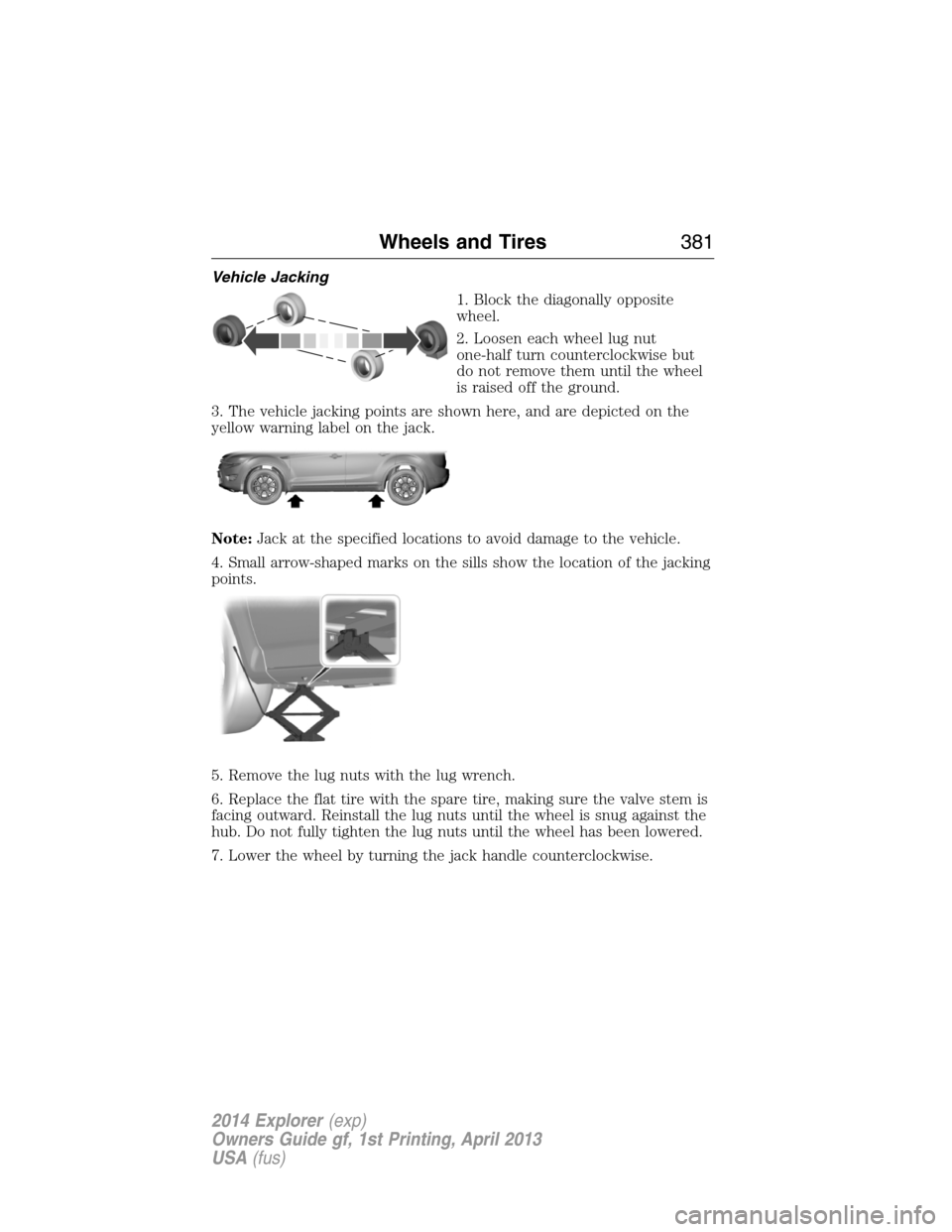

Vehicle Jacking
1. Block the diagonally opposite
wheel.
2. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.
3. The vehicle jacking points are shown here, and are depicted on the
yellow warning label on the jack.
Note:Jack at the specified locations to avoid damage to the vehicle.
4. Small arrow-shaped marks on the sills show the location of the jacking
points.
5. Remove the lug nuts with the lug wrench.
6. Replace the flat tire with the spare tire, making sure the valve stem is
facing outward. Reinstall the lug nuts until the wheel is snug against the
hub. Do not fully tighten the lug nuts until the wheel has been lowered.
7. Lower the wheel by turning the jack handle counterclockwise.
Wheels and Tires381
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

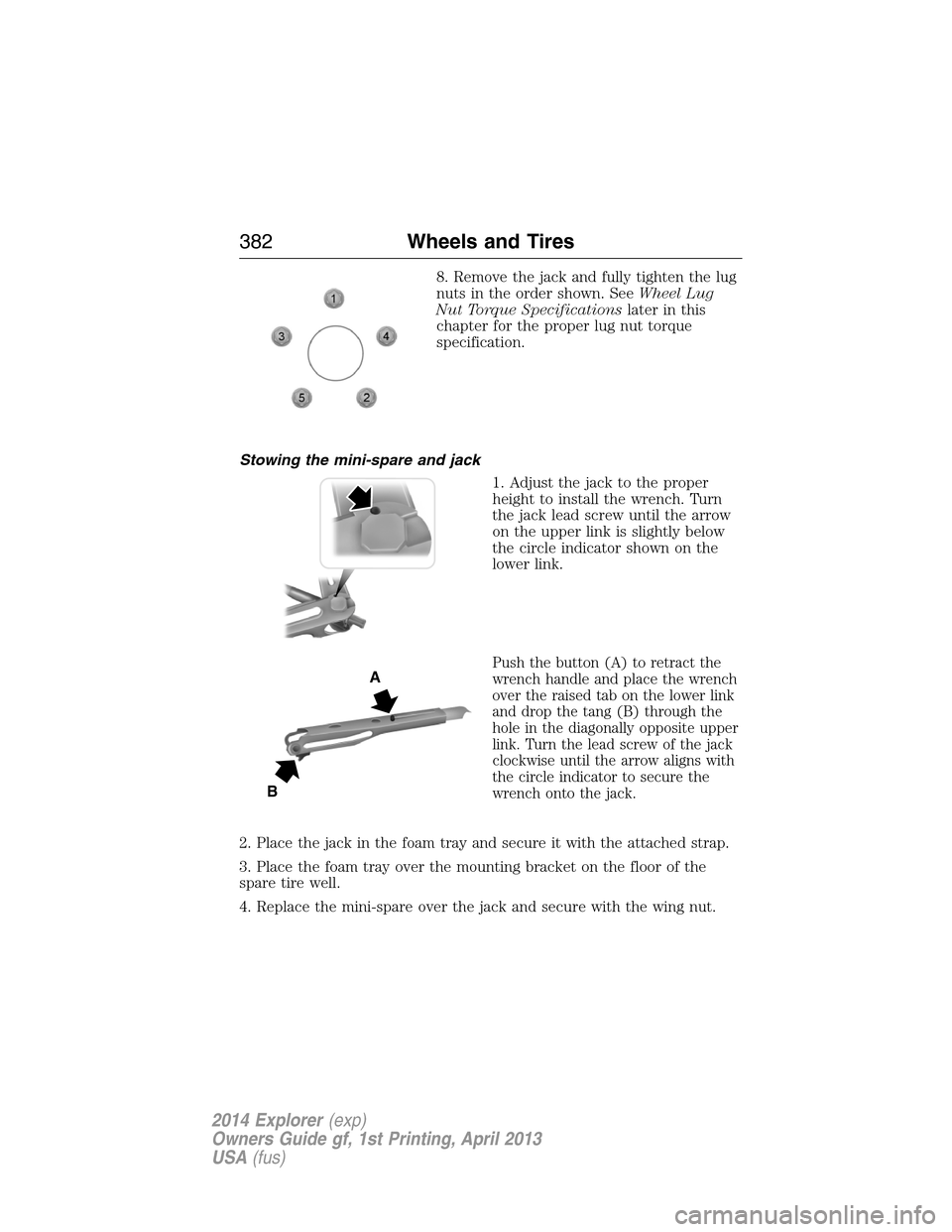

8. Remove the jack and fully tighten the lug
nuts in the order shown. SeeWheel Lug
Nut Torque Specificationslater in this
chapter for the proper lug nut torque
specification.
Stowing the mini-spare and jack
1. Adjust the jack to the proper
height to install the wrench. Turn
the jack lead screw until the arrow
on the upper link is slightly below
the circle indicator shown on the
lower link.
Push the button (A) to retract the
wrench handle and place the wrench
over the raised tab on the lower link
and drop the tang (B) through the
hole in the diagonally opposite upper
link. Turn the lead screw of the jack
clockwise until the arrow aligns with
the circle indicator to secure the
wrench onto the jack.
2. Place the jack in the foam tray and secure it with the attached strap.
3. Place the foam tray over the mounting bracket on the floor of the
spare tire well.
4. Replace the mini-spare over the jack and secure with the wing nut.
A
B
382Wheels and Tires
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

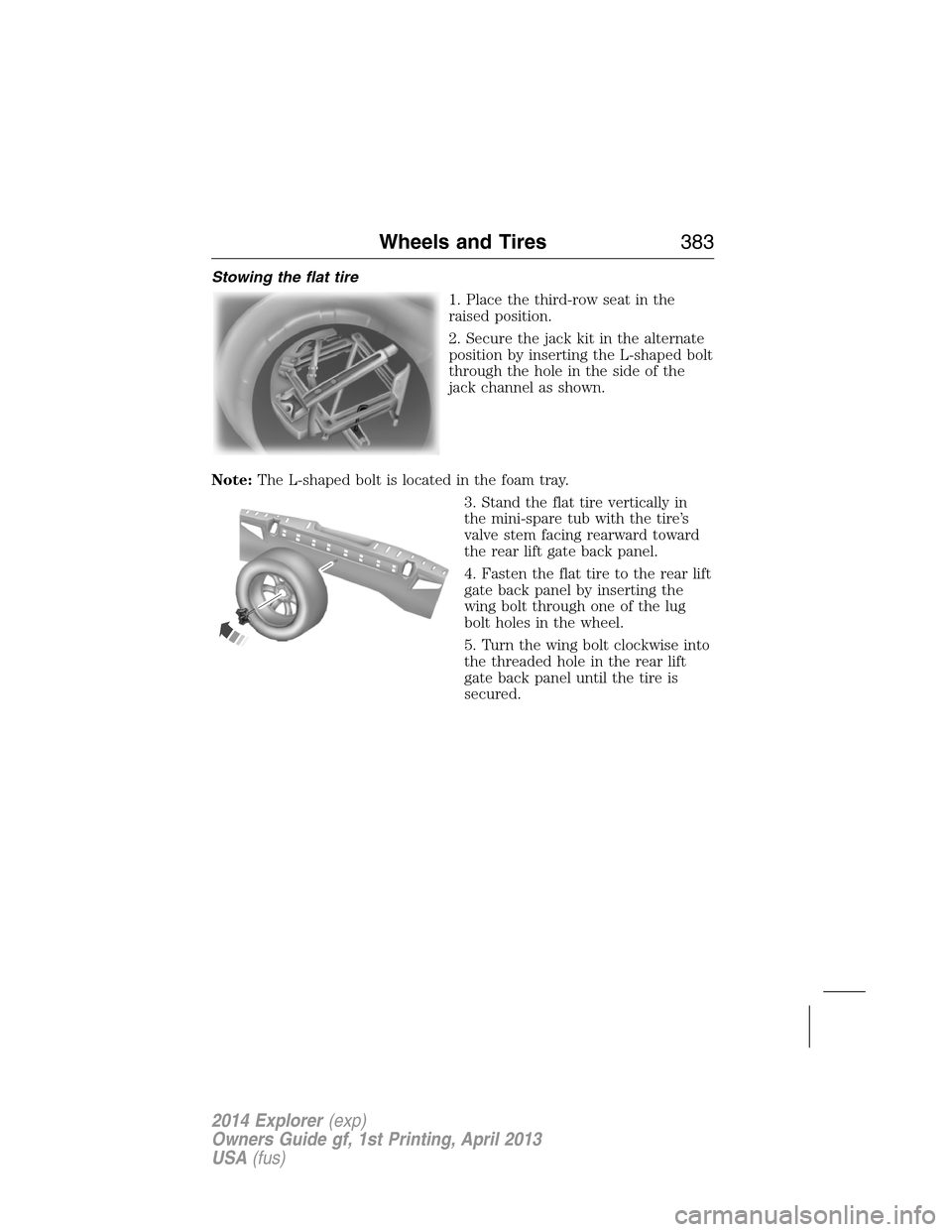

Stowing the flat tire
1. Place the third-row seat in the
raised position.
2. Secure the jack kit in the alternate
position by inserting the L-shaped bolt
through the hole in the side of the
jack channel as shown.
Note:The L-shaped bolt is located in the foam tray.
3. Stand the flat tire vertically in
the mini-spare tub with the tire’s
valve stem facing rearward toward
the rear lift gate back panel.
4. Fasten the flat tire to the rear lift
gate back panel by inserting the
wing bolt through one of the lug
bolt holes in the wheel.
5. Turn the wing bolt clockwise into
the threaded hole in the rear lift
gate back panel until the tire is
secured.
Wheels and Tires383
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

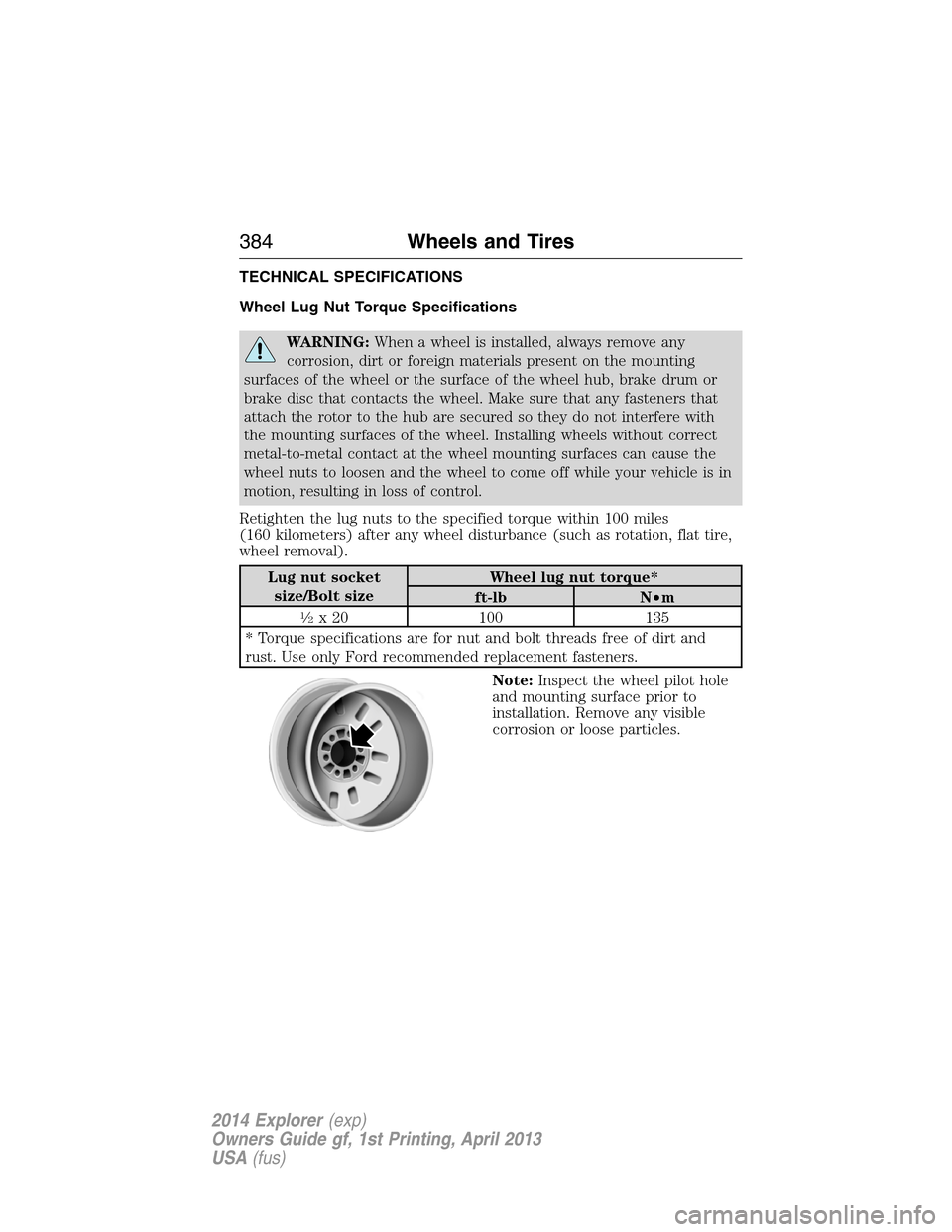

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications
WARNING:When a wheel is installed, always remove any
corrosion, dirt or foreign materials present on the mounting
surfaces of the wheel or the surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make sure that any fasteners that
attach the rotor to the hub are secured so they do not interfere with
the mounting surfaces of the wheel. Installing wheels without correct
metal-to-metal contact at the wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to come off while your vehicle is in
motion, resulting in loss of control.
Retighten the lug nuts to the specified torque within 100 miles
(160 kilometers) after any wheel disturbance (such as rotation, flat tire,
wheel removal).
Lug nut socket
size/Bolt sizeWheel lug nut torque*
ft-lb N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
Note:Inspect the wheel pilot hole
and mounting surface prior to
installation. Remove any visible
corrosion or loose particles.
384Wheels and Tires
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

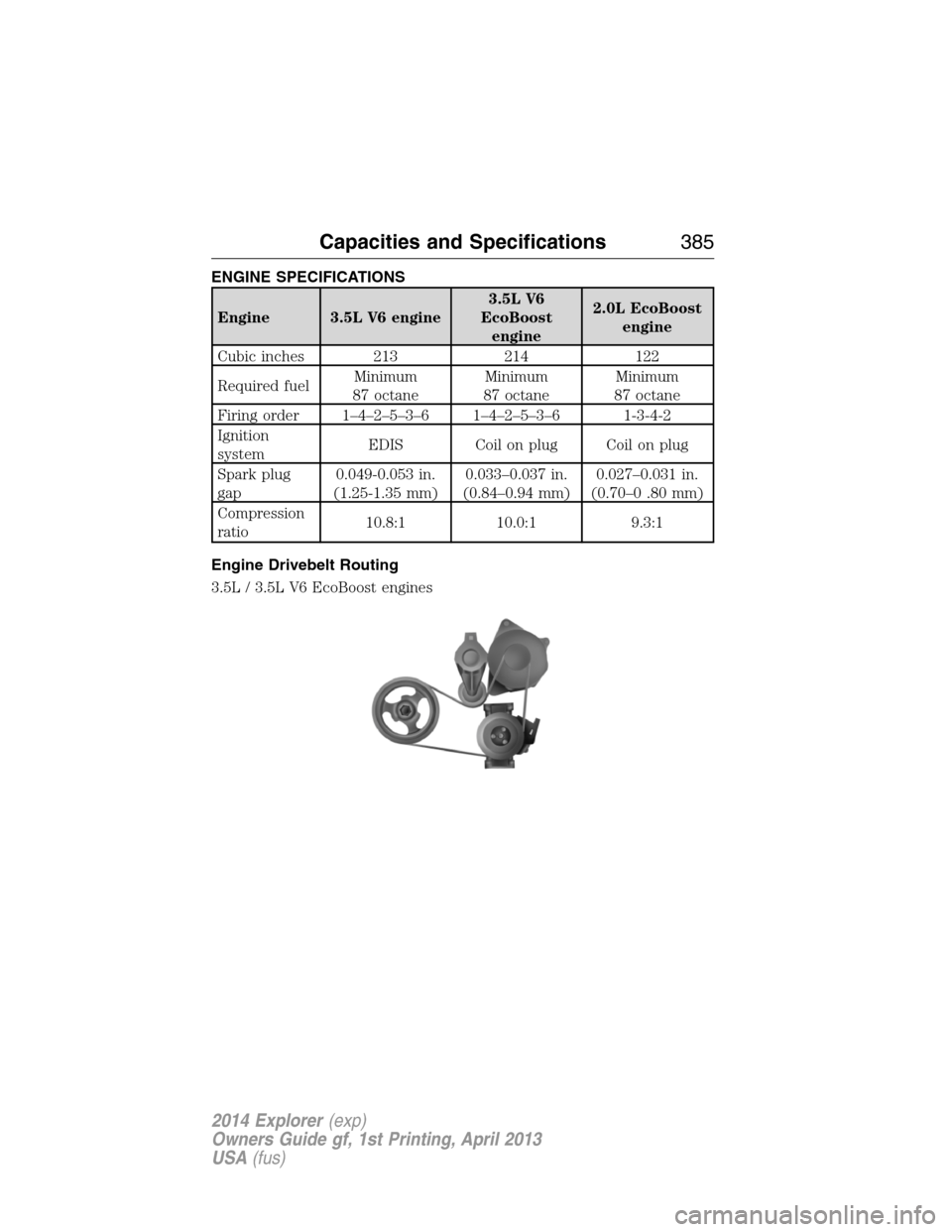

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine3.5L V6
EcoBoost
engine2.0L EcoBoost
engine
Cubic inches 213 214 122
Required fuelMinimum
87 octaneMinimum
87 octaneMinimum
87 octane
Firing order 1–4–2–5–3–6 1–4–2–5–3–6 1-3-4-2
Ignition
systemEDIS Coil on plug Coil on plug
Spark plug
gap0.049-0.053 in.
(1.25-1.35 mm)0.033–0.037 in.
(0.84–0.94 mm)0.027–0.031 in.
(0.70–0 .80 mm)
Compression
ratio10.8:1 10.0:1 9.3:1
Engine Drivebelt Routing
3.5L / 3.5L V6 EcoBoost engines
Capacities and Specifications385
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

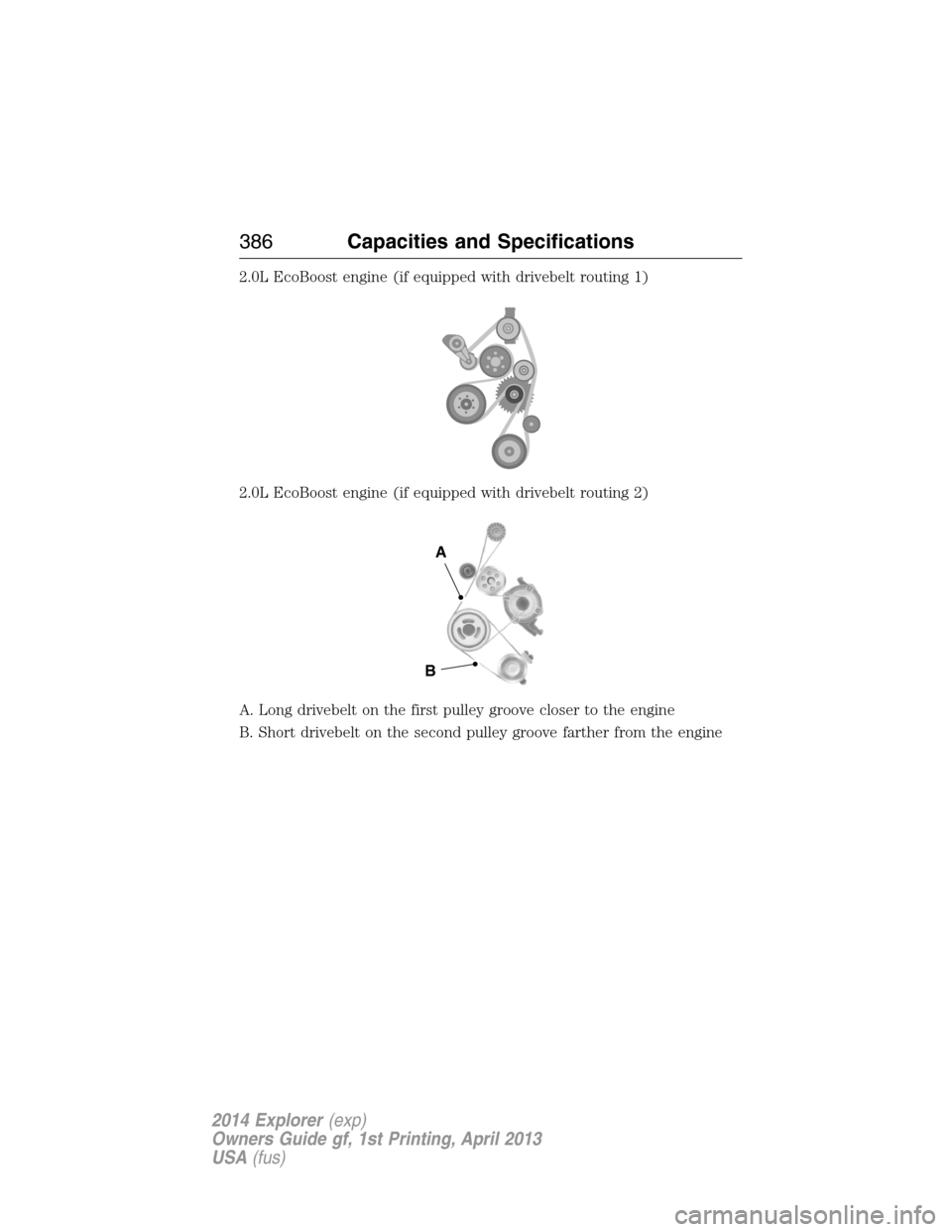

2.0L EcoBoost engine (if equipped with drivebelt routing 1)
2.0L EcoBoost engine (if equipped with drivebelt routing 2)
A. Long drivebelt on the first pulley groove closer to the engine
B. Short drivebelt on the second pulley groove farther from the engine
A
B
386Capacities and Specifications
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

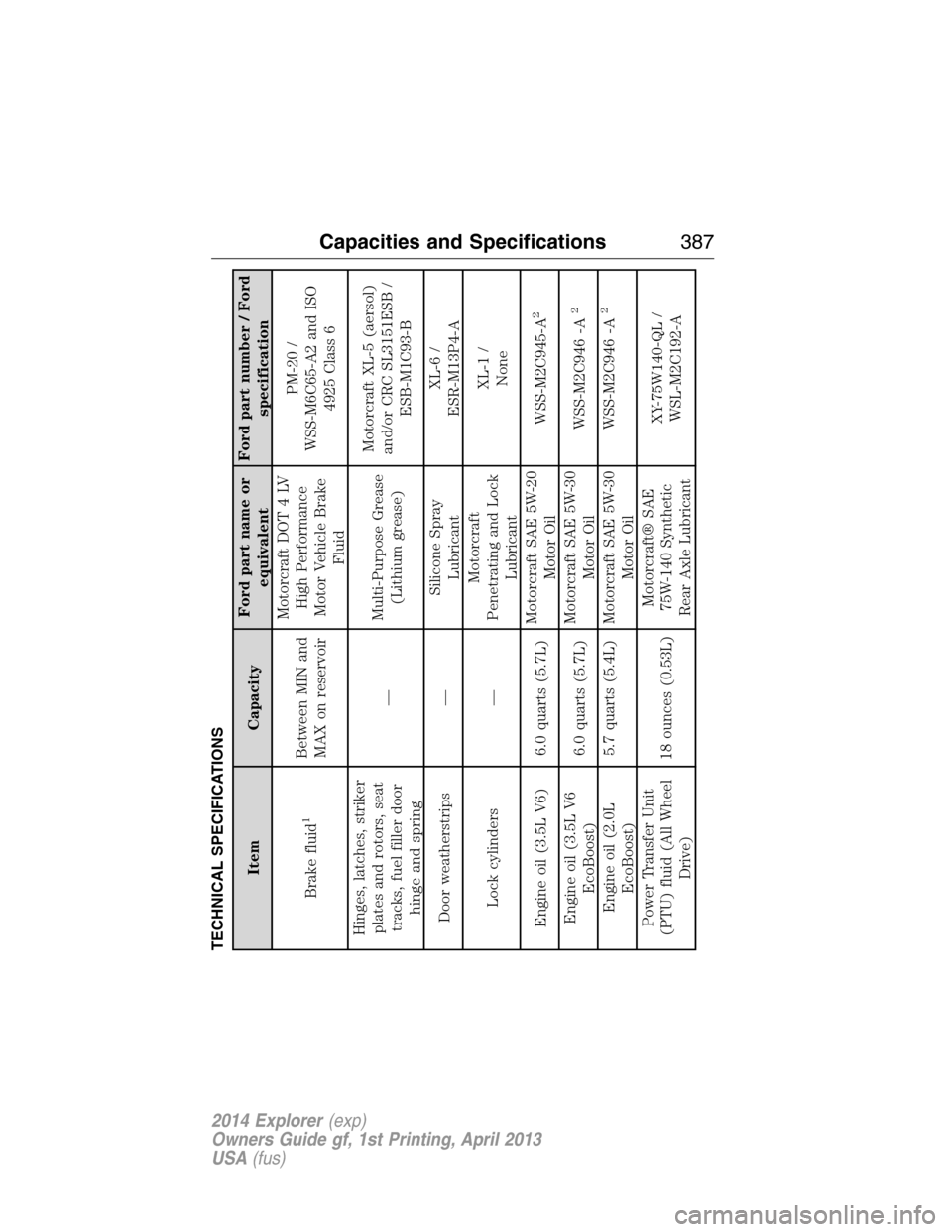

TECHNICAL SPECIFICATIONS
Item CapacityFord part name or
equivalentFord part number / Ford
specification
Brake fluid
1
Between MIN and
MAX on reservoirMotorcraft DOT 4 LV
High Performance
Motor Vehicle Brake
FluidPM-20 /
WSS-M6C65-A2 and ISO
4925 Class 6
Hinges, latches, striker
plates and rotors, seat
tracks, fuel filler door
hinge and spring—Multi-Purpose Grease
(Lithium grease)Motorcraft XL-5 (aersol)
and/or CRC SL3151ESB /
ESB-M1C93-B
Door weatherstrips —Silicone Spray
LubricantXL-6 /
ESR-M13P4-A
Lock cylinders —Motorcraft
Penetrating and Lock
LubricantXL-1 /
None
Engine oil (3.5L V6) 6.0 quarts (5.7L)Motorcraft SAE 5W-20
Motor OilWSS-M2C945-A
2
Engine oil (3.5L V6
EcoBoost)6.0 quarts (5.7L)Motorcraft SAE 5W-30
Motor OilWSS-M2C946 -A
2
Engine oil (2.0L
EcoBoost)5.7 quarts (5.4L) Motorcraft SAE 5W-30
Motor OilWSS-M2C946 -A
2
Power Transfer Unit
(PTU) fluid (All Wheel
Drive)18 ounces (0.53L)Motorcraft® SAE
75W-140 Synthetic
Rear Axle LubricantXY-75W140-QL /
WSL-M2C192-A
Capacities and Specifications387
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

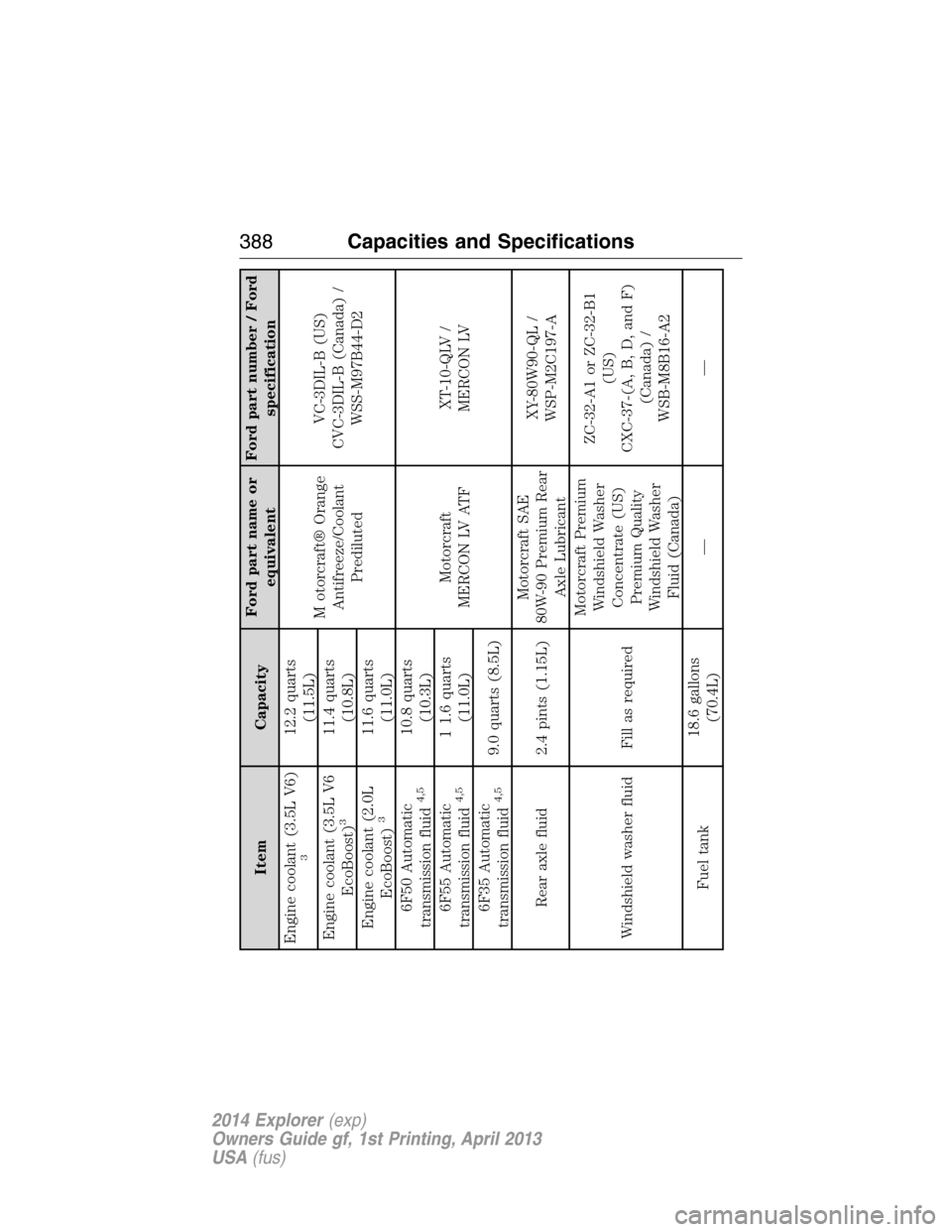

Item CapacityFord part name or
equivalentFord part number / Ford
specification
Engine coolant (3.5L V6)3
12.2 quarts
(11.5L)
M otorcraft® Orange
Antifreeze/Coolant
PredilutedVC-3DIL-B (US)
CVC-3DIL-B (Canada) /
WSS-M97B44-D2 Engine coolant (3.5L V6
EcoBoost)
3
11.4 quarts
(10.8L)
Engine coolant (2.0L
EcoBoost)
3
11.6 quarts
(11.0L)
6F50 Automatic
transmission fluid
4,5
10.8 quarts
(10.3L)
Motorcraft
MERCON LV ATFXT-10-QLV /
MERCON LV 6F55 Automatic
transmission fluid
4,5
1 1.6 quarts
(11.0L)
6F35 Automatic
transmission fluid
4,5
9.0 quarts (8.5L)
Rear axle fluid 2.4 pints (1.15L)Motorcraft SAE
80W-90 Premium Rear
Axle LubricantXY-80W90-QL /
WSP-M2C197-A
Windshield washer fluid Fill as requiredMotorcraft Premium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A1 or ZC-32-B1
(US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2
Fuel tank18.6 gallons
(70.4L)——
388Capacities and Specifications
2014 Explorer(exp)
Owners Guide gf, 1st Printing, April 2013
USA(fus)

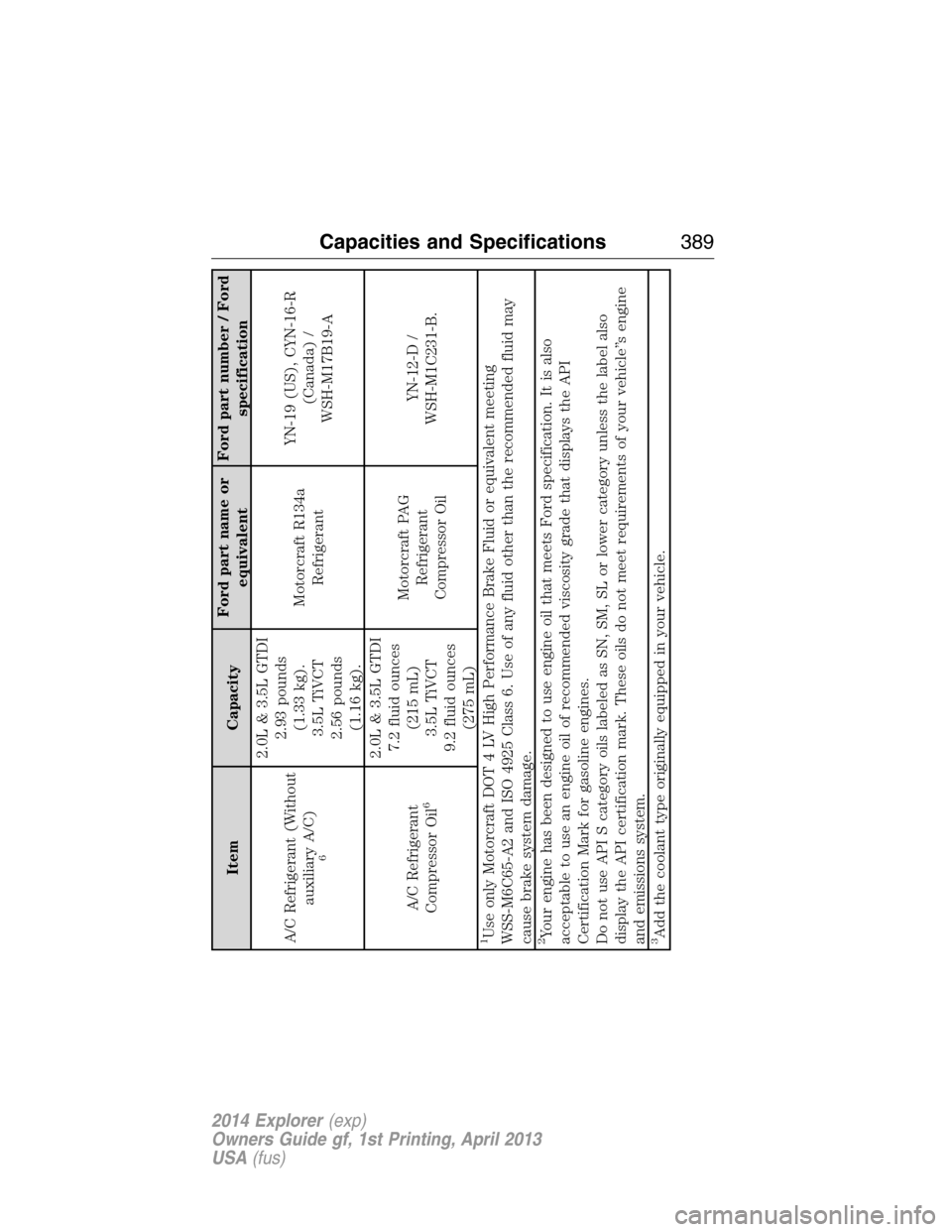

Item CapacityFord part name or
equivalentFord part number / Ford
specification
A/C Refrigerant (Without
auxiliary A/C)6
2.0L & 3.5L GTDI
2.93 pounds
(1.33 kg).
3.5L TiVCT
2.56 pounds
(1.16 kg).Motorcraft R134a
RefrigerantYN-19 (US), CYN-16-R
(Canada) /
WSH-M17B19-A
A/C Refrigerant
Compressor Oil
6
2.0L & 3.5L GTDI
7.2 fluid ounces
(215 mL)
3.5L TiVCT
9.2 fluid ounces
(275 mL)Motorcraft PAG
Refrigerant
Compressor OilYN-12-D /
WSH-M1C231-B.
1Use only Motorcraft DOT 4 LV High Performance Brake Fluid or equivalent meeting
WSS-M6C65-A2 and ISO 4925 Class 6. Use of any fluid other than the recommended fluid may
cause brake system damage.2Your engine has been designed to use engine oil that meets Ford specification. It is also
acceptable to use an engine oil of recommended viscosity grade that displays the API
Certification Mark for gasoline engines.
Do not use API S category oils labeled as SN, SM, SL or lower category unless the label also
display the API certification mark. These oils do not meet requirements of your vehicle’’s engine
and emissions system.3Add the coolant type originally equipped in your vehicle.
