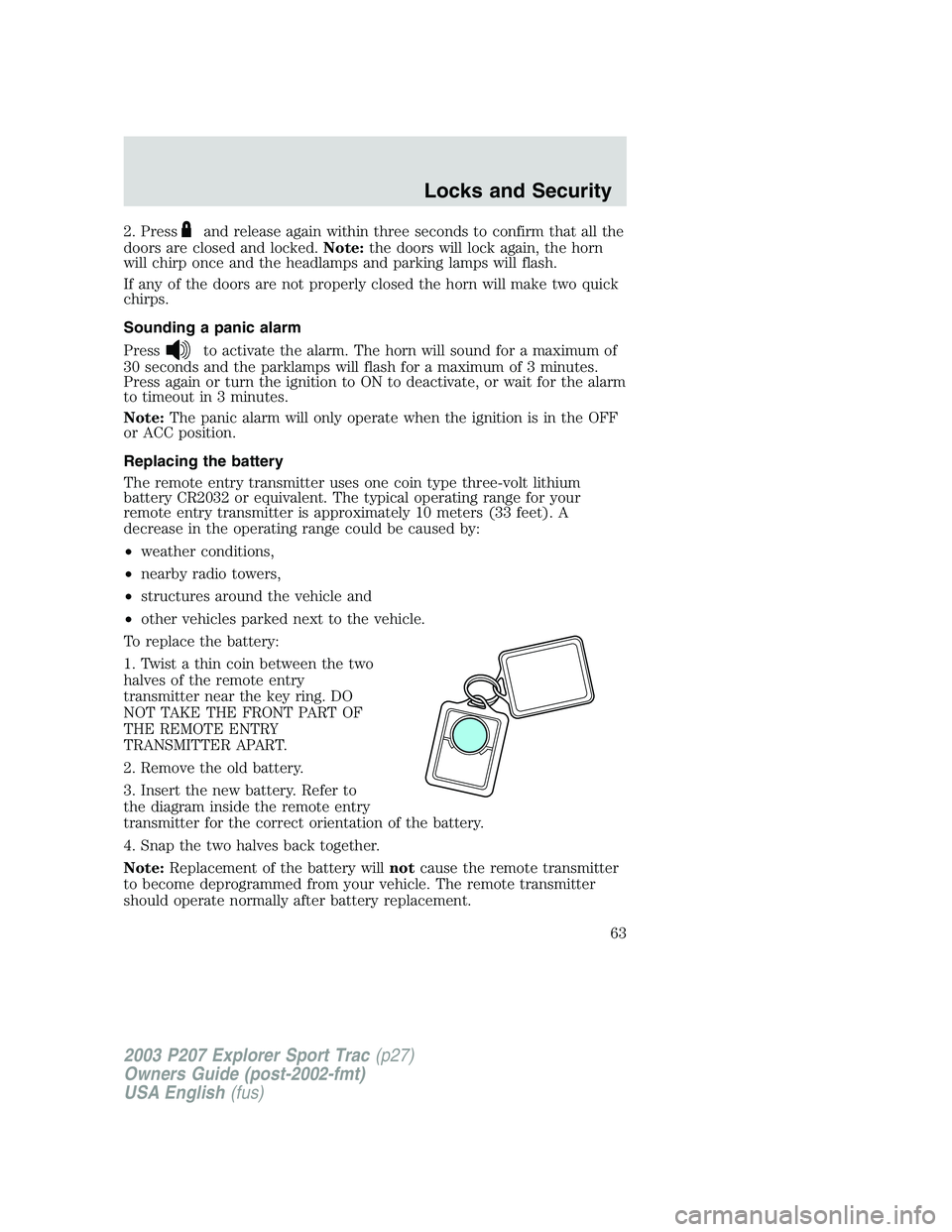

2. Pressand release again within three seconds to confirm that all the
doors are closed and locked.Note:the doors will lock again, the horn
will chirp once and the headlamps and parking lamps will flash.
If any of the doors are not properly closed the horn will make two quick
chirps.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound for a maximum of
30 seconds and the parklamps will flash for a maximum of 3 minutes.
Press again or turn the ignition to ON to deactivate, or wait for the alarm
to timeout in 3 minutes.
Note:The panic alarm will only operate when the ignition is in the OFF
or ACC position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent. The typical operating range for your
remote entry transmitter is approximately 10 meters (33 feet). A
decrease in the operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle and
•other vehicles parked next to the vehicle.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE FRONT PART OF
THE REMOTE ENTRY
TRANSMITTER APART.
2. Remove the old battery.
3. Insert the new battery. Refer to
the diagram inside the remote entry
transmitter for the correct orientation of the battery.
4. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
63

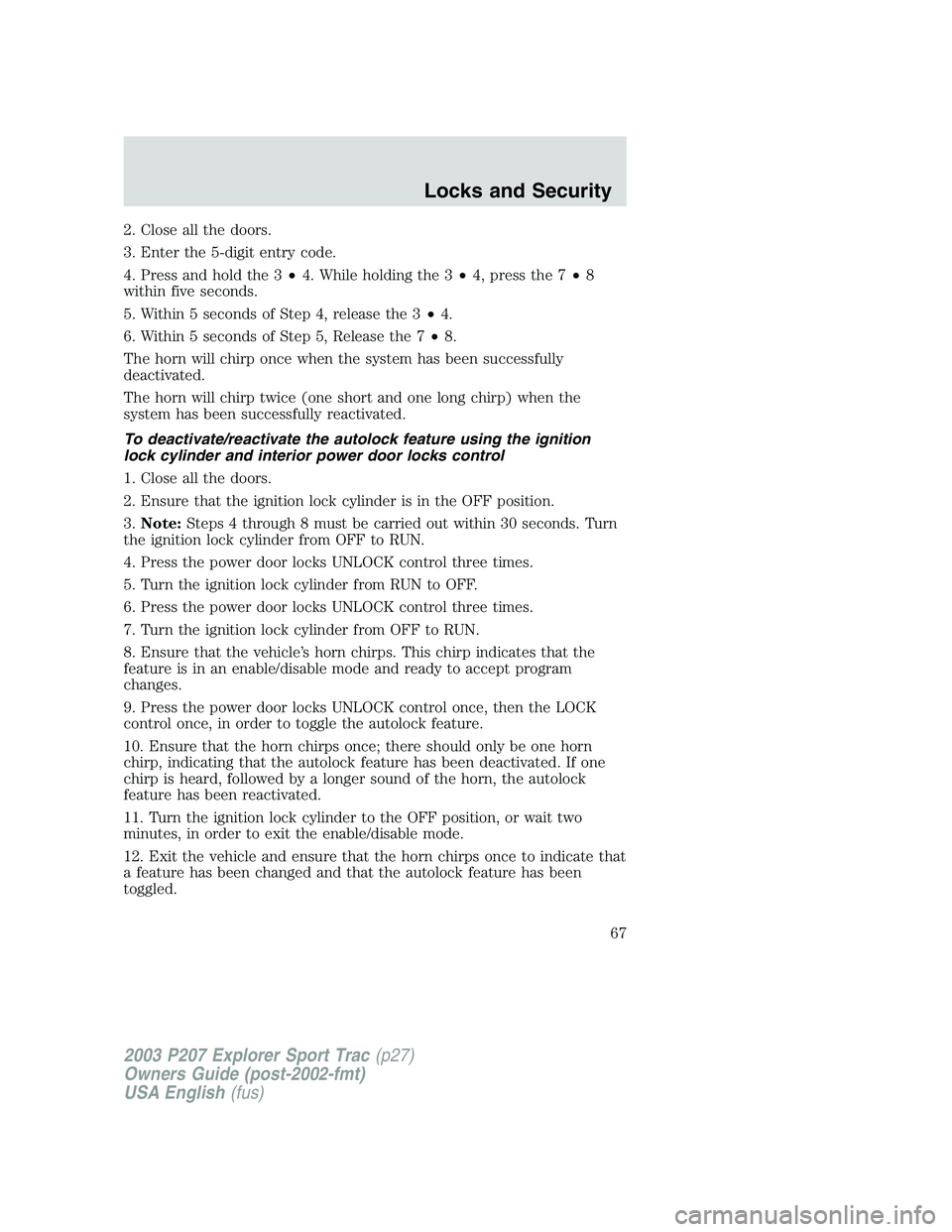

2. Close all the doors.
3. Enter the 5-digit entry code.
4. Press and hold the 3•4. While holding the 3•4, press the 7•8
within five seconds.
5. Within 5 seconds of Step 4, release the 3•4.
6. Within 5 seconds of Step 5, Release the 7•8.
The horn will chirp once when the system has been successfully
deactivated.
The horn will chirp twice (one short and one long chirp) when the
system has been successfully reactivated.
To deactivate/reactivate the autolock feature using the ignition
lock cylinder and interior power door locks control
1. Close all the doors.
2. Ensure that the ignition lock cylinder is in the OFF position.
3.Note:Steps 4 through 8 must be carried out within 30 seconds. Turn
the ignition lock cylinder from OFF to RUN.
4. Press the power door locks UNLOCK control three times.
5. Turn the ignition lock cylinder from RUN to OFF.
6. Press the power door locks UNLOCK control three times.
7. Turn the ignition lock cylinder from OFF to RUN.
8. Ensure that the vehicle’s horn chirps. This chirp indicates that the
feature is in an enable/disable mode and ready to accept program
changes.
9. Press the power door locks UNLOCK control once, then the LOCK
control once, in order to toggle the autolock feature.
10. Ensure that the horn chirps once; there should only be one horn
chirp, indicating that the autolock feature has been deactivated. If one
chirp is heard, followed by a longer sound of the horn, the autolock
feature has been reactivated.
11. Turn the ignition lock cylinder to the OFF position, or wait two
minutes, in order to exit the enable/disable mode.
12. Exit the vehicle and ensure that the horn chirps once to indicate that
a feature has been changed and that the autolock feature has been
toggled.
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
67

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
7 30A
Cartridge
fusePowertrain control
8 – Not used
9 – Not used
10 – Not used
11 50A
Cartridge
fuseIgnition switch
12 – Not used
13 20A
Cartridge
fuse4x4 motor
14 – Not used
15 – Not used
16 40A
Cartridge
fuseBlower motor
17 – Not used
18 – Not used
19 – Not used
20 – Not used
21 10A Mini
fusePCM memory
22 15A Mini
fuseHorn
23 20A Mini
fuseFuel pump motor
24 25A Mini
fuseHeadlamps
25 10A Mini
fuseA/C clutch solenoid
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
143

Fuse/Relay
LocationFuse Amp
RatingPower Distribution Box Description
47A 20A Circuit
breakerWindows
47B – Not used
48 – Window safety relay
49 – Starter relay
50A – Not used
50B – Fuel pump relay
51 – Not used
52 – Not used
53 – PCM diode
54 – PCM relay
55 – Blower relay
56A – Horn relay
56B – A/C clutch solenoid
CHANGING A FLAT TIRE
If you get a flat tire while driving:
•do not brake heavily.
•gradually decrease the vehicle’s speed.
•hold the steering wheel firmly.
•slowly move to a safe place on the side of the road.
The use of tire sealants is not recommended and may
compromise the integrity of your tires.
Spare tire information
The spare tire can be used as a spare or a regular tire.
2003 P207 Explorer Sport Trac(p27)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
145
