FORD EXPLORER SPORT TRAC 2009 Owners Manual

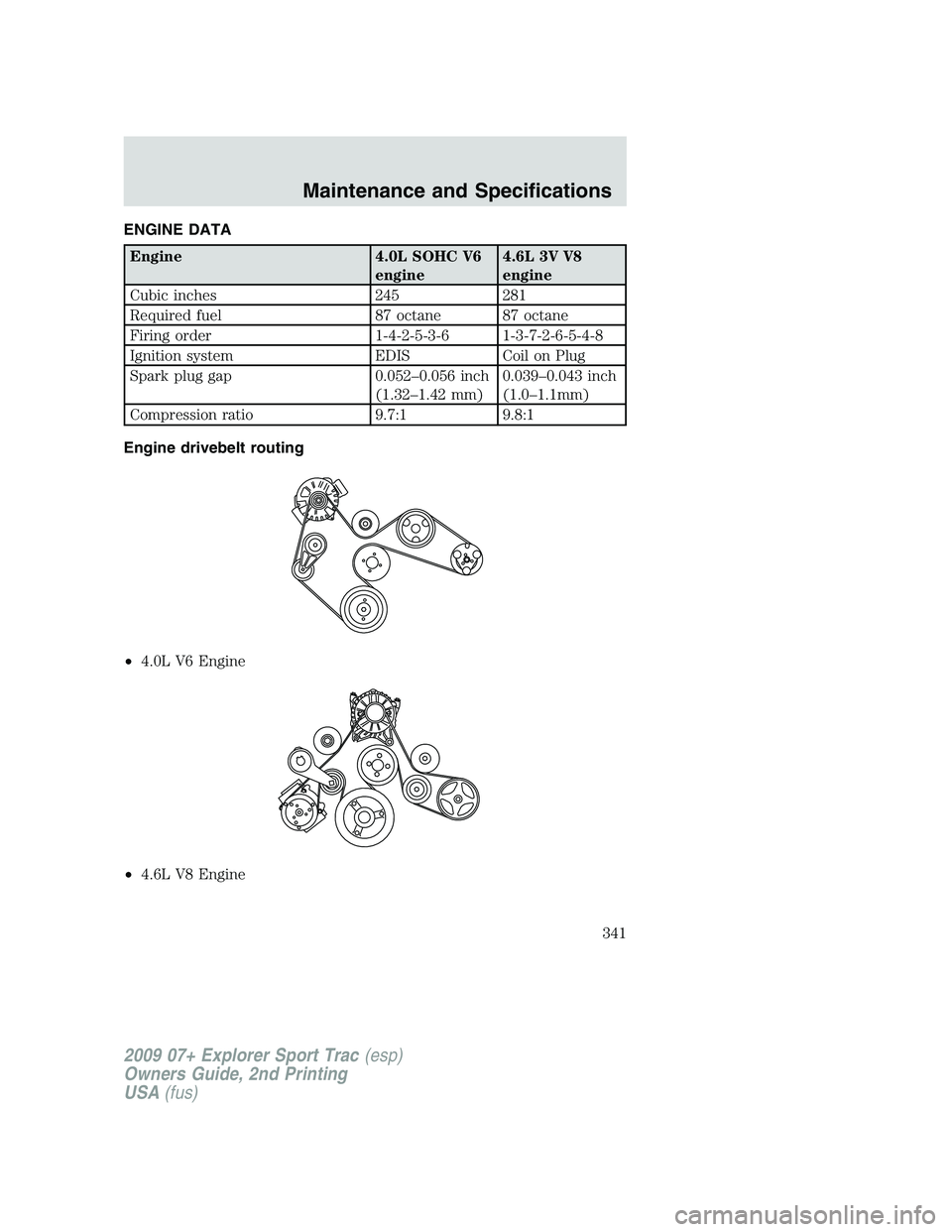

ENGINE DATA
Engine 4.0L SOHC V6
engine4.6L 3V V8
engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on Plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.039–0.043 inch
(1.0–1.1mm)
Compression ratio 9.7:1 9.8:1
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
341

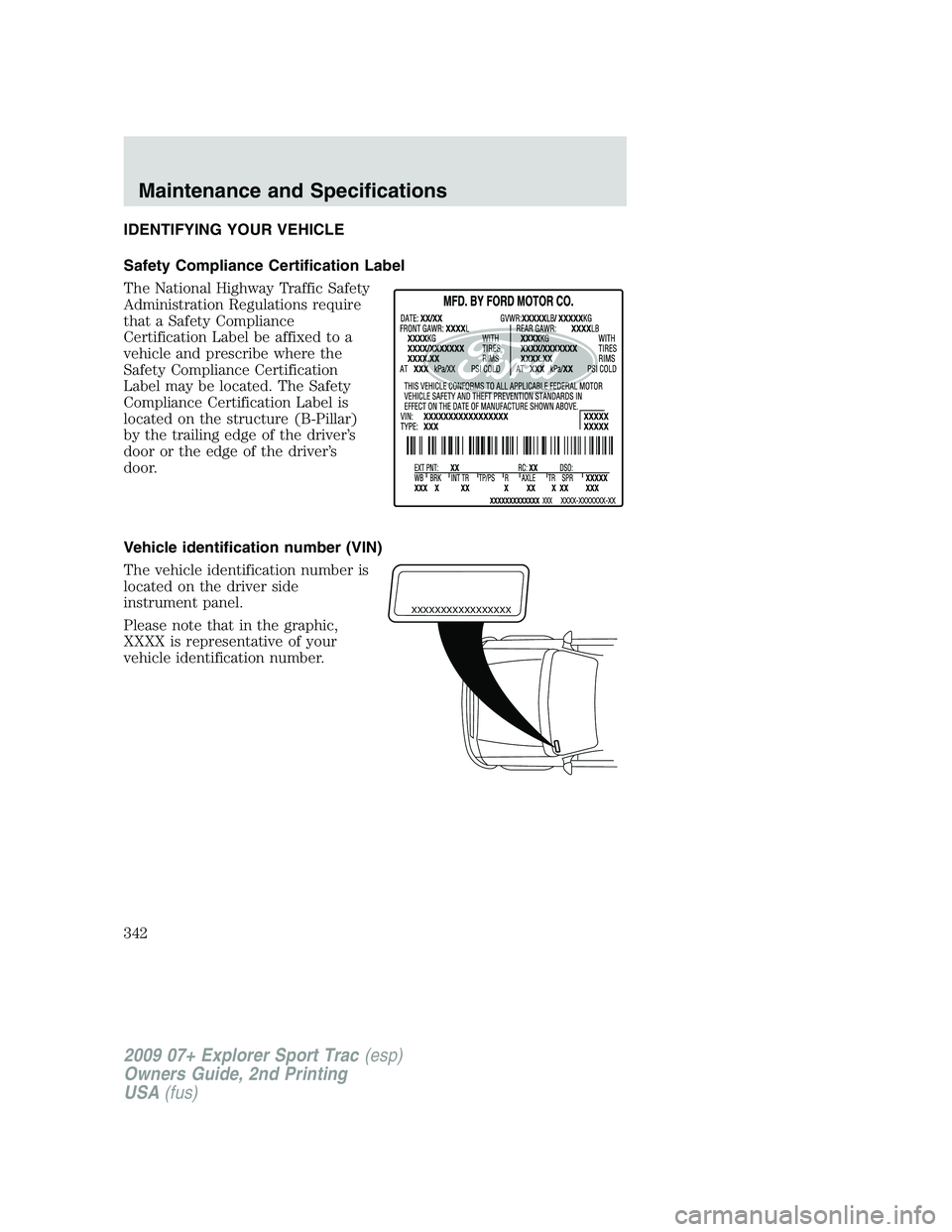

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
342

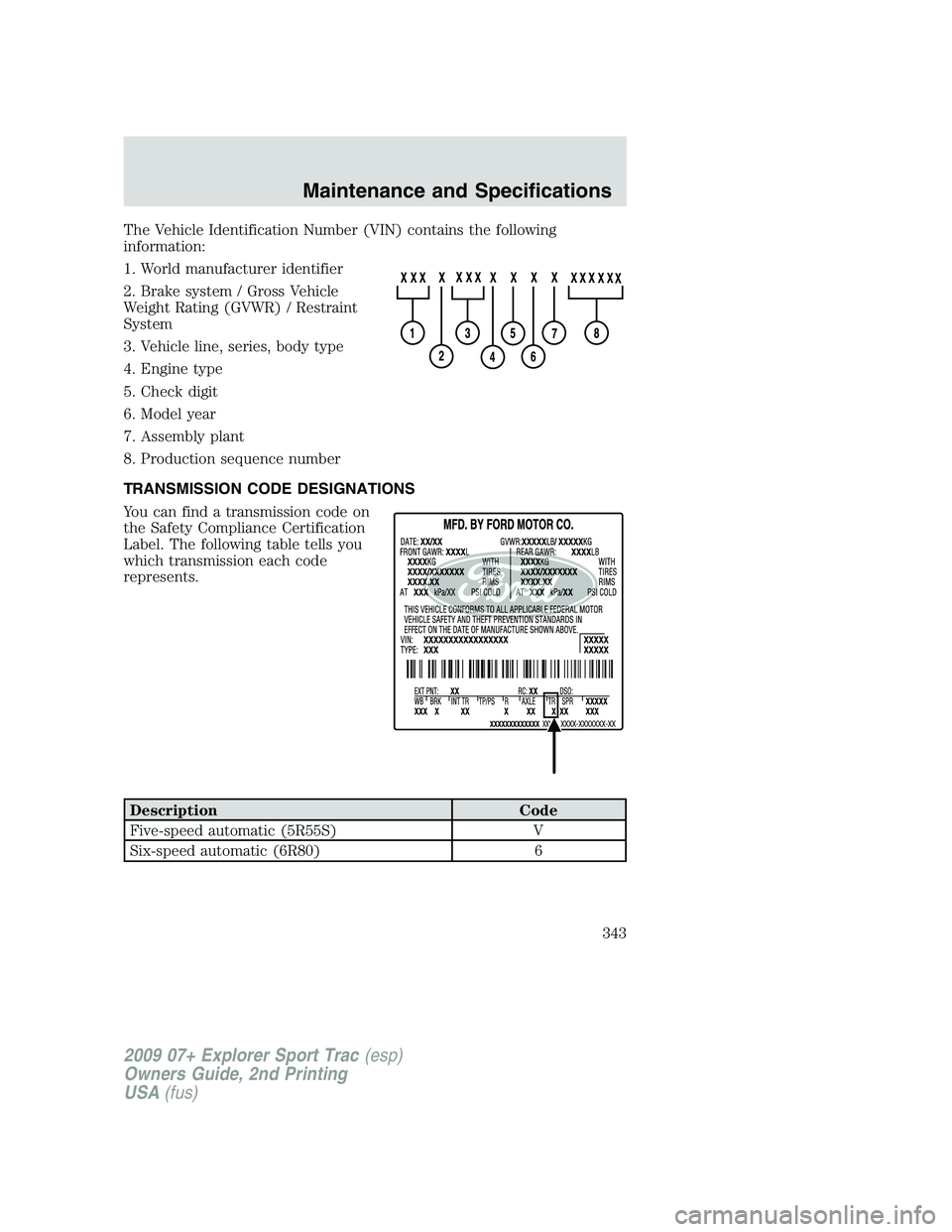

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
System
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R55S) V
Six-speed automatic (6R80) 6
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Maintenance and Specifications
343

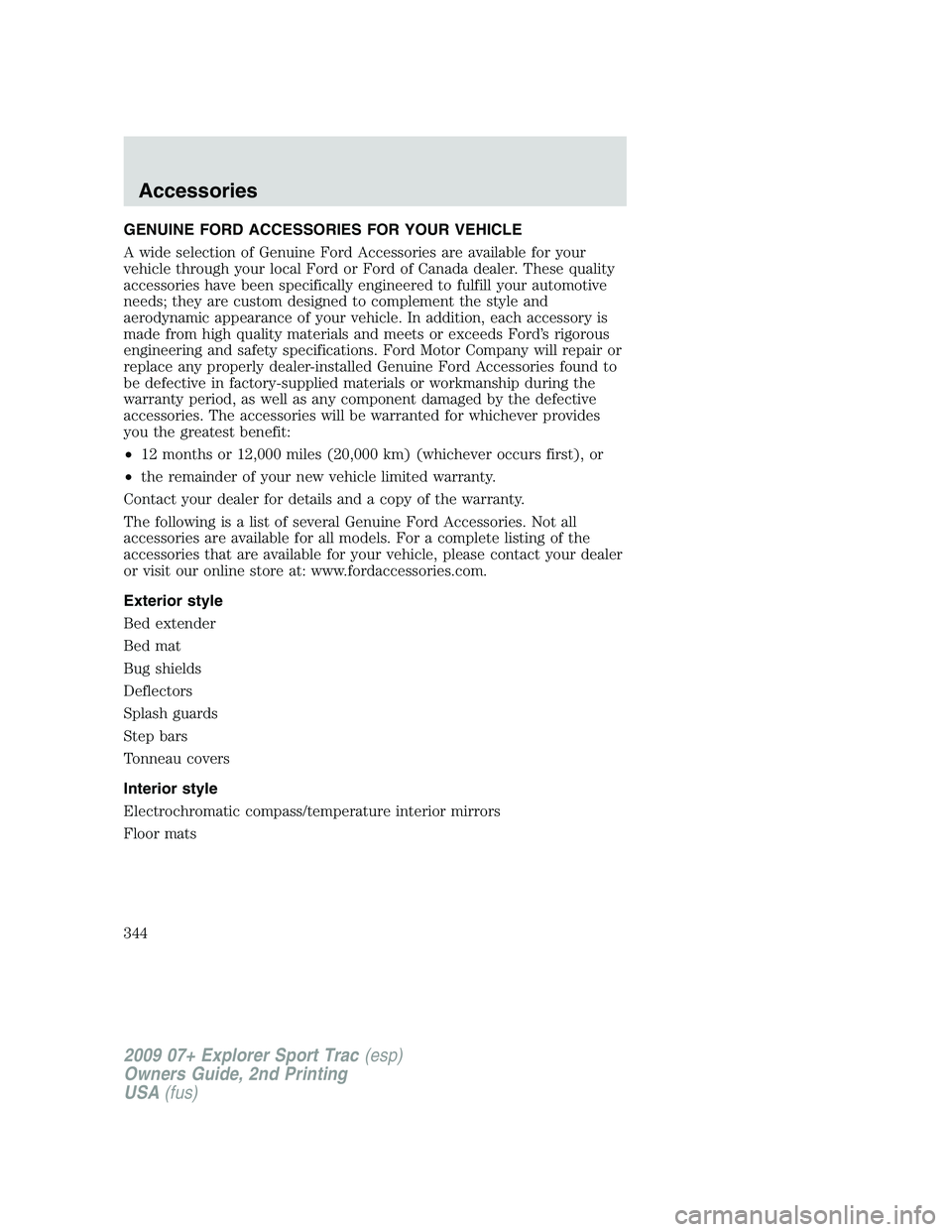

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bed extender
Bed mat
Bug shields
Deflectors
Splash guards
Step bars
Tonneau covers
Interior style
Electrochromatic compass/temperature interior mirrors
Floor mats
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Accessories
344

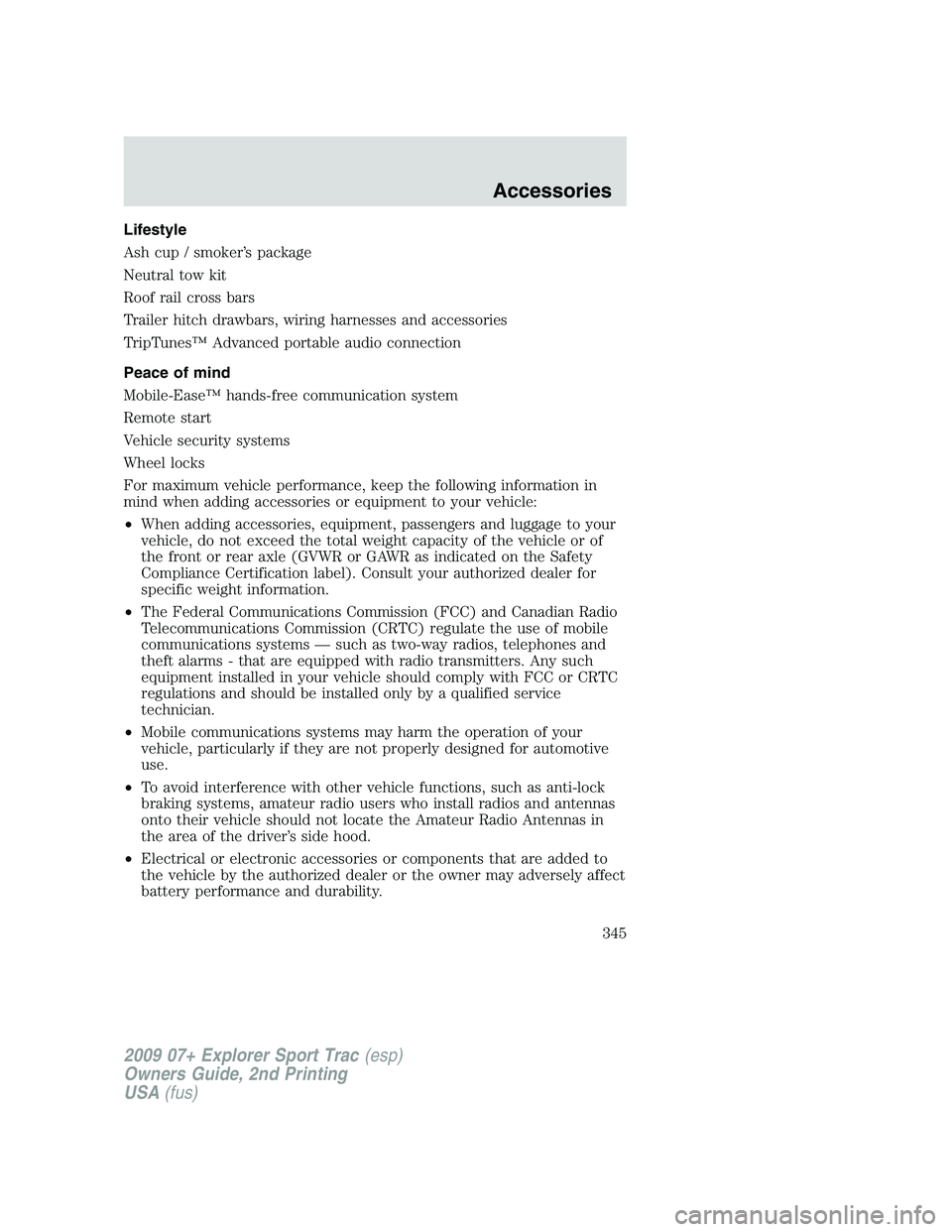

Lifestyle
Ash cup / smoker’s package
Neutral tow kit
Roof rail cross bars
Trailer hitch drawbars, wiring harnesses and accessories
TripTunes™ Advanced portable audio connection
Peace of mind
Mobile-Ease™ hands-free communication system
Remote start
Vehicle security systems
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Accessories
345

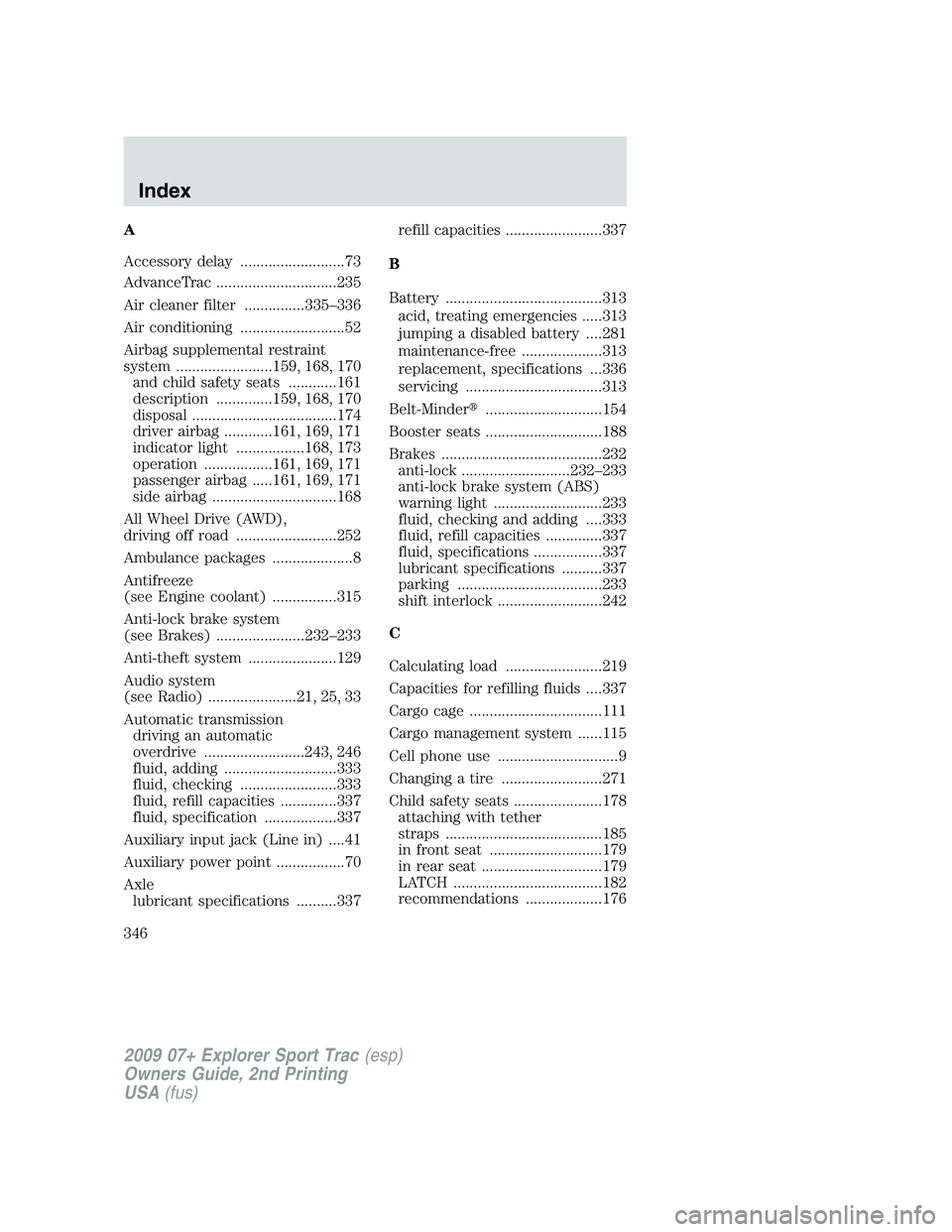

A
Accessory delay ..........................73
AdvanceTrac ..............................235
Air cleaner filter ...............335–336
Air conditioning ..........................52
Airbag supplemental restraint
system ........................159, 168, 170
and child safety seats ............161
description ..............159, 168, 170
disposal ....................................174
driver airbag ............161, 169, 171
indicator light .................168, 173
operation .................161, 169, 171
passenger airbag .....161, 169, 171
side airbag ...............................168
All Wheel Drive (AWD),
driving off road .........................252
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................315
Anti-lock brake system
(see Brakes) ......................232–233
Anti-theft system ......................129
Audio system
(see Radio) ......................21, 25, 33
Automatic transmission
driving an automatic
overdrive .........................243, 246
fluid, adding ............................333
fluid, checking ........................333
fluid, refill capacities ..............337
fluid, specification ..................337
Auxiliary input jack (Line in) ....41
Auxiliary power point .................70
Axle
lubricant specifications ..........337refill capacities ........................337
B
Battery .......................................313
acid, treating emergencies .....313
jumping a disabled battery ....281
maintenance-free ....................313
replacement, specifications ...336
servicing ..................................313
Belt-Minder.............................154
Booster seats .............................188
Brakes ........................................232
anti-lock ...........................232–233
anti-lock brake system (ABS)
warning light ...........................233
fluid, checking and adding ....333
fluid, refill capacities ..............337
fluid, specifications .................337
lubricant specifications ..........337
parking ....................................233
shift interlock ..........................242
C
Calculating load ........................219
Capacities for refilling fluids ....337
Cargo cage .................................111
Cargo management system ......115
Cell phone use ..............................9
Changing a tire .........................271
Child safety seats ......................178
attaching with tether
straps .......................................185
in front seat ............................179
in rear seat ..............................179
LATCH .....................................182
recommendations ...................176
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Index
346

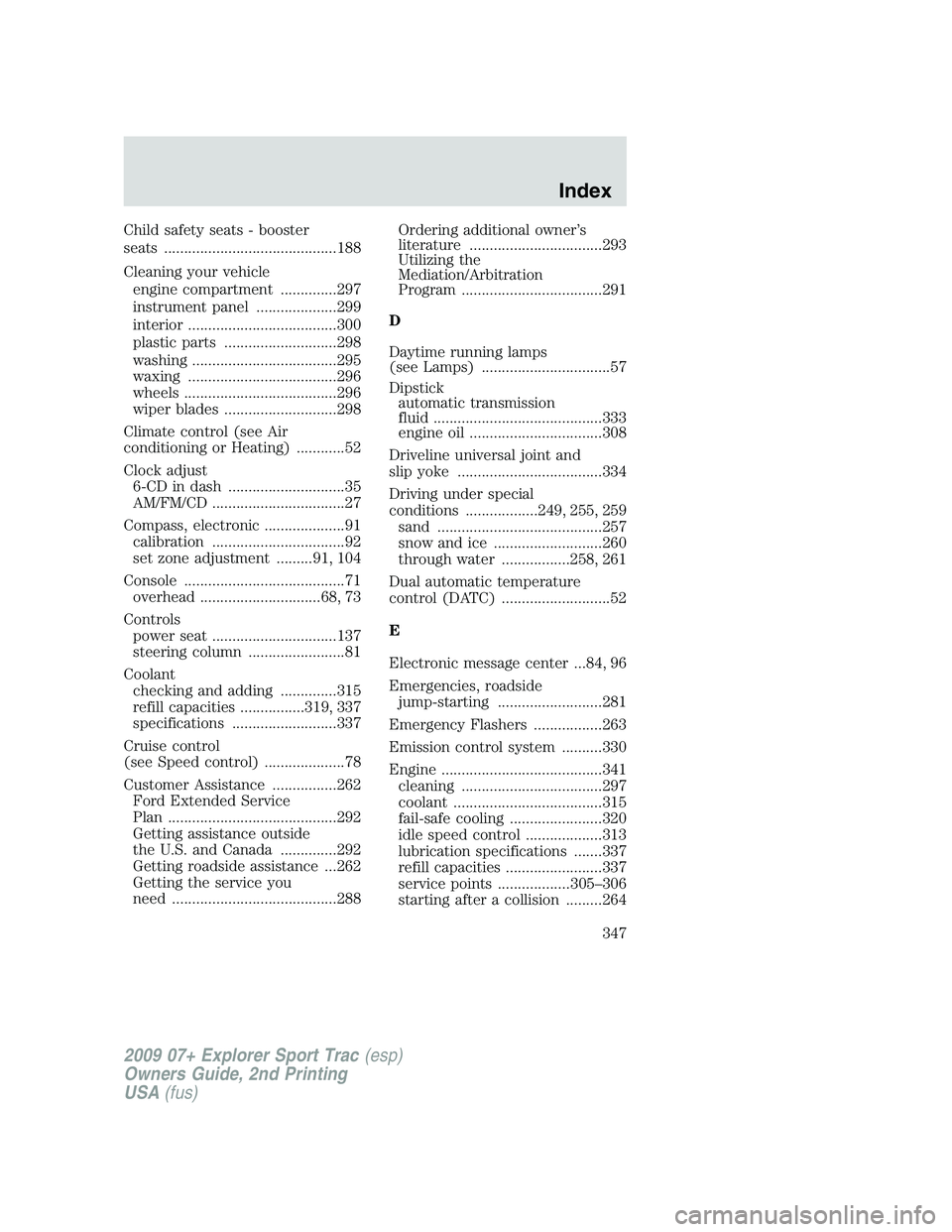

Child safety seats - booster
seats ...........................................188
Cleaning your vehicle
engine compartment ..............297
instrument panel ....................299
interior .....................................300
plastic parts ............................298
washing ....................................295
waxing .....................................296
wheels ......................................296
wiper blades ............................298
Climate control (see Air
conditioning or Heating) ............52
Clock adjust
6-CD in dash .............................35
AM/FM/CD .................................27
Compass, electronic ....................91
calibration .................................92
set zone adjustment .........91, 104
Console ........................................71
overhead ..............................68, 73
Controls
power seat ...............................137
steering column ........................81
Coolant
checking and adding ..............315
refill capacities ................319, 337
specifications ..........................337
Cruise control
(see Speed control) ....................78
Customer Assistance ................262
Ford Extended Service
Plan ..........................................292
Getting assistance outside
the U.S. and Canada ..............292
Getting roadside assistance ...262
Getting the service you
need .........................................288Ordering additional owner’s
literature .................................293
Utilizing the
Mediation/Arbitration
Program ...................................291
D
Daytime running lamps
(see Lamps) ................................57
Dipstick
automatic transmission
fluid ..........................................333
engine oil .................................308
Driveline universal joint and
slip yoke ....................................334
Driving under special
conditions ..................249, 255, 259
sand .........................................257
snow and ice ...........................260
through water .................258, 261
Dual automatic temperature
control (DATC) ...........................52
E
Electronic message center ...84, 96
Emergencies, roadside
jump-starting ..........................281
Emergency Flashers .................263
Emission control system ..........330
Engine ........................................341
cleaning ...................................297
coolant .....................................315
fail-safe cooling .......................320
idle speed control ...................313
lubrication specifications .......337
refill capacities ........................337
service points ..................305–306
starting after a collision .........264
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Index
347

Engine block heater .................231
Engine oil ..................................308
checking and adding ..............308
dipstick ....................................308
filter, specifications ........311, 336
recommendations ...................311
refill capacities ........................337
specifications ..........................337
Event data recording ....................7
Exhaust fumes ..........................230
F
Fail safe cooling ........................320
Floor mats .................................109
Fluid capacities .........................337
Fog lamps ....................................57
Four-Wheel Drive vehicles .......251
driving off road .......................254
indicator light .........................251
preparing to drive your
vehicle .....................................241
Fuel ............................................322
calculating fuel
economy ......................85, 98, 327
cap ...........................................324
capacity ...................................337
choosing the right fuel ...........325
comparisons with EPA fuel
economy estimates .................330
detergent in fuel .....................326
filling your vehicle
with fuel ..................322, 324, 327
filter, specifications ........321, 336
fuel pump shut-off switch .....264
improving fuel economy ........327
octane rating ...................325, 341
quality ......................................326
running out of fuel .................326safety information relating
to automotive fuels ................322
Fuses ..................................265–266
G
Garage door opener ....................69
Gas cap (see Fuel cap) ............324
Gas mileage
(see Fuel economy) .................327
Gauges .........................................18
GAWR
(Gross Axle Weight Rating)
calculating ...............................219
GVWR
(Gross Vehicle Weight Rating)
calculating ...............................219
H
Hazard flashers .........................263
Headlamps ...................................56
aiming ........................................58
bulb specifications ....................61
daytime running lights .............57
flash to pass ..............................58
high beam .................................57
turning on and off ....................56
Heating
heating and air conditioning
system .................................50, 52
Hood ..........................................304
How to get going ........................21
I
Ignition ...............................227, 341
Illuminated visor mirror .............67
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Index
348

Infant seats
(see Safety seats) .....................178
Inspection/maintenance (I/M)
testing ........................................332
Instrument panel
cleaning ...................................299
cluster ........................................12
J
Jack ....................................271, 274
positioning .......................271, 276
storage .....................271, 274–275
Jump-starting your vehicle ......281
K
Keyless entry system
autolock ...........................118, 120
keypad .....................................128
locking and unlocking
doors ........................................129
programming entry code .......128
Keys ...........................................131
positions of the ignition .........227
L
Lamps
bulb replacement
specifications chart ............60–61
daytime running light ...............57
fog lamps ...................................57
headlamps .................................56
interior lamps ...........................60
replacing bulbs .........................65
LATCH anchors .........................182
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........233
Load limits .................................213Loading instructions .................219
Locks
autolock ...........................118, 120
childproof ................................123
doors ........................................118
Lubricant specifications ...........337
Lug nuts ....................................280
Luggage rack .............................116
Lumbar support, seats .....137, 139
M
Message center .....................84, 96
english/metric button .......88, 101
system check button ........87, 100
warning messages .............93, 106
Mirrors ...................................75–76
automatic dimming rearview
mirror ........................................75
fold away ...................................77
heated ........................................77
side view mirrors (power) .......76
Moon roof ....................................83
Motorcraft parts ........301, 321, 336
N
Navigation system .......................49
O
Octane rating ............................325
Oil (see Engine oil) ..................308
P
Parking brake ............................233
Parts (see Motorcraft parts) ....336
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Index
349

Passenger Occupant
Classification Sensor .................145
Pedals (see Power adjustable
foot pedals) .................................78
Power adjustable foot pedals .....78
Power distribution box
(see Fuses) ...............................268
Power door locks ......................118
Power mirrors .............................76
Power point ...........................70–71
Power steering ..........................240
fluid, checking and adding ....332
fluid, refill capacity ................337
fluid, specifications .................337
Power Windows ...........................71
Preparing to drive your
vehicle ........................................241
R
Radio ................................21, 25, 33
Recommendations for
attaching safety restraints for
children ......................................176
Relays ........................................265
Remote entry system ...............123
illuminated entry ....................127
locking/unlocking
doors ................................124–125
panic alarm .............................125
replacing the batteries ...........125
Reverse sensing system ...........249
Roadside assistance ..................262
Roof rack ...................................116S
Safety belts (see Safety
restraints) ..................143, 147–152
Safety Canopy ...........168, 170–171
Safety defects, reporting ..........294
Safety restraints ........143, 147–152
Belt-Minder...........................154
extension assembly ................153
for adults .........................148–151
for children .............................174
Occupant Classification
Sensor ......................................145
warning light and chime ........154
Safety restraints - LATCH
anchors ......................................182
Safety seats for children ..........178
Safety Compliance
Certification Label ....................342
Satellite Radio Information ........46
Seats ..........................................133
child safety seats ....................178
front seats ...............................136
heated ..............................140–141
SecuriCode keyless entry
system ........................................128
SecuriLock passive anti-theft
system ........................................129
Setting the clock
AM/FM single CD .....................27
AM/FM/In-dash 6 CD ................35
Snowplowing .................................8
Spark plugs,
specifications .....................336, 341
Special notice
ambulance conversions ..............8
utility-type vehicles ....................8
2009 07+ Explorer Sport Trac(esp)
Owners Guide, 2nd Printing
USA(fus)
Index
350
