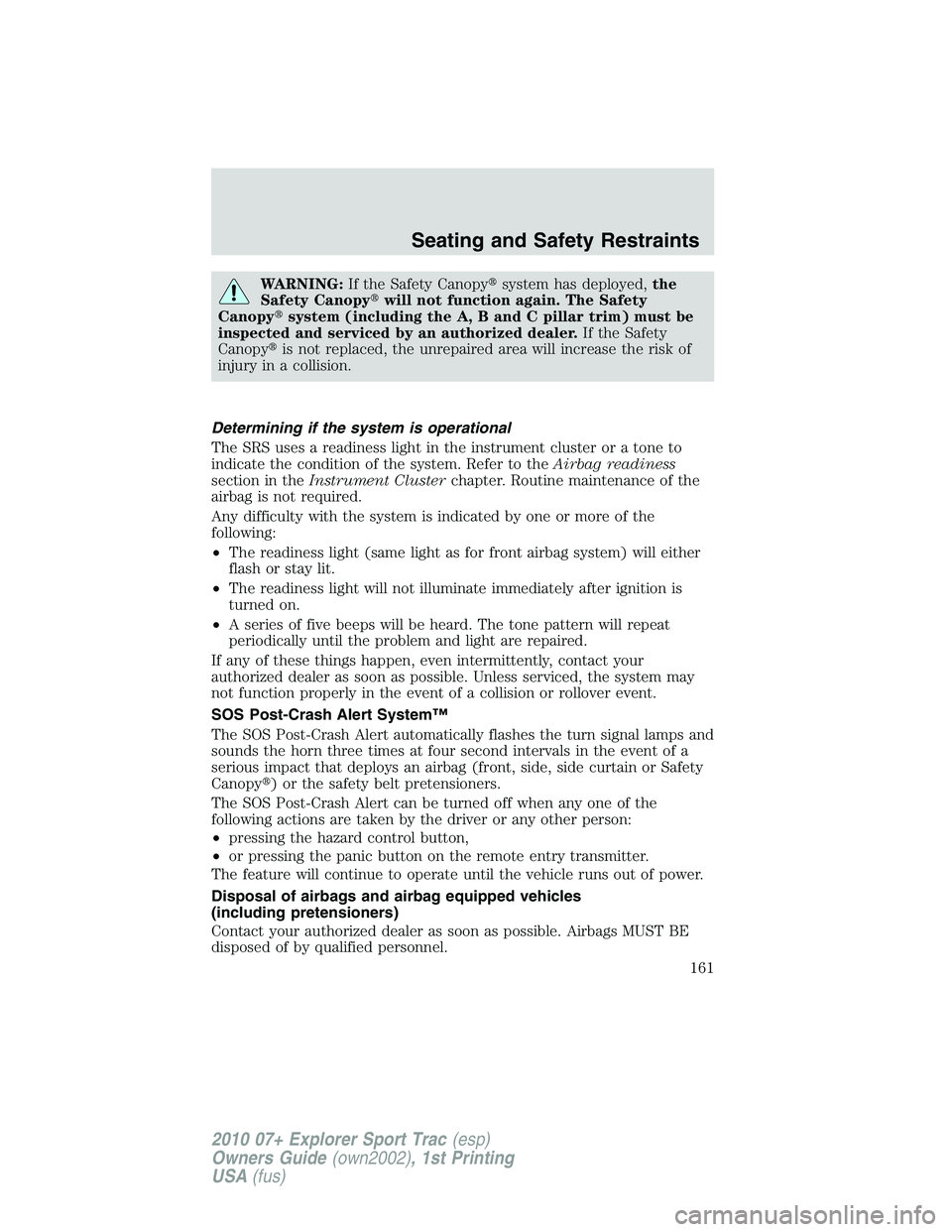

Page 161 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual WARNING:If the Safety Canopysystem has deployed,the
Safety Canopywill not function again. The Safety
Canopysystem (including the A, B and C pillar trim) must be
inspected and serviced by an authori

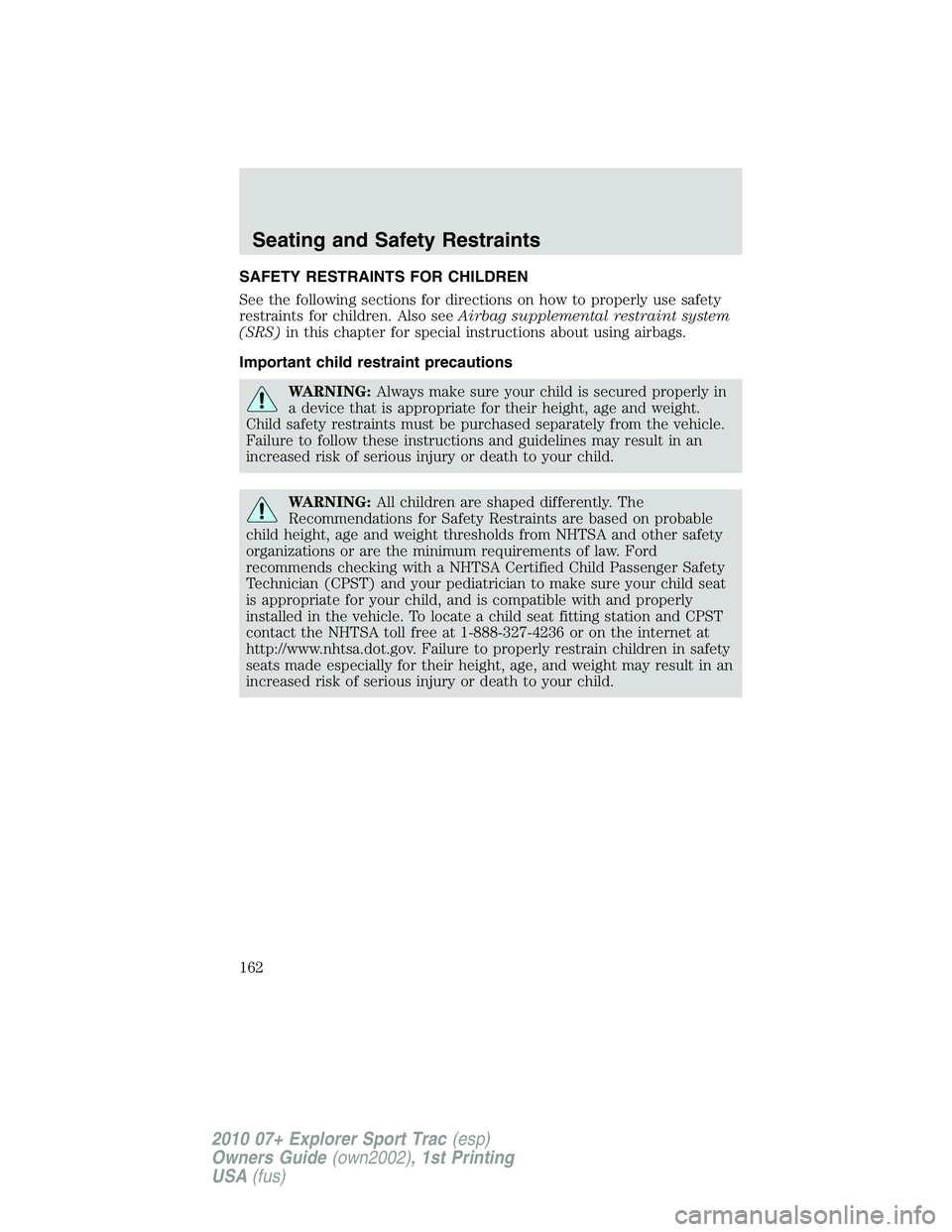

Page 162 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual SAFETY RESTRAINTS FOR CHILDREN
See the following sections for directions on how to properly use safety
restraints for children. Also seeAirbag supplemental restraint system
(SRS)in this chapter for sp

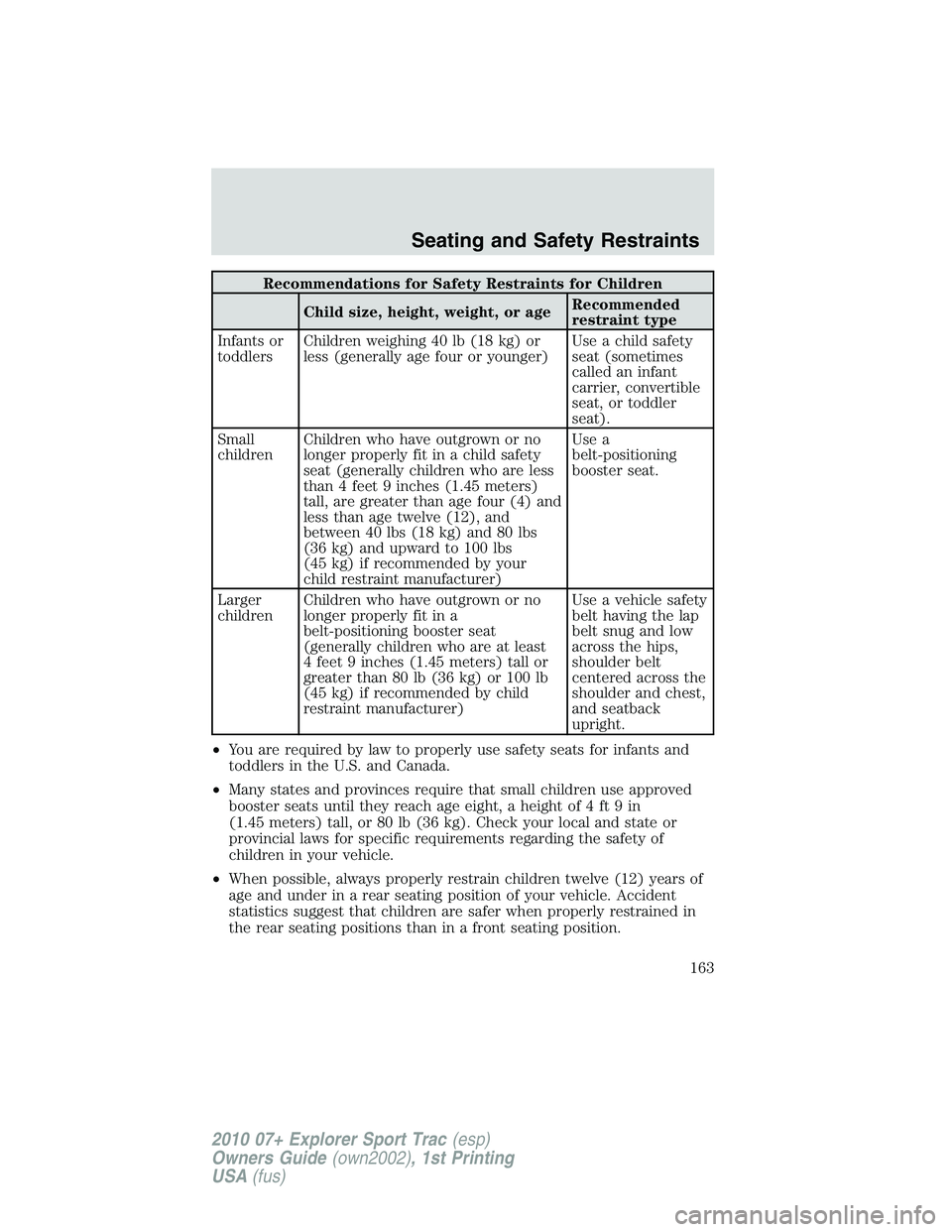

Page 163 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual Recommendations for Safety Restraints for Children
Child size, height, weight, or ageRecommended
restraint type
Infants or
toddlersChildren weighing 40 lb (18 kg) or
less (generally age four or younge

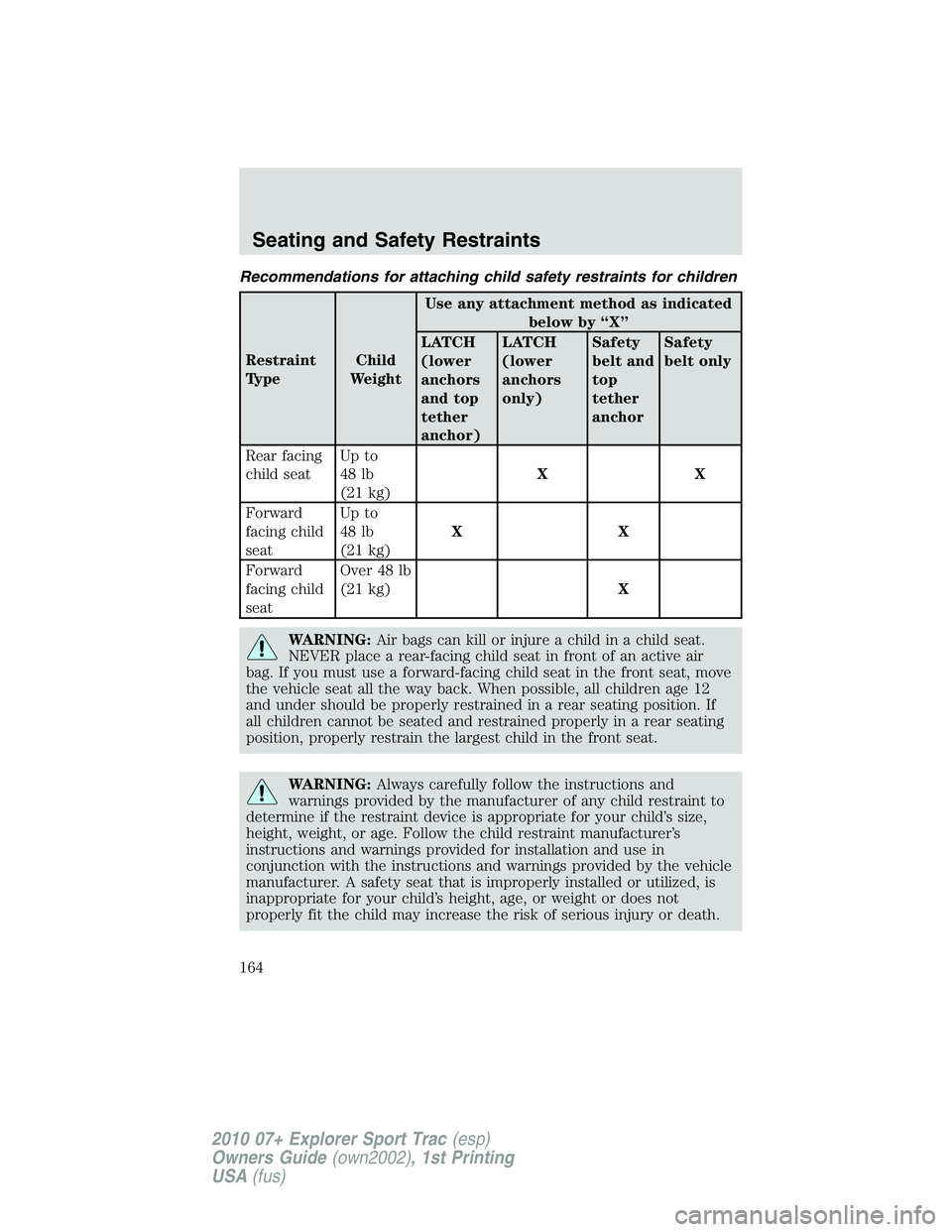

Page 164 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual Recommendations for attaching child safety restraints for children
Restraint
TypeChild
WeightUse any attachment method as indicated
below by “X”
LATCH
(lower
anchors
and top
tether
anchor)LATCH
(l

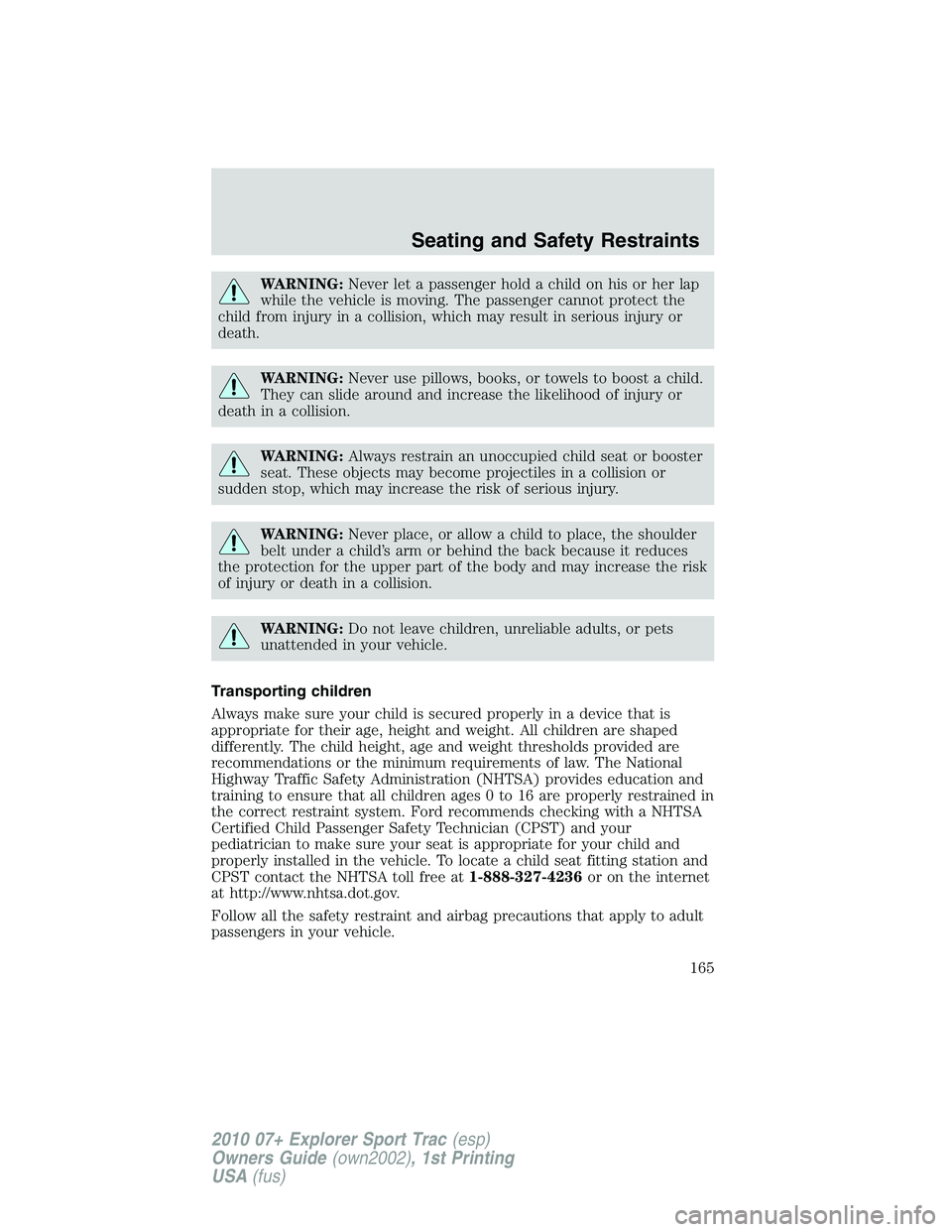

Page 165 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual WARNING:Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot protect the
child from injury in a collision, which may result in serious injury or
death

Page 166 of 344

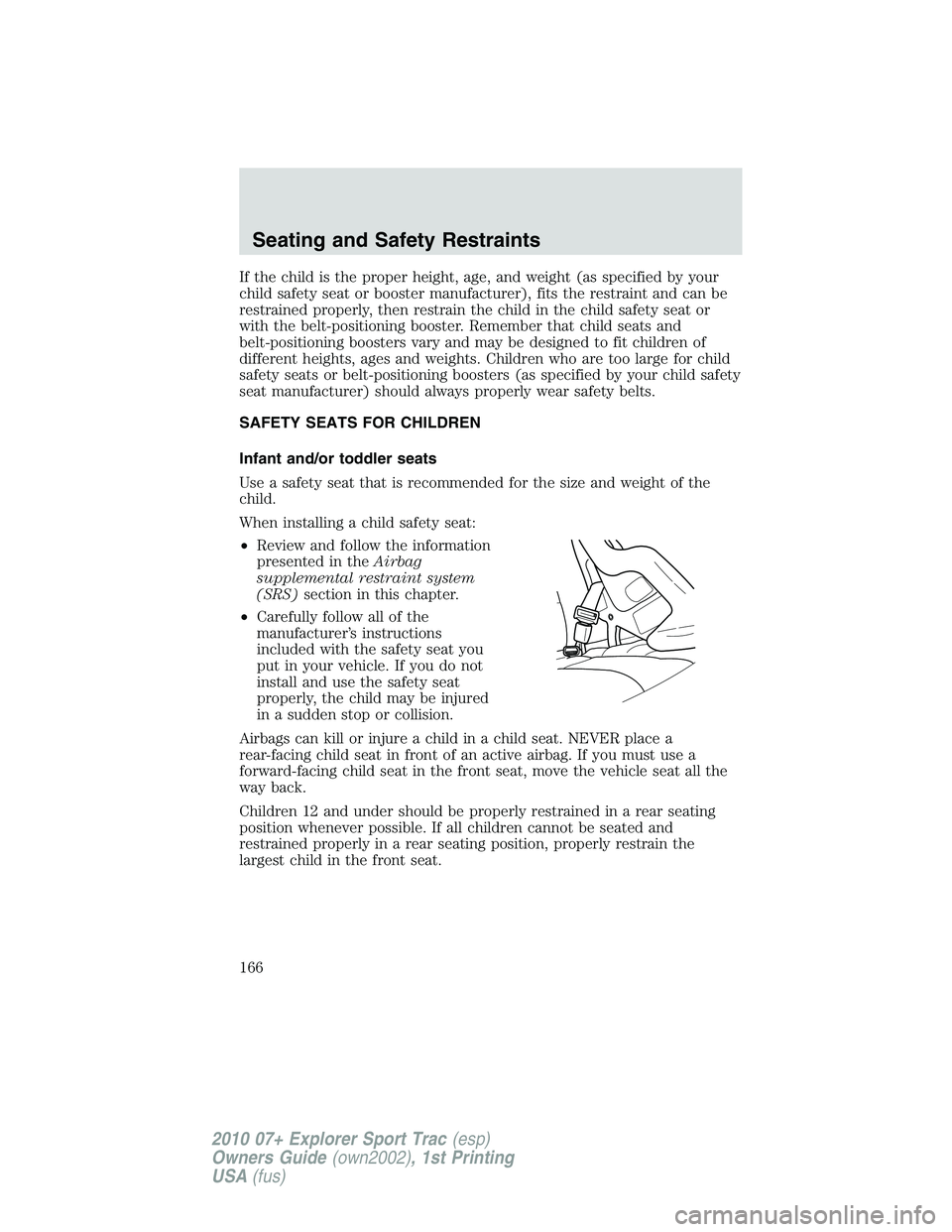

FORD EXPLORER SPORT TRAC 2010  Owners Manual If the child is the proper height, age, and weight (as specified by your
child safety seat or booster manufacturer), fits the restraint and can be
restrained properly, then restrain the child in the c

Page 167 of 344

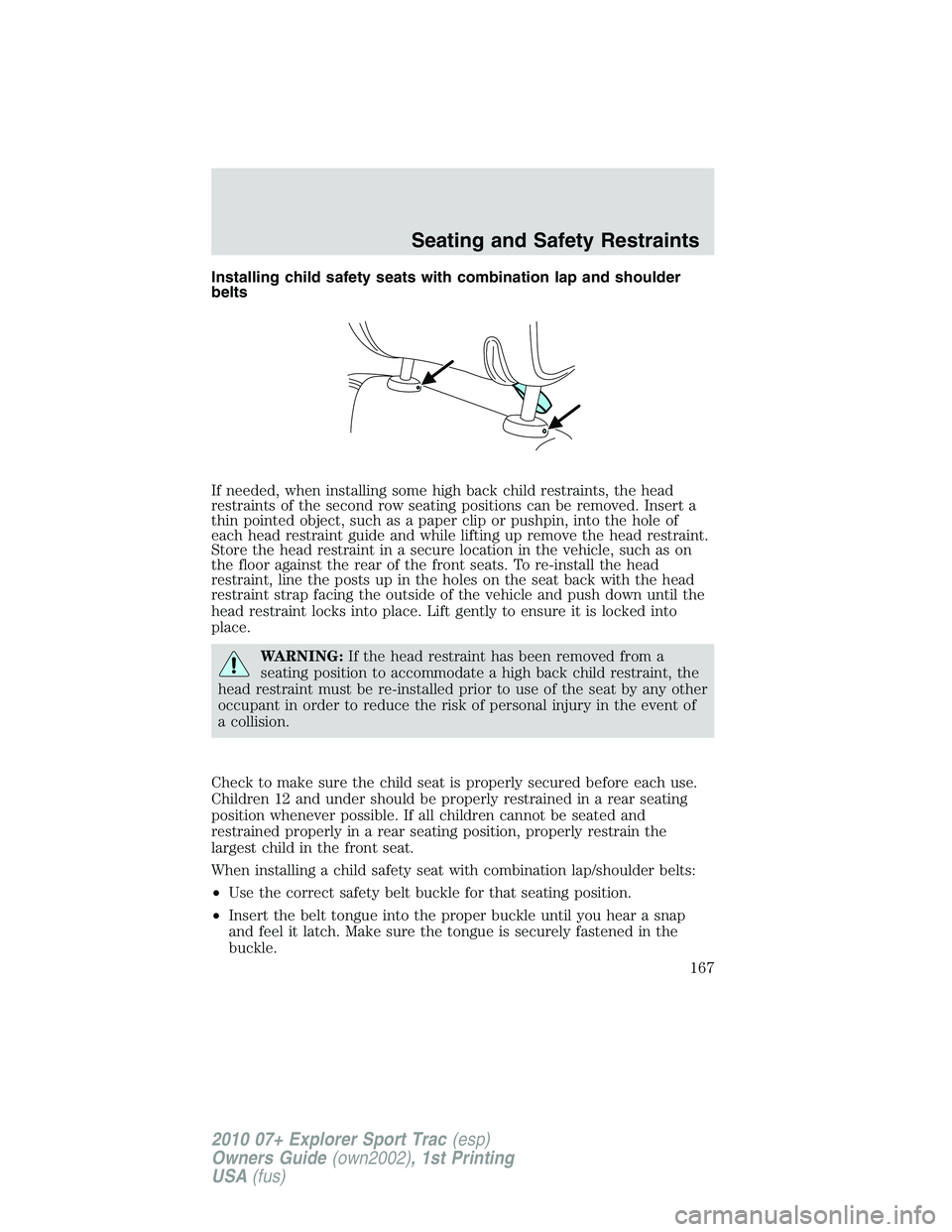

FORD EXPLORER SPORT TRAC 2010  Owners Manual Installing child safety seats with combination lap and shoulder
belts
If needed, when installing some high back child restraints, the head
restraints of the second row seating positions can be removed

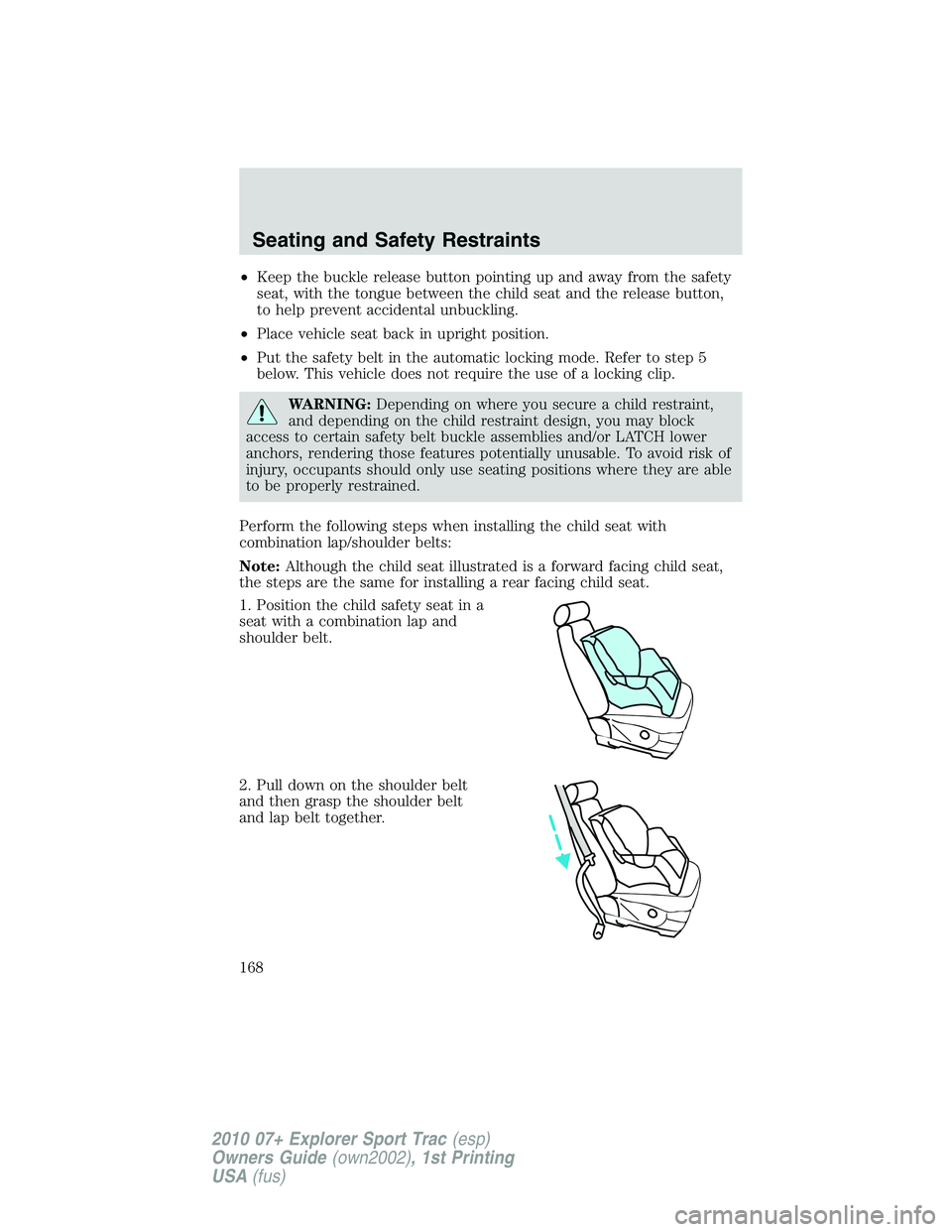

Page 168 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual •Keep the buckle release button pointing up and away from the safety
seat, with the tongue between the child seat and the release button,
to help prevent accidental unbuckling.
•Place vehicle seat

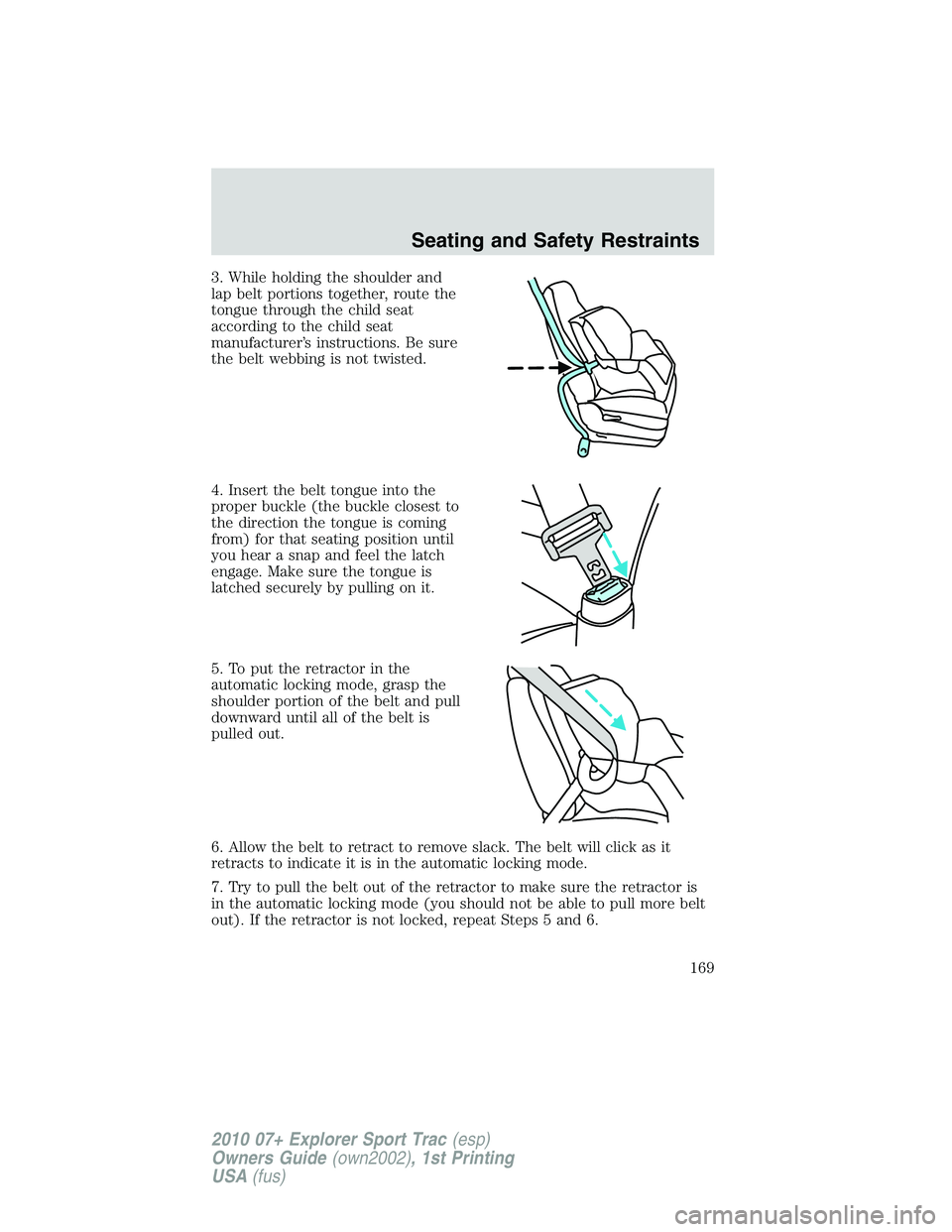

Page 169 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual 3. While holding the shoulder and
lap belt portions together, route the
tongue through the child seat
according to the child seat
manufacturer’s instructions. Be sure
the belt webbing is not twisted

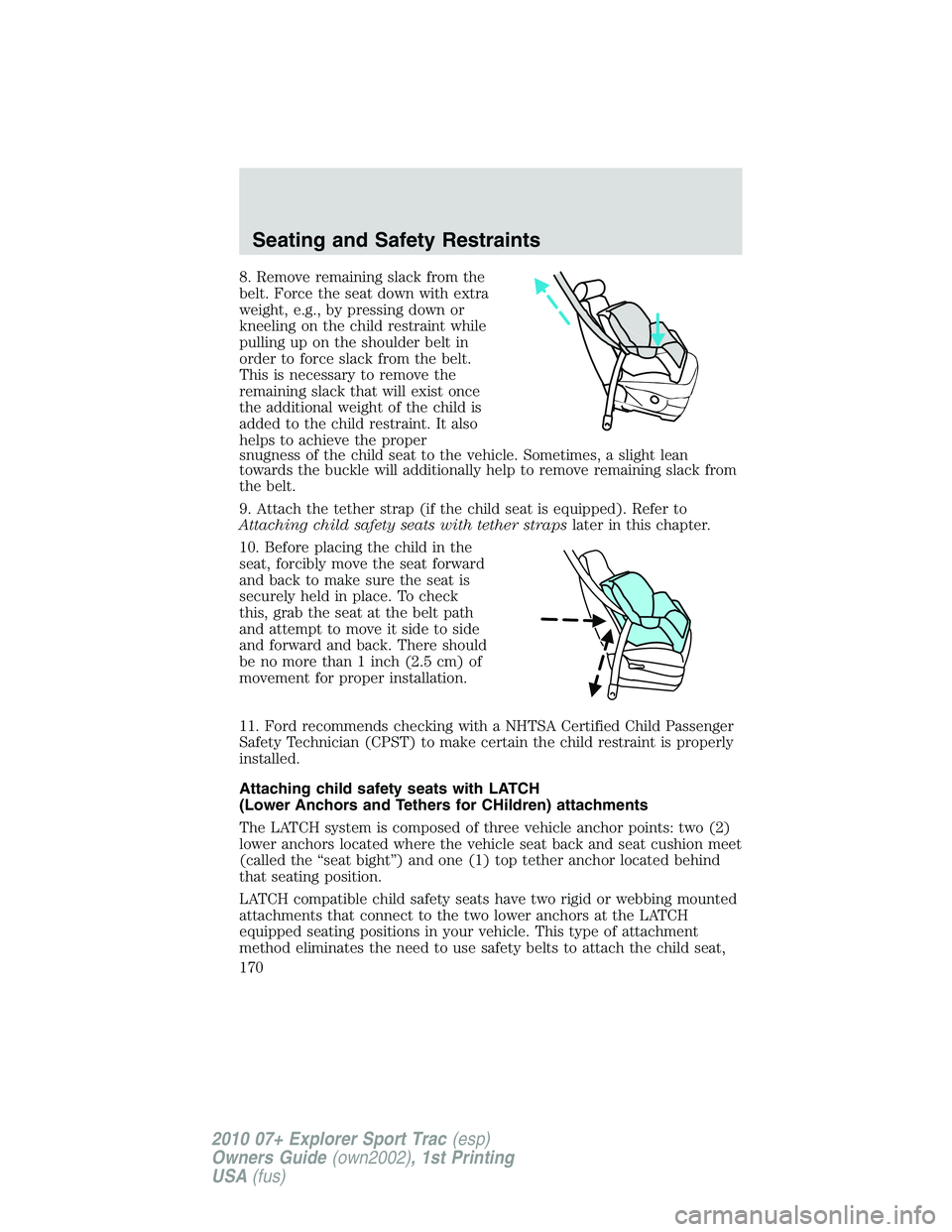

Page 170 of 344

FORD EXPLORER SPORT TRAC 2010  Owners Manual 8. Remove remaining slack from the
belt. Force the seat down with extra
weight, e.g., by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in
order to force slack
