FORD EXPLORER SPORT TRAC 2010 Owners Manual

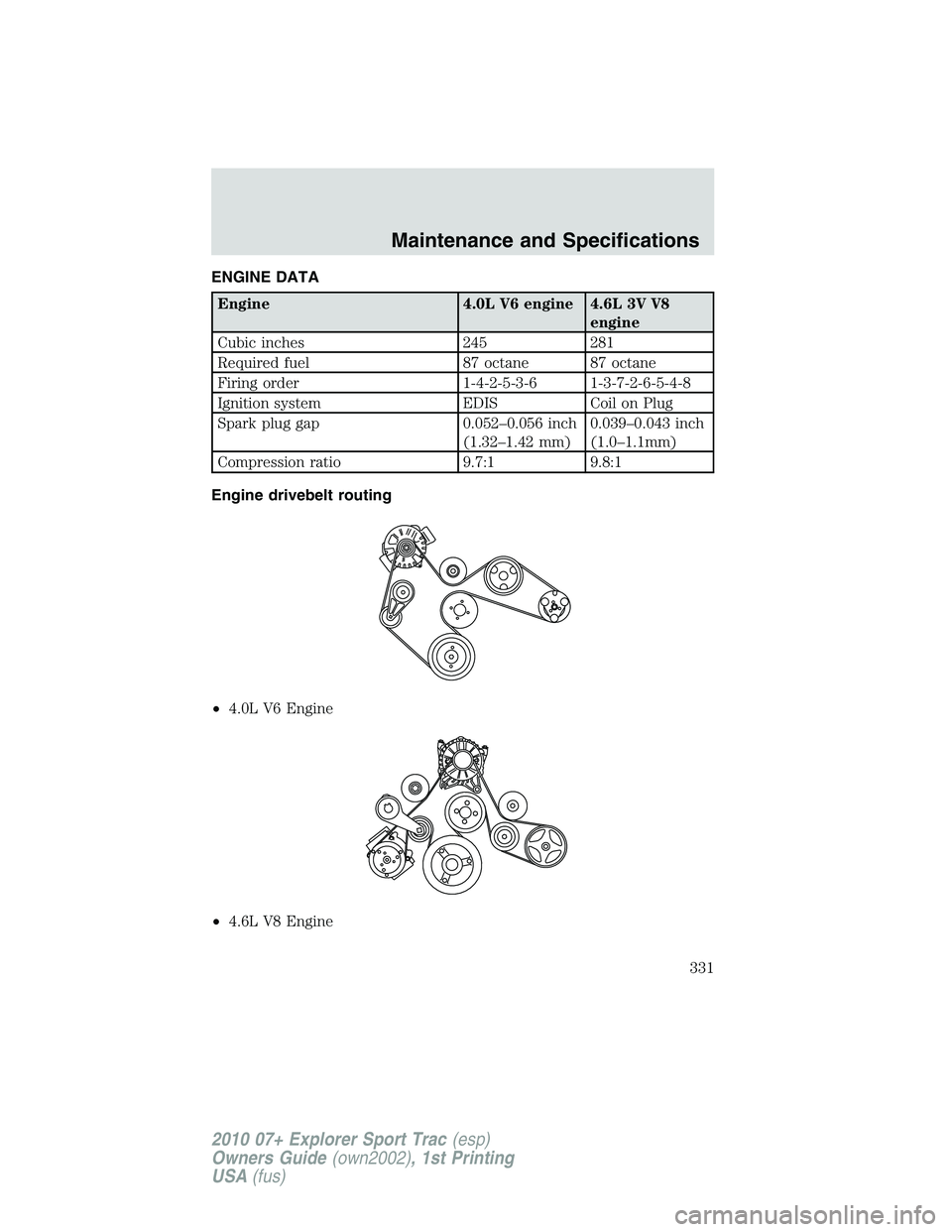

ENGINE DATA
Engine 4.0L V6 engine 4.6L 3V V8
engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS Coil on Plug
Spark plug gap 0.052–0.056 inch
(1.32–1.42 mm)0.039–0.043 inch
(1.0–1.1mm)
Compression ratio 9.7:1 9.8:1
Engine drivebelt routing
•4.0L V6 Engine
•4.6L V8 Engine
Maintenance and Specifications
331
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

IDENTIFYING YOUR VEHICLE
Safety Compliance Certification Label
The National Highway Traffic Safety
Administration Regulations require
that a Safety Compliance
Certification Label be affixed to a
vehicle and prescribe where the
Safety Compliance Certification
Label may be located. The Safety
Compliance Certification Label is
located on the structure (B-Pillar)
by the trailing edge of the driver’s
door or the edge of the driver’s
door.
Vehicle identification number (VIN)
The vehicle identification number is
located on the driver side
instrument panel.
Please note that in the graphic,
XXXX is representative of your
vehicle identification number.
XXXXXXXXXXXXXXXXX
Maintenance and Specifications
332
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

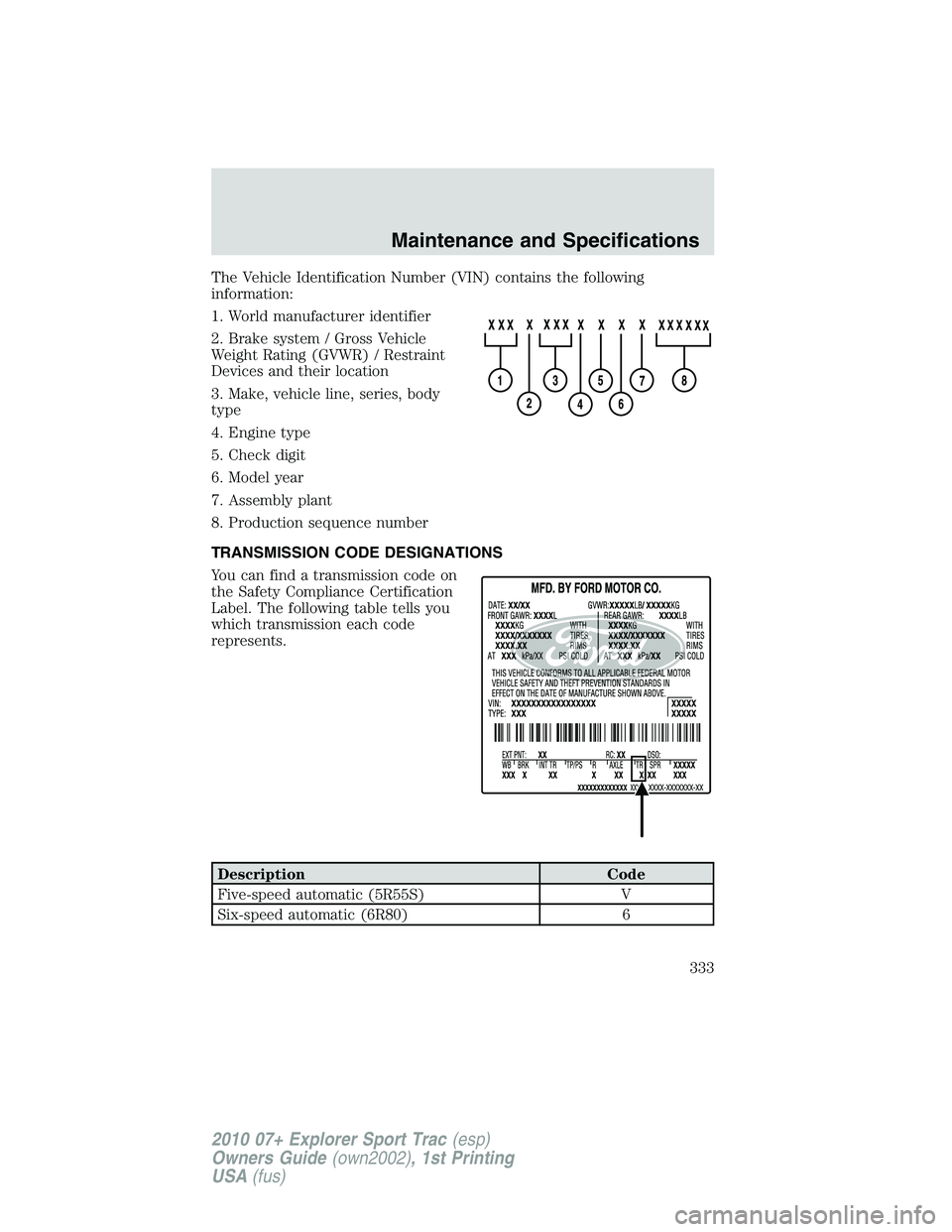

The Vehicle Identification Number (VIN) contains the following
information:
1. World manufacturer identifier
2. Brake system / Gross Vehicle
Weight Rating (GVWR) / Restraint
Devices and their location
3. Make, vehicle line, series, body
type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
TRANSMISSION CODE DESIGNATIONS
You can find a transmission code on
the Safety Compliance Certification
Label. The following table tells you
which transmission each code
represents.
Description Code
Five-speed automatic (5R55S) V
Six-speed automatic (6R80) 6
Maintenance and Specifications
333
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

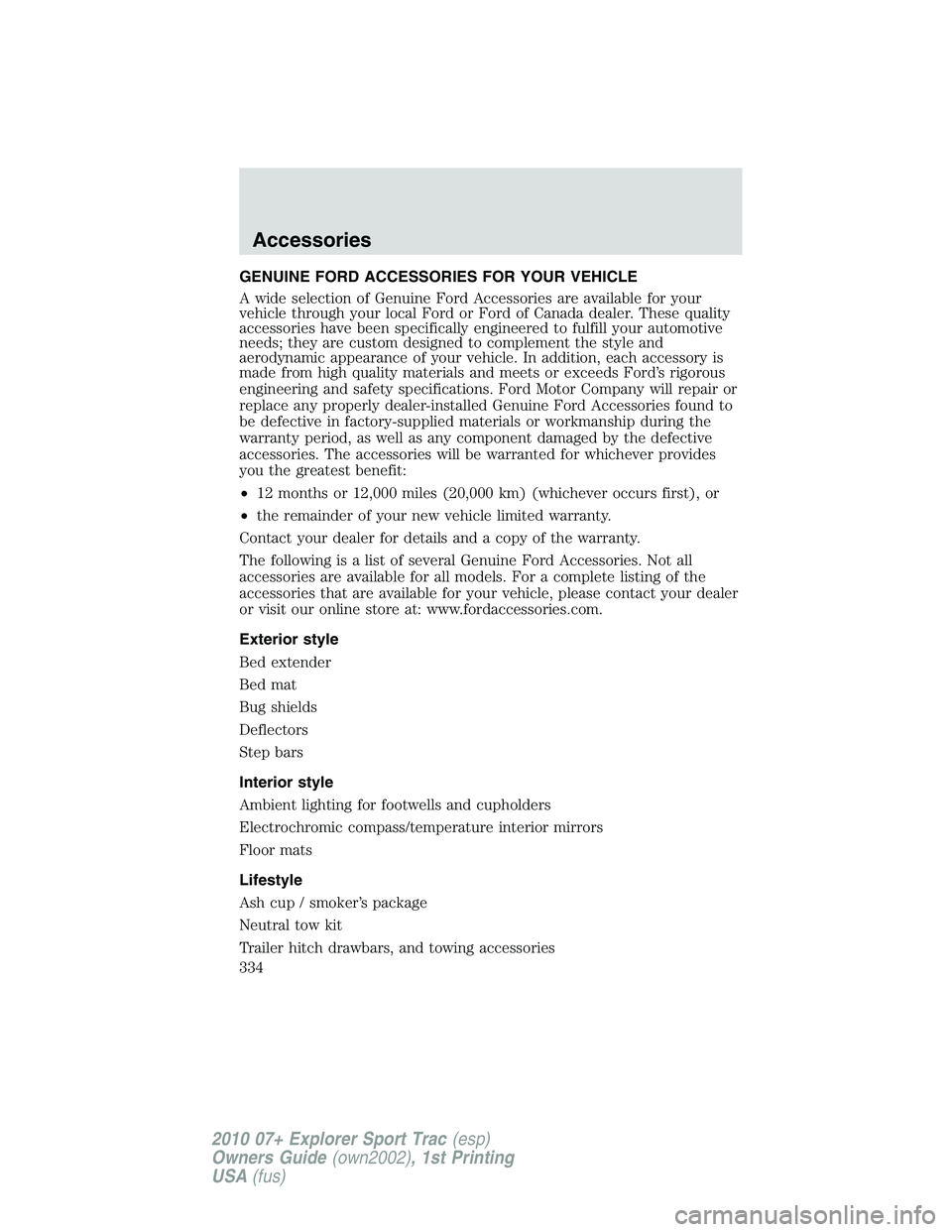

GENUINE FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of Genuine Ford Accessories are available for your
vehicle through your local Ford or Ford of Canada dealer. These quality
accessories have been specifically engineered to fulfill your automotive
needs; they are custom designed to complement the style and
aerodynamic appearance of your vehicle. In addition, each accessory is
made from high quality materials and meets or exceeds Ford’s rigorous
engineering and safety specifications. Ford Motor Company will repair or
replace any properly dealer-installed Genuine Ford Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
The following is a list of several Genuine Ford Accessories. Not all
accessories are available for all models. For a complete listing of the
accessories that are available for your vehicle, please contact your dealer
or visit our online store at: www.fordaccessories.com.
Exterior style
Bed extender
Bed mat
Bug shields
Deflectors
Step bars
Interior style
Ambient lighting for footwells and cupholders
Electrochromic compass/temperature interior mirrors
Floor mats
Lifestyle
Ash cup / smoker’s package
Neutral tow kit
Trailer hitch drawbars, and towing accessories
Accessories
334
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

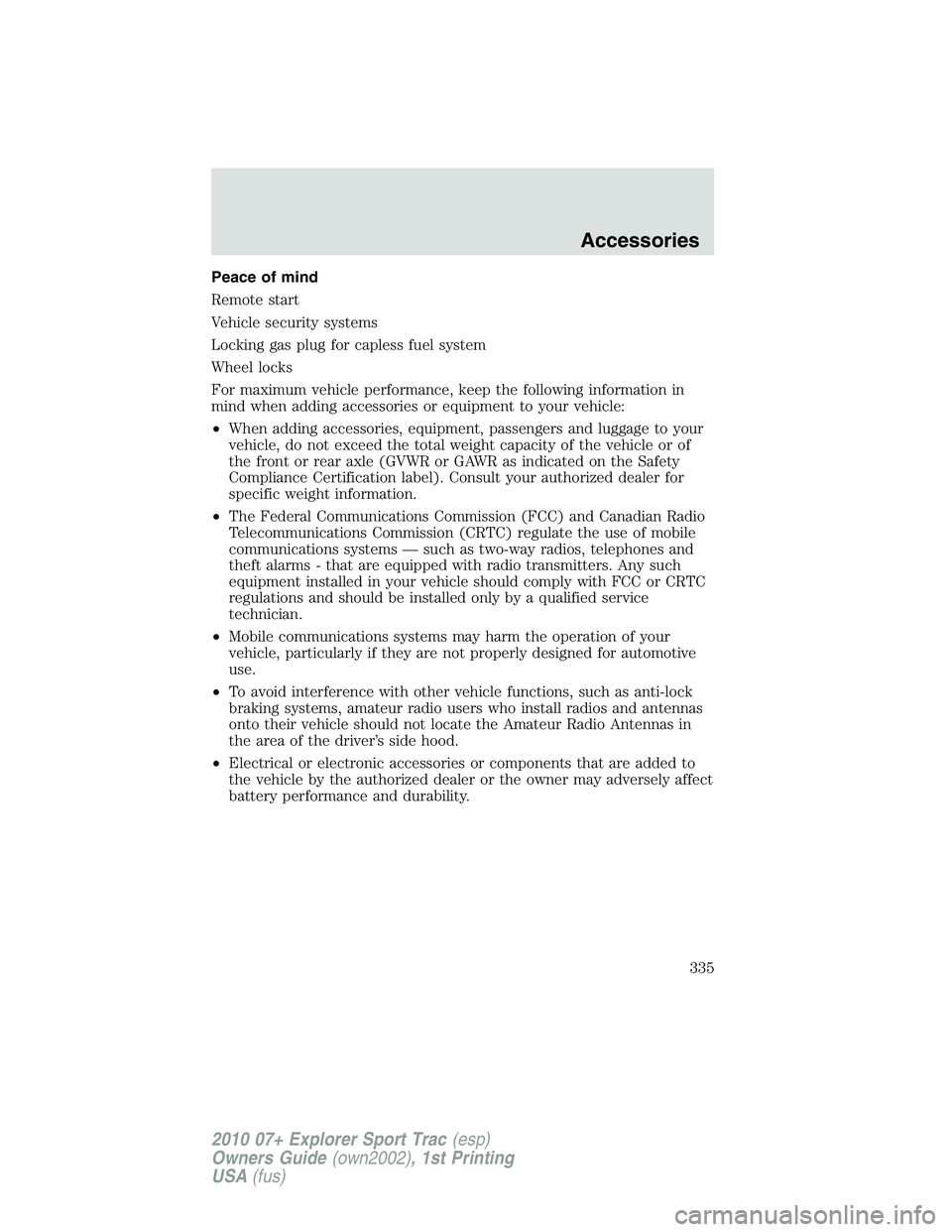

Peace of mind
Remote start
Vehicle security systems
Locking gas plug for capless fuel system
Wheel locks
For maximum vehicle performance, keep the following information in
mind when adding accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers and luggage to your
vehicle, do not exceed the total weight capacity of the vehicle or of
the front or rear axle (GVWR or GAWR as indicated on the Safety
Compliance Certification label). Consult your authorized dealer for
specific weight information.
•The Federal Communications Commission (FCC) and Canadian Radio
Telecommunications Commission (CRTC) regulate the use of mobile
communications systems — such as two-way radios, telephones and
theft alarms - that are equipped with radio transmitters. Any such
equipment installed in your vehicle should comply with FCC or CRTC
regulations and should be installed only by a qualified service
technician.
•Mobile communications systems may harm the operation of your
vehicle, particularly if they are not properly designed for automotive
use.
•To avoid interference with other vehicle functions, such as anti-lock
braking systems, amateur radio users who install radios and antennas
onto their vehicle should not locate the Amateur Radio Antennas in
the area of the driver’s side hood.
•Electrical or electronic accessories or components that are added to
the vehicle by the authorized dealer or the owner may adversely affect
battery performance and durability.
Accessories
335
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

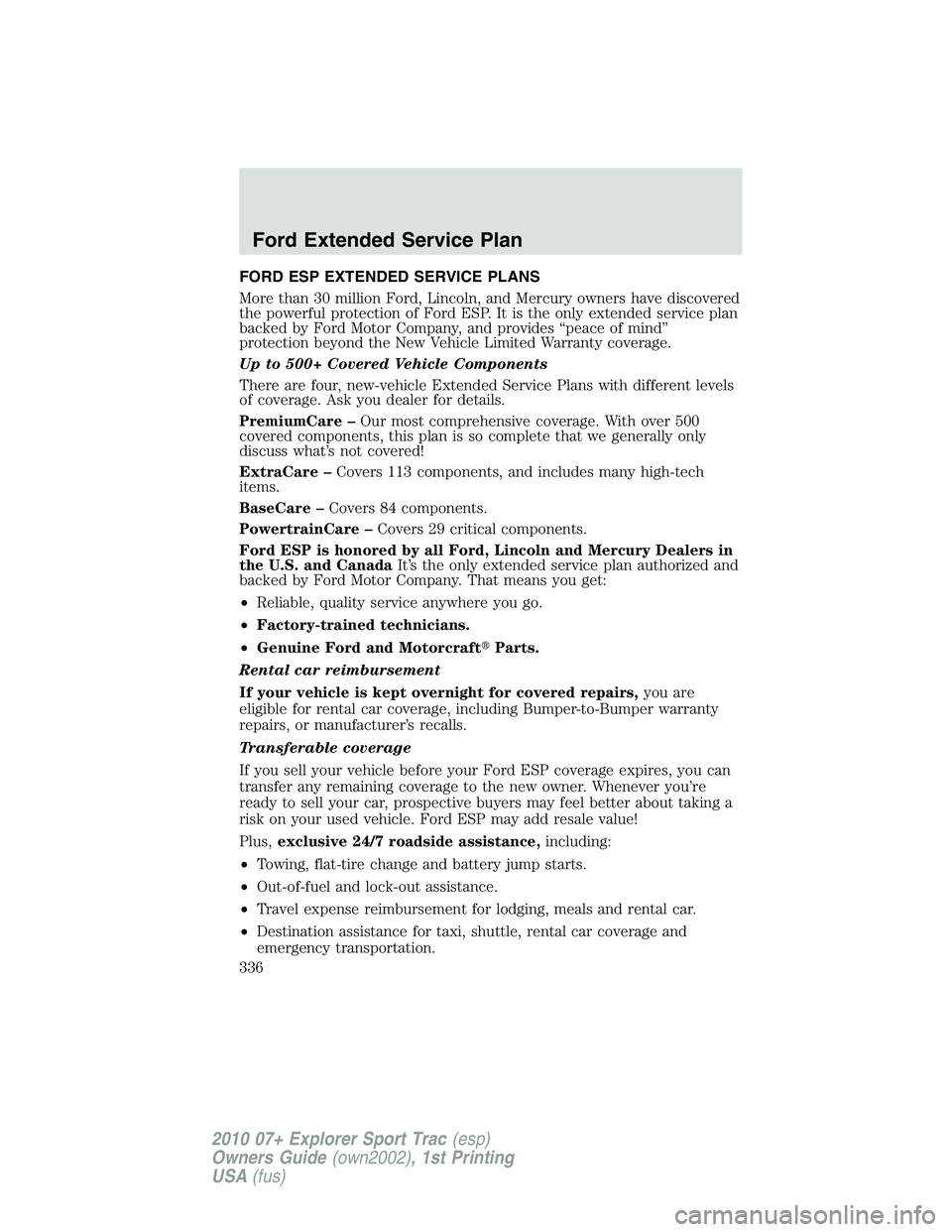

FORD ESP EXTENDED SERVICE PLANS
More than 30 million Ford, Lincoln, and Mercury owners have discovered
the powerful protection of Ford ESP. It is the only extended service plan
backed by Ford Motor Company, and provides “peace of mind”
protection beyond the New Vehicle Limited Warranty coverage.
Up to 500+ Covered Vehicle Components
There are four, new-vehicle Extended Service Plans with different levels
of coverage. Ask you dealer for details.
PremiumCare –Our most comprehensive coverage. With over 500
covered components, this plan is so complete that we generally only
discuss what’s not covered!
ExtraCare –Covers 113 components, and includes many high-tech
items.
BaseCare –Covers 84 components.
PowertrainCare –Covers 29 critical components.
Ford ESP is honored by all Ford, Lincoln and Mercury Dealers in
the U.S. and CanadaIt’s the only extended service plan authorized and
backed by Ford Motor Company. That means you get:
•Reliable, quality service anywhere you go.
•Factory-trained technicians.
•Genuine Ford and Motorcraft
Parts.
Rental car reimbursement
If your vehicle is kept overnight for covered repairs,you are
eligible for rental car coverage, including Bumper-to-Bumper warranty
repairs, or manufacturer’s recalls.
Transferable coverage
If you sell your vehicle before your Ford ESP coverage expires, you can
transfer any remaining coverage to the new owner. Whenever you’re
ready to sell your car, prospective buyers may feel better about taking a
risk on your used vehicle. Ford ESP may add resale value!
Plus,exclusive 24/7 roadside assistance,including:
•Towing, flat-tire change and battery jump starts.
•Out-of-fuel and lock-out assistance.
•Travel expense reimbursement for lodging, meals and rental car.
•Destination assistance for taxi, shuttle, rental car coverage and
emergency transportation.
Ford Extended Service Plan
336
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

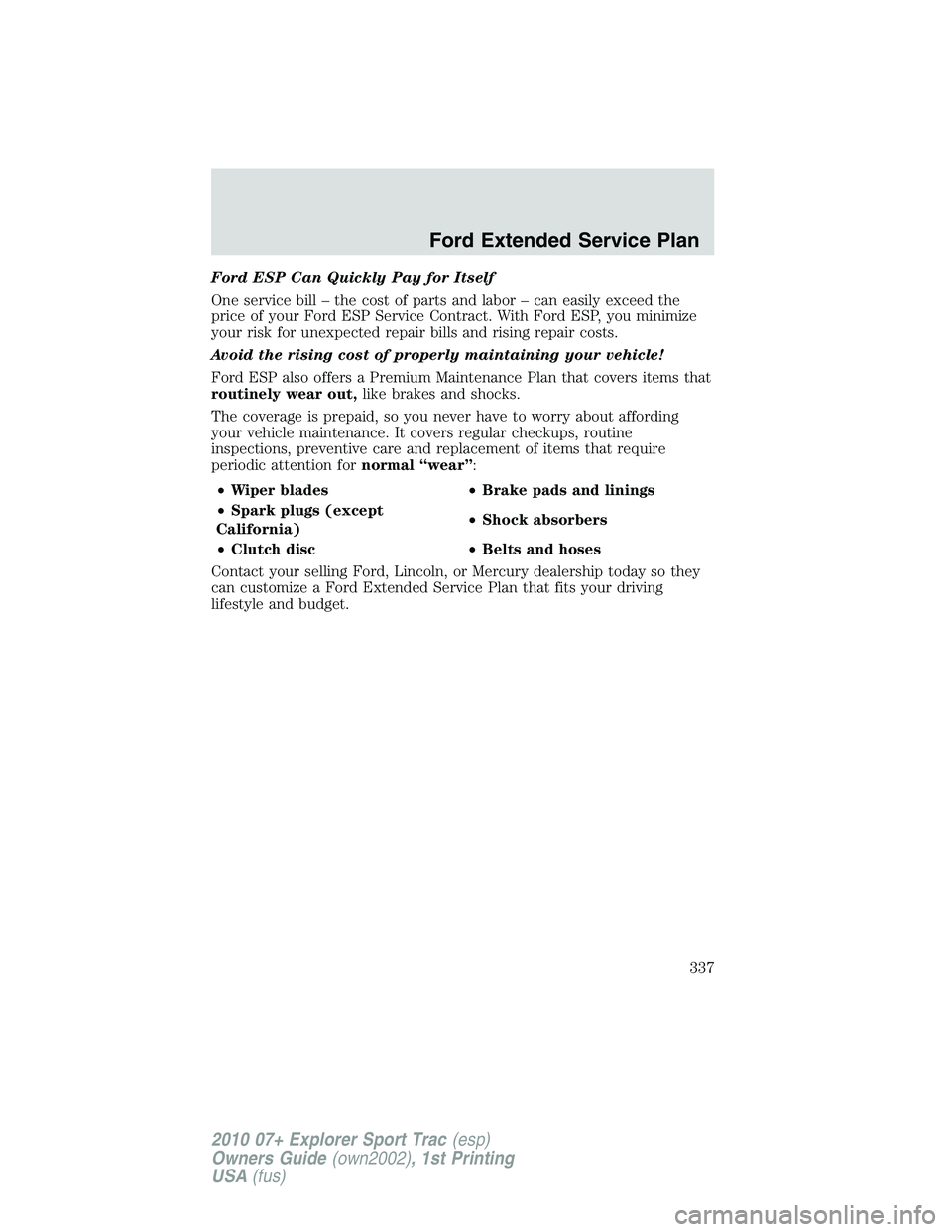

Ford ESP Can Quickly Pay for Itself
One service bill – the cost of parts and labor – can easily exceed the
price of your Ford ESP Service Contract. With Ford ESP, you minimize
your risk for unexpected repair bills and rising repair costs.
Avoid the rising cost of properly maintaining your vehicle!
Ford ESP also offers a Premium Maintenance Plan that covers items that
routinely wear out,like brakes and shocks.
The coverage is prepaid, so you never have to worry about affording
your vehicle maintenance. It covers regular checkups, routine
inspections, preventive care and replacement of items that require
periodic attention fornormal “wear”:
•Wiper blades•Brake pads and linings
•Spark plugs (except
California)•Shock absorbers
•Clutch disc•Belts and hoses
Contact your selling Ford, Lincoln, or Mercury dealership today so they
can customize a Ford Extended Service Plan that fits your driving
lifestyle and budget.
Ford Extended Service Plan
337
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

Ford Extended Service Plan
338
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

A
Accessory delay ..........................88
AdvanceTrac ..............................225
Air cleaner filter ...............324–325
Air conditioning ..........................67
Airbag supplemental restraint
system ........................147, 156, 158
and child safety seats ............149
description ..............147, 156, 158
disposal ....................................161
driver airbag ............149, 157, 159
indicator light .................156, 161
operation .................149, 157, 159
passenger airbag .....149, 157, 159
side airbag ...............................156
All Wheel Drive (AWD),
driving off road .........................241
Ambulance packages ....................6
Antifreeze
(see Engine coolant) ................304
Anti-lock brake system
(see Brakes) ......................222–223
Anti-theft system ......................118
Audio system
(see Radio) ......................37, 41, 48
Automatic transmission
driving an automatic
overdrive .........................233, 235
fluid, adding ............................323
fluid, checking ........................323
fluid, refill capacities ..............326
fluid, specification ..................326
Auxiliary input jack (Line in) ....56
Auxiliary power point .................84
Axle
lubricant specifications ..........326refill capacities ........................326
B
Battery .......................................302
acid, treating emergencies .....302
jumping a disabled battery ....270
maintenance-free ....................302
replacement, specifications ...325
servicing ..................................302
Belt-Minder
.............................142
Booster seats .............................176
Brakes ........................................222
anti-lock ...........................222–223
anti-lock brake system (ABS)
warning light ...........................223
fluid, checking and adding ....322
fluid, refill capacities ..............326
fluid, specifications .................326
lubricant specifications ..........326
parking ....................................223
shift interlock ..........................232
C
Calculating load ........................209
Capacities for refilling fluids ....326
Cargo cage .................................100
Cargo management system ......104
Cell phone use ..............................9
Changing a tire .........................261
Child safety seats ......................166
attaching with tether
straps .......................................173
in front seat ............................167
in rear seat ..............................167
LATCH .....................................170
recommendations ...................164

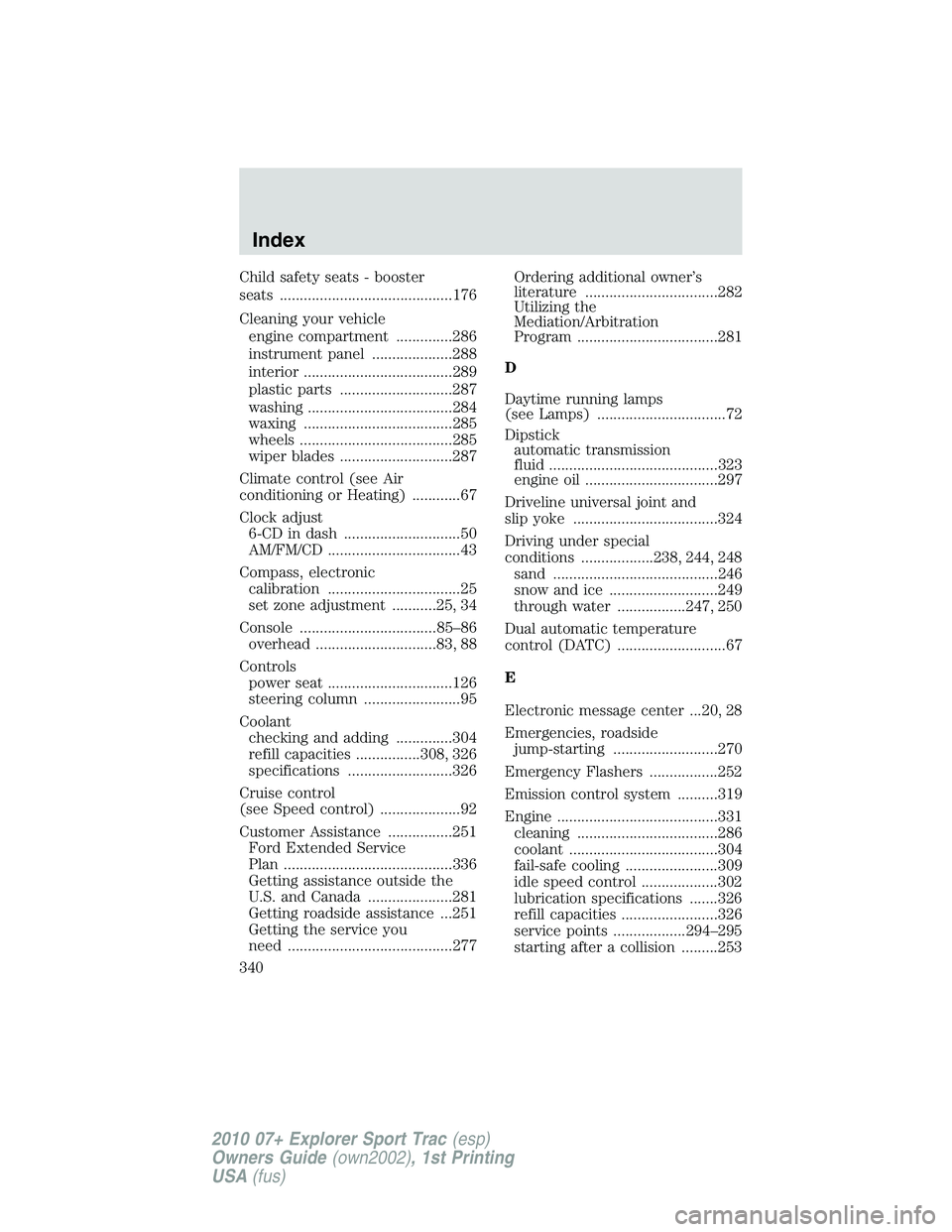

Index
339
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)

Child safety seats - booster
seats ...........................................176
Cleaning your vehicle
engine compartment ..............286
instrument panel ....................288
interior .....................................289
plastic parts ............................287
washing ....................................284
waxing .....................................285
wheels ......................................285
wiper blades ............................287
Climate control (see Air
conditioning or Heating) ............67
Clock adjust
6-CD in dash .............................50
AM/FM/CD .................................43
Compass, electronic
calibration .................................25
set zone adjustment ...........25, 34
Console ..................................85–86
overhead ..............................83, 88
Controls
power seat ...............................126
steering column ........................95
Coolant
checking and adding ..............304
refill capacities ................308, 326
specifications ..........................326
Cruise control
(see Speed control) ....................92
Customer Assistance ................251
Ford Extended Service
Plan ..........................................336
Getting assistance outside the
U.S. and Canada .....................281
Getting roadside assistance ...251
Getting the service you
need .........................................277Ordering additional owner’s
literature .................................282
Utilizing the
Mediation/Arbitration
Program ...................................281
D
Daytime running lamps
(see Lamps) ................................72
Dipstick
automatic transmission
fluid ..........................................323
engine oil .................................297
Driveline universal joint and
slip yoke ....................................324
Driving under special
conditions ..................238, 244, 248
sand .........................................246
snow and ice ...........................249
through water .................247, 250
Dual automatic temperature
control (DATC) ...........................67
E
Electronic message center ...20, 28
Emergencies, roadside
jump-starting ..........................270
Emergency Flashers .................252
Emission control system ..........319
Engine ........................................331
cleaning ...................................286
coolant .....................................304
fail-safe cooling .......................309
idle speed control ...................302
lubrication specifications .......326
refill capacities ........................326
service points ..................294–295
starting after a collision .........253
Index
340
2010 07+ Explorer Sport Trac(esp)
Owners Guide(own2002), 1st Printing
USA(fus)
